Gaggenau EB 294/295-6 Specification sheet

Operating and Installation Instructions
EB 294/295- ..

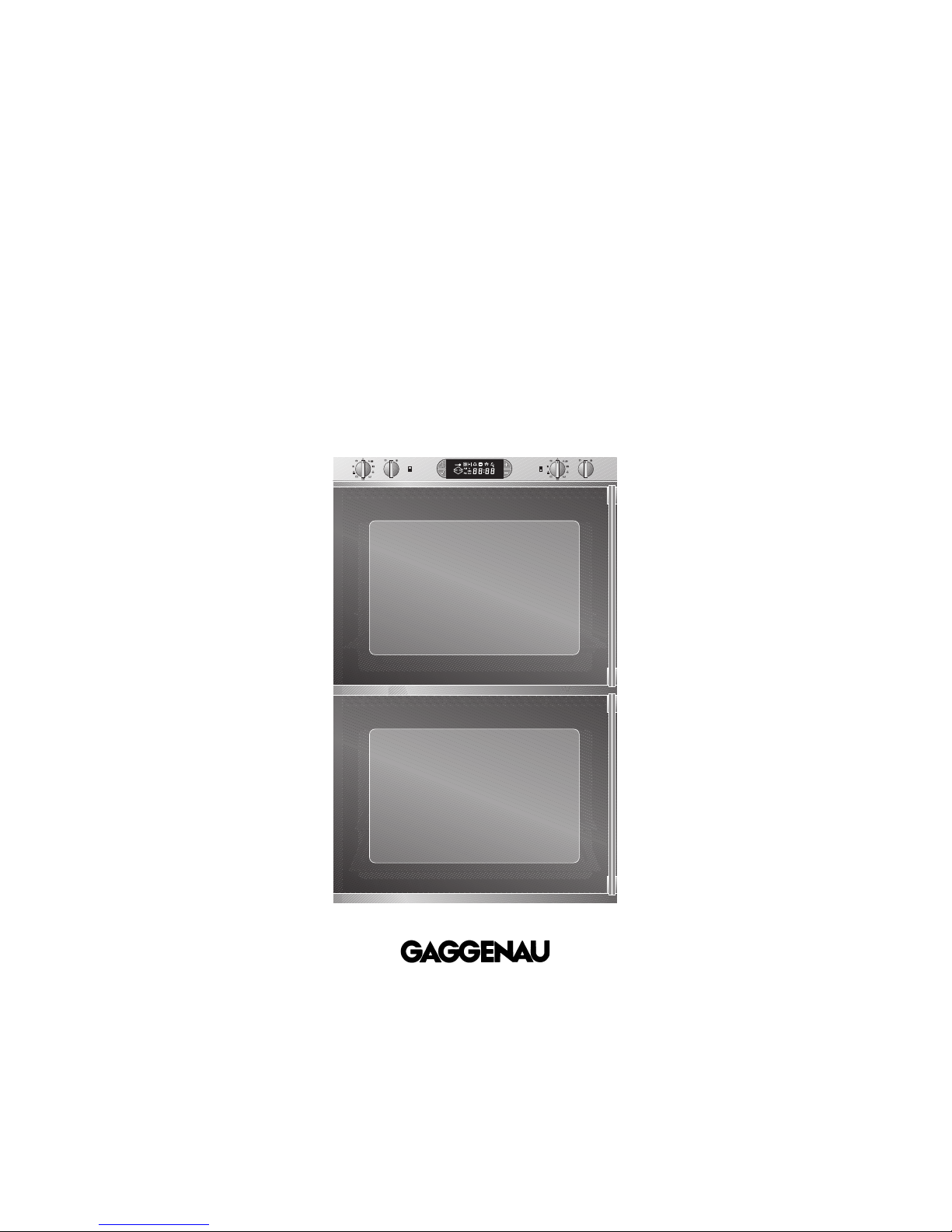

Built-in Double Oven
OO
50
350
400
450
550
500
300
250
200
150
350
400
450
550
500
300
250
200
150

EB 294/295
1
Preface
Important safeguards Page 3
Important instructions Page 4
1. Important notes Page 5-7
1.1 For your safety Page 5
1.2 Operating for the first time Page
1.3 About use Page 7
2. Structure and operating principle Page 8-14
2.1 Structure Page 8-9
2.2 Accessories / special accessories Page 10
2.3 Operating principle of the operating modes Page 11-13
2.4 Special functions Page 14
3. Operation Page 15-28
3.1 Overview Page 15
3.2 Operating the timer Page 1 -20
Time of day Page 17
Short time Page 18
Elapsing timer Page 18
Programming a duration Page 19
Programming a switch-off time Page 20
Duration and switch-off time programming Page 20
3.3 Hot air operation (True convection) Page 21
3.4 Top and / or bottom heat Page 22
3.5 Hot air (True convection) and bottom heat Page 22
3. Broiling Page 23
3.7 Rotisserie Page 24
3.8 Meat probe Page 25-2
3.9 Special functions Page 27-28
Child lock Page 27
Display of the current oven temperature Page 27
Vacation lock Page 27
Options menu Page 28
4. Baking and roasting table Page 29-32
5. Cleaning and care Page 33-3
5.1 Manual cleaning Page 33
5.2 Pyrolytic self-cleaning Page 34-3
. Maintenance Page 37-38
.1 General Page 37
.2 Replacing the lamp Page 37
.3 Disassembly of the front window Page 38
7. Hints and tricks Page 39-40
8. Assembly instructions Page 41-42
8.1 Technical data Page 41
8.2 How to do it Page 41-42

2
Preface
Baking with your new oven will be even
more fun than before.
The appliance offers you the following advantages:
– Very rapid heating up in the hot air and bottom
heat modes.
– The appliance features porcelain interior
(Clean Enamel) and a catalytic converter for
air cleaning.
– Two separate ovens offer you greater flexibility.
– The pyrolytic self-cleaning automatically
achieves an optimum cleaning result.
To ensure that you will be able to use this
appliance in all its diversity, read through the
operating and assembly instructions
conscientiously before operating it for the first
time. The instructions contain important notes on
use, installation and maintenance of the
appliance.
You will find notes on page 3 that you ought to
observe before operating the appliance for the
first time.
The chapters entitled “Structure and operating
principle" and “Operation" will tell you all the
things your oven is capable of doing and how it is
operated.
The chapter entitled “Cleaning and care" will
make sure that your appliance will stay operable
and beautiful for a long time.
We have also compiled some “Hints and tricks"
for you.
And now we wish you lots of fun
with your oven.
O
350
400
450
550
500
300
250
200
150
O
350
400
450
550
500
300
250
200
150
Fig. 1

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or
knobs.
3. To protect against electrical shock do not
immerse cord or plug in water or liquid.
4. Close supervision is necessary when any
appliance is used by or near children.
5. Switch off oven completely when not in use and
before cleaning. Allow to cool before putting on
or taking off parts.
. Do not operate any appliance with a damaged
cord or plug or after the appliance malfunctions
or has been damaged in any manner.
Contact your nearest authorized service agent
(1-800-828-91 5) for examination.
7. The use of accessory attachments not
recommended by the appliance manufacturer
may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or
counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric
burner, or in a heated oven.
11. Extreme caution must be used when moving an
appliance containing hot oil or other hot liquids.
12. Do not use appliance for other than intended
use.
13. To reduce the risk of fire, do not place any
heating or cooking appliance beneath the
appliance.
14. To reduce the risk of fire, do not mount unit over
or near any portion of a heating or cooking
appliance.
15. Save these instructions.
Important safeguards
3

1. a) Proper installation - Be sure your appliance
is properly installed and grounded by a
qualified electrician.
b) Never use your appliance for warming or
heating the room.
c) Do not leave children alone - Children
should not be left alone or unattended in areas
where the appliance is in use. They should
never be allowed to sit or stand on any part of
the appliance.
d) Wear proper apparel - Loose-fitting or
hanging garments should never be worn while
using the appliance.
e) User servicing - Do not repair or replace any
part of the appliance unless specifically
recommended in the manual. All other
servicing should be referred to a qualified
technician.
f) Storage in appliance - Flammable materials
should not be stored in an oven or near surface
units.
g) Do not use water on grease fires - Smother
fire or flame or use dry chemical or foam type
extinguisher.
h) Use only dry pot holders - Moist or damp pot
holders on hot surfaces may result in burns
from steam. Do not let pot holders touch hot
heating elements. Do not use a towel or other
bulky cloth.
2. a) Use care when opening door - Let hot air or
steam escape before removing or replacing
food.
b) Do not heat unopened food containers -
Build-up of pressure may cause container to
burst and result in injury.
c) Keep oven vent ducts unobstructed.
d) Use care when using meat probe,
that it does not contact any heating elements.
e) Placement of oven racks - Always place
oven racks in desired location while oven is
cool. If rack must be moved while oven is hot,
do not let pot holder contact hot heating
element in oven.
f) Accessories supplied with this oven are
intended only for use in this oven.
3.DO NOT TOUCH HEATING ELEMENTS OR
INTERIOR SURFACES OF OVEN -
Heating elements may be hot even though they
are dark in color. Interior surfaces of an oven
become hot enough to cause burns.
During and after use, do not touch, or let clothing
or other flammable materials contact heating
elements or interior surfaces of oven until they
have had sufficient time to cool. Other surfaces of
the appliance may become hot enough to cause
burns.
4.a) Do not clean door gasket - The door gasket
is essential for a good seal. Care should be
taken not to rub, damage, or move the gasket.
b) Do not use oven cleaners - No commercial
oven cleaner or oven liner protective coating of
any kind should be used in or around any part
of the oven.
c) Clean only parts listed in manual.
d) Oven must be in the OFF position before
attempting to attach or install any accessory.
e) Before Self-Cleaning the Oven - Remove
broiler pan and other accessories.
Important instructions
4

5
1. Important notes
1.1 For your safety
You must not operate the appliance if it is damaged.
The appliance must only be connected by an
authorized specialist, paying attention to the
relevant regulations of the power supply companies
and the regional construction regulations.
Observe the assembly instructions!
When connecting electrical appliances and
devices in the proximity of cooking surfaces and
ovens, make sure that connecting cables do not
become jammed under the hot oven door or come
into contact with hot cooking surfaces.
As the user, you yourself are responsible for
maintenance and proper use in the household.
Only operate the appliance under supervision.
Caution: Fire risk! Do not store any combustible
items in your oven. During operation, only leave the
parts in the cooking compartment that you actually
need.
Caution! The appliance and, until the cooling fan is
switched on, also the control panel get hot during
operation. Keep children away !
For technical reasons, simultaneous pyrolytic
self-cleaning of the upper and lower ovens is not
possible.
During the pyrolytic self-cleaning of one oven it is
possible to bake or roast in the other oven. Broiling,
economy broiling and baking stone operation are
not possible.
Please note: The meat probe cannot be used in
combination with the rotisserie. The rotisserie will
not function if the meat probe is plugged in the
socket in the oven.
Note: To avoid jeopardizing the electrical safety of
the appliance, it is forbidden to use high-pressure
or steam jet cleaning devices.
The appliance must be isolated from the power
main during all maintenance. To this end, remove
the power main plug or actuate the corresponding
fuse.
Repairs may only be carried out by authorized
electricians, in order to guarantee the safety of the
appliance.
No warranty claims can be lodged for any damage
resulting from failure to observe these instructions.
Technical modifications reserved.

1.2 Operating for the first time
Before operating the appliance for the first time,
please pay attention to the following notes:
Read through these instructions attentively before
operating your appliance for the first time.
The appliance must be installed and connected by
a specialist.
Remove the packaging from the appliance and
dispose of it properly.
Pay attention to the fact that there are accessories
in the base of the packaging.
Keep packaging elements away from children.
Before operating the appliance for the first time,
make sure that the power main connection is in
proper working order.
After first installation or a power failure, the symbol
(Door Lock) flashes in the display. Please do
not open the oven door! Then, 08:00 and the time
unit symbol flash in the display. You can set the
current time by pressing the + and – keys. When
you turn one of the control knobs or press a key, the
displayed time of day is set as the current time of
day.
Before using the oven for the first time, remove all
removable interior parts (wire rack, tray ...). Now
operate the oven for one hour at 550 °F / 300 °C in
the hot air mode. During this time, pay attention to
ensuring that the room is ventilated well, thus
removing any newness smells.
Thoroughly clean the appliance and accessories
before using them for the first time (see chapter
entitled “Cleaning and care”).
The rating plate for this appliance is visible when
you open the appliance door. An additional rating
plate is included on a separate sheet of the
instructions. For warranty reasons, store this rating
plate in the same location as your operating and
assembly instructions.

7
1.3 About use
The appliance is intended solely for use in the
household and must not be put to any other uses.
Use the appliance to prepare meals only. It must not
be used to heat up the room in which it is installed.
Caution!
You will subject yourself to an accident risk if you
close the door improperly. You might jam and crush
your fingers and hands.
Do not store any combustible objects in your oven
and, when operating the oven, never leave any
items inside the oven compartment other than the
ones needed.
Make sure that the bottom of the oven compartment
is never covered up during operation or lined with
aluminum foil.
Never pour water directly into the hot oven. This
could damage the enamel.
Always preheat your oven in the mode in which you
intend to bake or roast.
Tip: You have a possibility of heating up the
appliance very quickly. To do this, use the hot air
and bottom heat program.
The symbol “Heating Upper Oven” or
“Heating Lower Oven” in the control panel
goes off as soon as the set temperature has been
reached.
Observe caution with oils and fats.
They may overheat and burn easily.
Note!
Fruit acids such as the juice of lemons or plums etc.
should be removed after every baking operation,
thus making sure that they will not cause spots on
the oven’s enamel.
After baking/roasting, open the door comple-
tely or close it. The oven door must not be left
half open as otherwise the control panel and
kitchen furniture may be damaged.
Caution: Risk of burns.
The inside of the door gets very hot during
operation; observe appropriate caution when
opening the appliance. Make sure that the open
door does not swing back when you are standing in
front of the appliance.
Built-in temperature protection prevents over-
heating of the appliance and of kitchen furniture.
Return the "Temperature" knob to "0" after baking.
If malfunctions should occur, first check the fuses in
your household. If there is no fault in the power
supply, consult your dealer or the nearest
authorized Gaggenau service center.
All heating elements and the fan are switched off
when door is opened.
After completion of baking or roasting, the cooling
fan will continue to run for a time and will then
switch off automatically.

8
2.1 Structure
1Oven door
2Socket for meat probe
3Control panel
4Oven lighting
5Broil and top heating elements
Ventilation slots
2. Structure and operating principle
OO
50
350
400
450
550
500
300
250
200
150
350
400
450
550
500
300
250
200
150
Fig. 2
12345
The operation of the upper and lower ovens is
identical using the control panel.
The upper oven has the following additional
features: Rotisserie and meat probe.

7Timer key
8Display with timer
9“Plus” key
10 “Mode" knob lower oven
11 “Temperature" knob lower oven
12 “Confirmation” key
13 Time / temperature display
14 “Minus” key
15 “Mode" knob upper oven
1 “Temperature" knob upper oven
17 “Door Lock" symbol
18 “Child Lock" symbol
19 “Duration", “End" or “Rotisserie” symbol
20 “Short Timer" symbol
21 “Cooking Time" symbol
22 "Pyrolysis" symbol
23 “Meat probe" symbol
24 “Heating Upper Oven” symbol
or
“Temperature Display Upper Oven” symbol
or
“Timer Setting Upper Oven” symbol
25 “Heating Lower Oven” symbol
or
“Temperature Display Lower Oven” symbol
or
“Timer Setting Lower Oven” symbol
2 “Time Unit” symbol
9
Fig. 4
18 19 20 21 22 23
17
24 25 2
OO
350
400
450
550
500
300
250
200
150
350
400
450
550
500
300
250
200
150
Fig. 3
78 9
10 11 12 13 14 15 1

10
2.2 Accessories / special accessories
As standard, your appliance comes with the
following accessories:
– GR 090-054 (2):
Wire rack for cake tins, roasts, grilled pieces and
crockery (Fig. 5)
– KB 091-054 (2):
Baking tray for cakes, biscuits and crisp-up items
(Fig. )
– GP 091-054 (2):
Broil pan for roasts or as a grease collecting tray
(Fig. 7)
– GR 095-054 (2):
Wire rack for broil tray (Fig. 8)
– Rotisserie with support frame (Fig. 9)
– FT 100-0 0:
Meat probe (Fig. 10)
You can order the following special accessories:
– PS 027-001:
Baking stone (Fig. 11) and wooden pizza spatula
– HZ 02 -001:
Heating element for roaster and pizza stone,
variable up to 550 °F / 300 °C (Fig. 12)
Fig.
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Fig. 5
Fig. 7

11
2.3 Operating principle of the
operating modes
Hot Air (True Convection)
In the true convection mode, all prepared meals
are cooked at the same temperature. Diverse or
similar meals can be prepared on several levels
without any transfer of taste. You can bake, roast
and sterilize (can foods) with hot air.
Baking with Hot Air (True Convection)
This is the ideal operating mode for baking several
trays and tins at the same time. (Fig. 13)
Roasting with Hot Air (True Convection)
Meat is evenly browned on all sides. When roasting
on the grid, insert the broil pan one level lower to
collect dripping fat.
Hot Air (True Convection) and Bottom Heat
When this function is used, the bottom heating
element is additionally in operation.
The fan wheel ensures a uniform distribution of
heat. Heat is also generated from below. (Fig. 14)
Top and Bottom Heat
Two heating elements (top and bottom heat) are
operated jointly. When baking with top and bottom
heat, you can only use one level. Best baking and
roasting results are on the second level from below.
(Fig. 15)
This unit allows you to select the top and bottom
heat elements separately. In these modes of
operation you can deliberately choose to bake or
roast food from the top or the bottom.
50
50
50
Fig. 13
Fig. 14
Fig. 15

Broiling
When broiling, food is cooked/roasted at a
temperature of 300 - 550 °F / 150 - 300 °C from
above.
Note: During baking stone operation in the upper
oven it is not possible to broil in the bottom oven.
A distinction can be made between the following
types of broiling:
Temperature-controlled Broiling
During temperature-controlled broiling, the heating
element emits a greater or lesser amount of infra-
red radiation depending on the setting of the tem-
perature selector switch. (Fig. 1 )
This method of broiling is suitable for flat pieces of
meat and for browning or gratins.
Do not forget to turn broiled food!
Broiling with the Hot Air Fan (Convection
Broiling) ensures better all-round warming-up,
even when the wire rack is full. There is no need to
turn the food frequently. (Fig. 17)
Economy Broiling
Only the middle area of the broil heating element is
heated, therefore saving energy when broiling
smaller portions. (Fig. 18)
Do not forget to turn broiled food!
12
50
50
Fig. 1
50
Fig. 18
Fig. 17

Broiling with the rotisserie (upper oven only)
produces a crispy crust and even browning all-
round. (Fig. 19) Insert the support frame for the
rotary spit in the second level from below. Insert the
broil pan one level further down to collect fat.
Please note: The meat probe cannot be used in
combination with the rotary spit. The rotary
spit will not function if the meat probe is
plugged in the socket in the oven.
Baking stone operation (with special
accessories PS 027 and HZ 02 only)
Be it crispy pizza or fresh bread - with the baking
stone you produce baking results that are
comparable to those of a solid stone oven. (Fig. 20)
Note: During baking stone operation in the upper
oven it is not possible to broil in the lower oven.
13
50
Fig. 20
50
Fig. 19

14
2.4 Special functions
Display of the current oven temperature
(Thermotest)
Meat probe
(upper oven only)
Power failure safeguard
Vacation lock
Child lock
Eco program
The current oven temperature of the upper oven is
displayed for a few seconds when you press the
(Confirmation) key once.
The symbol lights up.
The current oven temperature of the bottom oven is
displayed for a few seconds when you press the
(Confirmation) key twice.
The symbol lights up.
Note: When the oven is operated continuously,
temperature fluctuations of up to 10 °F / 5 °C, which
are inherent to the system, may occur.
You can measure the core temperature of your food
exactly using the meat probe.
You can select and set the core temperature
between 33 °F / 1 °C and 210 °F / 99 °C.
The appliance will bridge a power failure lasting
5 minutes. Any longer and the oven will stay off until
turned off and on again manually..
Every oven heating process is cancelled after
12 hours if the oven has not been operated during
this time. This function is not active if the timer has
been programmed.
The child lock prevents inadvertent activation of the
oven.
When you use the power-saving Eco mode, the light
is switched off during the cooking process. If a
cooking time has been programmed, the oven also
switches off the heating element before expiry of
the programmed time to make use of the residual
heat. You can switch the Eco mode on and off in the
options menu.

15
3.1 Overview
Switching on
Switching off
“Temperature" knob:
The temperature can be set within the range from
150 - 550 °F / 50 - 300 °C.
“Mode" knob:
You can choose from 10 programs:
– Hot Air (True Convection)
– Grilling with Hot Air (True Convection Broil)
– Grilling (Broil)
– Hot Air (Convection) with Bottom Heat
– Bottom Heat
– Top and Bottom Heat
– Top Heat
– Baking Stone Operation (with special accessories
baking stone PS 027 and heating element HZ 02
only)
– Economy Broil
– Pyrolytic Self-Cleaning
Switching on (Fig. 21)
Turn the “Temperature" control knob to operate the
appliance.
You can set any temperature by turning the
“Temperature" control knob to the right. The control
knob has latching positions. The first latching
position on the right is the lighting level. The set
temperature is shown on the display for a few
seconds.
Switching off (Fig. 22)
To switch off, turn the “Temperature" control knob
to the 0 position. The lighting goes off and now only
the current time of day appears on the display.
3. Operation
O
350
400
450
550
500
300
250
200
150
O
350
400
450
550
500
300
250
200
150
Fig. 21
Fig. 22
Inserting the baking tray
– Insert the baking tray at the same height on both
sides.
– Make sure that the notch on the baking tray is at
the rear or that the handle is at the front.

1
3.2 Operating the timer
The required mode and temperature can be set
before and after time programming by turning the
“Temperature" or “Mode" knob.
As long as one or several symbol(s) in the display
flash(es), no input is possible and no value is pro-
grammed or an invalid value has been programmed.
All time values are entered by means of the
(Timer), +, – and (Confirmation) keys.
Every input triggers an audible and a visible signal.
If you select a program (e.g. end), but you do not
enter a value, the current time will appear on the
display after 20 seconds.
An entered value (e.g. duration programming) must
be confirmed within 20 seconds (Confirmation
key). Entered values are not stored if they are not
confirmed.
Press the (Confirmation) key if you wish to
confirm a value during programming.
If you press any other key instead, the entered
value will not be stored and will disappear.
You can query set values by pressing the
(Timer) key. The value appears on the display for
around 10 seconds. During this time, you can
modify the value by pressing the + or – key and you
can confirm it by pressing the (Confirmation)
key.
Press the + and – keys at the same time if you wish
to clear a value.
If you have already programmed a time value once
(e.g. a duration) on the appliance, this previously
programmed value will be proposed to you when
programming a value again.
The longer you press the + or – key when
programming a time, the faster the time elapses on
the display.
After completion of time programming, the
corresponding symbol flashes on the display. For
example, if you have programmed an end time, the
(End time) symbol will flash. An audible signal is
also sounded. Heating is deactivated and the oven
lighting goes off. You can restart the previously
selected mode by pressing any key on the display.
You end the baking process by turning the
“Temperature" knob to 0.
Switching from the automatic mode to the “normal
mode":
Turn the temperature control knob back to 0.
The oven will then no longer heat. The previously
programmed time value is retained. An audible
signal sounds after the entered time has elapsed.
Every alarm shuts off after 3 minutes.
Note: All time programming functions can be
programmed simultaneously.

17
Setting the time of day
Proceed as follows:
– Press the (Timer) key 5 times. The (Time
unit) symbol flashes on the display.
The time display shows the currently set time
of day (Fig. 23).
– You can select the required time by pressing
the +or –key.
– Press the (Confirmation) key to confirm the
entered value. An audible signal is sounded.
Note:
After first installation or a power failure, the
symbol (Door lock) flashes in the display.
Please do not open the oven door! Then, 08:00 and
the time unit symbol flash in the display. You can
set the current time by pressing the + and – keys.
When you turn one of the control knobs or press a
key, the displayed time of day is set as the current
time of day.
Fig. 23
5x

18
Short time
You can program a period of time with the short
time function without automatic activation or
deactivation. You can use this mode of operation
even when the appliance is switched off as an egg
timer, for example. The range that can be set is
between ten seconds (00:10) and 23.59 hours
(23:59)
Proceed as follows:
– Press the +key. The short time symbol flashes
(Fig. 24).
– The entered value appears on the display, which
you can modify by pressing the +or –key. The
time unit symbol lights up.
– Press the (Confirm) key to confirm the entered
value.
– The elapsing time is displayed.
Note: Once values have been entered, if nothing is
entered for 5 seconds, the short time starts even if
the key (Confirm) is not pressed.
Once the short time has elapsed, an audible signal
sounds and the (Short time) symbol flashes on
the display. The signal shuts off when you press any
key. The short time reminder can be switched off at
any time by pressing the +and –minus keys at the
same time.
Elapsing timer
Proceed as follows:
– Press the –key (Fig. 25).
– The time, beginning at 00:00, is displayed
(maximum display: value 12 hours).
Thus, you can continuously display the elapsed
cooking time without programming automatic
deactivation.
When you press the –key again, the timer is
switched off.
The last programmed value is proposed to you
each time you program a short time.
Fig. 24
Fig. 25

19
Upper oven
Lower oven
Programming a duration
The appliance is operated for a specific period of
time. The range that can be set is between one
minute (00:01) and 23 hours and 59 minutes (23:59).
Proceed as follows:
– Press the (Timer) key once (upper oven) or
three times (lower oven). The (Duration)
symbol, the (Cooking Time) symbol and the
(upper oven) or the (lower oven) symbol
flash on the display. Dashes appear on the display
(i.e. no value programmed) (Fig. 2 and 27).
– Press the +or the –key to set the required
duration.
– Press the (Confirm) key to confirm the set
value. An audible signal is sounded. The
(Cooking Time) symbol lights up on the display.
Note:
– A signal is sounded after the programmed
duration has elapsed. At the same time, the oven
switches off automatically.
– Press any key to switch off the signal.
– The programmed duration can be queried by
pressing the (Timer) key.
Clearing incorrectly programmed values:
– Press the (Timer) key once (upper oven) or
three times ( lower oven).
– Press the +and – keys at the same time.
An audible signal is sounded.
The end time is displayed automatically if you
press the (Timer) key twice (upper oven) or
four times (lower oven).
Every other time you program a duration, the value
programmed last is proposed to you when you
press the +key.
Fig. 2
1x
Fig. 27
3x
