Gait up PhysiRun Live User manual

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 1
User manual and Outcome parameters
PhysiRun Live
Thank you for purchasing our PhysiRun Live, the easy-to-use system to help select
appropriate footwear, correct running technique and prevent injuries based on shoe-worn
sensors. Physilog®5 sensors measure the movement in the field while a user-friendly
mobile application computes relevant information and provides results with in-lab precision.
This manual introduces how to use the sensors and mobile application for running analysis.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 2
Table of Contents
1. PhysiRun Live elements................................................................................................3
2. Recording with Physilog®5 and the PhysiRun Live – Basics .........................................3
3. Recording with Physilog®5 and the PhysiRun Live – details .........................................4
3.1. Connection to mobile application ...............................................................................4
3.2. Attachment.................................................................................................................5
3.3. Runner and shoe database........................................................................................5
3.4. Start the recording .....................................................................................................6
3.5. Running......................................................................................................................6
3.6. Stop the recording......................................................................................................6
3.7. Show and compare running reports ...........................................................................7
5. Practical Considerations..............................................................................................10
5.1. Charging of Physilog®5............................................................................................10
5.2. Physilog configuration for running measurements ...................................................11
5.3. Handling / Maintenance ...........................................................................................11
5.4. Troubleshoot ............................................................................................................13
6. Running Parameter Overview .....................................................................................14
7. Limited Warranty & Support Policy..............................................................................15
8. Certification claims for physilog®5 sensors.................................................................16
Contact information............................................................................................................17

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 3
1. PhysiRun Live elements
2. Recording with Physilog®5 and the PhysiRun Live – Basics
Attach
Fix the sensors on the feet/
shoes using the rubber
clips or foot attachment
straps. The sensors can be
placed in any orientation.
Start
Select options and start
the recording from the
application. Sensors shine
green and start to blink.
Run
Wait until the two sensors
blink green synchronously
and ask the subject to run
for 10m or more.
Stop
Stop the recording from
the application, the LED
turns orange and twinkles
while sending remaining
data to the tablet.
Display report
Once the files are
transferred to the
application and from there
to the server, the running
report is available.
Connect
Enter login information, go
to Gait analysis and select
“New measure”. Connect
the 2 Physilog® 5 to the
application.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 4
3. Recording with Physilog®5 and the PhysiRun Live – details
3.1. Connection to mobile application
Each time you open the application you need to connect the two Physilog®5 to the mobile
device. Once they are connected you don't need to repeat this procedure when switching
between different parts of the application.
To connect Physilog®5 to the application for running analysis, login with your user name
(email address) and password and enter the “Running Analysis” functions of the app. Make
sure that your device's Bluetooth is turned on and connect it to the internet. There is no need
to pair your Physilog® with the tablet prior to Bluetooth communication.
Click on the “Available Physilogs” refresh button below the picture of
the Physilog®5 on the left of the screen of the application to look for
available sensors. Choose two Physilog® from the list and click on the
“Connect” button beside the sensor name. The name of the sensor
contains the number which is written on the back of the Physilog®5.
Troubleshoot: If a sensor is not detected by the tablet, shortly press the main button of the
sensor to enter detection mode. If the sensor can still not be connected, check that it has
enough battery and is not connected to another mobile device and if necessary ultimately
do a reset of the sensor as explained in section 4.4 Troubleshoot. If the sensor has
incompatible firmware version for using with the app, the app displays an error message
and automatically disconnects from the sensor. If the sensor is blinking after disconnection,
you need to do a soft reset of the sensor (see section 4.4 Troubleshoot). Physilog5 user
manual explains how to update firmware.
When the sensors are connected the button changes to “Disconnect”
and a green dot appears besides the sensor name. You can see a
battery level estimation for each sensor below the battery symbol
and you can check if the sensor is measuring by displaying the raw
data inside the Signals Visualizer part of the app.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 5
For devices with small screen (such as smart phones), the sensor connection screen is
available after clicking on the image of Physilog®5 in the top right corner of the application.
Note: In order to be able to generate the report, the tablet needs internet connection.
Bluetooth 4.0 or higher is required on the mobile device to be able to communicate with
Physilog®5.
3.2. Attachment
The PhysiRun Live is delivered with 2 rubber clips as default accessory. Elastic foot straps
can be bought from the web-shop (shop.gaitup.com) if needed, for example to measure
barefoot running.
To insert the Physilog®5 into the rubber clip, slide the sensor into the clip on one side then
carefully pull the rubber of the opposite side to cover the edge of the Physilog®. The USB
entry of the Physilog® should be oriented in front of the clip opening, so that the sensor can
be charged without removing the clip.

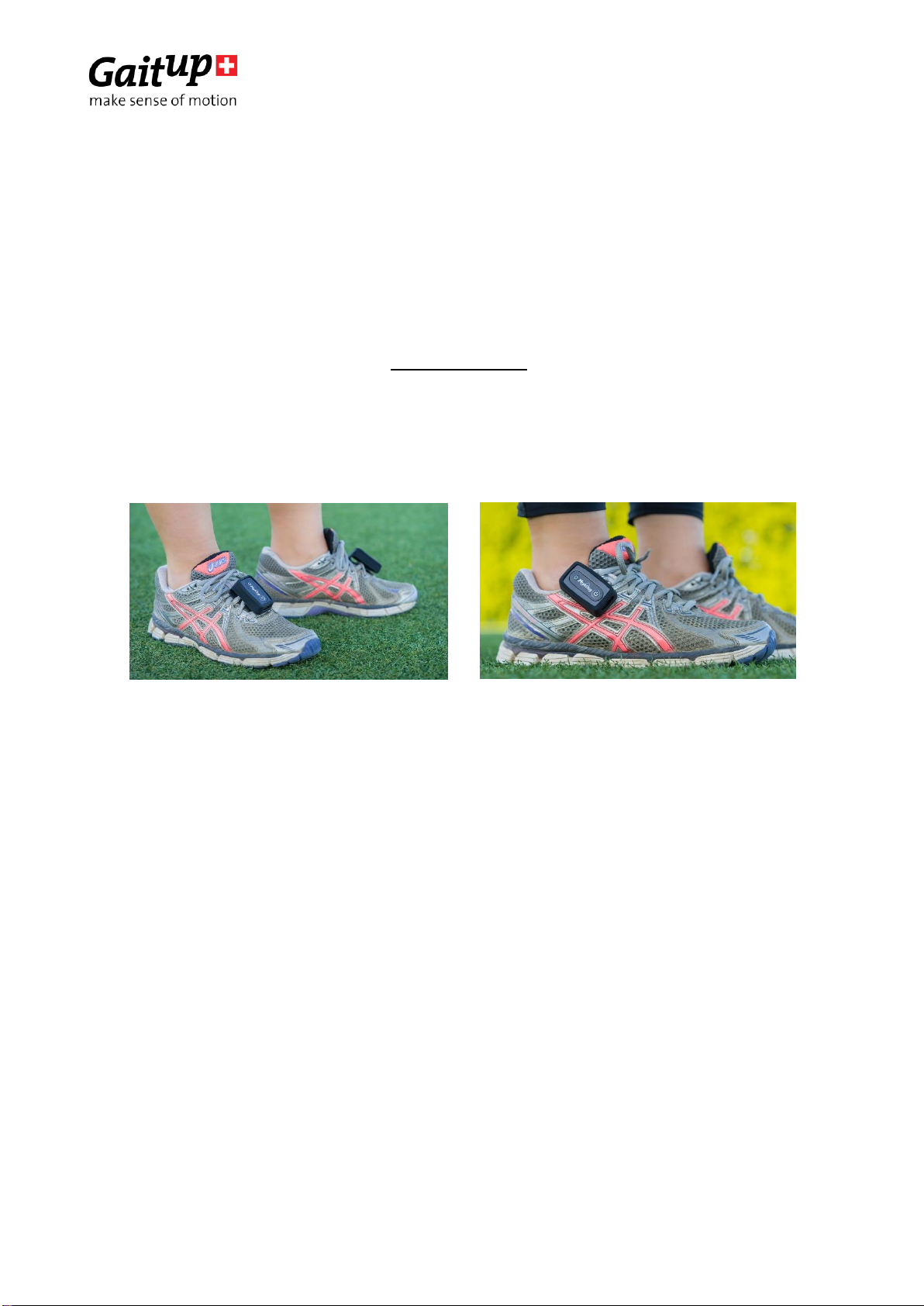

Then fix the sensors on the feet in the shoelaces in a way that they don't move with respect
to the foot / shoe. It is also possible to fix the sensor on the outer side of the shoe (on the
inner side there is a risk of hitting it while running). The exact orientation of the sensor is not
important, the software automatically finds it.
3.3. Runner and shoe database
Upon entering the Running part of the application, you can select from default or previous
“subjects”. This allows to find reports for comparison more easily. Do not enter the real
name of the person but enter a codified runner ID if you want to guarantee anonymity of the
data on the server. You can always modify the subject information after having entered and
saved it by clicking on the pencil symbol below the subject information on the left side of the
screen.
When you have connected to two sensors, you can select or enter the shoe model the runner
is wearing. Previously created models are registered and proposed. You can also enter
some text when clicking on the « Comment » tab besides the “Shoe” tab.
Once the shoe model entered, you can start the running measurement by clicking on “Start”.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 6
3.4. Start the recording
To start the sensors, click on the “Start” button inside the application. The Physilog® LED
will become green for a short moment and then start to blink green, where each blink is two
short green flashes.
The best practice is to start the sensors when they are already attached to the foot just
before starting the test. The recording will start shortly after sending the start signal, during
a short synchronisation period the app ensures that sensors receive synchronisation signals
and when the countdown (3,2,1, Go) has arrived at “Go” you can instruct the subject to start
running. The displayed stopwatch will start at “Go” and stop when you press “Stop”.
3.5. Running
Gait Up's Running Analysis system was made to measure short running tests in straight line
and on flat ground, the available free space should be at least 10m of length. You can also
do the measurement outside if the local is small. When measuring several different protocols
or conditions you should do a measurement for each trial, that is: start and stop the recording
for each test.
The subject should not go further away than 15m from the tablet, otherwise the connection
between the sensor and app may get lost and the file transfer is interrupted. The tablet must
have internet connection to be able to upload the files to the server at the end of the
measurement.
3.6. Stop the recording
To stop the recording click on the “Stop” button in the application. The sensors blink green
3 times, then twinkle orange. The data file transfer to the application is finalized while the
sensors twinkle orange. During this time do not close the application or stop the sensors via
the main button. Once the entire file sent to the mobile device, the sensors stop shining and
the files are uploaded to Gait Up's server where they are analysed. Shortly after you can
display the running report.
Between each start and stop of recording one file is created and stored on the tablet and on
the internal memory of the Physilog®5. The Physilog® stop recording once you click on stop
but stay connected to the application for quick start of the next measurement.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 7

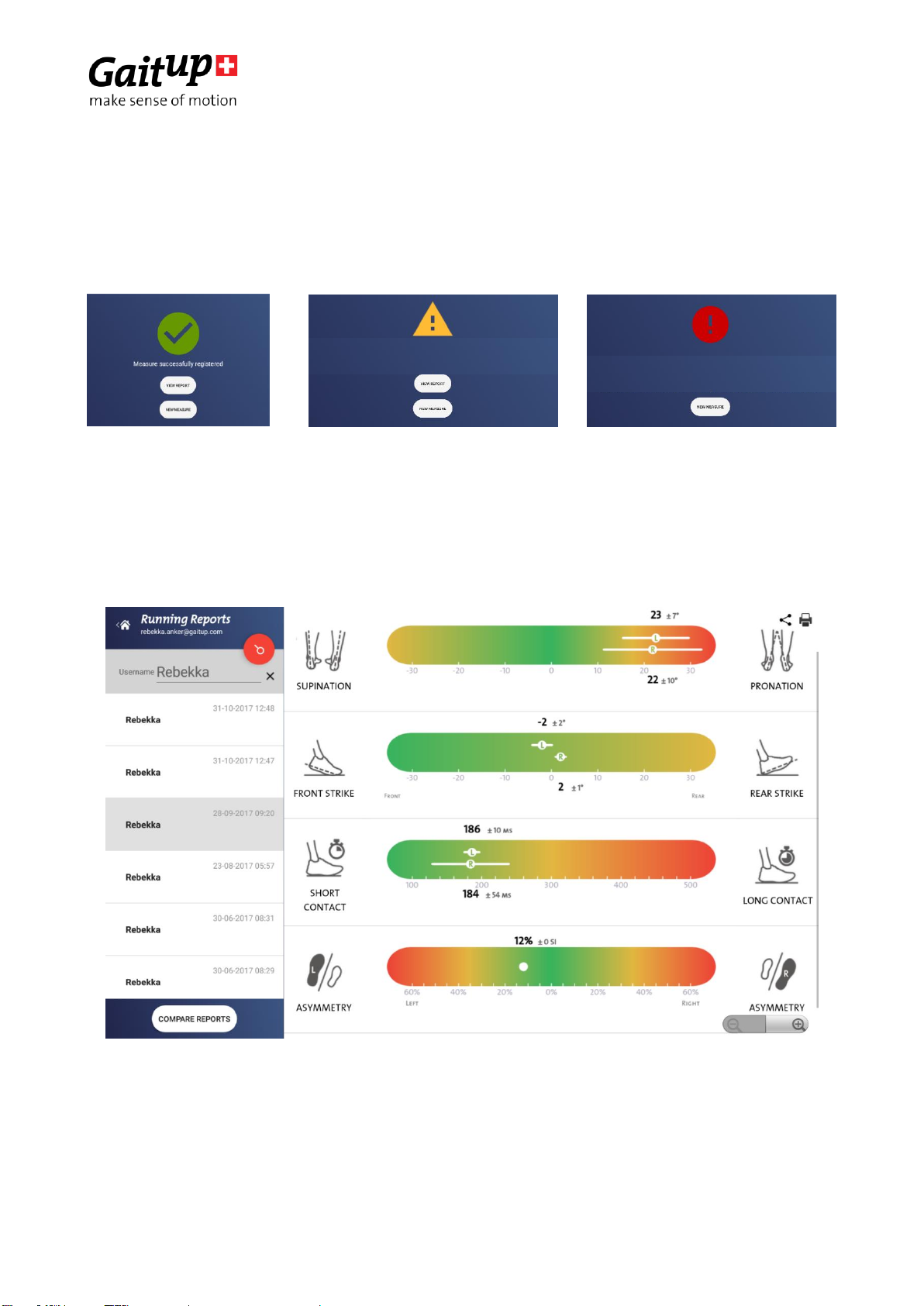

3.7. Show and compare running reports
After the test and analysis of the data a running analysis report can be displayed on the
tablet by clicking on “View Report”. It is also possible to initiate another measurement using
the “New Measure” button. If the results show some irregularities or values outside of normal
range, a warning will be displayed on the screen. If an error appeared during the analysis,
an error message giving some indication about the source is shown.
The “View Report” button leads to the report display view which you can also access by
clicking on “Running Reports” instead of “Running Measure” on the main window of the
application. Select the measurement you just completed from the list of available reports to
display the report. The four output parameters are displayed for each side. A colour bar
indicates if the result is in a good range.
It is possible to compare the results between several reports in the application. Therefore
click on “Compare Reports” and select the tests which you want to compare, then click on
“Generate Reports”. A comparison report is generated where you can easily see differences
between tests.
Warning 4 : The strike angle is outside of normal range (-20,50).
No static period found. Please stand still for a few seconds at the
beginning of measurement.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 8
You can print and share reports from the printer and share icon in the upper right corner of
the report display view in the app. To print you need to have a printer connected to your
mobile. You can share the report via several applications (email, gmail, dropbox etc.)
depending on available services on your mobile.
Additional application features
Other functions such as visualizing the raw signals or recording files on the tablet without
communication with the server are also available in the Android Application. More
information and explanations about how to use these parts are available in the
corresponding user manual (RTKapp_P5_user_manual.pdf).

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 9
4. Gait Up Dashboard
The Gait Up Dashboard allows to manage your
subjects/clients, the shoe database and the reports. You can
access it by clicking on the link above or via the link on the
support page of our website. Login with the same username
and password as in the mobile application.
Manage your clients
Select one client from the list to display the information in the Details window. Click on modify
to have access to change the information related to the client. We recommend to not enter
the name of the tested person but rather an anonymised identification code for data
protection.
Manage your shoe database
Select the Shoes tab to display the list of shoes you already registered. You can add new
shoes or remove unused shoes from the database. It is also possible to filter the shoe
database based on the Brand if you have an extensive list.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 10

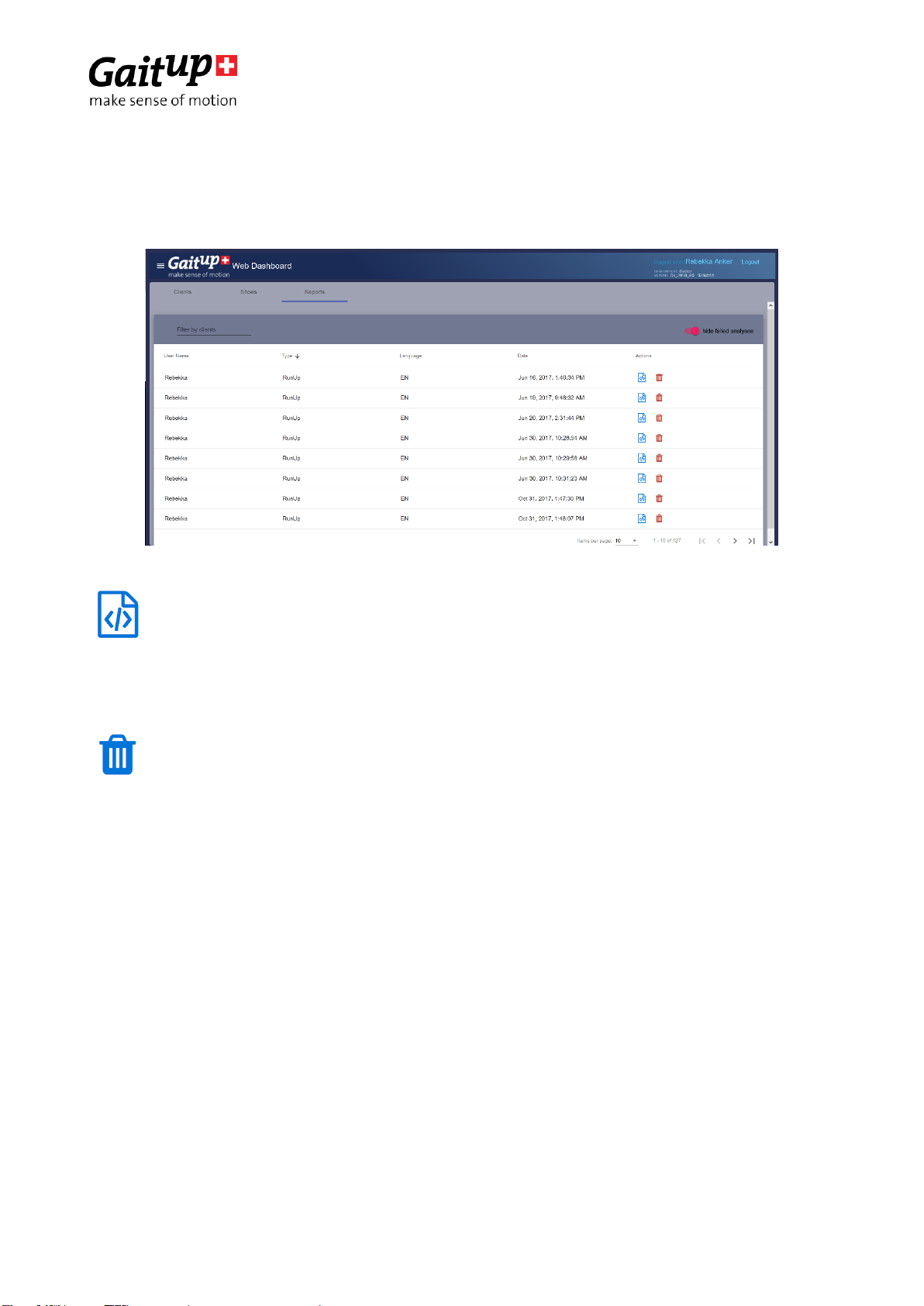

Display and print reports
Select the Reports tab to see the list of all reports collected with your account. You can hide
failed analyses to find reports more easily. Write the Client name in the field above the table
to display reports for this person only.
To display the report like in the mobile application, select this symbol. It opens a
new webpage where the report is displayed. To print the report or export to pdf,
select “Print” in the options of your browser or press “Ctrl + p”.
Remark: on some browsers printing to pdf does not print all figures of the report.
For best results use Google Chrome and select “Print background images” in more
settings.
You can delete reports from the list if you want to remove them using the Bin symbol.
Attention, once you click on this symbol, the reports are deleted without further
notification or confirmation.
5. Practical Considerations
5.1. Charging of Physilog®5
The Physilog®5 is charged via the microUSB port. Plug the microUSB connector of the cable
delivered with the Physilog®5 to the Physilog®. Plug the USB connector to a Computer or
Charger (voltage specifications: 5V, 100mA). Physilog®5 must be turned off for charging.
Do not charge Physilog® when outside temperature is outside of range 0°C to 45°C.
Low battery level is indicated by orange blinking during measurement or if the Physilog®
blinks rapidly 3 times red when starting and doesn't start the recording. When the Physilog®
is discharged, plug it for charging for at least 30 minutes before use. An estimation of the
battery level of the Physilog®5 can be obtained when it is connected to the application.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 11
5.2. Physilog configuration for running measurements
The configuration of Physilog®5 can be modified using Research ToolKit software or the
Android application. This allows to optimise the sensor settings for different applications. For
running measurements the configuration must be set as indicated below, otherwise the
software cannot analyse the data. The correct configuration is pre-installed when you order
a PhysiRun Live, so you don't need to modify the configuration of the Physilog®5.
Sensor
Sampling rate
Sensor range
Accelerometer
256Hz
+/-16 g
Gyroscope
256Hz
+/- 2000 deg/s
Barometer
off
-
5.3. Handling / Maintenance
Physilog®5 should be handled carefully. In particular, it should not receive shocks, such as
fall, crushing, being hit etc. Do not press too hard on the on/off button, this can damage the
button.
Warning: Do not use or charge the Physilog® if the sensor or its case is
damaged. Contact Gait Up about what further action is needed when the case
is damaged. In case the battery is damaged immediately move the device away
from flammable materials and contact Gait Up's customer support.
Sensors can be placed on the foot in any orientation, it will not influence running
measurements.
You need to perform running measurements with two sensors (one on each foot) when
using the application.
To benefit from the maximal battery life, fully charge Physilog® sensors before doing
measurements (LED shines green when connected to computer or charger, you can also
check the battery level with the App).
Physilog®5 can be used outside. Do not use Physilog®5 to measure water-sport
activities without additional waterproofing.
Storage: Store in a cool (0°C – 30°C) and dry place. The provided box is the perfect
place for your sensor.
Cleaning: Sensors can be cleaned gently using alcohol wipes. Before you clean the
device make sure it is turned off and disconnect all cables. Alcohol used in excess may
damage the sensor’s waterproofing. Make sure to use wipes and not put liquid alcohol
directly on the sensor.
Sensors do not need yearly recalibration.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 12
Do not throw Physilog® sensors in the normal trash, dispose of it properly considering
local laws and rules about electronic waste and batteries. Contact Gait Up's customer
support for more information about elimination of Physilog®.
Do not remove the “conf.bin” file from the Physilog, otherwise it will create empty files
(no sensor activated). If this happens, recreate a configuration in the Research ToolKit
software or contact Gait Up's customer support. For firmware v1.1.0 upwards, a default
configuration based on original configuration is created to compensate the removal of
the conf.bin file.
Do not introduce pointy objects into the small hole besides the USB entry, this irreversibly
damages the waterproofing of the sensor.
Safety information:
Physilog®5 includes a lithium battery. This battery may only be charged over a limited temperature range.
Never attempt to dock or charge your Physilog® when the temperature is outside of the range of 0 to 45°C.
Physilog®5 should be charged through USB connection with a computer. An external charger may be used;
note that no charger is provided by Gait Up. Gait Up declines any responsibility due to charger usage.
Supply voltage should be as follows: DC, 5V. Current consumption is 100mA. All external circuits
connected to the Physilog®5 should be «Safety Extra Low Voltage» and «limited Power Sources» circuits
as described in the following standards: IEC60950-1:2005+/A1:2010 & EN60950-
1:2006+/A11:2009+/A1:2010+/A12:2011

Warnhinweise:
Physilog®5 enthält eine Lithium Batterie. Die Batterie soll nur in einer definierten Temperaturspanne
aufgeladen werden. Versuchen Sie nie Ihren Physilog® an den Computer anzuschliessen oder aufzuladen,
wenn die Aussentemperatur nicht zwischen 0°C und 45°C ist.
Sensoren sollen durch eine USB Verbindung mit einem Computer aufgeladen werden. Ein externes
Ladegerät kann benutzt werden; Gait Up empfiehlt und liefert aber kein externes Ladegerät. Gait Up
übernimmt keine Haftung falls ein Ladegerät gebraucht wird.
Die erlaubte Netzspannung ist: DC, 5V. Stromaufnahme beträgt 100mA. Alle an den Physilog®5
angeschlossenen externe Stromkreise sollen die «Sicherheitskleinspannung” und “mit begrenzter
Leistung” Regeln erfüllen, die in den folgenden Normen beschrieben sind: IEC60950-1:2005+/A1:2010
und EN60950-1:2006+/A11:2009+/A1:2010+/A12:2011

Informations relatives à la sécurité:
Physilog®5 contient une batterie au lithium. La batterie ne doit être chargée que si la température
extérieure est dans les limites définies. N’essayez jamais de connecter ou charger votre Physilog®5 si la
température ambiante est en dehors des limites de 0 à 45°C.
Physilog®5 doit être chargé par une connexion USB avec un ordinateur. Un chargeur externe peut être
utilisé; mais Gait Up ne livre et ne recommande pas de chargeur. Gait Up refuse toute responsabilité liée
à l’utilisation d’un chargeur externe.
La tension de réseau devrait être: DC, 5V. La consommation de courant est de 100mA. Tout circuits
connectés à Physilog®5 doivent être «très basse tension de protection» et «source à tension limité»
comme décrit dans les normes suivantes: IEC60950-1:2005+/A1:2010 et EN60950-
1:2006+/A11:2009+/A1:2010+/A12:2011

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 13
5.4. Troubleshoot
Soft reset
The soft reset is the first manipulation which can be done if the Physilog® is not working
properly. To do a soft reset, hold the main button for 15 seconds. The LED shines green,
turns off and finally blinks red/orange and then stops. If the problem persists, fill out the
contact form on the support page (www.gaitup.com/support) or write an email to:
[email protected]. Please indicate Physilog® serial number and describe the problem in
as much detail as possible (number of red blinks, last manipulation, firmware version etc).
LED indications
Situation
Description
Meaning
Connected via
USB
Green continuous
Fully charged
Orange blinking
Charging
Multicolor blinking
Data transfer
Red continuous
Error 1
During
standalone
measurement
Green blinking
Measuring
Green continuous
Waiting for synchronization
Orange blinking
Low battery
During
measurement
started from
application
Green blinking (2 flashes per blink)
Measuring and sending data to
application
Orange blinking (2 flashes per blink)
Measuring, connection to
application to send data lost
Green/orange blinking (1 green, 1 orange
flash per blink)
Measuring and sending data to
application with low battery
Error indications
2 rapid red blinks
Error 2
3 rapid red blinks
Error 3
4 rapid red blinks
Error 4
5 rapid red blinks
Error 5
6 rapid red blinks
Error 6
Troubleshoot for error indications
Error Type*
Troubleshoot
Error 1
Disconnect and replug the Physilog®
Error 2
Contact Gait Up
Error 3
Charge the Physilog®
Error 4
Contact Gait Up
Error 5
Contact Gait Up
Error 6
Empty the memory card
*see LED indication above

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 14
6. Running Parameter Overview
Pronation angle is the sideward inclination of the foot when it hits the ground.
It indicates if the runner's foot touches the ground in an eversion or inversion
position. Negative values are associated with inversion, positive with eversion.
Strike angle indicates the forward inclination of the foot when it hits the ground.
Foot-strike types include forefoot, midfoot and rearfoot/heel strike types; these
are characterized by initial contact of the ball of the foot, ball and heel of the
foot simultaneously and heel of the foot respectively. The associated angle is
positive for heel strike, around zero for midfoot and negative for forefoot strike.
Contact time measures the average time (in milliseconds) of ground foot
contact. It decreases with increasing speed and is generally higher for rear foot
strike runners than mid and forefoot runners.
Subjects
Speed
Contact time
Study
reference
Usain Bolt
40 km/h
83±2ms (100m sprint)
Female Amateur
Athletes (n=30)
21 km/h
140±11ms for sprinters
160±13ms for long-distance runners
Cunninghal
2013
Half-marathon
participants (n=283)
18 km/h
183±16ms for mid/front strike
runners
200±21.3ms for rear strike runners
Hasegawa 2007
Female Amateur
Athletes (n=30)
15 km/h
180±16ms for sprinters
250±20ms for long-distance runners
Cunninghal
2013
Trail Ultra-Marathon
runners (n=18)
10 km/h
249±16ms at start of race
252±17ms after 3h of running
Morin 2011
Novice runners (n=210)
9 km/h
236±26ms
Bredeweg 2013
Asymmetry is the ratio of contact times between sides. Perfect symmetry is
given by a 0% value, values on the left side of the zero appear when left contact
time is higher than for the right side and vice-versa.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 15
7. Limited Warranty & Support Policy
Warranty:
Gait Up offers 12 months parts and labour on Physilog® starting from the date of delivery. If within one year
from the date of delivery to the customer the equipment does not comply with the foregoing Limited warranty,
Gait Up will at Gait Up’s option, repair, replace or refund the purchase price of the defective equipment free of
charge to the customer. Customers requesting repair, replacement or refund are required to ship, the
Physilog® to Gait Up. As a condition of this warranty, customers must contact Gait Up’s customer service for
instructions on and approval of shipment prior to returning any defective Physilog®. The warranty shall not
apply to any product or component thereof which has been repaired or altered by anyone other than Gait Up
in any manner so as, in Gait Up’s judgement, to affect its service ability, or any product been subject to
alteration, accident, misuse, abuse, neglect or abnormal wear. Gait up warrants solely to the original purchaser
(customer). Only the terms expressed in this warranty shall apply and no distributor, corporation or individual
is authorized to amend, modify or extend this warranty in any way.
Gait Up shall have no liability for any consequential, incidental or special damages by reason of any act or
omission or arising out of or in connection with the equipment or its rental, delivery, installation, maintenance,
operation, performance or use, including without limitation any loss of use, lost revenue, lost profits or a cost
associated with downtime. The obligations contained in this paragraph continue beyond the term of this limited
warranty.
Physilog® and Gait Analysis Software are not considered as proper Medical Devices, since they do not support
directly diagnosis, but they provide data which have to be analysed and approved by medical doctors for them
to make their diagnosis. Reclamations regarding medical devices will not be considered.
Support Policy:
Support does not include:
support for 3rd party hardware, software, mailing lists or web content
writing or debugging customer applications and deployments
detailed explanations of the engineering principles behind our software and hardware
support for systemic problems beyond the scope of the actual Physilog® and existing systems software
(IT issues, computer operation)
support for customers whose conduct fails to meet professional standards
Occasionally we engage in more interactive support or consulting. Interactive support is a customer courtesy
and is provided at Gait Up’s discretion. It does not invalidate the support policy described above. There is no
guarantee of performance, timeliness, or establishment of a continuous support relationship. Consulting is
subject to acceptance of a formal statement of work.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 16
8. Certification claims for physilog®5 sensors
IC Statement
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than
that
necessary for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device. This device complies
with
Industry Canada radiation exposure limits set forth for general population. This device must not be co-located or
operating
in conjunction with any other antenna or transmitter.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un
type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les
risques
de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que
la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communication satisfaisante. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement. Le présent appareil est conforme aux niveaux limites d.exigences
d.exposition RF pour la population globale définies par Industrie Canada. L.appareil ne doit pas être installé à proximité
ou
être utilisé en conjonction avec une autre antenne ou un autre émetteur.
FCC statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may
not cause harmful interference, and (2) this device must accept any interference received, including interference that
may
cause undesired operation.
(a) (5) When the device is so small or for such use that it is not practicable to place the statement specified under
paragraph
(a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the
instruction
manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is
marketed.
However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio communications. However, there is no
guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception which can be determined by turning the equipment off and on, the user is encouraged to try to
correct
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC radiation exposure limits set forth for general population. This device must not be co-
located
or operating in conjunction with any other antenna or transmitter.

Gait Up SA
EPFL Innovation Park, Bat C. CH-1015 Lausanne
www.gaitup.com
TVA CHE-145.136.760
PhysiRun Live mobile user manual v1.3.1 Date: 02.05.2019
Copyright © 2018-2019, All Rights Reserved - Gait Up SA. CH-1015 Switzerland 17
Contact information
At Gait Up, we welcome your feedback and questions.
Please contact us at:
EPFL Innov’ Park - C
CH-1015 Lausanne
tel: [phone]
mail: [email protected]
web: www.gaitup.com
Document
Version
Changes
Responsible
Date
0.0.9
Pre-release to public
Rebekka Anker
31 May 2017
1.0.0
Initial release to public
- added certification statements
- corrected to “running” where wrong
Rebekka Anker
04 July 2017
1.0.1
New pictures, adaptations for new
application version (v1.1.2)
Rebekka Anker
17.10.2017
1.1.0
Changes related to release of new app and
firmware versions:
- GaitUp app: v1.5.0
- firmware: v1.2.2
- LED error indication not repeated 3 times
- Possibility to enter comments
- Stopwatch in app
- Correction of negative /positive value side
for pronation/supination and rear/front strike
with new report design
- Gait Up Dashboard introduction
Rebekka Anker
16.02.2018
1.2.0
Changes related to new versions:
. GaitUp app v1.6.0
- P5 firmware v1.2.6
- Sensor charging voltage specifications
updated
- Warning and Error display when report
created
Rebekka Anker
16.07.2018
1.3.0
Change name to PhysiRun Live
Jules Gellaerts
12.12.18
1.3.1
“clients” are now called “subject” in GaitUp
app v1.8.0
Update pictures to new design
Rebekka Anker
02.05.2019
