Galaxy Equipment 177GMIX10 User manual

User Manual
Planetary Mixers
User’s Manual
- 1 -
Please read the manual thoroughly prior to equipment set-up,
operation and maintenance.
177GMIX10 & 177GMIX20 1/2020
User Manual

- 2 -
User Manual
Index
Parts Overview ............................................................... 3
Standard Accessories.................................................... 4
Operation Instructions................................................... 4
Mixer Capacity Chart ..................................................... 5
Troubleshooting ............................................................. 6
Figure 1 Axle Diagram ................................................... 7
Figure 2 Gear Axle Diagram .......................................... 8
Figure 3 Gear Axle I Diagram ........................................ 9

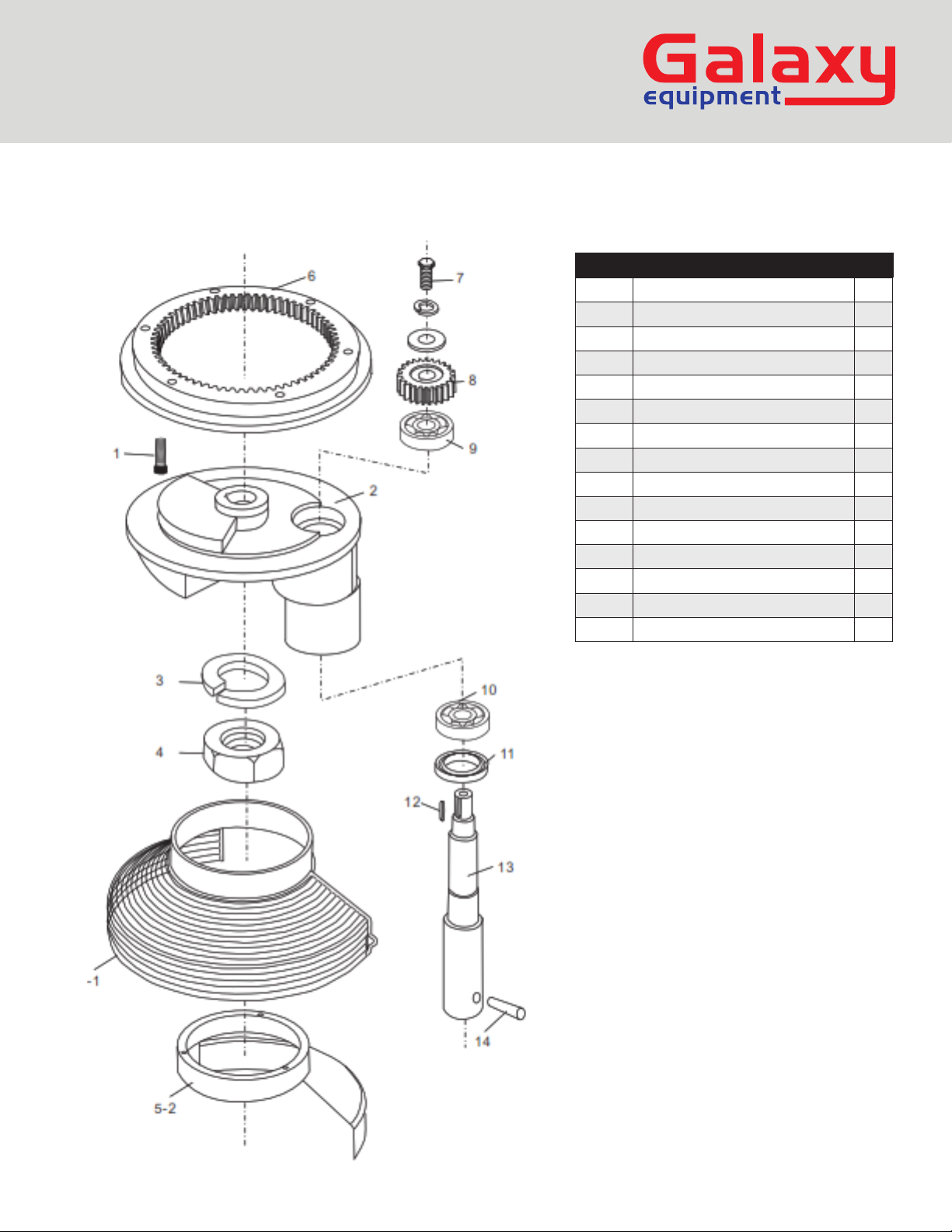

Figure 4 Turning Plate & Mixing Axle Diagram........... 10

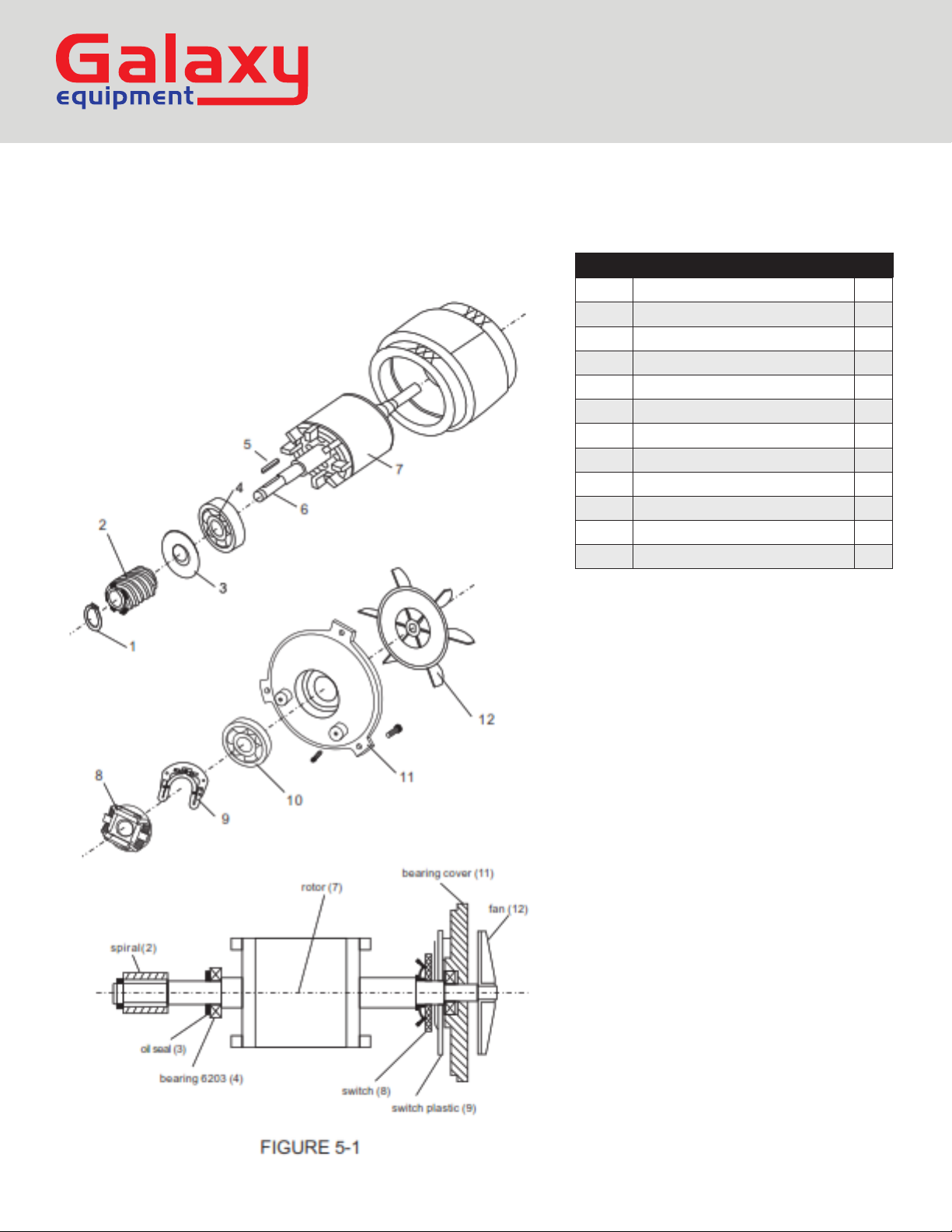

Figure 5 Motor Unit ...................................................... 11

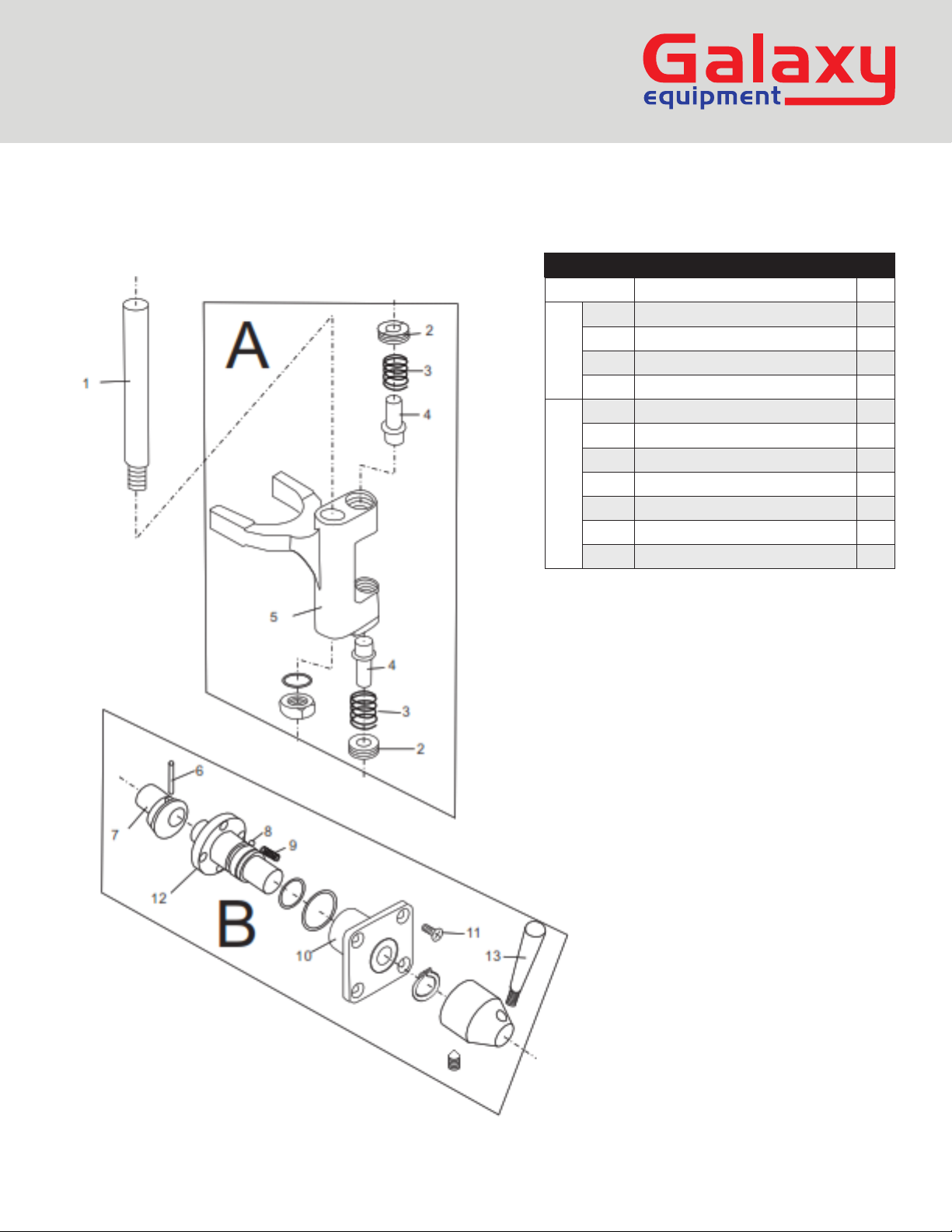

Figure 6 Fork & Speed Shaft ....................................... 12
Warranty Information ................................................... 13

- 3 -
User Manual
ITEM DESCRIPTION #
1 Top Cover 1
2 Center Axle Cover 1
3 Bearing Cover 1
4 Gear Axle 1
5 Fork 1
6 Body 1
7 Safety Net (Out) 1
8 Safety Net (In) 1
9Bowl 1
10 Arm 1
11 Bowl Screw 2
12 Two Axle Cover 1
13 Gear Axle II 1
14 Center Axle 1
15 Motor 1
16 Screw 4
17 Rear Cover 1
18 Name Plate 1
19 Handle 1
20 Screw 4
21 Cover 1
22 Bowl’s Board 1
23 Stand 1
24 Seat 1
25 Rubber Foot (Back) 1
26 Screw 4
27 Rubber Foot (Front) 1
28 Rubber Foot (Front) 1
29 Switch Frame for Bowl 1
30 Screw 2
31 Switch Frame for Safety Net 1
32 Speed Block 1
33 Screw 6
34 Inner Gear 1
35 Screw 1
Parts Overview

- 4 -
User Manual
1312

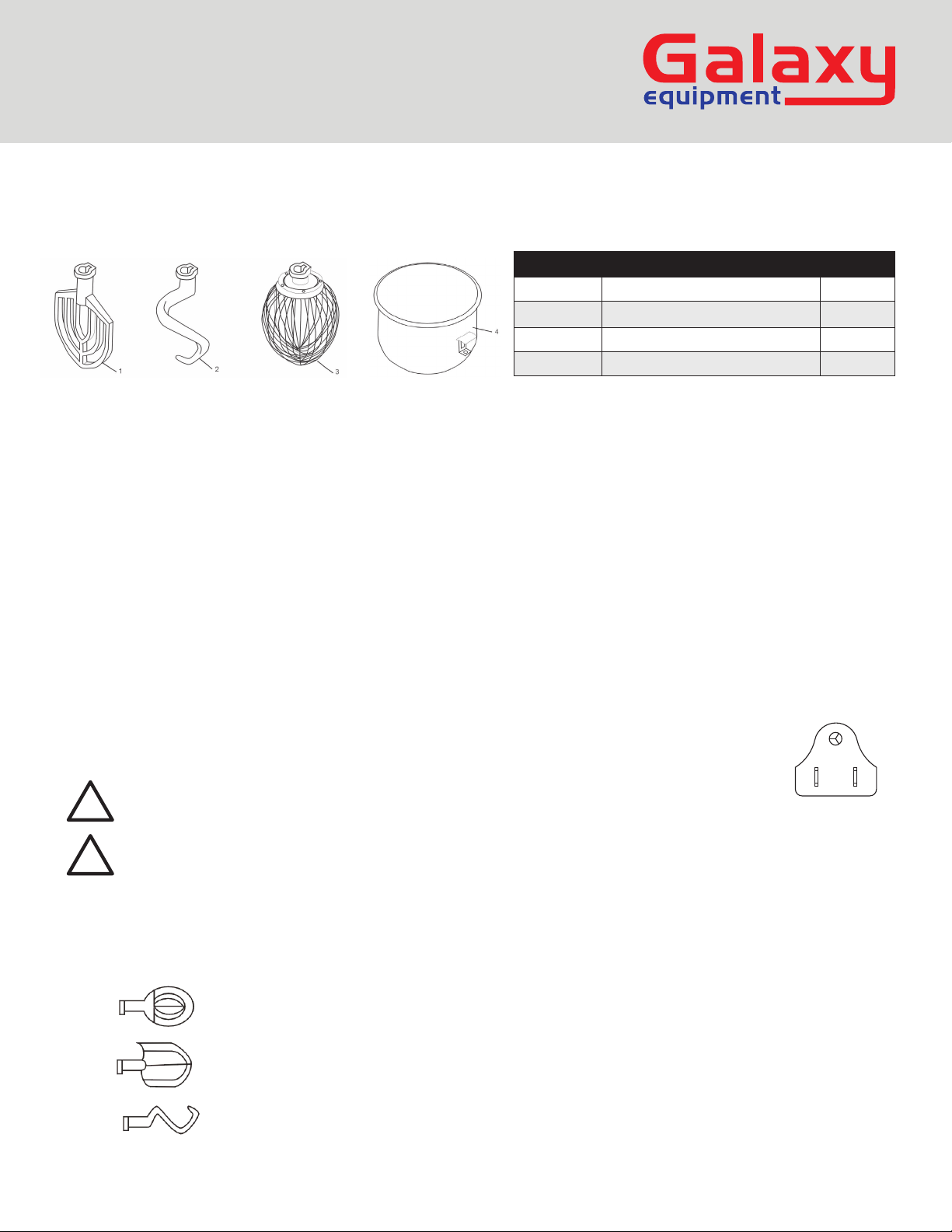

STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110 V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C
Operation Instructions
Standard Accessories
1312
STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C
1312
STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C
Item Description Qty
1 Flat Beater 1
2 Dough Hook 1
3 Whisk 1
4 Bowl 1
Please ensure that your power supply matches your machine
For changing the speed: Please stop machine first before changing speed in order to avoid
damage to the gear box. Also make sure that the bowl is in fully lifted position and the guard is closed.
• Slow Speed is the middle, dough hook setting. The knob will be facing forward.
• Medium Speed is the bottom, flat beater setting. The knob will be straight down.
• High Speed is the top, whisk setting. The knob will be straight up.
Mixing: Always use the correct attachment for the job.
A. Whisk: Suitable for mixing liquids and soft ingredients, can work in all speeds. Do not run
for more than 15 minutes.
B. Flat Beater: Suitable for mixing dry ingredients, can work in low & medium speeds only.
Do not use in high speed. Do not run for more than 15 minutes.
C. Dough Hook: Suitable for mixing dough, can work in low & medium speeds only. Do not
use in high speed, do not run for more than 20 minutes. Absorption ratio must be more than
50%. Refer to mixer capacity chart.
!
!
1312
STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110 V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C
1312
STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110 V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C
1312
STANDARD ACCESSORIES
FIGURE 10
NEMA 5015P
110 V
110V
OPERATION INSTRUCTION
ITEM DESCRIPTION QTY
1 Spatula 1
2 Dough Hook 1
3 Wisk 1
4 Bowl 1
NOTES:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
SPANISH:
• Any agitator is easily installed by sim-
ply raising it onto the mixing axle, and
the rotating it clockwise on the shaft
until into place. To remove, raise the
agitator on the shaft until it clears the
lock and then rotate counter-clockwise
and lower.
• All of tools are precisely fitted to the
bowl, rounded corners and easily
removable for cleaning.
OFF
Please ensure power supply matches your machine
Please ensure power supply matches your machine.
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear box
FOR CHANGING THE SPEED: Please stop machine first
before changing speed in order to avoid damage to the gear bo
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
MIXING: According to the different mixing material.
Choose the different mixing devicews and speed.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes.
A. Be suitable for mix and stir batter, eggs and work with
in speed speed, working time isless than 15 minutes
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
B. Be suitable for mix and stir stuffing and raw material, and
work in middle speed, working time is less than 20 mins.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
C. Middle position is suitable for mixing dough, working time
is less than 30 minutes. Flour/ water quantity is 40%-50%.
A
B
C
NOTES:
• Any agitator is easily installed by simply raising it onto the mixing axle, and the rotating it clockwise on the
shaft until it locks into place. To remove, raise the agitator on the shaft until it clears the lock and then rotate
counter-clockwise and lower.
• All of the accessories are precisely fitted to the bowl, have rounded corners, and are easily removable for cleaning.
• DO NOT hose down mixer.
• DO NOT operate mixer with wet hands.
• ALWAYS unplug mixer from electrical supply prior to any maintenance or repairs.

- 5 -
User Manual
Product Agitator and Speed Maximum Bowl Capacity
10 Qt. / 20 Qt.
Bread and Roll Dough - 60 % AR Dough Hook - 1st only 5 lb. / 20 lb.
Heavy Bread Dough - 55% AR Dough Hook - 1st only 3 lb. / 15 lb.
Pizza Dough, Thin - 40% AR Not Recommended -
Pizza Dough, Medium - 50% AR Not Recommended -
Pizza Dough, Thick - 60% AR Not Recommended -
Raised Donut Dough - 65% AR Dough Hook - 1st and 2nd 2 lb. / 8 lb.
Mashed Potatoes Flat Beater 5 lb. / 12.5 lb.
Waffle or Hot Cake Batter Flat Beater 4 Qt. / 8 Qt.
Egg Whites Wire Whisk 1 Qt. / 1 Qt.
Whipped Cream Wire Whisk 1 Qt. / 2 Qt.
Cake Batter Flat Beater 8 lb. / 20 lb.
When mixing dough ( pizza, bread or bagels), check your "AR" absorption ratio - water weight divided by flour weight.
Above capacities based on 12% flour moisture at 70°F water temperature. If high gluten flour is used, reduce above
dough batch size by 10%.
Example: If recipe calls for 5 lb. of water and 10 lb. of flour, then 5 divided by 10 = 0.50 x 100 = 50 %AR.
• 2nd Speed should never be used on mixtures with less than 50% AR.
• Do not use attachments on hub while mixing.
When calculating the correct size mixer for your application, here are some helpful weights & measures:
• 8.3 lb. = 1 gallon of water – 2.08 lb. = 1 Quart.
Mixer Capacity Chart

- 6 -
User Manual
Troubleshooting
Trouble Possible Causes Solution
The axles can’t work when
operating the machine
Poor contact of the electrical equip-
ment
Check the Plug
The mixing bowl is out of position Moving direction is not correct Change
Leaks oil Sealing washer is damaged Change
Difficult to move the bowl up and down Slideway is rusted Clean the slideway and lubricate
The motor is overheated
and speed is down
The voltage is not enough,
or incorrect speed
Check the voltage or use
lower speed
Noise and overheating Poor lubrication Add or change lubrication
Mixer touches bowl The mixing device or bowl deformed Repair or change the bowl
or mixing device

- 7 -
User Manual
ITEM DESCRIPTION #
1 Baffle 1
2 Roller (Ø8*16) 4
3 Spring 8
4 Engager 1
5 Gear Ring 1
6 Dividing Ring 1
7 Joint Gear 1
8 Bearing Ring 1
9Joint 1
10 Bearing Ring 1
11 Joint Gear 1
12 Ring 1
13 Bearing (6205) 1
14 Oil Seal (Pd30*45*10) 1
15 Sleeve 1
16 Axle 1
17 Key (6*14) 1
18 Key (5*35) 2
19 Key (6*30) 1
20 Bearing (6003) 1
NOTES:
• Be sure to install in correct position (see
Figure 2-1) and lubricate all of the pins in
the sleeve drive when assembling.
• Joint (9) must always be raised and
lowered smoothly. Be sure joint sleeve
is positioned as showin in Figure 2-2.
• Check Oil Seal (14) if oil leaks from
drip cup.
Axle Diagram

- 8 -
User Manual
ITEM DESCRIPTION #
1 Bearing (6201) 1
2 Gear Axle 1
3 Key (5*11) 1
4 Key (5*11) 1
5 Gear 1
6 Stop Ring 1
7 Gear 1
8 Stop Ring 1
9Bearing (6201) 1
Gear Axle Diagram
NOTES:
• The gear shaft and gear shaft I are above
the center of the shaft unit. (see Figure 3-1)
• C-type stop ring (6/8) has to be fixed
when reassembling.
• Be sure that the keys are inserted
for each gear.

- 9 -
User Manual
ITEM DESCRIPTION #
1 Bearing (6201) 1
2 Gear Axle 1
3 Key (5*14) 1
4 Gear 1
5 Stop Ring 1
6 Bearing (6201) 1
Gear Axle I
NOTES:
• C-type stop ring (5) has to be fixed
when reassembling

- 10 -
User Manual
ITEM DESCRIPTION #
1 Screw (M6*25) 6
2 Turning Plate 1
3 Ring 1
4 Nut (M18) 1
5-1 Safety Net (Locomotion) 1
5-2 Safety Net (Immobility) 1
6 Inner Gear 1
7 Screw (M8*15) 1
8 Planetary Gear 1
9Bearing (6203) 1
10 Bearing (6204) 1
11 Oil Seal (Pd25*50*10) 1
12 Key (5*18) 1
13 Mixing Axle 1
14 Pin 1
Turning Plate & Mixing Axle Diagram

- 11 -
User Manual
NOTES:
• If the motor does not work, first verify the
power source and connection. Next,
check for damaged or faulty wiring or
connections inside the mixer. The motor
may not be working because of
inappropriate voltage, broken wires, a
defective capacitor, or a defective
centrifugal governor. Motor damage
may also be caused by bowl overload
during mixing.
• Motor set includes motor axle (6), rotor (7)
and stator.
• Figure 5-1 is a component system diagram
of the motor.
ITEM DESCRIPTION #
1 Stop Ring 1
2 Spiral 1
3 Oil Seal 1
4 Bearing (6203) 1
5Key 4*22 1
6Axle 1
7 Rotor 1
8 Switch 1
9 Switch Plastic 1
10 Bearing (6203) 1
11 Bearing Cover 1
12 Fan 1
Motor Unit

- 12 -
User Manual
Fork & Speed Shaft
NOTES:
• The speed selector/shifting mechanism
is designed for simplicity and reliability.
It features three mixing speeds.
• Speed selection is made by aligning the pointer
of the shifter handle with the proper number on
the shift selector. Stop the mixer before making
any speed changes.
• Apply sealant to the shift selector assembly
and install it.
ITEM DESCRIPTION #
1 Axle 1
A
2 Nut 1
3 Spring 1
4 Shaft 1
5Fork 1
B
6Pin 1
7 Eccentricity Knot 1
8 Steel Ball 1
9 Speed Spring 1
10 Screw 1
11 Shaft 1
12 Handle 1
