Galvin Engineering Flowmatic TZ-IQWAVEB User manual

Version 1, 25th March 2020 Page 1of 6

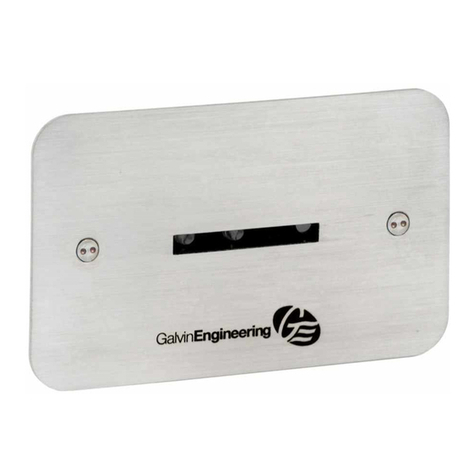

Flowmatic®Wave On Activated Concealed Sensor
With Solenoid, Battery Powered
PRODUCT CODE:
- TZ-IQWAVEB
TECHNICAL DATA
Inlet
½” BSP – Female
Outlet
½” BSP - Male
Headwork
Solenoid
Battery (VDC)
6
Solenoid
Input Voltage
6.75V DC
Power Consumption
-
Cable length
3.2m
Pressure Range (kPa)
Min
50
Max
500
Temperature (°C)
Min
5
Max
80
Finish
SS Faceplate
NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice.
SENSOR DETAILS
•Hardware
Varox 4.2.2
•Software
IQ7VARIR2V 7.15-0256, release 15.5.2015
•Input Voltage
6.75V DC –0.5A
•Cable length
3.2m
•Sensor function
Standard washbasin (with proximity sensor)
•Preset line purge feature interval:
12 hours after last flush, water flow duration 3 min
•Preset continuous run:
5 min
•Sensor range:
Sensor1 and Sensor2 custom made steps
TOOLS REQUIRED
−Power drill
−Spanner or adjustable crescent
−Screw driver

Version 2, 8 April 2020, 2 of 6
Version 1, 25th March 2020 Page 2of 6
DIMENSIONS
−A cavity must be supplied to fit sensor on the back of faceplate as shown, minimum 20mm deep.
−Drill 2 x mounting 6.0x30 deep holes, location as shown.
Note: See below for a typical installation of the sensor position from basin.
Typical Installation
Wall Plugs & Cut-out Details

Version 2, 8 April 2020, 3 of 6
Version 1, 25th March 2020 Page 3of 6
INSTALLATION
INSTALLATION COMPLIANCE: Galvin Specialised products must be installed in accordance with these installation
instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water and/or electrical
supply conditions must also comply tothe applicable national and/or state standards. Failing to comply with these provisions
shall void the product warranty and may affect the performance of the product.
1. Fit solenoid
−Before installation, all lines must be flushed. We
recommend that a line strainer be installed prior
to the solenoid to eliminate any foreign material.
−Ensure the solenoid is mounted using the 2
anchor points shown and is in a suitable
location.
−Connect mains water and the outlet using
thread tape/sealant.
2. Fit faceplate
−Before fitting the faceplate refer to the Dimensions
section to ensure a suitable location has been selected
for correct operation.
−Fit the supplied wall plugs following the Dimensions
section.
−Ensure the faceplate is orientated correctly. On the rear
of the face plate (pictured) is a sticker indicating the
correct orientation.
−Fit and secure the faceplate using the supplied screws
and tool.
Do not remove the black label covering the
sensor until the tap is to be commissioned.
3. Fit connections and test
−The extension cable can be used for either the battery or the solenoid.
−Connect the solenoid to either of the male connections on the rear of the sensor and the battery to the female
connection (as shown).
−Remove label covering the sensor.
−Start sensor; Refer to the following section –Sensor Setting Instructions
−Check for any leaks and correct operation.
Water
Out
Water In
Anchor
Point
Face Plate Rear View

Version 2, 8 April 2020, 4 of 6
Version 1, 25th March 2020 Page 4of 6
SENSOR SETTING INSTRUCTIONS
Signs
and
symbols

Touch function

Hand/object within sensor area

Water flows

LED flashes Green

Water flow stops

LED flashes Red
H –hours / min. –minutes / sec. - seconds
FUNCTION
PROCEDURE
FEEDBACK
SIGNAL
INFORMATION
DEFAULT
SETTING
RANGE
Via IQUA
Touch
First startup
After
installation
1x app. 4 sec. till

Remove hand/object from sensor
area
-.
-
wait
 + 
2x/sec., keep out of sensor
area
wait till
1x
Confirmation, ready for operation
Temporary
off
«Cleaning
mode»
Activate
1x app. 2 sec. till
1x
Extended function mode is active
2 min.
2x a app. 0.5 sec

Pulsing during active function
Temporary
off
Stop
1x app. 2 sec.
1x
Manual stop
or automatic
1x
Automatic after preset time
Continuous
run
Activate
1x app. 2 sec. till
1x
Extended function mode is active
5 min.
0.5-20 min.
(in 0.5
steps ) min.
1x minimum 3 sec.
(max. 5 sec.)

Water flows after releasing
Continuous
run
Stop
1x  app. 2 sec.

Manual stop
or automatic

Automatic after preset time
Follow up
Time control
For normal
operation
Set / program
1x app. 2 sec. till
1x
Extended function mode is active
1 sec.
0-10 sec.
1x app. 5 sec. till
1x
1x 0 - 10 sec.
Keep touched
 + 
1x/sec., water flows during
touching - releasing defines
duration
after releasing
1x
Confirmation, ready for operation
XXX
XXX
XX
X

Version 2, 8 April 2020, 5 of 6
Version 1, 25th March 2020 Page 5of 6
Time of water
flow For
continuous
run
1x app. 2 sec. till
1x
Extended function mode is active
5 min.
0.5-20 min
(in 0.5 min
steps)
1x minimum 3
sec. (max. 5 sec.)
 + 
Touch max. 5 sec., water flows
after releasing, number of (1x-
40x) shows current setting
1x keep touched
till

1x - 40x
1x =0.5 min. .... 40x = 20.0
min.
releasing defines duration
after releasing

+

1x
check / confirmation of setting by
repeating number of (1x - 40x)
according to setting
line purge
feature
activate /
deactivate
<< Automatic
flush on set
interval>>
(time of
waterflow: 3
min)
1x app. 2 sec. till
1x
extended function mode is active
12h
Off
12 h
24 h
48 h
1x app. 25 sec. till
1x - 4x
 1x= off,  2x=12h,  3x= 24h,

4x= 48h ignore flashes after 5 sec.
and 10 sec. –keep touched till 
1x - 4x after app. 25 sec.,
releasing defines interval
Wait till
1x
Confirmation, ready for operation
restart
electronics
1x app. 2 sec. till
1x
extended function mode is active
2x a app. 0,5 sec

pulsing during active function
1x app. 5 sec. till
4x
1x/sec.
Release and wait till

+

1x/sec., keep out of sensor
area
Wait till
1x
confirmation, ready for operation
TROUBLESHOOTING
PROBLEM
CAUSE
RECTIFICATION
Sensor Not Responding
−Damaged or scratched lens
−Sensor length to short
−Lead damaged
−No power
−Waving hand too fast
−Replace the sensor unit
−Adjust beam to correct length.
−Replace connected item.
−Check power is on or replace battery
−Slow down the action in front of the
sensor
False Activation
−Sensor length too long
−Reflection from a light source
−Adjust sensor length to correct length
−Re-align sensor or shield light source
Water is not flowing
from outlet
−Water is off
−Solenoid isn’t activating
−Turn on mains water
−Remove and check the solenoid for debris.
Clean and re-install. Replace solenoid if faulty.
