SandPRO™POOL FILTER SYSTEM
OWNER’S MANUAL
MODELS 35D (item 4706), 50D (item 4710), 75D (item 4711) and 550D (item 4728)
MODEL 35D (item 4706)
MODEL 50D (item 4710)
MODEL 75D (item 4711)
Sand not included. USE ONLY #20 Silica Sand with a particle size of 0.45 mm – 0.55 mm
IMPORTANT
SAFETY RULES
Read all instructions BEFORE assembling and using
this product. KEEP THIS MANUAL.
ENGLISH
IMPORTANT
DO NOT RETURN PRODUCT TO STORE
For technical assistance and missing parts, call Customer Service toll-free
1.888.339.2546
(press 135 at any time)
Monday through Thursday, 8:00 am to 5:00 pm MST
Friday, 8:00 am to 2:00 pm MST
Please visit our website, www.game-group.com, for potential updates to these instructions.

2SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE ASSEMBLING AND USING
THIS PRODUCT. FAILURE TO FOLLOW INSTRUCTIONS CAN CAUSE
SEVERE AND/OR FATAL INJURY.
YOUR POOL FILTER SYSTEM HAS BEEN ENGINEERED AND MANUFACTURED
TO OUR HIGHEST STANDARD FOR DEPENDABILITY, EASE OF OPERATION
AND SAFETY. WITH PROPER CARE, IT WILL GIVE YOU YEARS OF DURABLE,
TROUBLE-FREE PERFORMANCE. THANK YOU FOR YOUR PURCHASE.
IMPORTANT
DO NOT RETURN PRODUCT TO STORE
For technical assistance and missing parts, call Customer Service toll-free
1.888.339.2546
(press 135 at any time)
Monday through Thursday, 8:00 am to 5:00 pm MST
Friday, 8:00 am to 2:00 pm MST
Please visit our website, www.game-group.com, for potential updates to these instructions.

SAVE THESE INSTRUCTIONS3
TABLE OF CONTENTS
1. Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4. Parts List/Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. Connecting the Filter System. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8. Valve Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9. Filter Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
10. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
11. Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
12. Limited Warranty Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
13. Appendix: Exploded Parts Diagram . . . . . . . . . . . . . . . . . . . . . . . 18
IMPORTANT
Clean, safe swimming pool water is a combination of two factors; filtration and water chemistry balance. One without the other
will not give clean water.
The sand filter removes suspended particles but does not sanitize your pool. Pool chemistry is a specialized area and you should
consult your local pool supply retailer or service specialist for details.
Operate your filtration system each day to achieve at least one complete turnover of your pool water.
Maintain a free chlorine level of 1 to 3 ppm and a pH range of 7.2 to 7.6 to keep your pool properly sanitized. Insufficient chlorine
or an out of balance pH level will permit algae and bacteria to grow and make it difficult for your filter to clean the pool water.

4SAVE THESE INSTRUCTIONS
2. GENERAL INFORMATION
This manual provides information relating to the installation, utilization and maintenance of the Pool Filter System. The pump included
with the filtration system is a horizontal, self-priming centrifugal pump. For the pump to function correctly, the water temperature must
not exceed 104°F/40°C. The filter included in the filtration system is equipped with a container drainage system, pressure gauge and
built-in container components. The filter container comes ready to plug-in and is supplied with a user-friendly 4 way valve, an approved
filter pump with hair and lint basket and a plastic base for ready on-site mounting.
How Sand Filtration Works
The Pool Filter System is designed to use special silica sand to remove dirt particles from pool water. Filter sand is loaded into the filter
tank and functions as a permanent dirt and debris removing medium. Pool water, which contains dirt particles, is pumped through
the intake hose leading from the pool to the filter tank and is directed by the filter control valve to the top of the filter tank. As water
is pumped through the filter sand, dirt particles are trapped by the bed of sand and filtered out. The cleaned/filtered water is then
returned from the bottom of the filter tank, through the control valve and back to the pool through the return hose. This sequence is
continuous and automatic and provides total recirculation of pool water through your filter and hose connections.
After a period of time, the accumulated dirt in the filter causes a resistance to the flow of water and an increase in pump pressure (psi).
When this happens, it is time to clean (backwash) the filter. To backwash the system, you must change the valve to the backwash posi-
tion. When in backwash mode, the water flow is automatically reversed through the filter so that it is directed to the bottom of the tank,
up through the sand, which flushes any trapped dirt and debris out through the waste line. Once the filter is backwashed and cleaned
of dirt, the control valve should be moved into the rinse position to allow the sand to settle. After rinsing, the filter valve should be
changed back to the filtration position to resume normal filtering.
1. SAFETY WARNINGS
READ ALL WARNINGS BELOW. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
• RISK OF SUCTION ENTRAPMENT HAZARD, WHICH, IF NOT AVOIDED CAN RESULT IN SERIOUS INJURY
OR DEATH.
• Do not block pump suction at the pump or in the pool as this can cause severe injury or death.
• Electrical wiring MUST be installed by a trained professional and adhere to local code and regulations.
• Avoid electric shock. DO NOT USE power extension cords.
• Connect ONLY to a Ground-Fault Circuit Interrupter (GFCI) power outlet. Consult a qualified, professional
electrician for safe and proper installation of the required electrical outlet.
• Incorrectly installed equipment may fail, causing severe injuries or damage to the pump-filter system.
• Never place or submerge the filter and/or pump in water.
• Trapped air in the pump-filter system may cause the tank cover to be blown off which can result in death,
serious injury, or damage to the pump-filter system. Ensure all air is out of system before operating.
• NEVER use the valve lever as a handle to carry or lift the filter.
• NEVER change the position of the 4 way valve while the system is operating. ALWAYS unplug the system
first.
• Install this product per your local electrical code and at least 10 feet (3.05m) away from the pool
to prevent children from using the system to access the pool.
• Never PLUG or UNPLUG this unit from an electrical source while standing in water or with wet hands.
• NEVER service this unit with the electrical power cord connected.
• Do not use any petroleum based lubricant. Petroleum based products will destroy plastic parts.
• Do NOT operate the system while the pool is in use.
• KEEP CHILDREN AWAY from all electrical equipment.
• NEVER ALLOW CHILDREN TO OPERATE THIS EQUIPMENT.
THESE SAFETY WARNINGS ARE NOT INTENDED TO INCORPORATE ALL POSSIBLE INSTANCES FOR RISK
AND/OR SEVERE INJURY.

SAVE THESE INSTRUCTIONS5
Powering the Filter Pump
It should be noted that the Pool Filter System does not have an on/off switch. Rather, power to the filter pump is connected and
disconnected by means of plugging in and unplugging the power cord from the power source. It is important that you read and follow
the instructions on proper power supply sources (see Section 5, Power Source Requirements) to avoid overloading the pump motor
and/or electric shock.
Sand & Initial Preparation
The Pool Filter System requires a specific type of sand (not included) for optimum operation: namely, silica sand with a particle size
of 0.45 mm - 0.55 mm. You can purchase this sand at most pool supply stores. While the sand will come packaged, it is important that
the sand be cleaned prior to running the filter system in filtration mode (see Section 9, Filter Operations).
Installation
Read and understand this manual carefully before installation. Failure to follow all instructions may result in electric shock, serious
personal injury or death.
3. TECHNICAL SPECIFICATIONS
SandPRO 35D (item 4706, 1/3 hp) NOTE: Requires 25 lbs (11.3 kg) not included
Item U.S. Units Metric Units
Pump Flow Rate 2220 GPH 8.4 m3/hr
Design Flow Rate 660GPH 2.5 m3/hr
MAX Operating Pressure 40 psi 2.75 Bar
Filtration Area 0.53 ft2 0.05 m2
Rated Voltage 110 V 110 V
Sand Volume 25 lbs 11.3 kg
SandPRO 550D (item 4728, 1/2 hp) NOTE: Requires 25 lbs (11.3 kg) not included
Item U.S. Units Metric Units
Pump Flow Rate 2,400 GPH 9.1 m3/hr
Design Flow Rate 912 GPH 3.5 m3/hr
MAX Operating Pressure 40 psi 2.75 Bar
Filtration Area 0.76 ft2 0.07m2
Rated Voltage 110 V 110 V
Sand Volume 25 lbs 11.3 kg
SandPRO 50D (item 4710, 1/2 hp) NOTE: Requires 50 lbs (22.6 kg) not included
Item U.S. Units Metric Units
Pump Flow Rate 2,400 GPH 9.1 m3/hr
Design Flow Rate 912 GPH 3.5 m3/hr
MAX Operating Pressure 40 psi 2.75 Bar
Filtration Area 0.76 ft2 0.07m2
Rated Voltage 110 V 110 V
Sand Volume 50 lbs 22.6 kg
SandPRO 75D (item 4711, 3/4 hp) NOTE: Requires 75 lbs (34 kg) not included
Item U.S. Units Metric Units
Pump Flow Rate 3,120 GPH 11.8 m3/hr
Design Flow Rate 1,392 GPH 5.3 m3/hr
MAX Operating Pressure 40 psi 2.75 Bar
Filtration Area 1.16 ft2 0.11 m2
Rated Voltage 110 V 110 V
Sand Volume 75 lbs 34 kg

6SAVE THESE INSTRUCTIONS
4. PARTS LIST/REFERENCE (some parts may be pre-assembled)
Before starting installation, check to make sure all parts are present in package. Parts listed as description (quantity)
Pump, Strainer Housing, Basket & Lid (1) Pump, Strainer Basket & Lid (1) Filter tank (1)
(only model 35D, item 4706, shown assembled) (shown assembled)
4 Way Valve (1) Manifold (1) Base Plate (1)
Filter Drain Plug Assembly (1) Flange Clamp (1) Tank Large O-Ring (1)
Hose Clamp & Tip (2) Hose Adapter (5) Hose Adapter O-Ring (3)
Waste (Backwash) Plug (1) Short Intex adapter (2) Short Intex Adapter Gasket (2)
Sand Shield (1) 1¼" (32mm) Hose (1) Pressure Gauge (1)
Pressure Gauge Plug (1) Pump Mount Screw & Washer (4) Flange Screw & Nut (2) Pump Drain Plug & Gasket (1)
Note: Some parts may be pre-installed at the factory. Parts not shown to scale.
Owner’s Manual

SAVE THESE INSTRUCTIONS7
5. GETTING STARTED
Unpacking Your Filter System
This product requires assembly.
Carefully remove the product and all parts. Make sure all items listed in the Parts List/Reference are included. Please note that some
parts may be pre-assembled.
Inspect everything carefully to make sure nothing is damaged.
Do not discard packing material until you have satisfactorily operated the product.
If any parts are missing or damaged, please call the number listed on the front page of this manual.
NOTE: Some parts may be located within the filter tank. To access these parts you must remove the tank cover.
Tools & Equipment Required
The following items are not included with your new filter system, but will be required for proper installation and operation:
• ¼" Blade screwdriver
• #2 Phillips screwdriver
• Silicone based lubricant
• Ground-Fault Circuit Interrupter (GFCI) power outlet – Must be installed by a certified electrician
• One 1½" (38mm) backwash hose
IMPORTANT: REQUIRES #20 SILICA SAND NOT INCLUDED SEE TABLE ON PAGE 5
The above equipment list is based on the assumption that your above-ground pool is assembled, filled with water and that your pool
is equipped with the necessary filtration hoses needed to operate with a filter (cartridge or otherwise). If your pool is not assembled,
please refer to the pool’s installation manual for details. If you do not have hoses for your pool’s intake and return, you will need to
purchase the hoses from a pool supply store.

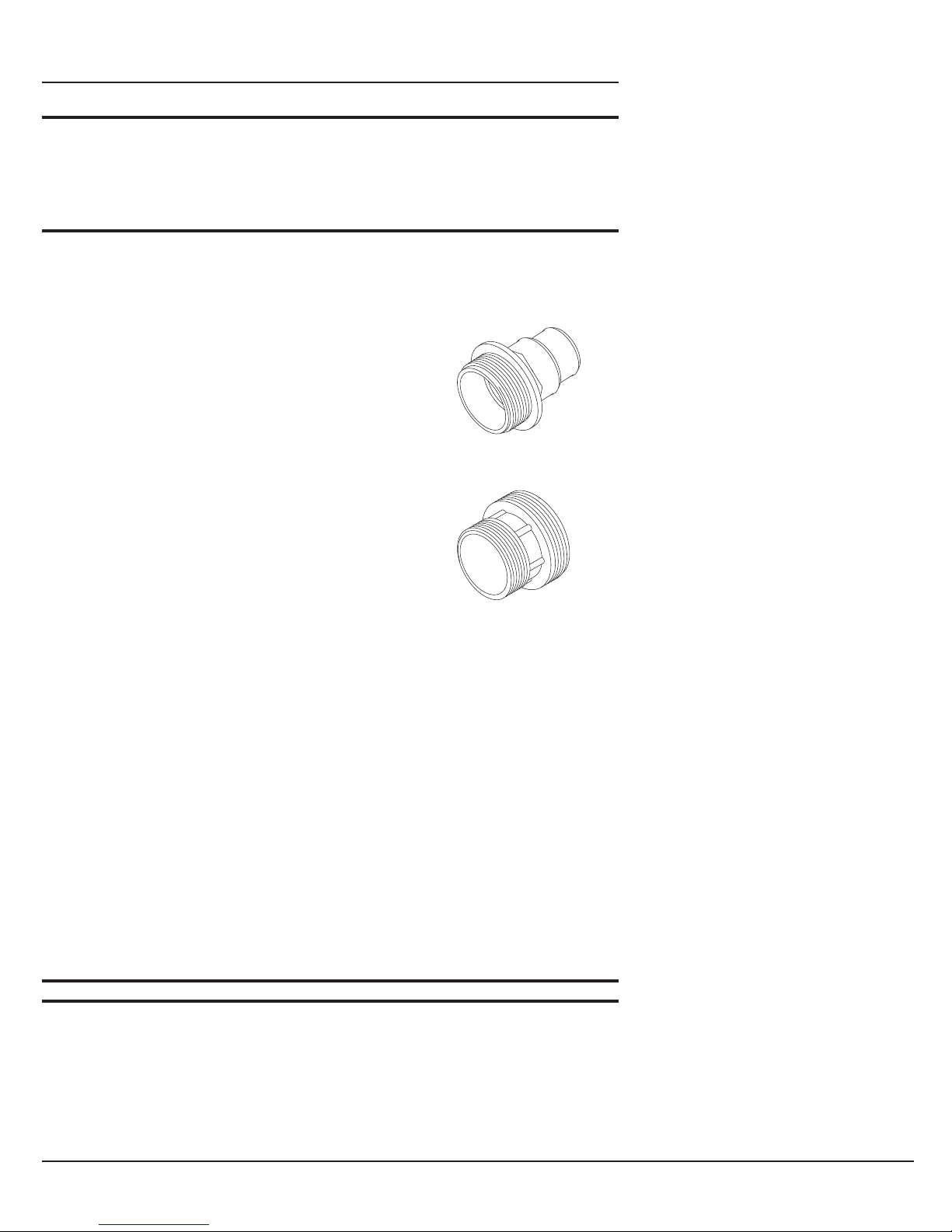

This Pool Filter System is designed to connect to pools with standard 1¼" or 1½" (32mm or 38mm) diameter hose connectors and has
2¼" (57mm) hose adapters for INTEX® pools. If your pool has a hose connector with a different size and/or type, you may need to
purchase an adapter at your local pool supply store or hardware retailer.
Know Your Pool
Before you begin installation, it is a good idea to know certain specifications of your pool:
• How big is your pool?
• How many liters/gallons does it hold?
• What size hose does it use? (i.e. 1¼" dia, 1½" dia or 2¼" dia (32mm, 38mm or 57mm))
• What kind of hose connection does it use? ( i.e. threaded/unthreaded)
Filter Location
The Pool Filter System needs to be located on a 2 x 3 ft (0.6 x 0.9 m) completely level, hard surface lower than the pool’s water level
and away from the pool to prevent access to children. The hard surface may be made of concrete, gravel, patio pavers, etc.
Power Source Requirements
This system is equipped with a standard electrical cord and plug which should only be connected to a power outlet that has been
installed by a professional electrician and adheres to local codes and regulations. To AVOID electric shock, serious personal injury
or death, power cord extensions should NOT BE USED. DO NOT handle power cords or equipment with wet hands, while standing
in water or while wet.

Step 2
Step 3
Step 1A ~ Model 35D only
Pump
Strainer Lid
Strainer Basket
Strainer Housing
Strainer Housing
Strainer Housing Threads
O-ring
Pump
Clip
Clip
Stainer
Housing
Forward
Groove
Screws &
Washers
8SAVE THESE INSTRUCTIONS

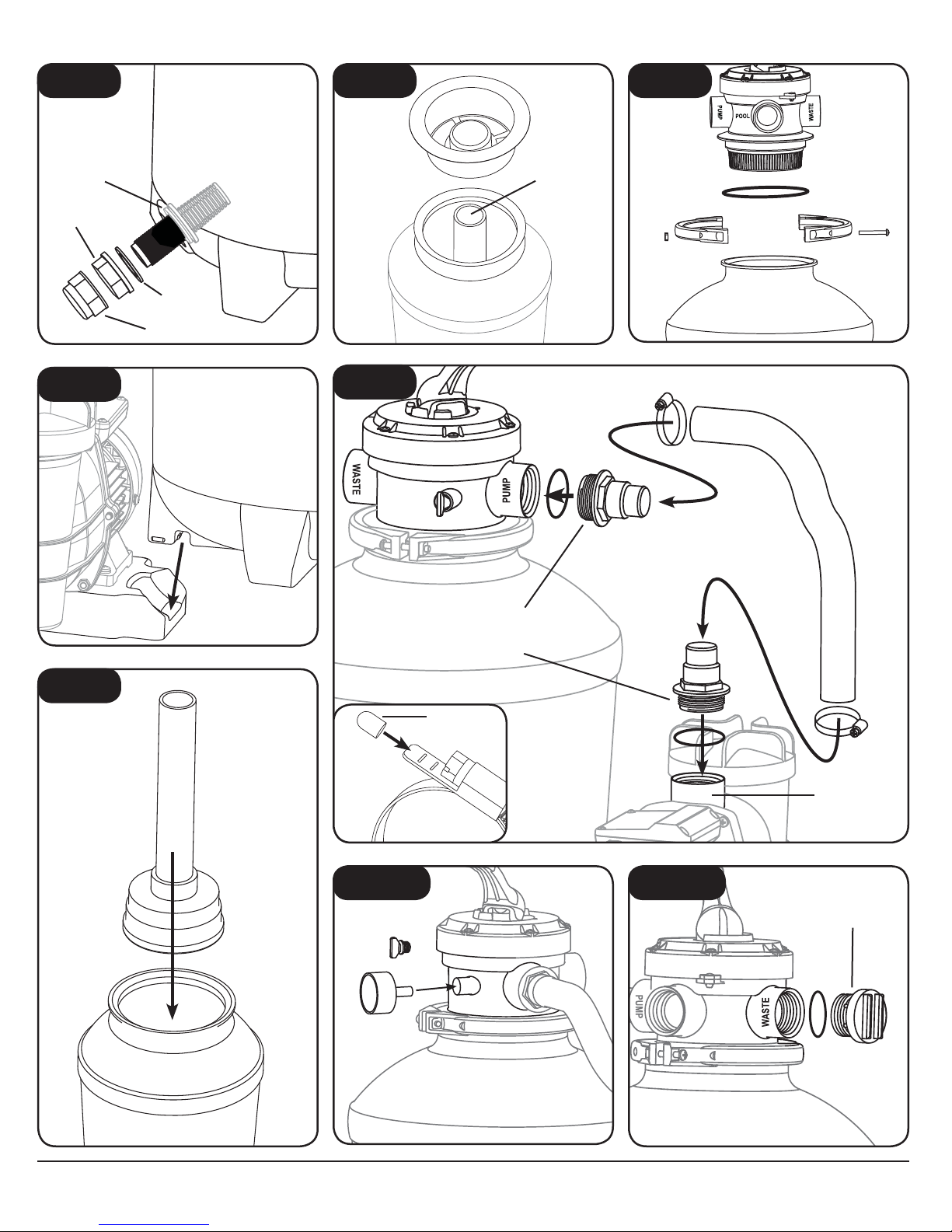

6. ASSEMBLY INSTRUCTIONS (some parts may be pre-assembled)
Follow the steps below and the corresponding diagrams for assembly.
1. NOTE: This step is for model 35D only. Be sure o-ring is in place and seated properly
on the strainer housing threads. Thread the strainer basket housing (5 full turns
maximum) into the pump motor. Do not overtighten. Secure with the clip.
2. Place the strainer basket into the strainer housing. Be sure that the opening in the
basket is aligned with the opening in the housing. Secure lid.
Note: The filter system should be in its permanent location before filling the tank
with sand. Otherwise the unit may difficult to move.
3. Secure the pump to the filter base with the mounting screws. The side of the pump
WITHOUT the metal ID plate should face towards the groove.
4. Installing the drain valve.
a. Place a gasket onto the threaded body of the drain valve. Place the valve through
the drain hole in the bottom of the tank (from the inside, threaded section to the
outside).
b. Place a gasket on the outside of the drain valve, pressing it to the tank and screw
on the threaded collar.
c. Ensure all of the components are tight, then screw the drain cap onto the valve.
5. Place the filter tank into the notch located in the base plate.
6. Place the manifold assembly into the tank.
7. Filling the filter tank with sand.
CAUTION: AVOID BREATHING IN DUST. USE A BREATHING MASK APPROVED
FOR DUST & SAND AND EYE PROTECTION WHILE FILLING THE TANK.
a. Fill the tank 1/3 full with water.
b. Place the sand shield on the center stem of the manifold. This will ensure
that when filling the tank, no sand will enter the manifold assembly.
c. Carefully fill the filter tank with the correct amount of #20 silica sand noted below.
• SandPRO 35D (item 4706, 1/3 hp) requires 25 lbs (11.3 kg)
• SandPRO 550D (item 4728, 1/2 hp) requires 25 lbs (11.3 kg)
• SandPRO 50D (item 4710, 1/2 hp) requires 50 lbs (22.6 kg)
• SandPRO 75D (item 4711, 3/4 hp) requires 75 lbs (34 kg)
Do not exceed the recommended quantity/weight of sand.
IMPORTANT: Remove the sand shield after adding sand. Keep for future use.
8. Securing the 4 way valve to the tank.
IMPORTANT: Be sure center pipe of the manifold is nested in the 4 way valve.
a. Install the tank o-ring onto the bottom of the 4 way valve.
NOTE: Apply a silicone grease or pool lube around the seal before installing it onto
the valve. This will allow for an easier installation and provide a better seal.
b. Place the valve onto the tank. Install flange clamp around tank and valve flange.
Tighten just enough so that the valve may be rotated on tank for final positioning.
Align the valve so the PUMP port is facing the pump motor OUTLET.
9. Connecting the pump to the valve.
a. Attach adapters to the OUTLET on the pump and the PUMP port on the valve.
b. Connect the ports with the filter hose. Secure with the hose clamps. Place tips over
the ends of the hose clamps.
c. Tighten screws on the clamp until there is less than a 1/4" (6.3mm) gap between
the 2 halves.
10. Remove the pressure gauge plug and attach the pressure gauge. Do not overtighten.
Keep the plug for future use.
11.
Screw the plug into the WASTE (backwash) port. Remove when backwashing.
Step 1B ~ Model 35D only

Step 5
Step 8
Step 6
Step 9
Step 10
Step 7
Step 11
Gasket
(inside tank) Tank O-Ring
Flange Clamps
& Hardware
Gasket
(outside tank)
Drain Cap
Manifold
Assembly
Sand Shield
Manifold Pipe
Tank
Hose
Adapter
Pressure
Gauge
Plug
Hose Adapter
O-Ring
O-Ring
O-Ring
Waste Backwash
Port Plug
Filter Hose
Hose Clamp
Hose
Clamp
Hose Clamp
Pump Outlet Port
Tip
Threaded Collar
Wrap thread with
Teflon® Tape
(not included)
Wrap thread with
Teflon® Tape
(not included)
SAVE THESE INSTRUCTIONS9
4 Way Valve
Step 4

10SAVE THESE INSTRUCTIONS
7. CONNECTING THE FILTER SYSTEM
STOP: BEFORE YOU BEGIN TO CONNECT HOSES TO THE FILTER AND PUMP, MAKE
CERTAIN THAT NO WATER CAN FLOW THROUGH THE INTAKE OR RETURN HOSES
CONNECTED TO THE POOL. SOME POOLS HAVE SHUT OFF VALVES IN THEIR IN
TAKE AND RETURN PORTS, OTHERS DO NOT. IF YOU DO NOT HAVE A SHUT OFF
VALVE, BLOCK THE PORTS WITH A REMOVABLE PLUG TO PREVENT WATER FROM
PASSING INTO AND THROUGH THE HOSES.
NOTE
For Pools with 1¼" or 1½" (32mm or 38mm) Diameter Unthreaded
Hoses use the standard adapters.
For Pools with 2¼" (57mm) Diameter Threaded Hose Connectors
use the threaded adapters for Intex® pools.
These instructions assume that the pool is already assembled with hoses attached to the water intake and return
ports on the pool.
1. Attach a hose connector to the front of the strainer housing and the valve POOL port.
Make certain that the 1½” (38mm) dia o-ring is in the adapter before securing.
2. Attach the pool outlet hose to the hose connector on the strainer housing. Refer to
your pool manual if you are unsure about the inlet/outlet hoses. Secure hose with a
hose clamp or thread onto the adapter.
3. Attach the pool return hose (inlet of pool) to the POOL port adapter on the 4 way
valve. Secure hose with a hose clamp or thread onto the adapter.
Note: Be sure not to secure the return hose to the waste/backwash port.
4. Completed Filter-Pump Installation.
IMPORTANT: Ensure ALL hose connections are tight and the hoses are NOT
kinked or bent at severe angles. If the hoses are leaking, check to make sure
ALL of the parts with o-rings have them attached and are screwed on tightly.
DO NOT overtighten hose clamps (35 in/lb max torque).
CAUTION: DO NOT POWER PUMP AT THIS POINT.

Hose TO Pool
Hose TO Pool
Hose FROM Pool
Hose FROM Pool
Standard Adapter
Threaded Adapter
Standard Adapter
Threaded Adapter
Hose Clamp
Gasket
Hose Clamp
POOL Outlet
Wrap thread with
Teflon® Tape
(not included)
POOL Outlet
Gasket
O-Ring
O-Ring
O-Ring
O-Ring
Wrap thread with
Teflon® Tape
(not included)
Wrap thread with
Teflon® Tape
(not included)
Wrap thread with
Teflon® Tape
(not included)
SAVE THESE INSTRUCTIONS11
FOR POOLS WITH 1¼" OR 1½" (32MM OR 38MM) DIAMETER UNTHREADED HOSES
FOR POOLS WITH 2¼" (57MM) DIAMETER THREADED HOSE CONNECTORS

12SAVE THESE INSTRUCTIONS
8. VALVE OPERATIONS
Make yourself familiar with your filter system’s valve settings and functions.
Filter Valve Settings & Functions
Setting Complete Water Flow/Function
Filtration Vacuum, regular pool filter action. This is the setting the filter will be set to most of the time. In this position, water is
directed through the top of the filter where it compresses and flattens the sand. Contaminants are trapped by the sand
as water makes it way to the bottom strainer, out of the filter and back to the pool.
Rinse Rinse for no longer than 30 seconds right after backwashing to clean and resettle filter bed. This should always be done
immediately after backwashing, new sand addition or filter start-up. In this position, water is directed to the top of the
tank where it reseats the sand and flushes the valve while sending water out of the waste line. This reduces the chance
of contaminant blow back to the pool when the valve is switched back to the filtration setting after backwashing. Run.
Backwash Clean filter of captured debris. This is the position needed to clean the filter and sand. You’ll know it is time to backwash
when the pressure gauge rises (5 - 10 psi) above its normal reading s(5 - 10 psi) when the filter is clean. In this position,
water is directed through the bottom strainer, reversing the flow through the tank. This causes the sand to separate
and lift while releasing trapped debris out the waste line.
Winterize/
Drain
Bypass the filter. This position is ideal for vacuuming pools with large amounts of debris or after an algae treatment. In
this position, water bypasses the filter and sends all the water and contaminants out of the waste line.
CAUTION: Running the pump in this position will drain water from your pool. Observe water level to prevent
running the pump dry.
Changing Valve Positions
The 4 way valve is designed to provide the required flow rate for each action described above. Always make sure the power source
to the filter is unplugged before changing valve positions. In other words, the pump should not be running when you change valve
settings (i.e. moving from FILTRATION position to the BACKWASH position). Changing valve positions while the pump is running
could result in irreparable damage to the valve and its inner workings. To change valve positions, press down firmly on the valve
lever and rotate to the desired setting.
IMPORTANT: ALWAYS unplug power source to pump before changing valve positions. Changing valve positions while the
pump is running could result in irreparable damage to the valve and its inner workings.
CAUTION: NEVER USE THE VALVE LEVER AS A HANDLE TO CARRY OR LIFT THE FILTER.

SAVE THESE INSTRUCTIONS13
9. FILTER OPERATIONS
Start Up
Once the filter system has been properly assembled, the sand chamber filled with sand and the hoses connected, you may begin with
filtration. However, we recommend that you clean and prepare the new sand that is in the sand chamber first. Cleaning the sand prior
to filtering your pool will remove most of the dust and tiny sand particles that may exist in the sand. If you move straight to filtering,
these particles will end up in your pool.
Cleaning the Sand
1. Disconnect the pump from the power source.
2. Start with the 4 way valve in the CLOSED position.
3. If you haven’t done so already, fill your pool with water. Ensure that the water level is at least 1 - 2 inches (2.54 - 5.08cm) above the
top of the hose intake and return ports in the pool.
4. Release the shut off valve at the intake port in the pool. If you plugged the intake port, remove the plug to allow the water to flow
into the intake hose.
5. With the filter-pump system installed in a location level lower than your pool’s water level – water will automatically flow into the
filter system.
6. Allow the filter tank to fill with water.
7. Check for leaks and make any necessary adjustments.
8. Follow the backwash process below.
Backwash Process
1. Disconnect the pump from the power source (if not disconnected already).
2. Remove Backwash Drain Plug.
3. Connect standard adapter to backwash port.
4. Attach backwash hose (not included) to adapter.
5. Place the 4 way valve in the BACKWASH position.
6. Reconnect to the power source.
CAUTION: SEE SECTION 5, POWER SOURCE REQUIREMENTS
7. Run filter in backwash mode until discharge water is clear.
8. Disconnect the pump from the power source.
9. Place the 4 way valve in the RINSE position.
10. Reconnect to the power source.
11. Allow filter to run for 60 seconds to remove any remaining residue from pump and valve.
12. Disconnect the pump from the power source.
13. Place the 4 way valve in the FILTRATION position.
14. Reconnect to the power source.
Your filtration system is running and ready for further operation.
NOTE: When the filter pump is properly connected to the power source, the pump will begin to push the water through the
bed of sand and out of the backwash hose. In this process, water will be drained from your pool as it cleans the bed of sand
within the tank. You may want to put a garden hose in the pool to add water while the pump is running so that the water level
does not fall below the intake return ports. While the sand is being cleaned, run your fingers through the water exiting the
backwash hose. When you can no longer feel or see sandy grit in the water, the sand cleaning process is complete.
Backwash Do’s and Don’ts
Be aware and make note of the filter pressure when the sand is clean. Backwash when you see an increase of 5–10 psi on the
pressure gauge.
• Do backwash long enough to get the job done right. Let the system backwash until the water exiting the waste line is clear.
Note that backwashing can remove 50–300 gallons (189 - 1,135 liters) of water from your pool so pay attention. Also, be aware
of local codes regarding pool water disposal as some communities outlaw drainage.
• Don’t backwash excessively. Sand filters operate more efficiently during mid-cycle. Some level of debris in the sand bed
actually helps filtration and makes the filter more effective. Too much backwashing will reduce efficiency.
• Don’t vacuum the pool in backwash mode. This can plug up the strainer at the bottom of the filter which will result in
inefficient operation. In addition, you may have to remove all of the sand to get it unclogged.

14SAVE THESE INSTRUCTIONS
10. MAINTENANCE
The chart below outlines the recommended maintenance schedule for your Pool Filter System.
Intervals Maintenance Items
Weekly Backwashing, regardless of the pressure or how dirty the filter might be
Cleaning of the Debris/Lint filter in the hair and lint strainer (directions below)
Annually Winterize the system before the first frost (directions below)
Add sand at the beginning of each swim season as needed
Adding New Sand
CAUTION: USE BREATHING FILTER/MASK APPROVED FOR DUST & SAND AND ADEQUATE EYE PROTECTION WHILE FILLING
SAND CONTAINER. AVOID BREATHING IN DUST.
1. Place the sand shield on the center stem of the manifold. This will ensure that when filling the tank, no sand will enter
the manifold assembly.
2. Place 4 way valve in the RINSE position for 1 - 3 minutes after initial start up or after adding new sand. By doing this you can avoid
blowing small particles and impurities from the new sand into your pool.
CAUTION: BEFORE LOOSENING ANY THREADED CONNECTIONS ON THE FILTRATION SYSTEM, BE SURE THAT THE INTAKE
AND RETURN HOSES ARE CLOSED OR PLUGGED TO PREVENT WATER FLOW OVER THE MOTOR.
Cleaning the Hair and Lint Filter
1. Disconnect the pump from the power source.
2. Close the shutoff valves or block the water flow at the pool intake and return ports.
3. Remove the trainer lid on the pump. Take out the strainer basket, clean it and replace it. Be sure to align the hole in the basket
towards the front of the housing. Replace the lid and tighten. DO NOT OVERTIGHTEN.
4. Open the shutoff valves or unblock the water flow at the pool intake and return ports.
5. Place the 4 way valve in the FILTRATION position.
6. Reconnect to the power source.
IMPORTANT: NEVER operate the pump without the hair and lint strainer basket in place – this can cause damage to the motor
and pump assembly.
Winterizing the System
1. Disconnect the pump from the power source.
2. Close the shut off valves or block the flow of water at the pool intake and return ports.
3. Disconnect the filtration system from the pool, drain the tank and hoses.
4. Store the filter system in a location protected from frost and freezing temperatures.
5. Place valve handle in WINTER position for storage.
Safety Notes
If there is any indication that safe operation is no longer possible, the device is to be disconnected from the power supply
and secured against accidental use.
This is the case when:
• The device has visible damage
• The device no longer appears functional
• After long periods of storage in poor conditions
• Electrical components, cords, etc. appear frayed, worn or broken
• Guards or shields are missing or broken

SAVE THESE INSTRUCTIONS15
11. TROUBLESHOOTING
Problem Cause Solution
Pressure is too
low
Hair and lint strainer basket is dirty Clean the hair and lint strainer.
Air in the pump Poor seal on the intake side of the pump Tighten hose clamps and connection fittings.
Water flows into
the drainpipe
Dirt around the seal of the 4 way valve Remove the 4 way valve from tank and clean the seal.
Leaking filter Faulty Seal Check the seal, replace if needed.
Clamp not tight Tighten clamp. DO NOT overtighten hose clamps
(35 in/lb max torque).
Pump does not
run
Not plugged in Check the socket and power cord.
GFCI/or main circuit breaker tripped Switch on the breaker. If it is immediately tripped again,
there is a defect in pump or controls.
Faulty Pump Motor Replace the pump/motor assembly.
Sand in pool If the sand is newly replaced, the undersized
grains are still present
Backwash several times until the backwash water is clear.
Sand in central valve (from backwash) Purge into drainpipe for 30 seconds.
Filter's bottom strainer is damaged Replace the filter bottom strainer.
Air in system Water level is low or system recently opened
for service
While pump is running, loosen, but do not remove, the pressure
gauge or pressure gauge plug to release air. Then retighten the
gauge or plug.
REPAIRS ON THE PUMP SHOULD ONLY BE PERFORMED
BY PROFESSIONALLY TRAINED, QUALIFIED TECHNICIANS.

16SAVE THESE INSTRUCTIONS

SAVE THESE INSTRUCTIONS17
12. LIMITED WARRANTY STATEMENT
The manufacturer warranties safe operation and reliability only under the following conditions:
The filter system is installed and operated according to the assembly and operating instructions.
Only original replacement parts are used.
Consumable parts do NOT fall under the warranty
Expendable parts do NOT fall under the warranty. These include:
• All O-Rings • Pressure Gauge • Hair & Lint Strainer Basket
• Mechanical Seal, Complete • Filter-to-Pump Hose
General Terms
This Limited Warranty applies to the enclosed product (the “Product”) distributed by Great American Duck Races, Inc., an Arizona corporation (doing
business as Great American Merchandising and Events) (“GAME”).
GAME warrants that the Product will be free from defects in materials and workmanship under normal use for a period of one (1) year from the date
of purchase. (Your dated sales or delivery receipt, showing the date of your Product purchase, is your proof of the purchase date.) During the warranty
period, GAME will repair or replace any defective parts, including freight, at no charge for the first ninety (90) days. After ninety (90) days, GAME will
repair or replace defective parts at no charge, freight costs to be paid by the purchaser.
All defective parts that are replaced by GAME will be replaced, at GAME’s discretion, with either new parts or used parts that meet or exceed perfor-
mance specifications for new parts. All parts removed from the Product under this warranty will become the property of GAME. Repair or replacement
of any parts will not serve to extend the one (1) year warranty period.
This Limited Warranty does not apply to expendable parts. This Limited Warranty does not extend to any product (a) from which the serial number has
been removed or (b) that has been damaged or rendered defective (i) as a result of accident, misuse, abuse or other external causes; (ii) by operation
outside the usage parameters stated in the manual that shipped with the Product; (iii) by the use of parts not manufactured or sold by GAME; or (iv) by
modification or service by anyone other than GAME or an authorized GAME distributor.
If a defect is identified within the warranty period, please contact GAME.
EXCEPT FOR THE LIMITED WARRANTY SET FORTH ABOVE, GAME EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESS OR
IMPLIED, ORAL OR STATUTORY (INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE). ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THE ABOVE LIMITED WARRANTY.
Limitation of Liability
EXCEPT FOR THE LIMITED WARRANTY DESCRIBED ABOVE, IN NO EVENT WILL GAME HAVE ANY LIABILITY OF ANY KIND WHATSOEVER
(WHETHER UNDER CONTRACT, TORT, OR ANY OTHER THEORY OF LEGAL LIABILITY) TO ANY PERSON WITH RESPECT TO THE PRODUCT
(INCLUDING, WITHOUT LIMITATION, (A) ANY USE OR MISUSE OF THE PRODUCT, (B) ANY FAILURE OR MALFUNCTION OF THE PRODUCT, (C) ANY
BODILY INJURY, DEATH, LOSS OF OR DAMAGE TO ANY PROPERTY, OR ANY OTHER DAMAGES RELATED TO OR RESULTING FROM THE PRODUCT
OR ITS USE (INCLUDING, WITHOUT LIMITATION, ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, LOST PROFITS, LOSS
OF USE), EVEN IF GAME OR GAME’S AUTHORIZED REPRESENTATIVES HAVE BEEN ADVISED OF THE POSSIBILITY OF ANY SUCH DAMAGES.
Severability
Any provision of this Limited Warranty which is prohibited or unenforceable in any jurisdiction will, as to such jurisdiction, be ineffective to the extent
of such prohibition or unenforceability without invalidating the remaining portions hereof or affecting the validity or enforceability of such provision
in any other jurisdiction.
Venue and Choice of Law
This Limited Warranty is applicable in all countries. This Limited Warranty will be governed by the laws of the State of Arizona (regardless of any
conflict of laws rules), and any disputes arising from this Limited Warranty will be resolved in Phoenix, Arizona.
Entire Agreement
This Limited Warranty is understood to be the complete and exclusive agreement between GAME and the purchaser of the Product, superseding all
prior agreements, oral or written, and all other communications between such parties relating to the Product. No employee or representative of GAME
or any other party is authorized to make any warranty in addition to the limited warranty set forth above.
To obtain warranty service, please call, write, or email us at [e-mail].
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Item 4706
Items 4710, 4711 & 4728
1
1
1B
1A
23
23
2
2
3
3
14
14
13
13
18SAVE THESE INSTRUCTIONS
Key Part Name Qty Part
1 Pump/Motor Assembly 1
4S1063 (model 35D, item 4706) includes 1, 1A, 1B, 2, 3, 23
4S1064 (model 50D, item 4710) includes 1, 2, 3, 23
4S1065 (model 75D, item 4711) includes 1, 2, 3, 23
1A Strainer Housing (model 4706 only) 1 NA
1B Housing Clip (model 4706 only) 1 NA
2 Strainer Basket 1 4S1057
3 Strainer Lid 1 4S1058
4 Filter tank 1
4S1060 (model 35D, item 4706)
4S1061 (model 50D, item 4710)
4S1062 (model 75D, item 4711)
5 4 Way Valve 1 4S1050
6 Base Plate 1 4S1066
7 Flange Clamp 1 4S1053
8 Drain Plug Assembly 1 4S1054
9 Manifold 1
4S1051 ((model 35D, item 4706)
4S1068 (model 75D, item 4711)
10 Tank Large O-Ring 1 4S1053
11 Hose Clamp 2 4S1052
12 Waste (Backwash) Plug 1 NA
13 Hose Adapter 5 4S1052
14 Hose Adapter O-Ring 3 4S1052
15 Short Intex Adapter 2 4S1067
16 Short Intex Adapter Gasket 2 4S1067
17 1¼”(32mm) Hose 1 4S1055
18 Sand Shield 1 NA
19 Pressure Gauge Plug 1 NA
20 Pressure Gauge 1 4S1056
21 Pump Mount Screw and Washer 4 4S1066
22 Flange Screw & Nut 2 4S1053
23 Pump Drain Plug & Gasket 1 4S1059
13. APPENDIX: EXPLODED PARTS DIAGRAM

6
21
19
17
5
12
4
13
13
16
15
20
14
11
11
14
10
7
22
9
18
8
SAVE THESE INSTRUCTIONS19

47xx_R2A_IM_1L_GAM_111015
© 2016 GAME™ All rights reserved. Information subject to change.
Intex® is a registered trademark of Intex Recreation Corp. GAME is not affiliated
with, sponsored by, or otherwise associated with Intex Recreation Corp.
Bestway® is a registered trademark.
Great American Merchandise & Events™
16444 N. 91st Street
Scottsdale, AZ 85260-1567 U.S.A.
tel: [phone]
fax: [phone]
email: [e-mail]
www.game-group.com/retailers
Look for other GAME products at your favorite store
or visit our website, www.game-group.com.
/GAMEproducts
IMPORTANT
DO NOT RETURN PRODUCT TO STORE
For technical assistance and missing parts, call Customer Service toll-free
1.888.339.2546
(press 135 at any time)
Monday through Thursday, 8:00 am to 5:00 pm MST
Friday, 8:00 am to 2:00 pm MST
Please visit our website, www.game-group.com, for potential updates to these instructions.
