Gamewell IF602 User manual

12 Clintonville Road, Northford, CT 06472, 203-484-7161, FAX [phone]
www.gamewell-fci.com
FocalPoint™ Syst em Utilities User’s Guide —
FocalPoint™ Gateway
Installation & Operation Manual
Copyright © 2010
All Rights Reserved
Published in U.S.A.
P/N: 52649 B3
ECN: 10-030

2FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
IMPORTANT INFORMATION
This manual is designed for use by factory trained installers
and operators of the Gamewell/FCI FocalPoint™ System.
All illustrations, functional descriptions, operating and
installation procedures, and other relevant information are
contained in this manual.
The contents of this manual are important, and the manual
must be kept with the system at all times. If building
ownership is changed, this manual, including any testing
and maintenance information, must be passed along to the
new owner(s).
Manuals and instructions for other devices forming part of
the FocalPoint™ System should be kept together.
Purchasers who install this system for use by others must
leave the instructions with the user. A copy of these
instructions is included with each product and is available
from the manufacturer.
This equipment is Listed by various listing agencies for use
in emergency evacuation and fire alarm systems. Use only
components that are compatible with this FocalPoint™
System. The installation MUST be in accordance with the
instructions in this manual.
Therefore:
• DO NOT deviate from the procedures described in this
manual.
• DO NOT assume any details not shown in this manual.
• DO NOT modify any electrical or mechanical features.
• DO comply with all codes and standards set forth by
the Authority Having Jurisdiction.
The term “Authority Having Jurisdiction” has become a
standard term in the fire alarm industry. An acceptable
definition of “Authority Having Jurisdiction” is:
Fire alarm systems installed in the USA fall under the
jurisdiction of some authority. In some areas, this may be a
local fire department; in other areas, it may be a building
inspector, insurance firm, etc. Different authorities may
have their own local requirements for the way the fire alarm
system is installed and used. Most local authorities based
their requirements on the NFPA (National Fire Protection
Association) codes, but there may be important
differences. You must install this system in the way in
which the Authority Having Jurisdiction requires. If you do
not know which authority has jurisdiction in your area,
contact your local fire department or building inspector for
guidance.
It is important that you tell users to be aware of any
requirements defined by the Authority Having Jurisdiction.
The installation MUST be in accordance with the following
standards:
• National Fire Alarm Code (NFPA 72)
• National Electrical Code (NFPA 70)
• Life Safety Code (NFPA 101)
WARNING: Touching components, which are
improperly installed, applied or operated, could be
hazardous and possibly fatal. Short circuits could
cause arcing that could result in molten metal injuries.
Therefore, only qualified technicians familiar with
electrical hazards should perform checkout
procedures. Safety glasses should be worn, and test
equipment used for voltage measurements should be
designed for this purpose and be in good working
order.
ENVIRONMENTAL CONSIDERATIONS
It is important that this equipment be operated within its
specifications: Recommended operating temperature
range: 0°C to 49°C (32°F to 120°F) and at a relative
humidity 93% ± 2% RH (non-condensing) at 32°C ± 2°C
(90°F ± 3°F).
INSTALLATION CONSIDERATIONS
Check that you have all the equipment you need to
complete the installation. Follow the field wiring diagrams
and installation notes in this manual.
Install the equipment in a clean, dry environment (minimal
dust). Avoid installing the equipment where vibrations will
occur.
Remove all electronic assemblies prior to drilling, filing,
reaming, or punching the enclosure. When possible, make
all cable entries from the side, being careful to separate the
power-limited conductors from the non power-limited
conductors. Before making modifications, verify that they
will not interfere with battery, transformer, and printed circuit
board location.
Do not over tighten screw terminals. Over tightening may
damage threads, resulting in reduced terminal contact
pressure and difficulty with screw terminal removal.
Disconnect all sources of power before servicing, removing,
or inserting any circuit board. Control unit and associated
equipment may be damaged by removing and/or inserting
cards, subassemblies, or interconnecting cables while the
unit is energized.
FocalPoint is a trademark of Honeywell International.

3FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
WIRING CONSIDERATIONS
A Gamewell/FCI fire alarm control panel contains power-
limited circuits. You cannot connect external sources of
power to these circuits without invalidating their approval.
Verify that wiring sizes are adequate for all initiating device
and notification appliance circuits. Most devices cannot
tolerate more than a 10% drop from the specified voltage.
The installer must ensure that the wiring and devices
installed in the system meet the current National Electrical
Code, NFPA 70, and all applicable state and local building
code requirements.
Use the conductor size and type required by local codes
(see NFPA 70, Article 760). Wiring resistance must not be
more than that shown on the field wiring diagrams.
To reduce errors and help in servicing the system, all
conductors should be labeled or otherwise coded and
logged at installation to identify circuit assignment and
polarity. If the conductors are logged with a code, keep the
log that explains the code with the manual, so that it is
available to other people working on the panel.
Like all solid state electronic devices, this system may
operate erratically or be damaged when subjected to
lightning induced transients. Although no system is
completely immune to lightning transients and interference,
proper grounding will reduce susceptibility. Gamewell/FCI
does not recommend the use of overhead or outside aerial
wiring due to the increased susceptibility to nearby lightning
strikes. Consult with the Gamewell/FCI Technical Support
Department if any problems are anticipated or encountered.
To prevent the spread of fire, use proper patching materials
to areas where system wiring passes through fire-rated
walls or floors.
SURVIVABILITY
Per the National Fire Alarm Code, NFPA 72, all circuits
necessary for the operation of the notification appliances
shall be protected until they enter the evacuation signaling
zone that they serve. Any of the following methods shall be
considered acceptable as meeting these requirements:
• A two-hour rated cable or cable system.
• A two-hour rated enclosure.
• Performance alternatives approved by Authority
Having Jurisdiction.
MAINTENANCE
To keep your fire alarm system in excellent working order,
ongoing maintenance is required per the manufacturer’s
recommendations and UL and NFPA Standards, and
applicable state and local codes. At a minimum, the
requirements of Chapter 7 of NFPA, the National Fire Alarm
Code, shall be followed. A preventative maintenance
agreement should be arranged through the manufacturer’s
local representative. Though smoke detectors are
designed for long life, they may fail at any time. Any smoke
detector, fire alarm system, or any component of that
system shall be repaired or replaced immediately.
SYSTEM RE-ACCEPTANCE TEST
To ensure proper system operation, this product must be
tested in accordance with NFPA 72, Chapter 7. Re-
acceptance testing is required after any modification, repair,
or adjustment to system hardware, wiring, or programming.
All components, circuits, or system operations known to be
affected by a change must be 100% tested. In addition, to
ensure that other operations are not inadvertently affected,
at least 10% of initiating devices that are not directly
affected by the change, up to a maximum of 50 devices,
must also be tested and proper system operation verified.
Equipment used in the system may not be technically
compatible with the control panel. It is essential to use only
equipment Listed for service with the control panel.
OTHER CONSIDERATIONS
The equipment was tested according to EC directive
89/336/EEC for Class A equipment and was verified to the
limits and methods of EN 55022. FCC WARNING: This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with this instruction manual, may cause
interference to radio communications. It has been tested
and found to comply with the limits for Class A computing
devices pursuant to Subpart B of Part 15 of FCC Rules,
which is designed to provide reasonable protection against
such interference when operated in a commercial
environment. Operation of this equipment in a residential
area is likely to cause interference, in which case the user
will be required to correct the interference at his own
expense.
Canadian Requirements: This digital apparatus does not
exceed the Class A limits for radiation noise emissions from
digital apparatus set out in the Radio Interference Regulations of
the Canadian Department of Communications. This Class A
digital apparatus complies with Canadian ICES-003.
Le present appareil numerique n'emet pas de bruits
radioelectriques depassant les limites applicables aux appareils
numeriques de la classe A prescrites dans le Reglement sur le
brouillage radioelectrique edicte par le ministere des
Communications du Canada. Cet appareil numerique de la
classe A est conforme a la norme NMB-003 du Canada.
If these instructions are not clear, or if additional information
or clarification is needed, please consult your local
authorized Gamewell/FCI distributor.
Because of design changes and product improvements, the
information in this manual will be subject to change without
notice. Gamewell/FCI reserves the right to change
hardware and/or software design, which may subsequently
affect the contents of this manual. Gamewell/FCI assumes
no responsibility for any errors that may appear in this
manual.
Neither this manual nor any part of it may be reproduced
without the advance written permission of Gamewell/FCI.

4FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
LIMITATIONS OF FIRE ALARM SYSTEMS
Gamewell/FCI recommends that smoke and/or heat
detectors be located throughout the protected premises
following the recommendations of the current edition of the
National Fire Protection Association Standard 72, the
National Fire Alarm Code (NFPA 72), manufacturer’s
recommendations, State and local codes, and the
recommendations contained in the Guide for the Proper
Use of System Smoke Detectors, which is made available
at no charge to all installing dealers. A study by the Federal
Emergency Management Agency (an agency of the United
States government) indicated that smoke detectors may not
go into alarm or give early warning in as many as 35% of all
fires. While fire alarm systems are designed to provide
warning against fire, they do not guarantee warning or
protection against fire. Any alarm system is subject to
compromise or failure to warn for a variety of reasons. For
example:
Particles of combustion or “smoke” from a developing fire
may not reach the sensing chambers of a smoke detector
because:
• Barriers such as closed or partially closed doors, walls,
or chimneys may inhibit air flow.
• Smoke particles may become “cold” and stratify, and
may not reach the ceiling or upper walls where
detectors are located.
• Smoke particles may be blown away from detectors by
air outlets.
• Smoke particles may be drawn into air returns before
reaching the detector.
In general, smoke detectors on one level of a structure
cannot be expected to sense fires developing on another
level.
The amount of “smoke” present may be insufficient to alarm
smoke detectors. Smoke detectors are designed to alarm
at various levels of smoke density. If such density levels
are not created by a developing fire at the location of
detectors, the detectors will not go into alarm.
Smoke detectors, even when working properly, have
sensing limitations. Detectors that have photo-electronic
sensing chambers tend to detect smoldering fires earlier
than flaming fires, which have little visible smoke.
Detectors that have ionization-type sensing chambers tend
to detect fast flaming fires earlier than smoldering fires.
Because fires develop in different ways and are often
unpredictable in their growth, neither type of detector is
necessarily best and a given type of detector may not
provide adequate warning of a fire.
Smoke detectors are subject to unwanted or nuisance
alarms. For example, a smoke detector located in or near a
kitchen may go into nuisance alarm during normal
operation of kitchen appliances. In addition, dusty or
steamy environments may cause a smoke detector to alarm
unnecessarily. If the location of a smoke detector causes
an abundance of unwanted or nuisance alarms, do not
disconnect the smoke detector; call a professional to
analyze the situation and recommend a solution.
Smoke detectors cannot be expected to provide adequate
warning of a fire caused by arson, children playing with
matches (especially in bedrooms), smoking in bed, violent
explosions (caused by escaping gas, improper storage of
flammable materials, etc.).
Heat detectors do not sense particles of combustion and
are designed to alarm only when heat on their sensors
increase at a predetermined rate or reaches a
predetermined level. Heat detectors are designed to
protect property, not life.
Warning devices (including horns, sirens, bells, and
speakers) may not alert people or awaken sleepers who
are located on the other side of closed or partially open
doors. A warning device that activates on a different floor
or level of a dwelling or structure is less likely to awaken or
alert people. Even persons who are awake may not notice
the warning if the alarm is muffled by noise from a stereo,
radio, air conditioner or other appliance, or by passing
traffic. Audible warning devices may not alert the hearing-
impaired (strobes or other devices should be provided to
warn these people). Any warning device may fail to alert
people with a disability, deep sleepers, people who have
recently used alcohol or drugs, or people on medication or
sleeping pills.
Please note that:
• Strobes can, under certain circumstances, cause
seizures in people with conditions such as epilepsy.
• Studies have shown that certain people, even when
they hear a fire alarm signal, do not respond or
comprehend the meaning of the signal. It is the
property owner’s responsibility to conduct fire drills and
other training exercises to make people aware of the
fire alarm signals and instruct on the proper reaction to
alarm signals.
• In rare instances, the sounding of a warning device
can cause temporary or permanent hearing loss.
Telephone lines needed to transmit alarm signals from a
premise to a central station may be out of service or
temporarily out of service. For added protection against
telephone line failure, backup radio transmission systems
are recommended.
System components, though designed to last many years,
can fail at any time. As a precautionary measure, it is
recommended that smoke detectors be checked,
maintained, and replaced per manufacturer’s
recommendations.
System components will not work without electrical power.
If system batteries are not serviced or replaced regularly,
they may not provide adequate standby when AC power
fails.
Environments with high air velocity or that are dusty or dirty
require more frequent maintenance.
In general, fire alarm systems and devices will not work
without power and will not function properly unless they are
maintained and tested regularly.
While installing a fire alarm system may make the owner
eligible for a lower insurance rate, a fire alarm system is not
a substitute for insurance. Property owners should
continue to act prudently in protecting the premises and the
people on the premises and should properly insure life and
property and buy sufficient amounts of liability insurance to
meet their needs.

5FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
Table of Contents
Section 1 FPT Gateway Overview ...........................................................................................7
1.1: Product Description .......................................................................................................................................7
Table 1.1 FPT Gateway Compatibility...................................................................................................7
Figure 1.1 Basic FPT Gateway Network - Gamewell/FCI.....................................................................7
Figure 1.2 Advanced FPT Gateway Network - FCI...............................................................................8
1.1.1: About Workstation Ethernet Network Installations ............................................................................8
1.2: Agency Listings .............................................................................................................................................9
1.2.1: Compliance..........................................................................................................................................9
1.2.2: Installation ...........................................................................................................................................9
1.2.3: Retrofit Applications .........................................................................................................................10
1.2.4: Environmental Requirements ............................................................................................................10
1.3: Related Documentation ...............................................................................................................................11
Section 2 FPT Gateway Installation ...................................................................................... 13
2.1: Required Equipment ....................................................................................................................................13
2.2: Installation Overview...................................................................................................................................13
2.2.1: Gateway Board Layout......................................................................................................................14

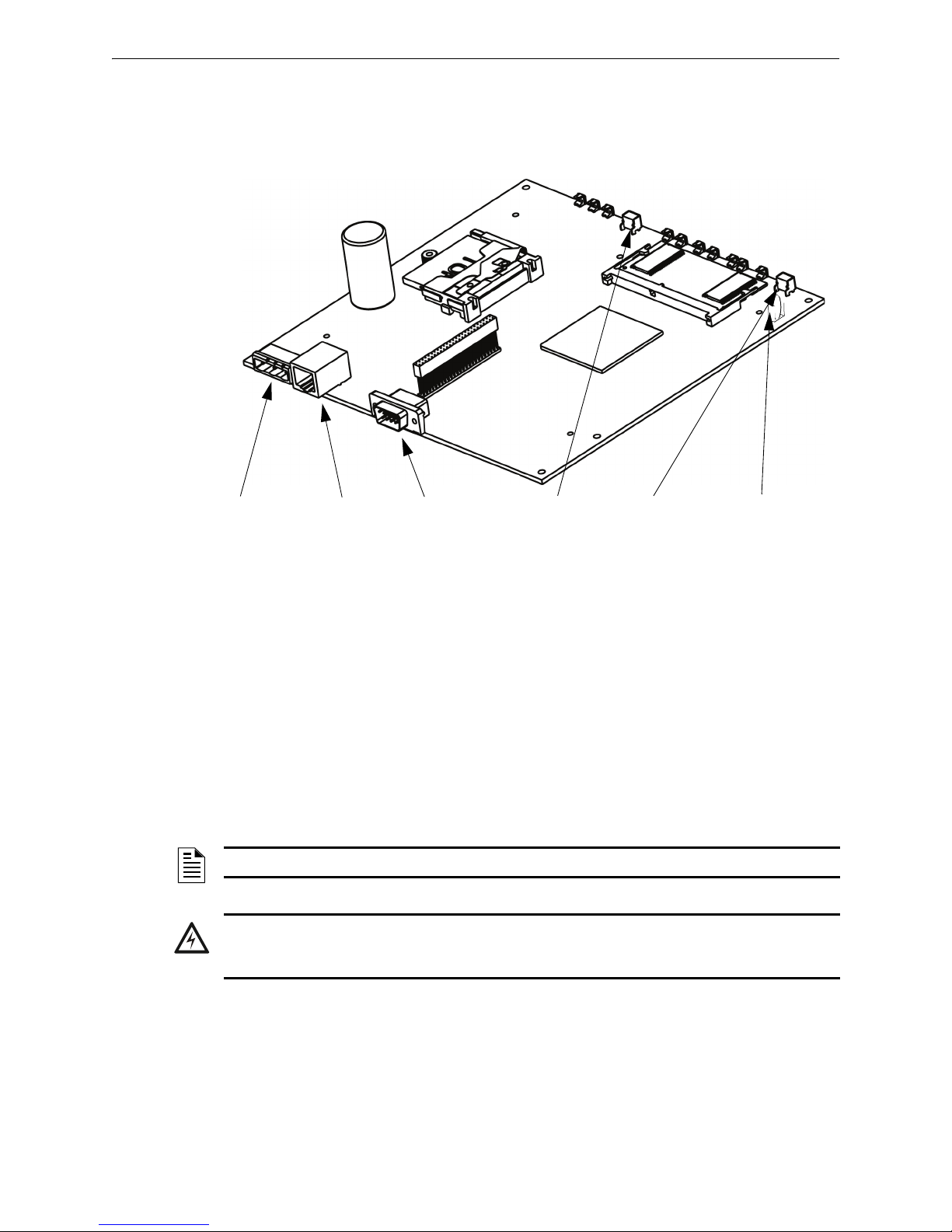

Figure 2.1 FPT Gateway PC Board Layout..........................................................................................14
2.3: Cabinet Installation......................................................................................................................................15
Figure 2.2 Gateway Cabinet Mounting ................................................................................................15
2.4: Hardware Installation...................................................................................................................................16
Figure 2.3 Gateway Parts Mounting - 1 ...............................................................................................16
Figure 2.4 Gateway Parts Mounting - 2 ...............................................................................................17
2.5: Cable Connections .......................................................................................................................................18
Figure 2.5 Gateway Cable Connections ...............................................................................................19
2.5.1: 600 Series Router Serial Data Connection ........................................................................................19
Figure 2.6 600 Series Router Serial Cable Connection........................................................................19
2.5.2: 600 Series Panel Serial Data Connections.........................................................................................19
Figure 2.7 Direct Serial Data Connection Using the IF602 Supplied Cable........................................19
Figure 2.8 Direct Serial Data Connection Using the Gateway Supplied Cable ...................................20
2.5.3: FCI Panel Serial Data Connections ...................................................................................................20
Figure 2.9 E3 Serial Cable Connection ................................................................................................20
Figure 2.10 7100/7200 Serial Cable Assembly/Connection ................................................................20
2.6: Power Connection........................................................................................................................................21
Table 2.1 Power Supply Specifications................................................................................................21
Figure 2.11 Gateway Power Connection..............................................................................................21
2.6.1: Wiring Restrictions............................................................................................................................22
Section 3 FPT Gateway Configuration.................................................................................. 23
3.1: Default FPT Gateway Selection Procedure .................................................................................................23
3.2: FPT Gateway Configuration Procedure.......................................................................................................24
3.2.1: IP Address Setting .............................................................................................................................24
Figure 3.1 Gateway Node Selection.....................................................................................................24
Figure 3.2 Gateway Login Window .....................................................................................................24
Figure 3.3 Gateway IP Configuration ..................................................................................................25
3.2.2: Panel Configuration Settings.............................................................................................................26
3.2.3: Time Settings.....................................................................................................................................27
Figure 3.4 Gateway Time Settings .......................................................................................................27
Figure 3.5 Gateway Time Settings .......................................................................................................28
3.2.4: Login Password Settings ...................................................................................................................29
Figure 3.6 Gateway Login - Change Password Window .....................................................................29
3.2.5: IP Address Change Using an Alternate Method................................................................................30
3.3: Gateway and System Communication Configuration .................................................................................31
3.3.1: Add a Network Connection to the Workstation ................................................................................31
Figure 3.7 Select System To Import From Window ............................................................................31

Table of Contents
6FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
Section 4 FPT Gateway Operation ........................................................................................ 33
4.1: Gamewell Panel Groups ..............................................................................................................................33
4.1.1: Procedure ...........................................................................................................................................33
4.2: Event Handling ............................................................................................................................................34
4.2.1: Handling Special Circumstance Events.............................................................................................34
4.2.2: Node Mapping ...................................................................................................................................34
4.3: Device Commands .......................................................................................................................................35
Table 4.1 Common Gamewell/FCI Device Commands .......................................................................35
4.4: About FCI Point ID Formats for Off Normal Events ..................................................................................35
Table 4.2 FCI 7200 Point ID Formats for Off Normal Events.............................................................35
Table 4.3 FCI 7100 Point ID Formats for Off Normal Events.............................................................35
Table 4.4 FCI E3 Point ID Formats for Off Normal Events ................................................................36
Table 4.5 Gamewell/FCI 7200 Panel Cards .........................................................................................37
4.5: About Auto-created Points...........................................................................................................................37
4.5.1: SmartProgram II Application ............................................................................................................37
Section 5 FocalPoint Gateway Config Tool Reference Information .................................. 39
5.1: About the FocalPoint Gateway Config Tool................................................................................................39
5.2: Field Descriptions ........................................................................................................................................39
5.2.1: Gateway Field Description ................................................................................................................39
Figure 5.1 Version Description.............................................................................................................39
5.2.2: IP Configuration Fields......................................................................................................................39
Figure 5.2 IP Configuration Property/Value Field Descriptions ..........................................................39
5.2.3: SNTP Configuration Fields ...............................................................................................................39
Figure 5.3 SNTP Configuration Property/Value Field Description .....................................................39
5.2.4: Time Zone Configuration Fields .......................................................................................................40
Figure 5.4 Time Settings Field Descriptions ........................................................................................40
5.2.5: Panel Properties Fields ......................................................................................................................41
Figure 5.5 Panel Configuration Property/Value Field Descriptions.....................................................41
5.3: Menu Descriptions .......................................................................................................................................41
5.3.1: File .....................................................................................................................................................41
5.3.2: View...................................................................................................................................................41
5.3.3: Configure ...........................................................................................................................................41
5.3.4: Help....................................................................................................................................................41

7FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
Section 1 FPT Gateway Overview
1.1 Product Description
This FocalPoint™ Gateway (FPT Gateway):
• Serves as a bridge between a FocalPoint™ Workstation and a Gamewell/FCI network.
• Translates Gamewell/FCI panel and device data into data that can be interpreted by a
FocalPoint™ Workstation.
• Monitors Gamewell/FCI networks over an IP network.
• Is configured using the FocalPoint Gateway Config Tool.
The FPT Gateway is compatible with theses Gamewell/FCI panels.
UL requires the Gamewell/FCI 7200 and E3 panels to have a two line DACT in addition to the
gateway for event reporting.
The FPT Gateway software application resides on a PC board assembly that is installed inside a
supplied cabinet. It communicates with any FocalPoint™ Workstation software application on the
FocalPoint™ system via an IP connection over Ethernet networks.
Every FocalPoint™ system must have at least one:
• FocalPoint™ Workstation
• FocalPoint™ Gateway.
• Gamewell/FCI panel.
Figure 1.1 Basic FPT Gateway Network - Gamewell/FCI
Table 1.1 FPT Gateway Compatibility
IF602 7100
IF610 7200
IF632 E3
IF654
IF658
Workstation
Gateway
Gamewell/FCI
Panel
Ethernet (TCP/IP)
Network
NOTE: Turn on the remote annunciator supervision when connecting the gateway to any of the
stand-alone Gamewell panels.

FPT Gateway Overview Product Description
8FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
Figure 1.2 Advanced FPT Gateway Network - FCI
90.23 effective October 1, 2005
1.1.1 About Workstation Ethernet Network Installations
The FocalPoint™ Workstation is a Proprietary Supervising Station that has a supervised client
server architecture that communicates over IP networks. The Ethernet network can be a shared
bandwidth system that operates over topologies such as an intranet, the Internet, or a frame relay
system.
If the Workstation or gateway is sharing on-premises communications equipment, the shared
equipment shall be “listed for the purpose”. “Listed for the purpose” has been formally interpreted
by NFPA (Formal Interpretation 72-99-1) for equipment on packet switched networks as being
listed to the requirements applicable to general purpose communications network equipment.
For ULC applications, the Internet cannot be used for either primary or ancillary functionality.
Gateway
Workstation
Other Technologies
LAN/WAN/Internet/Intranet
7200
E3
Gateway
Workstation
NOTE: Turn on the remote annunciator supervision on the router to which the gateway connects
for the networked Gamewell panels.
NOTICE TO USERS, INSTALLERS, AUTHORIES HAVING JURISDICTION, AND OTHER INVOLVED PARITES
This product incorporates field-programmable software. In order for the product to comply with the requirements in the Standard
for Control Units and Accessories for Fire Alarm Systems, UL 864, certain programming features or options must be limited to
specific values or not used at all as indicated below.
Program feature or option Permited in UL 864 (Y/N) Possible Settings Settings permitted in UL 864
Remote resetting and
silencing of a fire alarm
control unit from other than
the protected premises (ref:
NFPA 72-2007 6.8.2.8)
No Security Levels
• Administrator
• User with Point Control
• User with Client Control
• Default User

Agency Listings FPT Gateway Overview
9FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
1.2 Agency Listings
1.2.1 Compliance
This product has been investigated to, and found to be in compliance with the following standards.
National Fire Protection Association
•NFPA 72—National Fire Alarm Code
Underwriters Laboratories
•UL-864—Control Units for Fire Alarm Systems, Ninth Edition
•UL-1076—Proprietary Burglar Alarm Units and Systems, Fifth Edition
•UL-2017—General-Purpose Signaling Devices and Systems, First Edition
Underwriters Laboratories Canada
•CAN/ULC-S527-99—Standard for Control Units for Fire Alarm Systems, Second Edition
•CAN/ULC-S559-04—Equipment for Fire Signal Receiving Centres and Systems, First
Edition
1.2.2 Installation
This product is intended to be installed in accordance with the following regulatory agencies.
Local
•AHJ—Authority Having Jurisdiction
National Fire Protection Association
•NFPA 70—National Electrical Code
•NFPA 72—National Fire Alarm Code
•NFPA 101—Life Safety Code
Underwriters Laboratories
•UL-1076—In certified applications, the unit shall be installed in accordance with Proprietary
Burglar Alarm Units and Systems, Fifth Edition
Underwriters Laboratories Canada
•C22.1–98—Canadian Electrical Code, Part I (Twentieth Edition), Safety Standard for
Electrical Installation
•CAN/ULC-S524-06—Standard for the installation of Fire Alarm Systems, Fifth Edition
NOTE:
UL 864, 9th Edition—FocalPoint™ systems work with products that have been UL 864, 9th
Edition listed as well as products that have not received UL 864, 9th Edition certification.
Operation of systems that are comprised of equipment that is UL 864, 9th Edition listed together
with products that are not UL 864, 9th Edition listed requires the approval of the local Authority
Having Jurisdiction (AHJ).
CAN/ULC-S559-04, 1st Edition—FocalPoint™ systems work with products that have been
CAN/ULC-S559-04, 1st Edition listed as well as products that have not received CAN/ULC-S559-
04, 1st Edition certification. Operation of systems that are comprised of equipment that is
CAN/ULC-S559-04, 1st Edition listed together with products that are not CAN/ULC-S559-04, 1st
Edition listed requires the approval of the local Authority Having Jurisdiction (AHJ).

FPT Gateway Overview Agency Listings
10 FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
•CAN/ULC-S561-03—Installation and Services for Fire Signal Receiving Centres and
Systems, First Edition
1.2.3 Retrofit Applications
The following products have not received UL 864 9th Edition certification and may only be used in
retrofit applications. Operations of the gateway with products not tested for UL 864 9th Edition
has not been evaluated and may not comply with NFPA 72 and/or the latest edition of UL 864.
These applications will require approval of the local Authority Having Jurisdiction (AHJ).
•IF602
•IF610
•IF632
•IF654
•IF658
• FCI 7200
1.2.4 Environmental Requirements
This gateway must be installed in the following environmental conditions:
• Temperature range of 0°C to 49°C (32°F - 120°F).
• 93% humidity non-condensing at 30°C (86°F).
!
WARNING: Installation
Improper installation, maintenance, and lack of routine testing could result in system malfunction.

Related Documentation FPT Gateway Overview
11FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
1.3 Related Documentation
The following is a list of documentation resources related to a UL listed FocalPoint™ system.
• FocalPoint™ Workstation (52561)
NOTE: The contents of this manual are important and must be kept in close proximity of the
hardware. If building ownership is changed, this manual and all other testing and maintenance
information must also be passed to the current owner of the facility. A copy of this manual was
shipped with the equipment and is also available from the manufacturer

FPT Gateway Overview Related Documentation
12 FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10

13FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
Section 2 FPT Gateway Installation
2.1 Required Equipment
The FPT Gateway requires the following:
FPT Gateway Assembly (P/N: FPT-GATE)
The following are shipped with the FPT Gateway:
• FocalPoint™ Gateway PC board (P/N: 46224).
• PNET-1 surge suppressor (P/N: PNET-1).
• CAT5 cable (P/N: 75644) - provides Ethernet connection from gateway PC board to PNET-1
surge suppressor.
• DB9 to leads cable (P/N: 75267) - serial cable that is used as to connect the gateway PC board
to an E3 panel.
• DB9 to RJ-11 cable (P/N: 6100-0077) - provides serial cable to DB9 connector connection.
• Serial Cable (P/N: 6100-0076)- serial cable that is used as to connect the gateway PC board to
a 7100/7200 panels.
• UL Requires the 7200 and E3 panels to have a two line DACT in addition to the gateway for
event reporting.
• Cabinet (P/N: FPT-BA) which includes various screws, hex nuts, star washer, and door lock
key.
• “.010 Formex GK-BK-10 (BLK). UL 94 ZTM-0.”- need to place this insulator in the bottom
of the cabinet in order to meet ULC S527-99 spacing requirements.
• FocalPoint Gateway Config Tool.
• FPT Gateway Manual.
Network Components
• RJ45 to RJ45 standard Ethernet network cable - Network connection to PNET-1 surge
suppressor (supplied by customer).
• Gamewell/FCI Panel (sold separately, Section 1.2.3 on page 10).
• Gamewell Router (P/N: GWPTP-NC) - sold separately.
• FocalPoint™ Workstation computer with software application installed (sold separately).
Customer Supplied Equipment
• A regulated, UL 1481 listed, power limited, battery backed, +24 VDC power supply.
2.2 Installation Overview
•“Cabinet Installation” on page 15.
•“Hardware Installation” on page 16.
!
WARNING: Installation
Improper installation, maintenance, and lack of routine testing could result in system malfunction.
!
CAUTION:
Different sources of power are used in conjunction with the FPT Gateway product. Disconnect all
sources of power before servicing. This device and associated equipment may be damaged by removing
and/or inserting cards, modules or interconnecting cables while this unit is powered. This damage may
adversely affect the operation of this unit, but its effect may not be readily apparent.

FPT Gateway Installation Installation Overview
14 FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
•“Cable Connections” on page 18.
•“Power Connection” on page 21.
2.2.1 Gateway Board Layout
Figure 2.1 FPT Gateway PC Board Layout
Reset Button
The Reset button is used to cycle power to the PC board. It does not affect the settings made to the
software.
Mode Button
The Mode button is used to return the gateway to all factory settings (i.e. IP address setting). Press
and hold the button for at least 15 seconds to return the gateway to the factory shipped state.
Lithium Battery
The Panasonic BR2032 lithium battery (P/N: 31007) has a factory installed fish-paper-type
insulator between the battery and the battery mounting bracket. Remove the insulator after the PC
board is installed.
Reset ButtonRJ45 Ethernet
Connector
+24VDC Power
Connector
EIA-232 Port +3VDC Lithium
Battery
Mode Button
NOTE: The replacement of the PC board’s lithium battery is to be performed by a trained technician.
!
WARNING: Electrostatic Discharge
Always observe ESD protection procedures when handling printed circuit boards and electronic
parts.

Cabinet Installation FPT Gateway Installation
15FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
2.3 Cabinet Installation
Mount the Gateway cabinet on in inside wall per local requirements.
Step 1. Use the provided door lock key to unlock the cabinet’s door.
Step 2. Remove the cabinet’s door from the back box (reinstall the door when installation is
complete).
Step 3. Mount the cabinet’s back box to the wall using the holes indicated in the following figure.
Figure 2.2 Gateway Cabinet Mounting
Step 4. Connect the required conduit to the desired knock-out location(s) in the cabinet.
Step 5. You are now ready to perform the “Hardware Installation” on page 16.
Conduit

FPT Gateway Installation Hardware Installation
16 FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
2.4 Hardware Installation
Step 1. Install the PNET-1 between the gateway cabinet’s standoffs using the supplied hex nut
(#4).
Step 2. Ground the PNET-1 to the cabinet using the supplied hex nut (#6).
Step 3. Install the FocalPoint™ PC board on the gateway cabinet standoffs using the supplied
screws (#4).
Figure 2.3 Gateway Parts Mounting - 1
Step 4. You are now ready to perform “Cable Connections” on page 18.
PNET-1
Gateway
Board
Hex Nut
Stand-off
Hex Nut
4 Screws
Stand-off Conduit
!
WARNING: Electrostatic Discharge
Always observe ESD protection procedures when handling printed circuit boards and electronic
parts.
NOTE: There is a labeled grounding screw with star washer in the cabinet.

Hardware Installation FPT Gateway Installation
17FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
Figure 2.4 Gateway Parts Mounting - 2

FPT Gateway Installation Cable Connections
18 FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
2.5 Cable Connections
Connect the Gateway cables as follows:
Step 1. CAT5 cable from gateway PC board to PNET-1 surge suppressor.
Step 2. RJ45 to RJ45 standard Ethernet network cable from FocalPoint™ system’s IP network to
PNET-1.
Step 3. Connect the serial cable:
• Gamewell Panels:
• 600 Series Network: DB9 to lead cable from Gateway PC board's serial
connector to connector on a Gamewell router.
• 600 Series Stand Alone: Cable supplied with panel (RJ11 to DB9) from Gateway
PC board’s serial connector to a Gamewell panel.
•FCIPanels:
• DB9 to lead cable from Gateway PC board’s serial connector to a E3 panel
(Figure 2.9).
• DB9 adapter to RJ-11 serial cable from the Gateway PC board’s serial connector
to a 7100/7200 panel (assembly required refer to Figure 2.10).
Step 4. You are now ready to perform “Power Connection” on page 21.
!
WARNING: Serial Port Connection
Unless expressly stated otherwise, the FPT Gateway interface requires the exclusive use of any
communication port or terminal to which it connects. The shared use of any communication port or
terminal by this gateway and any ancillary device, such as CRTs or printers, may interfere with or
completely negate the function of this gateway. Such shared connections are not supported.
!
CAUTION: RPI / SAN / RAN
To ensure proper operation, the FPT Gateway may connected to a 600 series panel using an RPI
(Remote Printer Interface), SAN (Serial Annunciator) or RAN (Remote Annunciator) only if the
gateway version is 3.10.28 or higher.
NOTE: The cable to a 7100 must be in properly sized conduit and less than 20 feet long. The
serial connection from the FocalPoint™ Gateway to the 7100 panel is not supervised.

Cable Connections FPT Gateway Installation
19FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
.
Figure 2.5 Gateway Cable Connections
2.5.1 600 Series Router Serial Data Connection
Figure 2.6 600 Series Router Serial Cable Connection
2.5.2 600 Series Panel Serial Data Connections
Figure 2.7 Direct Serial Data Connection Using the IF602 Supplied Cable
1
2
3
GRN
BLK
RED
X C R G
TB3 DB9 Connector
600 Series Router
To
GW
DB9 to Leads Cable
P/N: 75267
DB9 Adapter Plug
Serial Cable Supplied with IF602 Panel
To J6
Connector
on IF602
Panel
To
GW

FPT Gateway Installation Cable Connections
20 FocalPoint™ Gateway Installation & Operation Manual - P/N: 52649:Rev: B3 2/11/10
Figure 2.8 Direct Serial Data Connection Using the Gateway Supplied Cable
2.5.3 FCI Panel Serial Data Connections
Figure 2.9 E3 Serial Cable Connection
Figure 2.10 7100/7200 Serial Cable Assembly/Connection
GRN
BLK
RED
DB9 Connector
To
GW
To RS232
Connector on
600 Series
Panel
(excludes 602)
Serial Cable Supplied with Gateway
(DB9 to Leads Cable P/N: 75267)
GroundGround
TXRX
RXTX
NOTE: For information about which 600 Series panel’s connectors is used for direct serial data
connections between the gateway and the 600 Series panel consult your respective
Gamewell/FCI panel’s documentation or contact Technical Support.
GRN
BLK
RED
1 2 3 4
TB6 DB9 Connector
E3 Panel’s ILI-MBE3 Board
To
GW
DB9 to Leads Cable
P/N: 75267
DB9 Adapter Casing
Serial Cable
P/N: 6100-0076
BLK
YLW
RED
Pin 2
Pin 3
Pin 5
DB9 Adapter Plug
DB9 Adapter P/N: 6100-0077
To
7100/7200
RJ-11
Connector
Insert To
GW
NOTE: Some early vintage 7200 panels have a DB9 connector instead of an RJ-11 connector
and such a connection requires a DB9 adapter both ends of the serial cable. Current versions of
firmware are supported but some early versions of firmware may not be supported.
