Gamry Instruments Faraday Shield User manual

Faraday Shield
Operator’s Manual

i
If You Have Problems
Please visit our service and support page at www.gamry.com/service-support/. This page contains information on
installation, software updates, and training. It also contains links to the latest available documentation. If you are
unable to locate the information you need from our website, you can contact us via email using the link provided
on our website. Alternatively, you can contact us one of the following ways:
Internet www.gamry.com/service-support/
Telephone [phone]:00 AM–5:00 PM US Eastern Standard Time
[phone] Toll Free US & Canada Only
We will be happy to provide a reasonable level of free support for registered users. Reasonable support includes
telephone assistance covering the normal installation and use of the Faraday Shield.
A service contract that extends both the hardware warranty and software-update period is available at an
additional charge. Software updates do not include software enhancements offered to our customers at additional
cost.
Enhancements to Gamry’s standard applications software that require significant engineering time on our part
may be performed on a contract basis. Contact us with your requirements.
Copyright ©2012–2020 Gamry Instruments, Inc.
Revision 1.0
October 30, 2020
988-00078

ii
Limited Warranty
Gamry Instruments, Inc. warrants to the original user of this product that it shall be free of defects resulting from
faulty manufacture of the product or its components for a period of two years from the original shipment date of
your purchase.
Gamry Instruments, Inc. makes no warranties regarding either the satisfactory performance of the Faraday Shield
or the fitness of the product for any particular purpose. The remedy for breach of this Limited Warranty shall be
limited solely to repair or replacement, as determined by Gamry Instruments, Inc., and shall not include other
damages.
Gamry Instruments, Inc. reserves the right to make revisions to the system at any time without incurring any
obligation to install same on systems previously purchased. All system specifications are subject to change without
notice.
There are no warranties which extend beyond the description herein. This warranty is in lieu of, and excludes
any and all other warranties or representations, expressed, implied or statutory, including merchantability and
fitness, as well as any and all other obligations or liabilities of Gamry Instruments, Inc; including but not limited
to, special or consequential damages.
This Limited Warranty gives you specific legal rights and you may have others, which vary from state to state.
Some states do not allow for the exclusion of incidental or consequential damages.
No person, firm or corporation is authorized to assume for Gamry Instruments, Inc., any additional obligation or
liability not expressly provided herein except in writing duly executed by an officer of Gamry Instruments, Inc.

iii
Disclaimers
Gamry Instruments, Inc. cannot guarantee that the Faraday Shield will work with all computer systems, operating
systems, and third-party software applications hardware/software.
The information in this manual has been carefully checked and is believed to be accurate as of the time of printing.
However, Gamry Instruments, Inc. assumes no responsibility for errors that might appear.
Copyrights
Faraday ShieldOperator’s Manual copyright ©2020, Gamry Instruments, Inc, all rights reserved.
Faraday Shieldand Gamryare trademarks of Gamry Instruments, Inc.
No part of this document may be copied or reproduced in any form without the prior written consent of Gamry
Instruments, Inc.

iv

Copyrights - Inspection
Table of Contents
If You Have Problems 0-i
Limited Warranty 0-ii
Disclaimers 0-iii
Copyrights 0-iii
Chapter 1: Safety Considerations 1-1
Inspection 1-1
Grounding in the Faraday Shield 1-1
Temperature and ventilation 1-1
Environmental limits 1-2
Use with dangerous materials 1-2
Cleaning 1-2
Leakage inside 1-2
RoHS Compliance 1-3
Chapter 2:Introduction 2-1
About this manual 2-1
About the Faraday Shield 2-1
Notational conventions 2-1
Chapter 3: Unpacking and Installation 3-1
Unpacking 3-2
Initial visual inspection 3-2
Assembly 3-2
Physical location 3-6
Appendix A: Specifications 3-8
Comprehensive Index 4-1

Copyrights - Inspection

Chapter 1: Safety Considerations - Inspection
1 - 1
Chapter 1: Safety Considerations
Your Faraday Shield has been supplied in a safe condition. This chapter of the Operator’s Manual contains some
information and warnings that you must follow to insure continued safe operation.
Inspection
When you receive your Faraday Shield, inspect it for evidence of shipping damage. If any damage is noted, please
notify Gamry Instruments Inc. and the shipping carrier immediately. Save the shipping container for possible
inspection by the carrier.
Grounding in the Faraday Shield
The metal case of the Faraday Shield is not connected to an earth ground. Grounding is best accomplished by
connecting the ground lead of the potentiostat to the internal ground lug of the Faraday Shield. Proper grounding
is required for the Faraday cage to function.
Most electrochemical cells are isolated from earth ground, in which cases isolation of the Faraday Shield from
earth is not required. Connection of the Faraday Shield to an earth ground (when allowed) may lower the noise
seen in an electrochemical test.
This connection of the Faraday Shield to an earth ground is not a “Protective Earth Ground” as defined in IEC 1010.
The Faraday Shield is safe in the absence of this connection, for it does not contain any hazardous voltages.
Temperature and ventilation
Your Faraday Shield was designed for indoor use at ambient temperatures between 0C and 45C. You may need
to ventilate or even cool the Faraday Shield with forced air if the temperature rises excessively.
Sources of earth ground include:
• most metal water pipes
• the chassis of most electronic apparatus (which are generally earth grounded)
• the protective ground terminal of an AC mains power plug
We recommend that you discuss grounding with an electrical or electronics professional
prior to making this earth ground connection.
Warning! Do not connect the Faraday Shield’s ground binding post to any voltage other
than a potentiostat’s floating or earth ground. An improper connection can create a safety
hazard, which could result in personal injury or death.

Chapter 1: Safety Considerations - Environmental limits
1 - 2
Environmental limits
There are environmental limits on the storage, shipping and operation of this equipment. The Faraday Shield has
not been designed for outdoor use.
Storage
Ambient Temperature –40C to 75C
Relative Humidity Maximum 90% non-condensing
Shipping
Same as storage plus
Acceleration Maximum 30 G
Operation
Ambient Temperature 0C to 45C
Relative Humidity Maximum 90% non-condensing
Use with dangerous materials
Do not use the Faraday Shield with hazardous gases or other poisonous or noxious materials.
Cleaning
When cleaning the Faraday Shield, disconnect any equipment inside from all power sources prior to cleaning.
Use a cloth lightly dampened with either clean water or water containing a mild detergent to clean the outside of
the enclosure. Alternatively, you can use isopropyl alcohol. Do not use a wet rag or allow fluid to enter the
enclosure. Do not immerse the Faraday Shield in any type of cleaning fluid (including water). Do not use any
abrasive cleaners.
Leakage inside
The Faraday Shield is not sealed to be liquid tight. Avoid spills and promptly clean up any spills that do occur.
Caution! The Faraday Shield is not designed for operation in conditions where liquid
water may enter the chassis, or water vapor may condense within the chassis.
Caution! Read and understand the Material Safety Data Sheet (MSDS) for any solvent,
such as isopropyl alcohol, before use. Always take appropriate precautions when using
these materials.
Warning! Do not connect the Faraday Shield unit to poisonous, noxious, or explosive
materials. Failure to observe this warning could cause injury or property damage. The
Faraday Shield is not gas or liquid tight. Use the same precautions as if using an open
electrochemical cell on a bench. Operate in a hood (fume cupboard) if dangerous gases
are used.

Chapter 1: Safety Considerations - RoHS Compliance
1 - 3
RoHS Compliance
The Faraday Shield has been built using lead-free components. This equipment complies with the European RoHS
initiative.

Chapter 2: Introduction - About this manual
2 - 1
Chapter 2:Introduction
About this manual
This manual covers the installation, safety, and use of the Gamry Instruments Faraday Shield.
About the Faraday Shield
The Faraday Shield is a Faraday cage, designed to be as flexible and convenient as possible for a wide range of
electrochemical experiments.
Faraday Shield features include:
•Pass-throughs for cables, feed gas, thermostatic control (water)
•Electrical isolation from earth ground
•Adjustable plastic shelf for reducing capacitive effects
•Ring stand rod for mounting clamps, various connectors, or adapters to hold glassware, cables, or any
other laboratory equipment
Notational conventions
To make this manual more readable we have adopted some notational conventions. These are used throughout
this manual and all other Gamry Instruments manuals:
•Numbered lists. A numbered list is reserved for step-by-step procedures, with the steps always performed
sequentially.
•Bulleted list. The items in a bulleted list, such as this one, are grouped together because they represent
similar items. The order of items in the list is not critical.

Chapter 3: Unpacking and Installation--Notational conventions
3 - 1
Chapter 3: Unpacking and Installation
Front view of an open Faraday Shield

Chapter 3: Unpacking and Installation--Unpacking
3 - 2
Unpacking
When you receive your Faraday Shield, please verify that you have received the following items:
Table 1 - Faraday Shield - Rev 1 (992-00164)
Quantity
Part number
Description
1
730-00119
4 mm female banana socket, M4 male screw, insulated, black
1
810-00121
Faraday Shield - Bottom Panel
1
820-00161
Shelf, polypropylene
1
820-00163
Ring stand rod, 12 mm OD, 400 mm length, M6
14
835-00042
Thumb screw, plastic, M4 x 10 mm, black
4
850-00067
Rubber bumper, 1 5mm OD, 15 mm height, M4
1
966-00012
Door Panel Sub-assembly
3
966-00013
Side Panel Sub-assembly
1
966-00014
Top Panel Sub-assembly
1
988-00078
Operator's Manual
All panel sub-assemblies have their cable entry plates (P/N 810-00123) already pre-mounted.
Initial visual inspection
After you remove your Faraday Shield components from its shipping carton, check all parts for any signs of
shipping damage. If any damage is noted, please notify Gamry Instruments, Inc. and the shipping carrier
immediately. Save the shipping container for possible inspection by the carrier.

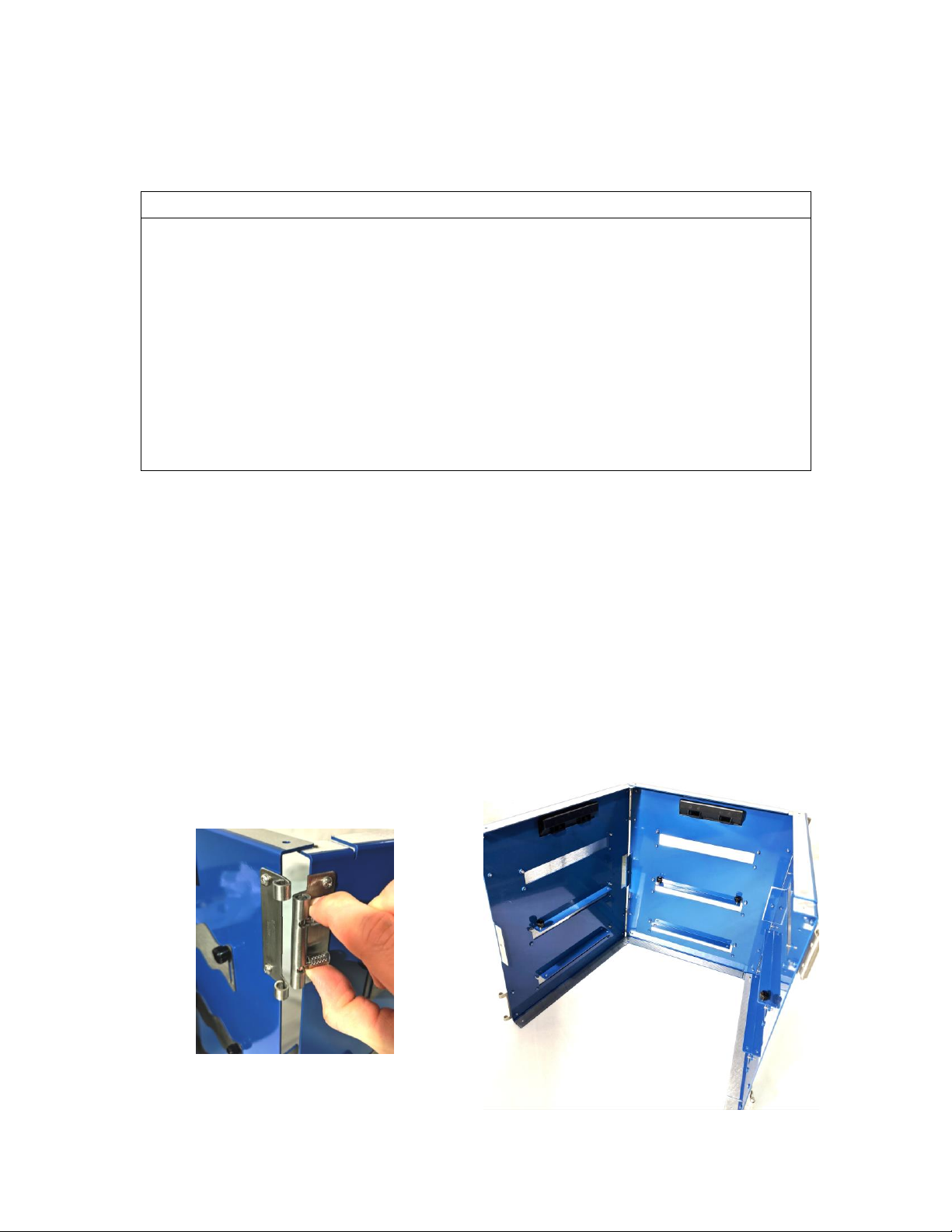

Assembly
Use flat and padded surface (e.g. carpet, cardboard, etc.) for assembling to avoid scratches. No tools are required
to assemble or disassemble the Faraday Shield.
1. Connect side panel sub-assemblies
•each side panel has two pairs of quick-release hinges mounted
•snap together corresponding hinges of all three side panel sub-assemblies (966-00013)

Chapter 3: Unpacking and Installation--Assembly
3 - 3
2. Insert bottom panel
•slide bottom panel from the lower end inside the side panel assembly
•standoffs of bottom panel don’t have to be inserted into clearance holes yet
3. Connect door panel sub-assembly
•connect front panel sub-assembly to one side panel using the quick-release hinges
•open the door and slightly lift up the front part of the bottom panel with its standoffs
•align front panel and connect other side using the quick-release hinges
4. Mount bottom panel and feet
•once the door panel sub-assembly is connected, align all four standoffs of bottom panel with
clearance holes and fully insert
•lift the cage assembly and screw rubber bumper onto threaded studs
•verify that the bottom panel if flush mounted

Chapter 3: Unpacking and Installation--Assembly
3 - 4
5. Mount top panel sub-assembly
•put top panel sub-assembly on top side of cage
•use four thumb screws to attach
6. Interconnect side panels
•use four thumbs screws to connect all side panels

Chapter 3: Unpacking and Installation--Assembly
3 - 5
7. Mount ground connector, ring stand rod, and shelf
•a 4 mm ground jack is provided which can be screwed into any open M4 thread on each side panel
inside the Faraday cage
•screw ring stand rod in any of the four M6 threads at the bottom panel
•the shelf can be mounted on flanges of side panels at two different heights
oplace shelf on flanges (upper or lower level) and attach with six thumb screws
oslightly open thumb screws and slide shelf to remove it
8. Adjust cable entry plates for cables
•all cable entry plates are pre-mounted; two are located at the top and three on each side panel
oslightly unscrew thumb screws of cable entry plate and guide cable through the opening
otighten thumbs screws again to hold both cable entry plate and cables in position
thread for
ground connector
thread for
ring stand rod

Chapter 3: Unpacking and Installation--Physical location
3 - 6
Physical location
Normally place your Faraday Shield on a flat workbench surface. You need access to the top, rear, left, or right side
of the Faraday Shield for cable connections. There are handles on both side and the rear panel to carry the Faraday
Shield.
If you place your Faraday Shield within an enclosed space, make sure that the internal temperature within that
space does not exceed the 45C ambient temperature limit of the Faraday Shield. Be particularly careful if a
computer or other heat-dissipating equipment is mounted in the same enclosure.
Caution! If the Faraday Shield is taken from a cold location (for example: outdoors in
winter conditions) to a warm, humid location, water vapor could condense on the cold
surfaces inside the Faraday Shield. Allow at least one hour for the Faraday Shield to warm
to room temperature.

Chapter 3: Unpacking and Installation--Physical location
3 - 7
Faraday Shield fully assembled
The Faraday Shield is not designed for outdoor use.

Appendix A: Specifications--Physical location
3 - 8
Appendix A: Specifications
All specifications are subject to change without notice.
Description
Dimensions
Exterior dimensions (max.)
width: 38 cm (15 inch)
length: 38 cm (15 inch)
height: 45.5 cm (18 inch)
Interior dimensions (max.)
width: 35 cm (13.7 inch)
length: 35 cm (13.7 inch)
height: 41.7 cm (16.4 inch)
Door opening (max.)
width: 28.8 cm (11.3 inch)
height: 40.5 cm (16 inch)
Top opening (max.)
width: 30.2 cm (11.8 inch)
length: 30.2 cm (11.8 inch)
Cable opening (max.)
width: 21 cm (8.2 inch)
height: 2.5 cm (1 inch)
Ring stand rod
length: 40 cm (15.8 inch)
diameter: 12 mm (0.5 inch)
Shelf (max.)
width: 34 cm (13.4 inch)
length: 27.5 cm (10.8 inch)
thickness: 6 mm (1/4 inch)
Weight (approx.)
Faraday Shield: 7 kg (15.4 lbs)
shelf: 0.5 kg (1.1 lbs)
ring stand rod: 0.12 kg (0.26 lbs)
