Gandy Orbit-air 62ds12f User manual

Page 1 of 17

Parts List & Instructions

815 Rice Lake Street, Owatonna, MN 55060

Phone: 800-443-2476 / 507-451-5430

www.gandy.net / Email: sales@gandy.net

62DS12F

Orbit-Air®Applicator

Implement Mounted Hopper

10 Cu. Ft. (.28m3) Hopper, 450-Lb Chemical Capacity

w/ 12 (1-1/4”) Outlets, Fertilizer (F) Red Wheels

For Use w/ 1-1/4 I.D. Tubing

Single Metering Shaft, No Clutch

12-Volt Electric Motor Driven

(All Parts & Hardware in Place Unless Otherwise Specified)

The Following Parts Are Shipped Inside Hopper:

1 .......................Packet Containing................Parts & Packing List, Operator’s Manual, Rate Chart & Ag Warranty

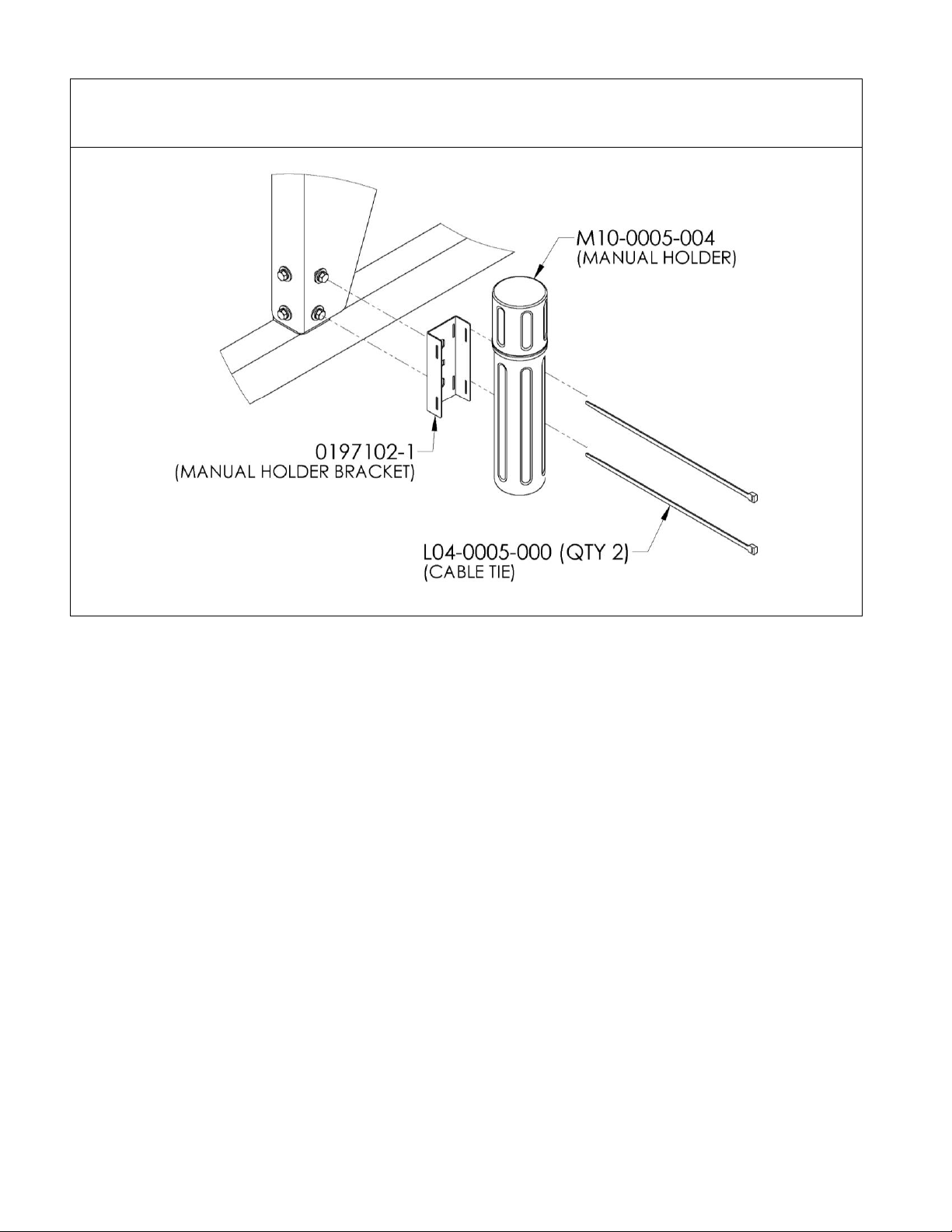

2 .......................L04-0005-000......................Cable Tie (5/16 x 15-1/4)

1 .......................M10-0005-004.....................Manual Holder

1 .......................0197102-1............................Manual Bracket Holder

1 .......................6212-D.................................Air Pressure Gauge Carton (See Page for Contents)

1 .......................629068-A.............................Parts Carton Containing: (See Page for Contents)

Maintenance

Check all bolts for tightness after first two hours of use; check periodically thereafter.

Grease all fittings regularly.

There are Three grease fittings on hopper. These must be greased before use and periodically during use.

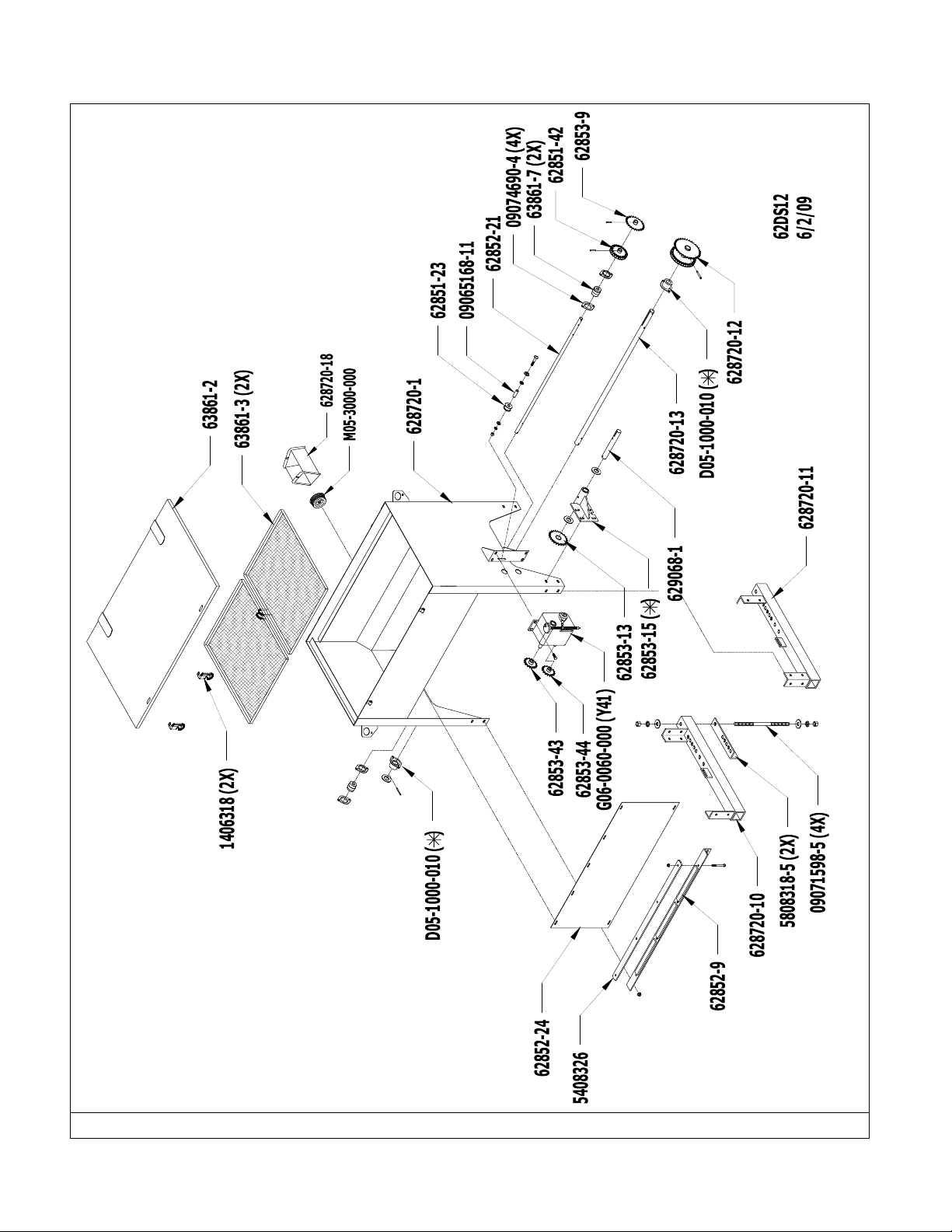

Locations: See page 7.

One grease fitting on each 1-inch bearing (D05-1000-010) (Two) located on the 1-inch drive shafts (628720-13).

One grease fitting on drive shaft housing (62853-15) located under Speed control (G06-0060-000).

Lucubrate chains as needed.

Periodically clean intake screen on hydraulic driven blower.

Page 2 of 17

1 .......................S02-0001-035 ......................Shipping Crate (10 CF Hopper)

Use: 4 Hex Bolt (3/8 x 2-3/4) (C03-0375-111)

8 Wrought Washer (3/8) (C02-0375-030)

4 Whiz Flange Nut (3/8) (C01-0375-030)

1 .......................628720-1..............................Hopper 10 Cu. Ft.

Use: 2 Sight Window (610851/26)

4 Rails (610851/27)

12 Pop Rivet (3/16 x 3/8) (C19-0187-030)

2 Decal, Caution Moving Parts (N02-0014-010)

2 Decal, Orbit Air 62 Series Small (N02-0001-123)

1 Decal, Important Metering Wheel (N02-0062-040)

1 Decal, Caution Black on Yellow (N02-0062-050)

1 .......................628720-10............................Mounting Arm, Hopper, Left

Use: 8 Carriage Bolt (3/8 x 1) (C04-0375-040)

8 Whiz Flange Nut (3/8) (C01-0375-030)

1 .......................628720-11............................Mounting Arm, Hopper, Right

Use: 6 Carriage Bolt (3/8 x 1) (C04 -0375-040)

2 Carriage Bolt (3/8 x 1-1/4) (C04-0375-051)

8 Whiz Flange Nut (3/8) (C01-0375-030)

2 .......................63861-3................................Screen (10 Cu Ft Hopper)

1 .......................63861-2................................Cover, 10 Cu. Ft.

Use: 2 Clevis Pin (1/4 x 2-5/8) (C22-0250-200)

2 Cotter Pin (3/32 x 3/4) (C20-0093-020)

2 .......................1406318 ...............................Cover Lock

Use: 2 Cotter Pin (3/32 x 3/4) (C20-0093-020)

1 .......................62852-24..............................Clear Windshield (For 10 Cu Ft Hopper)

Use: 5 Hex Bolt (1/4 x 1/2) (C03-0250-010)

5 Wrought Washer (5/16) (C02-0312-030)

5 Whiz Flange Nut (1/4) (C01-0250-030)

1 .......................62852-21..............................Shaft, Gear & Driven Sprocket (26 x 5/8 Round)

2 .......................63861-7................................Bearing, Plastic (5/8 Bore)

4 .......................09074690-4..........................Flangette (For 63861-7 Bearing)

Use: 4 Carriage Bolt (1/4 x 5/8) (C04-0250-020)

4 Whiz Flange Nut (1/4) (C01-0250-030)

1 .......................62851-28..............................Mounting Bracket, Shaft Sensor

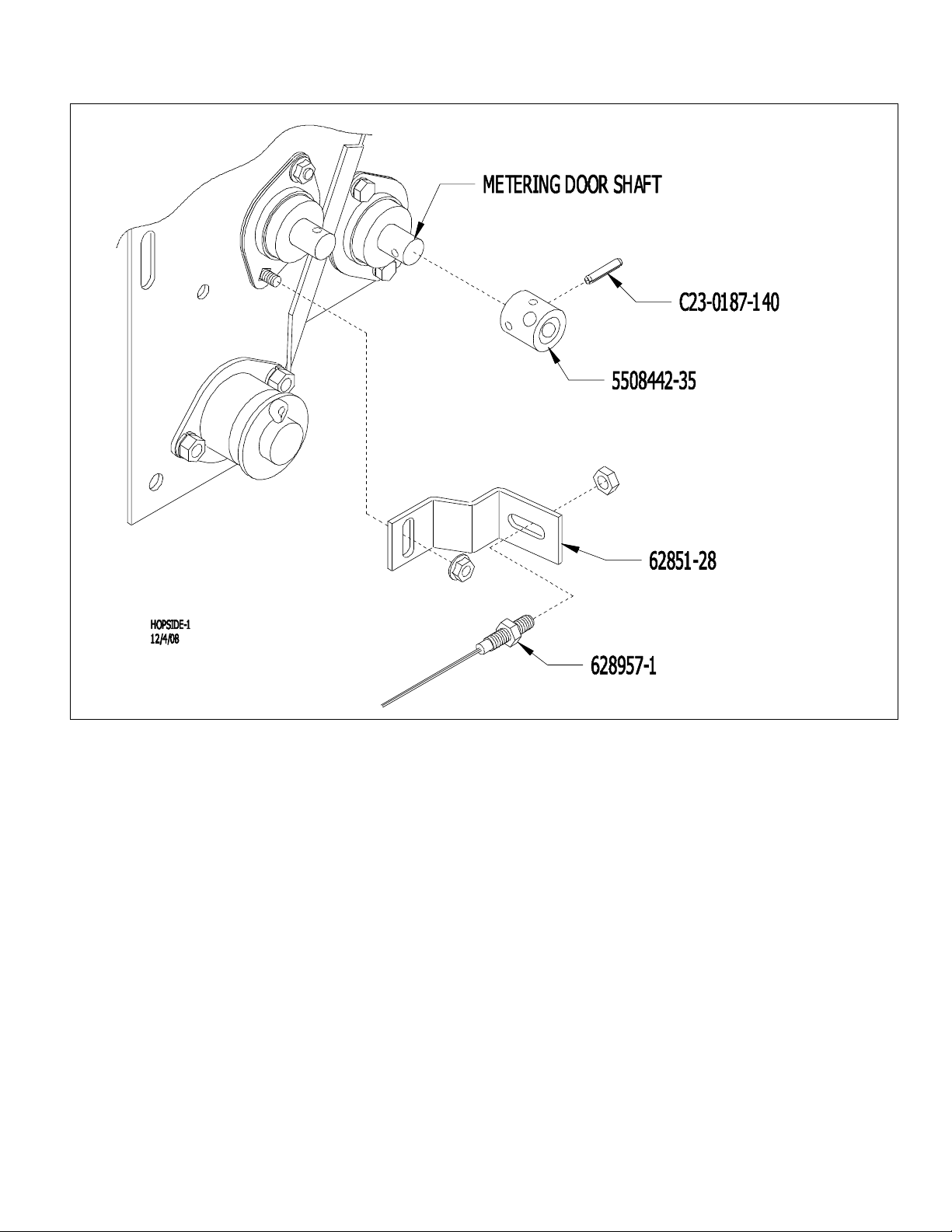

1 .......................628957-1..............................Sensor Shaft w/ Tabs

1 .......................62851-42..............................Chain Sprocket, 21-Tooth (5/8 Bore)

Use: 1 Cotter Pin (3/16 x 1-1/4) (C20-0187-030)

1 .......................62853-9................................Sprocket, 24-Tooth, (5/8 Bore x 1-1/4 Hub)

Use: 1 Cotter Pin (3/16 x 1-1/4) (C20-0187-030)

1 .......................628720-13............................Shaft (38 x 1-inch Round) (Electric Clutch)

Use: 1 SAE Washer (1-inch) (C02-1000-020)

1 Cotter Pin (3/16 x 1-1/4) (C20-0187-030)

2 .......................D05-1000-010......................Bearing (for 1-inch Shaft)

Use: 4 Hex Bolt (5/16 x 3/4) (C03-0312-030)

4 Lock Washer (5/16) (C02-0312-010)

4 Hex Nut (5/16) (C01-0312-010)

1 .......................628720-12............................Chain Sprocket, 32-35 tooth (1-inch Bore x 3-5/8 Hub)

Use: 1 Hex Bolt (1/4 x 1-3/4) (C03-0250-070)

1 Nylon Lock Nut (1/4) (C01-0250-040)

Page 3 of 17

3.08 Ft..............F02-0041-000 ......................Roller Chain #41 (74 Rollers) (From Zero Max to 1-inch Shaft)

Use: 1 Connector Link (#41) (F02-0041-001)

1 .......................62851-23..............................Nylon Roller (Chain Tightener)

Use: 1 Carriage Bolt (3/8 x 2-1/2) (C04-0375-100)

1 SAE Washer (7/16) (C02-0437-020)

2 Wrought Washer (3/8) (C02-0375-030)

1 Lock Washer (3/8) (C02-0375-010)

1 Hex Nut (3/8) (C01-0375-010)

1 Bushing (9/16 o.d. x 1-5/8 Long) (09065168-11)

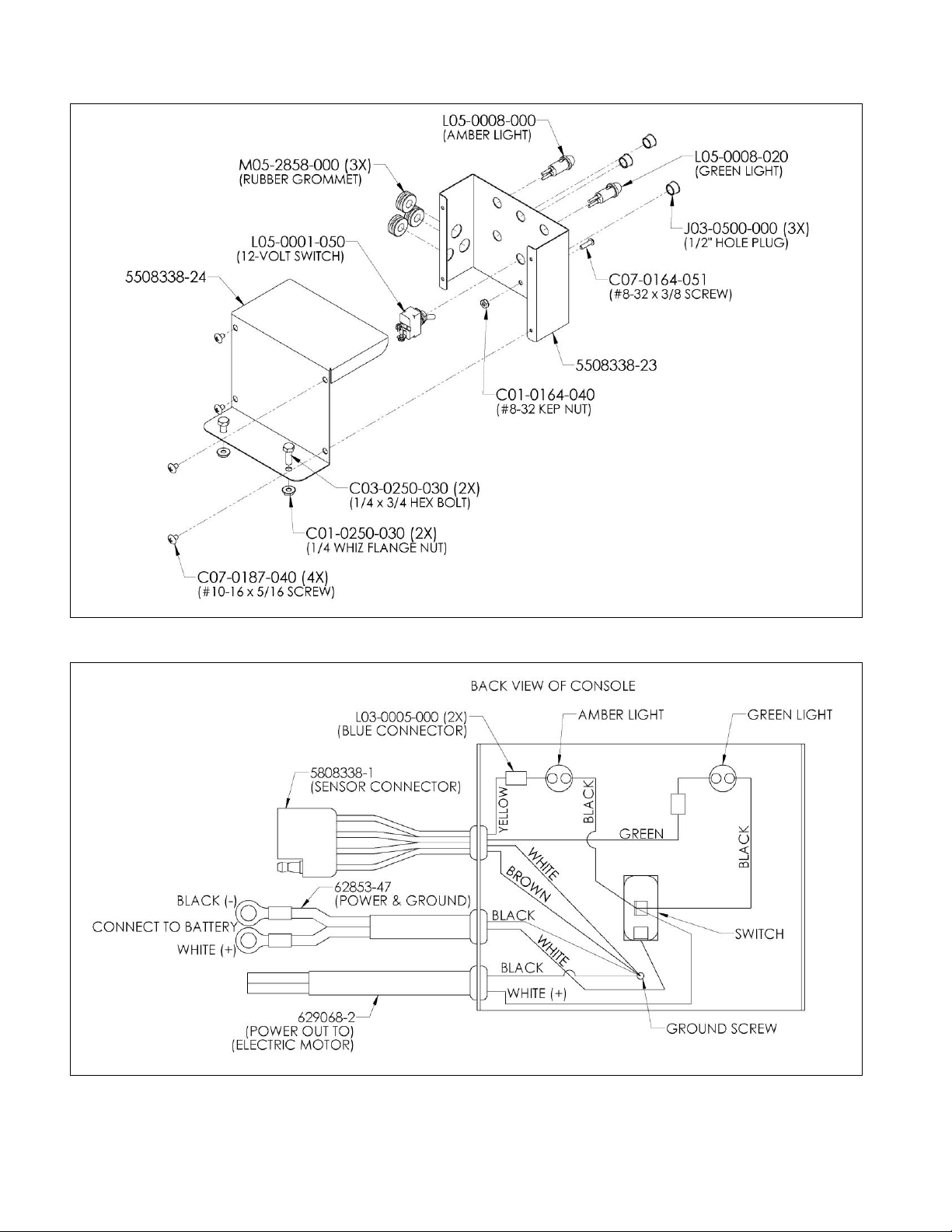

1 .......................G06-0060-000......................Speed Control (Y41 Zero-Max)

Use: 4 Carriage Bolt (3/8 x 1) (C04-0375-040)

4 Lock Washer (3/8) (C02-0375-010)

4 Hex Nut (3/8) (C01-0375-010)

1 .......................62853-43..............................Sprocket, 16-Tooth (5/8 Bore, 1-3/4 Hub)

Use: 2 Socket Set Screw (#10-24 x 5/16) (C06-0187-030)

1 .......................62853-44..............................Sprocket, 16-Tooth (1/2 Bore x 1-3/8 Hub)

Use: 1 Socket Set Screw (1/4 x 1/4) (C06-0250-020)

1 .......................62853-15..............................Housing Drive Shaft

Use: 1 Grease Fitting (D01-5010-050)

1 .......................629068-1..............................Shaft (7-1/2 x 1-inch Dia.)

Use: 2 SAE Washer (1-inch) (C02-1000-020)

1 Cotter Pin (3/16 x 1-1/4) (C20-0187-030)

1 .......................62853-13..............................Sprocket 24-Tooth (1-inch Bore x 1-1/2 Hub)

Use: 1 Cotter Pin (3/16 x 1-1/4) (C20-0187-030)

2.04 Ft..............F02-0041-000 ......................Roller Chain #41 (48 Rollers)

Use: 1 Connector Link #41 (F02-0041-001)

1 Offset Link #41 (F02-0041-002)

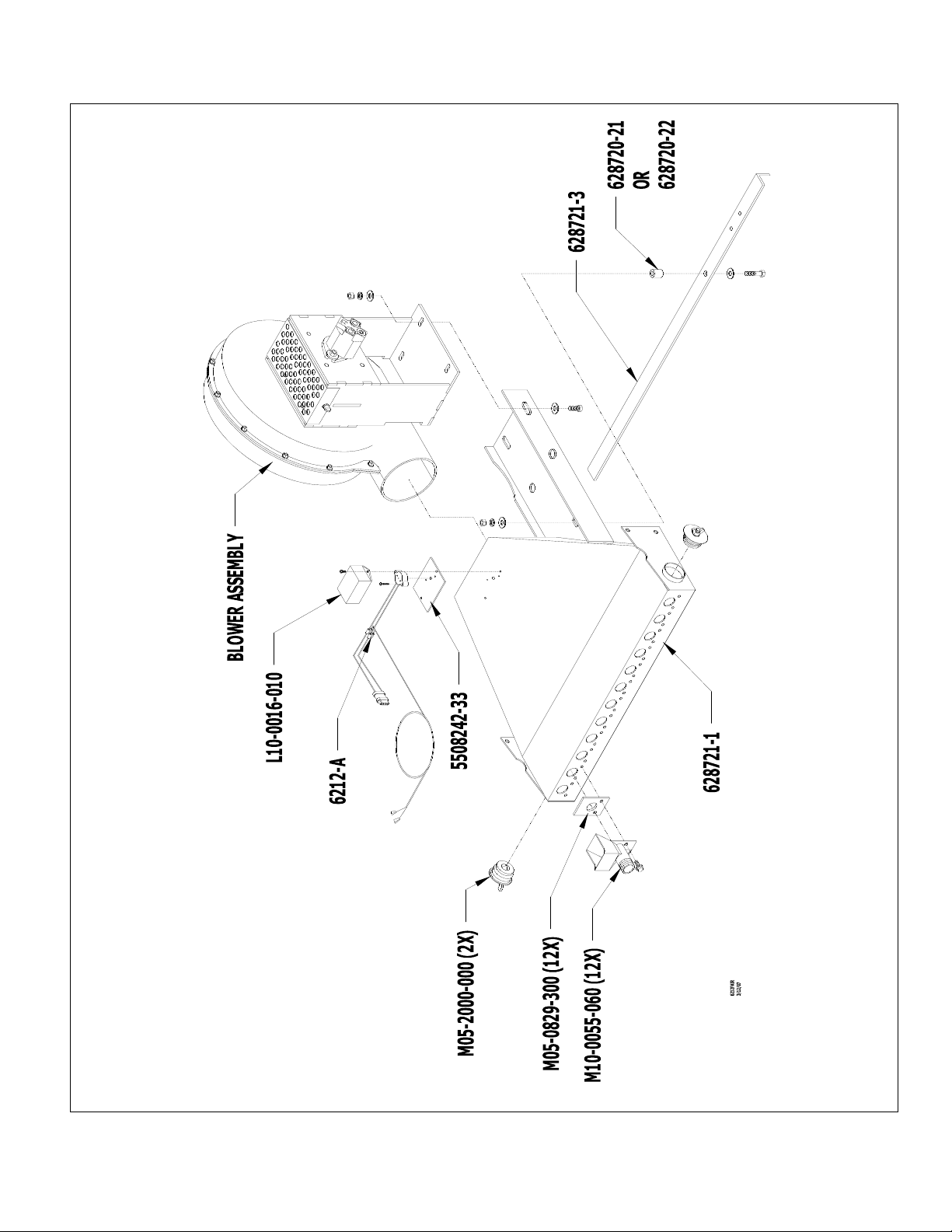

1 .......................628721-1..............................Air Chamber, 12-Outlet

Use: 2 Hex Bolt (3/8 x 3/4) (C03-0375-030)

1 Hex Bolt (3/8 x 1) (C03-0375-041)

3 Whiz Flange Nut (3/8) (C01-0375-030)

2 .......................M05-2000-000.....................Rubber Plug (2-inch) (for Air Chamber Clean Outs)

1 .......................628721-3..............................Angle Support, Air Chamber

12 .....................M05-0829-300.....................Gasket, Mixing Chamber

12 .....................M10-0055-060.....................Mixing Chamber (For 1-1/4 I.D. Tubing)

Use: 24 Hex Head TC Screw (5/16 x 3/4) (C03-0312-032)

1 .......................5508242-33..........................Gasket, Potting Box

1.......................6212-A.................................Sensor Wire Assembly

Use: 2 Pan Head TC Screw (#8-32 x 1/2) (C07-0164-070)

1 .......................L10-0016-010......................Potting Box

Use: 2 Phillips Pan Head TC Screw (#8-32 x 1/2) (C07-0164-070)

1 .......................M05-3000-000.....................Rubber Plug (3-inch) (for Hopper Clean Out)

1 .......................628720-18............................Clean-Out Chute (4-inch)

Use: 1 Wing Nut (5/16) (C01-0312-020)

1 Wrought Washer (5/16) (C02-0312-030)

1 Decal, Caution Plug (N02-0062-051)

1 .......................62852-9................................Angle Clamp, Tubing

Use: 3 Foam Clamp Strip 9-1/2 Long (62851-16)

1 .......................5408326 ...............................Bar Clamp, Plastic Tubing

Use: 3 Foam Clamp Strip 9-1/2 Long (62851-16)

4 Hex Bolt (5/16 x 2-1/2) (C03-0312-101)

4 Lock Nut, Nylon (5/16) (C01-0312-040)

Page 4 of 17

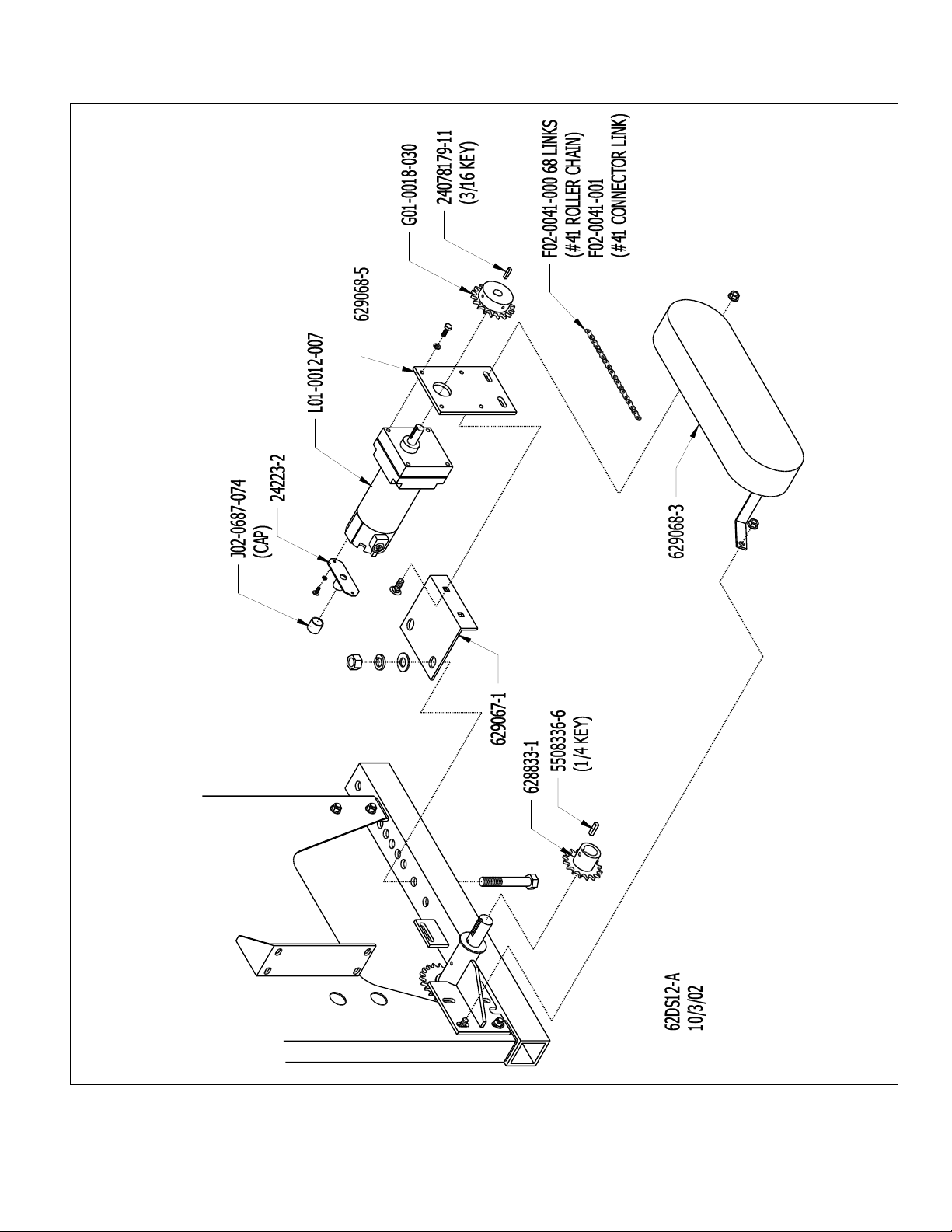

1 .......................629067-1..............................Mounting Bracket, Electric Motor

Use: 2 Hex Bolt (5/8 x 3-1/2) (C03-0625-141)

2 SAE Washer (5/8) (C02-0625-020)

2 Lock Washer (5/8) (C02-0625-010)

2 Hex Nut (5/8) (C01-0625-010)

1 .......................629068-5..............................Mounting Plate (Electric Motor)

Use: 2 Carriage Bolt (3/8 x 1) (C04-0375-040)

2 Whiz Flange Nut (3/8) (C01-0375-030)

1 .......................L01-0012-007......................Electric Motor, 12-Volt (Stature)

Use: 4 Hex Bolt (1/4 x 3/4) (C03-0250-030)

4 Lock Washer (1/4) (C02-0250-010)

1 .......................24223-2................................Guard, Shaft, Electric Motor

Use: 1 Red Cap (11/16 I.D. x 1/2) (J02-0687-074)

2 Slotted Head Screw (#10-32 x 1/2) (C08-0187-072)

2 Lock Washer (3/16) (C02-0187-010)

1 .......................G01-0018-030......................Sprocket 18-Tooth (5/8 Bore, 3/16 Keyway)

Use: 1 Key (3/16 x 7/8) (24078179-11)

1 .......................628833-1..............................Sprocket 16-Tooth (1-inch Bore x 1-1/2 Hub)

Use: 2 Socket Set Screw (1/4 x 1/4) (C06-0250-020)

1 Key (1/4 x 1-3/8) (5508336-6)

2.83 Ft..............F02-0041-000 ......................Roller Chain #41 (68 Rollers)

Use: 1 Connector Link #41 (F02-0041-001)

1 Offset Link #41 (F02-0041-002)

1 .......................629068-3..............................Chain Guard (10 Cu Ft Hopper)

1 .......................5508442-35..........................Magnetic Hub (Installed on Metering Door Shaft)

Use: 1 Spring Pin (3/16 x 1) (C23-0187-140)

1.......................62852-F ...............................Metering Door Assembly: 12-Outlet w/ Red Wheel

1.................62852-11..............................Mounting Plate (12-Outlet)

Use: 2 J-Bolt (C16-0312-020)

2 Wrought Washer (5/16) (C02-0312-030)

2 Wing Nut (5/16) (C01-0312-020)

3.17 FT......M05-0125-050.....................Rubber Strip with Adhesive (1/8 x 1/2)

12...............M10-0001-100.....................Metering Cup (1-1/4)

Use: 26 Whiz Flange Nut (3/16) (C01-0187-030)

12...............62851-76..............................Hole Closure, Slotted

Use: 24 Extruded Washer (628720-20)

12 Hex Bolt (5/16 x 1-3/4 Stainless) (C03-0312-071)

12 Comp. Spring (E00-0420-012)

1 .............62852-14..............................Hex Shaft, Metering Wheels (31-9/16 x 5/8 Hex)

2 .............63861-7................................Plastic Bearing

4 .............09074690-4..........................Flangette, Bearing

Use: 4 Hex Bolt (1/4 x 1/2) (C03-0250-013) (Stainless)

4 Lock Washer (1/4) (C01-0250-012) (Stainless)

12 ...........M10-0001-040.....................Metering Wheels, Fertilizer, Red

24 ...........62851-72..............................Wear Plates (Stainless)

1 .............62851-41..............................Sprocket, 21-Tooth (5/8 Bore)

Use: 1 Cotter Pin (3/16 x 1-1/4) (C20-0187-030)

Page 5 of 17

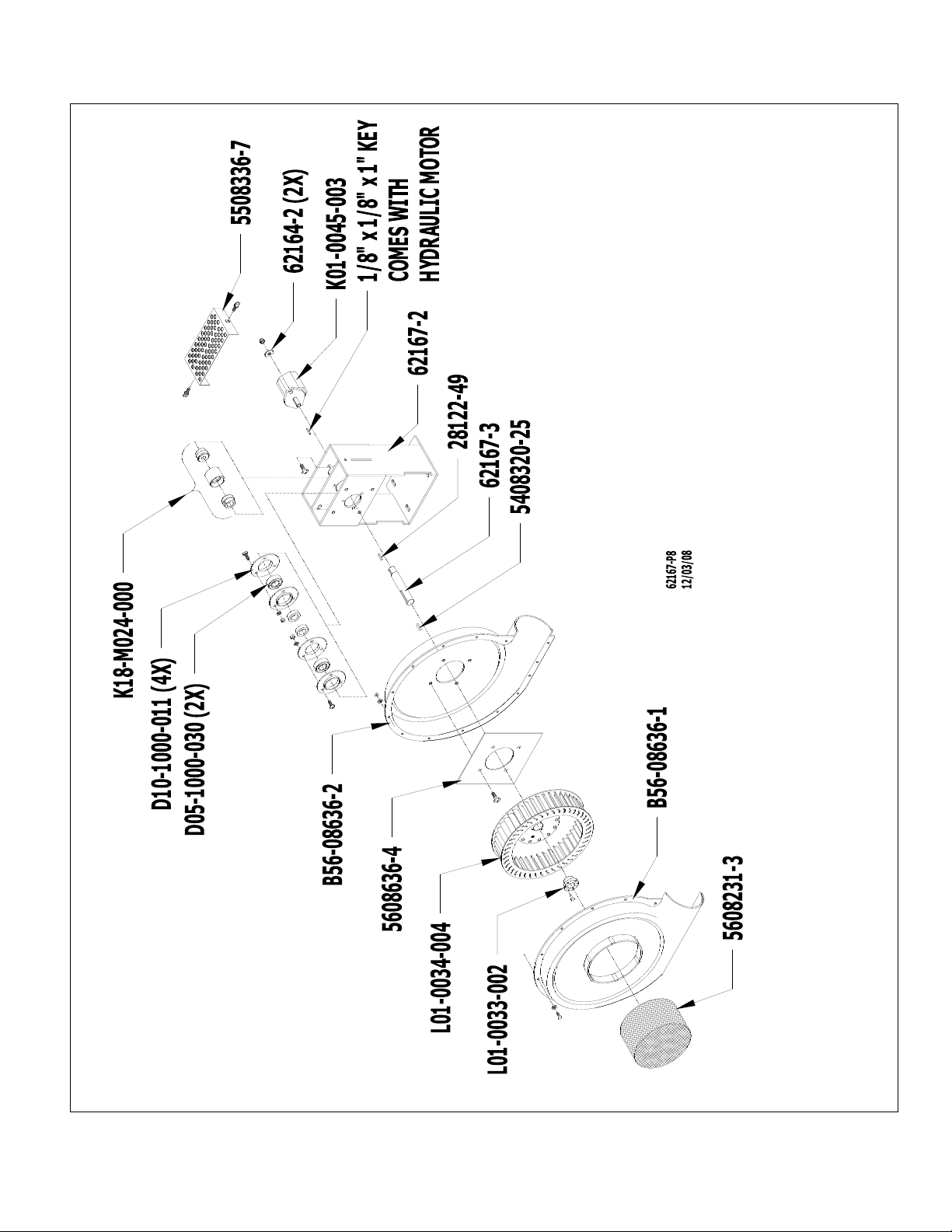

1.......................62167-P8 .............................Blower Assembly, Horizontal Discharge, 8 GPM Hydraulic Motor

1.................B56-08636-1........................Front Housing, Blower (Plastic)

Use: 14 Hex Bolt (1/4 x 3/4) (C03-0250-30)

28 SAE Washer (1/4) (C02-0250-020)

14 Lock Nut, Nylon (1/4) (C01-0250-040)

1.................B56-08636-2........................Back Housing, Blower (Plastic)

1.................5608636-4............................Back-Up Plate

Use: 4 Carriage Bolt (3/8 x 1-1/4) (C04-0375-051)

4 Lock Nut, Nylon (3/8) (C01-0375-041)

1.................62167-2................................Mount, Blower (Plastic w/Coupler)

Use: 1 Decal, Warning Rotating Parts (N02-0055-010)

1 Decal, Important Hydraulic Motor (N02-0062-043)

1 Decal, Black on Yellow (N02-0062-050)

4 Hex Bolt (3/8 x 1-1/2) (C03-0375-061)

8 Wrought Washer (3/8) (C02-0375-030)

4 Lock Washer (3/8) (C02-0375-010)

4 Hex Nut (3/8) (C01-0375-010)

1.................L01-0034-004......................Fan, Impeller

Use: 1 Bushing (1-inch JA Bore) (L01-0033-002)

1.................5408320-25..........................Key, Fan Shaft (1/4 x 1)

1.................62167-3................................Shaft (6 Inch Long)

1.................28122-49..............................Key, for Coupler (3/16 sq. x 1)

1.................K18-M024-000....................Coupler (9/16 x 7/8)

Replacement Parts ...............(K18-M024-003 Black Plastic Coupler Sleeve) (5508230-5 1/8 x1 Key)

(K18-M024-004 Coupler for 9/16 Shaft on Hyd Motor)

(K18-M024-005 Coupler for 7/8 Shaft on End of Fan Shaft)

1.................K01-0045-003......................Hydraulic Motor, 8-GPM Casappa

Use: 2 Carriage Bolt (3/8 x 1-1/4) (C04-0375-051)

2 Washer, Motor Side, Stainless (62164-2)

2 Lock Nut, Nylon (3/8) (C01-0375-041)

2.................D05-1000-030......................Bearing & Locking Collar (For 1-inch Shaft)

4.................D10-1000-011......................Flangette, Round

Use: 6 Carriage Bolt (5/16 x 1) (C04-0312-040)

6 Lock Washer (5/16) (C02-0312-010)

6 Hex Nut (5/16) (C01-0312-010)

1.................5608231-3............................Screen, Blower

Use: 3 Pan Head Sheet Screw (#10 x 3/4) (C07-0187-090)

1.................5508336-7............................Guard, Blower Shaft

Use: 2 Thumb Screw (5/16 x 3/4) (C09-0312-100)

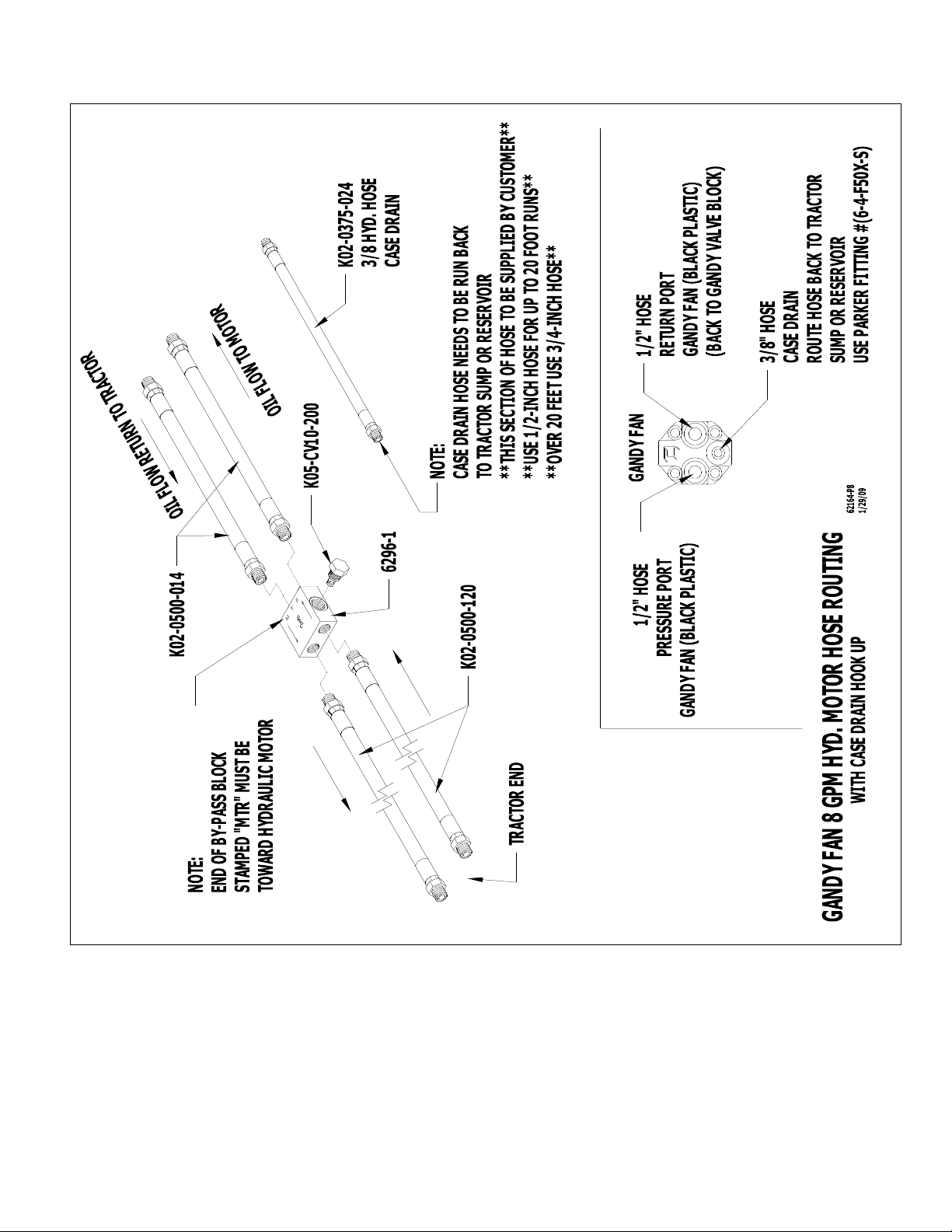

2.................K02-0500-120......................Hydraulic Hose, 1/2 x 120”

2.................K02-0500-014......................Hydraulic Hose, 1/2 x 14” w/ O-Ring Fitting On One End

1.................K02-0375-024......................Hydraulic Hose, 3/8 x 24” (Case Drain)

1.................L04-0005-000......................Cable Tie (5/16 x 15-1/4)

1.................L04-0000-000......................Tag, Important, Caution

1.................62113...................................Hydraulic By-Pass Block Assembly w/Check Valve

1..........K05-CV10-200....................Check Valve

1..........6296-1..................................Hydraulic By-Pass Block

Page 6 of 17

These Three Cartons Were Shipped Inside Hopper:\

1.......................6212-D.................................Air Pressure Gauge Carton (Shipped Inside Hopper)

1.................C01-0312-030......................Whiz Flange Nut (5/16)

1.................C03-0312-020......................Hex Bolt (5/16 x 5/8)

2.................K04-0250-375......................Adaptor, Plastic, 1/4 MPT x 3/8 HB

1.................K17-P734-004 .....................Air Pressure Gauge 4 Inch

4 FT...........M06-0375-000.....................Tubing, 3/8 I.D. x 1/8 Wall

1.................62851-46..............................Mounting Bracket, Air Pressure Gauge

1.......................629068-A.............................Parts Carton Containing: (Shipped Inside Hopper)

1.................629068-B.............................Enclosed Console Assembly, 2 Light, 1 Switch

1..........5508338-23..........................Enclosed Console, Front

1..........5508338-24..........................Enclosed Console, Back

Use: 4 Pan Hd Sheet Metal Screw (#10-16 x 5/16) (C07-0187-040)

2 Hex Bolt (1/4 x 3/4) (C03-0250-030) (in Place)

2 Whiz Flange Nut (1/4) (C01-0250-030) (in Place)

1..........C01-0164-040......................Kep Nut (#8/32)

1..........C07-0164-051......................Pan Hd Screw (#8-32 x 3/8)

3..........J03-0500-000.......................Hole Plug (1/2)

2..........L03-0005-000......................Wire Connector, Blue (18-14ga)

1..........L03-0015-000......................Fork Terminal, Yellow (12-10ga)

1..........L05-0001-050......................Toggle Switch, On/Off

1..........L05-0008-000......................Amber Light

1..........L05-0008-020......................Green Light

3..........M05-2858-000.....................Rubber Grommet, (3/8)

1..........5808338-1............................Molded Connector, Female (8-inch w/ Terminals)

1..........62853-47..............................Power & Ground Wire (10ga x 12 Ft)

1..........629068-2..............................Electric Rip Cord (10ga x 12 Ft)

Use: 2 Wire Connector, Yellow (L03-0005-010) (in hardware bag)

1.................L03-0003-070......................Molded Connector, 4 Contacts (M & F Ends, 144” Long)

12 FT.........L05-0011-062......................Flex Guard Loom

4.................550829-4..............................Blank Plate, Air Chamber

4.................62852-20..............................Blank Plate, Metering Door

2.................5808318-5............................Angle Clamp

4.................09071598-5..........................Stud Bolt

Use: 8 Lock Washer (5/8) (C02-0625-010) (in hardware bag)

8 Wrought Washer (5/8) (C02-0625-030) (in hardware bag)

8 Hex Nut (5/8) (C01-0625-010) (in hardware bag)

1.................629068-H.............................Hardware Bag Containing: (in Parts Carton 629068-A)

8..........C01-0625-010......................Hex Nut (5/8)

8..........C02-0625-010......................Lock Washer (5/8)

2..........L03-0005-010......................Wire Connector, Yellow (12-10ga)

Page 7 of 17

Hopper & Drive Shaft Assembly

Part numbers with a (*) behind them have grease fittings. See first page.

Page 8 of 17

Air Chamber Assembly

Page 9 of 17

Metering Door Assembly

Page 10 of 17

Sensor Assembly

Table of contents

Popular Industrial Equipment manuals by other brands

ABB

ABB +Q957 user manual

G.B.C

G.B.C BASIC EDGE 50 instruction manual

Tronair

Tronair Batpak 11-6602-1000 Operation & service manual

Pilz

Pilz PNOZ mi2p Operation manual

Clemco

Clemco Zero BNP 6012 manual

Erskine Attachments

Erskine Attachments V-Plow Operator's manual

ABB

ABB HT610965 Operation manual

Morra

Morra MH 540 user manual

Eaton

Eaton S090ST manual

GRIGGIO

GRIGGIO G 240 P4 instructions

Nexen

Nexen AIR CHAMP HT45 user manual

WTE

WTE V5 installation manual

ABB

ABB HT845232 Operation manual

SMC Networks

SMC Networks CJP Series Operation manual

JohnDow Industries

JohnDow Industries JDI-AFT58 Operator's manual

IMB

IMB MB9016A instruction manual

Clarke

Clarke CUMB1 Assembly & operating instructions

amiad

amiad Arkal Spin Klin 2 user guide

Gandy Orbit-Air 62DS12F User manual

Popular Industrial Equipment manuals by other brands
