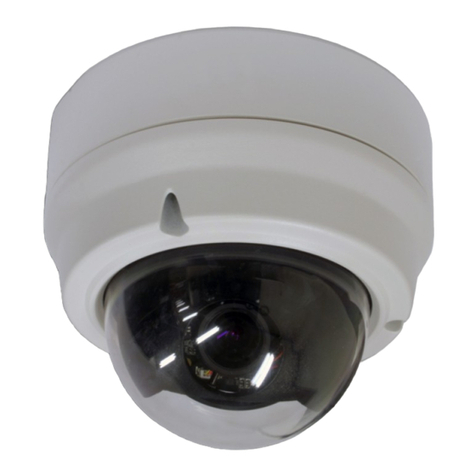

Ganz ZN-DNT352XE-MIR Instruction manual


NC3502Ver1.3
1
ZN-DNT352XE-MIRQuickUserGuide

ThismanualprovidesinstructionsforquickinstallationandbasicconfigurationofyourIPdevice.

Step1.ConnectcablestoIPdevice
ConnectrequiredcablestothedeviceincludingthepowercableandLANcable.Toseethecorrectpositions
ofallconnectors,refertothefollowingimagebelow.

Makesurethepolarityiscorrect.Incorrectconnectionmay
causemalfunctionordamagetotheIPdevice.
Caution
!PowerAdaptorConnector(DC12V)

*Modeldesignandappearancearesubjecttochangewithoutanypriornotice
ResetButton
OutputConfiguration
Switch
ClampingCore *Thisusestoprevent
electromagnetic
interference
LANCablePowerCable
ClampingCore
*Thisbuttonis
locatedunderPCB.


NC3502Ver1.3
2
Step2. InstallIPdevice

Caution
!

Topreventproductsfromdamaging,placethecameraonstableandnon‐vibratingsurfacesIf
thestabilityisindoubt,consultwithsafetypersonnelforreinforcements,andthenproceed
withtheinstallation.

 



1) Placetheinstallationtemplate(paper)
thatisincludedinthepackageonthe
desiredinstallationsurface.

2)Drillthreeholesincorrectpositions
basedonthetemplatepaper,andinsert
anchorblocksintotheholes.

3)Placethewaterproofsiliconbandonthe
bottomplateofthedeviceandmakeit
alignwithscrewholes.

4)Placethecamerabodytothe
installationsurfaceandmatchthree
alignmentholeswiththreeanchorblocks.
Thentightenthesurfaceanchorstuds.

5)Connectalltherequiredcablestothe
camera.

6)Adjustthelensposition.

7)Placethedomecoveronthemainbody
ofthecamera.Domecoverhasthree
alignmentholesthatmatchcamerabody’s
alignmentholes.

8)Onceproperlyplaced,insertscrewsinto
thethreeholesofthebodyandtighten
themup.



NC3502Ver1.3
3
Step3. Setthelensposition
1)Removethedomecover.

2)Setthelenspositionbyrotatingthecameragimbal;topan,rotatethereinforcedlowerbodyofthe
gimbal;totilt,verticallyadjustthecameragimbal.



Caution
!

Refrainfromcontinuouslyrotatingthecameragimbalwithexcessiveforcetoasingledirection
asitisattachedwiththeIR‐LEDcableinsidethedome.

3)Thefigureandtablebelowexplainsthelensswitchsettings.

SW1SW2SW3
PAL/NTSC TELEWIDE

SW4SW5SW6
FARNEARAuto‐
Focus
B.Topan,rotatethelower
bodyofthecameragimbal
C.Tiltthelensbyvertically
adjustingthecameragimbal
A.Toadjustlensposition,
rotatethecameragimbal


NC3502Ver1.3
4
Step4.Setupnetworkenvironment
ThedefaultIPaddressofthedeviceis192.168.XXX.XXX.UserscanidentifytheIPaddressofthedevicefrom
convertingtheMACaddress’shexadecimalnumbers,whichisattachedtothedevice.Besurethatthedevice
andPCareonasameareanetworkbeforerunningtheinstallation.

GenericIPEnvironment
IncaseofgenericprivatenetworkenvironmentwhereIPaddress192.168.XXX.XXXareused,usersmayview
thelivestreamingimagesonawebpageusingthedevice’sdefaultIPaddress:
1. Convertthedevice’sMACaddresstotheIPaddress.RefertotheHexadecimal‐DecimalConversionChart
attheendofthemanual.
(TheMACaddressofthedeviceisattachedonthesideorbottomofthedevice.)



2. StarttheMicrosoft®InternetExplorerwebbrowserandentertheIPaddressofthedevice.
3. WebstreaminganddeviceconfigurationsaresupportedthroughActiveXprogram.WhentheActiveX
installationpop‐upwindowappears,authorizeandinstalltheActiveXsetup.exe,
MACaddress=00‐13‐23‐01‐14‐B1 →IPaddress=192.168.20.177
Convertthelasttwosetofhexadecimalnumberstodecimalnumbers.


NC3502Ver1.3
5
CustomIPEnvironment
IPAdminToolisprovidedwithSDKatthefollowingSDKpath.
{SDK root}\BIN\TOOLS\AdminTool\

IPAdminToolisamanagementtool,whichautomaticallyscansallofthenetworkproductsforuserstoperform
administrativetasks,whichincludesnetworkconfigurations,firmwareupdate,devicereboot,anddevice
organizations.




Tomodifythedevice’sdefaultIPaddressforcustomizednetworkarea;

1. FindthedevicefromtheIPAdminTool’slistandhighlightthedevice’sname.

2. Right‐clickthemouseandselect“IPAddress”;IPSetupwindowappears.



3. IntheIPSetup’swindow,informationunder‘LocalNetworkinformation’displaystheuser/PC’snetwork
areainformation.ThoseinformationneedtobeincorporatedtotheIPAddress,SubnetMask,Gateway,
andDNSboxes,exceptthelast2setsofIPAddress,whicharetobetheuniquenumbersforthedevice.
Refertotheimageaboveforthesetting

4. Click‘Setup’tocompletethemodification.
PCenvironmentInfo
GivenewuniqueIPaddressin
lasttwosetsandmirrorother
informationinotherboxes


NC3502Ver1.3
6
Step5.Viewvideoonwebpage
OncethedevicehastheproperIPaddress,userscanviewthelivestreamingimagesthroughawebbrowser.
Thedefaultusernameandpasswordisroot/pass.



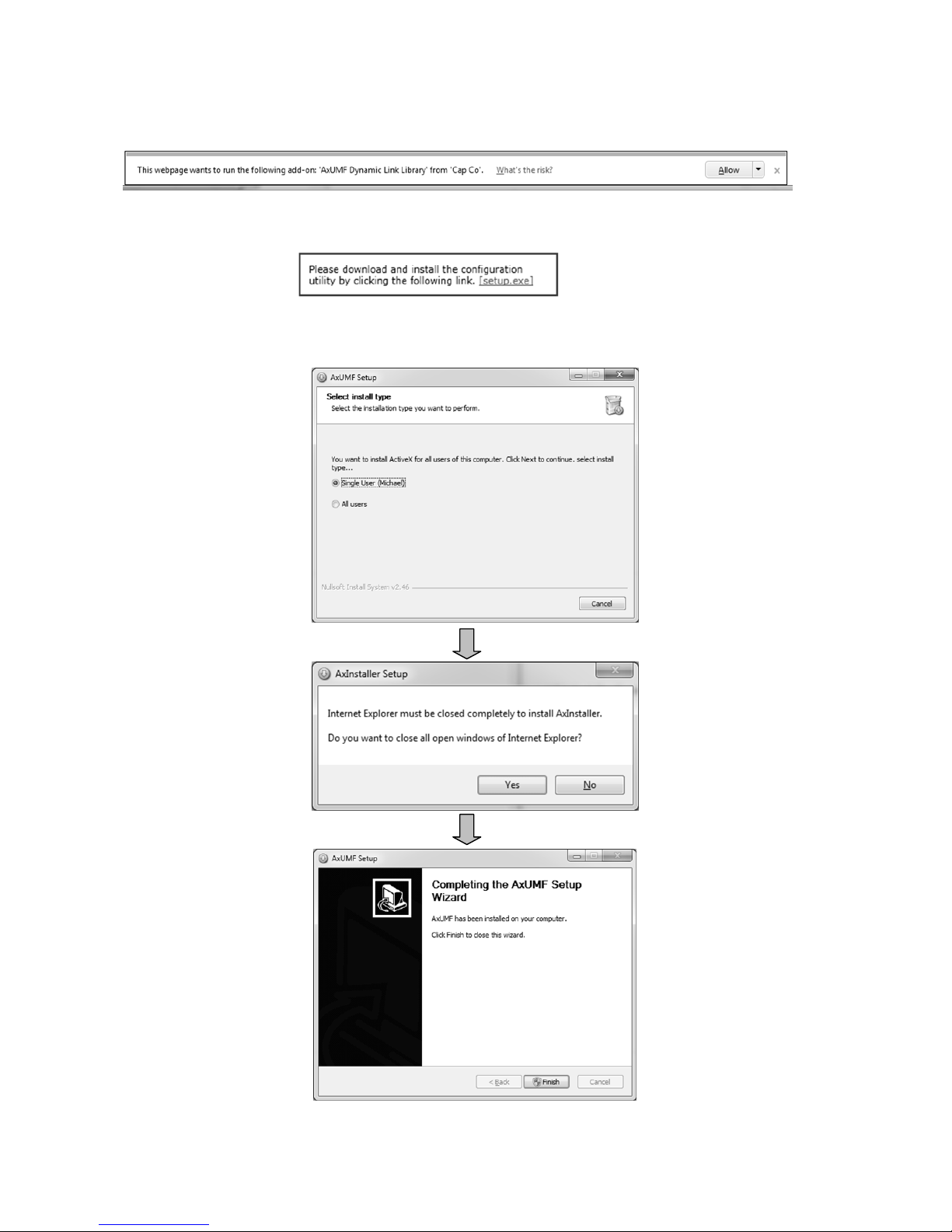

1. Whenthedevice’swebaddressisaccessed,thebrowseraskstoinstalltheActiveX.ClickAllow.

2. Setup.exeinstallationlinkorpop‐upwindowappears,dependsonMicrosoft®InternetExplorerversion.
Proceedwithrestofsetupinstallation.

3. Followtheinstructionsofthedialogboxesandcompletetheinstallation.Oncetheinstallationis
complete,startthewebbrowseragainandcheckifvideostreamisdisplayedinthemainviewframe.


NC3502Ver1.3
7
Rebooting
Performthefollowingprocedurestoresetyourdevice:
1. PresstheResetbuttonfor2seconds.
2. ThepowerLEDturnstoredandWaitforthesystemtoreboot.
ResettingtotheFactoryDefaultSettings
Ifyouresetyourdevicetothefactorydefaultsetting,allparametersincludingtheIPaddresswillbeinitialized.
FortheFactoryDefaultreset:
1. Pressresetbuttonandholdfor5seconds..
2. ReleasethebuttonwhenthegreenPowerLEDblinksat150msinterval.
3. ThepowerLEDbuttonturnstoredandwaitforthesystemtoreboot.


MoreInformation
Tolearnmoreaboutusingotherfeaturesofyourdevices,refertothemanual,whichisavailableontheSDKat
thefollowingpath.
{SDK root}\DOC\


NC3502Ver1.3
8
Hexadecimal-DecimalConversionTable
RefertothefollowingtablewhenyouconverttheMACaddressofyourdevicetoIPaddress.


HexDecHexDec HexDec Hex Dec Hex Dec HexDecHex Dec
0025374A746F111 94148 B9185DE222
1126384B7570112 95149 BA186DF223
2227394C7671113 96150 BB187E0224
3328404D7772114 97151 BC188E1225
4429414E7873115 98152 BD189E2226
552A424F7974116 99153 BE190E3227
662B43508075117 9A154 BF191E4228
772C44518176118 9B155 C0192E5229
882D45528277119 9C156 C1193E6230
992E46538378120 9D157 C2194E7231
0A102F47548479121 9E158 C3195E8232
0B11304855857A122 9F159 C4196E9233
0C12314956867B123 A0160 C5197EA234
0D13325057877C124 A1161 C6198EB235
0E14335158887D125 A2162 C7199EC236
0F15345259897E126 A3163 C8200ED237
101635535A907F127 A4164 C9201EE238
111736545B9180128 A5165 CA202EF239
121837555C9281129 A6166 CB203F0240
131938565D9382130 A7167 CC204F1241
142039575E9483131 A8168 CD205F2242
15213A585F9584132 A9169 CE206F3243
16223B59609685133 AA170 CF207F4244
17233C60619786134 AB171 D0208F5245
18243D61629887135 AC172 D1209F6246
19253E62639988136 AD173 D2210F7247
1A263F6364100 89137 AE174 D3211F8248
1B27406465101 8A138 AF175 D4212F9249
1C28416566102 8B139 B0176 D5213FA250
1D29426667103 8C140 B1177 D6214FB251
1E30436768104 8D141 B2178 D7215FC252
1F31446869105 8E142 B3179 D8216FD253
203245696A106 8F143 B4180 D9217FE254
213346706B107 90144 B5181 DA218FF255
223447716C108 91145 B6182 DB219
233548726D109 92146 B7183 DC220
243649736E110 93147 B8184 DD221

