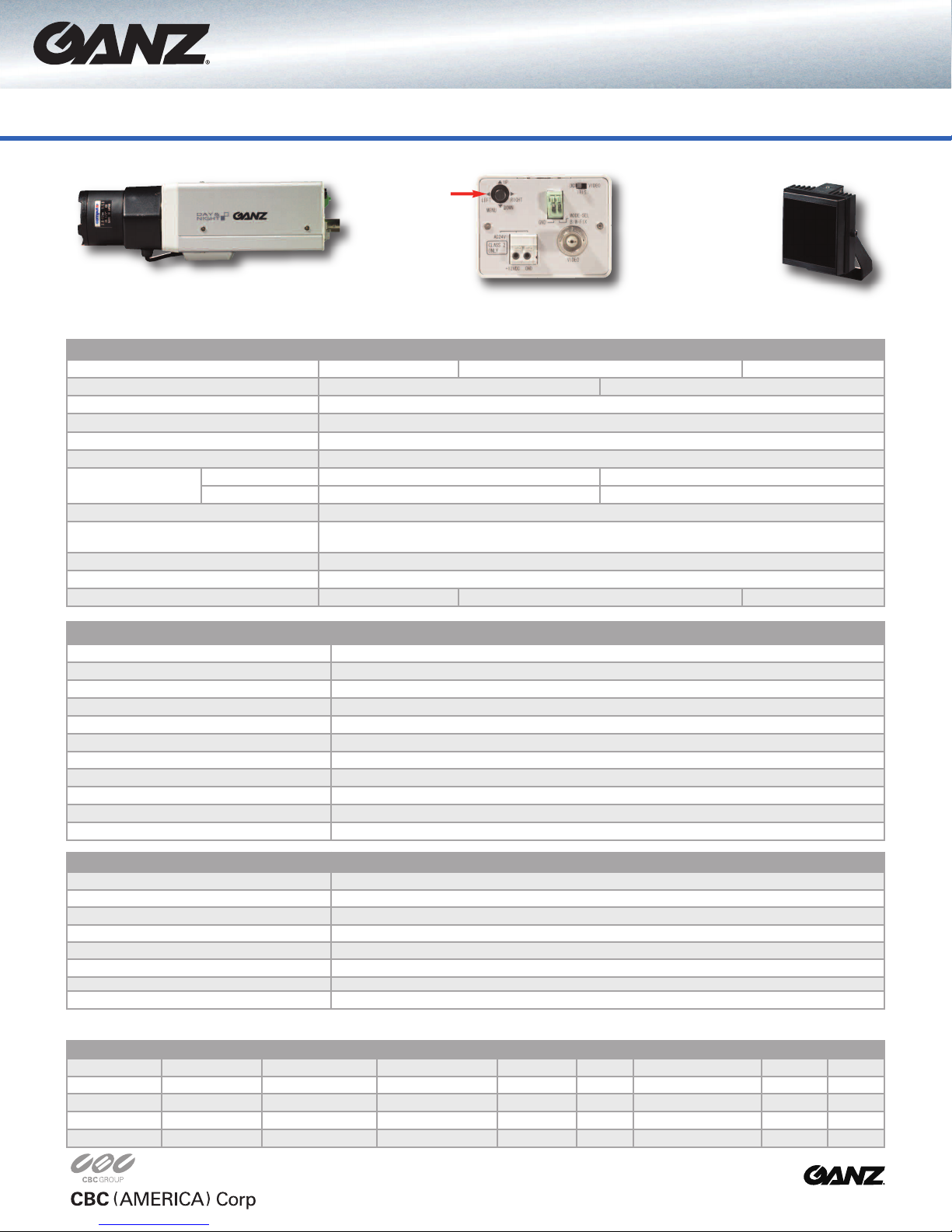

700 T L Wide Dynamic Range CS Mount Camera
All specifications are subject to change without notice
Specifications
www.computarganz.com
MODELS YCX-05 YCX-05W YCX-05WN YCX-05N
WDR Performance Digital WDR True WDR Digital WDR
Day/Night Performance Digital Day/ ight True Day/ ight
Scanning System 2:1 Interlace
Image Sensor 1/3”-type Interline transfer Color CCD
Effective Pixels 976 (H) x 494 (V)
Camera Resolution 700 TVL (For both Color & BW)
Minimum
Illumination @ F1.2
Normal 0.3 lux Color / 0.03 lux B/W 0.07 lux Color / 0.007 lux B/W
50 IRE, SENS UP 0.00006 lux B/W 0.000015 lux B/W
S/N Ratio More than 50dB (at minimum ACG gain)
Electronic Shutter Electronic shutter O : 1/60 s. to 1/100,000 s. * The shutter speed ranging from 1/1,000 s to 1/5,000 s,
1/60 sec. fixed (Flickerless: OFF), 1/100 sec. fixed (Flickerless: O )
Gamma Correction 0.45
Sync. System Internal synchronization (I T.) / Line Lock (L.L.) : For 60Hz regions only
Wide Dynamic Range (WDR) - Max 82dB, 12,600x -
OSD FUNCTIONS
White Balance ATW ( ormal / Wide) / AWB / Manual
Sens Up O : Auto (x2 to x512) / OFF
2D/3D Digital Noise Reduction (2D/3D-DNR) (2D/3D-D R) Extreme / High / Middle / Low
Electronic Zoom O (16 times max.) / OFF
Defog Image Correction Image correction O / OFF
Profile Settings Basic / Enhanced / Casino / Sodium vapor lamp
HLC Detection level: Low / Middle / High
Easy Focus Enabled with indicator
Monitor output mode CRT / LCD
Test Pattern Color Bar, Resolution, Grayscale, Center Cross
Other Functions BLC, AGC, ALC, Privacy Mask, Motion Detection, Image Stabilizer, Flip/Rotate
PHYSICAL / ADDITIONAL
Power Source 24VAC ± 10% (50/60 Hz ± 1 Hz) or 12VDC ± 10%
Power Consumption 12VDC 310mA / 24VAC 250mA, 3.7W
Operating Temperature / Humidity 14° F ∼122° F (-10° C ∼50° C) / 85% humidity (non-condensing)
Storage Temperature / Humidity -4° F ∼140° F (-20°C ∼ 60°C) / 95% humidity (non-condensing)
Dimensions 2.4” (W) x 2.1” (H) x 4.7” (D) / 60 mm (W) x 54 mm (H) x 119.4 mm (D)
Weight 0.7 lbs (320g)
Input/Output Video out, Power in, Day/ ight fix & profile trigger terminal
Certifications CE, FCC, WEEE, UL
YCX-05 Series
Focal Length Manual Iris DC Auto Iris ideo Auto Iris IR F Stop Angle of iew (HOR) Format Mount
2.8-12mm T4Z2813CS-IR TG4Z2813FCS-IR TG4Z2813AFCS-IR 1.3* 102.2º ~ 23.7º 1/3” CS
2.9-8.2mm T3Z2910CS TG3Z2910FCS TG3Z2910AFCS 1.0** 98.3º ~ 35.2º 1/3” CS
2.9-8.2mm T3Z2910CS-IR TG3Z2910FCS-IR TG3Z2910AFCS-IR 1.0** 98.3º ~ 35.2º 1/3” CS
8.5-40mm T5Z8513CS-IR TG5Z8513FCS-IR TG5Z8513AFCS-IR 1.3* 33.5º ~ 7.1º 1/3” CS
5-50mm T10Z0513CS TG10Z0513FCS TG10Z0513AFCS 1.3* 51.8º ~ 5.6º 1/3” CS
Suggested computar®arifocal Lenses *Aspherical lens - improves the image quality **Large aperture - transmits more light
Rear Panel iew
Side iew
Optional IR Light
IRL Series
OSD
avigation
Switch
www.computarganz.com © 2012 CBC (AMERICA) Corp. All Rights Reserved. 08/12
