Gardenline SM-003 User manual

Assembly
Instructions
SMOKER BBQ

2
1
21
17
3
4
9
5
6
7
8
23
14
10
11
13
16
12
18
22
15
19
20

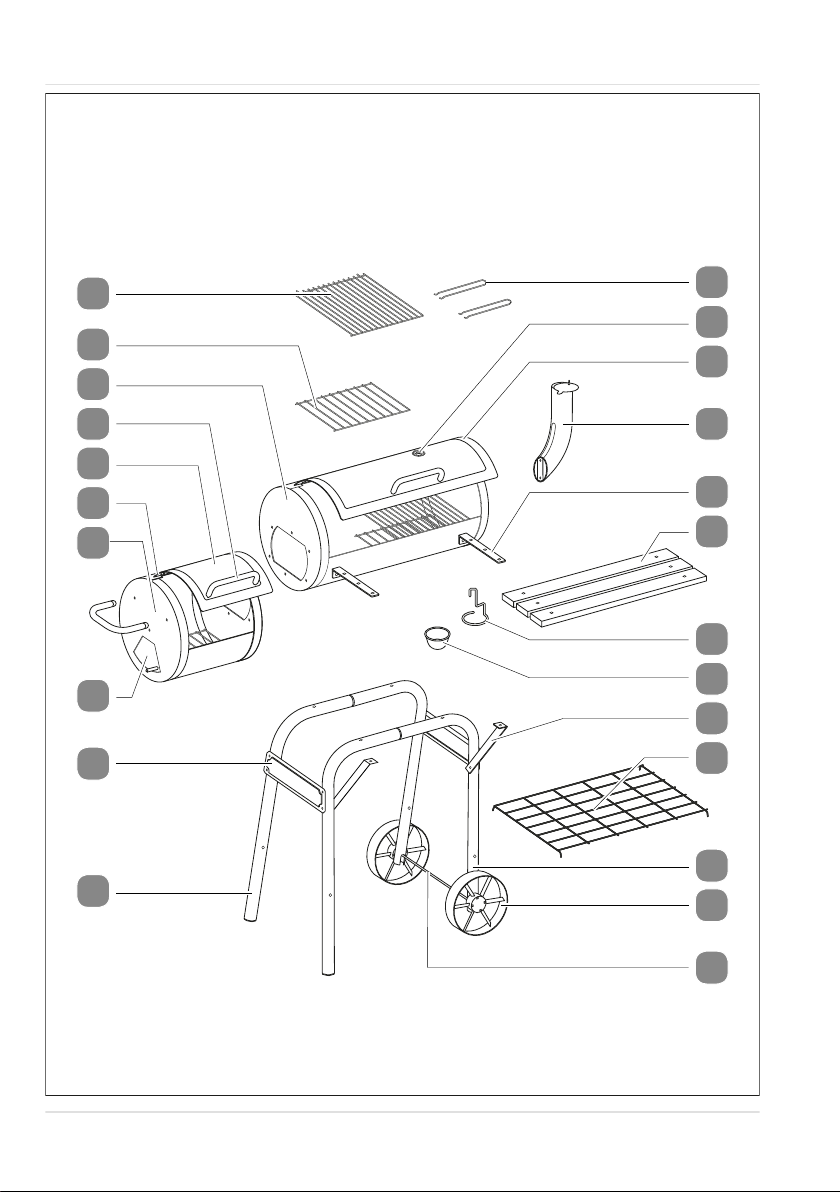

Overview
2

Scope of delivery/product components
Before starting to assemble, please check that all parts mentioned on the parts list
are in the packaging. Unwrap all packaging materials and place components on top
of carton box or on a clean floor to prevent it from scratching. When assembling,
tighten bolts loosely and after assembly is completed, tighten them fully. Avoid over
tightening of nuts and bolts, this will cause damage to the bolts or other
components of the product. Keep small parts out of reach of children.
Components
1Chimney (×1)
2Support for front shelf (×2)
3Front shelf batten (×3)
4Hook for grease cup (×1)
5Steel slot (×1)
6Short leg (×2)
7Wheel (×2)
8Axle (×1)
9Grease cup (×1)
10 Long leg (×2)
11 Connecting plate (×2)
12 Hinge (×4)
13 Ventilation flap (×1)
14 Table support (×2)
15 Large chamber (×1)
16 Small chamber (×1)
17 Lid for large chamber (×1)
18 Lid for small chamber (×1)
19 Charcoal grid (×3)
20 Cooking grid (×2)
21 Cooking grid handle (×2)
22 Steel handle (×3)
23 Thermometer (×1)
Connecting elements supplied
AM6×15 bolt and washer (×6)
BM6×45 bolt, washer and nut (×2)
CM6×40 bolt, washer and nut (×10)
DM5×30 bolt, washer and nut (×6)
EM6×12 bolt, washer and nut (×10)
FM5×10 bolt, washer and nut (×16)
GM6 nut and washer(×2)
HM8 nut (×2)
IM6×12 bolt, spring washer and nut (×1)
Required tools (not included)
Slot or Phillips screwdriver
24
Wrench size 10 mm
26
10
Wrench size 8 mm
25
8
Wrench size 13 mm (×2)
27
13
Scope of delivery/product components
3

Table of content
Overview..................................................................................................................2
Scope of delivery/product components.................................................................3
General information................................................................................................5
Reading and storing the assembly instructions........................................................... 5
Intended use...................................................................................................................... 5
Explanation of symbols.....................................................................................................5
Safety.......................................................................................................................6
Safety notes........................................................................................................................ 6
Assembly instruction...............................................................................................8
Step 1: Assemble the legs..................................................................................................9
Step 2: Mount the large chamber.................................................................................... 9
Step 3: Mount connecting plates and wheels.............................................................. 10
Step 4: Mount the small chamber.................................................................................. 10
Step 5: Mount lids and chimney...................................................................................... 11
Step 6: Mount handles and thermometer.....................................................................12
Step 7: Assemble front shelf and install barbecue grids.............................................13
Step 8: Install grease cup.................................................................................................13
Use.......................................................................................................................... 14
The first time you grill...................................................................................................... 15
Prepare and light the barbecue.....................................................................................15
Grilling................................................................................................................................15
American barbecue..........................................................................................................16
Smoking.............................................................................................................................16
Cleaning..................................................................................................................17
Storage...................................................................................................................18
Technical data........................................................................................................ 18
Disposal..................................................................................................................18
Disposing of packaging...................................................................................................18
Product disposal...............................................................................................................18
Table of content
4

General information
Reading and storing the assembly instructions
These assembly instructions are a part of the Smoker BBQ (hereinafter
simply called "product"). They contain important information about
assembly and use.
Read the assembly instructions carefully, in particular the safety
instructions, before using the product. Failure to follow this assembly instructions
may lead to severe injuries or product damage.
The assembly instructions are based on the standards and regulations that are valid
within the European Union. Outside the EU, please also note the country-specific
directives and laws.
Keep the assembly instructions for future reference. If you pass this product on to a
third party, you must also supply the assembly instructions.
Intended use
The barbecue is exclusively intended for outdoor use to cook or heat food.
It is exclusively intended for private use and not for the commercial sector.
Only use the barbecue as described in these assembly instructions. Any other use is
considered improper and may lead to product damage or even personal injury. Do
not modify the barbecue. The barbecue is not a toy.
The manufacturer or retailer assumes no liability for damage caused by improper or
incorrect use.
Explanation of symbols
The following symbols are used in these assembly instructions, on the product or on
the packaging.
This symbol provides you with useful additional information on
handling and use.
General information
5

Safety

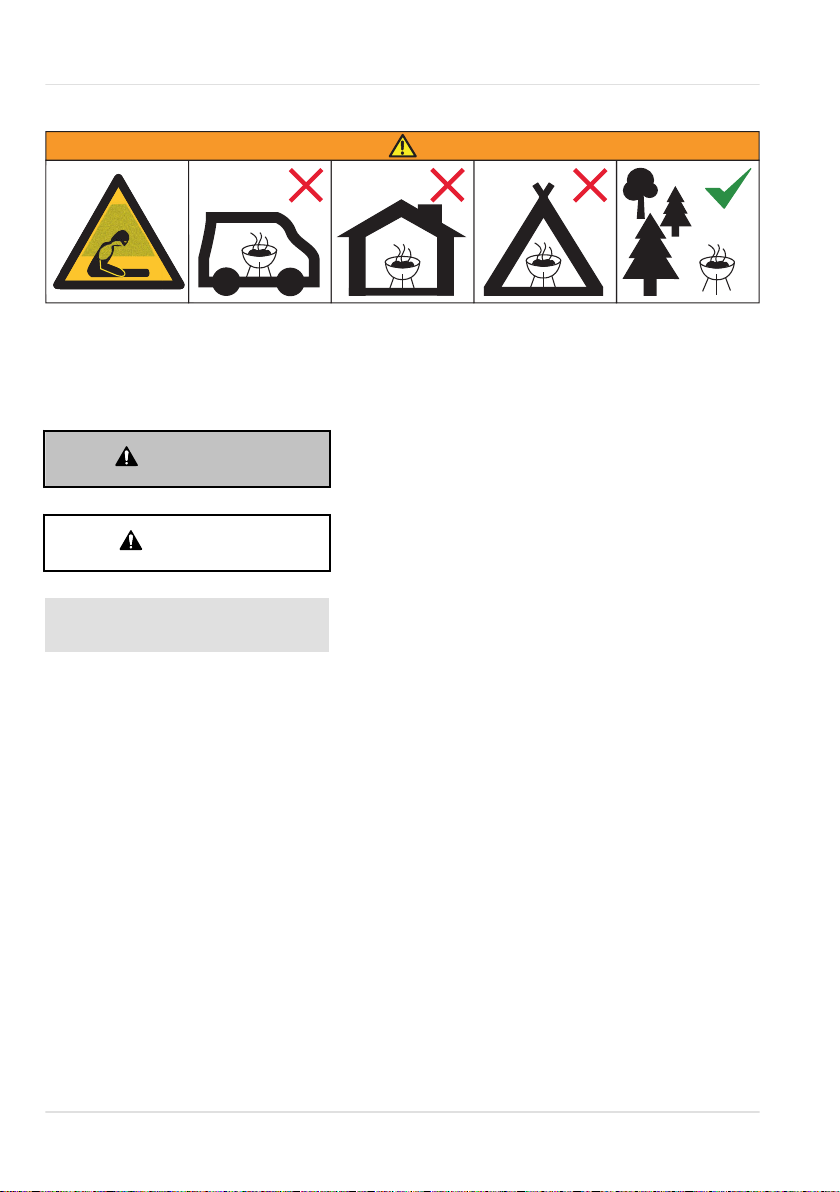

WARNING! Do not use the barbecue in a confined and/or habitable space e.g.
houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning
fatality.
The following signal words are used in these assembly instructions.
WARNING! This signal symbol/word denotes a hazard with
an average risk level that could lead to death or
severe injury if it is not avoided.
CAUTION! This signal symbol/word denotes a hazard with a
low risk level that could lead to mild or moderate
injury if it is not avoided.
NOTE! This signal word provides a warning about
potential material damage.
Safety notes
General Safety Notes
-WARNING! This barbecue will become very hot, do not move it during operation.
- Do not use indoors!
- Do not use this grill under any overhead combustible construction.
-WARNING! Do not use spirit or petrol for lighting or re-lighting! Use only
firelighters complying to EN 1860-3!
- Do not use this grill within 1.5 m of any combustible material. Combustible
materials include, but are not limited to, wood or treated wood decks, patios,
and porches.
- Use heat-resistant barbecue mitts or gloves (conforming to EN 407, Contact Heat
rating level 2 or greater) while cooking, adjusting air vents (dampers), adding
charcoal, and handling thermometer or lid.
- Use proper tools, with long, heat-resistant handles.
- Do not use water to extinguish burning fat. Close the lid and air vents to remove
all oxygen from the flame.
Safety
6

- Never dump hot charcoal or ashes where it might be stepped on or be a fire
hazard.
- Never dump ashes or charcoal before they are fully extinguished.
- Allow the barbecue to cool down completely before cleaning it.
- During use, the screw connections can loosen and adversely affect the stability
of the barbecue. Verify the strength of screw connections before each use. If
necessary, tighten all screws again to ensure a firm footing.
Risks For Persons
- This barbecue may be used by persons with reduced physical, sensory or mental
abilities or lack of experience or knowledge if they have been supervised or
instructed in the safe use of the appliance and have understood the risks arising.
- Keep packaging film, styrofoam, or small parts away from children. Danger of
suffocation!
-WARNING! Keep children and pets away!
- The barbecue will be hot during cooking, and should never be left unattended.
- Do not wear clothing with loose flowing sleeves while lighting or using the
barbecue.
- Never bend over the hot barbecue during grilling.
- The use of alcohol, prescription, or nonprescription drugs may impair the
consumer’s ability to properly assemble or safely operate the barbecue.
- Never touch metal parts. They may be very hot.
-The barbecue may have sharp edges where you could cut yourself. Use working
gloves when unpacking, assembling, cleaning and maintaining the barbecue.
Before Use
- Keep the barbecue on a secure, level surface at all times, clear of combustible
material.
- Do not place the barbecue close to entrances or busy areas, such as roads.
- The barbecue must not be transported while it is still hot!
- Do not use the barbecue with liquid fuels.
- Be prepared for a fire or an accident. Always have a fire extinguisher and a first
aid kit ready.
- Max. fuel capacity, see "Technical data".
Instructions for lighting
- Build a pyramid of charcoal in the centre of the charcoal grid and insert a couple
of lighter cubes according to EN 1860-3 within the pyramid.
- Always put charcoal on top of the charcoal grid. Do not put charcoal directly in
the bottom of the chambers.
- Light the charcoal in an area protected from wind.
- Use a long match or lighter, light the lighter cubes.
- It is recommended that the barbecue be heated up and the charcoal kept red
hot, with the lid on, for at least 30 minutes prior to cooking for the first time.
Safety
7

- After approx. 30 minutes the charcoal is fully lit when it is covered with a coating
of grey ash. Then spread the charcoal evenly across the charcoal grid.
- Do not cook before the charcoal has a coating of ash.
Assembly instruction
CAUTION!
Risk of injury!
Some parts of the barbecue might have sharp edges. Touching
these parts can cause cuts.
- Wear protective gloves!
Use the following instructions and graphics to assemble the barbecue:
- Complete each assembly step in the given order. Do not skip any step.
- Do not fully tighten the nuts and bolts before assembling all the parts.
At least two adults are required to assemble the barbecue
Wear protective gloves during assembly.
Before starting assembly, familiarise yourself with the individual parts.
Step 1: Assemble the legs........................................................................................9
Step 2: Mount the large chamber........................................................................... 9
Step 3: Mount connecting plates and wheels.......................................................10
Step 4: Mount the small chamber..........................................................................10
Step 5: Mount lids and chimney............................................................................. 11
Step 6: Mount handles and thermometer............................................................. 12
Step 7: Assemble front shelf and install barbecue grids...................................... 13
Step 8: Install grease cup.......................................................................................13
Safety
8

Step 1: Assemble the legs
1
10
5
6
1. Connect the short legs 6and the long legs 10 .
2. Connect the legs with the steel slot 5.
Step 2: Mount the large chamber
2
C
C
24
26
10
15
1. Place the large chamber 15 on the legs.
2. Attach the large chamber to each leg. Connectors: 4 × M6×40 bolt, washer and
nuts C.
Assembly instruction
9

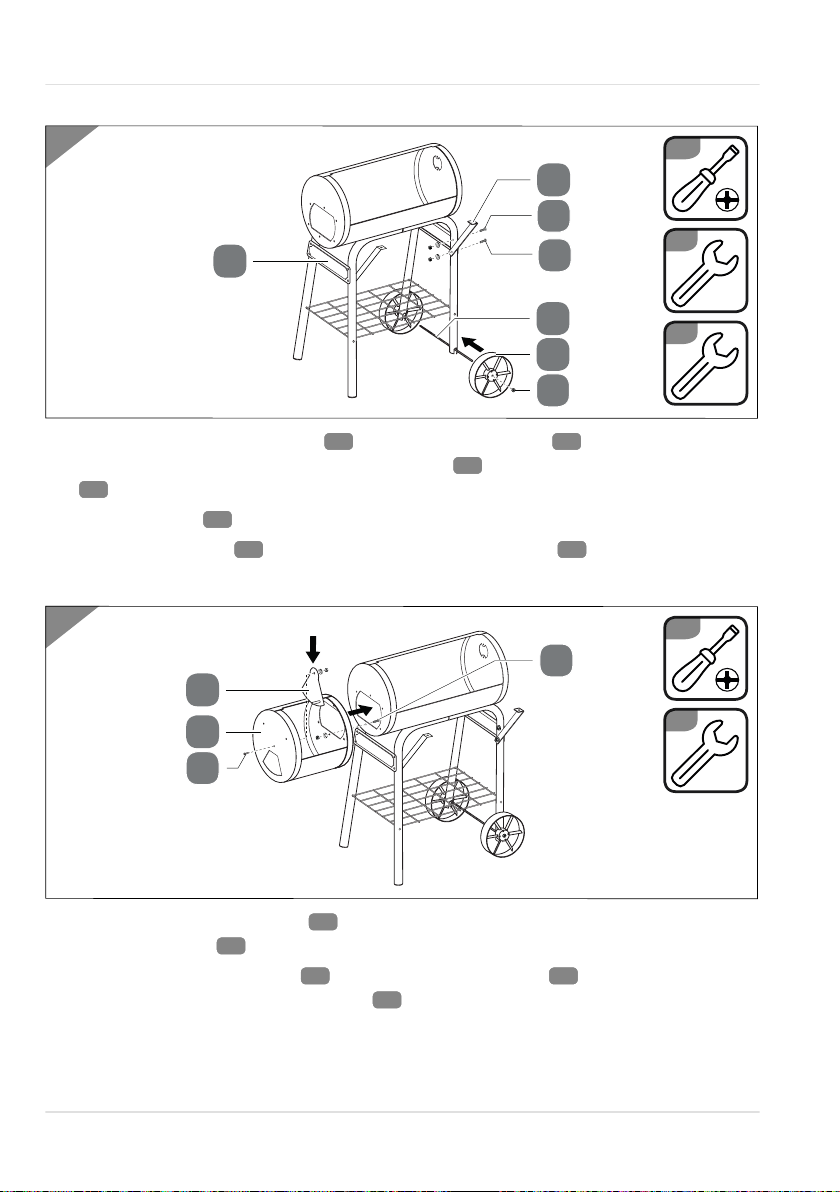

Step 3: Mount connecting plates and wheels
3
H
B
C
24
26
10
27
13
11
8
7
14
1. Attach the connecting plates 11 and the table supports 14 to the legs.
Connectors: 6 × M6×40 bolt, washer and nut C, 2 × M6×45 bolt, washer and nut
B.
2. Insert the axle 8through the holes at the end of the short legs.
3. Attach the wheels 7to the axle. Connectors: 2 × M8 nut H.
Step 4: Mount the small chamber
4
E
24
26
10
13
16
I
1. Attache the small chamber 16 to the large chamber. Connectors: 6 × M6×12 bolt,
washer and nut E.
2. Attach the ventilation flap 13 inside the small chamber 16 . Connectors: 1 ×
M6×12 bolt, spring washer and nut I.
Assembly instruction
10

Step 5: Mount lids and chimney
5
F
G
24
25
8
26
10
12
18
17
1
Pay attention to the mounting direction of the hinges as labeled.
1. Attach the hinges 12 to the small chamber and the large chamber. Connectors:
8 × M5×10 bolt, washer and nut F.
2. Attach the lid for small chamber 18 to the hinges 12 on the small chamber.
Connectors: 4 × M5×10 bolt, washer and nut F.
3. Attach the lid for large chamber 17 to the hinges 12 on the large chamber.
Connectors: 4 × M5×10 bolt, washer and nut F.
4. Attach the chimney 1to the large chamber. Connectors: 2 × M6 nut and washer
G.
Assembly instruction
11

Step 6: Mount handles and thermometer
6
24
26
10
22
23
2
E
A
1. Attach the steel handle 22 to the small chamber. Connectors: 2 × M6×15 bolt and
washer A.
2. Attach the steel handle 22 to the lid for small chamber. Connectors: 2 × M6×15
bolt and washer A.
3. Attach the steel handle 22 to the lid for large chamber. Connectors: 2 × M6×15
bolt and washer A.
4. Attach the supports for front shelf 2to the large chamber. Connectors: 2x
M6×12 bolt, washer and nut E.
5. Insert the thermometer 23 from the outside into the hole in the lid for large
chamber.
6. Fix the thermometer inside the lid for large chamber with bracket and wing nut.
Assembly instruction
12

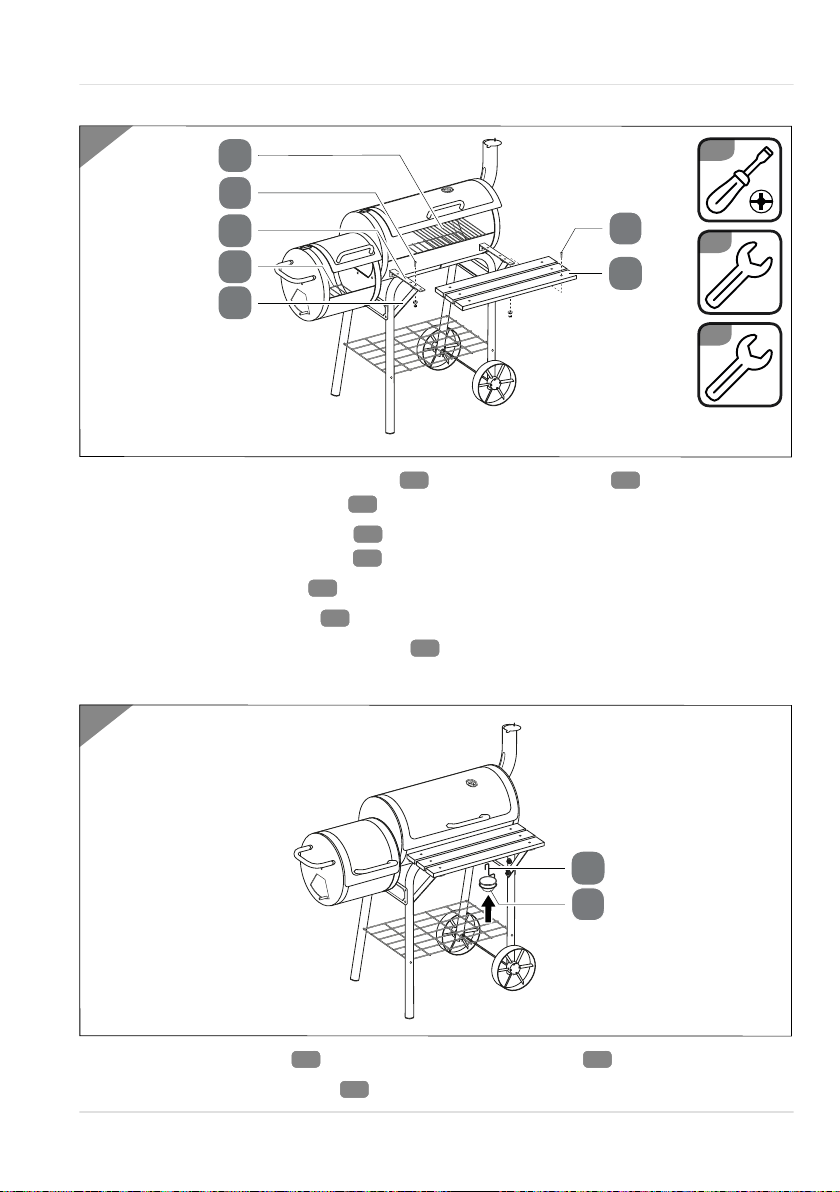

Step 7: Assemble front shelf and install barbecue grids
7
24
26
10
27
13
14
2
3
19
20
E
D
1. Attach the supports for front shelf 2to the table supports 14 . Connectors: 2 ×
M6×12 bolt, washer and nut E.
2. Attach the front shelf batten 3to the supports for front shelf. Connectors: 6 ×
M5×30 bolt, washer and nut D.
3. Place the charcoal grid 19 inside the small chamber.
4. Place two charcoal grids 19 inside the large chamber.
5. Insert the rods of the cooking grids 20 in the holes inside the large chamber.
Step 8: Install grease cup
8
4
9
1. Place the grease cup 9inside the hook for grease cup 4.
2. Attach the hook for grease 4cup to the small hole in the large chamber.
Assembly instruction
13

Use
WARNING!
Risk of burns
This barbecue will become very hot! Touching may cause burn
injuries.
- Use heat-resistant barbecue mitts or gloves (conforming to EN
407, Contact Heat rating level 2 or greater) while cooking,
adjusting air vents (dampers), adding charcoal, and handling
thermometer or lid.
- Use proper tools, with long, heat-resistant handles.
- Never touch the cooking or charcoal grid, ashes, charcoal, or
the grill to see if they are hot.
- Let the steam escape first, if you open the lid.
-WARNING! Keep children and pets away!
WARNING!
Risk of fire
The barbecue will be hot during cooking! Combustible materials
nearby may ignite.
- Do not use indoors!
- Do not use under roofed areas.
- Make sure there are no combustible fumes or liquids, such as
petrol, alcohol, etc., in the vicinity of the barbecue,
- Do not use this grill within 1.5 m of any combustible material.
Combustible materials include, but are not limited to, wood or
treated wood decks, patios, and porches.
- Do not use grill in high winds.
- Have a fire extinguisher ready.
Use
14

The first time you grill
1. Before first use clean all parts to come into contact with foodstuffs especially the
cooking grids 20 , according to chapter “Cleaning”.
2. Before you can use your barbecue in all its functions, it must be burnt in. Use
seasoned wood from trees to make a fire in both chambers and let this burn for
up to 2 hours. This will give a black carbon coating inside the chambers. Keep the
temperature low by shutting the lids and closing off the ventilation flaps.
Prepare and light the barbecue
Observe the safety notes, especially "Before Use" and "Instructions for lighting"
1. During use, the fittings may loosen and impair the stability of the barbecue.
Therefore, check the strength of the fittings before each use. If necessary, tighten
screws to ensure a firm footing.
2. Keep the barbecue on a secure, level surface at all times, clear of combustible
material.
Do not place the barbecue close to entrances or busy areas, such as roads.
3. Open the lid 17 or 18 and remove the cooking grids 20 if necessary.
4. Place the charcoal grids 19 in the chambers.
5. Build a pyramid of charcoal in the centre of the charcoal grid and insert a couple
of lighter cubes according to EN 1860-3 within the pyramid.
WARNING! Do not use spirit or petrol for lighting or re-lighting! Use only
firelighters complying to EN 1860-3!
For safety reasons, the barbecue must not be operated with liquid fuel.
Never place more than the maximum permissible amount of charcoal in the
chambers of the barbecue, see "Technical data".
Always put charcoal on top of the charcoal grid. Do not put charcoal directly in
the bottom of the chamber.
6. Only light charcoal in wind-protected areas.
7. Use a long match or lighter, light the lighter cubes.
8. After approx. 30 minutes the charcoal is fully lit when it is covered with a coating
of grey ash. Then spread the charcoal evenly across the charcoal grid.
The barbecue is prepared for cooking.
Grilling
Direct grilling
Charcoal is lit in the large chamber. The products for grilling sit directly above the
glowing coals. Temperatures between 160 and 300 °C.
Use
15

Indirect grilling
Charcoal is lit in the small chamber. The products for grilling in the large chamber are
not directly above the glowing coals. Temperatures between 160 and 250 °C.
Lighting the barbecue for grilling
- If you use lighting blocks, place 3 or 4 pieces on the centre of the charcoal grid.
- Pile the charcoal in pyramid formation on the charcoal grid. Max. height of
charcoal approx. 5 cm. The maximum amount of charcoal to be used must not fill
more than 3/4 of charcoal tray. Charcoal must not contact the cooking grid. If too
much charcoal is used, the temperature will be too high for preparing the food
and will damage the chamber.
- If you use lighting fluid, carefully apply this in small amounts over the charcoal.
Follow the manufacturer's instructions.
- Light the blocks or the charcoal with long safety matches or a long nosed lighter.
- Keep the air vents open.
- Once the barbecue has heated up, keep the fuel red hot for at least 30 minutes
prior to first cooking.
- As soon as the charcoal is covered with grey ash coating (usually after 30
minutes) you can spread the charcoal with long-handle tongs. Do not start to
cook food before the charcoal has a coating of grey ash.
-If fire flares up due to dripping fat, douse flames lightly with fine water spray and
close air vent a little.
American barbecue
You can use different types of wood in the small chamber. Seasoned wood from
broad-leaved trees and fruit trees may be used. This will give the meat a special
flavour. The wood should be completely dry to prevent excessive smoke production.
You can use wood chips or smoke powder with added spice mixtures. The
temperature can be regulated by letting more or less air in through the air vent and
the chimney cap. Temperatures between 90 and 160 °C.
Smoking
This product can also be used to smoke food, over the period of a few hours using
temperatures up to 90 °C. You can change the taste of the smoked food by adding
spice mixes during the smoking process. For more information on how to smoke
foods, please see other sources of information on this subject.
Use
16

Cleaning
WARNING!
Risk of burns
This barbecue will become very hot! Touching may cause burn
injuries.
- Allow the barbecue to cool completely before cleaning!
Clean the cooled barbecue after each use. Discoloration on the air vents, the lid, the
charcoal grate and other parts are normal signs of use and are neither hygienically
questionable nor a defect.
Do not use flammable or aggressive detergents, steel brushes,
abrasives, or other hard objects that could scratch the surfaces.
Do not remove ashes until all charcoal is completely burned out and fully
extinguished and barbecue is cool.
Every time you have been smoking or preparing American Barbecue the
chambers will acquire a smoky aroma. If the interior parts are untouched
by the food, they do not have to be cleaned and will thus keep their
aroma.
1. Allow the barbecue to cool completely before cleaning!
2. Open both lids 17 and 18 and remove the cooking grids 20 with the Cooking
grid handles 21 .
3. Remove and empty the charcoal grids 19 .
4. Remove the ashes.
Remove the completely cooled ash regularly. As ash contains salt, it can cause
rust when wet!
5. Clean your barbecue with a mild detergent and water.
6. Rinse well and wipe dry.
It is not necessary to wash the cooking grid after every use. You can
simply remove residues with a barbecue brush or crumpled aluminum
foil, and wipe the cooking grid clean with kitchen paper.
7. If you need to wash the cooking grid, put it together with the cooking
accessories in hot soapy water, when it is completely cool, as soon as possible
after use, Remove food residues with a brush or kitchen cloth, and rinse with
clean water.
Cleaning
17

8. Allow all parts to dry completely before reinstalling.
Storage
1. Allow the barbecue to cool completely and clean it according to chapter
“Cleaning”.
2. Use handle and wheels to relocate the barbecue.
3. Check the strength of the fittings. If necessary, tighten screws to ensure a firm
footing.
4. Clean the barbecue and allow it to dry completely before covering.
5. Store the barbecue at a dry place protected from the elements.
Technical data
Model: SM-003
Dimensions (W × D × H): 107.5 × 67 × 110 cm
Weight: 20 kg
Fuel: Charcoal
Max. fuel capacity: 2.5 kg
Item number 701430
Disposal
Disposing of packaging
Dispose of packaging according to type. Sort the paperboard and
cardboard as waste paper and the film as recyclable material.
Product disposal
Dispose of the product in line with the guidelines and disposal regulations
applicable in your country.
Cleaning
18

PRODUCED IN CHINA FOR:
GB IE
Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly. In
the event of product failure within its intended use over the course of the
first 3 years after date of purchase, we will remedy the problem as quickly
as possible once it has been brought to our attention. In the unlikely event
of such an occurrence, or if you require any information about the product,
please contact us via our helpline support services, details of which are to be
found both in this manual and on the product itself.
ALDI STORES LTD. PO BOX 26, ATHERSTONE
WARWICKSHIRE, CV9 2SH.
ALDI STORES (IRELAND) LTD.
PO BOX 726, NAAS, CO. KILDARE.
Visit us at www.aldi.com
AFTER SALES SUPPORT 701430
GB IE
www.bestbuyingsupport.com
MODEL:
SM-003 04/2020
0121 36 80 339 01 50 60 684
3
YEAR
WARRANTY
