Introduction 1
Congratulations on choosing to buy a
GARDENLINE product.
By doing so you now have the assurance and peace of mind that
comes with purchasing a product made by one of Europe’s
leading manufacturers.
All products brought to you by Gardenline are manufactured to
the highest standards of performances and safety, and, as part of
our philosophy for customer service and satisfaction, are backed
by our comprehensive
3 Year Warranty.
We hope you will enjoy using your purchase for many years to
come.
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
3

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
4
General information 2
Rotary Lawn Mower
Always read the instructions for electrical products
carefully before use. It will help you understand your
product better and avoid unnecessary risks. Keep this
instruction manual in a safe place for future use.
This electric lawn mower is intended for cutting grass, i.e. for the
maintenance of lawns.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
5
Explanation of symbols
Read the instructions carefully.
Conformity with the relevant EU safety directives.
Class II machine - double insulation - earth connection
not required.
Denotes risk of personal injury, loss of life or damage
to the tool in case of non-observance of the
instructions in this manual.
Indicates electrical shock hazard.
Remove the plug from the mains socket
Do not use in rain or wet weather
Always wear safety glasses, hearing protection, safety
shoes and heavy-duty work clothing!
The rotating cutter blade will not stop immediately the
machine is switched off. Keep your body clear of sharp
parts.
Keep at a safe distance.
Defective and/or scrapped electrical or electronic tools
should be handed in to a recognized collection point
for reprocessing.
Safety instructions 3

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
6
General safety instruction
Warning!
Read all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury. The term
“power tool” in all of the warnings listed below refers to your
mains operated (corded) power tool or battery operated
(cordless) power tool. Save these instructions.
1) Work area
a. Keep work area clean and well lit. Cluttered and dark areas
invite accidents.
b. Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gasses or dust. Power
tools create sparks which may ignite the dust of fumes.
c. Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
2) Electrical safety
a. Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs which earthed
(grounded) power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such
as pipes, radiators, ranges and refrigerators. There is an
increased risk of electric shock if your body is earthed or
grounded.
c. Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling
or unplugging the power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord
suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of
electric shock. Always use tool in conjunction with a residual
circuit breaker device.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
7
3) Personal safety
a. Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while
you are tired or under the influence of drugs, alcohol or medi-
cation. A moment of inattention while operating power tools
may result in serious personal injury.
b. Use safety equipment. Always wear eye protection. Safety
equipment such as dust mask, non-skid safety shoes, hard hat,
or hearing protection used for appropriate conditions will
reduce personal injuries.
c. Avoid accidental starting. Ensure the switch is in the off
position before plugging in. Carrying power tools with your
finger on the switch or plugging in power tools that have the
switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of
the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all
times. This enables better control of the power tool in
unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep
your hair, clothing and gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly
used. Use of these devices can reduce dust related hazards.
h. Use clamps or a vice to hold work. It’s safer than using your
hand and it frees both hands to operate tool.
4) Power tool use and care
a. Do not force the power tool. Use the correct power tool for
your application. The correct power tool will do the job better
and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch
is dangerous and must be repaired.
c. Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting
the power tool accidentally.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
8
d. Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that
may affect the power tools operation. If damaged, have the
power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
g. Use the power tool, accessories and tool bits etc., in
accordance with these instructions and in the manner intended
for the particular type of power tool, taking into account the
working conditions and the work to be performed. Use of the
power tool for operations different from intended could result
in hazardous situation.
h. Damaged switches must be replaced at a customer service
repair centre. Do not use power tools that cannot be switched
on and off.
i. Do not leave power tools unattended while they are switched
on. Always switch off the tool and wait until it has come to a
full standstill before leaving.
j. If the mains cable has been damaged, it must be replaced with
a special mains cable. These can be obtained from the
manufacturer or the manufacturer’s customer service
department. The mains cable may only be replaced by the
manufacturer, the manufacturer’s customer service
department or equally qualified persons.
5) Service
a. Please use a qualified expert who uses original replacement
parts to repair your power tool. This will ensure proper
functioning of the power tool.
b. Caution! The use of any accessories or additional tools other
than those recommended in this manual may lead to an
increased risk of injury. Only use original replacement parts.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
9
Special safety precautions
Warning! When using electric equipment due heed must always
be paid to the local prevailing safety precautions so as to
minimize the risk of electric shock, injury or fire. Read the
following safety instructions and the enclosed safety precautions
thoroughly before using the machine, and save them for future
reference!
• Makesurethatthemachineisassembledcorrectlybefore
using it.
• Nevermovethemachinebypullingontheplug.
• Alwaysremovetheplugfromthesocketbeforepickingupthe
machine.
• Alwaysswitchoffthemachinebeforeremovingtheplugfrom
the socket.
• Alwayskeepchildrenandanimalsatadistance.Makesure
anyone in the area remains at a safe distance when the
machine is in operation.
• Theoperatorisresponsibleforthesafetyofthirdparties
whilst using this machine.
• Donotallowpersonsunfamiliarwiththeinstructions,children,
or persons under the influence of alcohol, drugs or other
substances to use the machine.
• Usethemachinesolelyforthepurposeforwhichitis
intended.
• Usethismachinesolelywhenthegrassboxisfittedorthe
safety flap is closed.
• Switchoffthemotorandwaituntilthecutterbladehas
stopped turning before fitting or removing the grass box.
• Makesurethatallguardsarefittedcorrectly,andthattheyare
in good condition.
• Thecuttingbladesmustbeabletoturnfreelybefore
switching on the machine.
• Keepyourbodyclearoftheturningparts.
• Keepasafedistancewhenusingthemachine.
• Laythepowercordonthegroundwhereitwillbesafe.
• Makesureyouadoptacorrectworkingposture,especiallyon
slopes.
• Alwaysusethemachineatwalkingspeed.
• Warning!Thecutterbladewillnotstopturningimmediately
the machine is switched off.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
10
• Switchoffthemachine,removetheplugfromthesocketand
wait until the cutter blade has stopped turning before cleaning
the machine or carrying out maintenance.
• Takecarewhencleaningormaintainingthemachine.Take
care not to cut your fingers, and wear protective gloves!
• Donotmoveoralteranyoftheelectricalormechanical
safeguards.
• Usethemachinesolelywhenthereissufficientdaylightor
artificial light.
• Wearsuitableworkclothingandsturdyshoes.
• Makesurethattheareawherethelawnmoweristobeusedis
clean. Whilst you are using the lawnmower also check for any
objects that could damage the machine.
• Ifanobjectneverthelesscomesintocontactwiththemachine,
then stop and check whether the machine is damaged. Have
any damage repaired before you use the machine again.
• Switchoffthemachineimmediatelyifitsuddenlybeginsto
vibrate. Inspect the machine to determine the cause.
• Checkthemachinethoroughlybeforeuse.Onlyusethe
machine when it is in good condition. Do not use the machine
if you observe a defect; have it repaired before you use it
again.
• Replaceanywornordamagedparts.Alwaysuseoriginal
(spare) parts.
Electricity
• Beforeinsertingthepluginthesocketverifythatthe
information on the socket is correct, and that it is in
agreement with the information indicated on the machine.
• Whentheuseofaresidualcurrentcircuitbreakeris
mandatory verify that the circuit breaker that is used will trip
with a residual current of 30 mA. Consult an electrician.
• Neverrunthemachineoverthepowercord.Makesurethat
you always know where the power cord is lying on the ground.
• Usethespecialcable-holdertoconnecttheplugtothe
extension cable.
• Neverusethemachineintherain,oronwetordampgrass.
Never leave the machine outdoors.
• Checkthatthepowercordisingoodconditionbeforeyouuse
the machine.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
11
Do not use the machine if the power cord is damaged; have it
replaced by a recognized service centre.
• Alwaysuseanextensioncablesuitableforoutdooruse.
• Theextensioncable’ssocketmustbesplashproofin
accordance with the DIN 57282 and VDE 0282 standards; the
cable must have cores with a cross-sectional area of at least
1.0 mm2(maximum length: 75 m). Use a suitable H05VV-F 1.0
mm2cable.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
12
Product information
3
7
6
5
4
2
1
Upper handle1.
Lower handle2.
ON/OFF switch3.
Grass collection box4.
Wheels5.
Motor cover6.
Cable handle7.
Assembly & Parts list 4

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
13
d

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
14
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
14

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
15
Assembly of the lawnmower
See Fig. 1
Adjusting the cutting height
Switch off the machine, remove the plug from the socket
and wait until the cutter blade has stopped turning
before adjusting the cutting height.
The cutting height can be set to 3 different positions:
25 mm, 40mm and 55mm.
To adjust the front wheel cutting height;
• Turnthemowerupsidedown.
• Pullthewheelaxletowardsthefrontofthemower.
• Insertthewheelaxleintothedesiredcuttingheightposition.
• Makesurebothrightandleftwheelareinthesamecutting
height position.
To adjust the rear wheel cutting height;
• Turnthemowerupsidedown.
• Pullthewheelaxletowardsthemower’scatcherflap.
• Insertthewheelaxleintothedesiredcuttingheightposition.
• Makesurebothrightandleftwheelareinthesamecutting
height position.

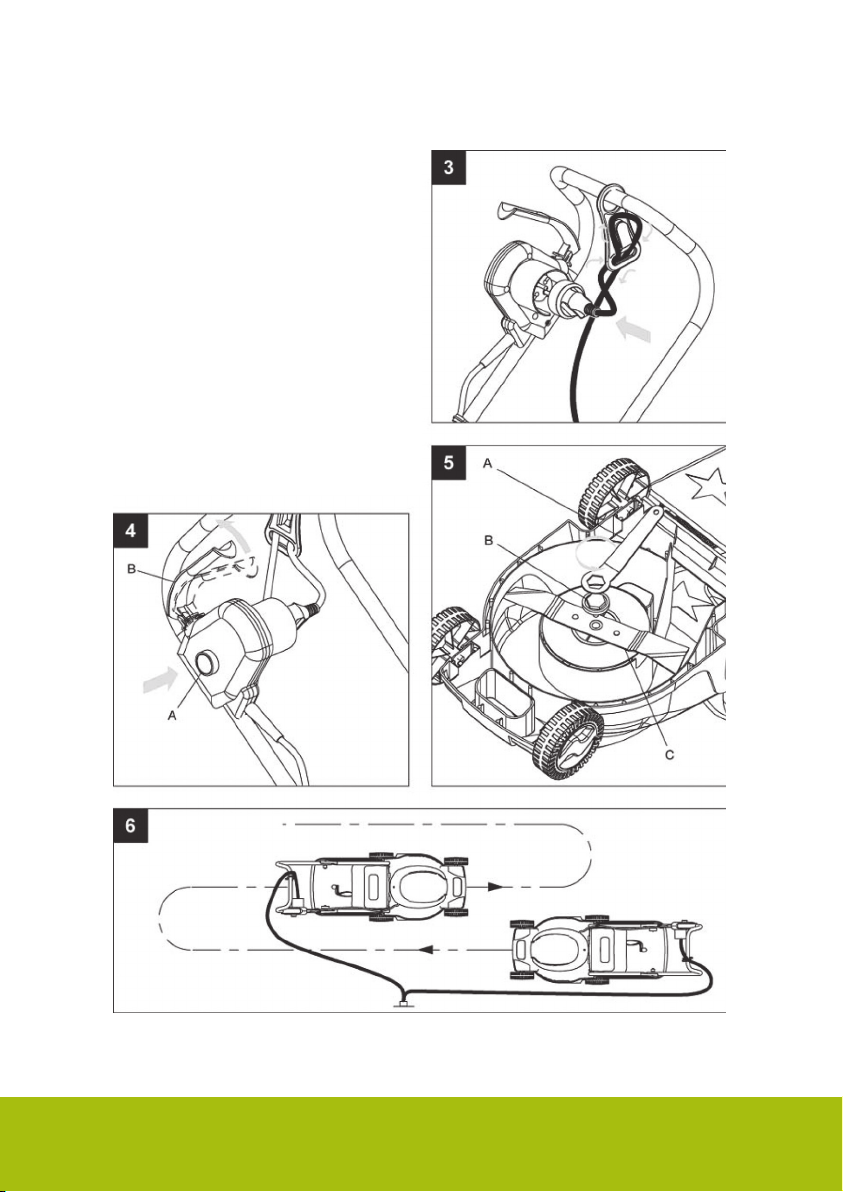

Cable-holder
Fig. 3
Insert the extension cable’s socket in the machine’s switch/plug
connection, and secure with the cable-holder. The loop in the
cable must be long enough to allow the cable to slide in the
cable-holder from one side to the other.

On/off switch
Fig. 4
Warning! Do not start the machine in very long grass.
Press safety button A on the switch/plug connection, and then
squeeze lever B against the machine’s handle. Hold the lever
against the handle and release the safety button. To stop the
machine, release the lever. The lever will automatically return to
the neutral position.
Spare Parts List
No. Description Position
300725 Wheel complete 25TILL27 + 33
300726 Front axle 28
300727 Rear axle 37
300728 Blade 31
300729 Screw for blade 32
402033 Wrench 38
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
16

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
17
Mowing tips
• Makesurethattheareayouplantomowisfreeofstones,
rubbish, cables, and other objects.
• Makesurethanallfastenings(screws,nuts,etc.)aretight.
• Regularlycheckthegrassboxforwear.
• Selectthecuttingheightaccordingtotheconditionofyour
lawn and the height of the grass.
• Forbestresults,mowtallgrassinlayers.Therecommended
height of the grass cut each time is a maximum of 4
centimetres.
• Mowingthegrasswhenitisdrywillachievethebestresult.
• Makesurethatthecuttingbladescanturnatfullspeed;the
machine may not be overloaded.
• Toprotectthepowercord,makesurethatitislyingonthe
ground behind you as you mow (Fig. 6).
• Startmowingslowlybyslowlypushingthemachineforwards.
If the cutting blades slow down or the motor stops then you
have selected the incorrect cutting height, or you are pushing
the lawnmower too quickly.
• Emptythegrassboximmediatelyitisfull;failuretodosomay
cause the cutter blade to seize, or overload the motor.
The cutting blades
Fig. 5
A worn cutter blade will result in a poor cut, and will overload the
motor. Always check the cutter blade before you start using the
machine. Have the cutter blade sharpened or replaced by a
specialist when so required.
Warning! Remove the plug from the socket, and wear
protective gloves.
Operation instructions 5

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
18
To remove the cutter blade (C) hold it tight to prevent it turning
whilst unscrewing bolt (B) with the spanner (A) supplied with the
machine. Remove the cutter blade, and replace it with a new one.
Remove the plug from the socket before starting
maintenance work!
Maintenance and cleaning
• Regularlycleaningandmaintainingthemachinewillimprove
its performance and prolong its useful life.
• Eachtimeyouhavefinishedmowing,cleananygrassandsoil
from the fan, cutter blade, housing, and grass box.
• Useonlyadampcloth(hotwater)andasoftbrushtoclean
the machine. Make sure the machine always stays dry!
• Neverusecleaningagentsorsolvents.Thesecouldcause
irreparable damage to your machine. Chemicals can attack
plastic parts.
• Applyinganenvironmentally-friendlyoiltothecutterblade
will protect it from rust when the machine is not used for a
longer period.
• Storethemachineinadryplace,andoutofthereachof
children.
• Theuppersectionofthehandlecanbefoldeduptosave
space. Do not pinch the cord when turning the machine!
Lubrication
The machine does not need any extra lubrication.
Faults
Should a fault occur, e.g. after wear of a part, please contact the
service address on the warranty card. In the back of this manual
you find an exploded view showing the parts that can be
ordered.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
19
Environment
To prevent damage during transport, the appliance is delivered in
a solid packaging which consists largely of reusable material.
Therefore please make use of options for recycling the
packaging.
Faulty and/or discarded electrical or electronic apparatus
have to be collected at the appropriate recycling
locations.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: GLGS-1200
20
Package contents
1 Machine housing
4 Wheels
1 Handle (3 sections)
1 Grass box (2 sections)
1 Cable cleat
1 Safety precautions
1 User’s manual
1 Guarantee card
Check the machine, loose parts and accessories for transport
damage.
Technical specifications
Voltage 230V~, 50Hz
Input power 1200 W
No-load speed 3000/min
Cutting width 320 mm
Cutting height 25/40/55 mm
Grass collection capacity 35 litres
Lpa (sound pressure level) 67.6 dB(A)
Outdoor noise 91.0 dB(A)
Other useful information 6
