Gardenline GLHPM38 User manual

38CM
Push Mower
GLHPM38
Spend a little Live a lot
User Manual
Product images and parts list .................................................................6
General information.................................................................................7
Reading and storing the instruction manual.......................................7
Explanation of symbols............................................................................7
Safety .......................................................................................................9
Proper use..................................................................................................9
Safety notes ..............................................................................................10
Checking the push mower and product contents ..................................13
Assembly ..................................................................................................13
Mounting the handlebar .........................................................................13
Mounting the collector bag .....................................................................17
Operation .................................................................................................14
Adjusting the height ................................................................................14
Maintenance Tips .....................................................................................15
Cleaning ...................................................................................................18
Troubleshooting......................................................................................26
Storage ....................................................................................................27
Disposal....................................................................................................20
Technical data..........................................................................................21
Warranty
Warranty Card
Warranty Conditions
Contents

GB IREIRE GB
Product images and parts list Product images and parts list
3 4
A
B
D
C
E
1
2
3
5
6
4
12
3

GB IREIRE GB
Product images and parts list Product images and parts list
5 6
F L
NH
J K
I
G M

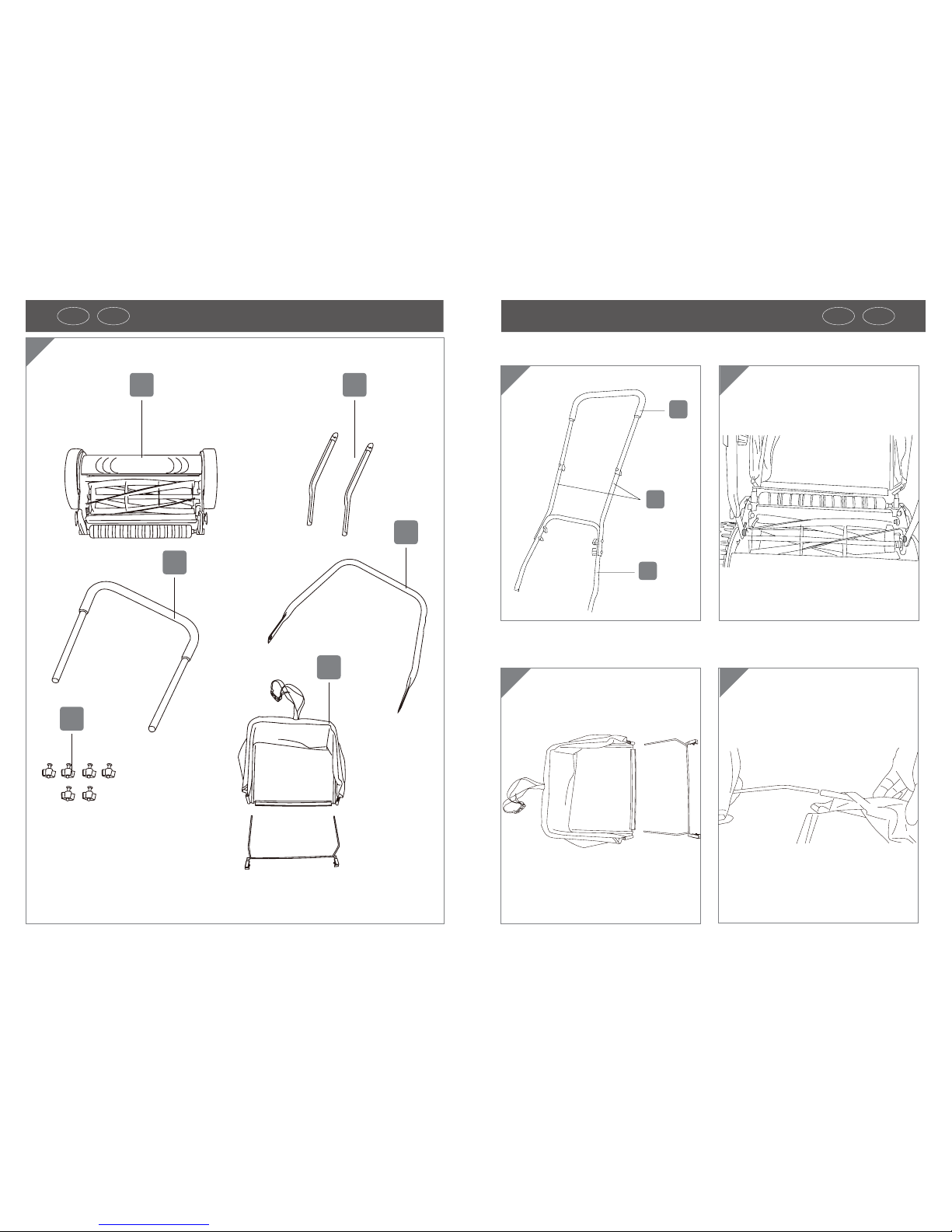

1 Mower body
2 Mid handle, 2x
3 Upper handle with foam grip
4 Lower handle
5 Handle carriage bolts, 6x
6 Grass collection box
Adjustment
screws
Paper

AFTER SALES SUPPORT AFTER SALES SUPPORT
[phone] [phone]
[phone] [phone]
www.coreservice.co.uk www.coreservice.co.uk
7 8
38CM Push Mower38CM Push Mower
GB GB
IRE IRE
GB IRE GB IRE
CAUTION! This signal word designates a hazard with low
risk that, if not avoided, may result in minor or moderate
injury.
NOTICE! This signal word warns of possible damage
to property or provides you with useful additional
information regarding assembly or operation.
Wear gloves for protection.
Read the instruction manual carefully. This particularly
applies for the chapter on safety. Completely familiarise
yourself with the control elements and proper use of the
push mower.
Make sure that nearby persons maintain a safe distance.
Flying parts could inflict serious injuries. Outsiders must
maintain a safe distance. Flying objects could inflict
severe injuries.
Reading and storing the instruction manual
This instruction manual accompanies this push mower.
It contains important information on start-up and
handling. Before using the push mower, read the
instruction manual carefully. This particularly applies
for the safety notes. Failure to heed this instruction
manual may result in severe injury or damage to the
push mower. The instruction manual is based on the
standards and rules in force in the European Union.
When abroad, you must also observe country-specific
guidelines and laws! Store the instruction manual
for future use. If you pass the push mower on to third
parties, please be absolutely sure to include this
instruction manual.
You can request an electronic version of these
instructions from our customer service.
Explanation of symbols
The following symbols and signal words are used in this
instruction manual, on the push mower or on the packaging.
WARNING! This signal word designates a hazard with
moderate degree of risk which may lead to death or
severe injury if not avoided.
General informationGeneral information

AFTER SALES SUPPORT AFTER SALES SUPPORT
[phone] [phone]
[phone] [phone]
www.coreservice.co.uk www.coreservice.co.uk
910
38CM Push Mower38CM Push Mower
GB GB
IRE IRE
GB IRE GB IRE
Caution-sharp cutting blade! Keep feet and hands away.
Caution! Slip on slope.
CAUTION! Risk of injury by rotating blade! Keep hands
and feet away from the openings when operating the
mower.
Pay attention to the sharp blades. Even after you
stopped. The working width of the roller is approx. 380
mm.
The push mower is covered by a 36-month warranty.
Proper use
The push mower is only designed for cutting grass and similar
soft vegetation. It is only intended for private use and is not
suitable for commercial use.
Only use the push mower as described in this instruction manual.
Any other use is deemed improper and may result in damage
to property or even personal injury. The push mower is not a
children‘s toy.
The manufacturer or vendor accepts no liability for damage
caused by improper or incorrect use.
Safety notes
WARNING!
DO NOT TOUCH THE ROTATING BLADES.
−This machine can cause serious injuries. Read the instruction
carefully for the correct handling, preparation, maintenance,
starting and stopping of the appliance. Be familiar with
the controls and the proper use of the appliance. Read and
understand the operator’s manual and observe the warnings
and instruction labels affixed to the appliance.
−Users. Never allow children or people unfamiliar with these
instructions to use the appliance. Never operate the tool under
the influence of alcohol, medication or drugs.
−Use appropriate tools. This product is intended for private use
only, not for any commercial applications. It may not be used for
any purposes other than those described.
SafetySafety
380

AFTER SALES SUPPORT AFTER SALES SUPPORT
[phone] [phone]
[phone] [phone]
www.coreservice.co.uk www.coreservice.co.uk
11 12
38CM Push Mower38CM Push Mower
GB GB
IRE IRE
GB IRE GB IRE
WARNING!
WORK AREA SAFETY
−Keep work areas clean. Cluttered areas can cause accidents.
−Keep all bystanders, children, and pets at least 15M feet away.
The operator or user is responsible for accidents or hazards
occurring to other people or the property.
WARNING!
PESONAL SAFETY
−Use personal protective equipment(PPE). Always wear eye
protection. Protective equipment such as dust mask, non-skid
safety shoes or gloves used for appropriate conditions will
reduce personal injuries.
−Dress appropriately. Do not wear loose clothing or jewellery as
these can be caught in moving parts. Preferably wear nonslip
footwear when working outdoors. Tight back long hair to keep
it away from the machine.
−Stay alert, watch what you are doing and use common sense
when operating the tool. A moment of lapsed concentration
while operating the tool may result in serious personal injury.
−Keep all parts of the body away from the cutter blade. Do not
remove cut material or hold material to be cut when blades are
moving. Make sure the blade is stopped when clearing jammed
material. A moment of inattention while operating the tool may
result In serious personal injury.
−Do not overreach. Keep proper footing and balance at all times.
This enables better control of the tool in unexpected situations.
SafetySafety
WARNING!
OPERATION SAFETY
Be certain the parts are fully tightened before operating
the tool. Check it periodically for tightness during use to
avoid serious injury.
−Check for damaged parts. Before every use, carefully check the
tool for damage. Check for alignment of moving parts, binding
of moving parts, breakage of parts, mounting and any other
condition that may affect its operation.
−Do not use the tool if any parts are damaged or defective. Have
any damaged or defective parts repaired or replaced by an
authorized service agent. Never attempt any repairs yourself.
−Grip the tool securely with both hands on the main handle
while operating the tool.
−Never operate the mower in wet grass. Always be sure of your
footing. A slip and fall can cause serious personal injury.
−Mow only in daylight or good artificial light. Walk , never run.
−Be careful when pulling the machine backward. Look down
and behind to avoid tripping. Be sure you are well balanced
with sure footing.
−Risk of cut. The cutting blade may continue to rotate for a few
seconds after the mower has stopped moving. Never place any

AFTER SALES SUPPORT AFTER SALES SUPPORT
[phone] [phone]
[phone] [phone]
www.coreservice.co.uk www.coreservice.co.uk
13 14
38CM Push Mower38CM Push Mower
GB GB
IRE IRE
GB IRE GB IRE
Checking the push mower and product contents Assembly and Operation
Assembly
Mounting the handlebar
1. Secure the upper handle 1to the mid handles 2with two
carriage bolts and two wing nuts (Fig B) .
2. Secure the handle assembled in step 1 to the lower handle 3
with four carriage bolts and four wing nuts (Fig B).
3. Position the complete handle assembly over the studs on the
rear of mower (Fig C).
You have successfully mounted the handlebar.
Mounting the collector bag

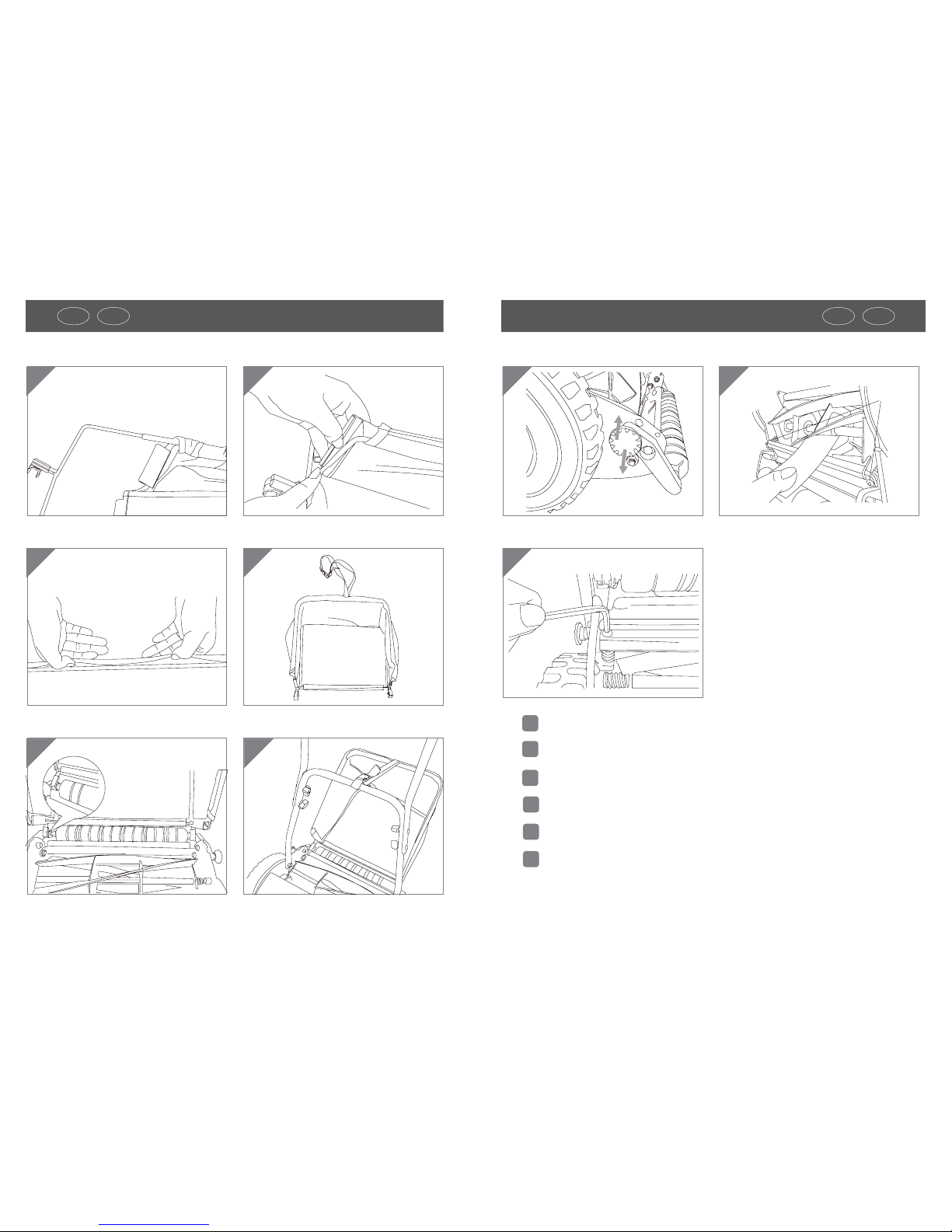

1. Assemble the collection box. The grass collection box need to
be assembled before use (Fig D~K).
You have successfully mounted the push mower.
Operation
WARNING!
RISK OF INJURY!
The push mower uses a rotating roller with sharp
blades. If used incautiously, you could injure yourself or
other persons.
Checking the push mower and product contents
NOTICE!
RISK OF DAMAGE!
Take care with sharp knife or pointed objects, not to
damage the product when opening the packaging.
1. Take the push mower out of the packaging and check
whether the push mower or the individual parts exhibit
damages. If this is the case, do not use the push mower.
Contact the after sales support.
2. Check to make sure that all parts are in the box (Fig A).
part of the body in the blade area until you are sure the blade
has stopped rotating.
−Operation on slopes requires extra caution. Slopes are a
major factor related to slip and fall accidents, which can result
in severe injury. If you feel uneasy on a slope, do not mow it. If
the slope is greater than 15 degrees, do not mow it.
−Mow across the face of slopes ; never up and down. Exercise
caution when changing direction on slopes.
−Watch for holes, ruts, rocks, hidden objects or bumps which
can cause you to slip or trip. Tall grass can hide obstacles.

AFTER SALES SUPPORT AFTER SALES SUPPORT
[phone] [phone]
[phone] [phone]
www.coreservice.co.uk www.coreservice.co.uk
15 16
38CM Push Mower38CM Push Mower
GB GB
IRE IRE
GB IRE GB IRE
Operation Operation
Adjusting the height
Depending on the length of grass you are cutting you may want
to adjust the cutting height of the lawnmower. This can be done
by raising or lowering the cutting height roller.
To adjust the cutting height, pull the cutting height adjustment
knobs on both sides away from the mower body, and then move
them forward or backward to adjust the cutting height (Fig L).
Make sure the knobs are in the same height on both sides.
Mowing
1. Do not cut wet grass because it tends to stick to the
underbody of the product, preventing the proper grass
collection and it could also cause you to slip and fall.
2. Never cut off more than one-third of the total length of the
grass for a healthy lawn. In the autumn, lawns should only be
cut as long as there is growth.
3. Slowly push the product forward.
4. Mow in slightly overlapping rows. The most effective pattern
for mowing lawns is straight lines. This will keep the rows
even and ensures that all the lawn is cut without missing any
spots.
5. Circle around flower beds. When reaching a flower bed
in the middle of the lawn, cut a row or two around the
circumference of the bed.
6. Pay special attention when changing direction.
Cleaning
NOTICE!
RISK OF DAMAGE!
Improper handling of the push mower may result in
damage. Using an unsuitable cleaner could damage the
surface of the push mower.
−Do not use any aggressive cleaners, brushes with
metal or nylon bristles, sharp or metallic cleaning
utensils such as knives, hard scrapers and the like.
1. Clean the push mower with a damp cloth to remove all sap,
water and dirt.
2. Then let all parts dry completely.
Ensure that the lawn is clear of stones, sticks, wire or
other objects which could damage mower or user. The
operation of mower can result in foreign objects being
thrown into the eyes, which can damage your eyes
severely. Always wear safety glasses while operating
the mower.

AFTER SALES SUPPORT AFTER SALES SUPPORT
[phone] [phone]
[phone] [phone]
www.coreservice.co.uk www.coreservice.co.uk
17 18
38CM Push Mower38CM Push Mower
GB GB
IRE IRE
GB IRE GB IRE
Maintenance Tips:
− Push mowers are relatively low maintenance. For consistent
cutting follow the below instructions.
− Always keep the cutting bar properly adjusted. Refer to the
instruction manual for further directions.
− Regularly clean and lubricate the cutting edges with light
spray oil.
IMPORTANT:
Push mowers have difficulty cutting tall weeds such as
dandelions which may cause the weeds to bend
WARNING!
Only perform the steps described within these
instructions! All further inspection, maintenance and
repair work must be performed by an authorised service
centre or a similarly qualified specialist if you cannot
solve the problem yourself!
Maintenance Tips Cleaning
Cleaning
WARNING!
Mower blades are sharp. Wear gloves and use extra
caution when servicing them. Any wheel rotation can
cause the blade to rotate.
Do not over-tighten adjustment screws as this could
damage the cutting bar. Screws must be tight on final
adjustment.
The blade is adjusted for proper clearance from the cutting bar
at the factory. However, after extended periods of mowing or as
part of annual maintenance, it is recommended that the blade
clearance be readjusted .
− If blade clearance is too wide the cutting pattern will be rough
and uneven.
− If blade clearance is too narrow, the machine will be noisy and
difficult to push while operating.

AFTER SALES SUPPORT AFTER SALES SUPPORT
[phone] [phone]
[phone] [phone]
www.coreservice.co.uk www.coreservice.co.uk
19 20
38CM Push Mower38CM Push Mower
GB GB
IRE IRE
GB IRE GB IRE
Troubleshooting
Suspected malfunctions are often due to causes that the user can
fix themselves. Therefore check the product using this section. In
most cases the problem can be solved quickly.
FAULT POSSIBLE CAUSES TROUBLESHOOTING
Unsatisfying cutting
result
Machine is too noisy
and difficult to
operate
Blade clearance is
too wide
Adjust the blade
clearance, refer to
maintenance sec-
tion
Blade clearance is
too narrow
Adjust the blade
clearance, refer
to maintenance
section
Storage
WARNING:
Do not place hands in the mower near blades. If grass
cuttings are compacted in the blade area, remove using
a wood or plastic cleaning tool appropriate for the
cleaning of the blades.
1. Clean the exterior of the machine thoroughly using a soft
brush and cloth before storing. Do not use water, solvents or
polishes.
2. Turn the mower on its side to clean the blade area.
3. Store the mower in a dry place. Do not place other objects on
top of the mower during storage.
Disposal
Disposing of the packaging
Dispose of the packaging separated into single type
materials. Dispose of cardboard and carton as waste
paper and foils via the recyclable material collection
service.
Disposing of old devices
(Applicable in the European Union and other European states
with systems for the separate collection of reusable waste
materials)
Old devices must not be disposed of with household
waste!
If the push mower can no longer be used, every user
is required by law to dispose of old devices separately
from their household waste, e.g. at a collection point in
his community/borough. This ensures that old devices
are recycled in a professional manner and also rules out
negative consequences for the environment.
Troubleshooting and Storage Disposal
recyclenow.com

AFTER SALES SUPPORT
[phone]
[phone]
www.coreservice.co.uk
21
38CM Push Mower
GB
IRE
GB IRE
Technical Data
Cutting width：38cm
Variable cutting heights： 15-38mm
Grass collection bag Volume：28l grass collection bag
Net Weight： 7.8kg
Contact free blade
Technical data

Description of malfunction :
Return your completed warranty card
together with the faulty product to:
Your detail:
Name
Address
E-Mail
Date of purchase *
* We recommend you keep the receipt with this warranty card.
Location of purchase
YEARS WARRANTY
WARRANTY CARD
38CM Push Mower GLHPM38
Phone lines available
Mon - Fri : 9am - 5pm
Sat - Sun: 11am - 4pm.
Calls are charged at local rate,
mobiles may vary.
AFTER SALES SUPPORT
www.coreservice.co.uk
[phone]
MODEL: GLHPM38, 02/2016, 64011
UnitA&B
EscrickBusinessPark
Escrick
York
YO196FD
Email:[e-mail]
Tel:[phone]
IRE
[phone]
GB
IREGB

IREGB
Warranty conditions
Dear Customer,
The ALDI warranty offers you extensive benefits compared to the statutory
obligation arising from a warranty:
Warranty period: 3 years from date of purchase
Costs: Free repair/exchange or refund.
No transport costs.
Hotline: Support line charged at local rate
ADVICE: Please contact our service hotline by phone, e-mail or fax
before sending in the device. This allows us to provide support
in the event of possible operator errors.
In order to make a claim under the warranty, please send us:
•Together with the faulty item the original receipt and the warranty card
properly completed.
•The faulty product with all components included in the packaging.
The warranty does not cover damage cause by:
• Accident or unanticipated events. (e.g. lighting, water, fire)
• Improper use or Transport.
• Disregard of the safety and maintenance instructions.
•Other improper treatment or modification.
After the expiry of the warranty period, you still have the possibility to have your
product repaired at your own expense. If the repair or the estimate of costs is not
free of charge you will be informed accordingly in advance.
This does not affect your statutory rights.

Importer:
SUMEC UK
UNIT A&B ESCRICK BUSINESS PARK
ESCRICK, YORK, YO19 6FD, UK
Email: [email protected].uk
Great care has gone into the manufacture of this product and it is
should therefore provide you with years of good service when used
properly. In the event of product failure within it‘s intended use
over the course of the first 3 years after date of purchase, we will
remedy the problem as quickly as possible once it has been brought
to our attention. In the unlikely event of such an occurrence, or if you
require any information about the product, please contact us via our
helpline support services, details of which are to be found both in this
manual and on the product itself.
YEARS WARRANTY
[phone]
[phone]
MODEL: GLHPM38, 02/2016, 64011
www.coreservice.co.uk
AFTER SALES SUPPORT
Spend a little Live a lot
GB IRE
GB
IRE
