Gardenline GLM1650 Instruction Manual

42cm (16.5”)
50
Litres
FOLDING
GLM1650ELECTRIC
LAWNMOWER
THE
POWER
GUIDE
1600W ELECTRIC LAWNMOWER
0044 (0) 151 6491500
1890 946244
7781
:REBMUN
L
EDOM
Now you have purchased a Gardenline®
product you can rest assured in the knowledge
that as well as your 3 year parts and labour
warranty you have the added peace of mind
of dedicated helplines and web support
0151 6491500
1890 946244
7781
:
REBMUNLEDOM
MONTH ON SALE: 03/2008 36
THIS BOX INCLUDES:
• 1 x LAWNMOWER
• 1 x COLLECTION BAG
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 2

03 Introduction
04 General Information & Safety Instructions
12 Assembly and Parts List
15 Getting Started
16 Features
18 Instructions
22 FAQ’s
23 Other Useful Information
24 Warranty Card
Packaging
The unit is supplied in packaging to prevent its being
damaged in transit. This packaging is raw material and
can therefore be reused or can be returned to the raw
material system.
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781
02
Contents
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 3

Introduction 1
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781 03
Congratulations on choosing to buy a Gardenline®
product. By doing so you now have the assurance
and peace of mind that comes with purchasing a
product made by one of Europe’s leading
manufacturers.
All products brought to you by Gardenline®
are manufactured to the highest standards
of performance and safety, and, as part of our
philosophy of customer service and satisfaction,
are backed by our comprehensive 3 Year Warranty.
Great care has gone into the manufacture of this
product and it should therefore provide you with
years of good service when used properly. In the
event of product failure within its intended use
over the course of the first 3 years after date of
purchase, we will remedy the problem as fast
as possible once it has been brought to our
attention. In the unlikely event of such an
occurrence, or if you require any information
about the product, please contact us via our
helpline support services, details of which are
to be found both in this manual and on the
product itself.
Please fill in and return the Warranty Card to the
address provided.
We hope you will enjoy using your purchase for
many years to come.
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 4

When using equipment, a few safety
precautions must be observed to avoid
injuries and damage:
Read the operating instructions carefully and comply
with them. It is important to consult these instructions
in order to acquaint yourself with the unit, its proper
use and safety regulations.
Keep this manual in a safe place, so that the
information is available at all times.
If you give the equipment to any other person, give
them these operating instructions as well.
We accept no liability for damage or accidents which
arise due to nonobservance of these instructions.
General safety instructions
1 As with all tools keep away from children. Never
allow others who are not familiar with the operating
instructions to use the lawn mower. Local regulations
may fix the minimum age of the user.
2 Disconnect the mains lead before carrying out any
inspection, servicing and maintenance work.
3 The user is responsible for any harm to third parties
in the working area of the lawn mower, caused by
using the lawn mower.
4 Only work in good light or provide the appropriate
artificial light.
5 Always check the mower for signs of damage.
6 Ensure that all the guards are fitted and function correctly.
7 Never use the mower when you are tired.
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781
04
Safety Instructions
•
•
•
2
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 5

8 Never use the mower in enclosed or poorly
ventilated rooms or if there are inflammable or
explosive fluids, vapours or gases nearby.
9 Always pull out the power plug:
whenever you leave the machine unattended;
before freeing a jammed blade;
before checking, cleaning or carrying out any other work;
if the machine hits a foreign body and you check it for
damage and make any repairs that are required;
if the machine starts to vibrate in an unusual manner
(check immediately).
10 Before use always inspect the mower to check the
cutting tools, fastening bolts and the entire cutting
unit for signs of wear or damage. To prevent imbalance,
worn or damaged cutting tools and fastening bolts
may only be replaced in full.
11 For your own safety, replace worn or damaged parts
without delay. Only original replacement parts may
be used.
12 Follow the instructions to fit or remove the blade
and wear protective gloves.
13 Check the site on which you intend to use the lawn
mower and remove all objects that may be caught
and thrown up by the mower. Foreign bodies must be
removed before you start mowing. Keep an eye of the
extension cables that you need to power the mower.
14 Non slip (PPE) shoes with toe protection should be
worn. Never mow in bare feet or in open-toed sandals.
15 Always use the lawn mower with the grass bag
attached or with the safety flap closed if you are
not using the grass bag.
16 Do not lift the lawn mower when you start the motor.
17 Never move your hands or feet near or under
rotating parts. When using a sickle bar mower,
never stand in front of the grass ejector opening.
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781 05
•
•
•
•
•
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 6

18 Before you attach or empty the grass bag, switch
off the motor and wait until the blade has reached
a standstill.
19 The safety distance produced by the long handle
must be maintained at all times.
20 If you use the mower on a slope, mow across the
slope (not in up or down direction).
21 Do not use the lawn mower on gradients of over 15%.
22 Before you lift the lawn mower to transport it, switch
off the motor, disconnect the mains lead and wait
until the blade has reached a standstill.
23 When the mower is working ensure that nobody,
particularly children and animals, is in the immediate
vicinity of the lawn mower. Ensure that you keep everybody
10 meters away from the mower when it is working.
24 Keep long hair tied back and wear protective eye
wear or hearing protection if required.
25 Keep the lawn mower in a dry place which is
inaccessible to children.
26 Repair work on the electrical parts of the lawn mower
may only be carried out by an electrician.
27 The mains leads must be no lighter than lightweight
rubber hose cables H07RN-F as described in DIN 57
282/VDE 0282 and must have a minimum cross-section
of 1.5 mm2. The plug connectors must have safety
contacts and the connection must be splashproof. The
mains lead must be threaded through the strain-relief
clamp on the strut and connected to the switch/plug
combination. Before use check the lead for signs of
damage and ageing. Never use the mower if the cables
are not in perfect condition (this also applies to the motor
supply cable on the mower). If the cable is damaged
whilst the mower is working, disconnect the mains
plug from the power supply immediately and then
check the extent of the damage.
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781
06
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 7

28 When you start the motor the lawn mower must not
be tilted unless it has to be raised for this purpose. In
this case only tilt it up as far as is really necessary and
only raise the side that is furthest away from the user.
29 Disconnect the plug from the power supply if the
mower starts to suffer unusual vibrations (check the
mower immediately).
30 Ensure that all the nuts, bolts and screws are tight and
that the mower is in a safe condition for use.
31 Switch off the motor and disconnect the plug from
the power supply if the mower strikes a foreign body.
Check the mower for signs of damage and carry out
the necessary repair work before you start work with
the mower again.
32 Do not leave the mower out in the rain. The lawn must
not be wet or very damp.
33 Ensure that you have safe footing at all times whilst
working with the mower.
34 Only push the mower at walking pace.
35 Be particularly careful when changing direction with
the mower whilst working on a slope.
36 Be particularly careful when you change the direction
of the mower or pull it towards you.
37 Switch off the mower if it has to be tilted for transport
purposes, when you have to take it over surfaces
other than grass, and when moving the mower to and
from the area you wish to mow.
38 Start or use the starter switch with care as described
in the manufacturer’s instructions. Ensure that your
feet are a safe distance from the cutting tool.
39 Never lift or carry the mower whilst the motor is running.
40 Switch the mower off before leaving it.
41 Allow the motor to cool down before you place the
machine in enclosed rooms for storage.
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781 07
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 8

42 Check the grass bag at regular intervals for signs of wear
and to ensure that it is still in perfect working order.
43 Before you adjust or clean the mower or check
whether the mains lead is kinked or damaged, switch
off the mower and disconnect the plug from the
power supply.
44 The connection sockets on the connectors must be
made of rubber, soft PVC or other thermoplastic
material with the same strength or they must be
coated with this material.
45 Ensure that you do not push the mower over routes
that might hamper the free movement of the
extension cable.
46 Do not switch the mower on and off frequently over a
short period of time, and in particular do not play with
the ON/OFF switch.
47 As a result of the voltage fluctuations this mower
causes as it gets up to speed, other equipment
connected to the same circuit may suffer faults if the
mains supply is not in perfect condition. In this case
suitable action has to be taken (for example connect
the mower to a different circuit or run the mower on
a circuit with lower impedance).
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781
08
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 9

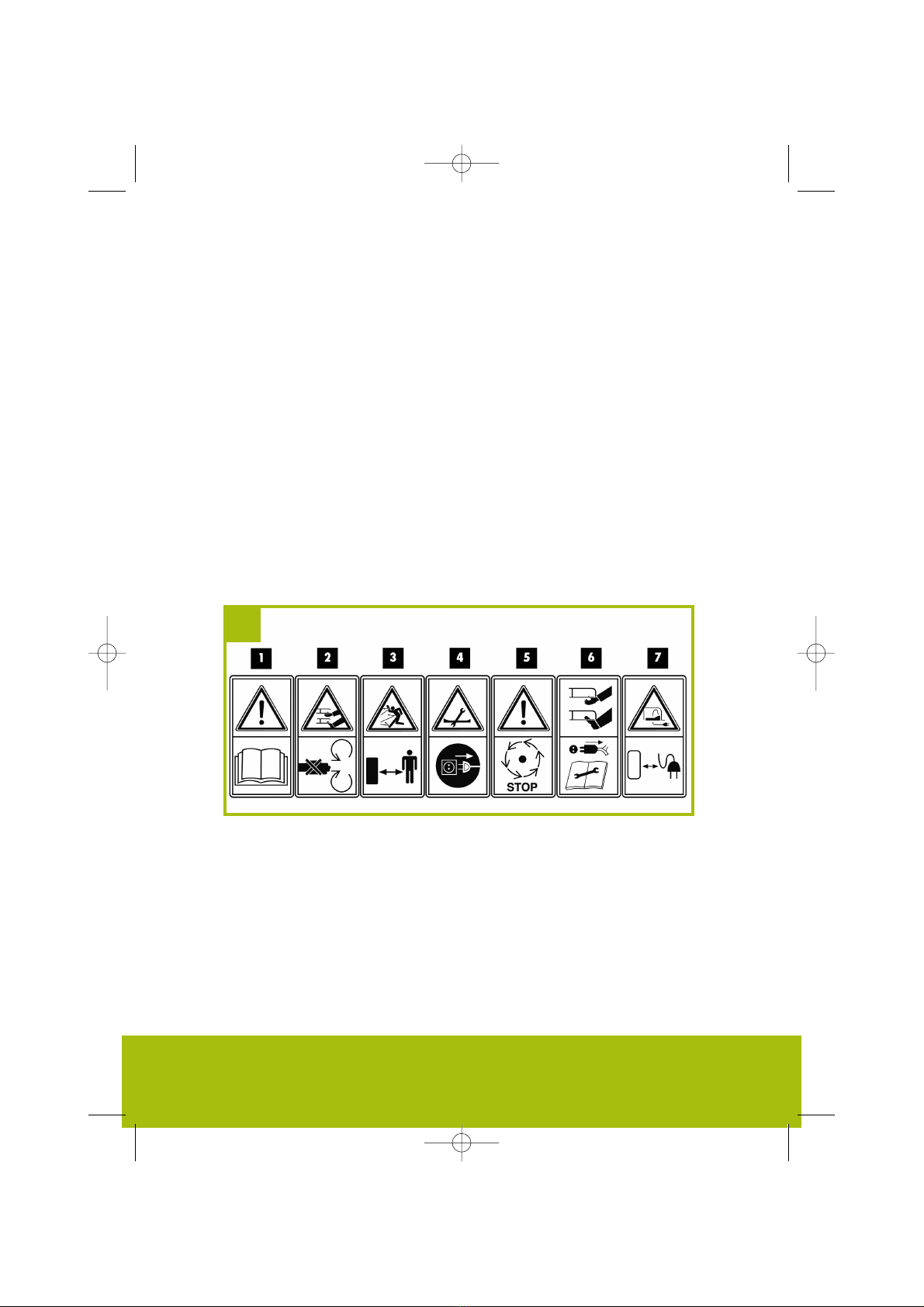

Explanation of the warning
signs on the machine (see Fig. 1)
1 = Read the directions for use before operating the tool!
2 = Caution: rotating cutters!
3 = Keep your distance/Keep other people away!
4 = Always pull the power plug before doing any work
on the cutting unit!
5 = Caution: The cutters continue to run after the motor
is switched off!
6 = Take care of the sharp cutters! Switch off the motor
and pull the power plug before you carry out any
settings or cleaning work and if the power cable is
caught or damaged!
7 = Caution: Keep the power cable away from the cutters!
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781 09
1
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 10

Proper usage
Power connection
The lawn mower can be connected to any socket (with
230 V alternating current). However, only use a socket
with an earth connection protected by a cable protection
switch for 16 A and a residual current device (RCD)
circuit-breaker with max. 30 mA.
Mower mains lead
Only use a mower mains lead that is in perfect condition.
The mains lead must not exceed a certain length (max.
50m), since otherwise the power of the electric motor
will fall. The mains lead must have a cross-section of
3 x 1.5mm2.
Mains leads on lawn mowers are particularly susceptible
to insulation damage.
The causes of this include the following:
Cutting the cable by passing over it with the mower.
Damage through crushing if the mains lead is routed
under doors or windows.
Cracks caused by ageing of the insulation sheath.
Kinks caused by incorrect fastening or routing of the
mains lead.
Such damaged mains leads should not be used under any
circumstances as they may cause fatal injuries due to
their damaged insulation sheath. Cables, plugs and
connection sockets must satisfy the conditions listed
below. Mains leads for connecting lawn mowers must
have rubber insulation sheaths.
The mains leads must be at least type H05RNF and have
three wires. The type designation must be printed on the
mains lead. Only buy mains leads that have their type data
printed on them. The plugs and connection sockets on
mains leads must be made of rubber and be splashproof.
Mains leads are subject to length restrictions. Long mains
leads require larger cable cross-sections. Mains leads and
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781
10
•
•
•
•
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 11

connection cables must be checked at regular intervals for
signs of damage. Ensure that the leads are not connected
to the power supply when you check them. Uncoil the
mains lead in full. Also check the mains lead connection
points at plugs and connection sockets for kinks.
All repairs must be carried out by authorised service
centre or a qualified electrician.
The lawn mower is designed for use in private gardens.
Lawn mowers for use in private gardens are mowers
whose annual use does not generally exceed 50 hours
and that are primarily used for tending grass or lawn
areas, but not in public facilities, parks or sports grounds
and not for agricultural or forestry use.
Compliance with the operating manual supplied by the
manufacturer is a prerequisite for the proper usage of the
lawn mower. The operating manual contains servicing and
maintenance instructions as well as directions for use.
Important. As a result of the potential danger to the user,
the lawn mower must not be used to trim bushes, hedges
and shrubs, to cut or shred climbing plants or lawns on
roof gardens or in balcony boxes or to clean footpaths,
nor must it be used as a chopper for shredding tree or
hedge cuttings. Furthermore, the lawn mower must not
be used as a cultivator or to level off uneven areas of
ground, e.g. molehills.
For safety reasons the lawn mower must not be used as a
power unit for other tools and tool sets of any type unless
the manufacturer expressly approves such use.
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781 11
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 12

Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781
12
The lawn mower is delivered pre-assembled.
Follow the operating instructions step-by-
step and use the pictures provided as a
visual guide to easily assemble the machine.
Assembling the long handle (see Figs. 2-5)
Pull the long handle apart as shown in Figure 2.
Make sure when doing so that the motor cable is
not jammed.
Tighten the two star screws (Fig.3/Item A)
Now you can select one of the 4 different heights of the
long handle, between 86.5 and 113 cm (Fig.4/Item A).
Important: The handle height may only be adjusted
within the marked area.
Secure the long handle in the desired position using
the two star screws (Fig.4/Item B).
Important: Always set the identical handle height on
both sides.
Use the cable clips to align the cable in accordance
with the long handle (Fig.5/Item A).
Mounting the grass collecting device
(see Fig. 8 to 13 on page 14)
Mount the bar frame as shown in Fig. 6. Pull the grass bag
over the bar frame (Fig. 7.) and fasten the bag to the
frame with the rubber clips (Fig. 8). Before you ever fit
the grass bag to the mower you must ensure that the
motor is switched off and the blade is not rotating.
Lift the ejector flap (Fig. 9/Item 1) with one hand. With
the other hand, hold the grass bag by the handle and
hook it in from above (Fig. 9).
Assembly & Parts List 3
•
•
•
•
•
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 13

Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781 13
2 3
4 5
6 7
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 14

Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781
14

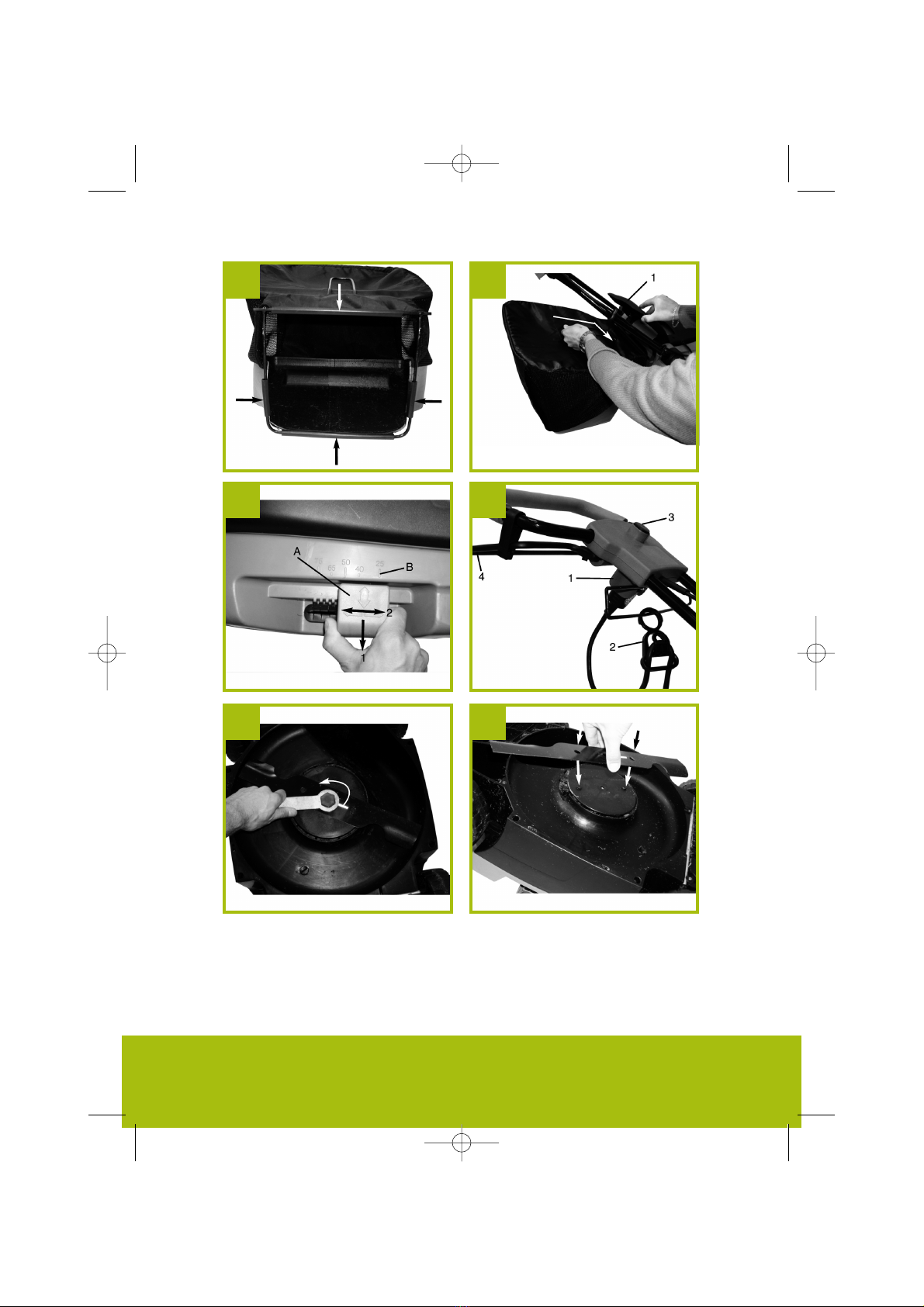

8 9
10 11
12 13
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 15

Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781 15
Setting the cutting heights
Important! Adjust the cutting height only when the
engine is switched off and the power cable has been
disconnected.
Before you begin to mow, check to ensure that the
blade is not blunt and that none of the fasteners are
damaged. To prevent any imbalance, replace blunt
and/or damaged blades. To carry out this check, first
switch off the motor and pull out the power plug.
The cutting height is adjusted as shown in Fig. 10.
1 Pull out the lever (A).
2 Set the lever (A) to the desired cutting height.
The cutting height can be set between 25-75mm in 10
intervals, and can be read off on the scale (Fig. 10/Item B).
Starting up
Connect the power cable to the switch/plug block (Fig.
11/Item 1) and secure the power cable with the cable
stress-relief clip (Fig. 11/Item 2). Use the fasteners
(cable holders) for the power cable.
Important! To prevent the machine switching on
accidentally, the lawn mower is equipped with a safety
lock-off (Fig. 11/Item 3) which must be pressed before
the switching bar (Fig. 11/Item 4) can be activated. The
lawn mower switches itself off when the switch is released.
Repeat this process several times so that you are sure
that the machine functions properly. Before you perform
any repair or maintenance work on the machine, ensure
that the blade is not rotating and that the power supply
is disconnected.
Getting Started 4
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 16

Important. Never open the discharge flap if the grass
box is being emptied and the motor is still running.
The rotating blade can cause serious injuries.
Always secure the discharge flap and grass bag carefully.
Always switch off the motor before you remove these items.
The safety distance between the blade casing and the
user provided by the guide struts must be maintained at
all times. Take special care when mowing and changing
direction on embankments and slopes. Ensure that you
have a secure surface to stand on, wear shoes with anti-slip
soles that offer good grip, and long trousers. Always mow
across the slope (not in up or down direction). Do not use
the mower on gradients exceeding 15° for safety reasons.
Take special care when moving backwards and pulling
the lawn mower. Danger of stumbling!
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781
16
Layout and items supplied
1 Switch/plug block
2 Cable strain-relief clamp
3 ON/OFF switch
4 Grass bag
5 Ejector flap
6 Central height adjustment:
7 Bottom push bar
8 Top push bar
9 Fastening screws for bottom push bar
10 Fastening screws for top push bar
11 Frame parts for grass bag
12 Key for changing the blade
Features 5
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 17

Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781 17
14
15
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 18

Information on correct mowing
We recommend that you mow in overlapping lines.
Only mow with sharp, perfect blades so that the blades
of grass do not fray, making the lawn turn yellow.
To achieve a good cut, guide the lawn mower in lines that
are as straight as possible. These lines should always overlap
by a few centimeters so that you do not leave any strips.
How often you should mow the lawn depends on how fast
the lawn grows. During the main growth period (May – June),
mow it twice a week, and once a week at other times.
The cutting height should be between 4 and 6 cm and
the growth before the next cut should be between 4 and
5 cm. If the lawn grows longer than this on occasion, do
not make the mistake of cutting to normal length straight
away since this will damage the lawn. Never cut the grass
by more than half its height. Keep the underside of the
mower casing clean and remove all grass deposits from it.
Deposits make it more difficult to start the mower and also
adversely affect the mowing quality and the grass discharge.
On slopes mow across the slope (not in up or down direction).
You can counteract the tendency of the mower to slide
down the slope by setting it at an angle upwards. Select
the cutting height to suit the actual length of the grass.
Make several passes to ensure that you do not remove
more than 4 cm of grass length in any one pass.
Switch off the motor and pull the power plug before
doing any checks on the blade. Keep in mind that the
blade continues to rotate for a few seconds after the
engine has been switched off. Never attempt to manually
stop the blade. Regularly check to see if the blade is
securely attached, is in good condition and is sharp. If the
contrary is the case, sharpen the blade or replace it. In
the event that the blade strikes an object, immediately
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781
18
Instructions 6
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 19

Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781 19
switch off the lawn mower and wait for the blade to
come to a complete stop. Then inspect the condition of
the blade and the blade mount. Replace any parts that
are damaged. Lay the power cable on the ground in
loops in front of the power outlet. Mow away from the
power outlet and cable, making sure that the power cable
always trails in the mowed grass so that the lawn mower
does not travel over the cable.
Mowing
As soon as you see mown grass on the lawn whilst you
are mowing, the grass bag will need emptying.
Important. Before you remove the grass bag switch off the
motor and wait until the cutting tool reaches a standstill.
To remove the grass bag, raise the discharge flap with one
hand and remove the grass bag using its handle with your
other hand. To maintain safety, the discharge flap will
close when you remove the grass back to seal the rear
discharge opening. If any grass residues are caught in the
opening, it is a good idea to pull the mower backwards
around 1 m to make it easier to start the motor.
Do not remove grass cuttings in the mower casing or on
the cutter by hand or with your feet. Instead use suitable
tools such as a brush or broom.
To ensure that it can collect the grass correctly the grass
bag and in particular the net must be cleaned from the
inside after use.
Only attach the grass bag after switching off the motor
and the cutting tool has reached a standstill.
Raise the discharge flap with one hand and, holding the
grass bag by its handle in your other hand, attach it from
the top.
Servicing and storage
Servicing and cleaning work on the lawn mower and the
removal of the guards may only be carried out after the
motor has been switched off and the plug disconnected
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 20

from the power supply. Worn or damaged blades, blade
holders and bolts must be replaced together by an authorized
specialist to maintain the balance of the mower.
Do not clean the lawn mower with running water, particularly
not if it is at high pressure. Ensure that all the fastening
elements (screws, nuts, etc.) are tight at all times so that
you can work with the mower in safety.
Check the grass collection device frequently for signs of wear.
Replace worn or damaged parts.
Store your lawn mower in a dry place. To ensure it has a
long life all the screw parts and the wheels and axles should
be cleaned and then oiled.
The long handle can be folded together into its as-delivered
state (see Fig. 15) in order to save space during storage.
When folding the handle make sure that the motor cable is
not jammed. Keeping your hand mower in good condition
not only ensures a long lifespan and high performance, but
also enables the machine to thoroughly cut your grass with
minimal effort. For best results, clean the lawn mower with
a brush or rag. Do not use any solvents or water to remove
dirt. The cutting components - i.e. the knife cage and lower
knife blade - are subjected to more wear and tear than any
other component of the unit. Therefore, routinely check the
condition of the blade and make sure that it is tightly fastened.
If the blade is completely worn out, it must be immediately
replaced or ground sharp again. An excessively vibrating
mower means that the blade is not properly balanced or
has become deformed from striking an object. In this
case, the blade must be repaired or replaced.
Replacing the blade
For safety reasons, we recommend having the blade
replaced by an authorized professional.
Important! Wear work gloves!
Only replace the blade with a genuine Einhell replacement
blade, as this will ensure top performance and safety
under all conditions.
Helpline No. UK/Northern Ireland 0151 6491500
Rep. Ireland 1890 946244
Model Number: 7781
20
7739 1650 Lawn Mower User Guide 6/11/07 3:45 pm Page 21
