Gardenline HYSB-125PP User manual

Xfinity Li-ION 20V
Instruction Manual
IMPORTANT
Read carefully before use
Keep for future reference
MODEL NUMBER HYSB-125PP
SUBMERSIBLE PUMP
1300 889 028
[email protected]m
01/2019
62809HYSB-125PP
C
Version number:006

2
2
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
Welcome
Congratulations in choosing to buy a Gardenline®Xfinity Plus 20V Li-Ion
Submersible Pump (battery / charger not included).
All products bought to you by Gardenline® Xfinity Plus are manufactured
to the highest standards of performance and safety and, as part of
our philosophy of customer service and satisfaction, are backed by our
comprehensive 5 Year Warranty. We hope you will enjoy your purchase
for many years to come.
When you open your packaging,first remove all items and check there
are no parts damaged or missing.If you find anything wrong,
do not operate the product until the parts have been replaced or
the fault has been rectified.Failure to do so could result in serious
personal injury.

3
3
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
Contents
Application
Package Content List
Parts description
Description of symbols
Product Safety
Safety Warnings for battery pack
Additional safety instructions for your Battery Charger
Additional Safety warnings for Submersible Pumps
Operating Instructions
Maintenance
Warranty
Troubleshooting
Technical Specifications
4
4
6
8
9
9
11
12
14
18
20
22
23

4
4
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
1. Application
First time users or inexperienced operators pay particular attention to
the operation of the 20V Li-Ion Submersible Pump, including details
of starting and stopping and correct use of the 20V Li-Ion Submersible
Pump on pages 14-18, as well as the maintenance instructions on pages
18.
Intended use of the 20V Li-Ion Submersible Pump
(battery / charger not included)
NOTE: This product is for private domestic DIY use only.
It is not suitable for commercial or trade use.
This product is intended for pumping water in a home domestic
application. Use the submersible pump only for intended applications.
IMPORTANT INFORMATION
Do not use this Submersible Pump with corrosive, abrasive, explosive or
dangerous liquids. Fluids other than water will damage the water Pump
and/or create a fire hazard.
NOTE: This Submersible Pump is not suitable for use in spa’s or similar
applications or for use with drinking (potable) water.
2. Package Content List
1 x Submersible Pump with
8m interconnecting Cable
(battery/charger not included)
1 x Battery Stand
1 x Instruction manual
1 x Warranty Certificate
1 x Clamp
• Remove all packing materials
• Ensure all parts on the contents
list are present
• Check the appliance, and all
accessories for transportation
damages

5
5
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
This Submersible Pump is NOT suitable for the use in spa’s or
similar applications.
NOTE: Do not use the Submersible Pump in applications in which
people or animals are present within the body of water where the
pump is installed during operation.
This submersible Pump is suitable in the following applications:
• Water removal from rainwater tanks with access from the top of the
tank or water line.
• Irrigation and draining out flooded areas.
• Drawing water from ponds or similar bodies of water.
• Drawing water from floor pits
• Swimming Pools - for use in swimming pool applications, the battery
stand (power supply source) must be placed atleast 2m distance from
the installation set up.
This submersible Pump is NOT suitable in the following
applications.
Do NOT use the Pump for these purposes:
• The Submersible Pump is not suitable for use with drinking water.
• Do not use with corrosive, abrasive, explosive or dangerous liquids.
• Do not operate the Pump without water, or run the water Pump dry.
• Do not use in spa’s or similar applications or where people or animals
are within the body of water being pumped.
Important notes on the range of operation of the Submersible
Water Pump
• The Submersible Pump will always leave a minimum depth of water
around the Submersible Pump base of 30cm.
• The Submersible Pump is capable of pumping water from an
immersion depth of 5 metres.
• The Submersible Pump is capable of lifting water through the outlet
to a MAXIMUM height of 7 metres.

6
6
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
Battery Stand
Interconnecting Cable
Filter
Outlet
On/Off switch
Reset Button
Clamp
Carry handle
Battery Stand fixing points
Pump Base
Battery Pack
(not included; shown only for illustrative and instructional
purposes only)
20V Charger (not included; shown only for illustrative and instructional
purposes only)
Pump Vents
Breather Hole
Transparent cover
3. Parts description
10
9
8
7
5
2
6
3
4
1
12
13
14
15
11

7
7
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
3.1 Parts description cont
10 9
8
7
5
2
6
341
15
12
13
14
11

8
8
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
4. Description of symbols
Warning
Read and understand this instruction
manual before use and keep it for your future reference.
Minimum total head
Maximum immersion depth
RCM marking: Conforms to relevant standards for electrical
safety and electromagnetic compatibility.
60 Month Warranty
Do not crush, disassemble, short terminals or dispose in fire;
there is a risk of burns explosion or fire.
Do not put in water.
Do not charge the battery pack if the ambient temperature is
less then 0°C or greater than 45°C.
Waste electrical products should not be disposed of with
household waste.
H min
5m
60
The instruction manual, rating plate, or on the product itself, may
show these symbols. These represent important information about the
product or instructions on its use.
45

9
9
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
5. Product Safety
General safety warnings
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric
shock, fire and/or serious injury.
WARNING: In order to avoid a hazard due to inadvertent
resetting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on and off by
the utility.
Carefully read the instructions for the safe operation of the
machine.
Save all warnings and instructions for future reference.
- This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
- Children should be supervised to ensure that they do not play with
the appliance.
WARNING: For the purposes of recharging the battery, only
use ALDI 20V Xfinity Plus Plus Chargers, required to be
purchased separately (not included with this product).
Pump safety instructions
1. Remove battery pack from the battery stand before carrying out
user maintenance such as cleaning the filter.
2. The battery stand must be installed / located outside Zone 1 of the
pumping installation set up, where Zone 0 represents the area of the
pumping installation, and Zone 1 represents a radius of 2m around
the Zone 0 installation.
3. Charging of the battery pack must be performed in a dry and
weather protected area away from the the pump installation area.

10
10
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
6. Safety Warnings for battery pack
a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery
packs haphazardly in a box or drawer where they may
short-circuit each other or be short-circuited by conductive
materials. When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or
a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in
direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to
come into contact with the skin or eyes. If contact has been
made, wash the affected area with copious amounts of water
and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has
been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they
become dirty.
i) Battery pack needs to be charged before use. Always refer to
the battery manufacturer’s instruction manual and use the
correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to
charge and discharge the battery pack several times to obtain
maximum performance.
l) Battery pack gives its best performance when it is operated
at normal room temperature (20 °C ± 5 °C).
m) When disposing of battery packs, keep battery packs of
different electrochemical systems separate from each other.

11
11
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
n) Recharge only with ALDI Xfinity Plus 20V compatible chargers
specified by manufacturer. Do not use any charger other
than that specifically provided for use with the equipment. A
charger that is suitable for one type of battery pack may create a risk
of fire when used with another battery pack.
o) This Submersible Pump uses only ALDI Xfinity Plus 20V
Lithium-Ion batteries(not supplied).
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.
t) Disconnect the pump from the power source by taking out
the battery from the base or by turning off the base ON/
OFF switch, before carrying out user maintenance such as
cleaning the filter.
7. Additional safety instructions for your Battery
Charger
1. Before charging, read the instruction manual and all related safety
and warning data included with your purchased ALDI Xfinity Plus
20V Battery and Charger.
2. For charging Li-ion battery pack only.
3. Do not charge a leaking battery.
4. Do not use chargers for works other than those for which they are
designed.
5. Before charging, ensure your charger is matching the local AC supply.
6. The charging device must be protected from moisture.
7. Do not use the charging device in the open.
8. Do not short out the contacts of battery or charger.
9. Respect the polarity “+/-“ when charging.
10. Do not open the unit and keep out of the reach of children.
11. Do not charge the batteries of other manufacturers or ill-suited
models.

12
12
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
12. Ensure that the connection between the battery charger and battery
is correctly positioned and is not obstructed by foreign bodies.
13. Keep battery charger free from foreign objects and protect against
dirt and humidity. Store in a dry and frost-free place.
14. When charging batteries, ensure that the battery charger is in a
well-ventilated area and away from flammable materials. Batteries
can get hot during charging. Do not overcharge any batteries.
Ensure that batteries and chargers are not left unsupervised during
charging.
15. Do not recharge non-rechargeable batteries, as they can overheat
and break.
16. Longer life and better performance can be obtained if the battery
pack is charged when the air temperature is between 18℃and 24℃.
Do not charge the battery pack in air temperatures below 4.5℃, or
above 40.5℃. This is important as it can prevent serious damage to
the battery pack.
8. Additional Safety warnings for Submersible
Pumps
WARNING! This Pump is not suitable for use in spa’s or
similar applications.
WARNING! This product is intended for pumping water (up
to 35 degrees) in a Home Domestic application.
Do not use it for corrosive, abrasive, explosive or dangerous
liquids. Fluids other than water will damage the water Pump
and/or create a fire hazard.
Failure to follow all instructions listed below may result in
electric shock,fire and/or serious injury.

13
13
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
WARNING! This product is not suitable for use with drinking
(potable) water.
This appliance is not intended for use by person (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
• Ensure the battery pack is not connected in the battery stand when
installing.
• Do not install or operate the water Pump in an explosive
environment or near flammable material.
• Do not operate the water Pump without liquid.
• Do not run the water Pump dry.
• Do not operate the Pump without the outlet of the Pump connected
to the proposed drain system.
WARNING! The water Pump together with associated
pipework operate under pressure. Do not disconnect water
Pump or pipework until internal pressure has been released.
Failure to do this could result in personal injury and damage to
property.
• Avoid inserting hands into the inlets/outlets of the water Pump while
it is connected to power.
• Before using the water Pump, always inspect it visually. Do not
use the Pump if it is cracked and/or damaged. If the water Pump is
damaged,contact customer service.
• The Pump must not be used in situations where people are in the
water.
• Never work or perform maintenance on the Pump without first
making sure the battery has been removed from the terminal box.
• Pollution of the liquid could occur due to leakage of lubricants.

14
14
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
• Do NOT put your hands or other body parts into the water when
the Pump is in operation and connected to a power supply. In a fault
condition, this could result in electrocution.
Protect the interconnecting cable from heat, oil or sharp edges.
If damaged, the interconnecting cable must be replaced by a qualified
electrician, manufacturer, its service agent or similarly qualified person in
order to avoid a hazard.
9. Operating Instructions
1. Pump safety instructions
Important: Always use correct supply voltage. Always ensure the pump
is in water and fully primed before turning on. Read instruction manual
before use.
Operation without water is forbidden.
Take good care of the interconnecting cable, never pull interconnecting
cable directly.
WARNING: Always ensure there is no battery in the battery
stand before performing maintenance tasks.
2. Proper use
The pump is not an explosion-proof feeding pump; never operate in
flammable and combustible circumstances.
Never use the pump with explosive or hazardous chemical liquid.
No-load or dry operation will damage the pump, and void warranty.
3. Before putting the machine into operation
3.1 Electrical safety
Operate only with correct supply voltage specifications.
Never connect the pump to AC power supply.
Never submerse the battery stand into water.

15
15
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
WARNING: The battery stand is not waterproof, it cannot be
put into water.
NOTE: The outlet fitting on the submersible pump is 25mm in diamater.
A hose/pipe (not supplied) of 25mm internal diameter is required to fit
onto the outlet fitting of the pump.
3.2 Installation
Install the outlet pipe with the supplied clamp (7) to secure the outlet
pipe to the outlet (4). (See Fig A1)
• Ensure the distance from the pump base (10) of the Submersible
Pump to the max height of the water line does not exceed the
maximum immersion depth of 5 metres . (See Fig A2)
• Ensure the distance from the Submersible Pump to the point of
water distribution does not exceed the maximum head height of 7
metres. (See Fig A2)
• Ensure the body of water the Submersible
Pump is being submersed into is large enough
to operate. We recommend a minimum area
of 30cm for each side of the Submersible
Pump . (See Fig A2)
3.3 Battery stand fixing instructions
The four holes at the bottom of the battery
stand(1) are designed for the user to fix the
B1
A1 A2
30c m
Pump
MAX Head
Height 7
metres
MAX
Immersion
5 metres
Outlet pipe
Battery Stand
cable

16
16
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
battery stand(1) to the desired position, so as to be near the water
pumping area. Avoid placing the battery stand
(1) where it may slide or be pulled away from the
pump.
To fix the battery stand, use 4 fasteners (less
than 5mm in diameter) to fix the battery stand
onto stable wooden boards, wall or fencing as
appropriate. (See Fig B1)

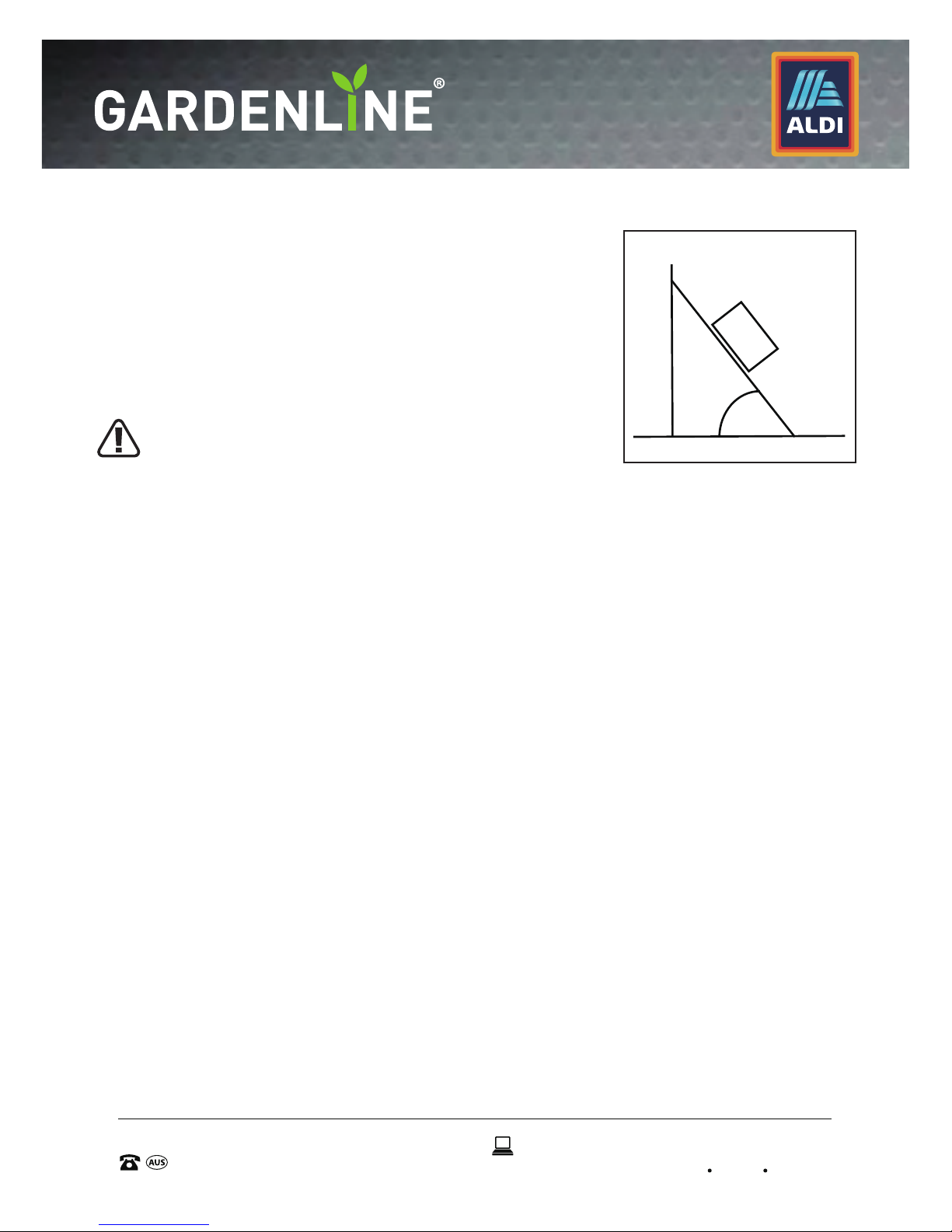

WARNING: Whilst it is recommended to
install the battery stand (1) in a dry and
weather protected area, if installing the
battery stand (1) in an open unprotected area, don’t fix the
battery stand onto a surface where the angle to the ground is
more than 60 degrees, as when placed on this angle there will be
no water ingress into the battery stand (1). (See Fig B2)
To install the battery pack
NOTE: (ALDI Xfinity Plus Battery pack and charger is not included with
this product; it is shown only for illustrative and instructional purposes
only). This pump is only compatible with ALDI Xfinity Plus 20V Battery
packs and chargers.
1. Lift the transparent cover of the battery stand (1).
2. To install your purchased Xfinity Plus battery pack in the battery
stand, align the grooved guide rails of the battery pack (11) with the
guide rails in the battery stand (1). Slide it firmly into position until
the battery is secure. When the battery is secured you will hear it
engage with a snap / click.
3. To remove the battery pack (27) from the battery stand (1), press the
battery release tab while sliding the battery out and away from the
battery stand (1).
4. Operation
Important
B2
Flat surface
Fence / wall etc
60
°
Battery Stand

17
17
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
You must connect the DC power supply via the correct polarities;
incorrect connection may damage the pump.(Never modify the battery
stand)
Make sure the lithium-ion battery is connected correctly.
Install the outlet pipe accordingly.
Make sure the pump is more than 30cm above the earth, to avoid
suction of any solid impurities.
4.1 Priming the pump
When placing the pump in the water to be pumped, bubbles should be
seen coming from the breather hole (14) on the side of the pump.
This is to ensure the pump is fully primed.
In the case where water is added after the pump is installed, the priming
operation will occur automatically through the breather hole (14).
IMPORTANT: It is important the outlet of the pump is NOT immersed
in a pond or tank etc, if it is higher than the pump. Otherwise, when
the pump stops, the above water reserve will siphon back through the
pump. Always leave an air break on the drainage pipe into the drain
area.
NOTE: Never pump high viscosity liquids, such as mud, sludge, or oily
water. It is recommended to install the battery stand (1) in a dry and
weather protected area.
4.2 Switching on and off
1. To switch on, depress the on/off switch (5) to “I” .(See Fig E1)
2. To switch off, depress the on/off switch (5) to “O”.(See Fig E2)
WARNING: The battery stand is not waterproof, it cannot be
put into the water.It is recommended to install the battery
E2E1

18
18
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
stand (1) in a dry and weather protected area.

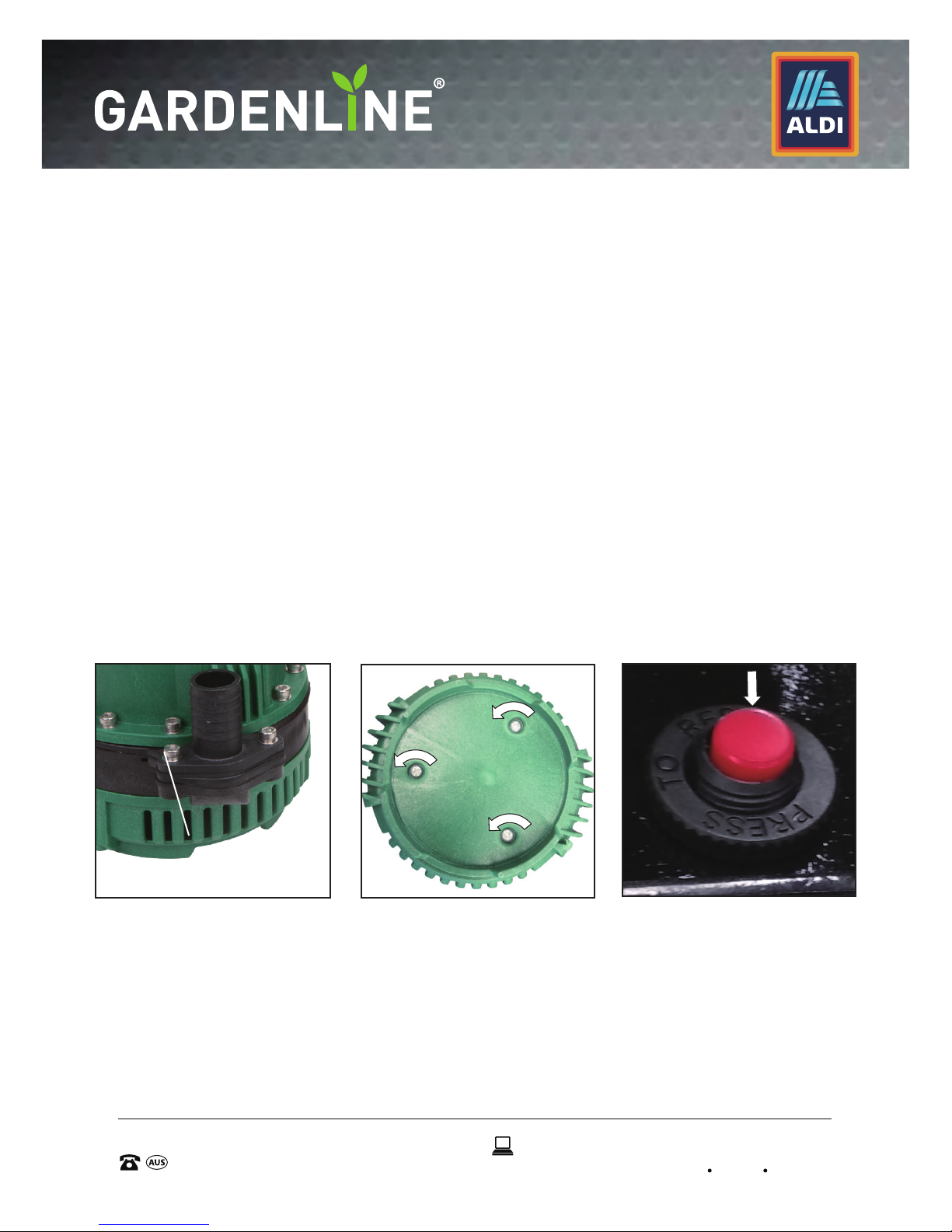

4.3 Reset Button
1. During operation, if the pump goes into overload ( where there is
a blockage, or impurities have entered the pump filter vents, or the
impeller operation is impeded) the pump will automatically stop and
the re-set button on the battery stand (1) will activate and pop up.
2. If this occurs, the impurity or blockage needs to be removed.
3. First remove the battery (11) from the battery stand (1) so there is no
power to the unit.
4. Check the filter (3) /vents. Remove / clear any obstruction. (See Fig
F1)
5. If the blockage is not in the filter, then the blade needs to be
checked. Unscrew the three screws (using a philips head screwdriver
- not supplied) and remove the filter to check the impeller. Remove /
clear any obstruction. (See Fig F2)
6. Re-assemble the filter.
7. Insert the battery (11) into the battery stand (1) and press the
re-set button (6). If the blockage has been removed, the pump
will commence operation. If this does not occur and pump is not
functioning, please seek further advise from Customer Service on
1300 889 028. (See Fig F3)
NOTE: Don't remove the other parts except the filter.
F3
F1 F2
filter /vents

19
19
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
10. Maintenance
Cleaning
WARNING: Always ensure there is no battery pack (11) in the
battery stand (1) before performing maintenance or cleaning tasks.
Clean the pump housing or battery stand (1) housing with a damp cloth.
DO NOT use solvents when cleaning plastic parts. Plastics are susceptible
to damage from various types of commercial solvents and may be
damaged by their use. Use a clean cloth to remove dirt, dust, oil, grease
etc, then dry well.
If the Pump becomes blocked, remove the outlet fitting and remove the
blockage if possible. If the blockage is on the input side, the 3 screws
retaining the base can be removed to remove the base and cover. Clear
the blockage from the impeller. Then replace the cover and base and the
3 assembly screws.
Battery Maintenance
To maintain battery capacity, always refer to the specific instructions
in the supplied manual included with the purchase of ALDI Xfinity Plus
Batteries. It is recommended to recharge your battery every two months.
Store only fully charged batteries. They should thereafter be recharged
from time to time.
The place of storage must be dry.
CAUTION! Electrical and battery operated units that no longer work
should not be disposed of in the household waste! They are to be
collected separately, in accordance with your local waste disposal
regulations.
ATTENTION! Batteries must be removed from battery powered tools
and disposed of separately in accordance with relevant waste battery
regulations.
Batteries must never be disposed of with domestic waste!

20
20
AFTERSALESSUPPORT e-mail: [email protected]m
1300 889 028 (toll free) MODEL No.: HYSB-125PP 62809 01/2019
Please discard power tools no longer usable at a local collection point.
Collection and disposal of packaging materials separately by types
complying with local rules and regulations. For details, please contact
your local council.
11. Warranty
Your new Gardenline®Xfinity Plus 20V Submersible Pump will
more than satisfy your expectations.
It has been manufactured under stringent Gardenline®Xfinity Plus
Quality Standards to meet superior performance criteria.
You will find your new 20V Submersible Pump easy and safe to operate,
and, with proper care, it will give you many years of dependable service.
CAUTION. Carefully read through this entire instruction manual before
using your new Gardenline®Xfinity Plus 20V Submersible Pump.
Take special care to heed the Cautions and Warnings.
Your Gardenline®Xfinity Plus 20V Submersible Pump has many features
that will make your job faster and easier. Safety, performance, and
dependability have been given top priority in the development of this
20V Submersible Pump, making it easy to maintain and operate.
Use only Gardenline®Xfinity Plus replacement parts for your product.
Non-conforming parts or modifications made to parts will void your
warranty.
Environmental protection
Recycle unwanted materials instead of disposing of them as waste.
All tools, hoses and packaging should be sorted, taken to the local
recycling centre and disposed of in an environmentally safe way.
What your 5 year warranty means
Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly. In
the event of product failure within its intended use over the course of
the first 5 years after the date of purchase, we will remedy the problem
