Garland GIU 2.5 User manual

Instructions for use
WARNING
IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, MAINTENANCE CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH. READ THE
INSTALLATION, OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY BEFORE INSTALLING
OR SERVICING THIS EQUIPMENT.
Garland Induction
Single, Dual and Wok Table Top Units
GIU 2.5
GIU 3.5
GIU 5.0
GIU 3.5 DUAL
GIU 5.0 DUAL
GIWOK 3.5
GIWOK 5.0
For USA
GARLAND COMMERCIAL IND., INC.
185 EAST SOUTH STREET
FREELAND, PENNSYLVANIA 18224
Phone: [phone]
Fax: [phone]
For Canada and Rest of the World:
GARLAND COMMERCIAL RANGES, LTD.
1177 Kamato Road, Mississauga, Ontario L4W 1X4
PHONE: [phone] FAX: [phone]

Content Page
1General Remarks 3
1.1 Application 3
1.2 Purpose of induction cookers
2Description of products 3
2.1 Technical information 4
3Installation 4
3.1 Requirements of installation 4
3.2 Rules for Operations 5
4Initial operation 6
4.1 Assembly instruction 6
5Operation test 7
6Operation 8
6.1 Cooking process 9
7Safety instructions 9
7.1 Description of danger signs 9
7.2 Risk at nonobservance of danger signs 10
7.3 Safety-conscious work 10
7.4 Operating personnel 10
7.5 Unauthorized reconstruction 11
7.6 Improper operating methods 11
7.7 Pan detection 11
7.8 Control of heating area 11
8Out of Operation 11
9Trouble shooting 11-14
10 Cleaning 15
11 Support 16

1.0 General remarks
1.1 Application
The following instructions contain information, which is fundamentally important and must be
taken into account during assembly, operation and maintenance. They must therefore be read
very carefully before installation and operation by the responsible specialist staff and the
operator(s). They must always be available for consultation at the place of operation.
General information about products – installation – initial operation – operating test – cooking
process – safety instructions – out of operation – fault finding – cleaning – support – are
described on the following pages.
1.2 Purpose of induction cookers
The Garland induction unit cookers are especially suitable as cookers in the kitchen and for the
preparation of meals on the table. A cooker can be used for cooking, warming up, keeping
warm, flambéing, roasting, etc.The cookers are to be used only with pans made of material
which is suitable for induction. There are specific manufacturers who sell special types of pots
and pans for induction cooking.
Do not use induction cookers to heat up any other metallic objects other than pots and pans
provided for it.
NOTE: For Wok models, only use supplied wok pans or "Spring of Swizerland" wok pans. Other wok
pans may not have the same shape as the ceramic wok bowl, causing overheating and cracking of
the ceramic.
2.0 Description of products
We manufacture several basic types of induction cookers with various performances and
measurements. All are built to last; they are also compact and powerful with a revolutionary
technology in a complete case of stainless steel. All of our accessories are designed to
coordinate with the induction units and since each unit is equipped with continuous control, they
allow efficient cooking.
•Simple operation with rotary switch
•Compact powerful electronics enable flat construction and safe operation
•A maximum of safety thanks to multiple safety functions
•Short cooking time
•Electronic checking
•Compact measurement – light weight
•Meets all current standards: VDE EN 60335-1/-2/36, CE-conforming
•UL197; CAN/CSA/C22.2 No. 109, NSF 4-1996

2.1 Technical Data
Operation and control
Lamp operation 24V DC/max. 40mA (green)
Output regulator – Potentiometer 10kOhm
Technical Data Watts Voltage
A) Single Table Top Units
GIU 2.5 2500 208v & 240v, 60 cycle, 1ph
GIU 2.5 2500 230v 50 cycle, 1ph
GIU 3.5 3500 208v & 240v, 60 cycle, 1ph
GIU 3.5 3500 230v, 50 cycle, 3ph
GIU 5.0 5000 208v, 60 cycle, 3ph
GIU 5.0 5000 440v, 60 cycle, 3ph
GIU 5.0 5000 400v, 50 cycle, 3ph
B) Double Table Top Units
GIU 3.5 DUAL 3500 x 2 208v, 60 cycle, 3ph
GIU 3.5 DUAL 3500 x 2 230v 50 cycle, 3ph
GIU 5.0 DUAL 5000 x 2 208v, 3ph
GIU 5.0 DUAL 5000 x 2 400v, 50 cycle, 3ph
GIU 5.0 DUAL 5000 x 2 440v, 60 cycle, 3ph
C) Table Top Wok Units
GIWOK 3.5 3500 208v &240v, 60 cycle, 1ph
GIWOK 3.5 3500 230v, 50 cycle, 1ph
GIWOK 5.0 5000 208v, 60 cycle, 3ph
GIWOK 5.0 5000 400v, 50 cycle, 3ph
GIWOK 5.0 5000 440v, 60 cycle, 3ph
Operating conditions
•Max. tolerance of the nominal supply voltage +6/ -10%
•Supply frequency 50/ 60 Hz
•Protection class P 43
•Minimal diameter of the pan 12 cm (5 inches)
3. Installation
3.1 Requirements of installation
The cooker has to be set up on a even place like a table. It requires an area of at least 400 x
480 mm (15.7" X 18.9"). The air inlet and air outlet must not be obstructed, the area must be
able to withstand a loading of 40 kg (88 lbs). The cooker doesn’t have to be fixed on the table.
The control knob to operate the cooker must be easily accessible.
Installation ambience
Max. ambient temperature storage > -20° - +70° C
Function > +5° - +40°C
Max. relative humidity of air storage > 10% - 90%
Function > 30% - 90%

3.2 Rules of Operation
Please observe the following rules:
•Check and ensure that the supply voltage matches the voltage given on the specification plate
•The electrical connections must satisfy local house installation regulations. The valid, national
and local electrical regulations must be observed.
•The cooker is provided with a cord and plug (60 cycle units only).
•This induction unit is equipped with an air cooling system. Make sure that the air supply and
exhaust are not blocked (wall, fabric etc.)
•Make sure that the induction unit does not take in hot ambient air (concerns units standing side
by side, or one behind the other, or standing near a frying pan or an oven)
•The induction unit must not be placed near or on a hot surface
•Make sure that the induction unit does not take in grease laden air which is produced by other
applications (deep fryer, grill, frying pan). In that case you must use an air duct (available as an
accessory)
•The air intake temperature must be under 40°C
•The operating staff has to make sure that installation, support and inspection is done by
qualified personnel.

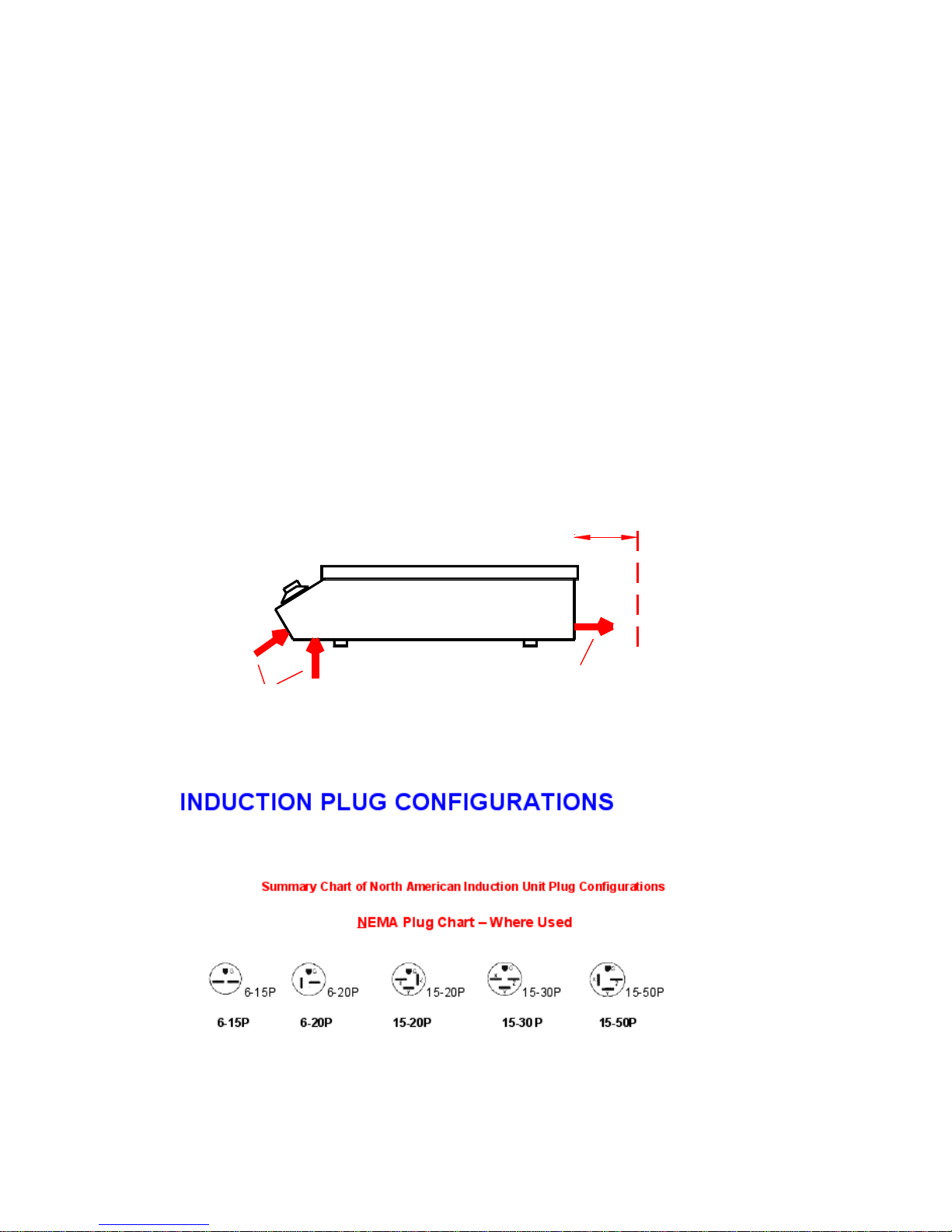

Induction cooker
d
d: minimal distance to the wall = 4 cm
air inlet
side view
air outlet
d
4cm (1.5")
GIU 2.5 GIU 3.5 GIU 5.0 GIU 3.5 DUAL GUI 5.0 DUAL
GI WOK 3.5 GI WOK 5.0

4Initial operation
4.1 Assembly / Installation
Check and ensure, that the supply voltage matches the voltage given on the specification plate.
The cooker must always be set up on a clean and even surface (table, base, etc.). The cooker
stands on non-slip rubber pads and is not permanently installed. It must be set up in such a way
that it cannot fall down or move in a uneven position.
Turn the control knob to the OFF-position before connecting the cooker to the voltage supply.
The operator has to insure that all installation, maintenance and inspection work is carried out
by authorized and qualified personnel.

5.
Operation test
Before carrying out function checks, the operator must know how to operate the cooker.
Induction Cooker
top view
INDUCTION WOK COOKER
Ceramic bowl
Operation lamp
Control knob
Your cooker must be positioned in a suitable place and connected with the voltage supply.
Make sure the cooker is well positioned and free from exposure to vibration.
The control knob is in the OFF-position
Remove all objects from the heating area, verify that the heating area is neither cracked or
broken. Don't continue with use when the heating area is cracked or broken, immediately switch
off and disconnect the cooker from the outlet.
CAUTION The heating area is warmed up from the
heat of the pan. To avoid injuries (burning)
do not touch the heating area.
•Use a pan that is suitable for induction cooking, having a bottom-diameter of at least 12cm (5").
Note: For wok units, use supplied wok pan.
•Put some water in the pan and place it in the center of the heating area.
•Turn the control knob ON (in a position between 1 and 10). The indicator will illumiate lights
(green), and the water will be heated.
controlknob
indicatoroperation
coil
heating area

•
Take the pan away from the heating area, the indicator light will flash
•Place the pan back on the heating area, the indicator light will illuminate and the heating
process will continue.
•Turn the control knob to the OFF-position, the heating process will stop, indicator light turns off.
The shining indicator light operation means that energy is being transferred to the pan.
If the indicator operation remains off, check the following:
•Is the cooker connected to the outlet?
•Is the control knob in ON position?
•Do you use a suitable pan ? (bottom diameter at least 12cm (5"), pan made of suitable material)
•Is the pan placed in the center of the heating area?
To verify if the pan is suitable, use a permanent magnet and find out if it sticks to the bottom of
the pan. If not, your pan is not suitable for induction cooking. Choose a pan which is
recommended for induction cooking.
If in spite of all positive controls and tests, the cooker doesn't work, refer to the
Trouble Shooting Section.
This symbol identifies the safety
information which may cause danger
(personal injury) for people at
non - observance of proper operation
6Operation
Modes of operation
Heating
The induction cooker is switched on with the control knob (OFF àON). The cooker is
immediately ready for operation. The illuminated indicator operation lights means that energy is
being transferred to the pan.
The power rating is set by turning the control knob. The inductive power depends on the
position of the potentiometer:
•ñposition 1: minimum power
•ñposition 10: maximum power for GIU 2.5
•ñposition 12: maximum power for all other models
Control knob
the number that points to the indicator operation marks the actual position of the control
knob.
OFF-position:
0 points to the indicator operation
ON-position:
any position, where other than 0 points to the indicator operation

Special Features of Garland Induction
1) Excellent Simmer Control
We have designed these units with excellent simmer control. The 3.5KW and 5.0KW units all
feature an infinite control and we have marked the overlays from 1-12 as the power increases.
(0-11 for GIU2.5) We have designed the units such that the range from 1-9 (1-7 on GIU2.5)
controls the heat from about 5% to 50% of total power, giving a great range of simmer control.
The power jumps dramatically for strong boiling and quick heat after that.
6.1 Cooking process
Due to the following characteristics, the operator must be more attentive when using the
induction cooker than it would be required with other appliances.
The heat storage capacity of this system is very low. If the heating level is changed with the
control knob, the food is immediately exposed to a different temperature. Empty pots and pans
will heat up very quickly and are then ready for cooking. Once this has occurred, carefully adjust
the heating level to the desired cooking level by setting and adjusting the power with the control
knob.
Set and adjust the power with the control knob. The pan should always remain in the center of
the heating area, otherwise, the bottom of the pan is heated unequally and the food inside the
pan may burn.
When heating up oil or grease, constantly check the pan to prevent oil and grease from
overheating and burning.
Comfort
The cooker only transmits energy if a pan is placed on the heating area. If you take the pan
away from the heating area, power transfer stops immediately. If the pan is put back on the
heating area, the selected power will be transferred to the pan again.
After switching the cooker to the off position the cooking will stop.
7. Safety instructions
7.1 Description of danger signs
This symbol identifies the safety
information which may cause danger
(personal injury) for people at
non - observance of proper operation
CAUTION Indicates a hazard or unsafe practice
which could result in minor personal injury
or property damage
Information signs mounted directly on the cooker must be observed at all times and kept in a
fully legible condition.

Example:
CAUTION
Refer to instructions before
operating or servicing the unit.
The staff for assembly, installation, commissioning, operation and maintenance must have the
appropriate qualifications. The field of responsibility, competence and supervision of the staff
must be defined and controlled.
7.2 Risk in the event of non-observance of the safety information
Certain risks may be associated with non-observance of precautions, including:
•danger to persons through electrical causes
•danger to persons through overheated pans
•danger to persons through an overheated cooking platform
7.3 Safety-conscious work
The safety information contained in these instructions for use, the existing national regulation for
the prevention of accidents, as well as any internal working, operating and safety regulation
stipulated by the operator must be observed.
7.4 Safety information for the operator/operating personnel
•The heating area is warmed up from the heat of the pan. To avoid injuries (burning) do not
touch the heating area.
•To avoid overheating of pans by means of evaporating the contents, don't heat up pans
unattended.
•Switch the control knob off if you take the pan away for a while. This will avoid having the
heating process continue automatically when a pan is placed back on the heating area.
•Do not insert any piece of paper, cardboard, cloth, etc. between the pan and the heating
area, as this might initiate a fire.
•As metallic objects are heated up very quickly when placed on the operating heating area, do
not place any other objects (closed cans, aluminum foil, cutlery, jewelry, watches etc.) on the
induction cooker.
•Persons with a pacemaker should consult their doctor before using an induction cooker.
•Do not place credit cards, phone cards, cassette tapes, or other objects that are sensitive to
magnetism on the Ceran plate.
•The induction cooker has an internal air-cooling system. Do not obstruct the air inlet- and air
outlet-slots with objects (cloth). This would cause overheating and therefore the cooker
would switch off.
•Avoid liquid entering into the cooker. Do not let water or food overflow the pan. Do not clean
the cooker with a jet of water.
•If the heating area (Ceran plate) is cracked or broken, the induction cooker must be switched
off and disconnected from the electric connection. Don't touch any parts inside the cooker.

7.5 Unauthorized reconstruction and use of spare parts
Reconstruction of the cooker or changes to the cooker are not allowed. Contact the
manufacturer if you intend to make any changes on the cooker. To guarantee safety, use
genuine Garland replacement parts and accessories. The use of other components voids all
warranties.
7.6 Improper operating methods
The operating reliability of the cookers can only be guaranteed with proper use.
7.7 Pan detection
During pan detection, the indicator light flashes. No power is transferred and the indicator lamp
flashes if no pan or an unsuitable pan is detected. Pans having a diameter smaller than 12 cm
(5") are not detected.
7.8 Control of the heating area
The heating area is controlled with a temperature sensor. Overheated pans (hot oil, empty
pans) can be detected. Energy transfer will be stopped. The induction unit must be re-started
after it has cooled down.
8Out of operation
If the cooker is not in use, make sure that the control knob is in the "OFF" position. If you don’t
use the cooker for a longer period (several days), unplug the unit.
Make sure that no liquid can enter into the cooker, and do not clean the cooker with a jet of
water.
9Trouble Shooting
CAUTION Do not open the cooker, dangerous
electric voltage inside
The cookers may only be opened by authorized service personnel.
Stop any actions if the heating area (Ceran plate) is cracked or broken, the induction cooker
must be switched off and disconnected from the electric supply. Don't touch any parts inside the
cooker.

Error messages
LED 8 LED 7 LED 6 LED 5 CODE SIGNIFICATION
-- -- -- -- -- No fault, normal operation
-- -- -- on 1 No spool current, Hardware
overcurrent
-- -- on -- 2High spool current, Software
overcurrent
-- -- on on 3 Temperature cooling plate
-- on -- -- 4Temperature cooking platform 1)
-- on -- on 5 Power rotary switch line break
-- on on -- 6Inside - temperature
-- on on on 7 Sensing element of cooking platform,
short circuit 2)
on on -- -- 12 Power reduction cooling plate
temperature 3)
on on -- on 13 Power reduction cooking platform
temperature 3)
1) The induction unit can only be re-started by turning the control knob off and back on again.
2) The induction unit continues working but the temperature of the cooking platform is not
controlled anymore
3) The induction unit continues working with reduced power cycles.

Troubleshooting guide
Fault Possible Cause Corrective Action
Not heating
indicator operation is
OFF (dark)
•no electrical supply •check if the electrical supply
(cable plugged in the wall
socket), check preliminary fuses
•control knob in OFF-
position •turn control knob ON
•pan too small (bottom
diameter less than 12
cm)
•use a suitable pan
•pan is not placed in the
center of the heating
area (the cooker can't
detect the pan)
•move the pan to the center of the
heating area
•unsuitable pan •choose a pan which is
recommended for induction
cooking 1)
•cooker defective •ask your supplier for repair
service, unplug the cooker from
the electrical supply
•used pan is not ideal •use a pan which is
recommended for induction
cooking, compare results with
'your' pan
poor heating,
indicator operation is
ON (shines)
•air-cooling system
obstructed •verify, that air inlet and air outlet are not obstructed with objects
•ambient temperature is
too high (the cooling
system is not able to
keep the cooker in
normal operating
conditions 2) )
•Verify, that no hot air is sucked in
by the fan. Reduce the ambient
temperature. The air inlet
temperature must be lower than
40ºC / 110ºF
•one phase is missing
(only with three phase
supply)
•check preliminary fuses

Fault Possible Cause Corrective Action
•cooker defective •ask your supplier for repair
service, unplug the cooker from
the mains supply
no reaction to
control knob
positions
•control defective •ask your supplier for repair
service, unplug the cooker from
the electrical supply
heating cycle
switches off and on
(within minutes, fan is
active)
•air inlet or outlet
obstructed •remove objects from air inlet and air outlet slots, clean the slots
•fan dirty •clean fan
heating cycle
switches off and on
(within minutes, fan is
never active)
•fan defective
•fan control defective
•ask your supplier for repair
service
after a longer
permanent operating
time, the heating
switches off and on
within minutes
•coil overheated, cooking
area too hot
•empty pan
•pan with overheated oil
•switch cooker off, remove pan
and wait until the cooking area
has cooled off.
Small metallic
objects (e.g. spoons)
are heated up within
the cooking area
•pan detection circuit is
tuned incorrectly •control logic board
1) To verify, if the pan is suitable, use a permanent magnet and find out if it sticks on to the
bottom of the pan. If not, your pan is not suitable for induction cooking. Choose a pan which
is recommended for induction cooking. Chose a pan material suitable for induction
appliances.
2) The cooling-system (fan) starts to operate when the ambient temperature in the control area
exceeds 55ºC / 130ºF. At heat temperatures higher than 70ºC / 160ºF, the controller
automatically reduces the power to keep the unit in normal operating conditions. The cooker
runs in a non continuous mode. This mode can be heard.

10 Cleaning
The cleaning of the Ceran plate and the ceramic bowl is identical to that of other similar
surfaces like glass. Do not use corrosive or abrasive cleaning agents, such as grill and oven
sprays, stain and rust removers, scouring powder or rough sponges.
Before being cleaned, the Ceran plate must be cooled down.
Other maintenance and servicing work other than cleaning as described here, must be done by
authorized service personnel.
The following is a list of common types of soil and recommendations how to treat them:
Type of soiling Treatment
Slight soiling, no burned residues Wipe with a moist cloth (scotch), without cleaning
agent
Sticky soiling Remove with a scraper (razor blade). Then wipe the
heating area with a moist cloth
Lime deposits, caused by water
which has boiled over These spots can be removed with vinegar or a special cleaning agent
Food containing sugar, plastic,
aluminum foil Immediately scrape off the sugar, plastic or aluminum foil residues thoroughly from the hot cooking area,
e.g. with a razor blade.
After removal of the residues, clean it with a cleaning
agent.
If the heating area soiled with residues of sugar,
plastic or aluminum foil cools down without prior
cleaning, the ceramic surface might become
deformed by pinhead-sized pits
Make sure that no liquid can enter in the induction unit.

11 Support
A good maintenance of the induction cooker requires its regular cleaning, care and servicing.
The operator has to ensure, that all components relevant to safety are in perfect working order
at all times.
The cooker should be examined at least once a year by an authorized technician.
CAUTION Do not open the cooker, dangerous
electric voltage inside
The cookers may only be opened by authorized service personnel.
