Garlando Everfit TFK 950 User manual

Ed : Rev : Cod :
INSTRUCTION
11/19 GRLDEVETFK95000
APP READY 2.0

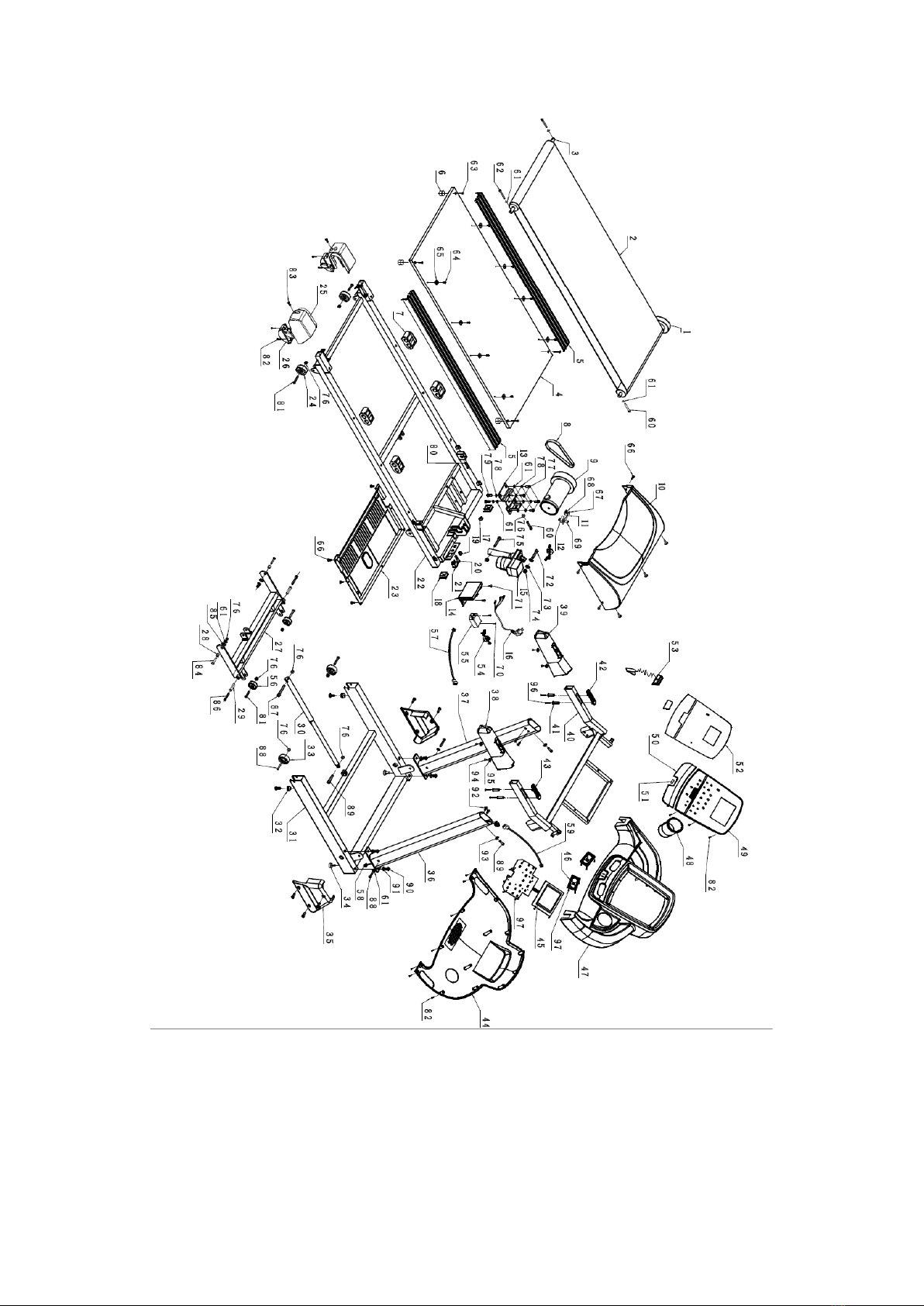

EXPLODED DRAWING

PARTS LIST
PART NO
PART NAME
Q'TY
1
FRONT ROLLER
1
2
RUNNING BELT
1
3
REAR ROLLER
1
4
RUNNING DECK
1
5
SIDE RAIL
2
6
DECK FRAME CUSHION
4
7
GEL CUSHION
4
8
MOTOR BELT
1
9
MOTOR
1
10
MOTOR COVER
1
11
SPEED SENSOR FRAME
1
12
SPEED SENSOR
1
13
MOTOR FIXED FRAME
1
14
MOTOR CONTROL BOARD
1
15
INCLINE MOTOR
1
16
POWER WIRE
1
17
CAP OF MOTOR ADJUST BOLT
1
18
DECK FRAME FRONT CAP
2
19
POWER WIRE CUSHION
1
20
FUSE
1
21
POWER KEY
1
22
DECK FRAME
1
23
MOTOR BELLY PAN
1
24
SUPPORT WHEEL
2
25
END CAP
2
26
COVER FOR DECK FRAME SUPPORT WHEEL
2
27
INCLINE FRAME
1
28
SHAFT SLEEVE OF INCLINE FRAME
2
29
SHAFT SLEEVE OF DECK FRAME
2
30
DAMPER
1
31
BASE FRAME
1
32
BASE FRAME RUBBER CUSHION
4
33
BASE FRAME MOVE WHEEL
2
34
LEVE FRAME
2
35
UPRIGHT COVER
2
36
RIGHT UPRIGHT
1
37
LEFT UPRIGHT
1
38
RIGHT HANDLE FOAM
1
39
LEFT HANDLE FOAM
1
40
COMPUTER SUPPORT FRAME
1
41
SHAFT OF HAND BUTTON
4
42
INCLINE SHORTCUT KEY
1

43
SPEED SHORTCUT KEY
1
44
COMPUTER BACK COVER
1
45
COMPUTER BOARD
1
46
SPEAKER
2
47
COMPUTER FRONT COVER
1
48
WATER CAP
1
49
COMPUTER PLASTIC BOARD
1
50
SPEAKER COVER
1
51
SAFETY KEY SENSOR
1
52
OVERLAY
1
53
SAFETY KEY
1
54
magnet ring
2
55
FILTER
1
56
MOVE WHEEL
2
57
CONNECTION WIRE 1
1
58
CONNECTION WIRE 2
1
59
CONNECTION WIRE 3
1
60
M8*50ALLEN HEAD BOLT
2
61
φ8 WASHER
13
62
M8*85ALLEN HEAD BOLT
2
63
M8*65ALLEN HEAD BOLT
4
64
ST4.2*15 SCREW
8
65
SIDE RAIL GUIDE
8
66
ST4.8*16 SCREW
18
67
M4*6 BOLT
2
68
φ4 SPRING WASHER
2
69
ST2.9*6 SCREW
2
70
ST4.2*10 SCREW
2
71
ST4.2*15 SCREW
2
72
M10*50 ALLEN HEAD BOLT
1
73
φ13 PLASTIC WASHER
2
74
M10 NYLON NUT
2
75
M10*60 ALLEN HEAD BOLT
1
76
M8 NYLON NUT
11
77
M8*20 ALLEN HEAD BOLT
4
78
φ8 SPRING WASHER
6
79
M8*12 ALLEN HEAD BOLT
2
80
M8*30 ALLEN HEAD BOLT
1
81
M8*40 ALLEN HEAD BOLT
4
82
ST4.2*15 SCREW
25
83
ST4.2*20 SCREW
2
84
M8*30 ALLEN HEAD BOLT
2
85
φ16 PLASTIC WASHER
2
86
M8*60 ALLEN HEAD BOLT
2
87
M8*45ALLEN HEAD BOLT
1

HARDWARE COMPARISON CHART
For your convenience, we have identified the hardware used in the assembly of this product. The chart below is
provided to help you to identify items that may be unfamiliar to you.
NO.
DESCRIPTION
Q'TY
61
φ8 WASHER
2
82
ST4.2*15 SCREW
6
88
M8*50ALLEN HEAD BOLT
2
89
M8*35ALLEN HEAD BOLT
2
90
M10*20ALLEN HEAD BOLT
4
91
φ10 WASHER
4
92
M8*15 ALLEN HEAD BOLT
4
93
φ8 ARC WASHER
2
A
5mm SOCKET HEAD WRENCH
1
B
6mm SOCKET HEAD WRENCH
1
C
SCREWDRIVER
1
D
LUBRICANT
1
88
M8*50ALLEN HEAD BOLT
4
89
M8*35ALLEN HEAD BOLT
3
90
M10*20ALLEN HEAD BOLT
4
91
φ10 WASHER
4
92
M8*15 ALLEN HEAD BOLT
4
93
φ8 ARC WASHER
2
94
ST4.2*25 SCREW
4
95
φ6 WASHER
4
96
ST4.2*30 SCREW
4
97
ST2.9*8 SCREW
24

ASSEMBLY INSTRUCTIONS
WARNING: Please put on all the screws, washers and bolts then tighten them.

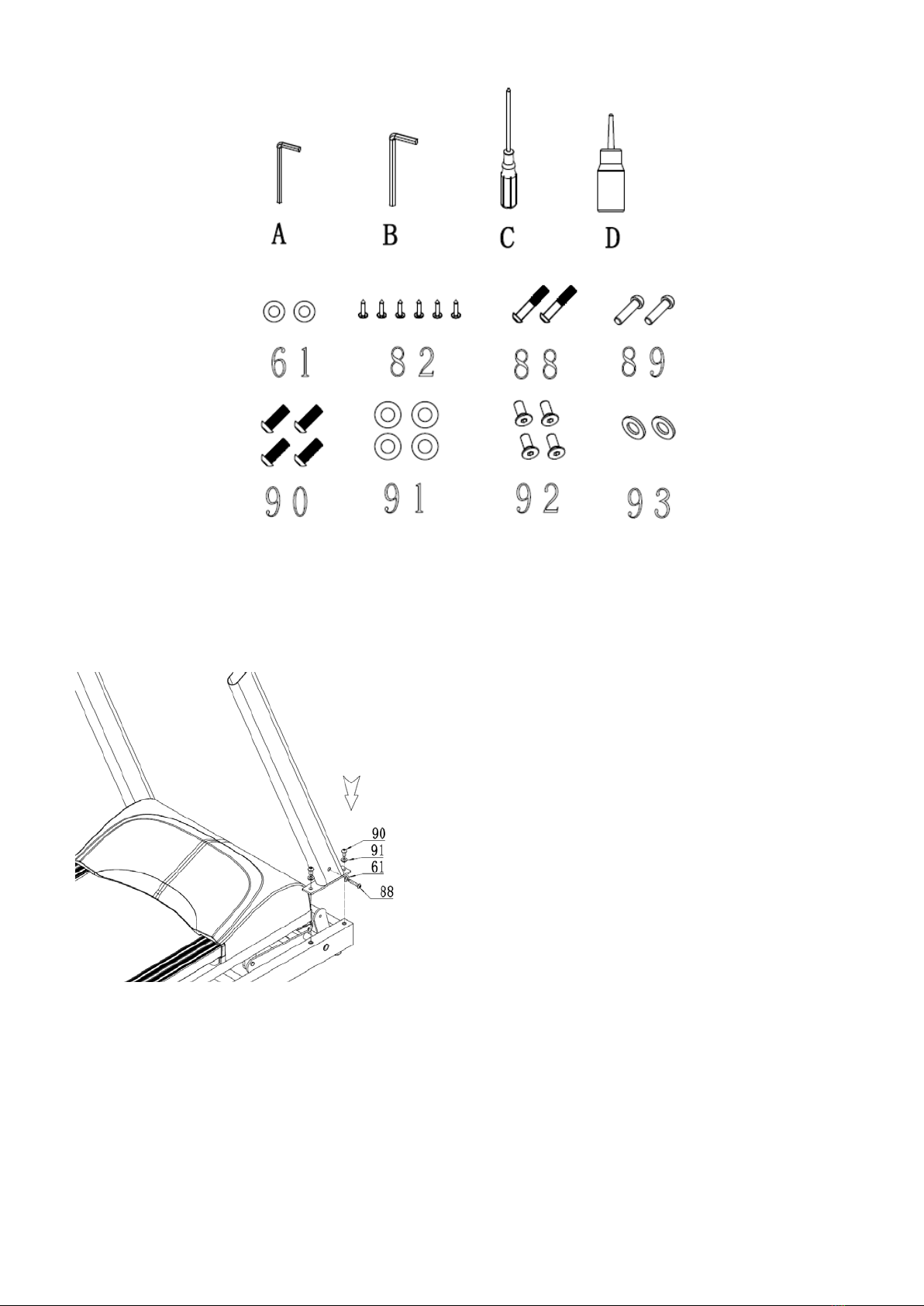

STEP1:
First make to connect the
communication cable.
Then fix the uprights on the base
frame with M10*20ALLEN HEAD
BOLT 90、φ10 WASHER 91、φ8
WASHER 61and M8*50ALLEN
HEAD BOLT 88..

STEP2:
First make to connect the
communication cable.
Fix the computer on the uprights with
M8*35ALLEN HEAD BOLT 89 、
M8*15 ALLEN HEAD BOLT 92
andφ8 ARC WASHER 93.
STEP3:
Fix the Upright protective cover on
the upright with ST4.2*15
SCREW82.

Folding illustration:
Folding illustration:
To drop down treadmill:
1. Strike the damper.
2. Hold on to the top end covers and
pull down the treadmill slowly on the
ground.
To fold up treadmill:
Both hands hold on the bottom end
covers and lift up the treadmill.

COMPUTER OPERATION

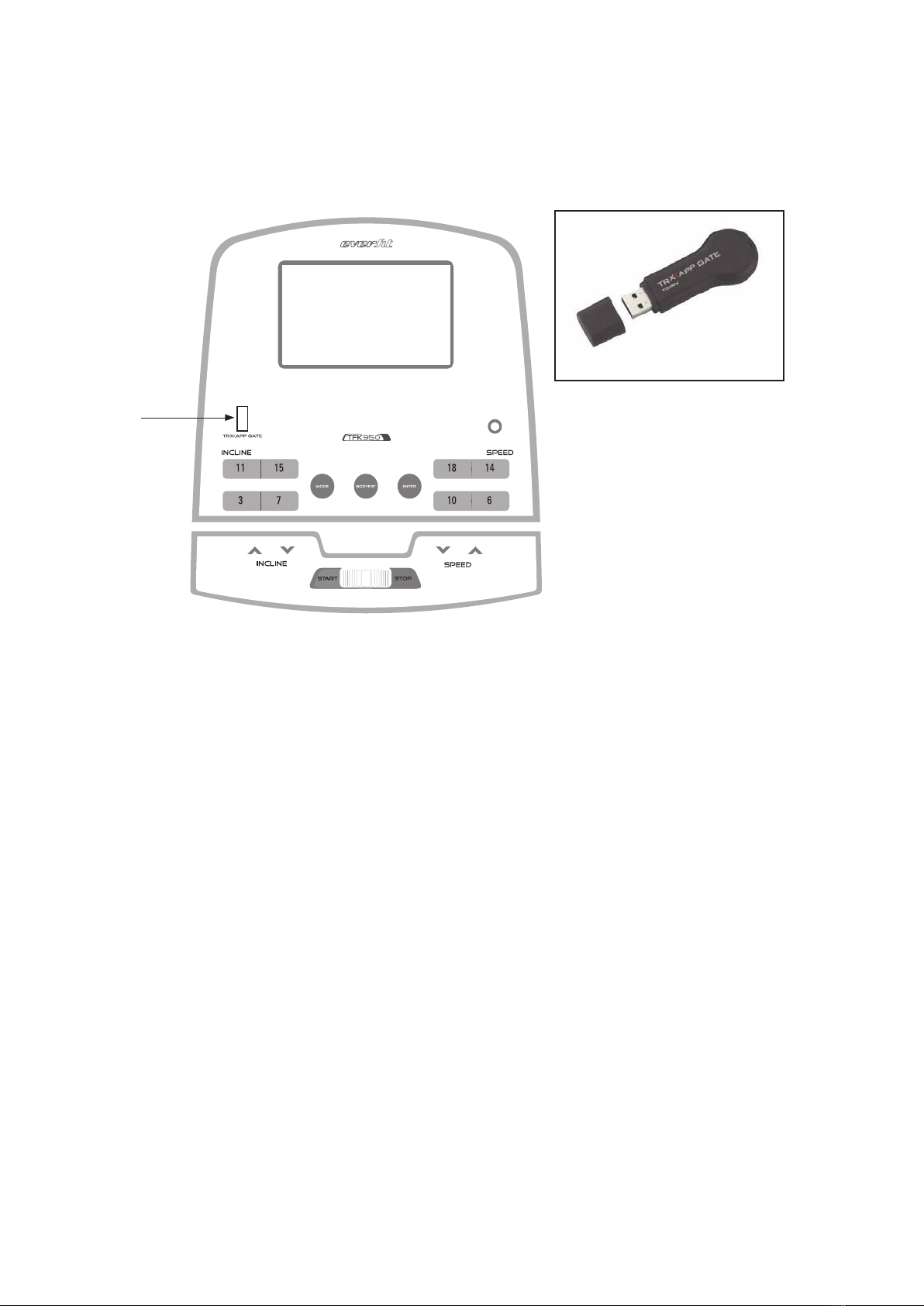

Panel layout
The Operation
OPERATION INSTRUCTION
KEY INSTRUCTION：
➢START: Press this key to start treadmill.
➢STOP: Press this key to stop treadmill.
➢BODYFAT: open or close body fat.
➢MODE: Press this key to choose the manual, countdown of time or the countdown of distance
TRX APP GATE
TRX APP GATE
OPTIONAL

or the countdown of calories or P1-P2…..-P24…U1-U5-HP1-HP2 cycle selection.
➢SPEED+: Press this key to increase speed or time or distance or calorie value.
➢SPEED-: Press this key to decrease speed or time or distance or calorie value.
➢ENTER: Press this key to confirm the choosing item.
➢INCLINE+: Press this key to increase incline value.
➢INCLINE-: Press this key to decrease incline value.
SAFETY KEY INSTRUCTION
➢When the motor is running, take off the safety key, the motor stop and the console prohibit start.
HEART RATE INSTRUCTION
➢In the case of a powered treadmill, his hands holding the steel disc of left &right handrail, in
order to obtain more accurate heartbeat value, standing on the treadmill and when the treadmill
stop to measurement, and holding time is not less than 30 seconds. Display range: 50-200
beats / min.
➢This data is for reference only, not as medical data
THE DISPLAY RANGE
Initial value
Set Initial value
Setting value
Display range
TIME(mm:ss)
0:00
30:00
5:00-99:00
0:00~99:59
SPEED (km/h)
0.0
N/A
N/A
1.0－22.0
INCLINE
0
N/A
N/A
0-15
DISTANCE (kml)
0.0
3.0
0.5－99.9
0.0－99.9
CALORIES (calories)
0
100
5－999
0－999
BODYFAT
Press BODY FAT key to enter FAT, press ENTER to select the adjustment F1 gender, F2 age,
F3 height, F4 weight and F5 display results. Adjust the gender, age, height and weight, you can
press the speed or lift the addition and subtraction keys, adjust the finished into the F5, then please
put the second hand on the hand of the test heartbeat test chip, 8 seconds the window will show
the test The body fat value.
Enter the parameter display and setting range
Parameter
Category
Default
Value
Setting Range
Remarks
Surname（-1-）
1（MAN）
1—2
1 = male 2 = female
Age（-2-）
25 years old
10—99 years old
Height（-3-）
170 CM
100—220 CM
Weight（-4-）
70KG
20—150KG
To Asian standards, fat test results: FAT ≤ 19 - thin under weight
19 <FAT ≤25 - normal Normal weight
25 <FAT ≤29 - Overweight Over weight
Fat ≥ 30 - Obesity
Attachment table: Each program segment is divided into 10 segments, and the running time of each
program segment is evenly distributed. The following is a 24-motion chart。
SECTION
PROGRAM
1
2
3
4
5
6
7
8
9
10
P1
SPEED
1
2
2
3
3
3
3
2
2
1
INCLINE
0
0
1
1
2
2
1
1
0
0

P2
SPEED
1
2
2
3
4
4
3
2
2
1
INCLINE
0
0
2
3
4
4
3
2
0
0
P3
SPEED
1
2
2
3
4
4
3
2
2
1
INCLINE
0
0
3
7
4
4
7
3
0
0
P4
SPEED
1
2
2
3
3
3
3
2
2
1
INCLINE
0
0
3
7
4
4
7
2
0
0
P5
SPEED
1
2
2
3
4
4
3
2
2
1
INCLINE
0
0
2
4
6
8
4
2
0
0
P6
SPEED
1
2
2
4
4
6
4
2
2
1
INCLINE
0
0
3
4
5
7
7
3
0
0
P7
SPEED
2
3
4
6
6
9
6
4
4
2
INCLINE
0
0
2
4
4
6
4
2
0
0
P8
SPEED
1
2
2
4
4
9
9
9
8
4
INCLINE
0
0
2
4
8
9
9
2
0
0
P9
SPEED
2
3
3
6
6
9
6
3
3
2
INCLINE
0
0
9
9
8
4
3
3
0
0
P10
SPEED
1
2
2
4
4
4
4
6
4
3
INCLINE
0
0
2
2
4
9
9
9
0
0
P11
SPEED
2
4
4
6
6
6
6
9
4
1
INCLINE
0
0
9
9
9
3
4
3
0
0
P12
SPEED
1
3
3
6
9
6
9
9
6
4
INCLINE
0
0
9
9
9
9
9
8
0
0
P13
SPEED
4
9
4
9
4
9
4
9
4
9
INCLINE
0
0
4
8
9
8
9
9
0
0
P14
SPEED
2
3
3
6
9
6
9
9
6
3
INCLINE
0
0
4
8
9
8
9
9
0
0
P15
SPEED
4
6
9
9
9
9
9
6
4
2
INCLINE
0
0
2
3
4
4
3
2
0
0
P16
SPEED
2
4
4
9
4
9
4
9
4
9
INCLINE
0
0
2
4
5
4
5
6
0
0
P17
SPEED
2
2
2
4
6
9
6
2
2
2
INCLINE
0
0
2
4
6
6
4
2
0
0
P18
SPEED
3
6
3
6
6
6
6
2
2
2
INCLINE
0
0
2
6
8
6
8
2
0
0
P19
SPEED
4
9
4
9
4
9
4
9
4
9
INCLINE
0
0
9
8
6
8
6
4
0
0
P20
SPEED
4
9
4
9
4
9
4
9
4
9
INCLINE
0
0
9
8
2
8
2
2
0
0
P21
SPEED
2
6
2
6
9
6
9
2
6
2
INCLINE
0
0
9
8
2
8
2
2
0
0
P22
SPEED
4
6
9
6
2
6
2
2
4
2
INCLINE
0
0
2
4
9
8
9
2
0
0
P23
SPEED
4
6
9
6
6
6
6
2
2
2
INCLINE
0
0
2
3
4
9
9
2
0
0
P24
SPEED
4
6
9
6
4
6
4
2
4
2

INCLINE
0
0
4
4
5
9
9
2
0
0
HRC MODE
1, definition, heart rate control speed mode is the use of athletes heart rate, and by setting the heart
rate (target heart rate: THR), automatically adjust the speed of the function.
2, HRC set the method, order, parameter range, press the MODE key to display HP1 or HP2, press
ENTER to confirm and enter the next set of settings, press the speed or lift plus or minus key to
adjust the last parameter to start:
A: Age setting range: 15-80 years old, default 25 years old
B: default target heart rate (THR): (220-year-old) * 0.65 -HP1, (220-year-old) * 0.85 -HP2
C: target heart rate can be modified, modify the range: 80-180
D: set the time, the default 30 minutes, modify the range: 5-99 minutes
3, the speed of the relationship
A: change frequency, HRC every 30 seconds to detect heart rate (heart rate has been shown).
B: the user's heart rate is lower than the target heart rate 30 times / min, the speed increased by 2.0
km / h.
C: the user's heart rate is lower than the target heart rate 6-29 times / min, the speed increased by
1.0 km / h.
D: the user's heart rate is higher than the target heart rate 30 times / minute, the speed reduced by
2.0 km / h.
E: the user's heart rate is higher than the target heart rate 6-29 times / min, the speed reduced by
1.0 km / h.
G: the user's heart rate is higher or lower than the target heart rate 0-5 beats / min, the speed
remains the same.
4, the following circumstances, the slowdown to the lowest speed to run after 15 seconds after the
shutdown, and ring about every second.
A: once every 30 seconds to detect heart rate, two consecutive heart rate can not be detected.
B: speed 1 km / h, exercise heart rate is greater than the target heart rate led to slow down.
C: heart rate over (220 - years).
5,1 km / h speed, deceleration can not be less than 1 km / h, such as: treadmill minimum speed of 1
km / h, when running at 1.6 km / h, heart rate caused by deceleration 1.0 (2.0) km / h , Then slow
down to 1 km / h.
6, slope from heart rate control, can be manually adjusted.
Start speed of 1 km per hour, 1 minute before running without using heart rate control.
USER MODE
1, User-defined for the user can set their own speed of each program.
2, set the method, press MODE, display U-1 or U-2 or U-3 or U-4 or U-5, press the ENTER key to
enter the set state, speed and lift keys or speed up shortcut keys Change the program data, press
the ENTER key to confirm and enter the next section of the program, until the last paragraph to
confirm (set) will exit the set state, power will not lose the modified data.
TURN OFF TREADMILL
➢At any time by turning off the power switch to turn off the treadmill, this does not damage the
treadmill.

GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
www.evert.it - info@evert.it
