Gasmate GM142-110 User manual

Helm Gas Fire Table
Model No. GM142-110
Retain these instructions for future use.
Important: The installer or seller must leave these instructions with the consumer.
5020-08/18
DANGER
If you smell gas:
1. Shut off the gas to
the appliance.
2. Extinguish any open
ame.
3. If odour continues,
keep away from
the appliance and
immediately call
your gas supplier or
re department.
WARNING:
Do not store or use gasoline, or other
ammable vapors and liquids, in the
vicinity of this or any other appliance.
An LPG Cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the installation, operating, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
CARBON MONOXIDE HAZARD
This appliance can
produce carbon
monoxide which has
no odor.
Using it in an
enclosed space can
kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
WARNING:
For Outdoor Use Only
CARBON MONOXIDE HAZARD
This appliance can
produce carbon
monoxide which has
no odour.
Using it in an enclosed
space, eg. boat,
caravan, tent, car,
campervan or house,
may cause death.
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odour.
Using it in an enclosed
space, eg. boat, caravan,
tent, car, campervan or
house, may cause death.
CARBON MONOXIDE HAZARD
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odour.
Using it in an enclosed space, eg. boat, caravan,
tent, car, campervan or house, may cause death.
This appliance can produce carbon
monoxide which has no odour.
Using it in an enclosed space, eg. boat,
caravan, tent, car, campervan or
house, may cause death.

2 3
INSTALLATION
Important Safety Rules:
This appliance must only be used in a well ventilated
area.
1. This appliance shall not be installed or used indoors,
in buildings, garages or any other enclosed area.
2. ALWAYS place the appliance on a rm and level
surface.
3. DO NOT place articles on or against this appliance.
4. DO NOT use or store ammable materials near this
appliance.
5. DO NOT use in windy conditions.
6. DO NOT burn solid fuels in the appliance.
7. This is a decorative appliance only and any kind of
cooking is strictly forbidden.
8. Children and adults should be alerted to the hazards
of high surface temperatures, burns and clothing
ignition.
9. Children should be carefully supervised when they
are in the area of the appliance.
10.NEVER hang anything including clothes or other
ammable items on the appliance.
11.DO NOT use this appliance if any part has been
under water. Immediately call a qualied service
technician to inspect the appliance and to replace
any part of the control system and any gas control
that has been under water.
12.DO NOT operate this appliance unless it is fully
assembled.
13.DO NOT SPRAY AEROSOLS IN THE VICINITY OF
THIS APPLIANCE WHILE IT IS IN OPERATION.
14.Before use: Remove any debris from within the
grate area.
15.Installation and repair should be done by a qualied
service person. The appliance must be inspected
before use and at least annually by a qualied
service person. More frequent cleaning may be
required as necessary. It is imperative that control
compartment, burners and circulating air passages
of the appliance and light be kept clean.
Prior to assembling your appliance, the following must be
reviewed. Compliance with the following should result in
satisfactory appliance operation. This instruction manual
should be retained for future reference. The installation
must conform with local codes or authority having
jurisdiction.
1. The appliance is intended for residential and
nonresidential outdoor spaces. The installation
must conform with New Zealand Standard 5601
“Gas Installations”.
2. Adequate clearance around air openings into the
combustion chamber, clearances from combustible
materials, provisions for accessibility and for
combustion and ventilating air supply must be
maintained at all times when the appliance is operating.
Installation, Operation and Maintenance Instructions
3. Proper clearance from combustible materials must be
maintained at all times. The minimum clearances are
as follows:
Minimum Clearance from Combustibles:
Sides 1220 mm Rear 1220 mm
DO NOT locate this appliance under any overhead
enclosure. Avoid using near or under overhanging trees
and shrubs. Combustible materials should never be within
3m of the top of the appliance.
Combustible materials are considered to be wood,
compressed paper, plant bres, plastic, plexiglas or
other materials capable of being ignited and burned.
Such materials shall be considered combustible even
though ame proofed, re-retardant treated or plastered.
Additional clearance may be required for glass, painted
surfaces and other materials which may be damaged by
radiant or convection heat.
4. The appliance must be placed on a non-combustible
level and adequate footing and be readily accessible.
5. The gas manifold supply pressure must be regulated
at 2.75 kPa utilising an approved regulator
(supplied with appliance).
6. The appliance must be inspected before each use, and
at least annually by a qualied service person.
a. The appliance area must be kept clear and free of
combustible materials, gasoline and other
ammable vapours and liquids.
b. Gas orices and burner must be kept clear of dirt
and cobwebs. Flow of combustion and ventilation
air through the perforated portions of the appliance
must not be obstructed. Cleaning with a soft
brush before use and at least every six months is
recommended.
c. All gas connections should be checked for leaks
utilising a soap solution. Never use a ame for this
purpose.
d. The ame pattern at the emitter grid should be
visually checked whenever the appliance is
operated. If black soot is accumulating on the
lava rocks, the appliance should be turned off
immediately. The appliance should not be operated
again until the unit is serviced and or repaired.
e. Any cleaning agent used on the appliance should be
of a non-combustible and non-corrosive nature.
Warm soapy water is ideal. While washing the
appliance, be sure to keep the area around the
burner and pilot assembly dry at all times. If the
gas control is exposed to water in any way, do NOT
try to use it. The appliance should be regularly
cleaned and protected to reduce oxidation, ideally a
cover should be used when not in use.

2 3
Screw the coupling nut of regulator into the cylinder valve outlet.
Q.C.C. CYLINDER CONNECTION DEVICE
Type of Gas I3/P28-30/ULPG
Consumption 52.8 Mj/h
Operating Pressure 2.75 kPa
Injector Size 2.06mm
Appliance specications can be found on the data label.
7. The hose assembly should be properly located out of
pathways where people may trip over it. The hose
must be protected from contact with hot or sharp
surfaces both during use and while in storage. The
hose assembly should be visually inspected prior to
each use of the appliance. If excessive abrasion or
wear is evident, or the hose is cut, it must be
replaced prior to operating the appliance. The
replacement hose assembly may be obtained from
the distributor.
8. DO NOT use any pressure regulator or hose
assembly other than those supplied with the
appliance. Replacement pressure regulator and hose
assembly must be those specied. Replacement parts
may be obtained from the distributor.
9. Installation and use of this appliance must conform
with New Zealand Standard 5601 “Gas Installations”.
10. This appliance is designed to operate with a standard
9Kg LPG cylinder to DOT 4BA-240 with Approved
Cylinder Connection.
11. The valve outlet must be maintained in good
condition. When the cylinder is not in use, be sure to
cover it with a dust cap. A leak test should be
performed with soapy water whenever connecting
a new cylinder. NEVER use a ame to test for leaks.
12. The LPG cylinder must be turned off whenever the
appliance is not in use. When the appliance is to be
stored indoors, the LPG cylinder and the appliance
must be disconnected and the cylinder stored in
accordance with LPG Dangerous Goods Regulations.
13. Store the appliance upright in an area sheltered away
from weather conditions. The use of a cover is
recommended.
14. The appliance has been designed with several safety
features which include a tip over switch and a ame
safeguard system which means if the pilot goes out
the unit will automatically turn off.
REGULATOR SAFETY FEATURE
All QCC regulators (the part that attaches to the gas
cylinder to regulate the ow of gas) have a safety feature
included that restricts gas ow in the event of a gas leak.
You can inadvertently activate this safety feature without
having a gas leak. This typically occurs when you turn
on the gas using the appliance control knob before you
turn on the gas cylinder valve. If the gas regulator safety
feature activates, the appliance will operate with reduced
output as gas ow is restricted.
These steps should be taken rst to reset the gas
regulator safety device:
1. Turn gas cylinder valve off.
2. Turn appliance off.
3. Disconnect the regulator from the gas cylinder.
4. Wait 30 seconds.
5. Reconnect the regulator to the gas cylinder.
6. Leak test the connection using a soapy water solution.
Ensure no bubbles appear before proceeding.
7. Slowly open the gas cylinder valve all the way. Do not
put excessive force on the valve at the full open
position, to avoid damaging the valve.
8. Light the appliance as per the instructions provided.
Any modication to the appliance not described in the
installation instructions may compromise the safety of
this appliance. Special concern is as follows:
(1) DO NOT bypass thermocouple safety burner;
(2) DO NOT operate appliance without the grate
in place;
Clothing or other ammable materials should not be hung
from the appliance, or placed on or near the appliance.
The area above the burner may be extremely hot.
Direct contact with these metal surfaces should be
avoided in order to prevent burns or clothing ignition.
Q.C.C. CYLINDER CONNECTION DEVICE

4 5
GENERAL ASSEMBLY

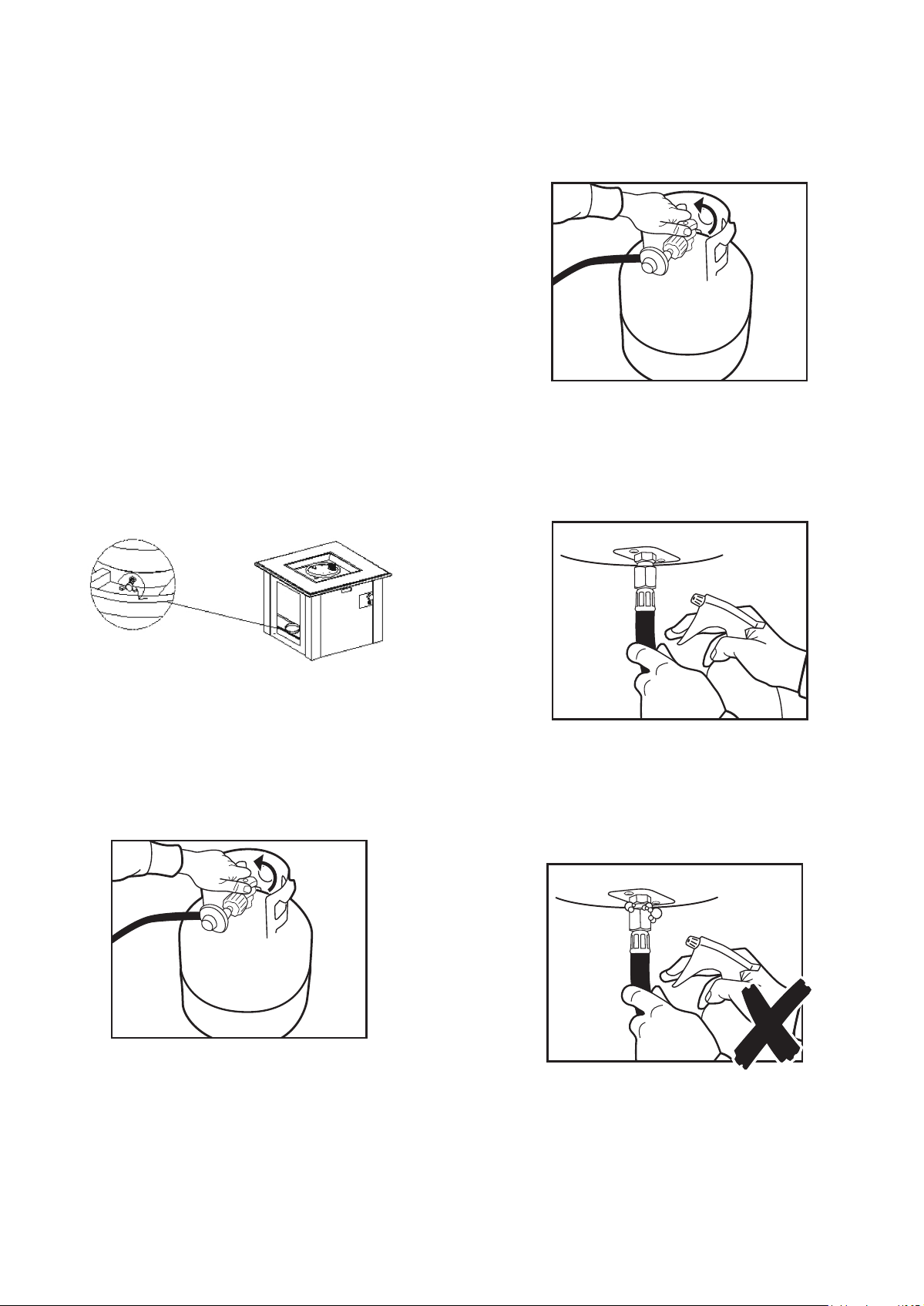

Connecting & Disconnecting to Gas Source
IMPORTANT: Before connecting and
disconnecting appliance to gas source, make
sure control knob is in ‘OFF’ position.
CAUTION: When the appliance is not in use,
the gas must be turned off at the cylinder.
Familiarise yourself with the general information and
safety guidelines located at the front of this manual.
Check:
1. The cylinder is lled. A sloshing sound will be heard
when shaken.
2. The control knob is in the ‘OFF’ position.
Connecting
1. Ensure cylinder valve is in its full off position.
2. Check for any damage to either the cylinder
connection or the hose. NEVER attempt to use
damaged equipment.
PARTS LIST
3. When connecting the hose to the cylinder tighten the
nut to a positive stop by hand.
4. Open cylinder valve fully. If a leak can be heard at
either end of the hose, turn cylinder off and tighten
joint. Wait 5 minutes before re-testing and use
a soapy water solution to check the joint. If bubbles
appear the connection will need to be re-tightened.
Refer to page 7 for more detailed instructions on
connecting the appliance to the cylinder.
Disconnecting
1. Ensure the burner control is in the ‘OFF’ position.
2. Ensure cylinder valve is in the full off position.
For storage and cylinder exchange, disconnect hose
at the cylinder only, DO NOT disconnect hose from
appliance.
ABC D E
Lava Rocks Body
1PC
Door
1PC
Cover
1PC
Battery (AAA)
1PC
E
A
B
C
D

4 5
EXPLODED DIAGRAM
No. Part Name Qty
1 Screen 1
2 Thermocouple 1
3 Ignition pin/wire 1
4 Grounding wire 1
5Fire pan 1
6Fire table body 1
7 Door 1
8 Battery 1
9 Wing screw 1
10 Control panel 1
11 Ignitor 1
12 Control Knob 1
13 Hose and regulator 1
14 Safety valve 1
15 Metal hose 1
16 Nozzle 1
17 Burner ring 1
1
2
3
4
5
6
7
8 9
10
11
12
17
14
15
16
13
A. Glass Panel
4PCS
B. Bracket
4PCS
C. Screw
8PCS
D. L shaped silicon
pad 65 x 65mm
4PCS
E. Square silicon pad
20 x 20mm
8PCS
GLASS SURROUND PARTS LIST

6 7
ASSEMBLY INSTRUCTIONS
Your re table must be installed on at, stable surface,
away from any combustible materials or construction.
Make sure the appliance control knob is turned “off”
before assembling.
Note: Remove any transit protection material.
Tools required:
•Philips head screwdriver (or cordless drill and bits).
• Flat head screwdriver.
• Adjustable spanner.
Step 1
Inside of the LPG compartment the gas hose and
regulator assembly are already connected to the gas inlet
of the appliance.
Place LPG cylinder in the LPG compartment.
Make sure the LPG cylinder base sits inside the metal
stand easily and completely.
Turn the wing screw on the outer part of the metal stand
clockwise to secure the LPG cylinder tightly.
Step 2
Ensure cylinder valve is in its full off position. Check for
any damage to either the cylinder connection or the hose.
NEVER attempt to use damaged equipment. Attach the
regulator and hose to your gas cylinder. Tighten the nut to
a positive stop by hand.
Step 3
Turn on the gas cylinder ensuring that the control knob
on the outdoor heater is turned OFF at this point.
DO NOT ATTEMPT TO LIGHT THE HEATER!!.
Step 4
Use a solution of soapy water (dishwashing liquid and water
is ne). Brush it on or use a spray bottle as shown in the
drawing. Ensure the connections have a good coating.
Step 5a
If the connection is leaking, bubbles will start to grow in
the soapy solution. If this happens shut off the gas supply
at the cylinder.
STEP 11
Ensure cylinder valve is in its full off position. Check
for any damage to either the cylinder connection or
the hose. NEVER attempt to use damaged equipment.
Attach the regulator and hose to your gas cylinder.
Tighten the nut to a positive stop by hand.
STEP 12
Turn on the gas cylinder ensuring that the control knob
on the outdoor heater is turned OFF atthis point.
DO NOT ATTEMPT TO LIGHT THE HEATER!!.
STEP 13
Use a solution of soapy water (dishwashing liquid and
water is fine). Brush it on or use a spray bottle as
shown in the drawing. Ensure the connections have a
good coating.
STEP 14a
If the connection is leaking, bubbles will start to grow
in the soapy solution. If this happens shut off the gas
supply atthe cylinder.
STEP 14b
Tighten the connections using a crescent then repeat
steps 12-13.
STEP 14c
The connection is gas tight when no bubbles grow
around the gas connection.
ASSEMBLY INSTRUCTIONS
STEP 11
Ensure cylinder valve is in its full off position. Check
for any damage to either the cylinder connection or
the hose. NEVER attempt to use damaged equipment.
Attach the regulator and hose to your gas cylinder.
Tighten the nut to a positive stop by hand.
STEP 12
Turn on the gas cylinder ensuring that the control knob
on the outdoor heater is turned OFF atthis point.
DO NOT ATTEMPT TO LIGHT THE HEATER!!.
STEP 13
Use a solution of soapy water (dishwashing liquid and
water is fine). Brush it on or use a spray bottle as
shown in the drawing. Ensure the connections have a
good coating.
STEP 14a
If the connection is leaking, bubbles will start to grow
in the soapy solution. If this happens shut off the gas
supply atthe cylinder.
STEP 14b
Tighten the connections using a crescent then repeat
steps 12-13.
STEP 14c
The connection is gas tight when no bubbles grow
around the gas connection.
ASSEMBLY INSTRUCTIONS
STEP 11
Ensure cylinder valve is in its full off position. Check
for any damage to either the cylinder connection or
the hose. NEVER attempt to use damaged equipment.
Attach the regulator and hose to your gas cylinder.
Tighten the nut to a positive stop by hand.
STEP 12
Turn on the gas cylinder ensuring that the control knob
on the outdoor heater is turned OFF atthis point.
DO NOT ATTEMPT TO LIGHT THE HEATER!!.
STEP 13
Use a solution of soapy water (dishwashing liquid and
water is fine). Brush it on or use a spray bottle as
shown in the drawing. Ensure the connections have a
good coating.
STEP 14a
If the connection is leaking, bubbles will start to grow
in the soapy solution. If this happens shut off the gas
supply atthe cylinder.
STEP 14b
Tighten the connections using a crescent then repeat
steps 12-13.
STEP 14c
The connection is gas tight when no bubbles grow
around the gas connection.
ASSEMBLY INSTRUCTIONS
STEP 11
Ensure cylinder valve is in its full off position. Check
for any damage to either the cylinder connection or
the hose. NEVER attempt to use damaged equipment.
Attach the regulator and hose to your gas cylinder.
Tighten the nut to a positive stop by hand.
STEP 12
Turn on the gas cylinder ensuring that the control knob
on the outdoor heater is turned OFF atthis point.
DO NOT ATTEMPT TO LIGHT THE HEATER!!.
STEP 13
Use a solution of soapy water (dishwashing liquid and
water is fine). Brush it on or use a spray bottle as
shown in the drawing. Ensure the connections have a
good coating.
STEP 14a
If the connection is leaking, bubbles will start to grow
in the soapy solution. If this happens shut off the gas
supply atthe cylinder.
STEP 14b
Tighten the connections using a crescent then repeat
steps 12-13.
STEP 14c
The connection is gas tight when no bubbles grow
around the gas connection.
ASSEMBLY INSTRUCTIONS

6 7
Step 5b:
Tighten the connections using a crescent then repeat
steps 3-4.
Step 5c:
The connection is gas tight when no bubbles grow around
the gas connection.
Step 6
The ignition system works by battery. Unscrew the
electronic ignitor button and insert the AAA battery
included. Make sure the positive pole (+) is towards the
outside. Re-screw the button back to the battery case
tightly.
Step 7
Place all lava rocks evenly in the re table on the top
of the appliance. Never cover the ignition screen when
placing the lava rocks into the re table. Always keep
ignition screen visible.
WARNING:
This screen must be clear and free of
obstructions at all times to ensure proper
operation.
DO NOT place
Lava Rocks on
the screen. Keep
screen clear.
Screen
Figure VI
Correct Incorrect
Step 8 - Glass Assembly:
1. Locate brackets and the screw and silicon pad bag.
2. Place an L silicon pad (D) at the bottom of each
bracket (B) and then arrange the brackets on the re
table top surrounding the burner. This will protect the
table top nish.
3. Remove the glass panels (A) from the packaging.
Place a square shaped silicon pad (E) on each side
and corner of the glass. Insert the glass panel into the
bracket. Tighten the screw (C) to secure the glass to
the bracket. Be careful when tightening the screws
not to damage the glass. Complete this on all four
corners.
4. Ensure that the glass is centred on the table top.
ASSEMBLY INSTRUCTIONS
STEP 11
Ensure cylinder valve is in its full off position. Check
for any damage to either the cylinder connection or
the hose. NEVER attempt to use damaged equipment.
Attach the regulator and hose to your gas cylinder.
Tighten the nut to a positive stop by hand.
STEP 12
Turn on the gas cylinder ensuring that the control knob
on the outdoor heater is turned OFF atthis point.
DO NOT ATTEMPT TO LIGHT THE HEATER!!.
STEP 13
Use a solution of soapy water (dishwashing liquid and
water is fine). Brush it on or use a spray bottle as
shown in the drawing. Ensure the connections have a
good coating.
STEP 14a
If the connection is leaking, bubbles will start to grow
in the soapy solution. If this happens shut off the gas
supply atthe cylinder.
STEP 14b
Tighten the connections using a crescent then repeat
steps 12-13.
STEP 14c
The connection is gas tight when no bubbles grow
around the gas connection.
ASSEMBLY INSTRUCTIONS
STEP 11
Ensure cylinder valve is in its full off position. Check
for any damage to either the cylinder connection or
the hose. NEVER attempt to use damaged equipment.
Attach the regulator and hose to your gas cylinder.
Tighten the nut to a positive stop by hand.
STEP 12
Turn on the gas cylinder ensuring that the control knob
on the outdoor heater is turned OFF atthis point.
DO NOT ATTEMPT TO LIGHT THE HEATER!!.
STEP 13
Use a solution of soapy water (dishwashing liquid and
water is fine). Brush it on or use a spray bottle as
shown in the drawing. Ensure the connections have a
good coating.
STEP 14a
If the connection is leaking, bubbles will start to grow
in the soapy solution. If this happens shut off the gas
supply atthe cylinder.
STEP 14b
Tighten the connections using a crescent then repeat
steps 12-13.
STEP 14c
The connection is gas tight when no bubbles grow
around the gas connection.
ASSEMBLY INSTRUCTIONS

8 9
TEST FIRING APPLIANCE
Test re appliance, following the lighting instructions
found on the appliance. Leak test all gas connections with
soapy water. Soap bubbles indicate gas leakage.
DO NOT use a ame to test for gas leaks.
WARNING: White smoke may appear around
the burner during the rst minute of the initial
ring.
LIGHTING INSTRUCTIONS
IMPORTANT: Cover must be removed when
burner is in operation.
For rst time use and after every change of LPG cylinder
the gas system must be purged of air before lighting. To
do this, turn your LPG cylinder valve on and push in and
turn the control knob to ‘HIGH’ position. Hold in control
knob for 1 minute before attempting to light appliance.
1. Make sure that the control knob is in the ‘OFF’
position.
2. Remove LPG compartment panel to gain access to LPG
cylinder. Turn cylinder valve to ‘ON’ position and
replace panel.
3. Push in the control knob and keep depressed while
turning to the ignition point marked with a star or
‘LOW’. Once the control knob is at this point push the
ignition button. The Igniter will spark automatically, if
it does not spark, release control knob and return to
the ‘OFF’ position. Then check if battery is inserted
correctly or if the ignition wire has come loose under
the burner.
4. When the burner is lit and ames are visible in the
‘LOW’ position release ignition button but keep the
control knob depressed for a further 20 seconds and
then release it.
5. If the burner does not stay lit, turn off control knob
and the cylinder valve and wait 5 minutes and repeat
from Step 1.
6. Burner is now lit in the ‘LOW’ position.
7. Adjust the ame and heat output by turning the
control knob from ‘LOW’ to ‘HIGH’ a few times to
check the ame stability.
8. Adjust control knob to desired output between ‘LOW’
and ‘HIGH’.
9. In the event that the ame goes out (due to wind
or other reasons) the ame failure device will
automatically shut off the gas supply after 60
seconds. To re-light start lighting process from Step 1.
10. To turn ‘OFF’ the appliance turn control knob to the
‘OFF’ position.
11. Open LPG compartment panel and turn the LPG
cylinder valve to ‘OFF’ position.
12. Allow the appliance to cool before moving and
covering for storage (at least 30 minutes).
Note: If for some reason, ignitor fails to produce a spark
at the electrode, re bowl can be lit by a long match.
Move lava rocks to gain access to the burner (DO NOT
touch unless completely cool). Wearing heat resistant
gloves, position long lit match close to burner port.
DO NOT lean over burner while lighting.
Push and turn burner control knob to “LOW” position. The
burner should light within 5 seconds.
STORAGE & MAINTENANCE
To obtain the best performance from your re table, you
must perform the following storage and maintenance
activities on a regular basis:
• Allow at least 30 minutes for the re table to cool down
after use, then disconnect and remove the cylinder.
• Store the gas cylinder in a dry, well ventilated and
sheltered area away from weather and dust, out of
the reach of children, and not in a building, garage or
any other enclosed area.
• Storage indoors is permissible only if the cylinder is
disconnected and removed. It is recommended that
the re table be stored indoors during the winter if it
will be subjected to freezing temperatures.
• Keep the re table area clear and free from
combustible materials, gasoline and other ammable
vapors and liquids.
• If the re table is not in use, it must be covered to
protect from weather or other adverse elements.
• Never use a vacuum cleaner on the lava rocks.
• Installation and repair should be done by a qualied
service person.
• The re table should be inspected at least annually by
a qualied service person. It is imperative that
control compartment, burners and circulating air
passageways of the re tablet be kept clean.

8 9
Problem: Condition: Solution suggested:
Appliance won’t
light
Igniter pin and burner are wet. Wipe dry with a cloth.
Igniter battery is incorrectly inserted. Check that battery is correctly inserted.
Igniter pin cracked or broken. Contact retailer where purchased for replacement part.
Electrode wire is loose or
disconnected.
Reconnect wire to the igniter box
located inside the table base behind
the igniter button.
Burner will not
light using a
match
No gas ow. Check if gas cylinder is empty. If yes, replace.
Regulator is not fully connected to
the tank. Check gas cylinder connection.
Gas ow is obstructed. Check hose for bends or kinks.
Spider webs or insect nest in the
venturi (end of burner tube). Clean the venturi.
Burner ports are clogged.
Insert an opened paper clip into each of the burner
ports to clean them. Ensure the appliance is off and all
parts are cooled before attempting to clean the burner
ports.
Appliance emits a
lot of black smoke
when lit
Flame is obstructed at burner ports. Make sure all the gas burner ports are free of any lava
rocks or debris to allow the gas to ow freely.
Regulator hose is pinched. Check the regulator hose for bends or kinks.
Sudden drop in
gas ow
No gas ow. Check if gas cylinder is empty. If yes, replace.
Excess ow safety valve has been
activated.
Turn the control knob to “OFF”, Close the gas cylinder
valve and disconnect the regulator from the cylinder.
Turn the control knob to “HIGH”. Wait 1 minute. Turner
the control knob to “OFF”. Reconnect regulator to gas
cylinder. Open cylinder valve slowly. Light appliance as
indicated in “To Light” section.
Flame blow out
High or gusting winds. Increase ame to “High”.
No gas ow. Check if gas cylinder is empty. If yes, replace.
Excess ow safety valve has been
activated. See “Sudden drop in gas ow” above.
Irregular ame
pattern or ame
does not come
out of the entire
length of the
burner
Burner ports are clogged. See “Burner will not light using a match” above.
Note: If the appliance cannot be adjusted to perform correctly it should not be used until serviced or repaired.
Warning: Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Any modications or adjustments made to product without prior authority from the manufacturer
will void any warranty claims. Read the installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
TROUBLE SHOOTING

10 11
This page has been left intentionaly blank

10 11
This page has been left intentionaly blank

12 PB
