Gavita GAN Electronic 750 W 400 V DE EU User manual

GAN Electronic 750W/1000W DE EU
1. Introduction
Thank you for purchasing the GAN Electronic 750 W / 1000 W DE EU. This manual describes the mounting and installing of
the product and also describes how to use the product. Mounting and installing of the fixture can only be executed by certified
servicepersonnel. Please read and understand this manual completely before using the product. Only use the product as
specified in this manual.
1.1. Used symbols
Warning! A warning indicates severe damage to the user and/or product may occur when a procedure is not carried out
as described.
Caution! A caution sign indicates problems may occur if a procedure is not carried out as described. It may also serve as
a reminder to the user.
Note: A note gives additional information, e.g. for a procedure.
This symbol indicates that the reflector and lamp can reach very high temperatures (>85 °Celsius). Mind a cool down
period before performing maintenance.
With this symbol Gavita declares that this product complies with legal European requirements.
The symbol on the material, accessories or packaging indicates that this product may not be discarded as household
waste. Dispose of the equipment through a recycling centre that handles electronics and electrical appliances within the
EU and in other European countries which use separate collection systems for used electronics and electrical appliances.
By disposing of the equipment in the proper way, you will be helping to prevent possible risks to the environment and
public health, which might otherwise be caused by improper handling of the discarded equipment. Recycling of materials
contributes to the conservation of natural resources. Therefore, please do not dispose of your old electronics and
electrical appliances via household waste.
A
B
This symbol indicates the minimum distance (B) between the fixturetype (A) and the lid surface.
2. Product description
The GAN Electronic 750 W / 1000 W DE EU is an electronic horticultural fixture. Individually it can drive one double ended high
frequency type (electronic) high pressure sodium lamp:
750 W DE EU: HPS 750 W 400 V.
Recommended lamp:
-Gavita Pro 750 W EL DE HPS.
1000 W DE EU: HPS 1000 W 400 V.
Recommended lamps:
-Gavita Pro Plus 1000 W EL DE HPS;
-Philips Master GreenPower TD 1000W EL Plus.
The GAN Electronic 750 W / 1000 W DE EU is intended to be used in greenhouses or in climate rooms.
In this manual, the GAN Electronic 750 W / 1000 W DE EU will be referred to as: “the fixture”.

3. Product information and specifications
3.1. General product information
Product name GAN Electronic 750 W 400 V DE EU GAN Electronic 1000 W 400 V DE EU
Manufacturer Gavita Nederland bv Gavita Nederland bv
EAN Code 8718692230187 8718692230125
Part number 14.74.19.04.08 11.10.19.04.01
Plug type Wieland RST20i3 Wieland RST20i3
3.2. Technical specifications
Product name GAN Electronic 750 W 400 V DE EU GAN Electronic 1000 W 400 V DE EU
Version 400 V 400 V
Input voltage +/-10% 400 V 400 V
Input wattage +/-3% 795 W 1032 W
Apparent power +/-3% 811 VA 1042 VA
Input current at 100% 2,03 A 2,6 A
Inrush current: 30 A 35 A / 1,6 mSec
Power factor > 0,98 > 0,98
Product weight 3,9 kg/ 8.6 lbs 3,7 kg/ 8.2 lbs
Dimensions (LxWxH) 54,5x25,4x20,9 cm (height excl. mounting hooks)
Temperature case 75 °Celsius
Temperature ambient 0 ~ 35 °Celsius
Relative humidity 25 - 70% (not condensating)
Total Harmonic Distortion < 10%
Frequency 48 - 63 Hz
Certification CE
Insulation Class 1 - requires an earth connection / IP21
Power inlet Wieland RST20i3 IP65 connector
Ignition voltage: 3,5 kV
3.3. Compatible products and accessories
Product name Gavita part number
Replacement reflector Ecomax HR96 DE 30.46.13.00
Compatible lamps
Gavita Pro 750 W EL DE HPS 26.74.19.11
Gavita Pro Plus 1000 W EL DE HPS 21.10.16.12
Philips Master GreenPower TD 1000 W EL Plus 21.10.16.11
Compatible power cord Wieland RST20i3 0,6 m mains cable 60.70.11.51
3.4. Environment
The product is meant for use in greenhouses and climate rooms. The product may be used in damp environments. The product
may not be used in wet environments or outdoors. The Gavita Pro 750 W and Pro Plus 1000 W EL DE HPS lamps function
optimal when the environmental temperature is between 20 ~ 30 °Celsius.
3.5. Legal
CE LVD approval according to: EN 60598-1: 2008 + A11: 2009.
CE EMC approval according to: EN 55015 (2006) + A1 (2007) + A2 (2009); EN 61000-3-2 (2006) + A1 (2009) + A2 (2009); EN
61000-3-3 (2008); EN 61547 (2009).

4. Safety recommendations and warnings
Warning! Carefully read the warnings below before using or working with the product!
• Always adhere to the local rules and regulations when installing or using the fixture.
• This product may cause interference to radio equipment and should not be installed near maritime safety communications
equipment or other critical navigation or communication equipment operating between 0.45 - 30 MHz.
• Do not use the fixture when either its lamp or its power cord are damaged. Replace the power cord only with original
certified cords. Replace the lamp only with lamps specified by Gavita (see paragraph 3.3).
• The use of other lamps may damage the product and lamp and will void the warranty.
• Modifications to the cords can lead to unwanted electromagnetic effects, which makes the product not comply with legal
requirements.
• Do not expose the fixture to:
-condensing humidity, heavy mist, fog or direct spray;
-(ambient) temperatures outside the specified range;
-dust and contamination;
-direct sunlight during use or HID light that could heat up the ballast.
• Always disconnect the fixture from mains before performing any maintenance.
• Always allow for a cool down period of at least 30 minutes before touching the lamp or reflector. Touching the lamp or the
reflector when the lamp is lit or immediately afterwards will result in severe burns!
• Never touch the lamp with bare hands as this will cause damage to the lamp.
• Do not use the fixture near flammable, explosive or reactive substances. The lamp and the reflector of the fixture reach
temperatures of >85 °Celsius.
• Do not use sulfur vaporizers or water misters. Sulfur and calcium deposits on your reflector will decrease its efficiency.
• The installation and use of the fixture is the responsibility of the end user. Incorrect use or installation can lead to failure
and damage to the fixture. Damage to the fixture and electronic circuitry as a result of incorrect installation and use
revokes the warranty.
5. Contents (1)
A. GAN Electronic 750 W / 1000 W DE EU
1. Electronic ballast
2. Lamp bracket
3. Lever to unlatch reflector
4. Lamp socket (2x)
5. Reflector Ecomax HR96 DE
6. Mounting points
B. Wieland RST20i3 female connector with
cable (3 x 1,5 mm2H07RN-F)*
*Could be delivered seperately
C. Gavita Pro 750 W EL DE HPS lamp /
Gavita Pro Plus 1000 W EL DE HPS lamp /
Philips Master GreenPower TD 1000 W
EL Plus
6. Controls, connections and
indications (2)
A. Wieland RST20i3 male connector
1. Ground connection
2. Phase connections
B. Status LED
A6
A1
A6
C
A3
A5
A4
A2
B
1.
B
AA1 AA2
AA
2.
Wieland RST20i3

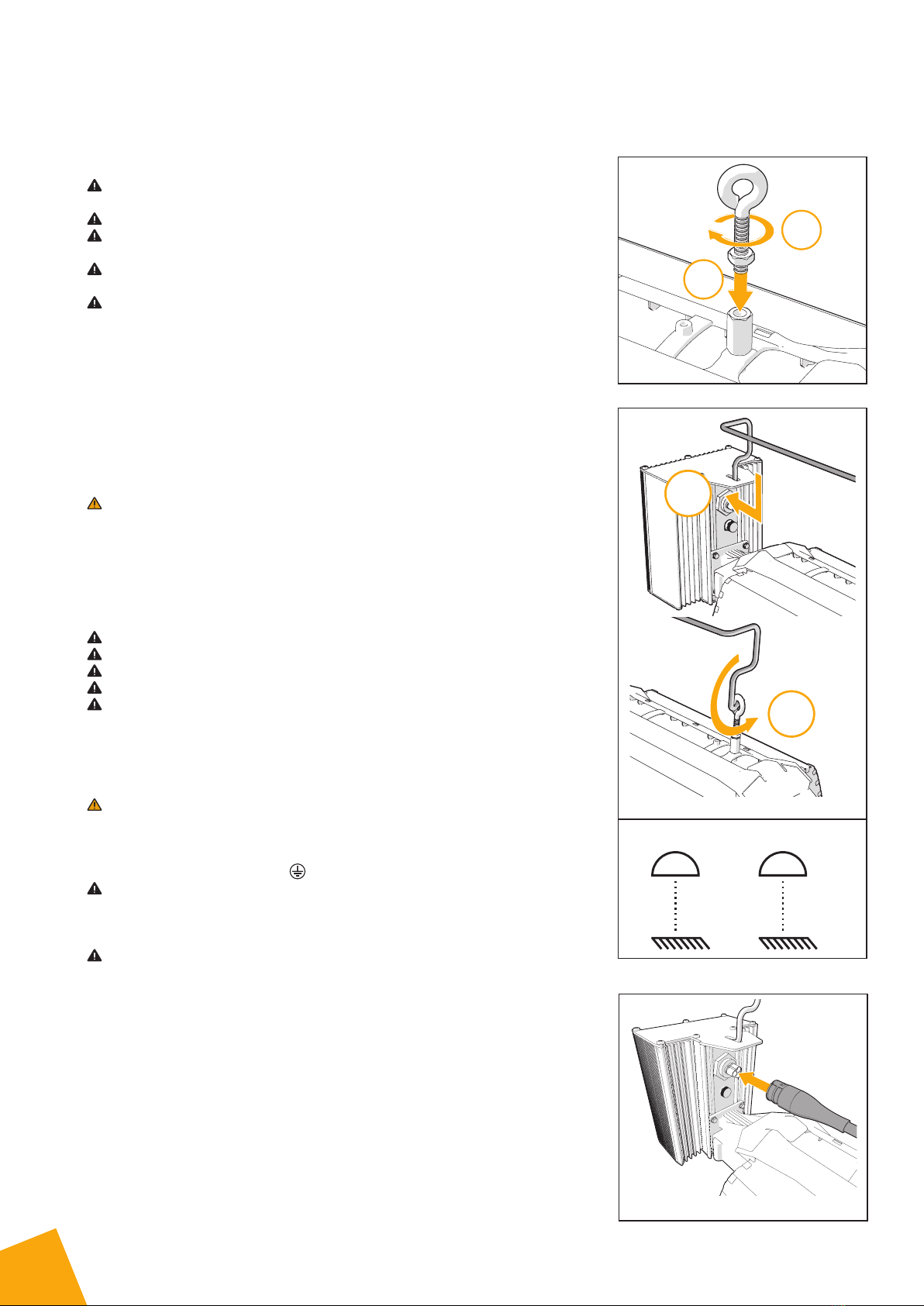

7. Installation
Warning! Mounting and installing of the fixture can only be executed by certified
servicepersonnel, in accordance with the applicable local laws and regulations.
Warning! The fitter is responsible for correct and safe installation.
Warning! Ensure the local cabling can support the voltage and current
requirements of the fixture.
Warning! Avoid coiled cords and keep mains leads separated. This prevents
electromagnetic interference.
Warning! Do not disconnect the Wieland RST20i3 plug under load.
7.1. Installation preparations
• Switch off mains power.
• Read the Gavita light distribution plan.
• If not done already, install the lamp in the fixture (see paragraph 10.1).
• If not done already, screw the mounting point into the fixture (3).
7.2. Installing the fixture
• Mount the suspension bracket* according to the light distribution plan.
• Hang the fixture by its two mounting points onto the suspension bracket (4). The
two mounting points are spaced 30 - 32 cm apart.
Caution! Always hang the fixture horizontally. Adjustments can be made by
screwing the mounting point in or out.
To install other fixtures, repeat the steps at paragraph 7.1 and 7.2.
* The suspension bracket is delivery dependent, it may differ from the image.
7.3. Connecting the fixture to the mains
Warning! Make sure mains power is switched off.
Warning! Always install the lamp before connecting the fixture to the mains.
Warning! Ensure the cord is not coiled and does not touch any hot surfaces.
Warning! Connect the cables according to local rules and regulations.
Warning! Ensure external switching gear can cope with the inrush current of
the fixture (see paragraph 3.2). Always use a double throw contactor suitable for
switching a capacitive load. Never use household timers to switch the fixture!
• Connect the wires of the female Wieland RST20i3 cable with the distribution
cable of the electrical installation.
Caution! Use a suitable sealed joint to connect the cables.
• Cable description 400 V systems:
Blue wire = Phase.
Brown wire = Phase.
Green/yellow wire = Ground ( ).
Warning! Make sure the wires are connected correctly to prevent short-circuit.
• Plug the Wieland RST20i3 female connection onto the Wieland RST20i3 male
connection of the fixture (6).
• Switch on mains power.
Warning! Do not disconnect the Wieland RST20i3 plug under load.
B2
B1
3.
4.
5.
B1
B2
B1
B2
1000W
1 m
750W
0.75 m

8. Precautions when using the fixture
Warning! Never use the fixture without a lamp or reflector!
Warning! Always wait 20 - 30 minutes for the emitter cover/reflector to cool down!
9. Troubleshoot using the status LED
Note: The status LED is present at 1000 W models only.
The status LED provides information on the condition of the lamp and electronic ballast.
Consult table 1 to interpret the status LED. LED signals are represented by colored red dots.
9.1. Status indications
Status LED message Status fixture Description Action/Solution
 No error The lamp is working correctly -
 EOL timer expired
Maximum number of ignition attempts
done without succes or a driver is
locked or has failed
Reset mains cycle manually
 Cycle error
Maximum number of succesful ignition
attempts done (lamp stopped for
unknown reason)
Reset mains cycle manually
 Low mains Mains voltage too low Mains cycle automatically resets
 Thermal overload Maximum driver temperature
exceeded Reset mains cycle manually
 Lamp voltage out
of range
Lamp voltage too low, lamp voltage too
high or DC shift detected No action required.
 High mains Mains voltage too high and/or DC-bus
voltage too high Mains cycle automatically resets
Ignition busy Ballast is trying to ignite the lamp -
Legend
LED message Time (approx.)

256 ms.


512 ms.

Table 1

10.Inspection, maintenance and repair
Warning! Disconnect the product from mains before performing any
maintenance or repairs.
Warning! Do not disconnect the Wieland RST20i3 plug under load.
Warning! Do not open or disassemble the fixture, it contains no servicable parts
inside. Opening the fixture can be dangerous and will void the warranty.
Warning! Always allow for a cool down period of at least 30 minutes before
touching the lamp or reflector.
Caution! Do not clean the fixture with detergents, abrasives or other agressive
substances.
Caution! Do not touch the inside of the reflector during installation.
Caution! Wait 20 minutes before activating the fixture after maintenance work
has been conducted.
Note: Gavita recommends to measure the lamp and reflector for aging every
year. Replace the lamp and/or reflector when they are aged.
• Regularly check the fixture for dust or dirt buildup. Clean if necessary.
Contamination may couse overheating and decreased performance.
-Clean the inside of the reflector with soapy water, but use demineralised
water to rinse the reflector;
-Clean the electronic ballast and the outside of the fixture using a dry or damp
cloth.
• Check the lamp monthly for discolorations or black markings. Always replace a
damaged lamp.
Note: Before initial use, the lamp could have black markings. This will disappear
when the lamp runs on full power. If not, replace the lamp.
• Regularly check the wiring of the product to ensure it is undamaged.

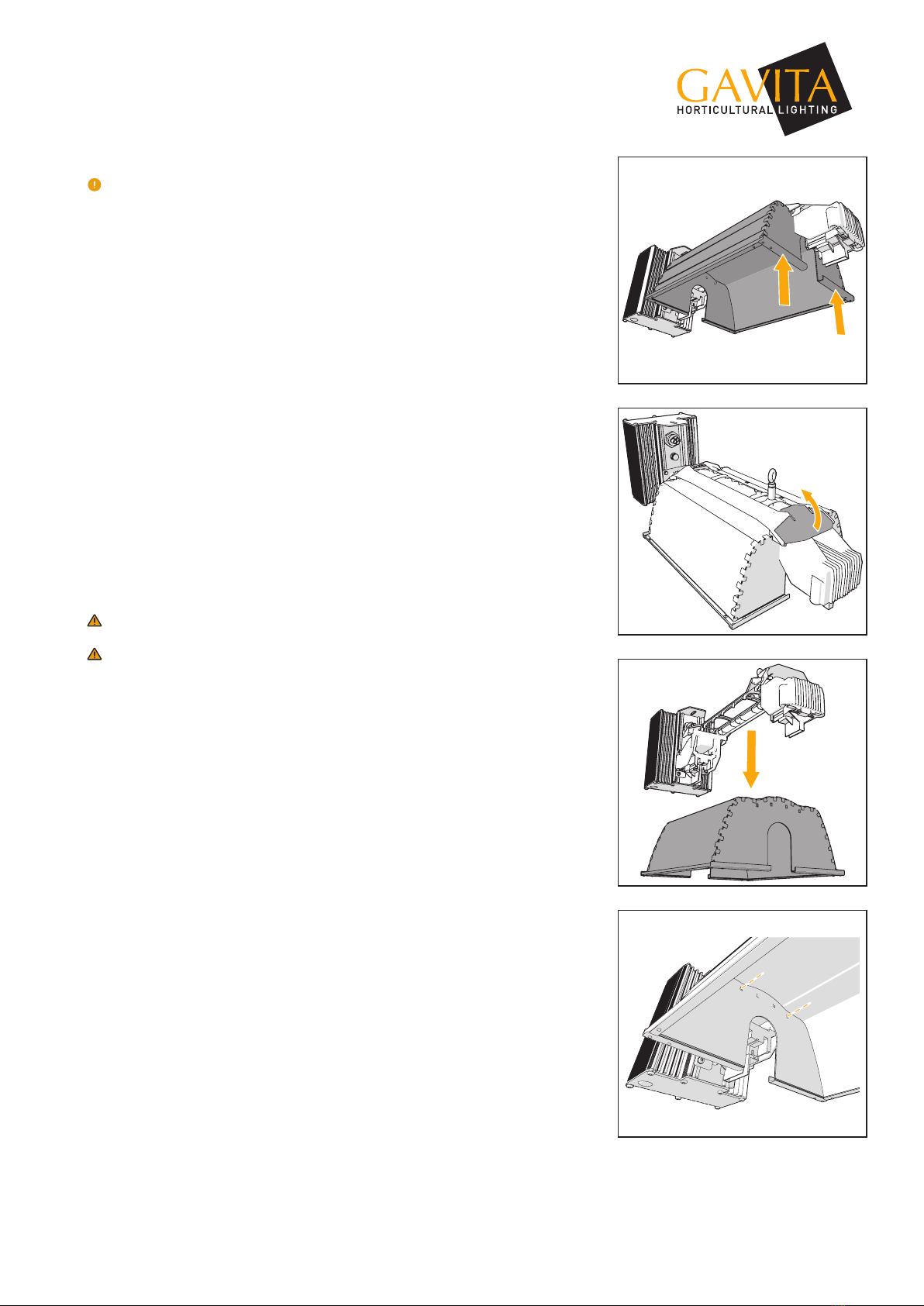

10.1. Placement and replacement of the lamp
Caution! Do not touch the lamp with bare hands as this will damage the lamp.
Always use a fabric glove to handle the lamp.
Caution! Only use lamps specified by Gavita (see paragraph 3.3).
Note: Gavita recommends replacing the lamp after 10000 lighting hours.
• Switch off mains power.
• Hold the lamp with a fabric glove to prevent it from falling. Use a protective glove
if the lamp is damaged.
• Open the lamp holders by sliding them outwards (7).
• Carefully take the lamp out of the fixture (8).
• Install the new lamp with the getter (A) near the ballast (9), with the glass
vacuum seal pointed downwards (Philips lamp) or sideways (Gavita lamps).
Both lampwires need to be placed straight into the lamp holder and need to
touch the metal part of the lamp holder.
• Close the lamp holders by sliding them inwards (10).
• Switch on mains power.
6.
7.
A
8.
9.

10.2. Placement and replacement of the reflector
Note: Gavita recommends replacing the reflector after 10000 lighting hours.
Depending on the environment and contamination levels the reflector will degrade.
The vega/Miro™ aluminum can be cleaned with soapy water, but we recommend to
change the reflector every two to four years. Also replace the lamp when replacing
the reflector.
• Switch off mains power.
• Remove the lamp from the fixture (see paragraph 10.1).
• Support the reflector on the side of the reflector lever to prevent it from falling
(11).
• Move the reflector lever up to retract the two pins holding the reflector in place
(12).
• Remove the reflector (13).
• Place the new reflector. Ensure the reflector lever is in the opened position to
allow the reflector to pass.
• Ensure the holes in the reflector are aligned with the pins in the fixture (14).
• Release the reflector lever so its two pins hold the reflector in place.
• Insert the lamp in the lamp holder (see paragraph 10.1).
• Switch on mains power.
11.Storage and disposal
• Store the fixture in a dry and clean environment, with an environmental
temperature of -20 ~ 85 °Celsius.
• The product must not be discarded as unsorted municipal waste, but must be
collected separately for the purpose of treatment, recovery and environmentally
sound disposal.
Caution! The lamps are chemical hazardous waste and must be delivered to the
designated authorities.
Caution! The lamp contains mercury.
12.Warranty
The warranty conditions are delivery dependent and can be found on a separate
sheet.
10.
11.
12.
13.

Gavita Nederland bv
Oosteinderweg 127
1432 AH Aalsmeer
The Netherlands
Tel: [phone]
Fax: [phone]
E: [email protected]
W: www.gavita.nl
Manual: GAN Electronic 750W / 1000W DE EU
Changes reserved - Version 15/05
