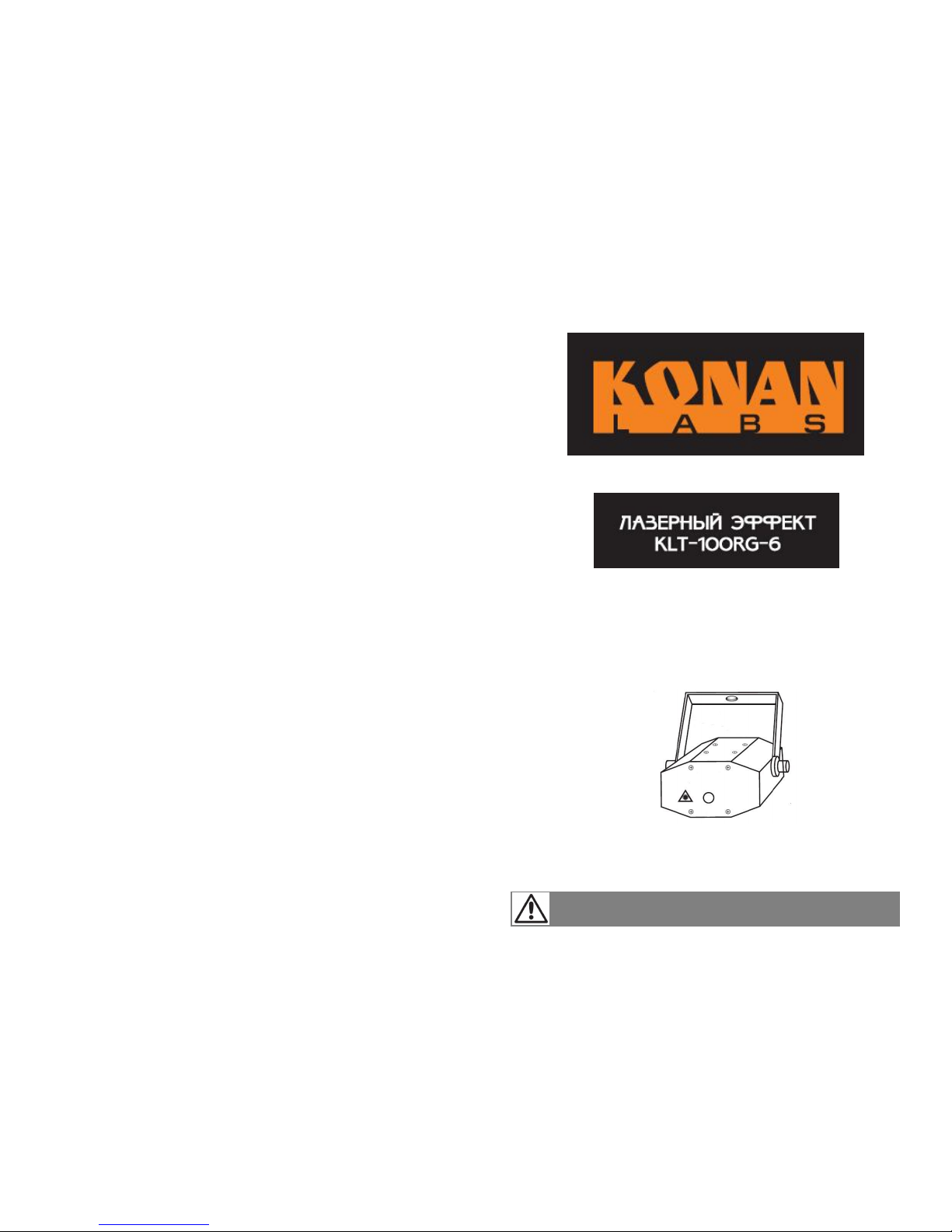

Konan Labs KLT-100RG-6 User manual

MINI SIX GOBO PATTERNS TWINKLING
LASER SHOW SYSTEM
User's Manual
Light up your stage, disco, club, party, dj, Xmas, home, room, decoration place!
Read this manual before using. Do not attempt to open the housing or repair
this device by yourself without contact us!

General instructions Troubleshooting
1. If the power supply indicator doesn't light up and the laser doesn't work, please
Unpacking: check the power supply, the input voltage and the fuse.
Thank you for purchasing this product. Please read user guide for safety and before using 2. In Stand-Alone operation, if the power supply indicator is light up and sound
the product. Keep this manual for future reference. This product can create perfect laser active indicator isn't light up, but the laser is shut off doesn't work.
programs and effects since it has passed a series of strictly tests before delivery. Please check A. Because sound is too small make for laser shut off in sound active, please
the attachments listed on the page after opening the carton. Immediately upon receiving increase the music volume or increase audio sensitivity with sensitivity knob,
a fixture, carefully unpack the box. Check the box contents to ensure that all parts are present please check as below.
and that they are in good condition. If any part appears damaged from shipping, or if the 3. If the unit is fail, please turn off the unit, then turn on again after 5 minutes.
box shows signs of mishandling, notify the shipper immediately. In addition, retain the box
and all the packing material for inspection.In any event, save the carton and all packing material After trying the above solution you still have a problem, please contact your dealer
because, in case that you have to return the fixture to the factory, you will have to do so in its or our company for service.
original box, with its original packing.
1. Laser Light: 1PCS
2. Power Adaptor: 1PCS
3. User Guide: 1PCS
4. Tripod 1PCS
Safty Notice:
Please read the following notes carefully because they include important safety information
about the installation,usage and maintenance of this product. It is important to read all these
notes before starting to work with this product.
Page 1 Page 6
Lasers can be hazardous and have unique safety considerations. Permanent eye injury and
blindness is possible if lasers are used incorrectly. Pay close attention to each safety REMARK and
WARNING statement in the user manual. Read all instructions careful
There are no user serviceable parts inside the light. Any reference to servicing this unit you
may find from now on in this User Manual will only apply to properly C we certified
technicians. Do not open the housing or attempt any repairs unless you are o
Please refer to all applicable local codes and regulations for proper
installation of the light.
Keep this manual for future consultation. If you sell the light to another user,
make sure that they also receive this manual.

Front/Rear Panel
Front Panel
Rear Panel
1. Laser on Auto mode 2. Strobe/flashing 3. Sound active mode
4. Laser OFF 5. Movement speed for the laser effects
6. Sound Sensitity for music 7. Auto Strobe Speed 8. only display red laser
9. only display green laser 10. display red and green lasers
11. Michrophone to the voice 12. DC 5V 1A
Page 5 Page 2
The maximum ambient temperature (Ta) is 104 F (40 C). Do not operate the
fixture at a higher temperature. In case of a serious operating problem, stop
using this product immediately!
Use cleaning tissue to remove the dust absorbed on the external lenses
periodically to optimize light output.
Avoid direct eye exposure to the light source while the fixture is on. Always disconnect
the light from its power source before servicing. Always connect the light to a grounded
circuit to avoid the risk of electrocution.
This product is for indoor use only! Use only in dry locations. Keep this
device away from rain and moisture, excessive heat, humidity and dust. Do
not allow contact with water or any other fluids, or metallic objects.
Make sure there are no flammable materials close to the fixture(s) while
operating.
Don’t throw this product away just as general trash, please dispose of this
product following the abandon electronic product regulation in your country.
To protect the environment, recycle packing material wherever possible.
Do not remove or break the warranty label, otherwise it void the warranty.
There are no serviceable parts in the light. Please have all servicing and
adjustments made by a qualified service engineer.
Please prevent this light away from electrical shock
Always make sure that you are connecting the light to the proper voltage, as per the
specifications in this manual or on the product's sticker. Never connect the light to a
dimmer pack. Make sure that the power cable is not cracked, crimped or damaged. Ne
Power
110V 240V
Ground
Laser ApertureLaser Aperture
Handle
Hole for Clamps
(not included)
Cooling
Fan
5
67
12
3
4
2
1
11
9
10
8

Laser Safty Warnings Technical Specification
1. Voltage: Input 110V -220V-250V AC, 50HZ-60HZ/ Fuse: 2A/250V;
Output 5V DC 1A
2. Rated Power: 5W
Caution
3. Laser:
Color Wavelength Power output
* Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to Red 650nm 80mW
direct laser radiation. Green 532nm 20mW
*This laser product can potentially cause instant eye injury or blindness if laser light directly 4. Laser class: Class 3B
strikes the eyes. 5. Working Modes: Sound Active, AUTO, Strobe
*It is illegal and dangerous to shine this laser into audience areas, where the audience or other 6. Graphics & Effects: 6 beautiful gobo laser effects coming from laser apperture. Red and
personnel could get direct laser beams or bright reflections into their eyes. green beams shootted out from the aperture within 40 angles, the effect of auto,
*It is a US Federal offense to shine any laser at aircraft. movement speed, sound sensitivity and strobe speed.
7. Laser Size: 130*92*52mm
Installation 9. Net weight: 0.3kg, Gross Weight: 0.6Kg
Features
1. Use red and green laser module, stable output and long working life.
2. Various Effects
6 beautiful gobo effects
3. With a built-in fan for heat dissipation.
*Laser effects projected 3 meters (9.8 ft) above the audience are eye safe. A survey should be 4. Compact and lightweight, attractive laser housing, smooth appearance.
taken to assess the likelihood of any reflective surfaces (such as high windows, chrome bars 5. High quality aluminum alloy housing.
etc) bouncing stray beams back down into the audience. 6. With a universal bracket, conveniently to place it at anywhere.
*Make sure its correct power output and plug the power cable to the wall socket.
* Power must be in earth! Power on the light. Warning!
* Do not shoot the beams to the audience!
*Do not look direct into the laser aperture once the laser light is ON. Please pay attention to
the Laser Danger Warning Sticker!
Page 3 Page 4
AVOID EYE DIRECT
CONTACT!
Potential laser injury hazard exists with this product! Read these Instructions carefully,
which include important information about installation, safe use and service!
Every time, please do NOT
unplug the power adaptor
directly when the laser light is
working! Please push the button
to the OFF position before
unplug the power adaptor!
OFF
