Gavita CT 1930e User manual

1
1 Introduction
Thank you for purchasing the Gavita®CT 1930e LED. This manual describes mounting, installation and how to use the product.
Mounting and installation of the LED fixture may only be executed by certified service personnel. Please read and understand
this manual completely before using the product. Only use the product as specified in this manual.
1.1 Used Symbols
Warning! A warning indicates severe damage to the user and/or product may occur when a procedure is not carried
out as described.
Caution! A caution sign indicates problems may occur if a procedure is not carried out as described. It may also serve
as a reminder to the user.
Note: A note gives additional information, e.g. for a procedure.
This symbol is an internationally recognized symbol used to designate recyclable materials.
This symbol is a certification mark employed on electronic products manufactured or sold in the United States.
The Federal Communications Commission regulates electromagnetic interference in the United States.
ETL is an independent third party product testing company which performs a variety of testing, including recognized
safety standards.
This symbol on material, accessories or packaging indicates that this product may not be discarded as household
waste. By properly disposing the equipment, you will be helping to prevent possible risks to the environment and public
health, which might otherwise be caused by improper handling of the discarded equipment. Recycling of materials
contributes to the conservation of natural resources. Therefore, please do not dispose of old electronics and electrical
appliances via household waste.
This symbol indicates the minimum distance (B) between the LED fixture (A) and the lit surface.
2 Product description
The Gavita®CT 1930e LED is an electronic horticultural LED fixture. The Gavita CT 1930e LED is intended to be used in
greenhouses or in climate rooms. In this manual, the Gavita CT 1930e LED will be referred to as: “the LED fixture”.
Gavita®CT 1930e LED 120-277 V

2
3 Product information and specifications
3.1 General product information
Product name Gavita CT 1930e LED 120-277 V
Manufacturer Hawthorne Gardening Company
Part number HGC906740
UPC 849969099980
Plug type (sold separately) NEMA 5-15P / NEMA 6-15P / Open-end cable
3.2 Technical specifications
Input voltage: 120 - 277V
Input power: 780 W
Input current: 6.6-2.9 A
Heat load: 2661 btu/hr*
Frequency: 50/60 Hz
Power factor (cosø): >0.95
Ambient temp: 32-131° F (0-55° C)
Environmental rating: IP66 - This product can be used in wet environments
Mounting: Mounting brackets and unistrut hangers included
Weight: 33.07 lbs / 15 kg
Dimensions: 29 x 11.8 x 3.9 in / 73.7 x 30 x 9.9 cm
Certifications: UL 1598, UL 8800, and CSA C22.2 No. 250.0
Warranty: 5 year
3.3 Technical specifications
Product Product name Gavita part number
Controllers
Unit will function with
Gen 1 EL1, EL2
Gavita EL1 Master Controller HGC906120
Gavita EL2 Master Controller HGC906121
Power cords
Gavita 8 ft Power Cord 120 Volt for Gavita LED HGC906147
Gavita 8 ft Power Cord 208-240 Volt for Gavita LED HGC906148
Gavita 8 ft Power Cord 277 Volt for Gavita LED HGC906149
Gavita 8 ft Power Cord 277-400 Volt for Gavita LED HGC906458
Interconnect cables
Gavita e-Series LED Adapter Interconnect Cable 2.5 ft RJ45 to RJ45 HGC906710
Gavita e-Series LED Adapter Interconnect Cable 10 ft RJ45 to RJ45 HGC906711
Gavita e-Series LED Adapter Interconnect Cable 10 ft RJ45 to RJ14 HGC906713
Gavita e-Series LED Adapter Interconnect Cable 6 ft RJ45 to RJ9 HGC906715
Gavita e-Series LED Adapter Interconnect Cable 10 ft RJ45 to RJ9 HGC906716
Gavita e-Series LED Adapter Interconnect Cable 25 ft RJ45 to RJ9 HGC906717
3-way RJ45 cable splitter HGC906721
3.4 Environment
The product is intended to be used in greenhouses and climate rooms. The product can be used in wet environments.
The product may not be used outdoors. A mechanical ventilation or cooling system is required to maintain the temperature
within the growing space below 131° F / 55° C when the Gavita CT 1930e is in operation.
3.5 Compliance
This device complies with Part 15 Class A (Nonconsumer) of the FCC Rules.
Conforms to ANSI/UL STD 1598, UL 8800, and CSA C22.2 No. 250.
*Please consult an HVAC expert to calculate total heat load in your grow space
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.

3
4 Safety recommendations and warnings
Warning! Carefully read the warnings below before using or working with the product!
• Always adhere to local rules and regulations when installing or using the LED fixture.
• Do not open or disassemble the LED fixture; there are no serviceable parts inside. Opening or modifying the LED fixture
can be dangerous and will void the warranty.
• This product may cause interference to radio equipment and should not be installed near maritime safety communications
equipment or other critical navigation or communication equipment operating between 0.45-30 MHz.
• Do not use the LED fixture when either the LED fixture or its power cord are damaged. Replace the power cord only
with original, certified cords.
• Modifications to the cords can lead to unwanted electromagnetic effects, which makes the product not comply with
legal requirements.
• Do not expose the LED fixture to:
- (ambient) temperatures outside the specified range;
- dust and contamination;
- direct sunlight during use or HID light that could heat up the fixture.
• Always disconnect the LED fixture from mains before performing any maintenance.
• Always allow for a cool-down period of at least 30 minutes before touching the LED. Touching the LED when the fixture is
lit or immediately afterward can result in severe burns!
• Do not use the LED fixture near flammable, explosive or reactive substances. Do not use sulfur vaporizers.
• The installation and use of the LED fixture is the responsibility of the end user. Incorrect use or installation can lead
to failure and damage to the LED fixture. Damage to the LED fixture and electronic circuitry as a result of incorrect
installation and use voids the warranty.
• The minimum distance between adjacent lighting equipment is 4 inches (10.16 cm). The minimum distance between lighting
equipment and combustible materials is 4 inches (10.16 cm).

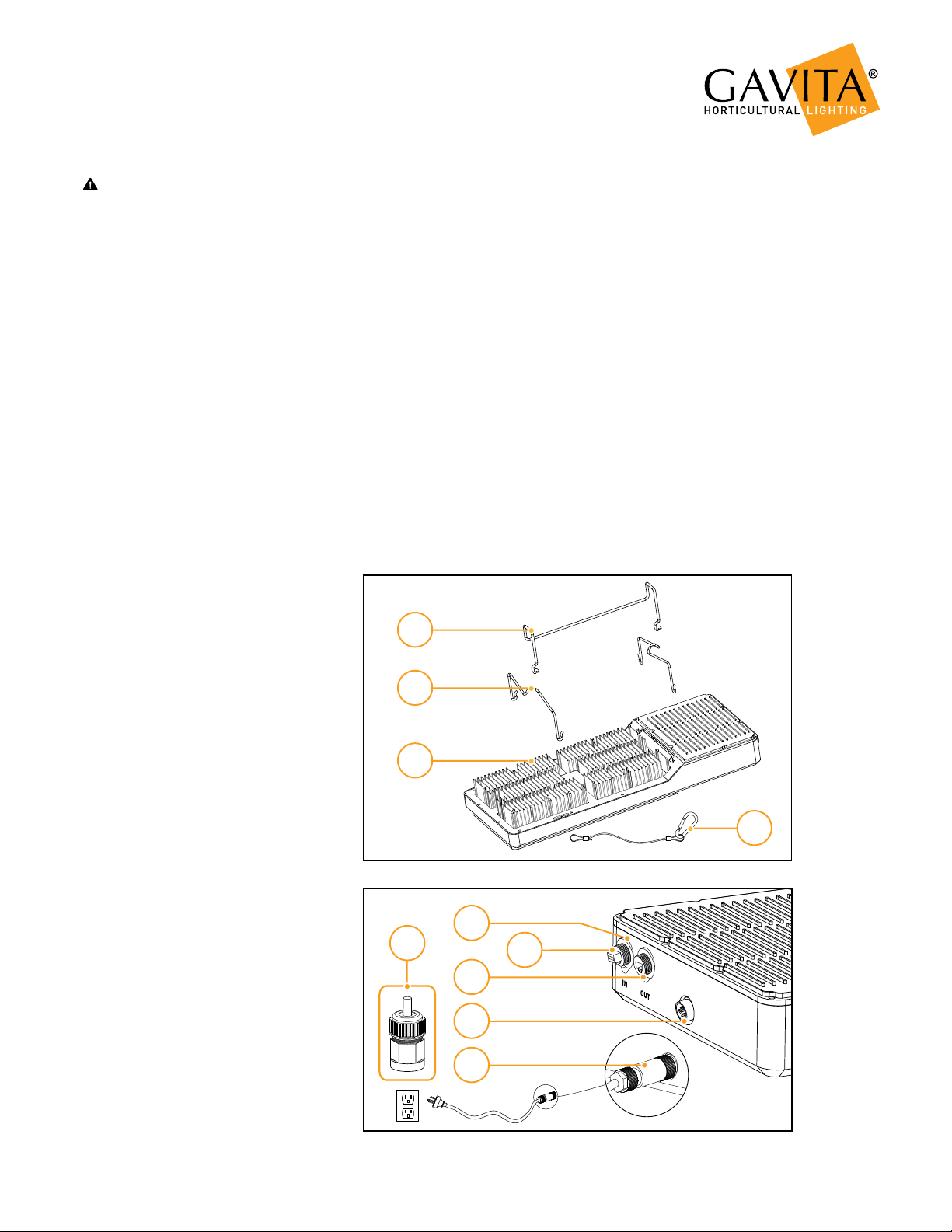

5 Contents (1)
A. Gavita CT 1930e LED
B. Mounting brackets (2x)
C. 1-5/8" Unistrut Hanger
D. Safety wire
(Power cord sold separately).
6 Controls, connections
and indications (2)
A. Wieland RST 16i5 male connector
B. Gavita 2xRJ45 connector
1. RJ IN
2. RJ OUT
C. Wieland RST 16i5 female connector
D. Assembled cable glands
E. Dummy Plug
A
C
DE
B1
B2
A
B
C
D
2.
1.

4
7 Installation
Warning! Mounting and installation of the LED fixture may only be executed by certified service personnel, in
accordance with applicable local laws and regulations.
Warning! The installer is responsible for correct and safe installation.
Warning! Ensure the local cabling can support the voltage and current requirements of the LED fixture.
Warning! Avoid coiled cords and keep mains leads separated. This prevents electromagnetic interference.

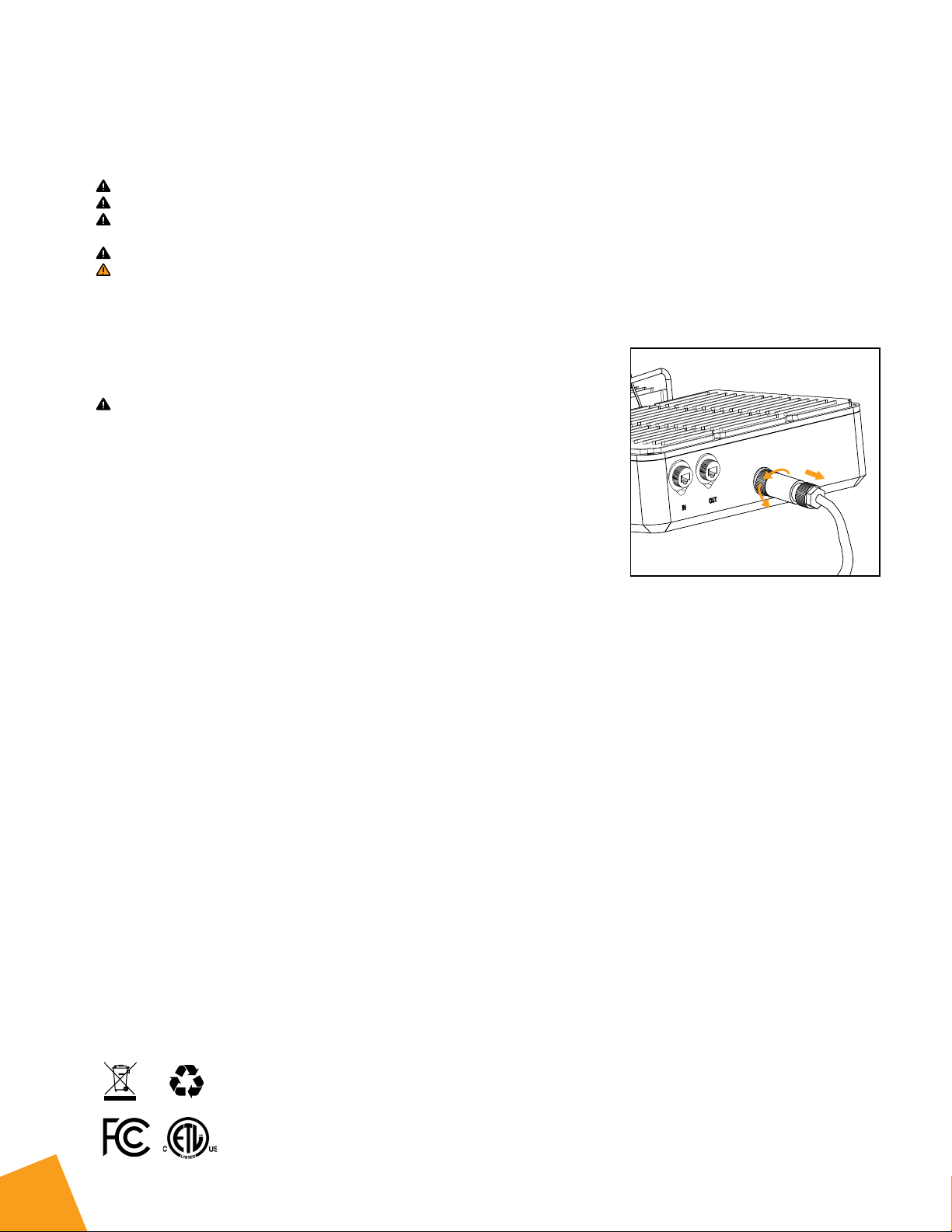

Warning! Do not connect or disconnect the LED fixture under load.

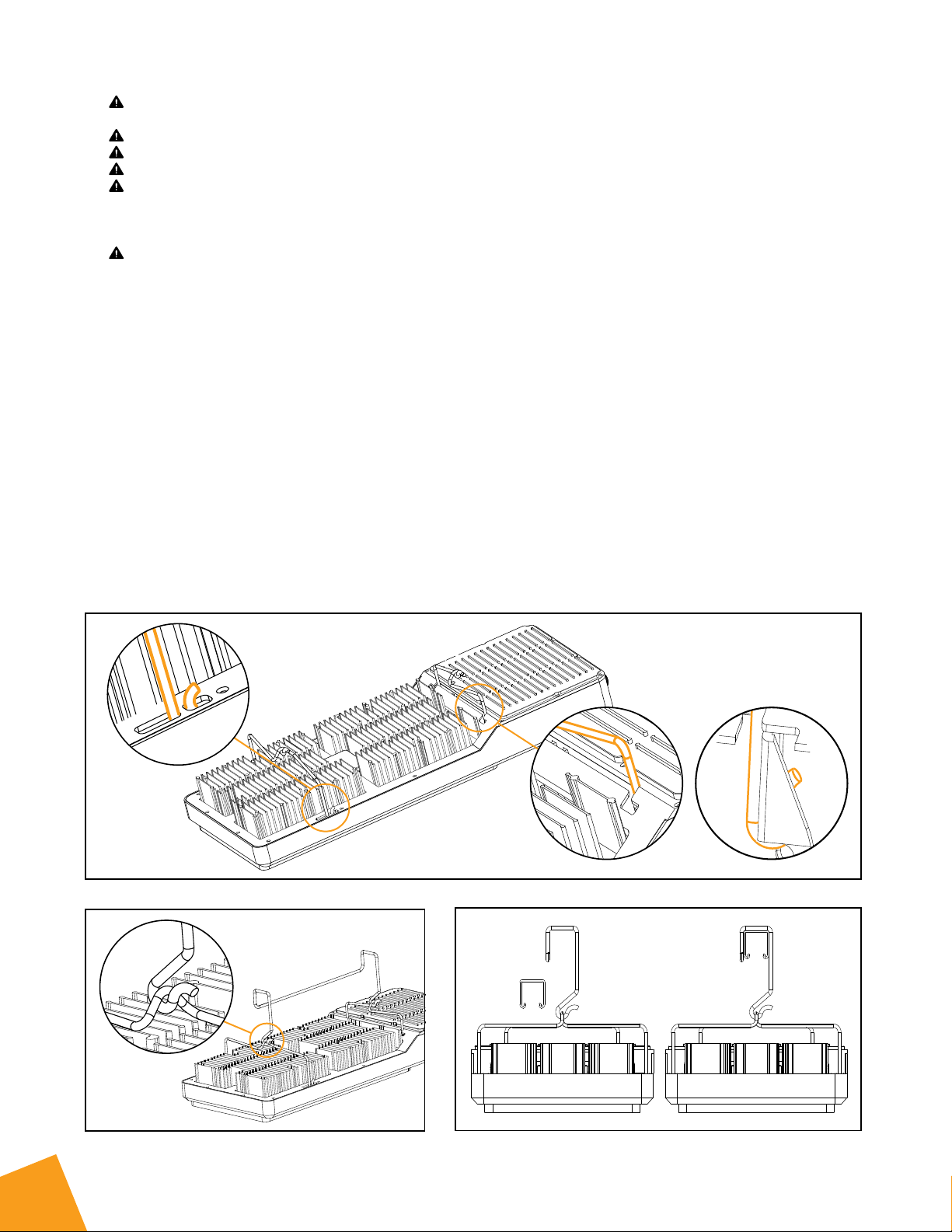

7.1 Installing the LED fixture
Warning! When mounting, attach the fixture to something that can support its entire weight.
• Switch off main power.
• Secure the hanging brackets to the fixture (fig. 3).
• Hook the unistrut hanger onto the LED fixture hanging brackets (fig. 4).
• Holding the LED fixture by the unistrut hanger with 2 hands, lift the fixture and place the hanger onto the unistrut as
shown in the picture (fig. 5).

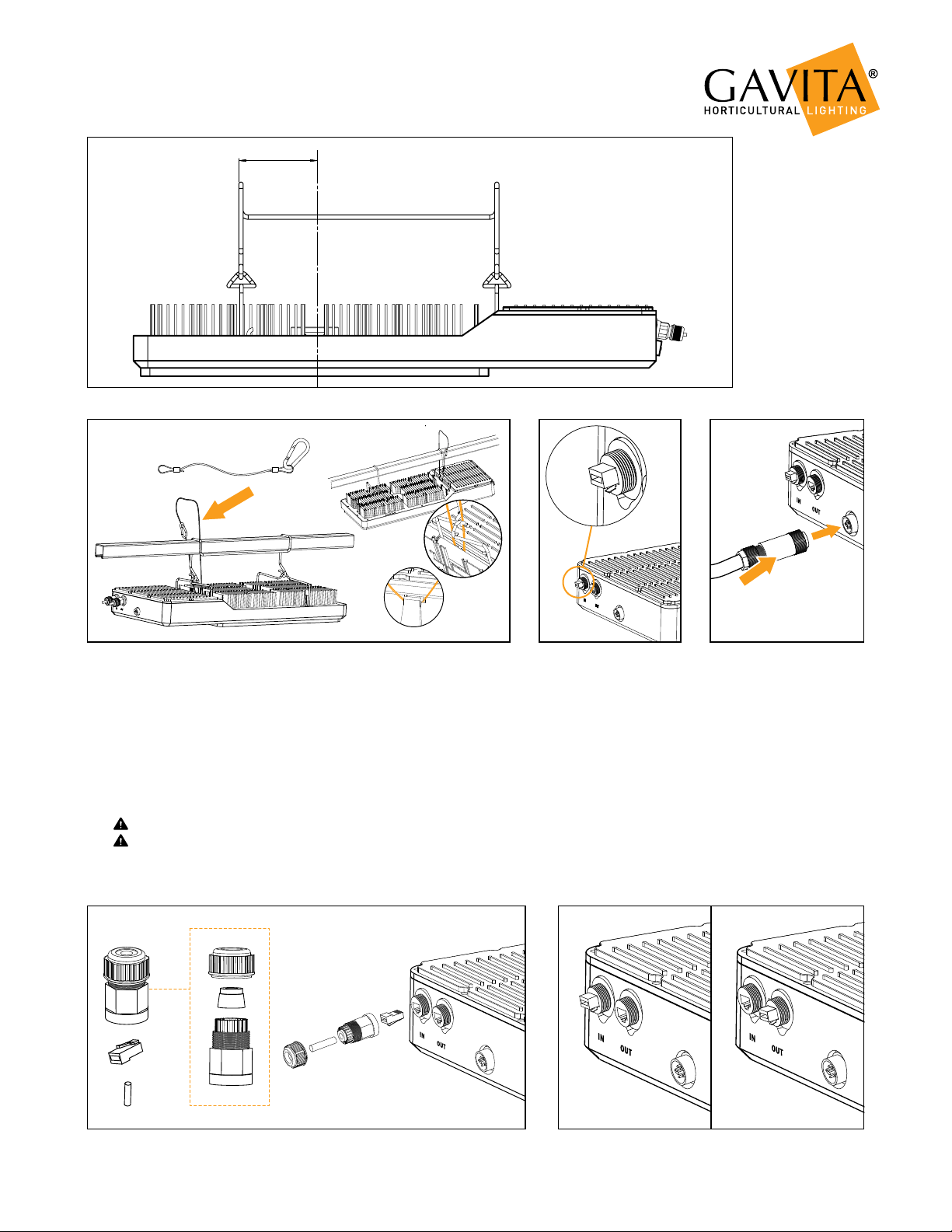

• The center of the fixture is located 4-3/16" from the front of the unistrut hanging bracket (fig. 6).
• Install safety wire (B) as shown in picture (fig. 7).
• If a controller is not being used, make sure the dummy plug is inserted into the “IN” RJ45 communication port (fig. 8).
• Plug the female main power into the LED fixture's male power input (fig. 9). Align the white arrow on the end of the
power connector with the "Closed Lock" symbol on the fixture. Press in until there is a “click” sound.
Make sure power cords:
1. Are not concealed or extended through a wall, floor, ceiling, or other parts of the building structures.
2. Are not located above a suspended ceiling or dropped ceiling.
3. Are not permanently affixed to the building structure.
4. Are routed so they are not subject to strain and are protected from physical damage.
5. Are visible over their entire length.
6. Are used within their rated ampacity as determined for the maximum temperature of the installed environment
specified in the instructions.
4. 5.
3.

5

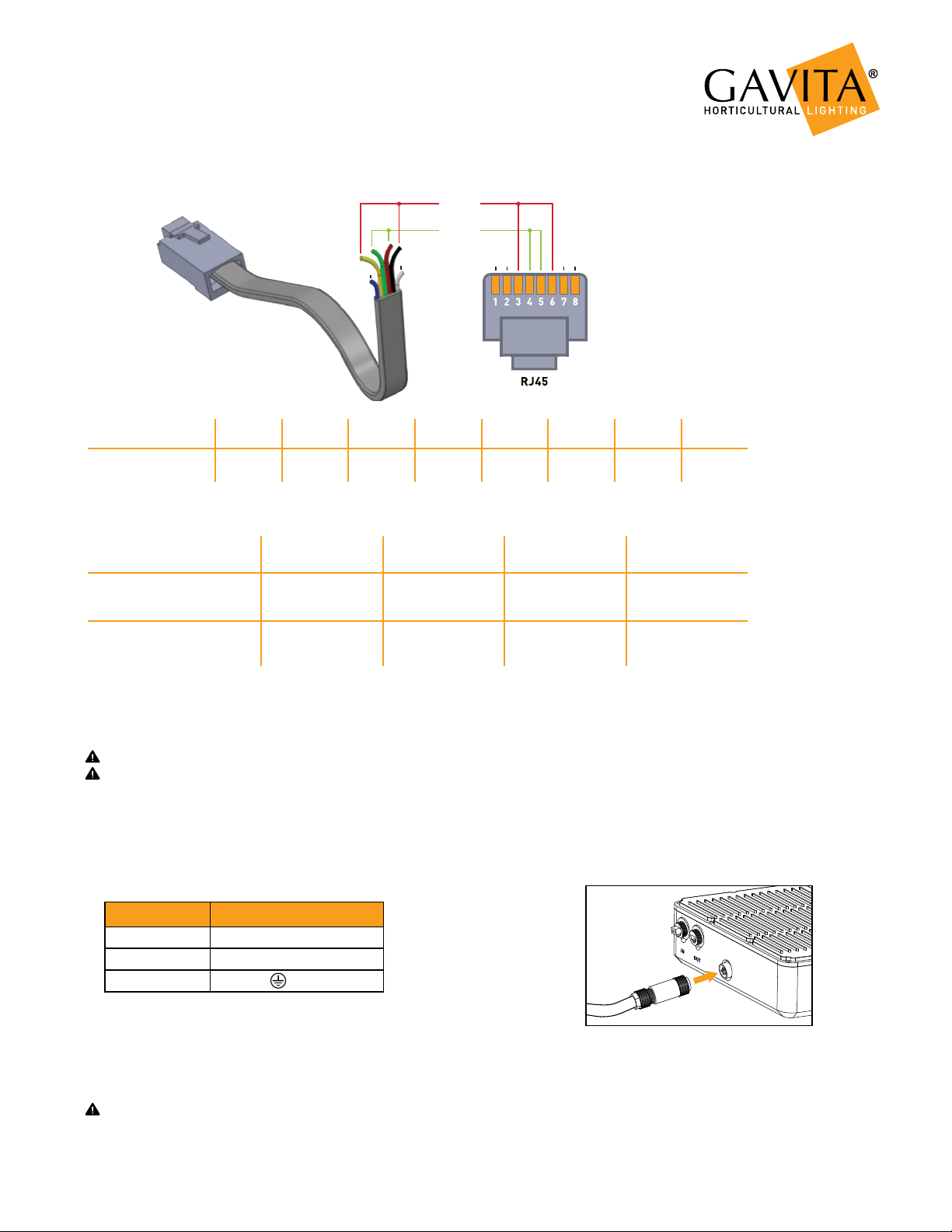

7.2 Preparation for use with a controller
Using a daisy-chain setup, a maximum of 100 LED fixtures can be connected to each controller
channel. Up to 500 LED fixtures can be connected with the use of splitters. Refer to Section 7.4.
Using the Fixture:
1. Without a Controller
a. The included dummy plug on the input of the first fixture will ensure continuous operation at 100% output. The plug has
a circuit board embedded which simulates 100% output (fig.10).
Warning! Please do not confuse this with a normal RJ45 terminal.
Warning! Only to be used on the “IN” port of the fixtures. Please do not insert this in any OUT port of a fixture (fig.11).
b. To turn fixtures off, you must rely on line voltage control at this point.
c. You have the option of daisy chaining explained in Section 7.4 or using a dummy plug in each individual fixture.
4-3/16"
6.
8. 9.7.
10. 11.
✓✗
