GDS Corp C2 Quad Protector User manual

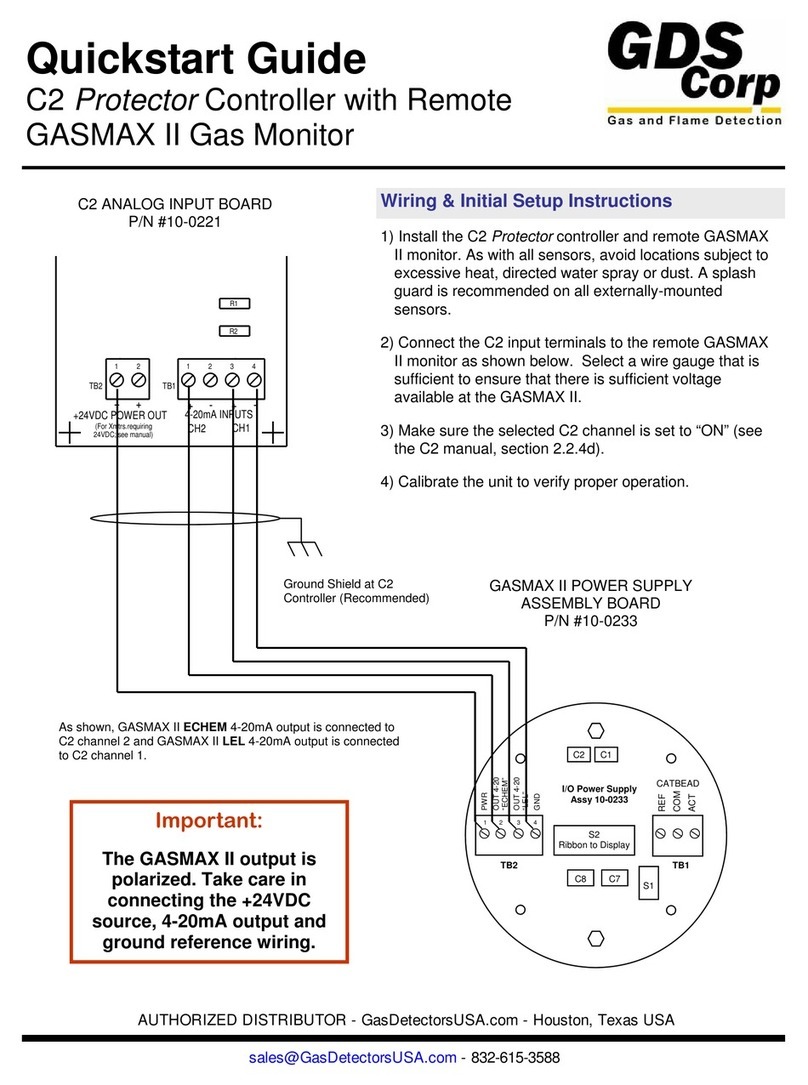

Quickstart Guide
C2 Quad Protector Controller with
Remote GASMAX II Gas Monitor
GDS Corp. 2513 Hwy 646 Santa Fe, Texas 77510 [phone] [phone] fax
www.gdscorp.com [email protected]
C2 QUAD ANALOG INPUT BOARD
P/N #10-0221-4 Wiring & Initial Setup Instructions
1) Install the C2 Quad Protector controller and remote
GASMAX II monitor. As with all sensors, avoid
locations subject to excessive heat, directed water
spray or dust. A splash guard is recommended on
all externally-mounted sensors.
2) Connect the C2 Quad Protector input terminals to
the remote GASMAX II monitor as shown below.
3) Make sure the selected C2 channel is set to
“ON” (see the C2 manual, section 2.2.4d).
4) Calibrate the unit to verify proper operation.
GASMAX II POWER SUPPLY
ASSEMBLY BOARD
P/N #10-0233
S2
Ribbon to Display
1 2 43
PWR OUT 4-20 “ECHEM” OUT 4-20 “LEL” GND
REF COM ACT
CATBEAD
S1
C7C8
C1C2
I/O Power Supply
Assy 10-0233
TB1TB2
Important:
The GASMAX II output is
polarized. Take care in
connecting the +24VDC
source, 4-20mA output and
ground reference wiring.

Quickstart Guide
C2 Quad Protector Controller with
Remote GASMAX EC Gas Monitor
GDS Corp. 2513 Hwy 646 Santa Fe, Texas 77510 [phone] [phone] fax
www.gdscorp.com [email protected]
C2 QUAD ANALOG INPUT BOARD
P/N #10-0221-4 Wiring & Initial Setup Instructions
1) Install the C2 Quad Protector controller and remote
GASMAX EC gas monitor. As with all sensors, avoid
locations subject to excessive heat, directed water spray
or dust. A splash guard is recommended on all externally-
mounted sensors.
2) Connect the C2 Quad Protector input terminals to the
remote GASMAX EC monitor as shown below. The
GASMAX EC output is non-polarized; either wire can be
connected to the +24VDC excitation pin.
3) Make sure the selected C2 channel is set to “ON” (see
the C2 manual, section 2.2.4d).
4) Calibrate the unit to verify proper operation.
GASMAX / EC DISPLAY ASSEMBLY
P/N #10-0232
Important:
The GASMAX / EC loop output
is non-polarized. Either
GASMAX / EC output may be
connected to the +24VDC
terminal on the C2 Quad.
