GE Lighting Albeo ABR1 Series User manual

GE
Lighting
Installation Guide
Heavy Industrial High Bay Lighting
(ABR1-Series)
Features
• UL 1598 Suitable for Wet Locations
• IP66 Rated Ingress Protection
AlbeoTM LED Luminaire
WARNING/AVERTISSEMENT
RISK OF ELECTRIC SHOCK
• Turn power off before inspection, installation or removal.
• Properly ground electrical enclosure.
RISK OF FIRE
• Follow all NEC and local codes.
• Use only UL or IEC approved wire for input/output connections.
Minimum size 18 AWG.
RISQUES DE DÉCHARGES ÉLECTRIQUES
• Coupez l’alimentation avant d’inspecter, installer ou déplacer le luminaire.
• Assurez-vous de correctement mettre à la terre le boîtier d’alimentation électrique.
RISQUES D’INCENDIE
• Respectez tous les codes NEC et codes locaux.
• N’utilisez que des ls approuvés par UL ou IEC pour les entrées/sorties de
connexion. Taille minimum 18 AWG.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-005 (A) / NMB-005 (A)
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Save These Instructions
Use only in the manner intended by the
manufacturer. If you have any questions,
contact the manufacturer.
Prepare Electrical Wiring
Electrical Requirements
The LED driver must be supplied with
120-277 VAC or 347/480 VAC, 50/60 Hz per product
label and connected to an individual properly
grounded branch circuit, protected by a 15 or 20
ampere circuit breaker.
Grounding Instructions
The grounding and bonding of the overall system
shall be done in accordance with National Electric
Code (NEC) Article 600 and local codes.
imagination at work

Choose a mounting method: chain or cable,
rod mount, or pendant mount.
Wire colors:
NOTE: The standard conguration uses a 3-conductor SOOW cable. The dimming option adds a separate 2-conductor
SOOW cable for 0-10V control wires.
1
Unit Installation
2 3
Fixture Weight
ABR1-Series
Conguration
Max. Weight (lbs.)
120/277V 347/480V
Single 21 23
Dual 45 49
Black Live
White Neutral
Green Safety Ground
Purple 0-10V (+)
Gray 0-10V (–)
Please follow all UL, NEC and minimum load rating guidelines when selecting and installing a cable or chain.
NOTE: When selecting chain, a joint in a circular chain link shall be welded. A joint in a chain link of another shape shall not
be located within 30 degrees of the vertical unless welded.
Hang two chains/cables from a structural member of the ceiling. Fixture must be supported independently of an outlet
box. Loop chain/cable through the mounting slots next to each xture end. Chain/cable mounting locations must be in the
slots at the ends of the xture.
Dual FixtureSingle Fixture
Provide at least 12” of clearance from the top of the xture to any ceiling or surface above.
Chain or Cable Mounting
Carefully unpack unit and
properly inspect for defects
before installing. Wear work
gloves to prevent dirt and
oil from being transferred to
the luminaire.
Secure two 1/2” threaded rods into structural members in ceiling. Place a nut on each threaded rod where xture should
hang. Slide rod mount brackets onto threaded rods and tighten second nut onto rods to secure xture.
NOTE: Safety chains can be used in mounting slots at end of xture.
Threaded Rod Mounting
Attach to
structural
member
Fasten
with nuts
Attach to
structural
member
Attach to
structural
member
Single Fixture
See Note See Note
Dual Fixture
NOTE: For applications requiring the “R” corrosion resistant nish, use mounting hardware appropriate for the environment.

1Attach pendant mount box to ¾” NPT conduit.
Determine rotation of xture and lock orientation
in place with provided set screw.
Feed the AC power cord through the conduit and
into the junction box.
Lift xture up and hang on pendant mount box
using hinge piece.
Connect the green (ground), black (line) and white
(neutral) wires of the AC line to the similarly colored
wires of the xture’s power cord using UL listed
wire connectors. Close junction box.
3
2
5
Pendant Mounting
AC power cord
The 0-10V dimming option uses a separate
2-conductor SOOW cable. Install cable per NEC
and local codes. For pendant mount option, cord
can be run through 1/2” NPT hole on top of the
mount box.
A 10V signal corresponds to 100% lumen output.
A 0V signal corresponds to ~15% lumen output.
Shorting the dimming wires dims the xture to
~15% lumen output.
Swing xture closed and secure with the slide clip.
Lock slide clip in place with screw.
Tighten
screw
4
Black To AC Main
White
Green
Purple (+)
Gray (-)
Line
Neutral
Ground
0-10V(+)
0-10V(-)
To 0-10V
Dimmer
LED Driver

Single Fixture Dual Fixture

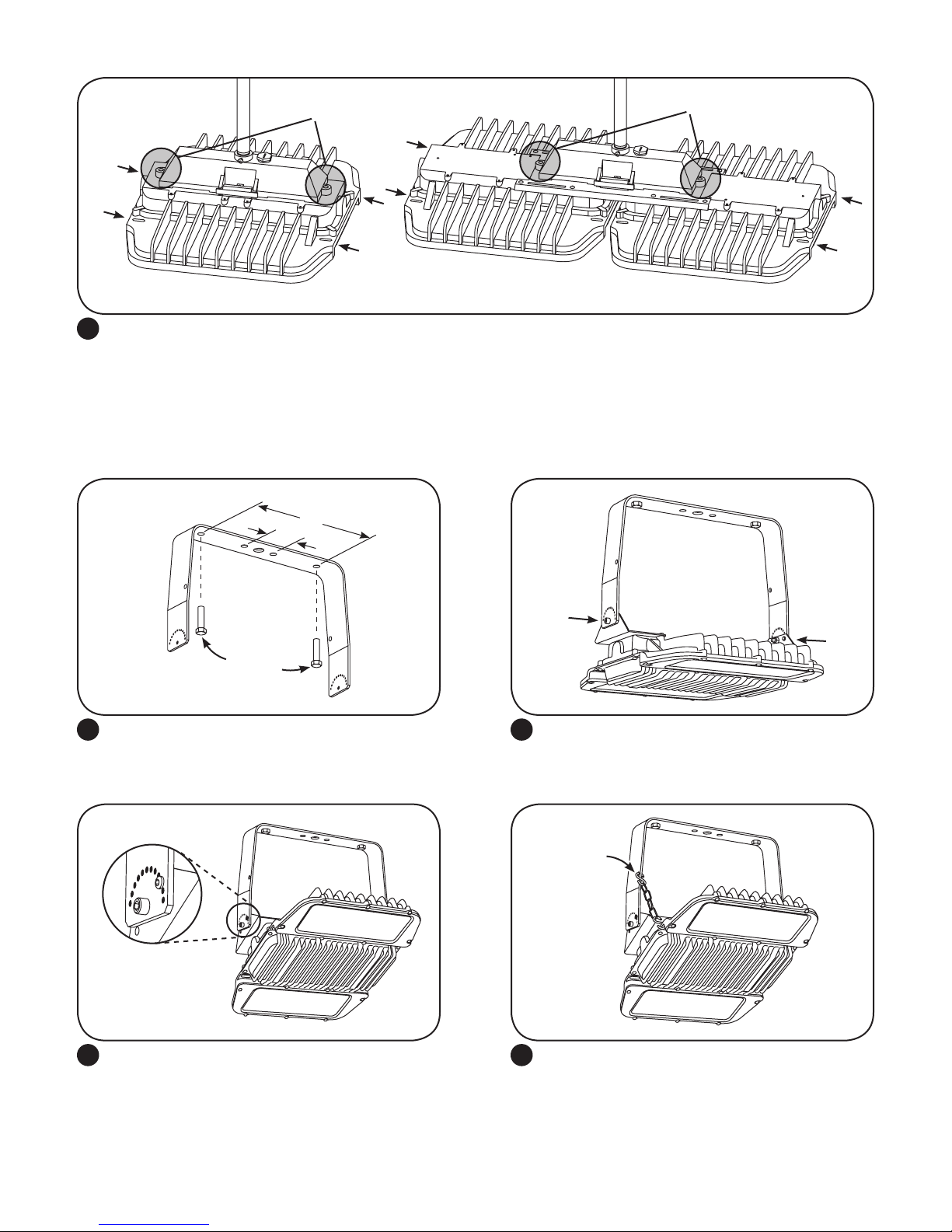

6Secure pendant mount box to xture by fully tightening the captive screws on the sides of the pendant mount
box to the xture.
NOTE: Safety chains can be used in mounting slots at end of xture.
See
Note
See
Note
Captive screws Captive screws
Rotatable Bracket Mounting
1Mount U-bracket to a at wall or ceiling surface
using (2) 1/2” bolts. Use either the 3” or the 12” hole
pattern.
Determine rotation of xture and lock orientation
in place (both sides) with provided (2) 1/8” hex drive
screws.
NOTE: Optional safety chains can be used in 3/8”
holes in sides of bracket and in the mounting slots
at the end of xture.
Lift xture up and insert provided (2) 1/4” hex
drive bolts through brackets, then install provided
locknuts.
3 4
2
3”
12”
1/2” bolts
Safety chain
NOTE: Luminaire not to be directly facing the mounting surface nor within 45° of each direction.
NOTE: The rotatable bracket requires a 5°C maximum ambient temperature derating.

Troubleshooting
Rotational Bracket Clearances
Symptom Solution
Luminaire will not
turn on.
• Check that the color of the supply side wires match the color of the wires they are connected to.
• Check that all wire connectors are properly connected.
• Verify that your input voltage is within specs.
• If you are using any additional controls (i.e. dimming wires, motion sensors), please also verify that those
are working properly and that the unit is setup to interface with the controllers.
Maintenance
• Product should not be disassembled during installation process and/or while installed.
• Lens should be cleaned periodically for maximum lumen output.
• Inspect and clear any build-up on cooling ns periodically for maximum performance.
www.gelighting.com
GE and the GE Monogram are trademarks of the General Electric Company. All other trademarks are the property of their respective owners. Information provided is subject to
change without notice. All values are design or typical values when measured under laboratory conditions. GE Lighting is a business of the General Electric Company. © 2017 GE.
ALB019 (Rev 09/07/17)
10.9 in.
10.8 in.
15.5 in.
21.7 in.
