GE ASF05 Operating instructions

Safety Instructions . . . . . . . . . .2, 3
Operating Instructions
Controls—Control Knobs . . . . .6, 7
Controls—Touch Pads . . . . . . .4, 5
Care and Cleaning
Air Filter . . . . . . . . . . . . . . . . . . . . .8
Batteries . . . . . . . . . . . . . . . . . . . . .8
Front Grille . . . . . . . . . . . . . . . . . .9
Grille and Case . . . . . . . . . . . . . . .8
Outdoor Coils . . . . . . . . . . . . . . . .8
Installation Instructions . . .10–13
Troubleshooting Tips . . . . . . . .14
Normal Operating Sounds . . . . .14
Consumer Support
Consumer Support . . . . . . . . . . .18
Product Registration . . . . . . .15, 16
Warranty . . . . . . . . . . . . . . . . . . . .17
DB98-15878A 49-7471 11-03 JR
ASF05
ASL05
ASM05
ASN05
ASQ05
ASV05
ASL06
ASN06
Air Conditioners
Owner’s Manual and
Installation Instructions
www.GEAppliances.com
Write the model and serial
numbers here:
Model # ______________________
Serial # ______________________
Find these numbers on a label on
the side of the air conditioner.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injury.
■ Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
■This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
■Never unplug your air conditioner by pulling
on the power cord. Always grip plug firmly
and pull straight out from the receptacle.
■ Replace immediately all electric service cords
that have become frayed or otherwise
damaged. Do not use a cord that shows
cracks or abrasion damage along its length
or at either the plug or connector end.
■ Turn the mode control OFF and unplug
your air conditioner before cleaning.
■ GE does not support any servicing of the air
conditioner. We strongly recommend that
you do not attempt to service the air
conditioner yourself.
■ For your safety…do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.
■ All air conditioners contain refrigerants,
which under federal law must be removed
prior to product disposal. If you are getting
rid of an old product with refrigerants, check
with the company handling disposal about
what to do.
SAFETY PRECAUTIONS
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
For personal safety, this appliance must be
properly grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall
outlet to minimize the possibility of electric
shock hazard from this appliance.
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
is properly grounded.
Where a 2-prong wall outlet is encountered,
it is your personal responsibility and obligation
to have it replaced with a properly grounded
3-prong wall outlet.
The air conditioner should always be plugged
into its own individual electrical outlet
which has a voltage rating that matches the
rating plate.
This provides the best performance and
also prevents overloading house wiring
circuits which could cause a fire hazard
from overheated wires.
See the Installation Instructions, Electrical
Requirements section for specific electrical
connection requirements.
HOW TO CONNECT ELECTRICITY
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
2

3
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
www.GEAppliances.com
WARNING!
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of an extension cord.
However, if you must use an extension cord,
it is absolutely necessary that it be a UL-listed,
14 gauge, 3-wire grounding type appliance
extension cord having a grounding type plug
and outlet and that the electrical rating of the
cord be 15 amperes (minimum) and 125 volts.
CAUTION:
DO NOT use an extension cord with any of the
230/208 volt models.
USE OF EXTENSION CORDS—115-Volt models only
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of an adapter plug.
However, if you must use an adapter, where
local codes permit, a temporary connection
may be made to a properly grounded 2-prong
wall outlet by use of a UL-listed adapter
available at most local hardware stores.
The larger slot in the adapter must be
aligned with the larger slot in the wall outlet
to provide proper polarity in the connection
of the power cord.
When disconnecting the power cord from the
adapter, always hold the adapter in place with
one hand while pulling the power cord plug
with the other hand. If this is not done, the
adapter ground terminal is very likely to break
with repeated use.
If the adapter ground terminal breaks, DO NOT
USE the air conditioner until a proper ground
has been established.
Attaching the adapter ground terminal to a wall outlet
cover screw does not ground the appliance unless the
cover screw is metal, and not insulated, and the wall
outlet is grounded through the house wiring. You should
have the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
USE OF ADAPTER PLUGS—115-Volt models only
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS

4
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
■ To ensure proper operation, aim the remote
control at the signal receiver on the air
conditioner.
■ The remote control signal has a range of
up to 21 feet.
■ Make sure nothing is between the air conditioner
and the remote control that could block the
signal.
■ Make sure batteries are fresh and installed
correctly–see the Care and Cleaning section.
About the controls on the air conditioner—models with touch pads.
Features and appearance will vary.
Air Conditioner Controls
Remote Control
ON/OFF
Turns air conditioner on and off.
Display
Shows the set temperature, time remaining
on timer or fan speed (1–LOW, 2–MED or
3–HIGH).
MODE
Use to set the air conditioner to COOL or
FAN mode.
Increase ▲ /Decrease ▼Pads
Use to set temperature when in COOL mode.
FAN
Use to set the fan speed to LOW (1), MED (2) or
HIGH (3).
TIMER
ON–When the air conditioner is off, it can be
set to automatically turn on in 1 to 12 hours
at its previous setting. Each touch will set the
time in hours.
OFF–When the air conditioner is on, it can be
set to automatically turn off in 1 to 12 hours.
Each touch will set the time in hours.
To cancel the timer, press the TIMER pad
until the display time disappears.
ENERGY SAVER – Controls the fan.
ON – The fan and compressor cycle on and
off. This results in wider variations of room
temperature and humidity. Normally used
when the room is unoccupied. NOTE: The
fan will continue to run for a short time
after the compressor cycles off.
OFF – The fan runs all the time, while the
compressor cycles on and off.
This switch must be set at OFF in order to use
the fan settings (on the mode control).
Remote Control Signal Receiver
Remote Control
In the case of a power outage or interruption, the
unit will automatically re-start in the settings last
used after the power is restored. The TIMER feature
will reset to the original setting. You may need to
set a new time if desired.
Power Outage Recovery Feature
Fan on
Cool on
Energy Saver on
Timer on

The vent control is located on the inside of the
air louvers in the lower right corner.
When set at CLOSE, only the air inside the room
will be circulated and conditioned. When set at
OPEN, some inside air is exhausted outside.
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions Installation Instructions
www.GEAppliances.com
When the air conditioner is turned on, it will
automatically start in the setting last used.
Vent Control (on some models)
To open the vent, push the lever to the right.
To close it, push it to the left.
COOL Mode
Use the COOL mode with HIGH (3), MED (2) or
LOW (1) fan for cooling. Use the INCREASE ▲ /
DECREASE ▼ pads to set the desired temperature
between 64°F and 86°F in 1°F increments.
A thermostat is used to maintain the room
temperature. The compressor will cycle on and off
to keep the room at the set level of comfort. Set the
thermostat at a lower number and the indoor air
will become cooler. Set the thermostat at a higher
number and the indoor air will become warmer.
NOTE: If the air conditioner is off and is then turned on
while set to COOL, it will take approximately 3 minutes
for the compressor to start and cooling to begin.
Cooling Descriptions
For Normal Cooling–Select the COOL mode and
HIGH (3) or MED (2) fan with a middle set
temperature.
For Maximum Cooling–Select the COOL mode
and HIGH (3) fan with a lower set temperature.
For Quieter & Nighttime Cooling–Select the
COOL mode and LOW (1) fan with a middle set
temperature.
NOTE: If you switch from a COOL setting to OFF or to
a fan setting, wait at least 3 minutes before switching
back to a COOL setting.
Air Direction—Up and Down (on some models)
Fingertip pressure on the horizontal louvers adjusts
the air direction up or down.
FAN Mode
Use the FAN at HIGH (3), MED (2) or LOW (1) to
provide air circulation and filtering without cooling.
Since fan only settings do not provide cooling, a
temperature setting will not be displayed.
OR
Air Direction—Side-to-Side (on some models)
On some models, the side-to-side air direction is
adjusted by the louver levers or by grasping and
moving the inner vertical louvers. OR
5

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
6
About the controls on the air conditioner—models with control knobs.
Features and appearance will vary.
Controls
Mode Controls
HIGH COOL, MED COOL and LOW COOL provide
cooling with different fan speeds.
LOW FAN or HIGH FAN provides air circulation
and filtering without cooling.
NOTE: If you move the switch from a cool setting to OFF or
to a fan setting, wait at least 3 minutes before switching back
to a cool setting.
Cooling Descriptions
For Normal Cooling–Select HIGH COOL or MED
COOL with the temp control at midpoint.
For Maximum Cooling–Select HIGH COOL with the
temp control at the highest number available on
your knob.
For Quieter & Nighttime Cooling–Select LOW COOL
with the temp control at midpoint.
Temp Controls
The temp control is used to maintain the
room temperature. The compressor will cycle
on and off to keep the room at the same
level of comfort. When you turn the knob to
a higher number, the indoor air will become
cooler. Turn the knob to a lower number
and the indoor air will become warmer.
MODE CONTROLS
Your model will have one of the above type controls.
TEMP CONTROLS
Your model will have one of the above type controls.
OFF
LOW
FAN
LOW
COOL
HIGH
FAN
HIGH
COOL
MED
COOL
OFF
LOW
FAN
LOW
COOL
HI
FAN
HI
COOL
COOLEST
1
2
3
4
56
7
8
9
10
COOLEST
1
2
3
45
6
7
8
COOLEST
1
2
34
5
6
OFF
LOW
FAN
LOW
COOL
HI
FAN
HI
COOL
MED
COOL

The vent control is located on the inside of the
air louvers in the lower right corner.
When set at CLOSE, only the air inside the room
will be circulated and conditioned. When set at
OPEN, some inside air is exhausted outside.
Air Direction—Up and Down (on some models)
Fingertip pressure on the horizontal louvers adjusts
the air direction up or down.
OR
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions Installation Instructions
7
www.GEAppliances.com
Additional controls and important information.
Vent Control (on some models)
To open the vent, push the lever to the right.
To close it, push it to the left.
Air Direction—Side-to-Side
On some models, the side-to-side air direction is
adjusted by the louver levers or by grasping and
moving the inner vertical louvers.
OR

Air Filter
The air filter behind the front grille should be
checked and cleaned at least every 30 days or
more often if necessary.
Clean the filter with warm, soapy water. Rinse and
let the filter dry before replacing it.
CAUTION: DO NOT operate the air
conditioner without a filter because dirt and lint will clog it
and reduce performance.
To remove (on some models):
Open the inlet grille upward by pulling out
the bottom of the inlet grille.
Using the tab, pull up slightly on the filter to
release it and pull it down.
To remove (on some models):
Open the inlet grille downward by pulling out
the upper corners of the inlet grille. Lift it up
and off.
Grasp the filter at the top center and slide
it out.
To remove (on some models):
To remove (on some models):
2
1
2
1
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly. If they are clogged
with dirt or soot, they may be professionally
steam cleaned, a service available through your
GE service outlet.
Grille and Case
Turn the air conditioner off and remove the
plug from the wall outlet before cleaning.
To clean, use water and a mild detergent.
Do not use bleach or abrasives.
Care and cleaning of the air conditioner.
8
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
Grab the tab on the filter
and pull it to the right.
Grab the tabs on
the filter and pull
it up and out.
How to Insert the Batteries
Remove the battery cover by sliding it
according to the arrow direction.
Insert new batteries making sure that the (+)
and (–) of battery are installed correctly.
Reattach the cover by sliding it back
into position.
NOTES:
■ Use 2 “AAA” (1.5 volt) batteries. Do not use
rechargeable batteries.
■ Remove the batteries from the remote control if
the system is not going to be used for a long time.
3
2
1

Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions Installation Instructions
9
Front Grille and Case
Turn the air conditioner off and remove the plug
from the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not
use bleach or abrasives.
To remove the front grille:
On some models, remove the knobs and the
screw behind the left knob.
On some models, remove the knobs, filter and
screw behind the filter bottom.
Gently but firmly grasp the lower grille corners
and pull forward to release.
Lift the top of the grille up and off to release
from the tabs.
To replace the grille:
Hook the front of the grille onto the tabs
on the top of the case.
Snap the bottom sides of the grille into
the case slots.
Replace the screw and attach the knobs.
C
B
A
C
B
A
www.GEAppliances.com
On some models, remove the bottom right
grille screw.
On some models, open the inlet grille from
the sides and remove it. Remove the screw
from the lower right corner if present.

BEFORE YOU BEGIN
Read these instructions completely
and carefully.
•IMPORTANT —Save these
instructions for local inspector’s use.
•IMPORTANT —Observe all
governing codes and ordinances.
•Note to Installer – Be sure to leave these
instructions with the Consumer.
•Note to Consumer – Keep these
instructions for future reference.
•Skill level – Installation of this appliance
requires basic mechanical skills.
•Completion time – Approximately 1 hour
•We recommend that two people install
this product.
•Proper installation is the responsibility
of the installer.
•Product failure due to improper installation
is not covered under the Warranty.
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: www.GEAppliances.com
Installation Air Conditioner
Instructions
Some models require a 115/120-volt a.c.,
60 Hz grounded outlet protected with a
15-amp time delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall
outlet you plan to use is only a 2-prong outlet,
it is your responsibility to have it replaced with
a properly grounded 3-prong wall outlet.
Some models require 230/208-volt a.c.,
protected with a time delay fuse or circuit
breaker. These models should be installed
on their own single branch circuit for
best performance and to prevent
overloading house or apartment wiring
circuits, which could cause a possible
fire hazard from overheating wires.
ELECTRICAL REQUIREMENTS
TOOLS YOU WILL NEED
10
Phillips head screwdriver
Adjustable wrench Ruler or tape measure
Pencil
Level
Scissors or knife
CAUTION:
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord
of this air conditioner.
Aluminum house wiring may present special
problems—consult a qualified electrician.

11
Installation Instructions
PARTS INCLUDED
Type A (9) Security bracket (3)
Type B (8)
Top mounting rail
Right
accordion
panel
Foam top
window gasket
Window
sash seal
Left
accordion
panel
Air
conditioner
Top mounting rail
seal strip

PREPARE AIR CONDITIONER
Remove the backing from the top
mounting rail seal strip and attach it to
the bottom of the top mounting rail.
Install the top mounting rail with 3 type A
screws from the outside of the case.
Loosen the lower screw on each side of
the case and hook a security bracket on
each side.Tighten the screws to secure
the brackets in place.
3
A
B
Top mounting
rail
Bottom
mounting rail
C
Security
bracket
Security
bracket
12
Installation Instructions

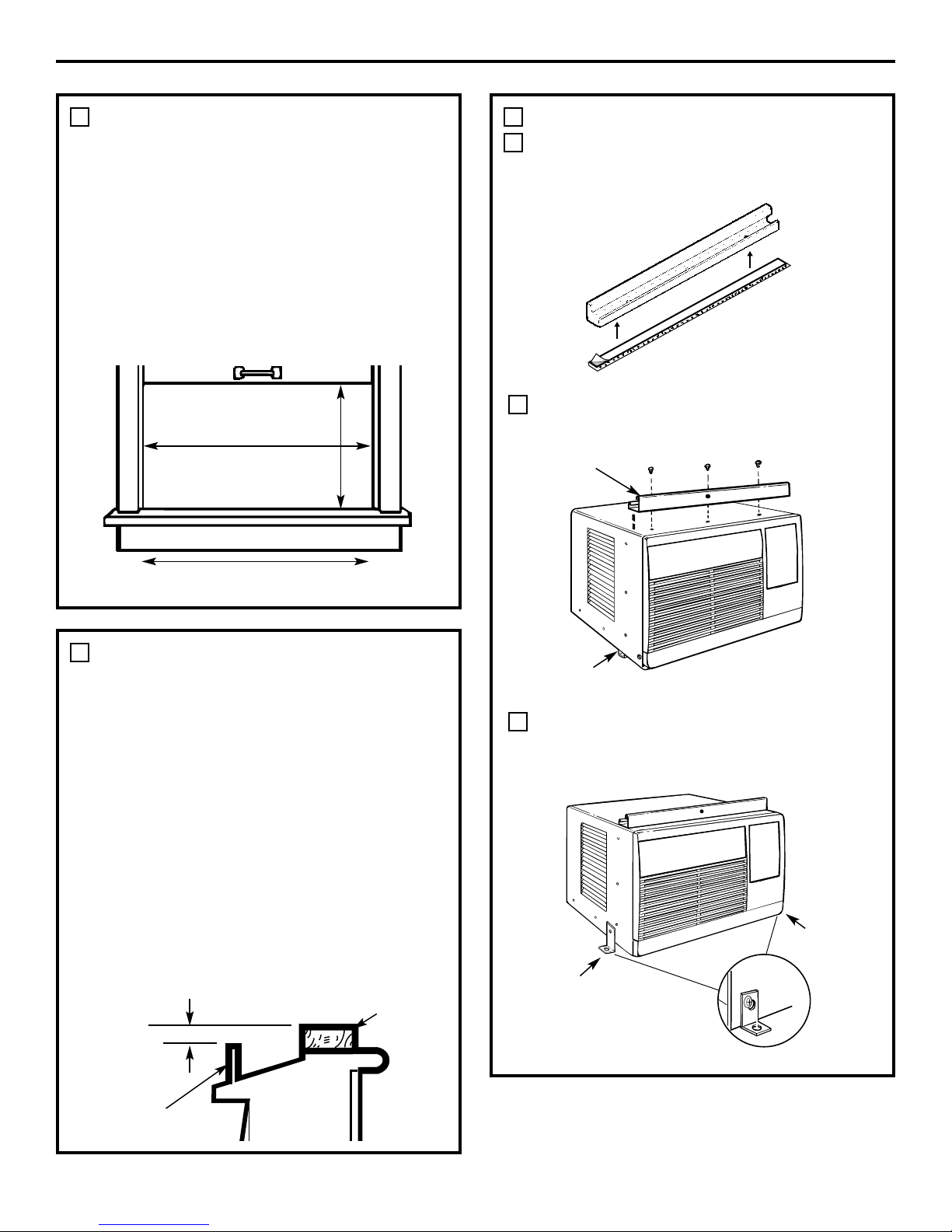

WINDOW REQUIREMENTS
• These instructions are for a standard
double-hung window. You will need to
modify them for other types of windows.
• The air conditioner can be installed
without the accordion panels if needed
to fit in a narrow window. See the
window opening dimensions.
• All supporting parts must be secured
to firm wood, masonry or metal.
• The electrical outlet must be within
reach of the power cord.
1
127⁄8″min.
22″to 36″
(With accordion panels)
1713⁄16″min.
(Without accordion panels)
STORM WINDOW
REQUIREMENTS
A storm window frame will not allow the
air conditioner to tilt toward the outside,
and will keep it from draining properly.
To adjust for this, attach a piece of wood
to the stool.
WOOD PIECES–
WIDTH: 2″
LENGTH: Long enough to fit inside the
window frame.
THICKNESS: To determine the thickness,
place a piece of wood on the stool to
make it 1/2″higher than the top of the
storm window frame.
Attach securely with nails or screws
provided by the installer.
1/2″ higher
than frame
Storm
window
frame
Wood
Stool
2

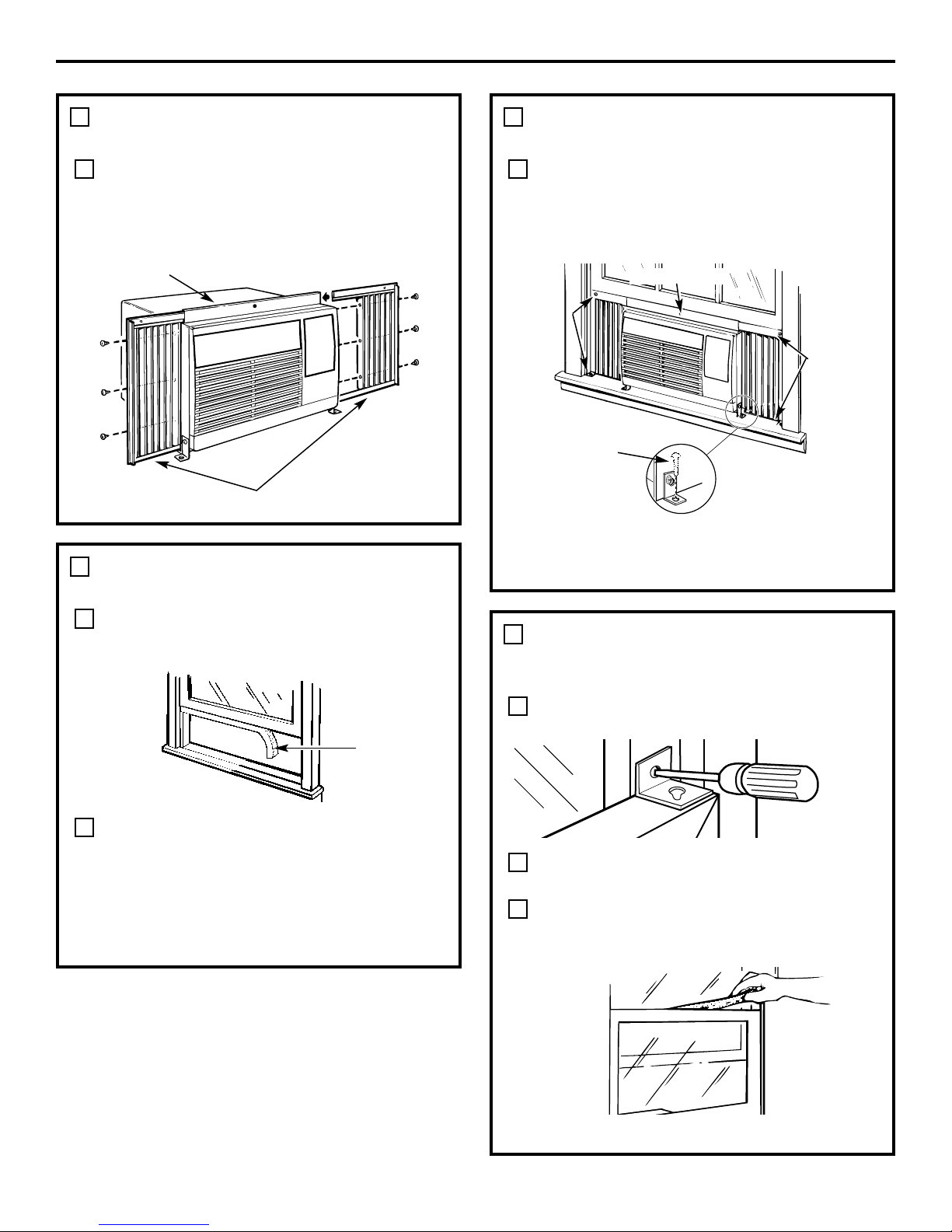

INSTALL AIR CONDITIONER IN
WINDOW
Cut the window sash seal to the window
width and stick the adhesive side to the
bottom of the sash.
Place the air conditioner on the stool with
the bottom mounting rail against its back
edge. Center it and close the window
securely behind the top mounting rail.
It should be level or slightly tilted to the
outside. Use a level; about a 1/3 bubble
will be the correct case slant to the outside.
PREPARE AIR CONDITIONER
(CONT.)
Insert the frames of the accordion panels
into the top and bottom mounting rails.
Attach the accordion panels to the side
of the case using 6 type A screws.
3
D
Top mounting
rail
Accordion panels
Installation Instructions
4
A
Window
sash seal
B
INSTALL AIR CONDITIONER IN
WINDOW (CONT.)
Extend the left and right accordion
panels to the vertical window sashes and
attach with 4 type B screws. Attach the top
mounting rail to the sash with a type B
screw.
Attach the brackets to the stool on both
sides using two type B screws.
4
C
Type B
screws
Type B
screw
Type B screw
Type B
screws
INSTALL SECURITY BRACKET
AND FOAM TOP WINDOW
GASKET
Attach a security bracket with a type B
screw.
Cut the foam top window gasket to the
window width.
Stuff the foam between the glass and the
window to prevent air and insects from
getting into the room.
The installation is now complete.
5
A
B
C
13

14
Normal Operating Sounds
■ You may hear a pinging noise caused by water
being picked up and thrown against the
condenser on rainy days or when the humidity
is high. This design feature helps remove
moisture and improve efficiency.
■ You may hear the thermostat click when the
compressor cycles on and off.
■ Water will collect in the base pan during
high humidity or on rainy days. The water
may overflow and drip from the outdoor side
of the unit.
■ The fan may run even when the compressor
does not.
Troubleshooting Tips…
Troubleshooting Tips: Save time and money!
Problem Possible Causes What To Do
Air conditioner The air conditioner •Make sure the air conditioner plug is pushed
does not start is unplugged. completely into the outlet.
The fuse is blown/circuit •Check the house fuse/circuit breaker box and replace
breaker is tripped. the fuse or reset the breaker.
Power failure. •If power failure occurs, turn the air conditioner OFF.
When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
Air conditioner does Airflow is restricted. •Make sure there are no curtains, blinds or furniture
not cool as it should blocking the front of the air conditioner.
The temp control may •On models with touch pads: In COOL mode, press the
not be set correctly. DECREASE ▼ pad.
•On models with control knobs, turn the temperature
knob to a higher number.
The air filter is dirty. •Clean the filter at least every 30 days.
See the Operating Instructions section.
The room may have been hot. •When the air conditioner is first turned on, you need
to allow time for the room to cool down.
Cold air is escaping. •Check for open furnace registers and cold air returns.
•Set the air conditioner’s vent to the closed position.
Cooling coils have iced up. •See “Air conditioner freezing up” below.
Air conditioner Ice blocks the air flow •On models with control knobs, set the mode control
freezing up and stops the air conditioner at HIGH FAN or HIGH COOL with the temp at 1or 2.
from cooling the room. •On models with touch pads, set the controls at
HIGH FAN or HIGH COOL and set the thermostat to
a higher temperature.
The remote control is The batteries are inserted •Check the position of the batteries. They should be
not working incorrectly. inserted in the opposite (+) and (–) direction.
The batteries may be dead. •Replace the batteries.
Water drips outside Hot, humid weather. •This is normal.
Water drips indoors The air conditioner is not •For proper water disposal, make sure the air conditioner
tilted to the outside. slants slightly from the case front to the rear.
Water collects in Moisture removed from air •This is normal for a short period in areas with little
base pan and drains into base pan. humidity; normal for a longer period in very humid areas.
“E1” appears Function error code. •Unplug the air conditioner. Wait 3 minutes and plug it
in the display back in.
TIMER feature not A power outage or interruption •In the case of a power outage or interruption, the unit
working properly occurred. TIMER feature will reset to the original setting. You may
need to set a new time if desired.
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
GE Service Protection Plus™
GE, a name recognized worldwide for quality and dependability, offers you
Service Protection Plus™—comprehensive protection on all your appliances—
No Matter What Brand!
Benefits Include:
•Backed by GE
•All brands covered
•Unlimited service calls
•All parts and labor costs included
•No out-of-pocket expenses
•No hidden deductibles
•One 800 number to call
You will be completely satisfied with our service protection or you may request your money back
on the remaining value of your contract. No questions asked. It’s that simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand!
Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker
coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable
household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224
for more information.
*All brands covered, up to 20 years old, in the continental U.S.
We’ll Cover Any Appliance.
Anywhere. Anytime.*
Please place in envelope and mail to:
✁Cut here
15

Consumer Product Ownership Registration
Important
Mail
Today!
GE Appliances
GE Consumer Products
General Electric Company
Louisville, Kentucky
www.GEAppliances.com
First
Name
Mr. ■■Ms. ■■Mrs. ■■Miss ■■
Street
Address
City State
Date Placed
In Use
Month Day Year
Zip
Code
Apt. #
Last
Name
Phone
Number __
Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Important: If you did not get a registration card with your
product, detach and return the form below to
ensure that your product is registered, or register
online at www.GEAppliances.com.
123
Model Number Serial Number
✁Cut here
Complete and mail
your Consumer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact you in
the unlikely event of a
safety modification.
After mailing the
registration below,
store this document
in a safe place. It
contains information
you will need should
you require service.
Our service number is
800.GE.CARES
(800.432.2737).
Read your Owner’s
Manual carefully.
It will help you
operate your new
appliance properly.
Model Number Serial Number
E-mail Address*
16
* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important
communications from GE Appliances (GEA).
■■ Check here if you do not want to receive communications from GEA’s carefully selected partners.
FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR
WARRANTY RIGHTS.
For information about GEA’s privacy and data usage policy, go to www.GEAppliances.com and click
on “Privacy Policy” or call 800.626.2224.

17
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions Installation Instructions
Air Conditioner Warranty.
For The Period Of: We Will Replace:
One Year Any part of the air conditioner which fails due to a defect in materials or workmanship.
From the date of the During this full one-year warranty, we will also provide, free of charge, all labor and in-home
original purchase service to replace the defective part.
Five Years Any part of the sealed refrigerating system (the compressor, condenser, evaporator and
From the date of the all connecting tubing) which fails due to a defect in materials or workmanship. During this
original purchase four-year additional warranty, we will also provide, free of charge, all labor and in-home service
to replace the defective part.
■Service trips to your home to teach you how to
use the product.
■Improper installation, delivery or maintenance. If you
have an installation problem, or if the air conditioner
is of improper cooling capacity for the intended use,
contact your dealer or installer. You are responsible
for providing adequate electrical connecting facilities.
■Failure of the product resulting from modifications to
the product or due to unreasonable use including failure
to provide reasonable and necessary maintenance.
■In commercial locations labor necessary to move
the unit to a location where it is accessible for service
by an individual technician.
■Replacement of house fuses or resetting of circuit
breakers.
■Failure due to corrosion on models not corrosion-
protected.
■Damage to the product caused by improper power supply
voltage, accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible
defects with this air conditioner.
■Damage caused after delivery.
What Is Not Covered:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. To schedule service,
on-line, 24 hours a day, visit us at www.GEAppliances.com, or
call 800.GE.CARES (800.432.2737).
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.

Printed in China
18
Consumer Support.
GE Appliances Website www.GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™”
your questions, and so much more...
Schedule Service www.GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at
your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal
business hours.
Real Life Design Studio www.GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen
design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
Extended Warranties www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories www.GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation.
Contact Us www.GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
Register Your Appliance www.GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material.

Instrucciones de seguridad . . . . .2, 3
Instrucciones de seguridad
Controles—botones de control . . .6, 7
Controles—teclas de toque . . . . . .4, 5
Cuidado y limpieza
Baterías . . . . . . . . . . . . . . . . . . . . . . . .8
Bobinas para exteriores . . . . . . . . . . .8
Filtro de aire . . . . . . . . . . . . . . . . . . . .8
Rejilla frontal . . . . . . . . . . . . . . . . . . .9
Rejilla y caja . . . . . . . . . . . . . . . . . . . .8
Instrucciones de instalación . .10–13
Solucionar problemas . . . . . . . . . .14
Sonidos normales de operación . . .15
Servicio al consumidor
Garantía . . . . . . . . . . . . . . . . . . . . . .17
Servicio al consumidor . . . . . . . . . .18
DB98-15878A 49-7471 11-03 JR
ASF05
ASL05
ASM05
ASN05
ASQ05
ASV05
ASL06
ASN06
Acondicionadores de Aire
Manual del propietario e
Instrucciones de Instalación
www.GEAppliances.com
Escriba los números de modelo
y serie aquí:
# de Modelo __________________
# de Serie ____________________
Puede encontrar estos números
en una etiqueta en el costado
del acondicionador de aire.

INFORMACIÓN IMPORTANTE DE SEGURIDAD.
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR.
¡ADVERTENCIA!
Por su seguridad, se debe seguir la información en este manual para minimizar el riesgo de incendios,
descargas eléctricas o lesiones personales.
■ Use este electrodoméstico solamente para
el propósito determinado según se describe
en el Manual del propietario.
■Este acondicionador de aire debe instalarse
correctamente de acuerdo con las
Instrucciones de instalación antes de su uso.
■Nunca desenchufe su acondicionador de
aire tirando del cable eléctrico. Siempre
agarre firmemente el enchufe y tire de
él directamente hacia afuera.
■ Reemplace inmediatamente todos los cables
eléctricos que se hayan pelado o que se
hayan dañado de alguna otra manera. No
use un cable eléctrico que muestre evidencias
de deterioro, o daños de abrasión en su
superficie en alguno de sus extremos.
■ Apague el control de modo y desenchufe
su acondicionador de aire antes de limpiar.
■ GE no está no apoya que se le proporcione
ningún servicio al acondicionador de aire.
Vehementemente recomendamos que
usted no intente proporcionar servicio al
acondicionador de aire usted mismo.
■ Por su seguridad… no almacene ni use
materiales combustibles, gasolina u otros
vapores o líquidos inflamables en la
proximidad de éste o algún otro
electrodoméstico.
■ Todos los acondicionadores de aire
contiene refrigerantes, los que por Ley
Federan deben ser removidos antes de
desecharlos. Si usted planea deshacerse de
algún producto que contenga refrigerantes,
póngase en contacto con la compañía que
se encarga de recoger su basura para que le
indiquen qué hacer.
PRECAUCIONES DE SEGURIDAD
Bajo ninguna circunstancia, corte o remueva la
tercera púa (tierra) del cable eléctrico. En pos
de la seguridad personal, este electrodoméstico
debe siempre conectarse a tierra.
El cable eléctrico de este electrodoméstico está
equipado con un enchufe de tres púas (tierra)
que combina con un tomacorriente estándar
de tres tomas de pared para minimizar la
posibilidad de una descarga eléctrica.
Pida a un técnico que inspeccione el
tomacorriente y el circuito para cerciorarse
de que el tomacorriente está conectado a
tierra de la manera apropiada.
Donde exista un tomacorriente de dos tomas,
es su responsabilidad y obligación personal
hacer que dicho tomacorriente sea
reemplazado por uno de tres tomas con
conexión a tierra.
El acondicionador de aire debería siempre
estar conectado a un tomacorriente individual
con su circuito de voltaje correspondiente.
Esto proporciona el mayor rendimiento y
además evita que los circuitos del resto de
la casa se sobrecarguen, lo cual podría causar
incendios por el sobrecalentamiento
del cableado.
Ver las Instrucciones de instalación, en la
sección Requisitos Eléctricos para los requisitos
específicos de conexión.
CÓMO CONECTAR LA ELECTRICIDAD
Servicio al consumidor Solucionar problemas Operación SeguridadInstalación
2
