GE AQV06 User manual

3
Important Safety Information
7
Installation Instructions
Important Electrical Safety
Window Installation
4
Operating Instructions
The Controls on Your Air Conditioner
Care of Product
12
Helpful Information
Things That Are Normal
13
If Something Goes Wrong
Before You Call for Service
GE Service Numbers
Warranty
GE Appliances
Air Conditioner
Owner’s Manual
Models: AQV05 AQV06
GE Answer Center
®
800.626.2000

Welcome to the GE family. We’re
proud of our quality products and
we believe in dependable service.
You’ll see it in this easy-to-use
manual and you’ll hear it in the
friendly voices of our customer
service department.
Best of all, you’ll experience
these values each time you enjoy
the comfort of your air conditioner.
That’s important, because your
new air conditioner will be part of
your family for a long time.
Welcome
Staple your receipt to the inside back
cover of this manual. You will need it
to obtain service under warranty.
Write down the model and serial
numbers here.
They are on a label in
the middle of the air conditioner
below the air discharge area.
Model number
Serial number
Date of purchase
Before using
your air
conditioner
Need Help?
Before you call for service,
there are a few things you can
do to help us serve you better.
Read this manual. It contains
instructions to help you use and
maintain your air conditioner
properly.
Save time and money. Check the
section titled “If Something Goes
Wrong” before calling. This sec-
tion was designed to solve common
problems that might occur.
If you do need service, you can
relax knowing help is only a phone
call away. Toll-free customer service
numbers are included in the back
of this manual. Or call the
GE
Answer Center
® at 800.626.2000,
24 hours a day, 7 days a week.
Help us
help you
800.626.2000
2
Start Here!

Important Safety Information
3
Read all safety information before using
•This air conditioner must be
properly installed in accordance
with the Installation Instructions
before it is used.
•Repair or replace immediately
all electric service cords that have
become frayed or otherwise
damaged.
•Turn the mode control knob to
OFF
and unplug your air conditioner
before making any repairs.
NOTE: We strongly recommend
that any servicing be performed by
a qualified individual.
Because most 2-prong outlets are
not grounded, we strongly advise
against using an adapter plug.
However, a temporary connection
may be made where local codes
permit and if the 2-prong wall out-
let is properly grounded.
When you plug the adapter in,
make sure the larger prong goes
into the larger slot to provide the
proper polarity for the power cord.
FOR PROPER GROUNDING:
1 Screw the adapter to the outlet,
using the outlet cover screw.
2 Ground the outlet through the house
wiring.
When disconnecting the power
cord from the adapter, hold the
adapter close to the outlet while
pulling the plug out. If this is not
done, the grounding connector is
likely to break with repeated use.
If the grounding connector breaks,
DO NOT USE the air conditioner
until a proper ground has again
been made.
Adapter Plug
This is a temporary method.
UL-listed adapters are avail-
able at most hardware stores.

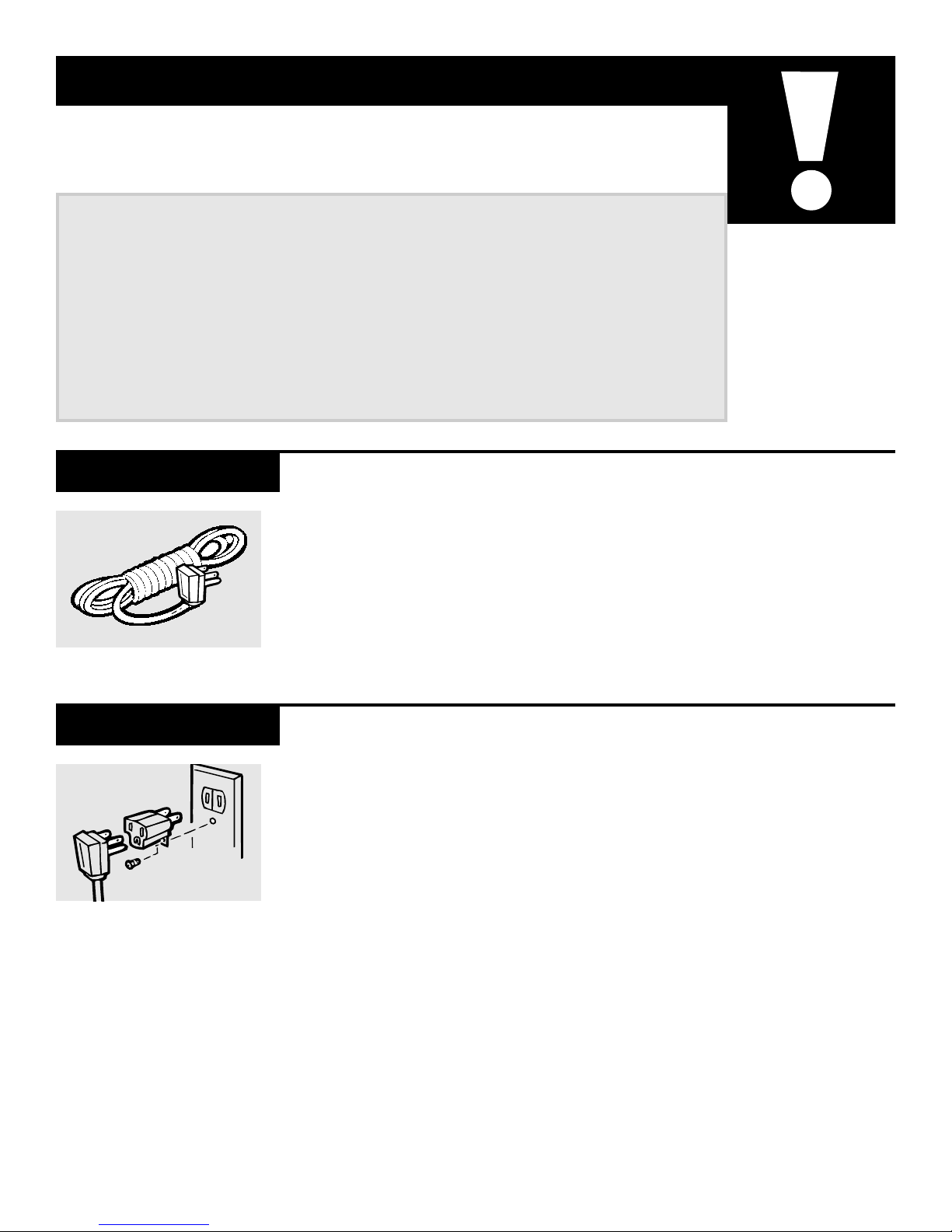

If an extension cord is required to
reach the nearest wall receptacle,
use only a UL Listed, 3-wire,
grounded, 14 gauge, 15A, 125V
appliance extension cord. For
models with nameplate ratings
greater than 12 amperes, do not
use an extension cord.
Extension Cord
SAVE THESE INSTRUCTIONS

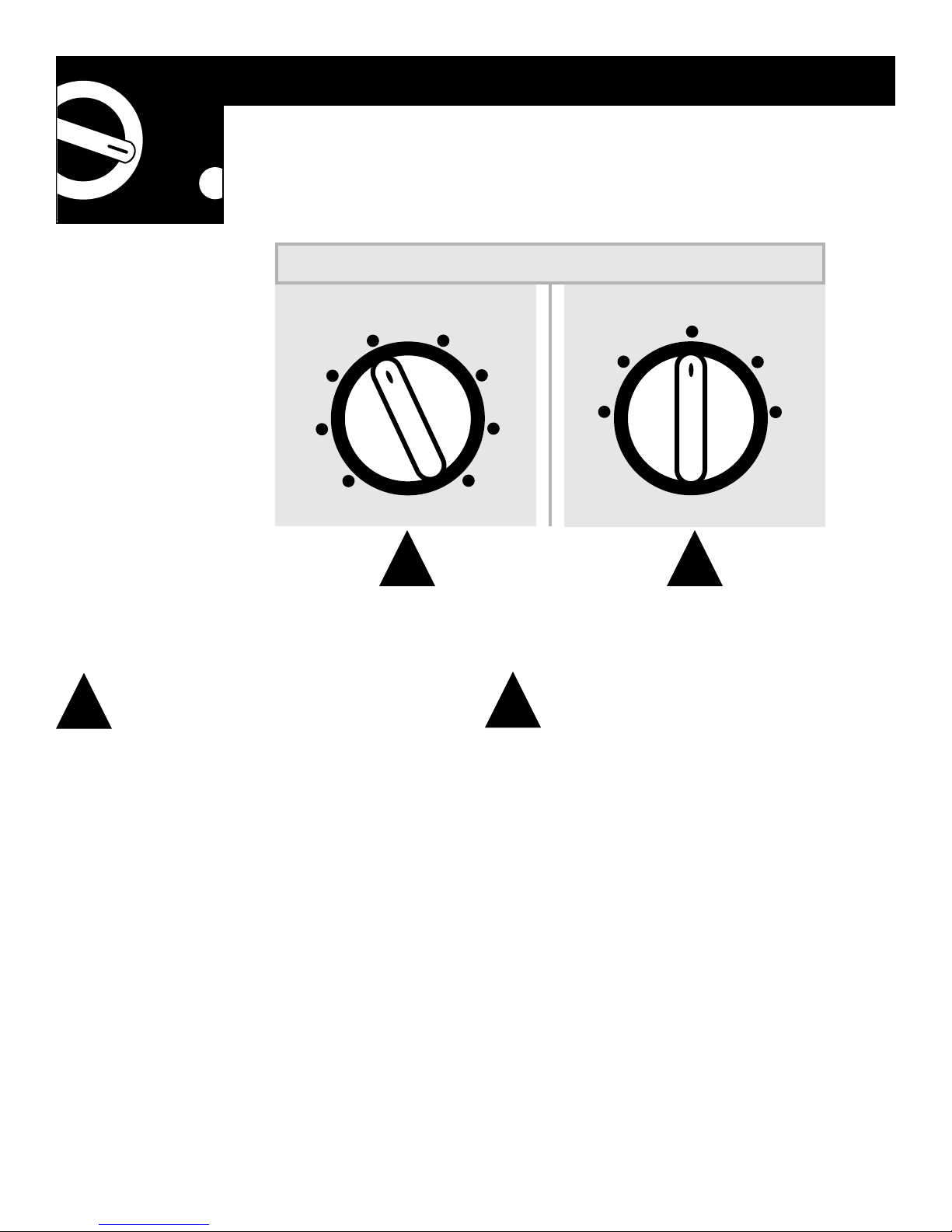

The temp control is used to maintain
the room temperature. The compressor will
cycle on and off to keep the room at the same
level of comfort. The higher the number
selected, the cooler the indoor air will become.
The blower runs as long as the mode control is
not on
OFF .
HIGH COOL, MED COOL and LOW COOL provide
cooling with different fan speeds.
FAN provides air circulation and filtering
without cooling.
NOTE:
If you move the switch from a cool setting to
OFF or to the FAN setting, wait at least 3 minutes
before switching back to a cool setting.
4
Operating Instructions
The
controls
on your
air
conditioner
2
2
1
Temp Control Mode Control
1
2
3
45
6
7
8
OFF
FAN
LOW
COOL
MED
COOL
HIGH
COOL
1
TEMP CONTROL MODE CONTROL

Fingertip pressure on the louvers adjusts the
air direction up or straight ahead.
5
Cooling Descriptions
3
3
Air Direction
FOR NORMAL COOLING
Select
MED COOL with the
thermostat at 4.
FOR MAXIMUM COOLING
Select
HIGH COOL with the
thermostat at 8.
FOR QUIETER & NIGHTTIME COOLING
Select
LOW COOL with the
thermostat at 4.

Operating Instructions
Care & Cleaning
Turn the air conditioner off and
remove the plug from the wall out-
let before cleaning.
To clean, use water and a mild
detergent. Do not use bleach or
abrasives.
Grille and Case
The coils on the outdoor side of
the air conditioner should be
checked regularly. If they are
clogged with dirt or soot they may
be professionally steam cleaned, a
service available through your GE
service outlet.
Outdoor Coils
6
The air filter behind the front
grille should be checked and
cleaned at least every 30 days or
more often if necessary.
To remove: Gently pull the filter tab
to the right and slide it out.
The filter can be cleaned with a
vacuum cleaner to remove light
dust or washed in warm, soapy
water. Rinse and let the filter dry
before replacing it.
DO NOT expose
the filter to heat or direct sunlight
when drying.
CAUTION:
DO NOT operate the air conditioner
without a filter because dirt and lint
will clog it and reduce performance.
Air Filter

•For personal safety, this air
conditioner must be properly
grounded.
•It is important to have the wall
outlet and circuit checked by a
qualified electrician if there is any
doubt as to whether a proper
ground exists.
•Follow National Electrical
Code (NEC) or local codes
and ordinances.
CAUTION:
• Do not, under any circumstances,
cut or remove the third (ground)
prong from the power cord.
• Do not change the plug on the
power cord of this air conditioner.
• Aluminum house wiring may
present special problems—
consult a qualified electrician.
Important Notes
The 115-volt models require a
115/120- volt a.c., 60 Hz grounded
outlet protected with a 15-amp
time delay fuse or circuit breaker.
The 3-prong grounding plug
minimizes the possibility of electric
shock hazard.
If the wall outlet you
plan to use is only a 2-prong outlet,
it is your responsibility to have it
replaced with a properly grounded
3-prong wall outlet.
Electrical
Requirements
Parallel
115V., 15 Amp.
Installation Instructions
Important electrical safety–read carefully
7
Installer: Leave these
instructions with the
appliance.
Owner: Keep these
instructions for future
use.

Installation Instructions
Before you begin
8
Parts Included
•Phillips screwdriver
•Ruler or tape measure
•Knife or scissors
Tools Needed
Air conditioner
2 filler panels
Security brackets (2) 1″screws (7) 3⁄8″screws (6)
Foam top window gasketBottom window gasketWindow sash seal

9
•These instructions are for a
standard double-hung window.
You will need to modify them for
other types of windows.
•The air conditioner can be
installed without the filler panels
if needed to fit in a narrow open-
ing. See the window opening
dimensions to the right.
•All supporting parts should be
secured to firm wood, masonry
or metal.
•The electrical outlet must be
within reach of the power cord.
Do not use an extension cord.
Window
Requirements
A storm window frame will not
allow the air conditioner to tilt
towards the outside and will keep it
from draining properly. To adjust
for this, attach a piece of wood to
the stool.
WOOD PIECES:
WIDTH:
2″
LENGTH: Long enough to fit inside
the window frame.
THICKNESS: To determine the
thickness, place a piece of wood on
the stool to make it 1/2″higher
than the top of the storm window
frame.
Attach securely with nails or screws.
Storm Window
Requirements
Window opening dimensions
are for a standard double-hung
window.
15″ min.
235⁄8″to 351⁄4″
(with filler panels)
193⁄4″ min.
(without filler panels)
1/2″higher
than frame
Stool
Wood
Storm
window
frame

Installation Instructions
Read completely then follow step-by-step
1 Cut the window sash seal to the
proper length.
2 Peel off the backing and attach
the seal to the underside of the
window sash.
Attach the
Window Sash Seal
1 Insert the right and left hand
filler panels into the top and
bottom rails.
2 Secure them with six 3/8″screws,
three on each side.
Install the
Filler Panels
1 Open the window and place the
air conditioner on the stool.
Balance it and close the window
securely behind the top rail. The
unit should be leveled or slightly
tilted to the outside.
2 Slide the filler panels out on
both sides into the sides of the
window jamb.
3 Insert the bottom window gasket
into the space between the win-
dow stool and the bottom of the
air conditioner to seal outside air.
Install the Air
Conditioner in
the Window
10
