GEPSJB60
Tetra®Power Supply Junction Box
Installation Guide
Junction Box Features
Installation
RISK OF ELECTRIC SHOCK:
• Disconnect power at fuse box or circuit breaker before servicing or
installing product.
• Properly ground Tetra®power supply.
RISK OF FIRE:
• Use only Tetra®supply wire to make connection from Tetra®power
supply to Tetra®LED strip.
• Use only approved wire for input connection. Maximum size 14 AWG;
minimum 75C rated.
• Branch circuit limit of 15A.
• Follow all local codes.
RISQUES DE DÉCHARGES ÉLECTRIQUES
• Coupez l’alimentation électrique à la boîte de fusibles ou au
disjoncteur avant l’entretien ou l’installation du produit.
• Assurez-vous de correctement mettre à terre l’alimentation
électrique Tetra®.
RISQUES D’INCENDIE
• N’utilisez que le l d’approvisionnement Tetra®pour faire la
connexion entre l’alimentation Tetra®et la bande DEL Tetra®.
• N’utilisez que des ls approuvés pour les entrées/sorties de
connexion. La taille maximale 14 AWG; minimum 75C nominale.
• Respectez tous les codes locaux.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING/AVERTISSEMENT
Remove screw and lock washer and snap the top cover
off of the junction box.
Select a wire entry knock out location and carefully
remove metal plug. Install wire box tting and supply
wire and secure in place.
1 2
• GEPSJB60 supports: GEPS12-60, GEPS12D-60U, GEPS24-80, GEPS24D-80U,
GEPS12-60U-NA, GEPS12SE-60U-NA, GEPS12-60U-GL, GEPS24-100U-NA,
GEPS24-100U-GL, GEPS24-100U-GLX
• Can be used on primary side of the Tetra Power Supply
• Suitable for dry or damp locations

All trademarks are the property of their respective owners. Information provided is subject to
change without notice. All values are design or typical values when measured under laboratory
conditions. Current, powered by GE is a business of the General Electric Company.
© 2018 GE.
www.currentbyge.com SIGN108 (Rev 08/24/18)
Trim ush with
power supply
edge
Neatly fold wires within the Junction
Box and reattach cover with mounting
screw and washer. Tighten securely.
Complete installation. Continue with
LED light engine connections.

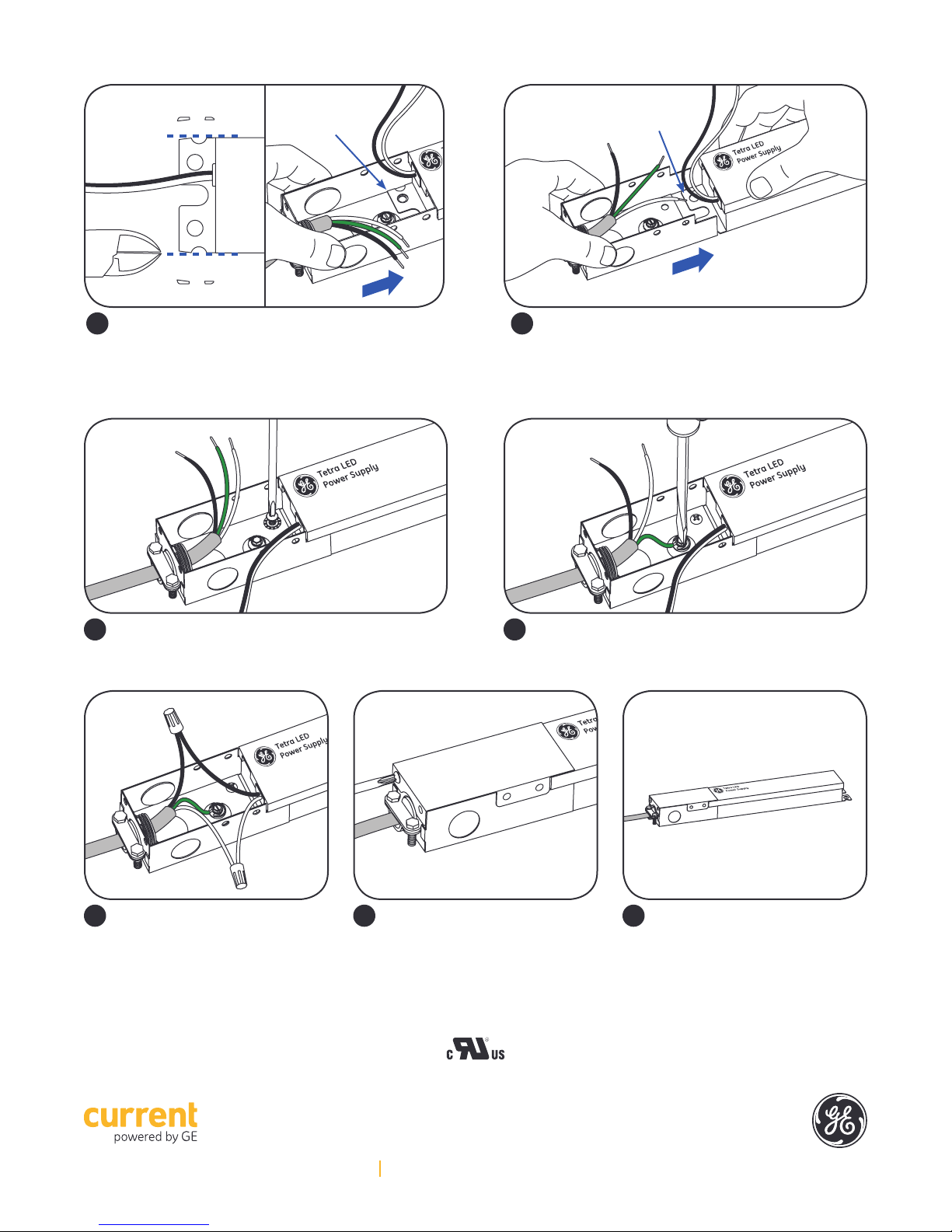

For all other power supplies: Slide junction box onto
AC input end of power supply and align mounting holes.
Ensure power supply mounting tab is under the junction
box.
For GEPS24-100U-GLX only: On the AC input end of
power supply, trim or grind sides of mounting tab ush
with power supply. Then slide junction box onto AC input
end of power supply and align mounting holes. Ensure
power supply mounting tab is inside the junction box.
Connect AC line ground wire to Junction Box ground
screw.
Mount and secure Junction Box and Tetra Power Supply
using #6 or #8 screws and star-type lock washers in
both holes.
Connect Tetra Power Supply to AC
line per instructions enclosed with
the power supply.
7 8
3B3A
54
6
Conforms to the following standards:
Power supply
mounting tab is
inside junction box
AC input end of
GEPS24-100U-GLX
power supply
Power supply mounting tab
is under junction box
