GE Monogram ZHU36RBM Manual

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
130256
Specification Revised 11/07
Listed by
Underwriters
Laboratories
ZHU36RBM
GE Monogram®36" Induction Cooktop

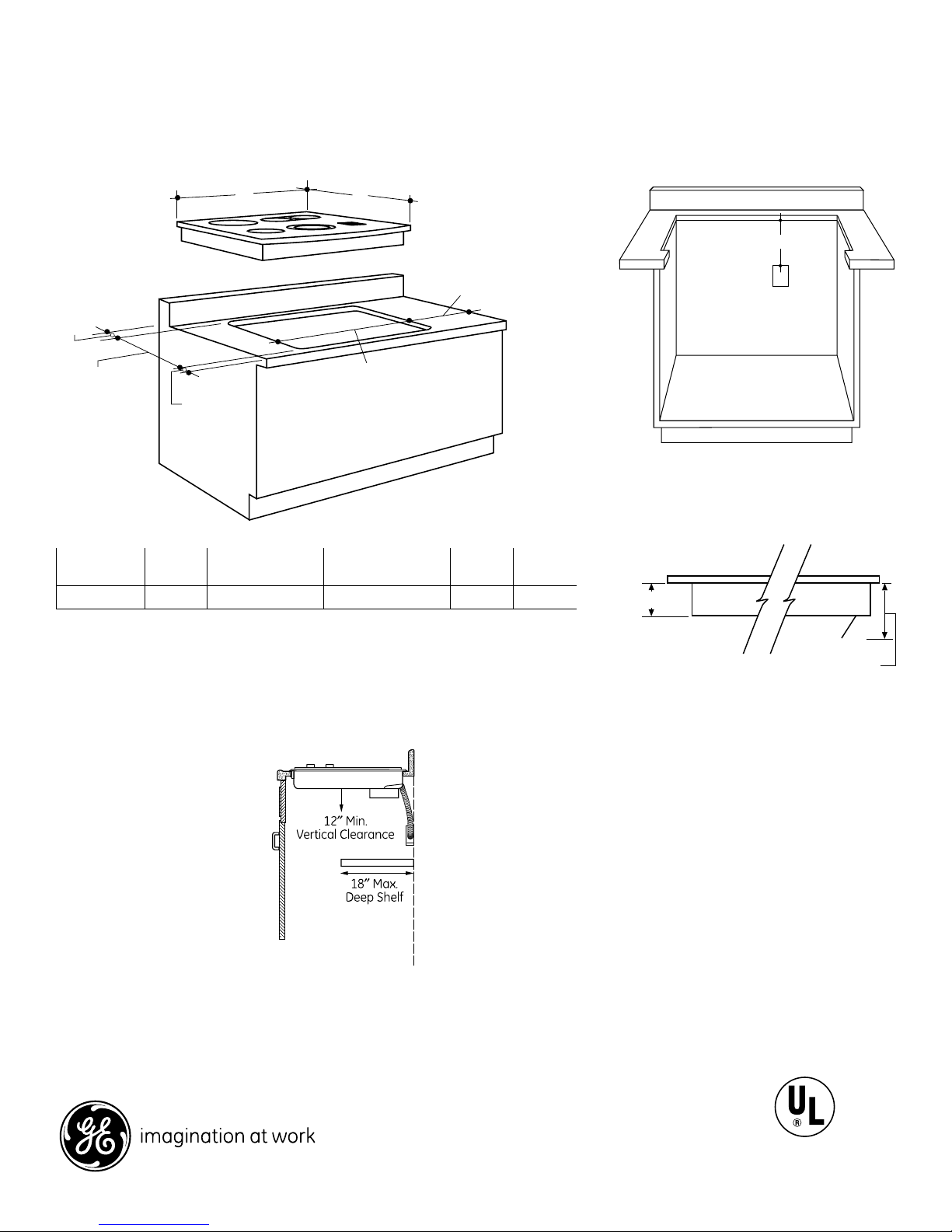

Dimensions and Installation Information (in inches)
269Dia1
A
C
2" Min.
to Side Walls
B
2-1/2"
Min.
to Front
Edge
1-3/4"
Min.
D
3-1/4"
4-5/8" at
Front Baffle
557ZEU669
16" Min
Junction
Box
Note: When the cooktop is installed over an oven, the baffle at
the front is not required.
Combination installations
Consideration must be given to electrical supply locations
when the cooktop is installed with other products in the same
cabinet. Always refer to each product's installation instructions
for clearances and electrical requirements.
• Install these cooktops with any exhaust hood of the same
or treater width; 300 CFM or greater air flow rating is
recommended.
• This 36" cooktop may be installed in combination with
a Monogram®36" downdraft vent. See downdraft vents
for details.
• A Monogram single oven may be installed below these
cooktops.
The serial plate is located on the bottom of the cooktops.
Electrical requirements
Product rating is 120/240V, 60Hz, 36" cooktops
require a 50-amp circuit. The cooktops must
be connected to a supply circuit of the proper
voltage and frequency and protected by a time-
delay fuse or circuit breaker.
All models require 12"
minimum clearance below the
cooktop bottom to combustible
materials.
The cooktop bottom has air
intake ports toward the front
that help cool the components.
Do not install a shelf or
partition beneath the cooktop
that is more than 18" deep.
Dimensions:
36" Models A
B
(depth at sides)
B
(depth at center) C D
ZHU36RSM 36-1/8" 20-15/32" 20-7/8" 33-7/8" 19-1/8"

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
130256
Specification Revised 11/07
Listed by
Underwriters
Laboratories
ZHU36RBM
GE Monogram®36" Induction Cooktop
Features and Benefits
• Induction Technology - Induction elements use
electricity to produce a magnetic field that reacts
with the iron in metal cookware - including cast
iron and magnetic stainless steel pans - and
transfers the heat to the cookware
• Sophisticated Styling - Frameless black models
are smooth from edge to edge, making them
easy to clean
• Digital Controls - Embedded in the cooktop offer
added style and convenience
• 3,700-Watt, 11" Element - The most powerful
induction element in the industry, it provides
instantaneous heat across 19 different
cooking settings
• Digital Pan-Sensing Technology - Detects the
presence of cookware with magnetic properties, a
requirement for induction cooking
• Pan Size Sensor - Automatically adjusts the heating
element to the size of the pan
• Low-Warm Setting - provides just enough heat to
maintain an ideal serving temperature
• Timer, Control-Lock Capability and Hot-Surface
Indicator - provide an extra measure of
convenience and safety
• Flexible Installation - Above a Monogram single
wall oven is made possible by shallow-depth
configuration with integrated cooling system
• Model ZHU36RBMBB – Black
ZHU36RBMBB
