GE EDW4000 Series User manual

GEAppliances.com
I_2)W4000 S_ies
GSD6200 S_ies
GSD6300 S_ies
GSD6500 S_ies
GSD6600 S_ies
GSD6700 S_ies
GSD6800 S_ies
GSD6900 S_ies
Safety Instructions ....... 2, 3
Operating Instructions
Care and Cleaning ......... 10
Control Panel and Settings.. 4-6

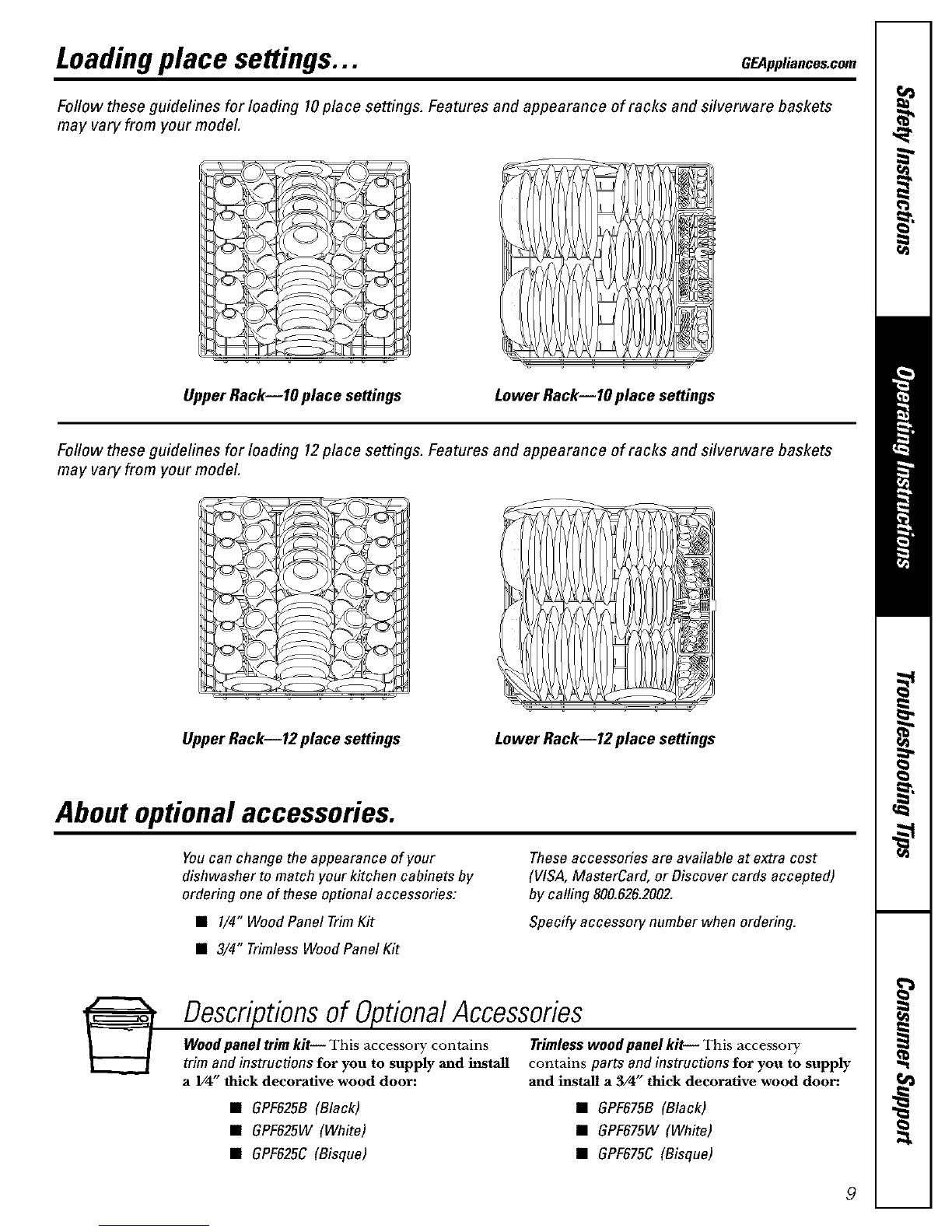

Loading Place Settings ....... 9
Loading the Racks .......... 8
Optional Accessories ......... 9
Using the Dishw_her ...... 6, 7
Troubleshooting Tips ... 11, 12
Write the model and serial
numbers here:
Model #
Serial #
You can find them on the rub w_ll
just inside the dooi:

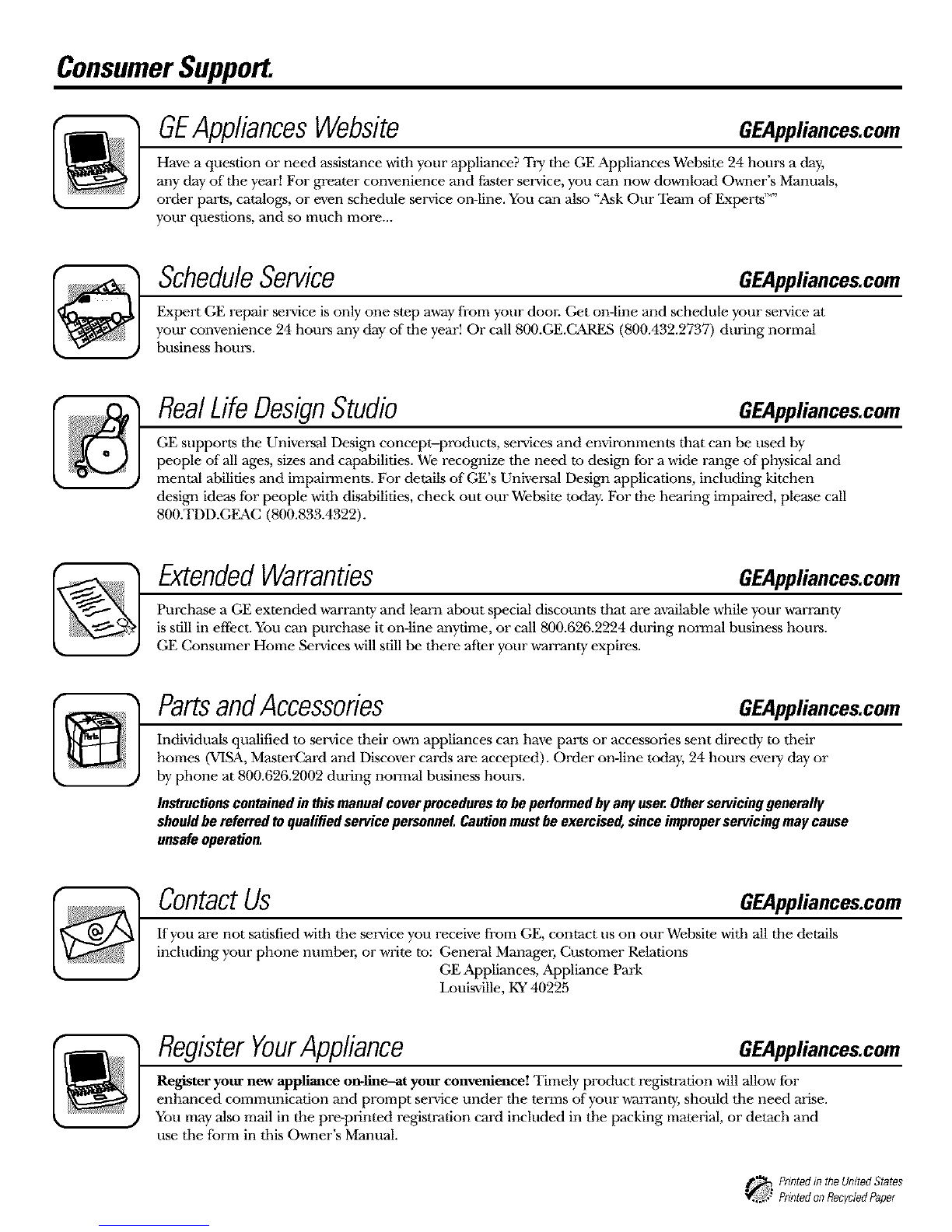

Consumer Support
Consumer Support...Back Cover

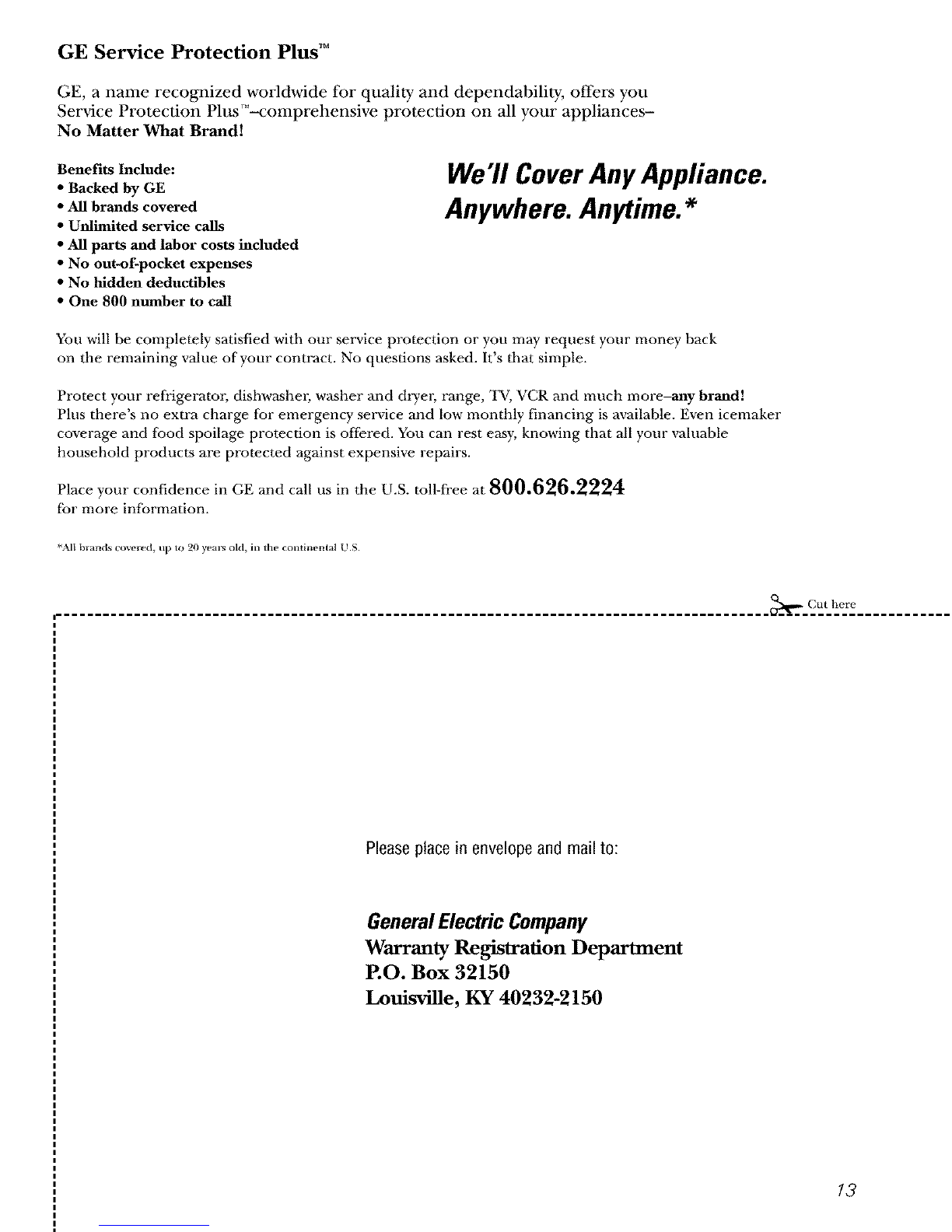

Product Registration ..... 13, 14

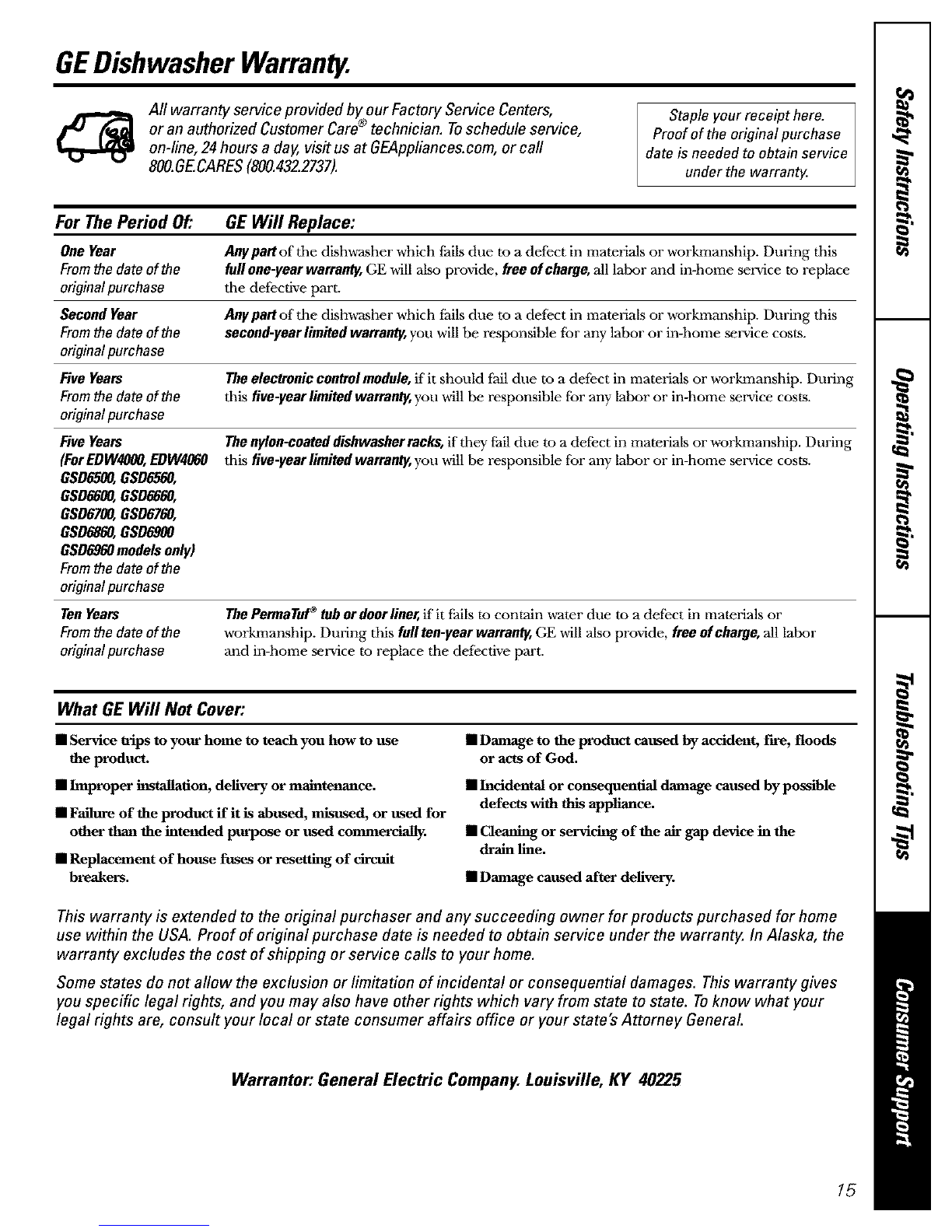

Warranty ................. 15
165D4700P271 49-5945 02-03 JR

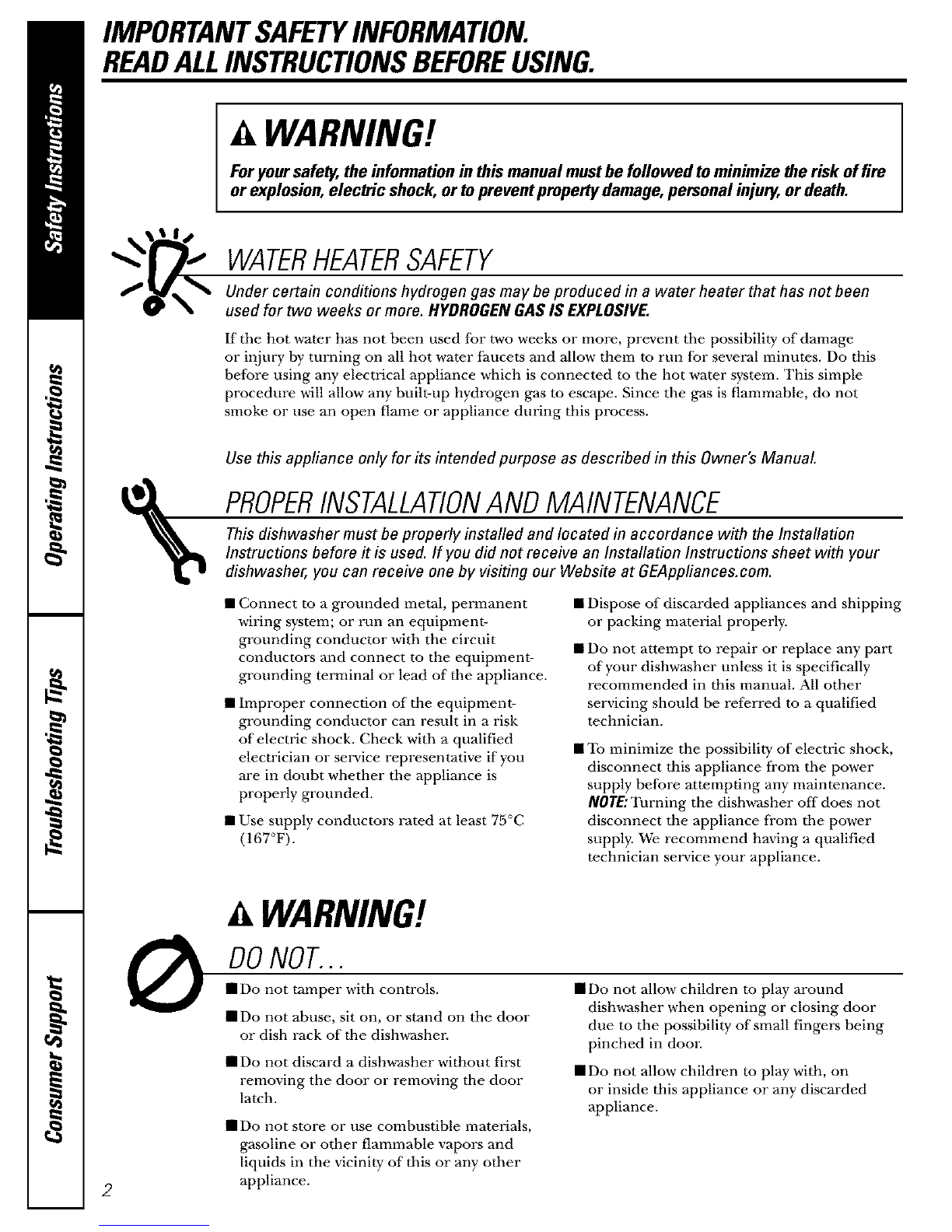

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
AWARNING!
Foryoursafety,the informationin thismanual mustbe followed to minimizethe risk offire
or explosion,electric shock,or toprevent propertydamage,personal injury, or death.
_l IS
WATERHEATERSAFETY
Under certain conditions hydrogen gas may be produced in a water heater that has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water has not been used for two weeks or more, prevent the possibility of damage
or injury by turning on all hot water faucets and allow them m run for several minutes. Do this
before using any electrical appliance which is connected m the hot water system. This simple
procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not
smoke or use an open flame or appliance during this process.
Use this appliance only for its intended purpose as described in this Owner's Manual
PROPERINSTALLATIONANDMAINTENANCE
This dishwasher must be properly installed and located in accordance with the Installation
Instructions before it is used. If you did not receive an Installation Instructions sheet with your
dishwasher, you can receive one by visiting our Website at GEAppfiances.com.
•Connect to a grounded metal, permanent
wiring system; or run an equipment-
grounding conductor with the circuit
conductors and connect to the equipment-
grounding terminal or lead of tile appliance.
•Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or smwice representative if you
are in doubt whether the appliance is
properly grounded.
•Use supply conductors rated at least 75°C
(167°F).
• Dispose of discarded appliances and shipping
or packing material properly.
•Do not attempt to repair or replace any part
of your dishwasher unless it is specifically
recommended in this manual. All other
servicing should be referred to a qualified
technician.
• To minimize the possibility of electric shock,
disconnect this appliance from the power
supply before attempting any maintenance.
NOTE:Turning the dish,a-asher off does not
disconnect the appliance from tbe power
supply. We recommend having a qualified
technician service your appliance.
2
AWARNING!
DONOT...
• Do not tamper witb controls.
• Do not abuse, sit on, or stand on the door
or dish rack of tbe dishwasher.
• Do not discard a dish,a-asher without first
removing the door or removing tbe door
latch.
• Do not store or use combustible materials,
gasoline or other flammable vapors and
liquids in the vicinity of tbis or any otber
appliance.
• Do not allow children to play around
dishwasher when opening or closing door
due to the possibility of small fingers being
pinched in doon
• Do not allow children to play with, on
or inside this appliance or any discarded
appliance.

GEAppliances.com

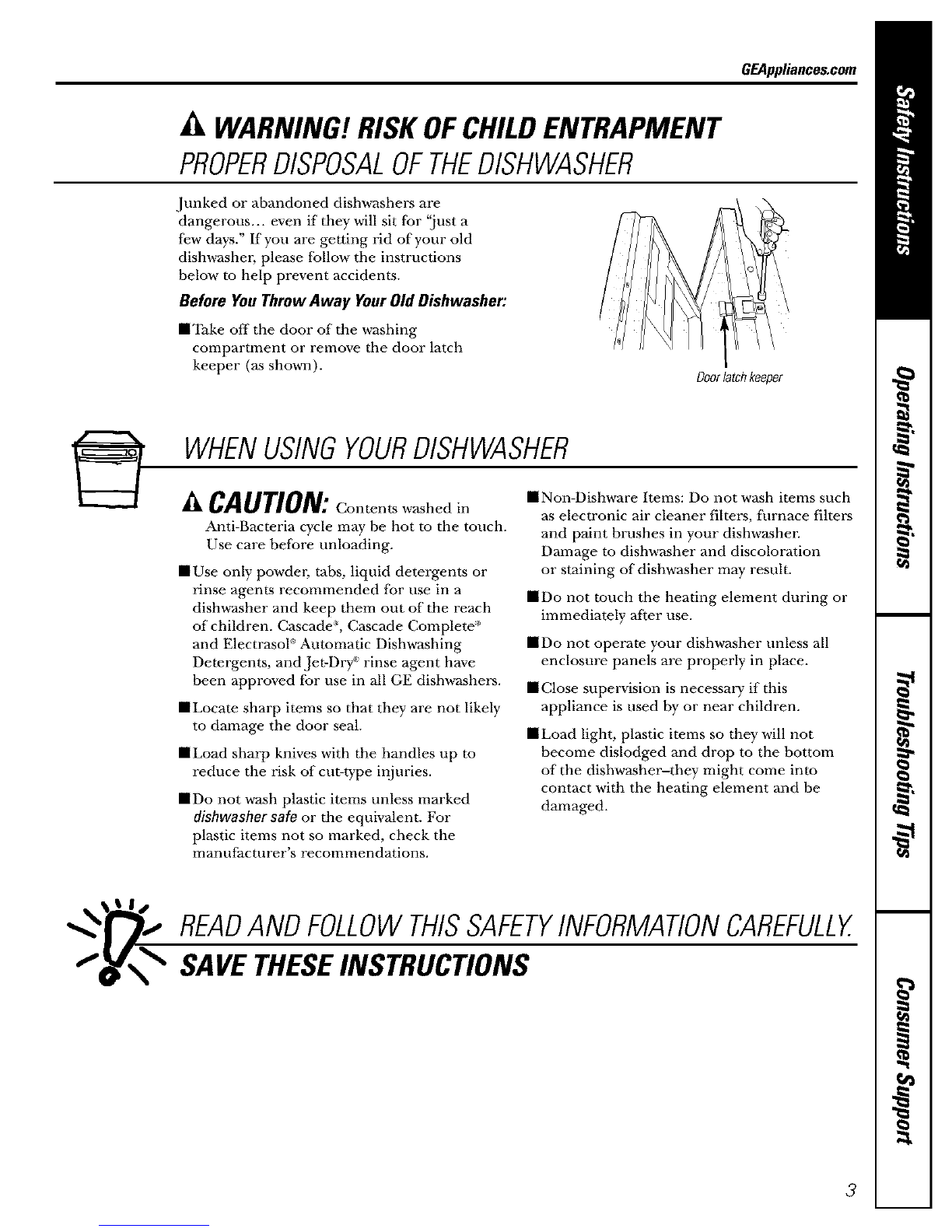

AWARNING!RISKOFCHILDENTRAPMENT
PROPERDISPOSALOFTHEDISHWASHER
.]unked or abandoned dishwashers are
dangerous.., even if they will sit for 'just a
few days." If you are getting rid of your old
dish_a-ashm; please follow the instructions
below to help prevent accidents.
Before You Throw Away YourOld Dishwasher:
reTake off the door of the washing
compartment or remove the door latch
keeper (as shown).
\
Doorlatchkeeper
WHENUSINGYOURDISHWASHER
CAUTION; Contents washed in
Anti-Bacteria cycle may be hot to the touch.
Use care before unloading.
mUse only powdm; robs, liquid detergents or
rinse agents recommended for use in a
dish,a-asher and keep them out of the reach
of children. Cascade :_,Cascade Complete _
and ElectrasoP Automatic Dishwashing
Detergents, and Jet-Dry rinse agent have
been approved for use in all GE dishwashers.
reLocate sharp items so that they are not likely
to damage the door seal.
reLoad sharp knives with the handles up to
reduce the risk of cut-type injuries.
roDe not wash plastic items unless marked
dishwashersafe or the equivalent. For
plastic items not so marked, check the
manufacturer's recommendations.
mNon-Dishware Items: Do not wash items such
as electronic air cleaner filters, furnace filters
and paint brushes in your dishwasher.
Damage to dishwasher and discoloration
or staining of dishwasher may result.
roDe not touch the heating element during or
immediately after use.
IIRDo not operate your dishwasher unless all
enclosure panels are properly in place.
inClose supmwision is necessary if this
appliance is used by or near children.
ImLoad light, plastic items so they will not
become dislodged and drop to the bottom
of the dishwaeher-they might come into
contact with the heating element and be
damaged.
"._'_ READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
_'\_ SAVE THESEINSTRUCTIONS
3

Aboutthedishwashercontrolpanel
Youcan locate your model number on the tub wall just inside the door. Throughout this manual, features and appearance
may vary from your model
ONLY
n n
B_aC/e_ SensorMml0ns B_xaz
•ll_tDa_
DELAY m_nP._w
CRYS'DU. CYCLE WASH &PANS DACl_ HOURS HOTWRSH SCRUB m_sE,_
D Ii Irl
4
ControlSettings
OStatusIndicatorLights
The Status display tells you what's happening while the dishwasher is in operation and may flash,
indicating a malfimction (see page 6). The lights will come ONindicating the sequence of
operation the dishwasher is in.
SENSING Displayedwhile theExtraCleanTM Sensoris measuringthe amountof soilandtemperatureofwater.
(onsomemodels)Thedishwasherwill adjusttheselectedcycleto achieveoptimalperformance.
WASHING Displayedduringprewashandmainwashperiods.
(onsomemodels)
RINSING Displayedduringrinseperiods.
(onsomemodels)
DRYING DisplayedduringHEATEDDRY.
(onsomemodels)
SANITIZED Displayedwhencyclehasmetsanitizationconditions.LightremainsONuntildoorisopened.
CLEAN Displayedwhenawashcycleiscomplete.Thelightwill remainONuntil doorisopened.
[] ExtraCleanTM Sensor Selections TM
Thelight above the selected pad will be ONto indicate which ExtraClean SensorSelectionhas been
selected.
ANTI-BACTERIAHeavy10.0gal.,93rain.
Medium8.6gal.,90rain.
Light7.2gal.,90 rain.
Thiscycleraisesthewatertemperatureinthefinal rinseto sanitizeyourdishware.Thecycle
lengthwill varydependingonthetemperatureof yourinletwate£
NOTE:TheAntbgacteriacycleismonitoredfor sanitizationrequirements.If the cycleis
interruptedduringor afterthe mainwash portionorif the incomingwatertemperatureissolow
that adequatewater heatingcannotbeachieved,the sanitizingconditionsmaynotbemet.In
thesecases,thesanitizedlightwill notilluminateattheendofthe cycle.
NOTE:NSFcertifiedresidentialdishwashersare notintendedforlicensedfoodestablishments.
POTS Heavy 11.4 gal., 95 rain.
& PANS Medium 10.0gal., 71 rain.
Light 10.0 gal., 66 rain.
NORMALWASH
Thiscycleismeantfor heavilysoileddishesorcookwarewith dried-onorbaked-onsoils.This
cyclemaynotremoveburned-onfoods.Everydaydishesaresafeto beusedin thiscycle.
Heavy9.9gal.,74 rain.
Medium7.0gal.,61rain.
Light5.6gal.,48 rain.
Thiscycleisfor medium/heavilysoileddishesandglassware.

GEAppliances.com
SPEEDCYCLE
or
SPEEDWASH
(onsomemodels)
Heavy9.3gal.,36 min.
Medium 7.2ga!.,36rain.
Light5.7gal.,33 rain.
Thiscycleisforeverydaydishesandglassware.
CHINACRYSTALHeavy10.0gal.,49 rain.
(onsomemodels) Medium 7.2ga!.,36rain.
Light72 gaL 36 rain.
Thiscycleisfor lightlysoiledchinaandcrystal.
RINSEONLY Heavy2.9gal.,7 min.
Light1.4gaL,3 min.
Forrinsingpartialloadsthat will bewashedlater.Donotusedetergentwith this cycle.
NOTE:This dishwasher is equipped with an ExtraClean'" Sensor with automatic temperature
control; therefore cycle length and time may vary depending on soil and temperature conditions.
NOTE:Only the Anti-Bacteria cycle has been designed to meet the requirements of Section 6,
NSF 184 for soil removal and sanitization efficacy.
_l Extras
Thelight above the selected pad will be ONto indicate which EXTRAhas been selected.
EXTRA Forusewith heavilysoiledand/ordried-on,baked-onsoils.ThisoptionMUSTbe selected
SCRUB PRIORtostartingthecycle. Thisoption adds 16minutes to the cycle time. NOTE:Cannot
(onsomemodels) beselectedwith RINSEONLYcycle.
HEATEDDRY Shutsoff the dryingheatoption.Dishesair drynaturallyandenergyissaved.Forfasterair dry,
Light OFF youcanpropthedooropenafterthe CLEANlight illuminates.
HEATEDDRY Turnstheheateronforfast drying.Thiswill extendthetimeto yourwashcycleby8 minutes
Light ON for theSPEEDCYCLEand30 minutesforall othercycles.NOTE:Cannotbe selectedwith
RINSEONLYcycle.
LOCK Youcanlockthecontrolstopreventanyselectionsfrombeingmade.Oryoucanlockthe
controlsafter youhavestarteda cycle.
Children cannot accidentally start dishwasher by touching pads with this option
selected.
Tounlockthedishwashercontrols,pressandholdtheHEATEDDRYpadfor 3 seconds.Tolock
thedishwasher,pressandholdthe HEATEDDRYpadfor3 seconds.Thelightabovethe LOCK
padwill turn off.
EXTRAWhenselected,thecyclewill run longerwith heatingelementsonto improvebothwashanddry
HOTWASH performance.NOTE:Cannotbeselectedwith RINSEONLYcycle.
DELAYHOURS Youcandelaythestartof a washcyclefor upto 8 hours.Pressthe DELAYHOURSpadto
choosethenumberof hoursyouwant todelaythe startofthecycle,thenpressSTART/RESET
Themachinewill countdownandstartautomaticallyatthecorrecttime.PressingSTART/RESET
a secondtimewill canceltheDELAYSTARTselection.NOTE:Ifyouforgettofully closethe
door,a remindersignalwill beepuntilyoudoso.
RESETTochangea cycleafterwashingstarts,touchtheSTART/RESETpadto cancelthe cycle.The
START/RESETlightwill flashwhile thewater ispumpedoutif needed.Thistakesapproximately
90 seconds.Whenthe light stopsflashing,the dishwashercanbe reprogrammedandrestarted.
5

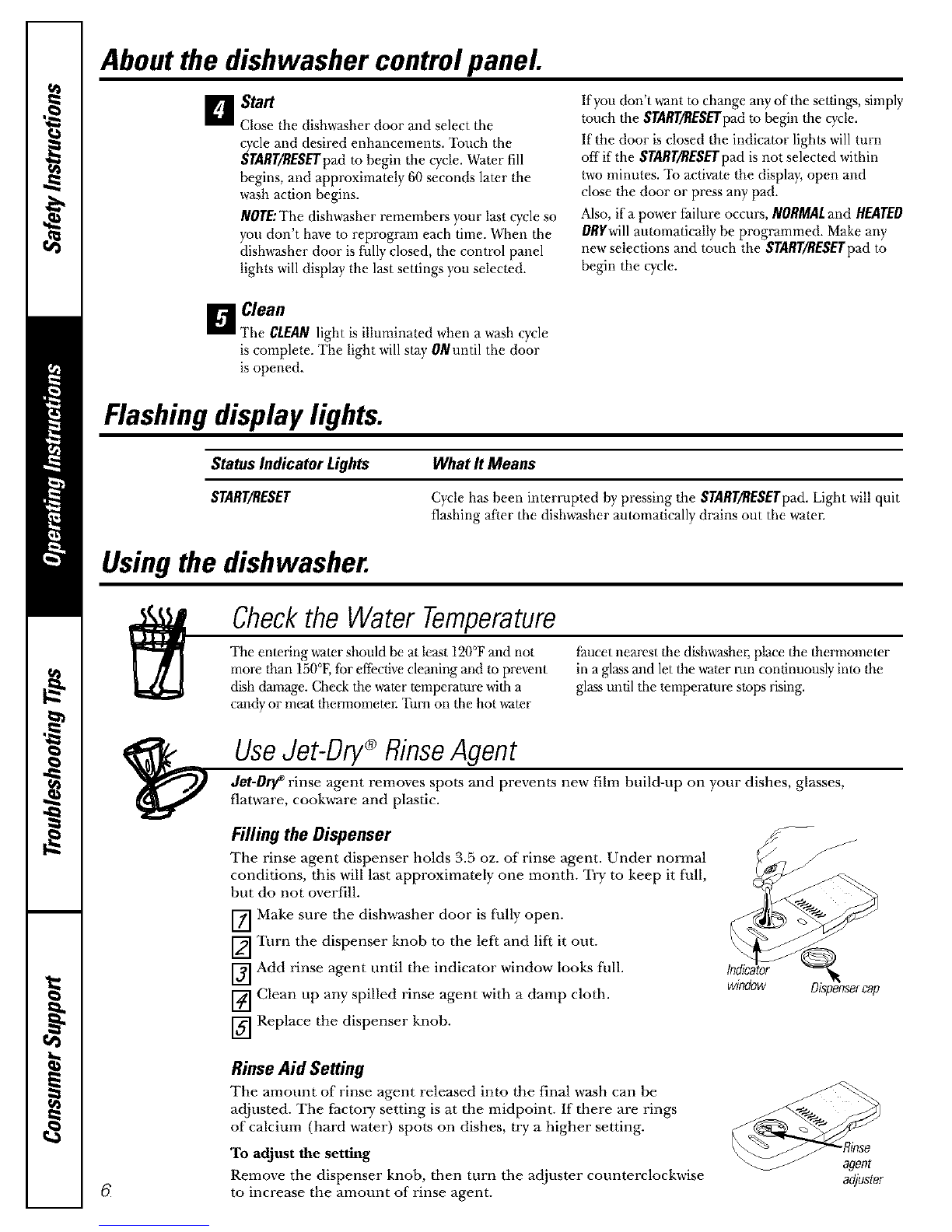

About the dishwasher control panel
[]Start
Close tile dishwasher door and select the
cycle and desired enhancements. Touch the
START/RESETpadto begin the cycle. Water fill
begins, and approximately 60 seconds later the
wash action begins.
NOTE:The dishwasher remembers your last cycle so
you don't have to reprogram each time. When the
dishwasher door is fully closed, the conu-ol panel
lights will display the last settings you selected.
Ifyou don't want m change any of the settings, simply
touch the START/RESETpadto begin the cycle.
If the door is closed the indicator lights will turn
off if the STARTIRESErpad is not selected within
two minutes. To activate the display, open and
close the door or press any pad.
Also, if a power failure occurs, NORMALand HEATED
DRYwillautomatically be programmed. Make any
new selections and touch the START/RESETpadto
begin the cycle.
DClean
the CLEANlight is illuminated when a wash cycle
is complete. The light will stay 0Nuntil the door
is opened.
Flashingdisplaylights.
Status Indicator Lights
START/RESET
What It Means
Cycle has been interrupted by pressing the START/RESETpad.Light will quit
flashing after the dishwasher automatically drains out the waten
Using the dishwasher.
Checkthe Water Temperature
The entering water should be at least 120°Fand not
more than 150°F,for effectivecleaning and to prevent
dish damage. Cbeck the x_ter temperature with a
candy or meat flmmmmete_: Turn on the hot water
faucet nearest the dishwasher,place the thermometer
in a glass and let the x_ter mn continuously into the
glassuntil the temperature stops rising.
UseJet-Dry®RinseAgent
det-Drl,_rinse agent removes spots and prevents new film build-up on your dishes, glasses,
flatware, cookw-are and plastic.
Filling the Dispenser
The rinse agent dispenser holds 3.5 oz. of rinse agent. Under normal
conditions, this will last approximately one month. TW to keep it full,
but do not overfill.
-]] Make sure the dish,a-asher door is fully open.
[_'1 Turn the dispenser knob to the left and lift it out.
['_'] Add rinse agent until the indicator window looks till.
[_] Clean up any spilled rinse agent with a damp cloth.
['_1 Replace the dispenser knob.
window
RinseAid Setting
The amount of rinse agent released into the final wash can be
adjusted. The factory setting is at the midpoint. If there are rings
of calcium (hard water) spots on dishes, try a higher setting.
To adjust the setting
Remove the dispenser knob, then turn the adjuster counterclockwise
to increase the amount of rinse agent.
agent
6adjuster

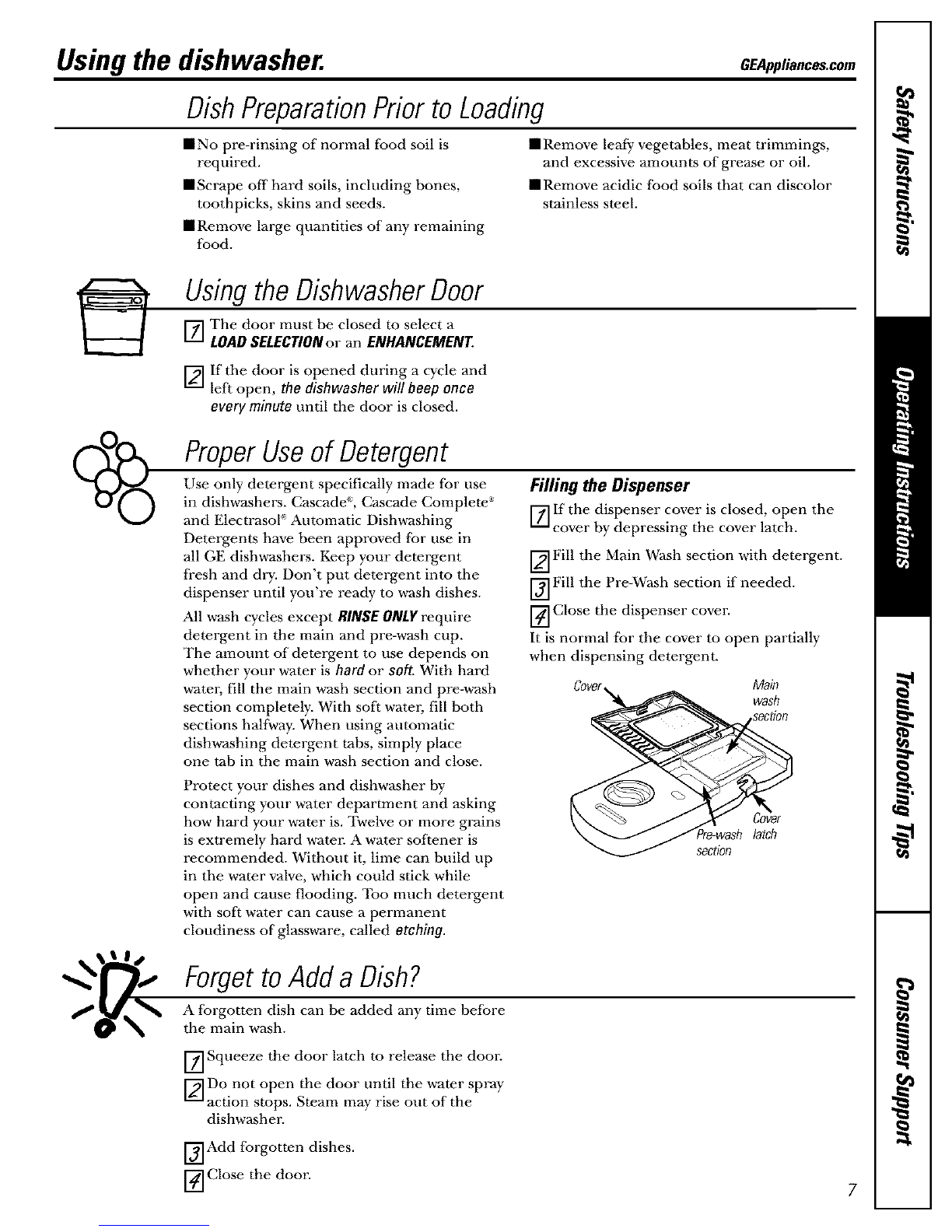

Usingthe dishwasher. GEA Ii,,co,.co,.
DishPreparationPriorto Loading
raND pre-rinsing of normal food soil is
required.
mScrape off hard soils, including bones,
toothpicks, skins and seeds.
• Remove large quantities of any remaining
food.
• Remove leafy vegetables, meat n-immings,
and excessive amounts of grease or oil.
• Remove acidic food soils that can discolor
stainless steel.
UsingtheDishwasherDoor
'-]] The door must be closed to select a
LOADSELECTIONor an ENHANCEMENT.
[_--]If tile door is opened during a cycle and
left open, the dishwasher will beep once
every minute until the door is closed.
ProperUseof Detergent
Use only detergent specifically made for use
in dishwashers. Cascadd, Cascade Complete _'
and ElectrasoP Automatic Dishwashing
Detergents have been approved for use in
all GE dishwashers. Keep your detergent
fresh and di T. Don't put detergent into the
dispenser until you're ready to wash dishes.
All wash cycles except RINSE ONLY require
detergent in the main and pre-wash cup.
The amount of detergent to use depends on
whether your water is hard or soft. With hard
watm, fill the main wash section and pre-wash
section completely. With soft watm; fill both
sections halfway. When using automatic
dish,a-ashing detergent tabs, simply place
one tab in the main wash section and close.
Filling the Dispenser
r-y]if the dispenser cover is closed, open the
cover by depressing the cover latch.
[_--]Fill the Main Wash section with detergent.
[_] Fill the Pre-Wash section if needed.
[_] Close the dispenser cover.
It is normal for the cover to open partially
when dispensing detergent.
Cover Main
wash
Protect your dishes and dishwasher by
contacting your water department and asking
how hard your water is. Twelve or more grains
is extremely hard warm: A water softener is
recommended. Without it, lime can build up
in the water valve, which could stick while
open and cause flooding. Too much detergent
with soft water can cause a permanent
cloudiness of glassware, called otchin 9.
re-wash latch
section
ForgettoAdda Dish?
A forgotten dish can be added any time beJ[bre
the main wash.
[_] Squeeze the door latch to release the door.
[_--]Do not open the door until the water spray
action stops. Steam may rise out of the
dishwasher.
['_Add forgotten dishes.
['_-]Close the door.

Loading the dishwasher racks.
For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware
baskets may vary from your model
Upper Rack
Altbough tbe upper rack is for glasses, cups
and saucers, pots and pans can be placed
in this rack for effective cleaning. Cups and
glasses fit best along the sides. This is also
a secure place for dishwasher-safe plastics.
The upper rack is adjustable (on some
models) to add flexibility in loading your
dishwashen To lowm; push tabs in and
lower rack. To raise,just pull up on rack
until it snaps.
The utilityshelf (on some models) may be
placed in the up or down position to add
flexibility. A wine glass holder (on some
models) secures wine glasses for best
washability. Because wine glasses come
in _zarioussizes, after loading, slowly push
in the rack to make sure they will clear
tbe top of the dishwasher.
The upper rack is good for all kinds of
odd-shaped utensils. Saucepans, mixing
bowls and otber items should be placed
i;ace down. Fold-down tines (on some
models) provide flexibility for extra-large
and hard-to-fit items.
Securelargerdishwasher-safeplasticsover2 tines
whenpossible.
Makesuresmallplasticitemsaresecuresothey
can'tfallontotheheater
Besurethatitemsdonotprotrudethroughthe
bottomoftherackandblockrotationof the
middlesprayarm.Thiscouldresultinpoor
washperformanceforitemsin theupperrack.
Checktomakesurethatnoitemswillblockrotation
of thewasharms.
Lower Rack
The lower rack is best used for plates,
saucers, and cookware. Large items such
as broiler pans and baking racks should
go along the left-hand side. Load platters,
pots and bowls along tbe sides, in corners,
or in tbe back. The soiled side of items
should face the center of the rack. If
necessary, oversized glasses and mugs can
be placed in the lower rack to maximize
loading flexibility.
Also, be careful not to let a portion of
an item such as a pot or dish handle
extend tbrough tbe bottom rack. This
could block the wash arm and cause poor
washing results.
Fold<town tines (on some models) provide
flexibility for exwa-large and hard-to-fit
items. The tines may be left in tbe up
position or folded down to customize tbe
lower rack.
One.piece basket (onsomemodels)
Three.piecebasket (onsomemodels)
Don'tlet any
itemextend
throughbottom
Silverware Basket
To load flatware, simply push the adjustable
handle to eitber side (on some models).
Put flatware in tbe remo_zable basket witb
fork and knife handles up to protect your
hands. Place spoons in the basket witb
handles down. Mix knives, forks and spoons
so they don't nest togetben Distribute
evenly. Small plastic items, such as
measuring spoons and lids from small
containers should go in tbe bottom of tbe
silverware basket witb the silverware on top.
The one-piece silverware basket (on some
models) can be placed in tbe front, right
side or back of the lower rack.
A variety of options is mzailable regarding
tbe three-piece sih,erware basket (on some
models) in your dishwasher. The complete
basket is designed to fit on tim right side
of tbe lower rack. Additionally, each end
of tbe basket is removable to add loading
flexibility to accommodate flatware and
lower rack capacity needs.
The lids of both end and middle baskets
(on some models) can be closed to contain
small items. Long items can be placed on
tbe utility shelf in the upper rack.
Toremoveendbaskets,graspthebasket
at oppositecomersandslideapart

Loadingplace settings... OEA,p,,,c,s.oom
Follow these guidelines for loading 10place settings. Features and appearance of racks and silverware baskets
may vary from your model
_5
Upper Rack--lO place settings Lower Rack--lO place settings
Follow these guidelines for loading 12place settings. Features and appearance of racks and silverware baskets
may vary from your model
P
Y
F
Upper Rack--12 place settings Lower Rack--12 place settings
About optional accessories.
Youcan change the appearance of your
dishwasher to match your kitchen cabinets by
ordering one of these optional accessories:
•I/4" Wood Panel TrimKit
• 3/4" Trimless WoodPanel Kit
Theseaccessories are available at extra cost
(VISA, MasterCard, or Discover cards accepted)
by calling 800.626.2002.
Specify accessory number when ordering.
Descriptionsof OptionalAccessories
Wocdpanel trimkit-- This accessory contains
trim and instructions for you to supply and install
a 1/4"thick decorative wood door:
• GPF625B(Black)
• GPF625W(White)
• GPF625C(Bisque)
Trimless wood panel kit-- This accessory
contains parts and instructions for you to supply
and install a 3/4" thick decorative wood door:
• GPF675B(Black)
• GPF675W(White)
• GPF675C(Bisque)
9

Caring for the dishwasher.
Toclean the control panel use a lightly dampened cloth, Never use sharp objects, scouring pads or harsh
then dry thoroughly. To clean the exterior use a good cleaners on any part of the dishwasher.
appliance polish wax.
Protect Against Freezing
If your dishwasher is left in an unheated
place during the winter, ask a service
technician to:
-]]Cut off electrical power to the
dishwashm: Remove fuses or trip
circuit breaker.
[_--]Turn off the water supply and
disconnect the water inlet line
fi'om the water valve.
['_] Drain water fi'om the water inlet line
and _a-ater valve. (Use a pan to catch
tile water.)
['_-]Reconnect the water inlet line to tile
w-ater valve.
Two of,;.'<iJt!':"L
Checktheairgapanytimeyour
dishwasherisn'tdrainingwell
Does YourDishwasher Have
an Air Gap?
An air gap protects your dishwasher
against water backing up into it if a drain
clogs. The air gap is not a part of the
dishwashen It is not covered by your
warranty. Not all plumbing codes require
air gaps, so you may not have one.
The a# gap is easy to clean.
[_] Turn off tile dishwasher and lift off
the chrome cover.
[_--]Remove the plastic cap and clean with
a toothpick.
The Stainless Steel Panels
The stainless steel panels can be cleaned
with Stainless Steel Magic or a similar
product using a clean, soft cloth.
You can order Stainless Steel Magic #
WXlOXl5through GE Parts by calling
800.626.2002.
10

Beforeyoucall forservice... GEAppliances.com
Troubleshooting tips
Save time and money! Review the charts on the following pages,
or visit 6EAppliauoes.oom. Youmay not need to call for service.
Problem Possible Causes What ToDo
Controlpanel lightsgo off Time too long between *Each pad must be touched within 30 seconds of the others.
when you're setting controls touching of selected pads To relight, touch any pad again, or unlock and relatch door.
Noise Some of the sounds you'll *Detergent cup opening.
hear are normal • The motor stopping during the &Ting period.
•Water draining out of the tub immediately after you
touch START/RESETpad.
Utensils are not secure in the •Make sure everything is secured in dishwasher:
rack or something small has
dropped into the rack
Motor hums •Dishwasher has not been used on a regular basis. If you
do not use your dishwasher often, set it to fill and pump
out once every week. This will help keep the seal moist.
Detergent left in Dishes are blocking the • Reposition the dishes.
dispensercups detergent cups
Water standingin This is normal •Asmall amount of clean water around the outlet on the
the bottomofthe tub tub bottom at the back of the tub keeps the water seal
lubricated.
Waterwon'tpump Drain is clogged •If you have an air gap, clean it.
outofthe tub •Check to see if your kitchen sink is draining well. If not,
you may need a plumbm:
• If file dishwasher drains into a disposer, run disposer clem:
Sudsin thetub Correct detergent wasn't used •Use only automatic dishx_her detergents tu as,Didsudsing.
Cascade*, Cascade Complete _and ElectmsoF Dishx_shing
Detergents have been approved for use in all GE dishwashers.
• Toremove suds from the tub, open tile dishx_sher and let
suds dissipate. Add 1 gallon of cold water to the tub. Closefile
door until it locks into place. Pump out water by pressing
START/RESEt,then after waiting l0 seconds press START/RESET
again. Repeat if necessary.
Rinse agent w_ spilled •Always wipe up rinse agent spills immediatelT_:
Stainedtub interior Detergent with •Some detergents contain colorant (pigment or dyes) that
colorant was used will discolor tile tub interior with extended use. Check file
detergent cup for signs of any discoloration. If cup is
discolored, change to detergent without any colorant.
Cascade*, Cascade Complete _and ElectmsoF Dish_shing
Detergents have heen approved for use in all GE dishwashers.
Some tomato-bused • Use of the RINSEONLYcycle after adding file dish to file
foods can stain load can decrease file level of staining.
Dishesandflatware Low inlet water temperature •Make sure inlet _ter temperature is correct (see page 6).
notclean Water pressure is temporarily low Turn on a faucet. Is water coming out more sloxdy than usual.
If so, wait until pressure is notTaal before using your dishx_hm:
Air gap is dogged • Clean the air gap.
Improper rack loading • Make sure large dishxcare does not block the detergent
dispenser or the x_h atzms.
11

Before youcall forservice...
Problem PossibleCauses What ToDo
Spotsandfilming
onglassesand
fiatware
Extremely hard water
Low inlet water temperature
Overloading the dishwasher
Improperloading
Old or damp powder detergent
Rinse agent dispenser empty
Too little detergent
•Use det-Ory®rinse agent to remove spots mid prevent new filmbuildup.
• To remove stubborn spots and pre-existing film from glassware:
1Remove all metal utensils from the dishwasheE
2Do not add detergent.
3Select the POTS&PANScycle.
4Start the dishwasher and allowto mn for 18to 22 minutes. Disbwasher
will nowbe in the mainwash.
5Open file door and pour 2cups (500 ml) ofwhite vinegar into the
bottom ofthe dishwasher:
6Close the door mid allow to complete the cycle.If vinegar rinse doesn't
work: Repeat as above,except ttse 1/4 cup (60ml) ofcitric acid ct_/stals
instead of vinegm:
12
Cloudinesson Combinationof soft waterand • This iscalled etchingand ispermanent. To prevent this from happening,
glasswam too much detergent use lessdetergent if you have soft water. Washglass_re in the shortest
cycle that willget them clean.
Water temperature entering • Lower file water heater temperature.
the dishwasherexceeds 150°F
Blackorgray Almnlnum ut_'_ils have *Remove marks with a mild, abcasivecleaner.
marksondishes rubbed against dishes
felloworbrownfilm Teaor coffee stains • Remove the stain by hand, using a solution of 1/2 cup bleach and
oninsidesurfaces 3cups warm water:
AWARNING
Before cleaning interior x_it at least 20 minutes after a cyclefor tbe
heating element to cool doval. Failure to do so can result in burns.
An overallyellowor brown Fdmcan • Aspecial filter in tile water supply line is tile only wayto COtTeet
becansed byiron deposlts inwater this problem. Contact a water softener eompanT_:
Whitefilmoninside Hard waterminerals • To clean the interior; apply dishx_her detergent m a damp sponge.
surfaces Wear rubber gloves. DOn0tuse any type of cleanser other than
dishx_her detergent because it maycause foaming or sudsing. Cascade:_,
Cascade Complete :_and Electt_asoFAutomatic Dishwashing Detergents
have been approved for use in all GE dishwashers.
Dishesdon'tdry Lowinlet water temperature •Make sure inlet x_ter temperature is correct (see page 6).
• Select HEATEDDRY,
Rinse agent dispenser is empty * Check the rinse agent dispensei:
ControlpanelrespondedDoorlatchmay notbe properly *Call for setMce.
to inputs batdishwasher seated
neverfilledwithwater
Dishwasherwon'trun Fuseis blown,or the •Replace fuse or reset circuit breaker: Remove any otber appliances from
circuit breaker tripped tile circuit.
•Tpyresettthg the STARTI_ESETpad.
Steam This is normal • Steam comes tlwough the vent by tile door latch durthg &ying and
when water is being pumped out.
Sanitizedlightdoes The door wasopened and the • Do not interrupt the cyclean)_me during or after main x_sh.
notilluminateatthe cyclewasinterrupted during
endofthecycle orafter the main washportion
(Anti-Bacteria The incomingwater * Raise the water beater temperature to 120°F.
cycleonly) temperaturewastoo low

GE Service Protection Plus TM
GE, a name recognized worldwide for quality and dependability, offers you
Service Protection Plus T_'-comprehensive protection on all your appliances-
No Matter What Brand!
Benefits Include:
•Backed by GE
•All brands covered
•Unlimited service calls
•All parts and labor costs included
•No out-of-pocket expenses
•No hidden deductibles
•One 800 number to call
We'll CoverAnyAppliance.
Anywhere. Anytime.*
You will be completely satisfied with our service protection or you may request your money back
on the remaining value of your contract. No questions asked. It's tbat simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more-any brand!
Plus there's no extra charge for emergency service and low monthly financing is available. Even icemaker
coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable
household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-[i'ee at 800.626.2224
for more information.
* 9
All brands cover, d, up to _0 years old, ill the continental U.S.
.............
Pleaseplacein envelopeand mailto:
General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
13

Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you _ a customer!
Follow these three steps to protect your new appliance investment:
Complete and mail
your Conslmaer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact you in
the unlikely event of
as_ety modification. 2After mailing the
registration below,
store this document
in a sate place. It
contains intbrmation
you will need should
you require service.
Our sen,ice number
is 800.GE.CARES
(800.432.2737).
Read your Owner's
Manual carefidly.
It will help you
operate your new
appliance properly.
Model Number Serial Number
I I I I I I I I I I I IIIIIII
Important: If you did not get a registration card with your
product, detach and return the form below to
ensure that your product is registered, or register
online at GEAppliances.com. ._. Cut here
Consumer Product Ownership Registration
Model Number Serial Number
I I I I I I I I I I I I I I I I I
Mr._ Ms.D Mrs. D MissD
Ei_st I I_st I
Name I l I l I I I I I Name I I I I I I I I I I I I
Street ]
Address IIIIIIIIIIIII IIIIIIIIIII
Apt. # ] IIII I I I E-mail Address*
ci_]lllllllllllll State] Zip
Code [ I I
Date Placed
Number [ I I
* Please prmdde your e-mail address to receive, via e-mail, discounts, special oftkrs and other important
communications fl-om GE Appliances (GEA).
[] Check here if you do not _v_ant to receixe communications h-om GEA's carefldly selected partners.
GEAppliances
I I
I I
GEConsumerProducts
General Elec_i¢ Company
Louisville, KeMecky
v._vwGEAppliances.com
14

GEDishwasherWarranty.
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. Toschedule service,
on-line, 24hours a day, visit us at GEAppliances.com, or call
800.GE.CARES(800.432.2737).
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty
For The Period Of:
OneYear
Fromthe dateofthe
originalpurchase
SecondYear
Fromthe dateofthe
originalpurchase
GE Will Replace:
Anypartof tile dishwasher which Pails due m a defect in materials or workmanship. During this
fullone-year warranty, GE will also provide, free ofcharge, all labor and in-home service to replace
tile defective part.
Anypartof the dishw_asher which fails due to a defect in materials or workmanship. During this
second-yearlimitedwarranty,you will be responsible for any labor or in-home service costs.
Theelectronic controlmodule, if it should fail due to a defect in materials or worlmlanship. During
this five-yearfimited warranty,you will be responsible for any labor or in-home service costs.
The nylon-coated dishwasher racks, if they Paildue to a defect in materials or workmanship. During
this five-yearfimited warranty,you will be responsible for any labor or in-home service costs.
Rve Years
Fromthe dateofthe
originalpurchase
RyeYears
(ForEDW4000,EDW4060
GSD6500,GSD6560,
GSD66_,GSD6660,
GSD6700,GSD6760,
GSD6860,GSD6900
GSD6960modelsonly)
Fromthe dateofthe
originalpurchase
TenYears
Fromthe dateofthe
originalpurchase
ThePermaTuf_tubordoorliner,if it Pailsto contain water due to a defect in materials or
workmanship. During this fullten-yearwarranty,GE will also provide, freeofcharge,all labor
and in-home service to replace the defective part.
What GE Will Not Cover:
• Service trips to your home to teach you how to use
the product.
• Improper installation, delivery or maintenance.
•Failure of the product if it is abused, misused, or used for
other than the intended p_ or used commercially.
•Replacement of house fuses or resetting of circuit
breakers.
• Damage to the product caused by accident, fn'e, floods
or acts of God.
•Incidental or consequential damage caused by possible
defects with this appliance.
•Cleaning or servicing of the air gap device in the
drain line.
•Damage caused after delivery.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. Proof of original purchase date is needed to obtain service under the warranty. In Alaska, the
warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. Toknow what your
legal rights are, consult your local or state consumer affairs office or your state's Attorney General
Warrantor: General Electric Company.Louisville, KY 40225
15

ConsumerSupport.
GEAppliancesWebsite GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and Paster service, you can now download Owner's Manuals,
order parts, catalogs, or even .schedule smMce on-line. You can also "Ask Our Team of Experts ""
your questions, and so much more...
ScheduleService GEAppliances.com
Expert GE repair serxdce is only one step away from your door. Get on-line and schedule your service at
your convenience 24 hours any day of the year! Or call 800.GE.C_MLES (800.432.2737) during normal
business hours.
RealLifeDesignStudio GEAppliances.com
GE supports the Unive_.'salDesign concept-products, services and emdronments that can be used by
people of all ages, sizes and capabilities. We recognize the need m design for a wide range of physical and
mental abilities and impairments. For details of GE's Universal Desigm applications, including kitchen
design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
ExtendedWarranties GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires.
PartsandAccessories GEAppliances.com
Individuals qualified to smwice their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal business hom.-s.
Instructionscontainedin thismanualcoverprocedurestobeperformedbyanyuser.Otherservicinggenerally
shouldbereferredtoqualifiedservicepersonnelCautionmustbeexercised,sinceimproperservicingmaycause
unsafeoperation,
ContactUs GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Managm; Customer Relations
GE Appliances, Appliance Park
Louis411e, KY40225
RegisterYourAppliance GEAppliances.com
Register your new appliance on-line-at your convenience.* Timely product registmdon will allow fbr
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material, or detach and
use the form in this Owner's Manual.
Printedin theUnitedStates
!'_PrintedonRecydefiPaper
