GE GDF 570 Series User manual

Dishwashers
Owner’s Manual
49-55094 09-14 GE
Safety Instructions............. 2-3
Operating Instructions
Care and Cleaning .............. 22,23
GettingStarted..................... 4-7
LoadingtheDishwasher..........10-21
UsingtheDishwasher...............8-9
Troubleshooting Tips.........24-26
Consumer Support
Consumer Support...........Back Cover
Warranty ............................27
GEAppliances.com
Write the model and serial
numbers here:
Model # _________________
Serial # __________________
You can find them on the tub wall,
just inside the door.
FRONT CONTROL MODELS TOP CONTROL MODELS
Lave-vaisselle
Lavaplatos
Manuel d’utilisation
Manual del propietario
La section française commence à la page 33
La sección en español empieza en la página 65
Dishwashers
CDT 725-765 Series
DDT 575 Series
GDF 570 Series
GDT 580-740 Series
PDT 750-760 Series
Printed in the United States
Includes GE®, GE Profile™Series
and GE Café™Series products

2
IMPORTANT SAFETY INFORMATION
5($'$//,16758&7,216%()25(86,1*³
SAVE THESE INSTRUCTIONS
For your safety, the information in this manual must be followed to minimize the risk
of fire, explosion, electric shock, and to prevent property damage, personal injury, or
death.
WARNING!
WATER HEATER SAFETY
WARNING!
Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two or more weeks.
HYDROGEN GAS IS EXPLOSIVE.
If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot
water faucets and allowing them to run for several minutes. Do this before using any electrical appliance connected to
the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable,
do not smoke, use an open flame, or use the appliance during this process.
Use this appliance only for its intended purpose as
described in this Owner’s Manual.
Use only detergents or wetting agents
recommended for use in a dishwasher
and keep them out of reach of children.
Using a detergent that is not specifically
designed for dishwashers will cause the
dishwasher to fill with suds.

Locate sharp items so that they are not likely to damage the
door seal.
Load sharp knives with the handles up to reduce the risk of
cut-type injuries.
Do not wash plastic items unless marked dishwasher safe
or the equivalent. For plastic items not so marked, check the
manufacturer’s recommendations.
Do not touch the heating element during or immediately
after use.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Do not tamper with controls.
Do not abuse, sit on or stand on the door or dish rack of the
dishwasher.
To reduce the risk of injury, do not allow children to play with,
on or inside this appliance at any time.
Do not store or use combustible materials including gasoline
or other flammable liquids or vapors in the vicinity of this or any
other appliance.
Small parts, such as rack clips and filter retaining posts, can
be a choke hazard to small children if removed from the
dishwasher. Keep out of reach of small children.
WARNING! When using your dishwasher, follow basic precautions, including the following:
PROPER INSTALLATION AND MAINTENANCE
This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If
you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by visiting our Website at
GEAppliances.com. In Canada, visit www.GEAppliances.ca.
Connect the dishwasher/appliance to a grounded metal,
permanent wiring system; or run an equipment-grounding
conductor with the circuit conductors and connect to the
equipment-grounding terminal or lead of the appliance.

Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified
electrician or service representative if you are in doubt
whether the appliance is properly grounded.
Dispose of discarded appliances and shipping or packing
material properly.
Do not attempt to repair or replace any part of your
dishwasher unless it is specifically recommended in this
manual. All other servicing should be referred to a qualified
technician.
Use only cord kit WX09X70910 or hard-wire to building
electrical. Failure to follow this instruction, could result in risk of
fire and personal injury.
To minimize the possibility of electric shock, disconnect this
appliance from the power supply before attempting any
maintenance.
NOTE: Turning the dishwasher off does not disconnect the
appliance from the power supply. We recommend having
a qualified technician service your appliance.
WARNING!

3
IMPORTANT SAFETY INFORMATION
5($'$//,16758&7,216%()25(86,1*³
SAVE THESE INSTRUCTIONS GEAppliances.com
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
RISK OF CHILD ENTRAPMENT
PROPER DISPOSAL OF THE DISHWASHER
Junked or abandoned dishwashers are dangerous…even if they will sit for “just a few days.” If you
are getting rid of your dishwasher, please follow the instructions below to help prevent accidents.
Do not allow children to play with, on, or inside this or any discarded appliance.
Take off the door of the washing compartment or remove the latch by removing the two screws
from the latch receiver inside the tub (as shown).
WARNING!
Two screws
CAUTION: To prevent minor injury and property damage
During or after wash cycle, contents may be hot to the
touch. Use care before handling.
Close supervision is necessary if this appliance is used by
or near children. Do not allow children to play around the
dishwasher when closing the door, closing the upper rack,
or while vertically adjusting the upper rack due to the
possibility of small fingers being pinched.
Non-Dishware Items: Do not wash items such as
electronic air cleaner filters, furnace filters and paint
brushes in your dishwasher. Damage to the dishwasher
and discoloration or staining of the dishwasher may
result.
Load light-weight, plastic items so they do not become
GLVORGJHGDQGGURSWRWKHERWWRPRIWKHGLVKZDVKHU³
they might come into contact with the heating element
and be damaged.
CAUTION:
This appliance must be supplied with 120V, 60 Hz, and
connected to an individual, properly grounded branch
circuit, protected by a 15 or 20 amp circuit breaker or
time-delay fuse.
If the electric supply provided does not meet the above
specifications, it is recommended that a licensed
electrician install an approved outlet.
Your dishwasher circuit should not be used for any other
appliance while the dishwasher is in operation as the
dishwasher requires the full capacity of the circuit.
ELECTRICAL REQUIREMENTS
If your dishwasher is connected to a wall switch,
ensure that the switch is on prior to use.
If you choose to turn the wall switch off between
wash cycles, allow 5-10 seconds after turning the
switch on before touching Start to allow the control
to initialize.
Use only powder, Cascade®All-in-1 ActionPacs™, liquid
detergents or rinse agents recommended for use in a
dishwasher and keep them out of the reach of children.
Cascade®All-in-1 ActionPacs™ Automatic Dishwashing
Detergent, and Cascade® Rinse Aid™ rinse agents have
been approved for use in all GE dishwashers.
NOTICE

4
Getting started!
Load Dishwasher

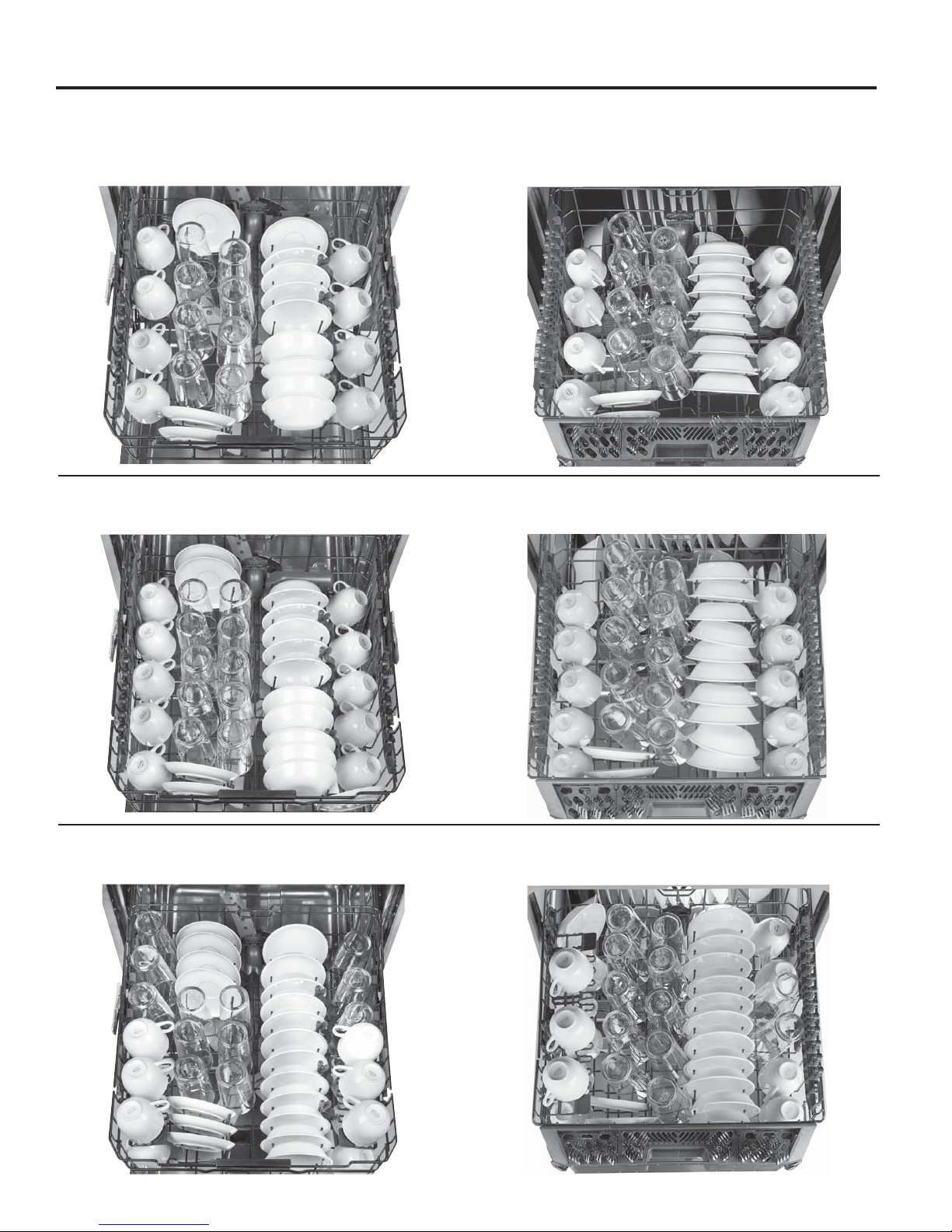

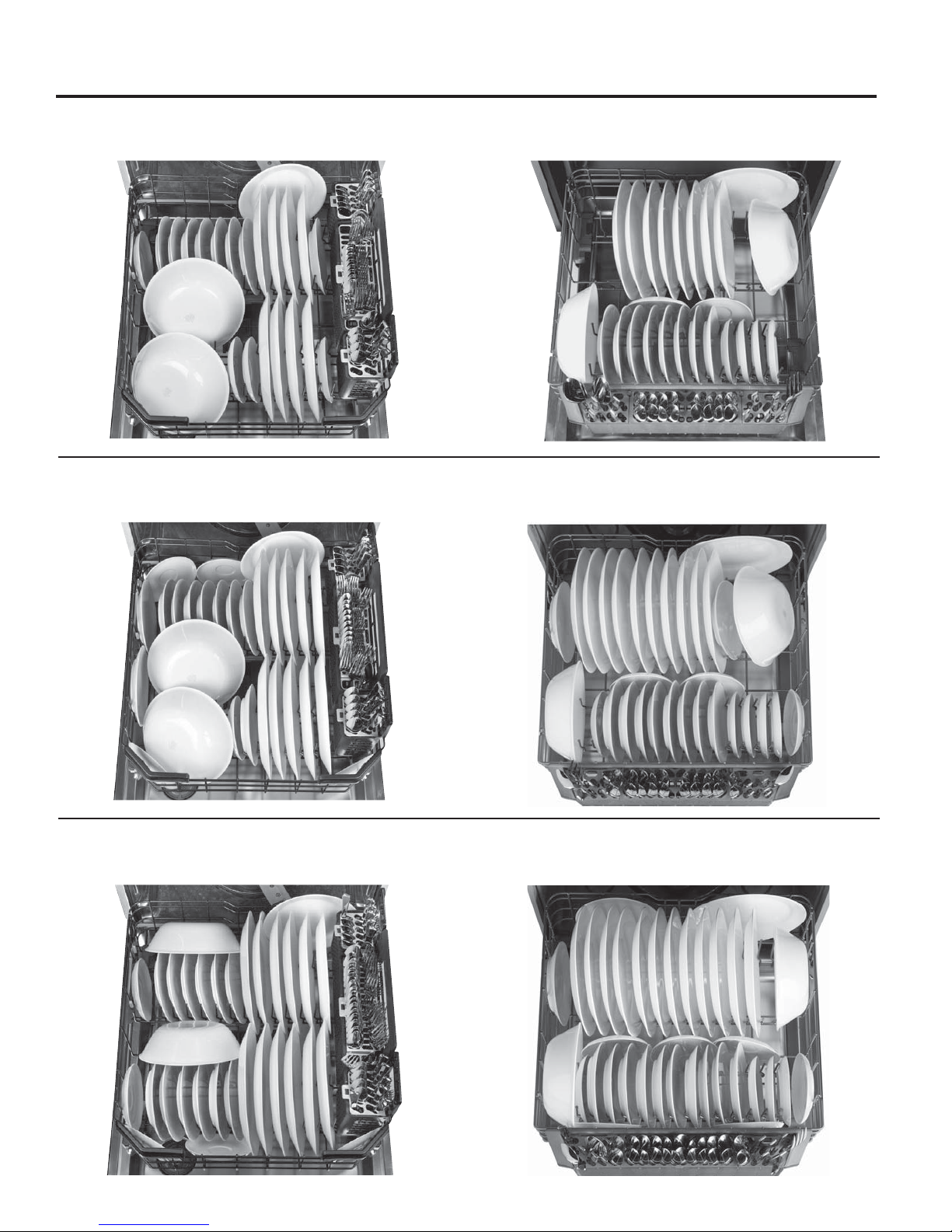

For best dishwashing results, follow the loading guidelines found in the Loading the dishwasher section. No pre-rinsing of normal
food soil is required. Scrape off hard soils, including bones, toothpicks, skins, and seeds. Remove leafy vegetables, meat trimmings,
and excessive amounts of grease or oil.
Add Detergent
Add needed amount of detergent to the detergent dispenser. Use a detergent such as Cascade®Platinum Pacs. See Detergent
Dispenser in the Using the dishwasher section.
Add Rinse Agent
Add Rinse Agent to the rinse agent dispenser. See Use a Rinse Agent in the Using the dishwasher section.
1
2
3
Features and appearance will vary throughout this manual
DDT575, GDT580,
GDT680
GDT720
GDT740, PDT750, PDT760
GDF570
6WHDP
CDT725
CDT765

GEAppliances.com
5
Select Cycle
Press the Select Cycle button for the desired wash cycle. On some models, the light next to the Select Cycle button will be lit to
indicate which wash cycle has been selected. On other models, pressing the Select Cycle button will show various cycles in the
display window. Press the button until the desired cycle is shown.
NOTE: Actual cycle times vary based on soil level, water temperature, and options selected.
The cycle may be selected with the door in the open position. The cycle will not start until after the door is closed and Start selected
within 10 seconds.
AutoSense This cycle automatically senses the soil level and adjusts the wash cycle accordingly. *Time range: 1 hour 50
minutes - 2 hours 10 minutes.
Heavy This cycle is meant for heavily soiled dishes, cookware, pots, or pans with dried-on or baked-on soils.
Everyday dishes are safe to be used in this cycle. *Time: 2 hours 31 minutes.
Normal This cycle is meant for daily, regular, or typical use to completely wash a full load of normally soiled dishes and is
designed to conserve both water and energy. *Time range: 1 hour 15 minutes - 1 hour 50 minutes. NOTE: Normal
was used to rate the energy efficiency of this dishwasher.
Light This cycle is for light to medium soiled dishes. It is safe for china and crystal. *Time: 50 minutes.
Rinse For rinsing partial loads that will be washed later. Do not use detergent. Detergent is not dispensed during the
(on some models) rinse cycle. *Time: 16 minutes.
Express This cycle will quickly wash lightly soiled dishes. *Time: 32 minutes. For faster drying, select Power Dry. The final rinse
(on some models) temperature will be increased. Power Dry will add 15 minutes to the cycle time. When the Clean light comes on,
open the door, pull the racks out, and the dishes will “flash” dry in approximately five minutes.
eWash This cycle will efficiently wash dishes using about 2 gallons of water and .8 KWhr. Selecting Power Dry with this cycle
(on some models) adds an energy efficient 1 1/2 hour dry period. Drying is accomplished with an efficient 2 watt fan. *Time: 1 hour 3 minutes.
*Washing time only. Does not include drying time, Auto Hot Start, or options. NOTE: If the incoming water temperature is too low,
the Auto Hot Start feature may add up to 11 minutes of additional time.
4

6
Getting started!
Select Options
The light by the selected button will be lit to indicate which Option has been selected.
Normal Temp This option is for normally soiled dishes, optimizes wash performance while conserving energy.
(on some models)
Wash Temp This option increases the temperature to help clean heavily soiled dishes and may increase the overall cycle time.
Boost or Option may be turned On or Off during the wash cycle. This option will also improve dry performance on the
Boost Temp Normal cycle.
Wash Temp This option raises the water temperature in the final rinse to sanitize your dishware. The cycle length will
Sani or vary depending on the temperature of your inlet water.
Sanitize NOTE:This option is monitored for sanitization requirements. If the cycle is interrupted during or after the main
Temp wash portion or if the incoming water temperature is so low that adequate water heating cannot be achieved,
the sanitizing conditions may not be met. In these cases, the Sanitized or Cycle Sanitized light will not illuminate
at the end of the cycle. Utilizing this option will modify the cycle to meet the requirements of Section 6, NSF 184
for soil removal and sanitization efficacy.
NOTE: NSF certified residential dishwashers are not intended for licensed food establishments.
Heated or Shuts off the drying option. Dishes air dry naturally and energy is saved. Open the dishwasher door to
Power Dry Off speed drying.
Heated or Turns on the option for faster drying. This option may add up to 65 minutes to the cycle time.
Power Dry On On models with the hidden heater feature, this option boosts the temperature of the dishwasher during the final
rinse portion of the cycle then utilizes a fan to circulate air to dry the dishes. This option is not available with the
Rinse cycle.
Steam For use with heavily soiled and/or dried-on, baked-on soils. This option MUST be selected PRIOR to
(Prewash) starting the cycle. The Steam option adds up to 30 minutes to the cycle time. This option is
(on some models) available with Heavy, AutoSense, and Normal cycles.
Pre Soak Use this option to improve wash performance with heavy or dried-on soils. This option is available
(on some models)
on Heavy, AutoSense, and Normal cycles and may add up to 30 minutes to the cycle time.
Wash Zones Selecting either the Upper or Lower Wash Zones will target dishwashing of just one rack. This will shorten
(on some models) the cycle time and conserve energy. This option should be used when dishes are placed in only one rack.
Bottle Wash This option increases the time that the bottle jets are on and may add up to 23 minutes to the cycle
(on some models) time. Use this to wash difficult to clean, dishwasher safe baby bottles, sport bottles, tall coffee cups, etc. See use
recommendations in the Loading the dishwasher section.
Delay Hours Delays the start of a wash cycle up to 8 to 12 hours depending on model. Press Delay Hours, to select the
number of hours, then press Start one time and close door to begin countdown. The cycle will start once allotted
time has expired.
Control You can lock the controls to prevent selections from being made. You can also lock the controls
Lock after you have started a cycle to prevent cycle changes. For example, children cannot accidentally
start the dishwasher by pressing buttons with this option selected.
To LOCK the dishwasher control, depending on the model, press and hold the 1 or 2 buttons indicated on the
controls for 3 seconds. On some models, it will be the Heated Dry, another the Steam and Wash Temp buttons,
and another model is the Pre-Soak and Bottle Wash buttons. The Control Lock light will turn on to indicate the
control is locked.
To UNLOCK the dishwasher control, depending on the model, press and hold the 1 or 2 buttons indicated on
the controls for 3 seconds. The Control Lock light will turn off to indicate the control is unlocked.
Energy When connected to a smart meter and your electric company, the dishwasher will automatically delay starting a
Smart cycle during the more expensive peak demand times, and run when demand is low. However, you can override
the delay settings and use the dishwasher as needed. Learn more about Energy Smart under the Using the
Dishwasher section.
5

GEAppliances.com
Cycle Indicator Lights and Sounds
Sanitized or Displayed at end of the cycle when Wash Temp Sani or Sanitize Temp has been selected and dishwasher has
Cycle Sanitized met requirements for sanitization. See Wash Temp Sani or Sanitize Temp, for complete description. Closing door
or pressing any button will turn off light.
Clean or Displayed when a wash cycle is complete. The light stays ON as a reminder that the dishes are clean.
Cycle Complete
Low Rinse Aid
Displayed when rinse agent is low or empty. See page 8 for Use a Rinse Agent. To turn indicator off, press the
(on some models) Pre-Soak or Steam button 7 times within 5 seconds. Repeat this process to turn the Low Rinse Aid indicator back
on.
Cycle Status The indicator light on the door front will change color to indicate the wash status. During the wash cycle, the
(on some models) indicator light will be amber. When the wash cycle is complete, the light will change to green.
Sounds The dishwasher will emit a sound to indicate cycle completion, button presses, and door ajar. To mute all sounds,
press the Heated Dry or Power Dry button 7 times within 5 seconds. Repeat this process to turn sounds back on.
Door Wake To turn this option ON/OFF, press and hold the START and WASH TEMP pads for 5 seconds, close the door and wait
Up Mode 3 minutes for the dishwasher to go into sleep mode. In the OFF mode, the control display, control sounds,
(on some models) and interior lights (on some models) will not respond to the door opening/closing. This mode can be used when
observing certain religious holidays such as the Sabbath. To activate the control and interior lights
(on some
models)
, press any pad.
7
7
Start Dishwasher
Start Open door to select the desired options. Press the Start button and close the door within 10 seconds to start the
cycle or begin the Delay Hours countdown. The wash cycle will begin shortly after closing the door. The display
will turn off if the door remains open for two minutes. To activate the display, close and open the door or press
any button.
Interrupt To interrupt or pause a dish cycle, slowly open the door. Opening the door will cause the wash cycle to
or Pause pause. The dishwasher will beep every minute to remind you to close the door. To restart or resume
the cycle, press Start, and close the door within 10 seconds.
Cancel To cancel a wash cycle, press and hold the Start button for 3 seconds and close door. The dishwasher will drain,
emit a beep sound, and the wash cycle light will turn OFF.
6

Rinse agents, such as Cascade®Complete Rinse Aid are designed for great drying action and to protect
against spots and film build-up on your dishes, glasses, flatware, cookware, and plastic.
Filling the Dispenser
The rinse agent dispenser holds 3.5 oz. (104 ml) of rinse agent. Under normal
conditions, this will last approximately one month.
1
Make sure the dishwasher door is fully open.
2
Open the Rinse Agent dispenser door.
3
Slowly add rinse agent until the cup is full. You may need to pause several times to
allow rinse aid to settle.
4
Clean up any spilled rinse agent with a damp cloth to prevent foam from forming
inside the dishwasher.
5
Close the Rinse Agent dispenser door.
Rinse Aid Setting
The amount of rinse agent released into the final wash can be adjusted.
If water drops or hard water spots
remain on dishes after the dry cycle,
increase the setting.
To adjust the setting
Open the Rinse Agent dispenser door;
then turn the adjuster clockwise to
increase the amount of rinse agent,
counterclockwise to reduce the amount
of rinse agent.
Using the dishwasher.
Check the Water Temperature
Use a Rinse Agent
The entering water should be at least 120°F (49°C) and not
more than 150°F (66°C) for effective cleaning and to prevent
dish damage. Check the water temperature with a candy or
meat thermometer.
Turn on the hot water faucet nearest the dishwasher,
place the thermometer in a glass and let the water run
continuously into the glass until the temperature stops rising.
Rinse
agent
adjuster
Indicator
window
Energy Smart
Energy Smart enables your dishwasher to reduce energy
consumption during periods of high energy costs. If you are
in an area where your electricity provider charges variable
rates at different times of the day, your dishwasher will
inform you of those times when you are paying the highest
rate. You can then either delay starting your dishwasher until
the rate goes down; or you can override the feature and run
your dishwasher at your convenience.
What you will need:
1
Smart Meterthatwillcommunicatewithyour dishwasher.
Consult your local electricity provider to determine if the
technology is available in your area.
2
An Energy Smart dishwasher model (CDT725-765,
DDT575, GDF570, GDT580-740, PDT750-760).
3
An Appliance Communication Module (ACM). Please visit,
gebrillion.com to order the communication device that
will need to be installed in the dishwasher.
8
Clockwise to reduce
water drops and
hard water spots
Counterclockwise
to reduce foaming
Leak Protection (on some models)
If a leak is detected, the dishwasher will drain and the cycle
will stop. The display will show “LEAK DETECTED”. Call for
service.

GEAppliances.com
The detergent dispenser is located in the center of the
dishwasher door. It has two compartments. The main wash
compartment is found inside the detergent dispenser.
To open, press the button on the side of the dispenser.
The pre-wash compartment is on the lid of the detergent
dispenser. Use the pre-wash compartment only when your
water is extremely hard or when you have a heavy soiled
load. The pre-wash compartment is not used when tablet
or packet detergents are used.
NOTE: Do not load large items in the lower rack where
they may block the wash jets from rinsing out the
detergent dispenser.
Youmayusetablet,packet,powder,liquidorgelautomatic
dishwasher detergent. Make sure you use only detergents
specifically labeled for use in automatic dishwashers.
Never use liquid hand dish detergent in an automatic
dishwasher. Sudsing and poor wash performance will
result with the use of improper detergents.
Detergents should be stored in a dry location and in their
original container to prevent loss of effectiveness. Place
detergent in the cup just prior to starting the dishwasher
and then close the cover. The cover will open during the
wash cycle.
Filling the Detergent Dispenser
GE recommends using detergent in tablet or packet form.
Independent testing has shown this form of detergent is
very effective in the dishwasher. Cascade®Platinum
Pacs are an example of this type of detergent. Simply put
a tablet or packet into the main wash compartment and
slide to close the detergent cup cover. Please notice that
the tablet or packet must be placed in the main wash
compartment of the detergent cup. If the tablet or packet
is tossed in the bottom of the dishwasher, the detergent
will be flushed down the drain in a very short period of
time and will thus be wasted. Wash performance will be
very poor as a result.
If you choose to use detergent in powder, liquid or gel
form, the amount of detergent you use will be determined
by the hardness of your water, the temperature of your
water, and the food soil load inside the dishwasher.
Contact your water company to get information about
the hardness of the water in your area. Water hardness is
measured in grains per gallon. Use this information and
the table above to determine the amount of detergent
to use. You may purchase a hard water test strip
from GE. Call 1-877-959-8688 and ask for part number
WD01X10295. In Canada, call 1-800-661-1616.
Using too much detergent with very soft and/or very hot water
may cause a condition called etching on your glassware.
Etching is a permanent cloudiness in your glassware. This
condition is irreversible. However, using too little detergent will
cause poor wash performance.
Use the table as a starting point and then adjust the amount
of detergent you use. Use just enough to get good wash
performance. Using just the right amount of detergent will
provide great wash performance without wasting detergent or
etching glassware.
DO NOT USE HAND DISH DETERGENT
NOTE: Using a detergent that is not specifically designed
for dishwashers will cause the dishwasher to fill with suds.
During operation, these suds will spill out of the dishwasher
vents, covering the kitchen floor and making the floor wet.
Because so many detergent containers look alike, store the
dishwasher detergent in a separate space from all other
cleaners. Show anyone who may use the dishwasher the
correct detergent and where it is stored.
While there will be no lasting damage to the dishwasher, your
dishes will not get clean using a dishwashing detergent that is
not formulated for automatic dishwashers.
Detergent Dispenser
Number of
Grains/Gal. Detergent Cups to Fill
Less than 4 Fill cup to 1/3 full
4 to 8 Fill cup to 2/3 full
8 to 12 Fill cup completely full
Greater than 12 Fill both main wash cup and pre
wash cup
Pre-Wash
Main
Wash
Rinse Agent
Detergent
Dispenser
Push/Slide
to Close
9

Loading the dishwasher.
For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware
baskets may vary from your model.
10
Sports bottle held in
place over a Bottle Wash
clip
Baby bottle held in place
under a Bottle Wash clip
The Bottle Wash system (on some models) is
the ideal location to position baby bottles and
tall sports bottles. The Bottle Wash clips hold
bottles with small openings in place so water jets
are directed inside the bottles to clean hard to reach
areas. Clips can be installed or removed by simply
slipping the clip opening over the top of the nozzle.
Clip
Nozzle
Bottle Wash
Upper Rack
The upper rack is primarily for glasses, cups, and
saucers. For best wash performance, tilt cup and
glass openings toward the center of the rack. Other
items such as pots, pans, and plates may be placed
in the upper rack. This is also a secure place for
dishwasher-safe plastic items. The upper rack can
be used for odd sized utensils. Sauce pans, mixing
bowls, and other similarly shaped items should
be placed face down for best wash performance.
Ensure small plastic items are secure so that they
cannot fall on the heater at the bottom of the
dishwasher, potentially damaging the item. Some
models are equipped with a hidden heater, so
dishwasher safe plastic items can be placed in the
lower rack.
IMPORTANT: Ensure items in the upper rack do not
interfere with the 3rd Rack (on some models) when
loading and unloading.
IMPORTANT: Ensure that items do not protrude
through the bottom of the rack or silverware basket
where they will block the rotation of the middle spray
arm. This could result in noise during operation and/
or poor wash performance.

11
GEAppliances.com
To add flexibility in loading, the utility shelf (on
some models) may be placed in the up or down
position or unfolded and placed in the lower
unfolded position. The shelf may also be used to
secure stemware such as wine glasses. Because
these stemware items come in various sizes, slowly
push the rack in to ensure the items do not bump
into the edges of the dishwasher, which may cause
damage to the items.
The upper rack allows 2” of adjustment up or down
to accommodate large items. The upper rack may
be lowered by pushing the long flaps on each side of
the rack. This will allow you to lower the rack (see fig.
Upper Rack). To raise the rack, lift up on the rack until
the rack locks in place.
CAUTION: A loaded upper
rack may be heavier than anticipated. To
prevent minor injury or damage to the
contents, do not raise or lower the upper
rack after the rack is loaded.
The fold down tines (on some models) provide
flexibility for extra-large and hard-to-fit items.
The tine rows can be adjusted to a vertical or
lay-down position.
Push
Upper Rack
Place the slots in the
utility shelf clips over
the vertical rack wires
and push down to
attach utility shelf onto
second wire of rack

Loading the dishwasher.
For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware
baskets may vary from your model.
8 Place Settings - Upper Rack
Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725 Models - GDF570 and DDT575
10 Place Settings - Upper Rack
Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725 Models - GDF570 and DDT575
12 Place Settings - Upper Rack
Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725 Models - GDF570 and DDT575
12

GEAppliances.com
13
8 Place Settings - Upper Rack
Models - PDT760 and CDT765
10 Place Settings - Upper Rack
Models - PDT760 and CDT765
12 Place Settings - Upper Rack
Models - PDT760 and CDT765

Loading the dishwasher (cont.).
For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware
baskets may vary from your model.
14
The lower rack fold down tines (on some
models) can be adjusted to different upright
angles or placed flat to provide flexibility for
hard-to-fit or extra-large items.
Lower Rack
The lower rack is best used for plates, saucers
and cookware items. Large items, such as
broiler pans and baking racks should be
placed along the sides of the rack. If necessary,
oversized glasses and mugs can be placed in
the lower rack to maximize loading flexibility.
Plates, saucers and similar items should be
placed between the tines in the direction that
allows the item to remain secure in the rack.
NOTE: Do not load large items in the lower
rack where they may block the wash jets from
rinsing out the detergent dispenser.
3 Angled
Positions
Available
or Folded
Down

GEAppliances.com
15
The reversible tine blocks (on some models) are
designed to allow greater flexibility in loading dishes.
The direction of the tine blocks can be changed to
match your preferred loading direction as shown in
Figure A or Figure B:
To adjust the tine block direction, remove the clips
securing the tine blocks to the racks by pulling up
on the tab, then gently flex the retaining wire from
the center to unseat the tine block from the lower
rack. The tine block may be turned in the opposite
direction to reverse loading direction. Secure the tine
block to the rack using the same process and be
sure to snap the clips back in place.
WARNING! The clips can be a choke
hazard for small children if removed from the
dishwasher. Keep out of reach of children.
To change the direction of the fold down tines, lower
the tines, then pull away from the bar clips that
secure the tines to the rack and remove. Reverse
the direction of the tines, orienting the handle on the
opposite side of the rack. Reattach the tines to the
bar clips by pushing the tines back until they click in
place. The indexer will also need to be switched to
the opposite side of the dishwasher. To remove the
indexer, simply slide it the in the direction labeled
“unlock.” Then, align the indexer with the rack on the
other side and slide in the direction that says “lock”
in order to reattach the indexer to the rack.
IMPORTANT: It is important to ensure that items do
not protrude through the bottom of the rack or the
silverware basket where they will block the rotation
of the lower spray arm. Also, ensure that large
plates, pots, or tall items don’t hit the mid spray arm.
This could result in noise during operation and/or
poor wash performance.
Figure A Figure B
Clip
Indexer
To lock, slide right.
To unlock, slide left.
Bar Clip

16
Loading the dishwasher (cont.).
8 Place Settings - Lower Rack
Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725 Models - GDF570 and DDT575
10 Place Settings - Lower Rack
Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725 Models - GDF570 and DDT575
12 Place Settings - Lower Rack
Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725 Models - GDF570 and DDT575

17
GEAppliances.com
8 Place Settings - Lower Rack
Models - PDT760 and CDT765
10 Place Settings - Lower Rack
Models - PDT760 and CDT765
12 Place Settings - Lower Rack
Models - PDT760 and CDT765

Loading the dishwasher (cont.).
For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware
baskets may vary from your model.
18
3rd Rack (on some models)
The 3rd rack is the recommended location for
silverware and has 2 trays:
The utensil tray holds serving spoons, chop
sticks, spatulas, cutlery, whisks, etc. Be sure
not to overlap the utensil heads.
The silverware tray holds silverware
individually in slots and is positioned by
alternating the heads of the silverware.
These trays may be removed to allow for
easier loading and unloading, changing the
side that the trays are on, or to create extra
space for the upper rack.
To remove a tray, fully extended the 3rd rack,
grasp both the front and back handles on one
tray and gently lift the tray out of the rack.
To replace the tray, grasp both handles and
gently place it on the rack so that the deepest
part is towards the center of the rack.
CAUTION! Take care when
loading, unloading, or transporting the
silverware or utensil trays. The trays may
contain sharp or heavy items. If items are
dropped from the trays or the trays are
dropped, injury could occur.
IMPORTANT NOTES:
Do not place cutlery of different materials
next to each other in the 3rd rack. Doing
show may cause discoloration of the
cutlery.
The trays are only meant to be used with a
GE 3rd rack dishwasher to hold silverware,
cooking utensils, and other small items.
Using the trays for any other purpose could
result in damage to the trays or damage to
anything interacting with the trays.
Ensure that the 3rd rack is fully closed
before shutting the dishwasher door.
Shutting the door with the rack partially
extended could cause damage to the
dishwasher.
Silverware
Tray
Utensil Tray
8 Place Settings 10 Place Settings 12 Place Settings
*See Silverware Basket section
on how to load silverware.

GEAppliances.com
19
The 3rd rack is also removable to allow extra large items to be placed in the upper rack:
To remove the 3rd rack:
1
Remove the silverware and utensil trays.
(See the IMPORTANT NOTES in this section.) 2
Push the rack all the way to one side so that
a gap between it and the side rail forms on
the other side. Align the side rail posts with
the center of the clips on the rack and lift
straight up.
3
Continuing to hold the rack in the lifted
position, repeat on the other side.
4
Once the rack is removed, push the side
rails all the way back into the dishwasher.
Pull rack all the way
out to lock it in place
To replace the 3rd rack:
1
Extend both side rails fully out of the dishwasher.
2
Orient the rack so that its side clips are aligned
and centered with the posts on the side rail and
lower the clips onto the posts .
3
Move the rack to one side of the dishwasher until
the clips fall onto the posts .
4
Continuing to hold the rack in the lifted
position, repeat on the other side.
5
Once the rack is replaced, pull it all the way
out to lock it in place in its side rails.
6
Replace the silverware and utensil trays.
Rail posts
on inside
of rails
Rail Rack
Align rail posts with
rack clips - Pull rack up
Rack
clips
Push rack to
one side
Rail post
will slide
in or out
of this
opening
Rail
post
Rack
clip Rail
Rack
clips Rail
post
Rack
clip Rail
Rack
clips
Rail
posts

Silverware Basket
Place flatware in the removable silverware baskets.
Sharp objects, such as forks and knives, may be placed
with the handles facing up, in order to protect your
hands. For the best wash performance, place other
items such as spoons with the handles facing down.
Avoid allowing items to nest together, which may keep
them from being properly washed. When loading,
distribute items evenly in the basket.
The silverware baskets may also be used for small
items, such as measuring spoons, baby bottle nipples,
plastic lids, or corn cob holders. The silverware basket
covers can be closed to contain small items.
The Easy Access Silverware Baskets (on GDF570 and
DDT575 models) may be positioned on the front of
either the upper or lower racks. Secure the basket to
the rack using the wire loop on the front of the upper
and lower racks to engage the tabs on the rear of the
basket.
On other models, the silverware basket may be
positioned by placing the hooks on the back of the
basket over the top wire on the sides of the lower rack.
IMPORTANT NOTE: Do not load large or tall utensils
where they may block the detergent dispenser, mid
spray arm, or become trapped between the door and
the gasket when the door is closed.
Loading the dishwasher (cont.).
Wire Loops
Silverware
Basket
For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware
baskets may vary from your model.
20
