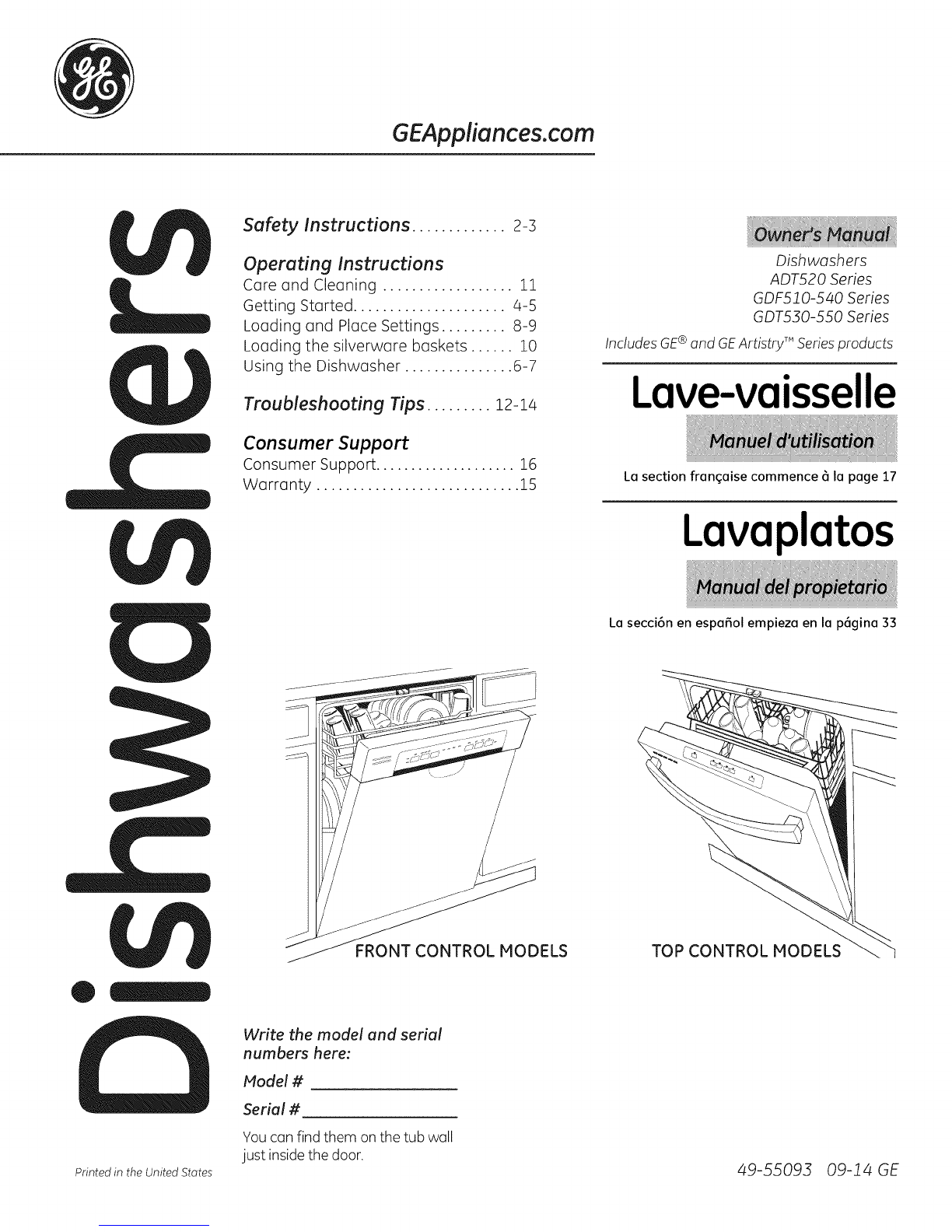

GE GDF510 Series User manual

0GEAppliances.com
Safety instructions ............. 2-3
Operating instructions
Care and Cleaning .................. 11
Getting Started ..................... 4-5
Loading and Place Settings ......... 8-9
Loading the silverware baskets ...... 10
Using the Dishwasher ............... 6-7
Troubleshooting Tips ......... 12-14
Consumer Support
Consumer Support .................... 16
Warranty ............................ 15
Dishwashers
ADT520 Series
GDF£ ffO-540 Series
GDT£30-550 Series
IncludesGE®and GEArtistryTM Seriesproducts
Lave-vaisselle
La section fran(_aise commence 6la page 17
Lavaplatos
La secci6n en espa5ol empieza en la p6gina 33
Printed in the United Stores
FRONT CONTROL MODELS
Write the model and serial
numbers here:
Model #
Serial #
Youcan find them on the tub wall
just inside the door.
TOP CONTROL MODELS
49-55093 09-14 GE

IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING-
SAVE THESE INSTRUCTIONS
For your safety, the information in this manual must be followed to minimize the risk
AWARNING! offire,explosion,electricshock, andtoprevent property damage, personal inJury, or
death.
WARNING! WATER HEATER SAFETY
Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two or more weeks.
HYDROGENGAS ISEXPLOSIVE.
If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot
water faucets and allowing them to run for several minutes. Do this before using any electrical appliance connected to
the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable,
do not smoke, use an open flame, or use the appliance during this process.
WARNING! PROPER INSTALLATION AND MAINTENANCE
This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If
you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by visiting our Website at
GEAppliances.com. In Canada, visit www.GEAppliances.ca.
[] Connectthe dishwasher/appliance to a grounded metal, []
permanent wiring system; or run an equipment-grounding
conductor with the circuit conductors and connect to the
equipment-grounding terminal or leadof the appliance.
[] Improper connection of the equipment-grounding conductor []
can result in a riskof electric shock. Checkwith a qualified
electrician or service representative if you are in doubt
whether the appliance is properly grounded. []
[] Disposeof discarded appliances and shippingor packing
material properly.
Do not attempt to repair or replace any part of your
dishwasher unless it isspecifically recommended in this
manual. Allother servicing shouldbe referredto a qualified
technician.
Use only cord kit WX09x70gl0 or hard-wire to building
electrical.Failureto follow this instruction,could resultin riskof
fire and personal injury.
Tominimize the possibilityof electric shock,disconnect this
appliance from the power supply before attempting any
maintenance.
NOTE:Turning the dishwasher off does not disconnect the
appliance from the power supply. We recommend having
a qualified technician service your appliance.
WARNING!When using your dishwasher, follow basic precautions, including the following:
[] Use this appliance only for its intended purpose as
described in this Owner's Manual.
[] Useonlydetergents or wetting agents
recommended for usein a dishwasher
and keepthem out of reachof children.
Using a detergent that is not specifically
designedfor dishwashers will cause the
dishwasher to fill with suds.
[] Locate sharp itemsso that they are not likelyto damage the
door seal.
[] Load sharp kniveswith the handles up to reducethe risk of
cut-type injuries.
[] Do not wash plastic items unless marked dishwasher safe
or the equivalent. Forplastic itemsnot so marked,checkthe
manufacturer's recommendations.
[] Do not touch the heating element during or immediately
after use.
[] Do not operate your dishwasher unless all enclosure
panels are properly in place.
[] Do not tamper with controls.
[] Do not abuse, sit on or stand on the door or dish rack of the
dishwasher.
[] Toreduce the risk of injury, do not allow children to playwith,
on or insidethis appliance at any time.
[] Do not store or usecombustible materials includinggasoline
or other flammable liquidsor vapors inthe vicinityof this or any
other appliance.
[] Smallparts,such as rack clips and filter retaining posts,can
be a choke hazardto small children if removed from the
dishwasher.Keepout of reach of small children.

IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING-
SAVE THESE INSTRUCTIONS GEAppliances.com
AWARNING! RISK OF CHILD ENTRAPMENT
PROPER DISPOSAL OF THE DISHWASHER
Junked or abandoned dishwashers are dangerous...even if they will sit for "just a few days." If you
are getting rid of your dishwasher, please follow the instructions below to help prevent accidents.
[] Do not allow children to play with, on, or inside this or any discarded appliance.
[] Take off the door of the washing compartment or remove the latch by removing the two screws
from the latch receiver inside the tub (as shown).
Two screws
ACAUTION: Topreventminor injury and property damage
[] During or after wash cycle, contents may be hot to the
touch. Use care before handling.
[] Close supervision is necessary if this appliance is used by
or near children. Do not allow children to play around the
dishwasher when closing the door, closing the upper rack,
or while vertically adjusting the upper rack due to the
possibility of small fingers being pinched.
[] Non-Dishware Items: Do not wash items such as
electronic air cleaner filters, furnace filters and paint
brushes in your dishwasher. Damage to the dishwasher
and discoloration or staining of the dishwasher may
result.
[] Load light-weight, plastic items so they do not become
dislodged and drop to the bottom of the dishwasher-
they might come into contact with the heating element
and be damaged.
CAUTION: ELECTRICALREQUIREMENTS
[] This appliance must be supplied with 120V,60 Hz,and
connected to an individual, properly grounded branch
circuit, protected by a lS or 20 amp circuit breaker or
time-delay fuse.
[] If the electric supply provided does not meet the above
specifications, it is recommended that a licensed
electrician install an approved outlet.
[] Your dishwasher circuit should not be used for any other
appliance while the dishwasher is in operation asthe
dishwasher requires the full capacity of the circuit.
ANOTICE
[] Ifyour dishwasher isconnected to a wall switch,
ensurethat the switch ison prior to use.
[] Ifyou choose to turn the wall switch off between
wash cycles,allow 5-10 seconds after turning the
switch on beforetouching Start to allow the control
to initialize.
[] Useonly powder, Cascade®All-in-1 ActionPacsTM,liquid
detergents or rinse agents recommended for use in a
dishwasher and keepthem out of the reach of children.
Cascade®All-in-1 ActionPacsTMAutomatic Dishwashing
Detergent, and Cascade®RinseAidTMrinse agents have
been approved for use in all GE dishwashers.
READAND FOLLOW THISSAFETYINFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS

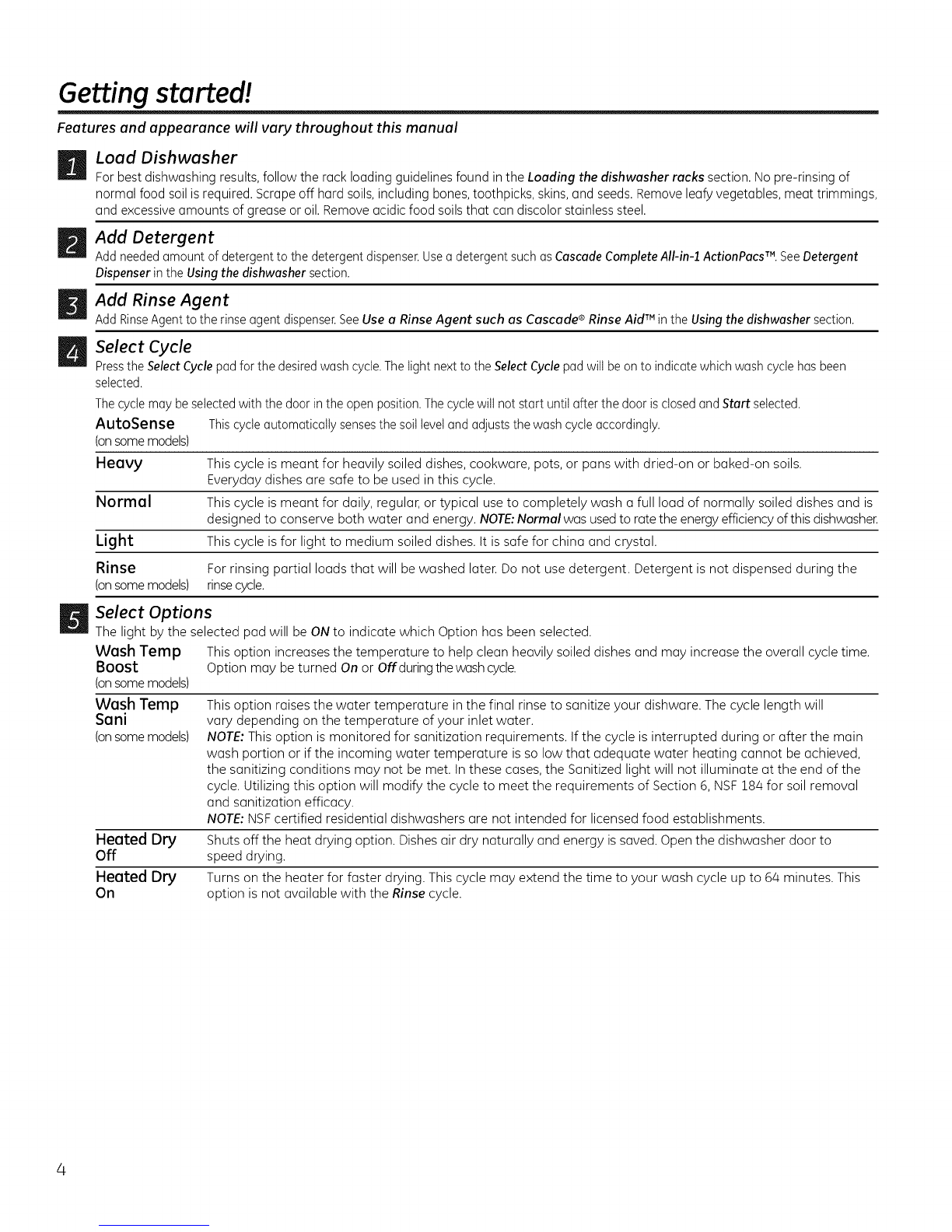

Getting started!
Features and appearance will vary throughout this manual
B
E
Load Dishwasher
For best dishwashing results,follow the rack loading guidelines found in the Loading the dishwasher racks section. No pre-rinsing of
normal food soil is required. Scrape off hard soils,including bones,toothpicks, skins,and seeds.Removeleafy vegetables, meat trimmings,
and excessiveamounts of grease or oil. Removeacidic food soils that can discolor stainless steel.
Add Detergent
Add neededamount of detergentto the detergentdispenser.Useadetergent suchas CascadeCompleteAll-in-1 ActionPacsTM. SeeDetergent
Dispenserin the Using the dishwasher section.
Add Rinse Agent
Add RinseAgentto the rinse agent dispenser.SeeUse a RinseAgent such as Cascade®Rinse AidTM in the Using the dishwasher section.
mSelect Cycle
Pressthe Select Cyclepad for the desiredwash cycle.The lightnext to the Select Cyclepad wittbeon to indicatewhich washcycle hasbeen
selected.
Thecycle may be selectedwith the door in the open position.Thecyclewitt not start until after the door is closedandStart selected.
AutoSense
(onsome models)
Heavy This cycle is meant for heavily soiled dishes, cookware, pots, or pans with dried-on or baked-on soils.
Everyday dishes are safe to be used in this cycle.
Normal This cycle is meant for daily, regular, or typical use to completely wash a full load of normally soiled dishes and is
designed to conserve both water and energy. NOTE:Normal was usedto rate the energyefficiency ofthis dishwasher.
Light This cycle is for light to medium soiled dishes. It is safe for china and crystal.
Rinse For rinsing partial loads that will be washed later. Do not use detergent. Detergent is not dispensed during the
(onsome models) rinsecycle.
Thiscycleautomatically sensesthe salt leveland adjuststhe wash cycleaccordingly.
Select Options
The light by the selected pad will be ON to indicate which Option has been selected.
Wash Temp
Boost
(onsome models)
Wash Temp
Sani
(onsome models)
Heated Dry
Off
Heated Dry
On
This option increases the temperature to help clean heavily soiled dishes and may increase the overall cycle time.
Option may be turned On or Off duringthe wash cycle.
This option raises the water temperature inthe final rinse to sanitize your dishware. The cycle length will
vary depending on the temperature of your inlet water.
NOTE:This option is monitored for sanitization requirements. If the cycle is interrupted during or after the main
wash portion or if the incoming water temperature is so low that adequate water heating cannot be achieved,
the sanitizing conditions may not be met. In these cases, the Sanitized light will not illuminate at the end of the
cycle. Utilizing this option will modify the cycle to meet the requirements of Section 6, NSF18/4for soil removal
and sanitization efficacy.
NOTE:NSFcertified residential dishwashers are not intended for licensed food establishments.
Shuts off the heat drying option. Dishes air dry naturally and energy is saved. Open the dishwasher door to
speed drying.
Turns on the heater for faster drying. This cycle may extend the time to your wash cycle up to 6/4minutes. This
option is not available with the Rinse cycle.

GEAppliances.com
Steam
(Prewash)
(onsomemodels)
Wash
Zones
(onsomemodels)

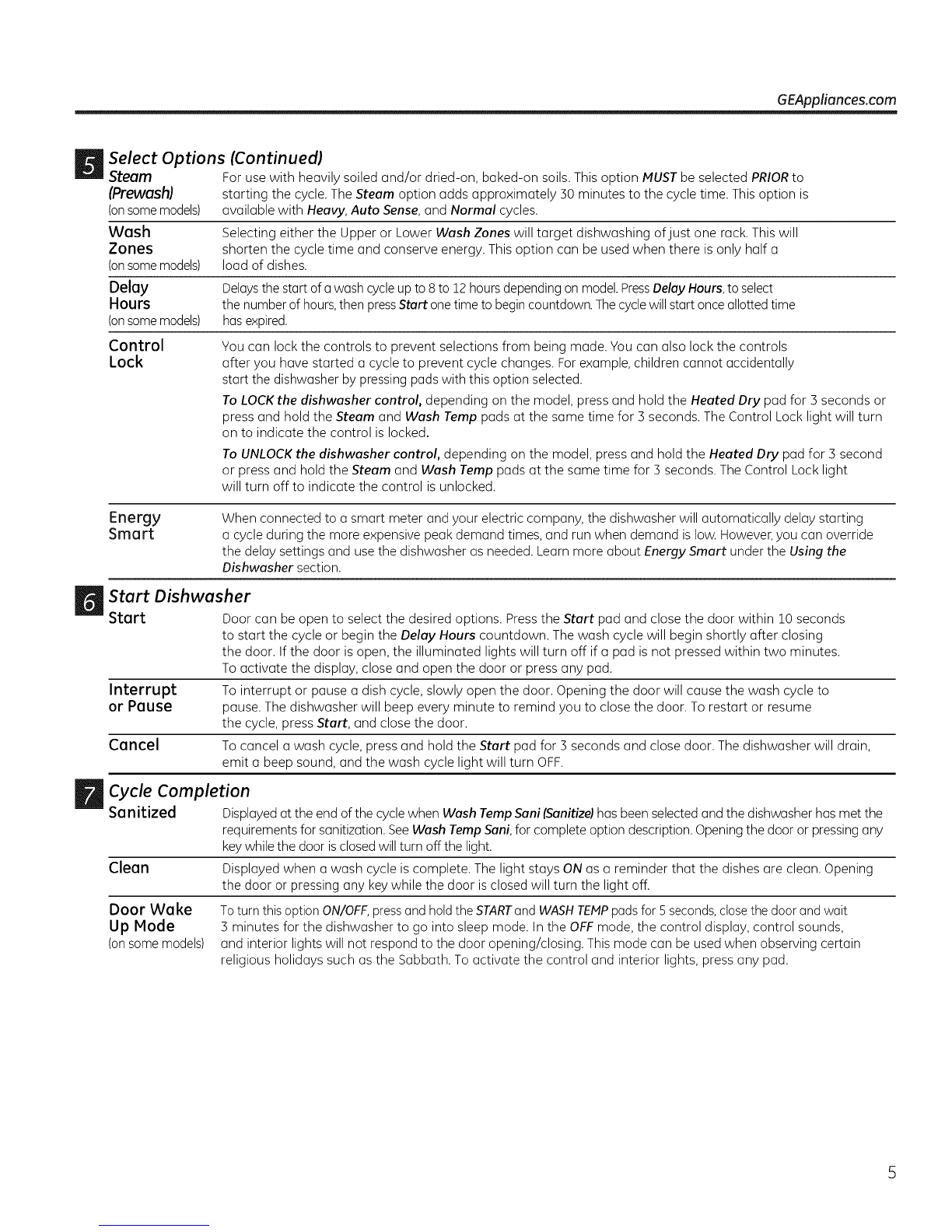

Select Options (Continued)
For use with heavily soiled and/or dried-on, baked-on soils.This option MUST be selected PRIORto
starting the cycle. The Steam option adds approximately 30 minutes to the cycle time. This option is
available with Heavy, Auto Sense,and Normal cycles.
Selecting either the Upper or Lower Wash Zones will target dishwashing of just one rack. This will
shorten the cycle time and conserve energy. This option can be used when there is only half a
load of dishes.
Delay Delaysthe start of a wash cycleup to 8to 12hours depending on model.PressDelay Hours,to select
Hours the number of hours,then pressStart onetime to begincountdown. Thecycle will start once allotted time
(onsomemodels) hasexpired.
Control You can lock the controls to prevent selections from being made. Youcan also lock the controls
Lock after you have started a cycle to prevent cycle changes. For example, children cannot accidentally
start the dishwasher by pressing pads with this option selected.
To LOCKthe dishwasher control, depending on the model, press and hold the Heated Dry pad for 3 seconds or
press and hold the Steam and Wash Tamp pads at the same time for 3 seconds. The Control Lock light will turn
on to indicate the control is locked.
To UNLOCKthe dishwasher control, depending on the model, press and hold the Heated Dry pad for 3 second
or press and hold the Steam and Wash Tamp pads at the same time for 3 seconds. The Control Lock light
will turn off to indicate the control is unlocked.
Energy
Smart When connected to a smart meter and your electric company, the dishwasher will automatically delay starting
a cycle during the more expensive peak demand times, and run when demand is low. However, you can override
the delay settings and usethe dishwasher as needed. Learn more about Energy Smart under the Using the
Dishwasher section.
_Start Dishwasher
Start Door can be open to select the desired options. Pressthe Start pod and close the door within 10 seconds
to start the cycle or begin the Delay Hours countdown. The wash cycle will begin shortly after closing
the door. If the door is open, the illuminated lights will turn off if a pad is not pressed within two minutes.
To activate the display, close and open the door or press any pad.
Interrupt To interrupt or pause a dish cycle, slowly open the door. Opening the door will cause the wash cycle to
or Pause pause. The dishwasher will beep every minute to remind you to close the door. To restart or resume
the cycle, press Start, and close the door.
Cancel To cancel a wash cycle, press and hold the Start pad for 3 seconds and close door. The dishwasher will drain,
emit a beep sound, and the wash cycle light will turn OFF.
_Cycle Completion
Sanitized Displayed at the end of the cycle when Wash Temp Sani (SanitizeJhas been selected and the dishwasher has met the
requirements for sonitizotion. See Wash Temp Sani,for complete option description. Opening the door or pressingany
keywhile the door isclosed will turn off the light.
Displayed when o wash cycle is complete. The light stays ON as o reminder that the dishes ore cleon. Opening
the door or pressing any key while the door is closed will turn the light off.
Clean
Door Wake
Up Mode
(onsome models)
Toturn this option ON/OFF,pressand holdthe STARTandWASHTEIP pads for 5 seconds,closethe door and wait
3 minutes for the dishwasher to go into sleep mode. In the OFF mode, the control display, control sounds,
and interior lights will not respond to the door opening/closing. This mode can be used when observing certain
religious holidays such as the Sabbath. Toactivate the control and interior lights, press any pad.

Using the dishwasher.
Check the Water Temperature
Theenteringwatershouldbeatleast120°F(49°C)and
notmorethan 150°F(66°C)foreffectivecleaningandto
preventdishdamage.Checkthewatertemperaturewitha
candyormeatthermometer.Turnonthehotwaterfaucet
nearestthedishwasher,placethethermometerina glass
andletthewaterrun continuouslyintotheglassuntilthe
temperaturestopsrising.
Energy Smart
EnergySmartenablesyourdishwasherto reduceenergy
consumptionduringperiodsof highenergycosts.Ifyouare
inanareawhereyourelectricityproviderchargesvariable
ratesatdifferenttimesoftheday,yourdishwasherwill
informyouofthosetimeswhenyouarepayingthehighest
rate.Voucantheneitherdelaystartingyourdishwasher
untilthe rategoesdown;oryoucanoverridethefeature
and runyourdishwasheratyourconvenience.
What you willneed:
[_ SmartMeterthat willcommunicatewith your
dishwasher.Consultyourlocalelectricityproviderto
determineifthetechnologyisavailableinyourarea.
E] An EnergySmartdishwashermodel(ADT521,GDF520,
GDF540,GDT530 or GDT550).
r_ AnApplianceCommunicationModule(ACM).Please
visit,gebrillion.comtoorderthecommunicationdevice
that willneedtobeinstalledinthedishwasher.
Use a Rinse Agent such as Cascade®Rinse Aid TM
Rinseagents,such asCascade®RinseAidTM are designed for great drying action and protect against spots
and film build-up on your dishes,glasses,flatware, cookware, and plastic.
Filling the Dispenser
The rinse agent dispenser holds 3.5 oz. (100 ml)of rinse agent. Under normal
conditions, this willlast approximately one month.
E] Makesure the dishwasher door isfullyopen.
F_ open the RINSEAIDdispenser door.
[_ Slowlyadd rinseagent untilthe fillcup isfull.Mayneed to pause several timesto ......
allowrinseaid to settle.
[_ Clean up any spilledrinseagent with a damp cloth.
E] Closethe RINSEAiDdispenser door.
Indicator
Rinse Aid Setting
The amount of rinse agent released into the final wash can be adjusted. The
factory setting is at the midpoint. Ifhard water spots appear on dishes, try a
higher setting. Ifyou see foam in the dishwasher, move the indicator to a lower
setting.
Toadjust the setting
Open the RINSEAIDdispenser door: then turn the adjuster clockwise to
increasethe amount of rinseagent, counterclockwise to reduce the amount of rinse agent.
_Rinse
agent
adjuster
6

GEAppliances.com

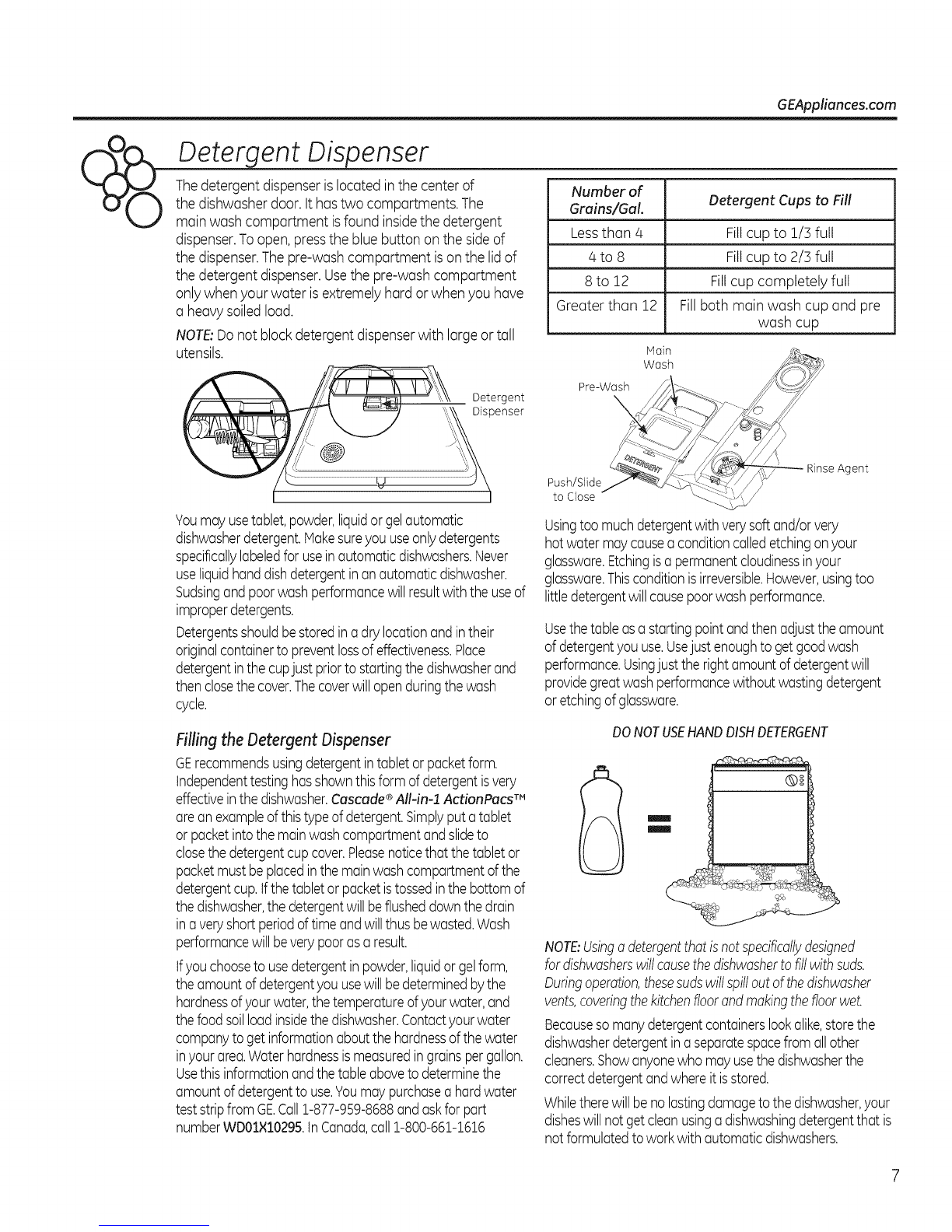

Thede!ergent dispenserislocated inthe center of
0_ thedishwasherdoor.It hastwo compartments.The
mainwash compartment isfound insidethedetergent
dispenser.Toopen,pressthe blue button on the sideof
thedispenser.Thepre-washcompartment isonthe lid of
thedetergent dispenser.Usethe pre-washcompartment
onlywhenyour water isextremelyhard or whenyou have
a heavysoiledload.
NOTE:Donot block detergentdispenserwith large or tall
utensils.
Detergent
Dispenser
Youmayusetablet,powder,liquidorgelautomatic
dishwasherdetergent.Makesureyouuseonlydetergents
specificallylabeledforuseinautomaticdishwashers.Never
useliquidhanddishdetergentinanautomaticdishwasher.
Sudsingand poorwashperformancewillresultwiththe useof
improperdetergents.
Detergentsshouldbestoredina drylocationand intheir
originalcontainerto preventlossof effectiveness.Place
detergentinthecupjust priorto startingthedishwasherand
thenclosethecover.Thecoverwillopenduringthewash
cycle.
Filling the Detergent Dispenser
GErecommends usingdetergent intablet orpocket form.
independent testing has shown this formofdetergent isvery
effectiveinthe dishwasher.Cascade®All-in-1 ActionPacsTM
areanexampleofthistypeofdetergent.Simplyputatablet
or packetintothemainwashcompartmentandslideto
closethedetergentcupcover.Pleasenoticethatthetabletor
packetmustbeplacedinthemainwashcompartmentofthe
detergentcup.ifthetabletor packetistossedinthebottomof
thedishwasher,thedetergentwillbeflusheddownthedrain
ina veryshortperiodoftimeandwillthusbewasted.Wash
performancewillbeverypoorasa result.
tfyou chooseto usedetergentin powder,liquidorgelform,
theamountofdetergentyouusewillbedeterminedbythe
hardnessofyourwater,thetemperatureofyourwater,and
thefoodsoilloadinsidethedishwasher.Contactyourwater
companytogetinformationaboutthehardnessofthewater
inyourarea.Waterhardnessismeasuredingrainspergallon.
Usethis informationandthetableaboveto determinethe
amountofdetergenttouse.Youmay purchasea hardwater
teststripfrom GE.Call1-877-959-8688andaskfor part
numberWDOIX10295.tnCanada,call1-800-661-1616
Number of
Grains/Gel. Detergent Cups to Fill
Lessthan 4Fillcup to 1/3 full
/4to 8 Fillcup to 2/3 full
8 to 12 Fillcup completely full
Greater than 12 Fillboth main wash cup and pre
wash cup
Main
Wash
Pre-Wash
\
Push/Slide /
to Close _ /
Rinse Agent
Usingtoomuchdetergentwithverysoftand/orvery
hotwatermaycausea conditioncalledetchingonyour
glassware.Etchingisa permanentcloudinessinyour
glassware.Thisconditionisirreversible.However,usingtoo
littledetergentwillcausepoorwashperformance.
Usethetableasa startingpointandthenadjusttheamount
ofdetergentyouuse.Usejustenoughto getgoodwash
performance.Usingjust therightamountof detergentwill
providegreatwashperformancewithoutwastingdetergent
oretchingofglassware.
DO NOTUSEHAND DISHDETERGENT
m
m
NOTE:Usinga detergent that isnot specificallydesigned
fordishwasherswillcausethedishwashertofillwithsuds.
Duringoperation,thesesudswillspilloutofthedishwasher
vents,coveringthekitchenfloorandmakingthefloorwet.
Becausesomanydetergentcontainerslookalike,storethe
dishwasherdetergentina separatespacefrom allother
cleaners.Showanyonewhomayusethedishwasherthe
correctdetergentandwhereitisstored.
Whiletherewillbenolastingdamagetothedishwasher,your
disheswillnotgetcleanusinga dishwashingdetergentthat is
notformulatedtoworkwithautomaticdishwashers.

Loading and place settings.
For best dishwashing results,
baskets may vary from your model.
Upper Rack
End Cap
Rail
Rollers
follow these loading guidelines. Features and appearance of racks and silverware
Theupperrackisprimarilyfor glasses,cups,and
saucers.However,otheritemssuchaspots,pans,
and platesmaybeplacedintheupperrack.Thisis
alsoa secureplacefor dishwasher-safeplasticitems.
Theupperrackcanbe usedfor oddsizedutensils.
Saucepans,mixingbowls,andothersimilarlyshaped
itemsshouldbeplacedfacedownforbestwash
performance.Ensuresmallplasticitemsaresecure
sothattheycannotfallintotheheaterat thebottom
ofthe dishwasher,potentiallydamagingtheitem.
Onsomemodels,theupperrackmaybeadjusted
to accommodatelargeritems.Toadjusttheupper
rack,fullyextendtheupperrackandremovethetwo
plasticendcapsonthefrontoftherails.Removethe
upperrack.Selectthesetof rollersonthesideofthe
rackthat providesthedesiredheight,and reinstall
the upperrackbyguidingtherackrailsbetweenthe
appropriatesetofrollers.Withtherackreinstalled,
replacethetwo plasticendcaps,ensuringthesnap
isproperlyengaged.Failureto properlyengage
theendcapsmayresultinthe rackfallingfrom the
dishwasher.
Toaddflexibilityinloading,theutility
shelf(onsomemodels)may be
placedintheupor down
position.Theshelfmay
alsobeusedto secure
stemware such as wine glasses. Becausethese
stemwareitemscomein varioussizes,slowlypush
the rackin toensurethe itemsdo notbumpintothe
edgesofthedishwasher,whichmay causedamage
to the items, m
Place the slots in the
utility shelf clips over
the vertical rack wires
and pushdownto
attach utility shelf onto
secondwireof rack
It isimportantto ensurethat itemsdonotprotrude
throughthebottomoftherackorsilverwarebasket
(onsomemodels)wheretheywillblocktherotation
ofthemiddlesprayarm.Thiscouldresultinnoise
duringoperationand/orpoorwashperformance.
Check to make sure that no
items will block rotation of
the wash arms.
Upper Rack -8 Place Settings -
GDF510, GDF520 &ADT521 Upper Rack -10 Place Settings - GDF510, GDF520 & ADT521 Upper Rack -12 Place Settings - GDF510, GDF520 & ADT521
UpperRack-8 PlaceSettings-
GDT530,GDF540&GDT550 Upper Rack -10 Place Settings - GDT530,GDF540 & GDT550 Upper Rack -12PlaceSettings - GDT530,GDF540 &GDT550
8

GEAppliances.com
%
CJip
Lower Rack
Thelowerrackisbestusedfor plates,saucersand
cookwareitems.Largeitems,suchasbroilerpans
and bakingracksshouldgoalongthesidesofthe
rack.Ifnecessary,oversizedglassesandmugscan
be placedinthelowerrackto maximizeloading
flexibility.Plates,saucersandsimilaritemsshouldbe
placedbetweenthetinesinthedirectionthat allows
theitemtoremainsecureintherack.
Donotloadlargeitemswherethey mayblockthe
detergentdispenserwhenthedoorisclosed.
Thereversibletineblocks(onsomemodels)are
designedtoallowgreaterflexibilityinloadingdishes.
Thedirectionofthetineblockscanbechangedto
matchpreferredloadingdirection.Toadjustthetine
blockdirection,removetheclipssecuringthetine
blockstotheracksbypullingup onthetab,then
flextheretainingwireto unseatthetineblockfrom
thelowerrack.Thetineblockmaybeturnedinthe
oppositedirectionto reversetheloadingdirection.
Securethetineblocktothe rackusingthesame
processand besuretosnapthesameclipsin place.
_lkWARNING! The clipscan bee
choke hazard for smell children if removed
from the dishwasher. Keep out of reach of
children.
Folddowntines(onsomemodels)allowfor greater
flexibilityin loadinglargeitems.Selecttheposition
ofthefolddowntinethat bestaccommodates
yourdishwareitems.Thedirectionofthefolddown
tinescanbechangedto matchpreferredloading
direction.ToadJustthefolddowntinedirection,
removetheclipssecuringthefolddowntinestothe
racksbyslidingtheclipsothat itdisengagesfrom
the rackwire.Thefolddowntinesmayberotated
intheoppositedirectionto reversethe loading
direction.Securethefolddowntinesto therack
usingthesameclips.Theclipisremovedbypulling
upontheclipandseparatingitfromthe rack.
Replacetheclipontheoppositesideoftherackby
positioningtheclipoverthewireandpressingdown.
Itisimportantto ensurethat itemsdonot protrude
throughthebottomoftherackorthe silverware
basketwheretheywillblockthe rotationofthe lower
sprayarm.Thiscouldresultinnoiseduringoperation
and/orpoorwashperformance.
Lower Rack -8 Place Settings -
GDF510, GDF520 &ADT521 Lower Rack -10 Place Settings - GDF510, GDF520 &ADT521 Lower Rack -12 Place Settings -
GDF510, GDF520 &ADT521
Lower Rack- 8 PlaceSettings-
GDT530,GDF540&GDT550 Lower Rack- 10 Place Settings - GDT530,GDF540 & GDT550 Lower Rack- 12 Place Settings - GDT530,GDF540 & GDT550

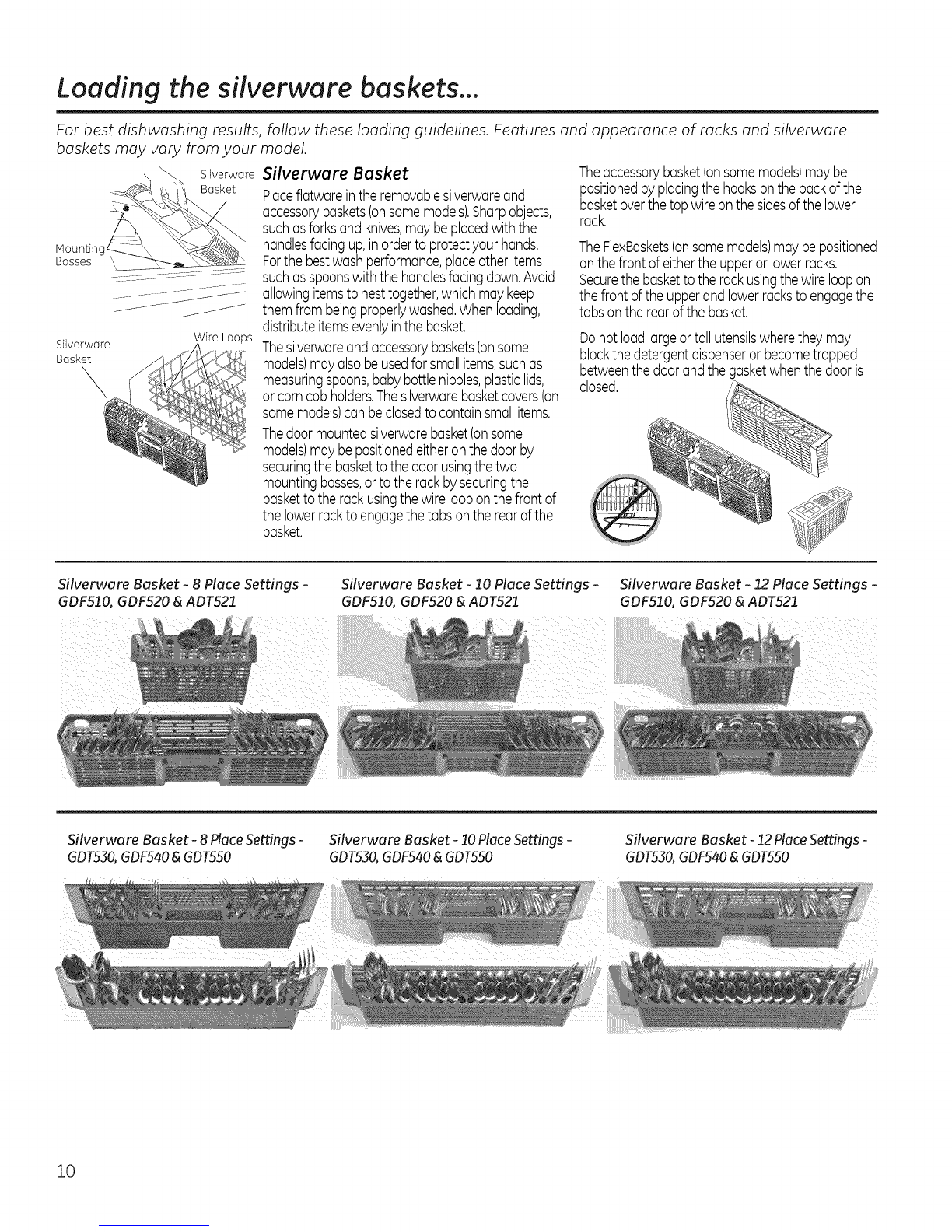

Loading the silverware baskets...
For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware
baskets may vary from your model.
_% Silverware
_.\ t_ i_:_ Basket
Bosses '__!7
WireLoops
Silverware
Basket
\
Silverware Basket
Placeflatwareintheremovablesilverwareand
accessorybaskets(onsomemodels).SharpobJects,
suchasforksandknives,maybeplacedwith the
handlesfacingup,in orderto protectyourhands.
Forthebestwashperformance,placeotheritems
suchasspoonswith thehandlesfacingdown.Avoid
allowingitemsto nesttogether,whichmaykeep
themfrom beingproperlywashed.Whenloading,
distributeitemsevenlyinthe basket.
Thesilverwareand accessorybaskets(onsome
models)mayalsobeusedforsmallitems,suchas
measuringspoons,babybottlenipples,plasticlids,
or corncobholders.Thesilverwarebasketcovers(on
somemodels)canbeclosedto containsmallitems.
Thedoormountedsilverwarebasket(onsome
models)maybepositionedeitheronthedoorby
securingthebaskettothedoorusingthetwo
mountingbosses,ortothe rackbysecuringthe
basketto therackusingthewirelooponthefront of
the lowerracktoengagethetabsonthe rearofthe
basket.
Theaccessorybasket(onsomemodels)maybe
positionedbyplacingthehooksonthebackofthe
basketoverthetopwireonthesidesofthelower
rack.
TheFlexBaskets(onsomemodels)maybepositioned
onthefrontof eithertheupperor lowerracks.
Securethebasketto therackusingthewireloopon
thefrontoftheupperand lowerracksto engagethe
tabsontherearofthebasket.
Donot loadlargeor tallutensilswheretheymay
blockthedetergentdispenseror becometrapped
betweenthedoorandthegasketwhenthedooris
closed.
Silverware Basket -8 Place Settings -
GDF510,GDF520 &ADT521 Silverware Basket -10 Place Settings -Silverware Basket -12 Place Settings - GDF510,GDF520 &ADT521 GDF510,GDF520 & ADT521
Silverware Basket -8 Place Settings -
GDT530,GDF540&GDT550 Silverware Basket -10 Place Settings - GDT530,GDF540 & GDT550 Silverware Basket -12 Place Settings - GDT530, GDF540 & GDT550
10

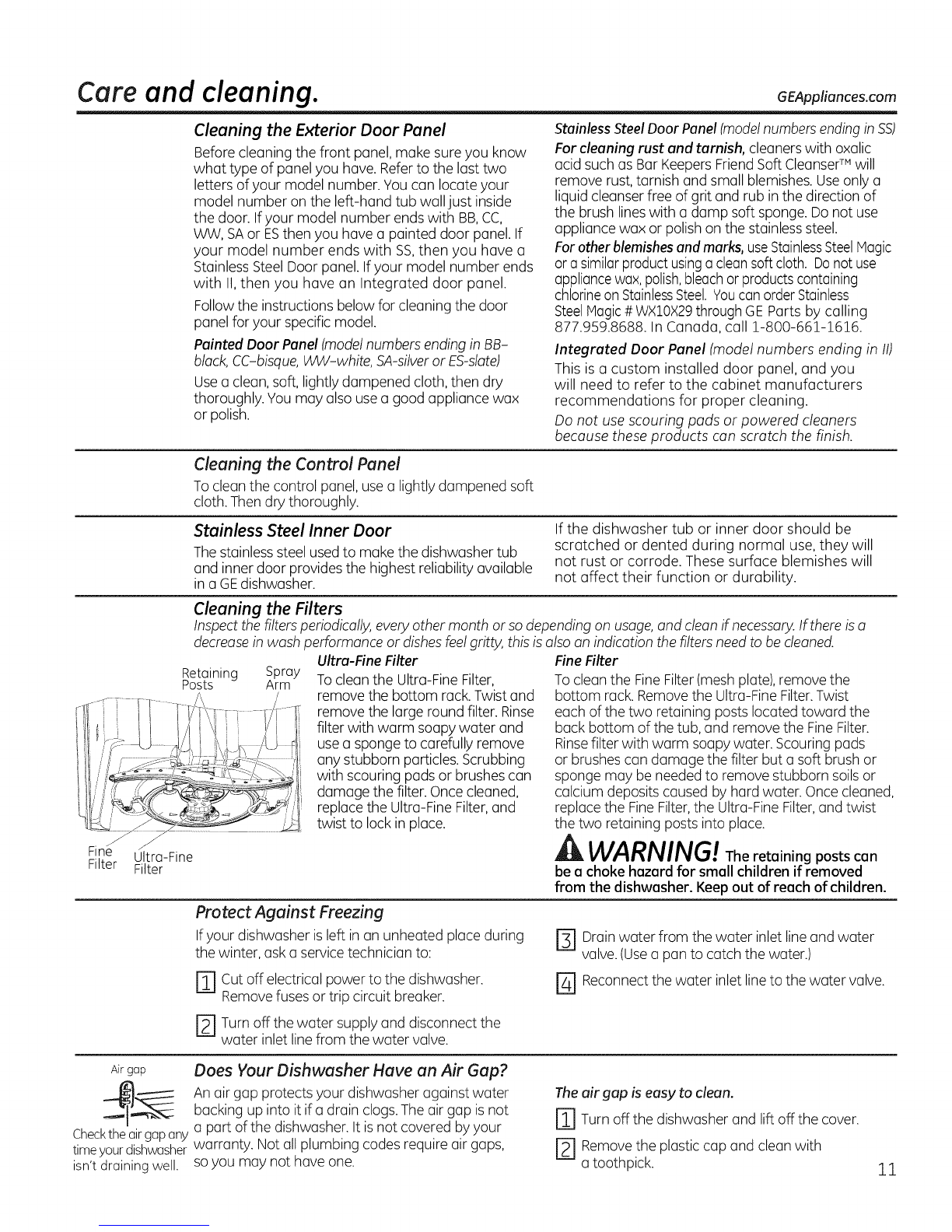

Care and cleaning. GEAppliances.com
Cleaning the Exterior Door Panel
Before cleaning the front panel, make sure you know
what type of panel you have. Refer to the last two
letters of your model number. You can locate your
model number on the left-hand tub walljust inside
the door. Ifyour model number ends with BB,CC,
WW, SAor ESthen you have a painted door panel. If
your model number ends with SS, then you have a
Stainless Steel Door panel. Ifyour model number ends
with II,then you have an Integrated door panel.
Followthe instructions below for cleaning the door
panel for your specific model.
Painted Door Panel (model numbers ending in BB-
black,CC-bisque,WW-white, SA-silveror ES-slate)
Usea clean, soft, lightly dampened cloth,then dry
thoroughly. You may also usea good appliance wax
or polish.
StainlessSteelDoor Panel(modelnumbersending in SS)
For cleaningrust and tarnish, cleaners with oxalic
acid such as Bar KeepersFriendSoft CleanserTM will
remove rust,tarnish and small blemishes.Useonly a
liquid cleanserfree of grit and rub in the direction of
the brush lineswith a damp soft sponge. Donot use
appliance wax or polish onthe stainlesssteel.
Forotherblemishesand marks, useStainlessSteelMagic
or a similarproductusinga cleansoftcloth. Donot use
appliancewax,polish,bleachor productscontaining
chlorineon StainlessSteel.YoucanorderStainless
SteelMagic# WX10X29throughGEParts by calling
877.959.8688. In Canada, call 1-800-661-1616.
Integrated Door Panel (model numbers ending in II)
This is a custom installed door panel, and you
will need to refer to the cabinet manufacturers
recommendations for proper cleaning.
Do not use scouring pads or powered cleaners
because these products can scratch the finish.
Cleaning the Control Panel
To clean the control panel, use a lightly dampened soft
cloth. Then dry thoroughly.
Stainless Steel Inner Door
The stainless steel used to make the dishwasher tub
and inner door provides the highest reliability available
in a GEdishwasher.
If the dishwasher tub or inner door should be
scratched or dented during normal use, they will
not rust or corrode. These surface blemishes will
not affect their function or durability.
f
Fin_
Filter Ultra-Fine
Filter
Cleaning the Filters
Inspect thefiltersperiodically,every other month or so depending on usage,and cleanif necessary.If there isa
decreasein wash performance or dishesfeelgritty, this isalso an indication thefilters needto be cleaned.
Retaining Spray
Posts Arm
Ultra-Fine Filter
Toclean the Ultra-Fine Filter,
remove the bottom rack.Twist and
remove the large round filter. Rinse
filter with warm soapy water and
usea spongeto carefully remove
any stubborn particles. Scrubbing
with scouring pads or brushes can
damage the filter.Once cleaned,
replacethe Ultra-Fine Filter,and
twist to lock in place.
Fine Filter
Toclean the FineFilter (meshplate),remove the
bottom rack. Removethe Ultra-FineFilter.Twist
each of the two retaining posts located toward the
back bottom of the tub, and remove the FineFilter.
Rinsefilter with warm soapy water. Scouring pads
or brushes can damage the filter but a soft brushor
sponge may be needed to remove stubborn soils or
calcium deposits caused by hard water. Oncecleaned,
replace the FineFilter,the Ultra-Fine Filter,and twist
the two retaining postsinto place.
Ik WARNING!Theretaining posts can
be a choke hazard for small children if removed
from the dishwasher. Keep out of reach of children.
Protect Against Freezing
Ifyour dishwasher is left in an unheated place during
the winter, ask a servicetechnician to: r_ Drainwater from the water inletline and water
valve.(Usea pan to catch the water.)
r_cut off electrical power to the dishwasher.
Removefusesor trip circuit breaker. E] Reconnectthe water inlet lineto the water valve.
[2] Turnoff the water supply and disconnect the
water inlet line from the water valve.
Airgap
Checktheairgapany
timeyourdishwasher
isn'tdraining well.
Does Your Dishwasher Have an Air Gap?
An air gap protects your dishwasher against water
backing up into it ifa drain clogs.The air gap isnot
a part of the dishwasher. It isnot covered byyour
warranty. Not all plumbing codes require air gaps,
soyou may not have one.
The air gap is easy to clean.
E] Turn offthe dishwasher and liftoff the cover.
Remove the plastic cap and clean with
E]a toothpick. 11

Before you call for service...
Troubleshooting Tips
Save time and money! Review the charts on the following pages, or visit GEAppliances.com.
_ln Canada visit www.GEAppliances.ca. You may not need to call for service.
Problem Possible Causes What To Do
Start Status Thedoorwasopenedorthe • PresstheStart padonceto startthedishwasher.Pressthe
indicatorlight flashing cyclewas interrupted. Start pada secondtimewhenthedishwasherisrunningonlyifyou
wish to cancelthe cycle.
DishwasherBEEPS This isa reminder that your • PressStart andclosethedoor.
onceeveryminute dishwasher door hasbeen left
open during operation. It will
continue beepinguntil you press
Start and closethedoor.
Beepingat the end This is normal. Thedishwasher • Toturnoffthedoublebeepindicator(orre-activateitifit waspreviously
of the cycle will beeptwice at the end of the turned off),pressthe HeatedDry pad 5 timeswithin 3 seconds.
Ionsomemodelsl cycle. Atriple beepwill soundto indicatethe end-of-cyclebeepoption
hasbeenturned on or off.
Dishesand flatware Ultrafineor fine filter isclogged • SeetheCareandcleaningsection.
notdean Lowinletwater temperature • Hakesureinletwatertemperatureiscorrect(seethe Usingthedishwasher
section).Turnonthehotwaterfaucetnearestthedishwasher,letrununtil
thewatertemperaturestopsrising.Thenstartthedishwasherandturn
offthefaucet.Thisensurestheenteringwater ishot.SelectWashTempBoostif
available.
Water pressureistemporarilylow • Turnona faucet.Iswatercomingoutmoreslowlythanusual?If so,wait
untilpressureisnormalbeforeusingyourdishwasher.
Airgapor disposerisclogged • Cleantheairgaporflushthedisposer.
Improperrackloading • Hakesurelargedishwaredoesnotblockthedetergentdispenseror the
washarms.SeetheLoadingthedishwasherrackssection.
°Whenlargeutensilsareplacedinthesilverwarebasket,donotmountthebasket
onthedoor(onsomemodels).Instead,mountbasketonthelowerrack.
Poorperformingdetergent •Usea highlyrateddetergentsuchasCascadeComplete®AIHn-1ActionPacsTM.
Spotsandfilming Extremelyhard water • UserinseagentssuchasCascade®RinseAidTM to removespots
onglassesand and preventnewfilm buildup.
flatware ° tfwaterisextremelyhard,a softenermayberequired.
Lowinletwater temperature • Hakesurewatertemperatureisat least120°F.
Overloadingor improper • Loaddishwasherasshownin theLoadingPlaceSettingssection.
loadingofthe dishwasher
Oldor damppowderdetergent • Hakesuredetergentisfresh.
Rinseagentdispenserempty •Refillwith rinseagentsuchasCascade_RinseAidTM.
Toolittle or lowperforming • Hakesureyouusethe properamountofhighlyrateddetergent.
detergent
12

GEAppliances.com
Problem Possible Causes What To Do
Cloudinesson Combinationof softwater and • Thisiscalledetchingandispermanent.Topreventthisfromhappening,
glassware toomuchdetergent uselessdetergentifyou havesoftwater.Washglasswareintheshortest
cyclethat willgetit clean.
Lowperforming phosphate • SeeAwhite film onglassware,dishwareand theinterior inthis
freedetergent Troubleshootingsection.
Watertemperatureenteringthe • Thiscouldbeetching.Lowerthewater heatertemperature.
dishwasherexceeds150°F(66°C)
Suds in the tub Correct detergent • Useonlyautomatic dishwasher detergents to avoidsudsing. Cascade*
wasn't used Automatic DishwashingDetergents have been approved for use inall
Detergent left in
dispensercups
GEdishwashers.
• Toremovesudsfrom thetub,openthedishwasherandletsudsdissipate.
Pumpoutwater bypressingStart andclosethedoor.Wait30seconds.
Openthedoor,pressand holdStartfor 3seconds,andclosethedoor.
Repeatifnecessary.
Alwayswipeup rinseagentspillsimmediately.
Repositionthe dishes,sothe water from the lowerspray arm canflush
the detergent cup.SeetheLoading thedishwasher rocks section.
Repositionthe tall utensilsor heaw silverwarethat may be keepingthe
dispensercup doorfrom opening.Seethe Loadingthesilverwarebasket
section.
Blackor gray
marksondishes
Dishesdon'tdry
Rinseagentwasspilled •
Dishesor utensils ore blocking •
the detergent cup
Aluminum utensilshove
rubbedagainst dishes
Lowinletwater temperature
• Removemarkswith a mild,abrasivecleaner.
• Makesureinletwatertemperatureisatleast120°F.
• SelectHeatedDry.
• UseWashTampBoostoption.
• Selecta highercycle,suchasWashTemp Suni (Sanitize)orHeavy.
Rinseagentdispenserisempty
ControlpanelrespondedDoormaynot becompletely
toinputsbutdishwasherclosed
neverfilledwith water
Stained tub interior
• Checktherinseagentdispenserandfillasrequired.
• Makesurethedoor isfirmlyclosed.
Water valvemay beturnedoff
Sometomato-basedfoodscon
causereddishstains
Teaor coffeestains
• Hakesurewatervalve(usuallylocatedunderthesink)isturnedon.
• UseoftheSteamcycle(onsomemodels)afteraddingthedishtotheload
candecreasethelevelofstaining.
• Removethestainbyhand,usingasolutionof1/2cupbleachand
3 cupswarmwater.NOTE:Donot usebleachon stainlesssteel
tub or innerdoor.
Ik CAUTION!
Beforecleaninginterior,wait at least20minutesafteracycleforthe
heatingelementstocooldown.Failureto dosocanresultin burns.
Aspecialfilterinthewatersupplylineistheonlywayto correct
thisproblem.Contacta watersoftenercompany.
GErecommendsCascade ®RinseAidTM to helppreventhardwater
mineraldepositsfrom forming.
• Rundishwasherwithcitricacidtoremovemineraldeposits.Citricacid
(Partnumber:WD35X15J.)canbeorderedthroughGEParts.Seeback
coverfororderinginformation.
Anoverallyellowor brownfilm con •
becausedbyirondepositsin water
White film on insidesurface- •
hardwater minerals
Dishwasherwon'trun Fuseisblownor circuitbreaker • Replacefuseor resetcircuitbreaker.Removeanyotherappliancesfrom
istripped thecircuit.
Poweristurnedoff • Insomeinstallations,thepowertothedishwasherisprovidedthrougha
wallswitch,oftenlocatednexttothedisposerswitch.Hakesureit ison.
Controlponelislocked • Unlockcontrolpanel.SeetheGettingstarted section.
13

Before you call for service...
Problem Possible Causes What To Do
Control panel lights Time too long between • Eachpad must betouchedwithin 30 secondsofthe others.
go offwhen you're touching of selectedpads To relight,touch anypad again or openthe door and
setting controls unlock(topcontrol).
Water standing in Air gap is clogged • Cleanthe air gap.Seethe Careand cleaning section.
the bottom of the tub
Waterwon't pump Drainisclogged • ifyouhaveanairgap,cleanit.SeetheCareand deaning section.
outof thetub • ifthedishwasherdrainsintoa disposer,rundisposerclear.
• Checktoseeifyourkitchensinkisdrainingwell.ifnot,you
mayneeda plumber.
Steam Thisis normal • Worm,moistaircomesthroughtheventduringdryingandwhen
waterisbeingpumpedout.Thisisnecessaryfordrying.
Sanitizedlightdoes Thedoorwasopenedand the ° Donotinterruptthecyclebyopeningthedoorduringthewashcycle.
notilluminate at the cyclewas interruptedduring
endof thecycle final rinse
Theincomingwater • Raisethewaterheatertemperaturetobetween120°Fand150°F.
temperaturewastoo low
Noise Normal operating sounds: • Theseareallnormal.Noactionisrequired.
Detergentcupopening
Water enteringdishwasher
Themotor stopsand starts at
varioustimesduringthe cycle
Sprayarms start and stopat
varioustimes
A white film on
glassware,dishware
andtheinterior
Drainpumpsoundsduring
pumpout
Drainpumpstarts and stops
severaltimesduring eachdrain
Rattling disheswhen the spray
arm rotates
Rattling silverware against door •
during wash
This problemcaused by •
phosphate-freedishwasher
detergent
Hake suredishesare properlyloaded.Seethe Loading the
dishwasherracks section.
Tallutensilsmay be placedin the upperrack to avoidbumpingagainst
innerdoor during wash cycle.
Toremovethewhitefilm,runyourdishesthrougha dishwashercyclewith
citricacid.UseaWD35X151citricacidkitfoundonline.
Pourthecitric acidin thedetergentcupand closethecover.Placethefilmed
butotherwisecleanglasswareand dishwarein thedishwasher.Leave
silverwareand othermetalitemsoutofthe dishwasher.Turnthe dishwasher
on and letit runthrougha completecyclewithoutdetergent.Theglassware,
dishware,anddishwashershouldcomeoutfilm free.Alternatively,
a vinegarrinsemay beused.Pour1cupof vinegarintodishwasherjust after
thedetergentcupopensandletthe dishwashercompleteitscycle.
Thismay berepeatedseveraltimesayear asneeded
Theuseofa rinseagentsuchasCascade®RinseAidTM may helpminimize
a repeatbuildupof film.Also,the useof a highlyrateddetergentsuchas
CascadeComplete®All-in-1ActionPacsTM willhelp preventfilm build-up.
14

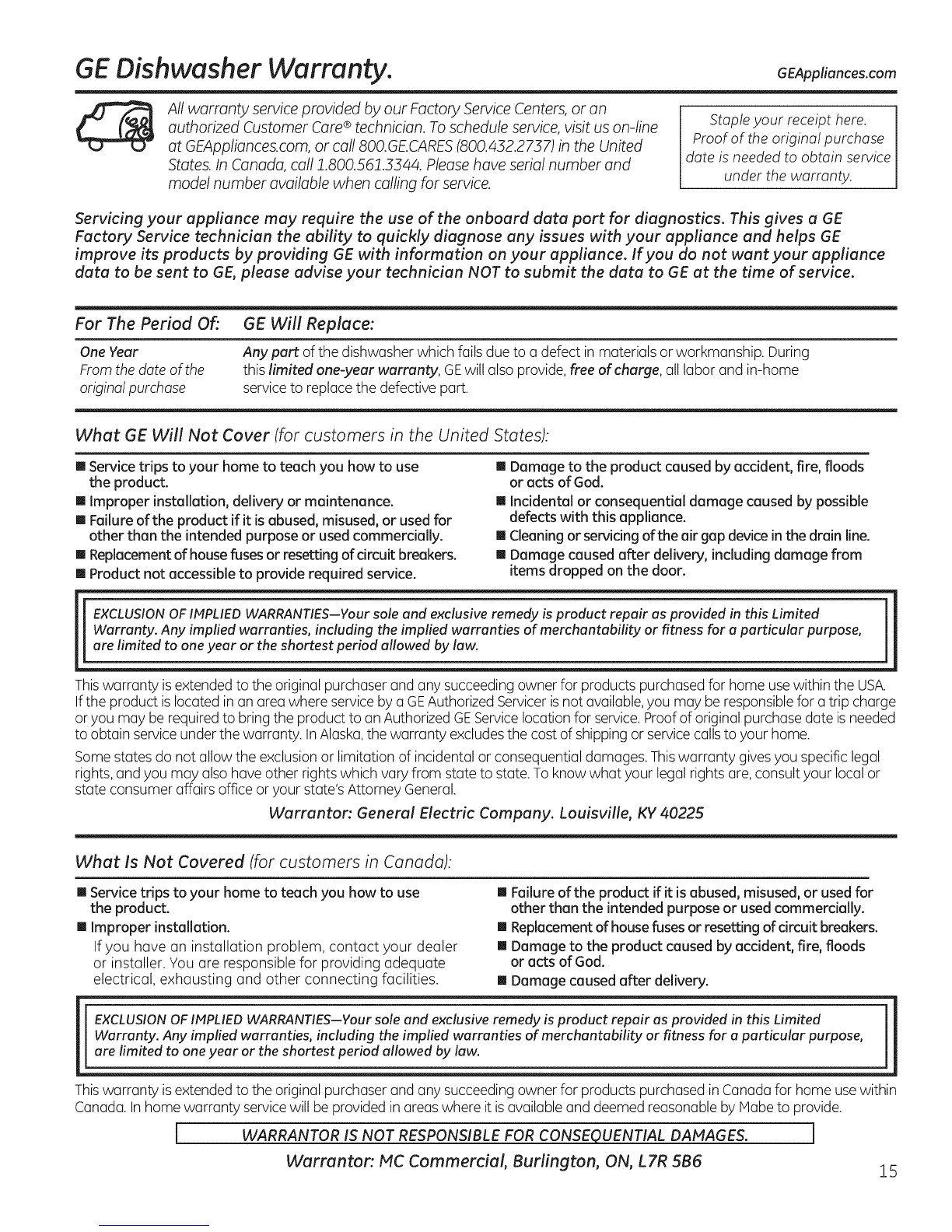

GE Dishwasher Warranty. GEAppliances.cam
All warranty service provided by our Factory Service Centers, or an
authorized Customer Care®technician. Toschedule service, visit us on-line
at GEAppliances.com, or call 800.GECARES(800.432.2737) in the United
States. In Canada, call 1.800.561.3344. Please have serial number and
model number available when calling for service.
Stapleyour receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE
Factory Service technician the ability to quickly diagnose any issues with your appliance and helps GE
improve its products by providing GE with information on your appliance. If you do not want your appliance
data to be sent to GE, please advise your technician NOT to submit the data to GE at the time of service.
For The Period Of: GE Will Replace:
One Year
From the date of the
original purchase
Any pert of the dishwasher which fails due to a defect in materials or workmanship. During
this limited one:veer warranty, GEwill also provide, free of charge, all labor and in-home
serviceto replacethe defective part.
What GE Will Not Cover (for customers in the United States):
[] Service trips to your home to teach you how to use
the product.
[] Improper installation, delivery or maintenance.
[] Failure of the product if it is abused, misused, or usedfor
other than the intended purpose or used commercially.
[] Replacement of housefusesor resetting of circuit breakers.
[] Product not accessible to provide required service.
[] Damage to the product caused by accident, fire, floods
or acts of God.
[] Inddental or consequential damage caused by possible
defects with this appliance.
[] Cleaning or servicing of the air gap device in the drain line.
[] Damage caused after delivery, including damage from
items dropped on the door.
ii EXCLUSIONOFIMPLIEDWARRANTIES--Your sole and exclusive remedy is product repair as provided in this Limited
Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose,
are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA.
Ifthe product is located in an area where service by a GEAuthorized Servicer is not available, you may be responsible for a trip charge
or you may be required to bring the product to an Authorized GE Service location for service. Proof of original purchase date is needed
to obtain service under the warranty. InAlaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. Thiswarranty gives you specific legal
rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or
state consumer affairs office or your state's Attorney General.
Warranton General Electric Company. Louisville, KY 40225
What Is Not Covered (for customers in Canada):
[] Service trips to your home to teach you how to use
the product.
[] Improper installation.
If you have an installation problem, contact your dealer
or installer. You are responsible for providing adequate
electrical, exhausting and other connecting facilities.
[] Failure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.
[] Replacementof housefuses or resetting of circuitbreakers.
[] Damage to the product caused by accident, fire, floods
or acts of God.
[] Damage caused after delivery.
EXCLUSION OF IMPLIED WARRANTIES--Your sole and exclusive remedy is product repair as provided in this Limited
Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose,
are limited to one year or the shortest period allowed by law.
Thiswarranty isextended to the original purchaser and any succeedingowner for products purchased in Canadafor home usewithin
Canada. Inhome warranty servicewill be provided in areaswhere it isavailableand deemed reasonable by ilabe to provide.
[WARRANTOR IS NOT RESPONSIBLE FOR CONSEOUENTIAL DAMAGES. ]
Warrantor'. MC Commercial, Burlington, ON, L7R 5B6 15

Consumer Support.
GEAppliances Website In the US. GEAppliances.com
In Canada. GEAppliances.ca
Have a question or need assistancewith your appliance?Try the GEAppliancesWebsite 24 hours a day,
any day of the year! Forgreater convenience and faster service,you can now download Owner's Manuals,
order parts or even schedule serviceon-line.
ScheduleService In the US. GEAppliances.com
In Canada. GEAppliances.ca
Expert GErepair serviceisonly one step away from your door. Geton-line and schedule your serviceat your
convenience any day of the year! Or call 800.GE.CARES(800./432.2737)during normal businesshours.
In Canada, call 800.561.$$44
RealLifeDesignStudio ,ntheus:GEAppliances.com
GEsupports the Universal Designconcept-products, servicesand environments that can be used by people of
all ages, sizesand capabilities.We recognize the need to design for a wide range of physical and mental abilities
and impairments. Fordetails of GE'sUniversalDesignapplications, including kitchen design ideasfor people with
disabilities,check out our Website today. Forthe hearing impaired, pleasecall 800.TDD.GEAC(800.833./4322).
In Canada, pleasewrite to: Director,Consumer Relations,ivlc Commercial
! Factory Lane,Suite3!0
Honcton, N.B.E1C9H3
Extended Warranties In the US. GEAppliances.com
In Canada. GEAppliances.ca
Purchase a GEextended warranty and learn about special discounts that are available while your warranty isstill
in effect. Youcan purchase iton-line anytime, or call 800.626.2224during normal businesshours.GEConsumer
Home Serviceswill still be there after your warranty expires.In Canada, please consult your local listings for your
extended warranty provider.
Parts andAccessories Inthe US:GEAppliunces.com
Individuals qualified to servicetheir own appliances can have parts or accessoriessent directly to their homes
(VISA,iVlasterCardand Discovercards are accepted).Order on-line today, 24 hours every day or by phone at
877.959.8688during normal businesshours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel Caution must be exercised, since improper servicing may
cause unsafe operation.
In Canada, call 800.661.1616
Contact Us In the US. GEAppliances.com
In Canada. GEAppliances.ca
Ifyou are notsatisfied with the serviceyou receivefrom GE,contact uson our Websitewith all the details including
your phone number, or write to: General Manager, Customer Relations
GEAppliances,Appliance Park
Louisville,KY40225
In Canada, pleasewrite to: Director,Consumer Relations,ivlc Commercial
! Factory Lane,Suite3!0
ivloncton, N.B.E1C9P13
Register Your Appliance In the US. GEAppliances.com
In Canada: GEAppliances.ca
Register your new appliance on-line--at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise.You may also
mail in the pre-printed registration card included in the packing material.
16

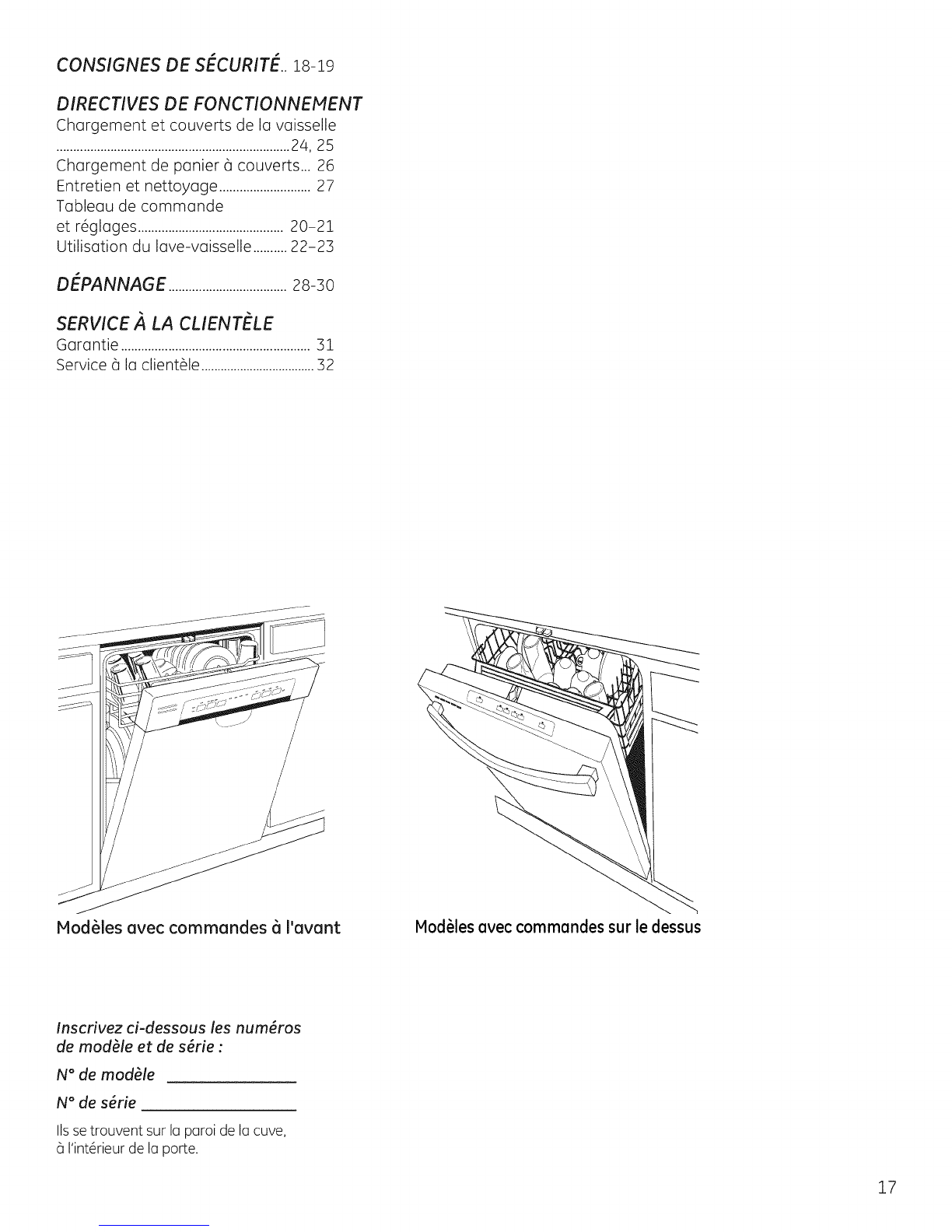

CONSIGNES DE S_'CURIT_'.. 18-19
DIRECTIVES DE FONCTIONNEMENT
Chargement et couverts de la vaisselle
.....................................................................2£ 25
Chorgement de ponier (_couverts... 26
Entretien et nettoyoge ...........................27
Tobleou de commonde
et r#gloges ...........................................20-21
Utilisotion du Iove-voisselle ..........22-23
D_'PANNAGE ...................................28-50
SERVICE A LA CLIENT_'LE
Garantie ........................................................31
Service _ la clientele ...................................52
ModUles avec commandes 6 I'avant ModUles avec commandes sur le dessus
Inscrivez ci-dessous les num_ros
de module et de s_rie :
N°de module
N°de s_rie
IIsse trouvent sur la paroi de la cure,
5 I1nt#rieur de la porte.
17

CONSIGNES DE SECURITE IMPORTANTES
VEUILLEZ LIRE TOUTES LES CONSIGNES AVANT D'UTILISER
L'APPAREIL--CONSERVEZ CES DIRECTIVES
H^AVERTISSEMENT! Pour votre s_curit_, veuillez suivre les directives donn_es dens le present
manuel afin de r_duire au minimum les risques d'incendie, d'explosion et de
chocs _lectriques et pr_venir tout dommage et blessure grave ou mortelle.
AVERTISSEMENT! SECURITE DU CHAUFFE-EAU
Dans certaines conditions, il p,eutse former de I'hydrog@nedans un chauffe-eau qui n'a pas @6 utilis6 pendant deux
semaines ou plus. L'HYDROGENEESTUN GAZ E×PLOSIF.
Sivous n'avez pas utilis@votre chauffe-eau pendant deux semaines ou plus, ouvrez tousles robinets d'eau chaude
et laissez couler I'eau pendant plusieurs minutes afin de r6duire les risques de dommages mat@iels ou de blessures.
Prenez cette pr6caution avant m@med'utiliser un 61ectrom6nager raccord6 au chauffe-eau pour 61iminerI'hydrog@nequi
pourrait s'y @treaccumul6& Puisqu'il s'agit d'un gaz inflammable, ne fumez pas ou n'utilisez pas une flamme nue ou un
61ectrom6nager au cours de ce processus.
,tkAVERTISSEMENT! INSTALLATION ET ENTRETIEN APPROPRIES
Celave-vaisselle doit _tre correctement install6, en conformit6 avec les directives d'installation fournies, avant d'etre utilis&
Si vous n'avez pas requ les directives d'installation avec votre appareil, vous pouvez vous les procurer en visitant notre site
Web 8 I'adresse www.electromenagersge.cu.
[] Cetappareil doit @rereli66 un syst6mede cablage 61ectrique []
permanent en m@al,mis 6 la terre. Sinon,un fil de mise 6 la
terre pour appareillage doit @reinstall6 et raccord6 6 la borne
ou au fil de mise 6 la terre de I'appareil.
[] Un raccordement incorrect du fil de mise 6 la terre peut []
pr6senter un risqued'61ectrocution.Consultez un 61ectricien
ou un technicien qualifi@si vous n'6tes pas certain que
I'appareil est correctement mis 6 la terre.
[] Veuillez vous d6barrasser de la faqon appropri6e de vos []
vieux 61ectrom6nagers et des mat@iaux d'emballage ou
d'exp6dition.
Ne tentez pas de r6parer ou de remplacer une piece
quelconque de votre lave-vaisselle,d mains que cela ne soit
sp@cifiquementrecommand@dansle pr@sentmanuel. Confiez
toutes les autres r6parations 6 un technicien qualifi&
Utilisez uniquement un n@cessairede cordon @lectrique
WX09X70910 ou cablezdirectement sur le circuit 61ectrique
du domicile.L'omissiond'observer cette instruction peut
causer un risque d'incendie ou de blessure.
Pourr@duireau minimum lesrisquesd'@lectrocution,d@branchez
I'appareildesasourced'alimentationavantd'eneffectuerI'entretien.
RENARQUE:Lefaitd'arrSterlelave-vaissellenecoupeI'alimentation
dlectfiquede I'appareil.Nous vousrecommandons de confier la
rdparation de votre dlectromdnager 8 un technicien qualifid.
VERTISSEN ENT! Lo_s d. fonctionnement de votre leve-wisselle, prenez les precautions
de base, notamment les suiwntes "
[] N'utilisezcetappareil que pour I'usagepour lequelil a 6t6
conqu,comme expliqu6 dans le pr6sent manuel.
[] Utilisezuniquement un d@ergentou
un agent mouillant recommand_s pour _ _
utilisationdans un lave-vaisselleet
tenez-les 6 I'@cartdesenfants. L'utilisation
d'un d@ergent non conqu pour les lave-
vaissellespeut provoquer laformation de mousse.
[] Placezlesarticles coupants de mani@e6 ce qu'ils
n'endommagent pas lejoint d'@anch6it6de la porte.
[] Placezdans le panie r 6 couverts lescouteaux tranchants le
manche vers le haut afin de r6duire lesrisques de coupures.
[] Ne lavez pas lesarticles en plastique 6 mains qu'ils
ne portent la mention <<Lavableau lave-vaisselle>>ou
1'6quivalent.Sicertains articlesen plastique ne portent
pascette mention,reportez-vousauxrecommandationsdu
fabricant.
[] Netouchez pas 6 1'616mentchauffant pendant ou
imm_diatement apr_sle fonctionnement de I'appareil.
[] Nefaite pasfonctionner le lave-vaissellesitousles panneaux
de la carrosserie n'ont pas _t_ correctement r_install_s.
[] Ne modifiez pas lefonctionnement des commandes.
[] Abstenez-vousdevousasseoir,devousaccrocheroude vous
tenirsurlaporteou le panierdu lave-vaisselle,ou d'enfaire un
emploiabusifdetoute autremani@re.
[] Pour r@duirele risque de blessure,ne laissezpas lesenfants
jouer avec I'@lectrom@nager,grimper dessusou s'y introduire.
[] Nerangezni n'utilisezdesmati@rescombustibles,y comprisde
I'essenceou d'autresliquidesouvapeursinflammables,@proximit@
de cet appareil ou detout autre.
[] Les petites pi@ces,telles qu'attaches de panier et tiges de
retenue de filtre, repr@sententun risque d'@ouffement
pour lesjeunes enfants si elles sont retir@esdu lave-
vaisselle. Gardez-les 6 I'@cartdesjeunes enfants.
18

CONSIGNES DE SeLCURITeLIMPORTANTES
VEUILLEZ LIRE TOUTES LES CONSIGNES AVANT D'UTILISER
L'APPAREIL--C ONSERVEZ CES DIRECTIVES www.electromenagersge.ca
_AVERTISSEPIENT! RISQUE,DE SUFFOCATION POUR UN ENFANT
COINCE A L'INT RIEUR DE L'APPAREIL
I_LIMINATION APPROPRII_E DU LAVE-VAISSELLE
Les lave-vaisselle jet6s ou abandonn_s sont dangereux.., m_me si vous ne les laissez 16que pour
quelques jours. Sivous voulez jeter votre lave-vaisselle, veuillez suivre les directives ci-dessous pour
6viter les accidents.
[] Ne laissezpas lesenfantsjouer avec, sur,le lave-vaisselle,ou 6 I'int@ieurde celui-ci ou de tout autre
61ectrom6nagermis aux rebuts.
[] Enlevez la porte du compartiment de lavage ou enlevez le verrou en 6tant les deux vis du Ioquet /..._
6 I'int@ieur de la cuve (comma illustr6). Deuxvis
_A TTENTION : po.__it_ I_ bl_._ _in_._ o. I_ dommages materiels
[] Pendant ou apr_s le cycle de lavage, le contenu peut
s'av@er tr_s chaud au toucher. Manipulez-le avec soin.
[] Une surveillance attentive est n6cessaire Iorsque cat
appareil est utilis_ par ou pros des enfants. Ne laissezpas
lesenfantsjouer 6 proximit6 du lave-vaisselle Iorsquevous
la fermeture de la porte, la fermeture de la cr6maill_re
sup@ieure,outout r6glage en hauteur du panier sup6rieur
afin d'6viter que leurs petits doigts se coincent.
[] Articles autres qua la vaisselle : ne lavez pas dans le lave-
vaisselle des articles comma des filtres de purificateur
d'air, des filtres de syst_mes de chauffage ou des
pinceaux. Vous pourriez endommager le lave-vaisselle et
provoquer une d6coloration ou des taches dans I'appareil.
[] Placez lesarticles I_gers en plastique de mani_re qu'ils
ne se d@lacent pas ou ne tombent pas au fond de
I'appareil-ils pourraient entrer en contact avec 1'616ment
chauffant, ce qui pourrait les endommager.
AATTENTION : EXIGENCESELECTRIQUES
[] Cetappareil 61ectrom@nagerdoit @trealiment@par du courant
de 120V,60 Hz,et branchia un circuit de d@ivationbien
mis a la terra, prot@g@par un fusible a retardement ou un
disjoncteurde 15ou 20 amp@as.
[] SiI'alimentation 61ectrique fournie ne remplit pas les
caract@istiques ci-dessus, nous vousrecommandons de
faire installer par un 61ectricien qualifi6 une bonne prise.
[] Le circuit de votre lave-vaisselle ne doit _tre utilis6par
aucun autre appareil 61ectrom6nager quandle lave-
vaisselle fonctionne, car le lave-vaissellen6cessite toute la
capacit6 du circuit.
NOTICE
[] Sivotre lave-vaisselleest branch@sur un circuit reli@
un interrupteur mural,assurez-vousd'actionner
celui-ci avant d'utiliser votre appareil.
[] Sivous fermez I'interrupteur mural entre lescycles
de lavage, attendez de 5 6 10 secondes apr@s
avoir ramen@I'interrupteur 6 ON (Marche) avant
d'appuyer sur la touche Start (Marche)pour permettre aux
commandes de se r6initialiser.
[] N'utilisez que les d@tergentset agents de rinCageliquides,
en poudre ou en tablette ou lesCascade Complete®All-in-1
ActionPacs TM recommand6s pour les lave-vaisselle et
gardez-leshorsde la port@ desenfants. Lesd@tergentspour
lave-vaisselleCascadeComplete®All-in-1 ActionPacsTM et
lesagents de rin_age Cascade®RinseAidTM sont approuv@s
avec les lave-vaisselleGE.
VEUILLEZ LIRE ET SUIVRE A LA LETTRE CES CONSIGNES DE SECURITdL.
CONSERVEZ CES DIRECTIVES 19

Pour d marren
Les caract_ristiques et I'apparence des appareils varieront tout au long de ce manuel.
Bharger le lave-vaisselle
Pour de meilleurs r_sultots de Iovoge, suivez les directives de chorgement des poniers dons Iosection Chorgement des paniers du/ove-
vaisse!/e. Aucun pr&rin_oge des d_p6ts olimentoires normou× n'est n_cessoire. Enlevez les d_p6ts durs, notomment les as, les cure-dents,
Io peou etles groines. Enlevez les I_gumes-feuilles, les parties non comestibles de Io vionde et les quontit_s e×c_dentoires de groisse ou
d'huile. Enlevez les d_p6ts olimentoires ocides qui peuvent d_colorer I'ocier ino×ydoble.
BAjouter le d_tergent
Ajouteztoquontit6 de d6tergent requisedons tedistributeur6 d6tergent. Utitisezund6tergent du type CascadeCompleteAll-in-1 ActionPacsTM.
Consuttezto rubriqueDistributeurdedOtergentdonstosectionUtifisotiondu tove-voisseffe.
Ajouter le produit de ringage i TH
Ajoutezteproduit de rin_ogedons le distributeur.ConsutteztosectionUtilisation dun produit de rin_age comme Cascade@RinseAid donsto
sectionUtilisation du lave-vaisselle.
mS_lectionner le cycle
Appuyezsur totouche SelectCyclepour choisir tecycle de tovoged_sir_.Levoyontvis-a-visde totouche SelectCycles'ottumeropour indiquer te
cyclequi o 6t6choisi.
Lecycle peut _tre sOtectionnOm_mesi toporte est ouverte.Lecycle nedOmorreroqu'unefois to porte fermOeet tocommondeStart sOlectionnOe.
AutoSense (certains modeles) CecycledOtecteoutomotiquement tedegr6desotet6et r6gtetecyclede tovogeen consOquence.
Heavy Ce cycle est destin_ 6 la vaisselle et batterie de cuisine tr_s sale, avec d_p6ts alimentaires s_ch_s ou cults.
Ce cycle convient aussi 6 la vaisselle de tous lesjours.
Normal Cecycle,destin_ 6 un lavage quotidien, r_gulier et typique d'une pleine charge de vaisselle normalement sale,estaussi
_conomeen eau et en _nergie. REMARQUE:Normal aservi 6 _valuer I'efficacit_ _nerg_tique de ce lave-vaisselle.
Light Ce cycle est conCu pour la vaisselle de salet_ I_g_re 6 moyenne. IIconvient 6 la porcelaine et au cristal.
Rinse Pour le rinCage de charges partielles qui seront lav_es plus tard. N'utilisez pas de d_tergent. Led_tergent n'est
(certoinsmodules) pas distribu_ pendant le cycle de rinCage.
S_lectionner les options
Le voyant vis-6-vis la touche s_lectionn_e S'ALLUMERApour indiquer I'option qui a _t_ s_lectionn_e.
Cetteoption augmentetatemp@raturepourfaciliter telavagede lavaissettetr@ssateet ettepeut attongertodur@etotate
du cycle. L'option peut @treactiv@eou d@sactiv@ependant le cycle de lavage.
Wash Temp
Boost
(certains modules)
Wash Temp
Sani
(certains mod@les)
Cette option augmente la temp@rature de I'eau Iors du rinCage final afin de d@sinfecter la vaisselle.
La dur@edu cycle variera selon la temp@rature de I'eau d'admission.
REMARQUE:Cette option est contr61@een fonction de crit@resde [e-mail] le cycle est interrompu pendant
ou apr@sI'@tapedu lavage principal, ou si la temp@rature de I'eau d'admission est si basse qu'un lavage ad@quat
ne peut _tre obtenu, ilse peut que les crit@resde d@sinfectionne soient pas atteints. Dans ce cas, le voyant
Sanitized ne s'allumera pas 6 la fin du cycle. L'utilisation de cette option modifiera le cycle pour satisfaire
la Section 6 de la norme NSF184 relative au d@logement de la salet@et 6 I'efficacit@de la d@sinfection.
REMARQUE:Les lave-vaisselle domestiques homologu@s NSFne sont pas destin@saux @tablissements
alimentaires du commerce.
Heated Dry
Off
Heated Dry
On
D@sactiveI'option de s@chageavec chaleur. La vaisselle s@chenaturellement 6 I'air et I'@nergieest @conomis@e.
Ouvrez la porte du lave-vaisselle pour acc@l@rerle s@chage.
Allume I'@l@mentchauffant afin d'acc@l@rerle [e-mail] cycle prolongera le cycle de lavage de 64 minutes.
NE PASutiliser avec le cycle Rinse seulement.
20
