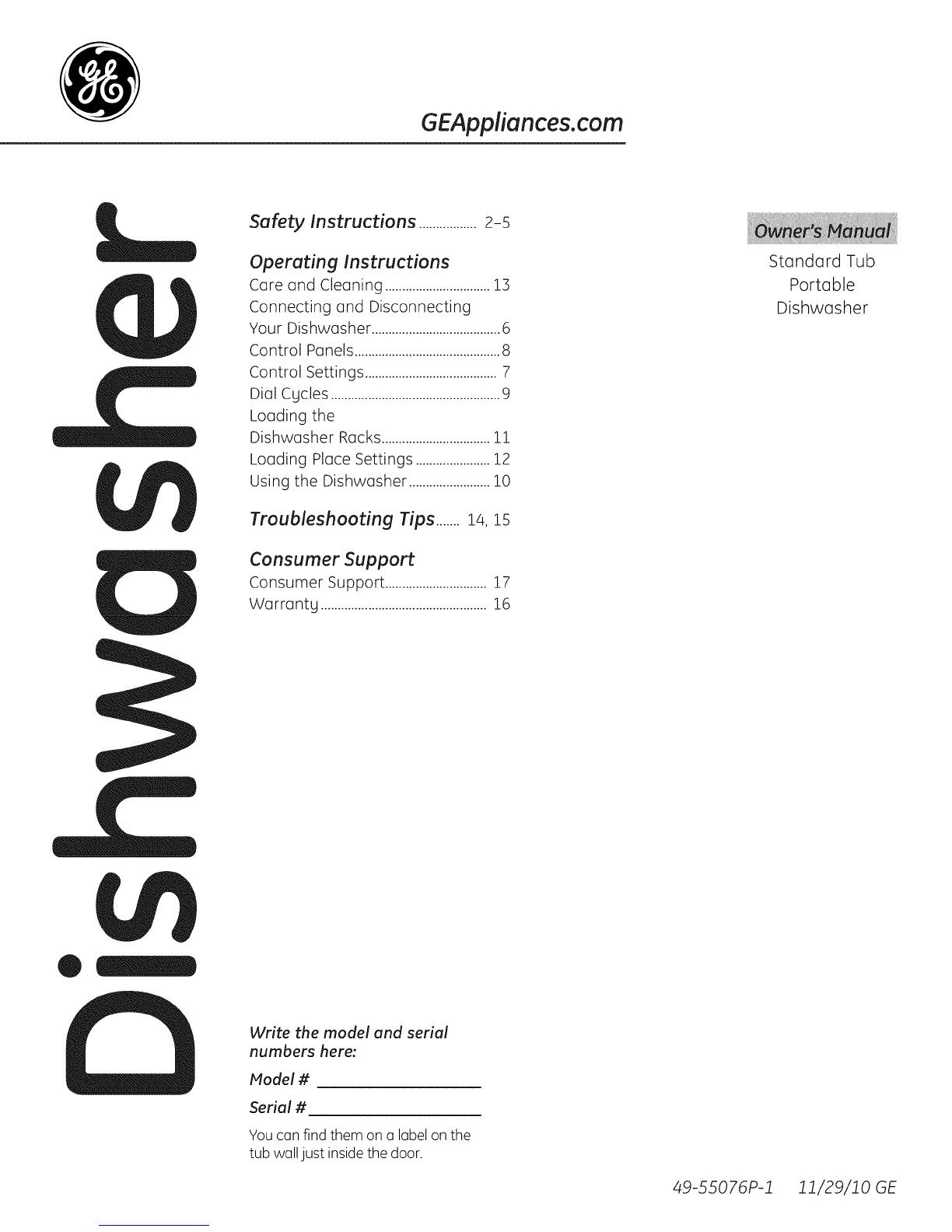

GE GSC3500V00BB User manual

0GEAppliances.com
Safety Instructions .................2-5
Operating Instructions
Care and Cleaning ...............................15

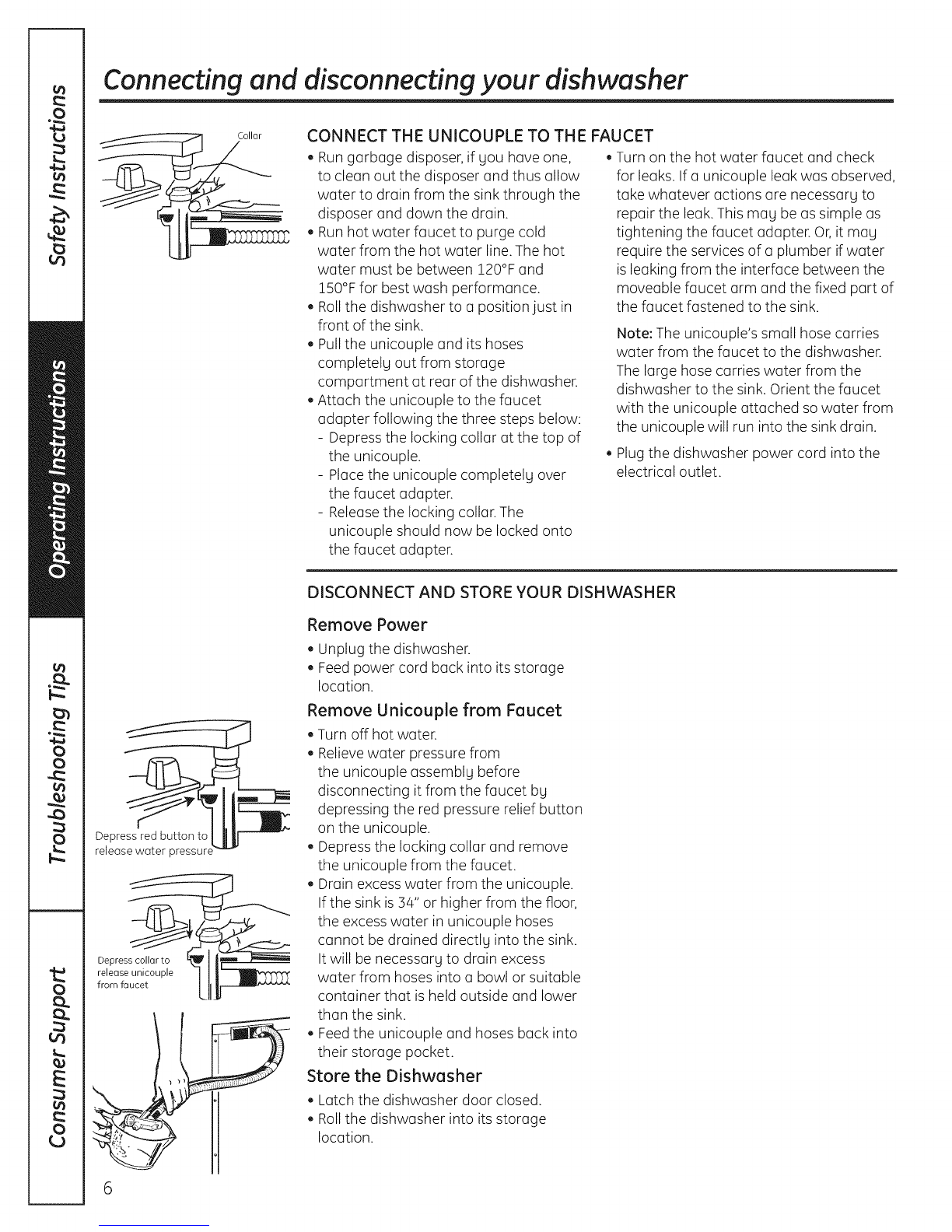

Connecting and Disconnecting
Your Dishwasher ......................................6
Control Panels ...........................................8

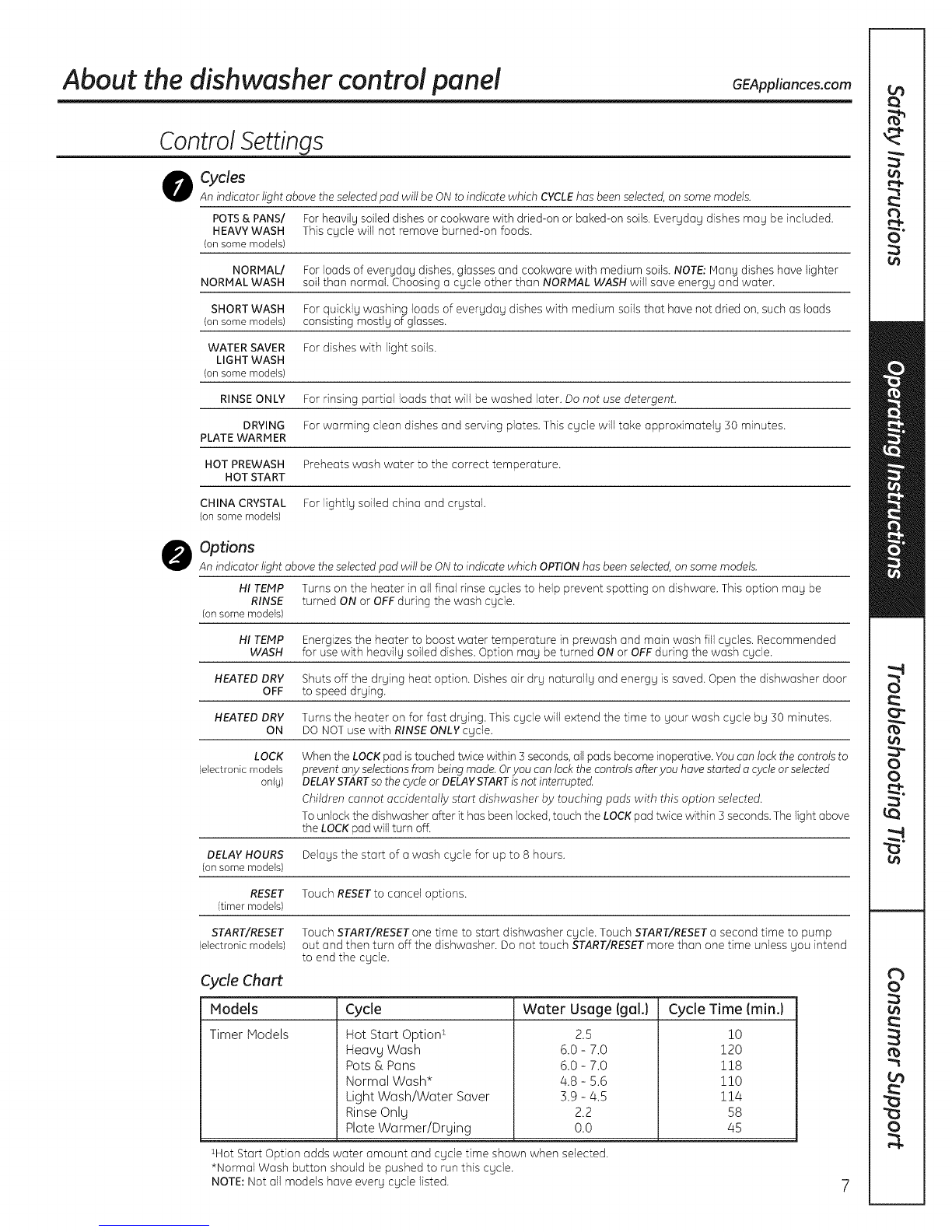

Control Settings .......................................7

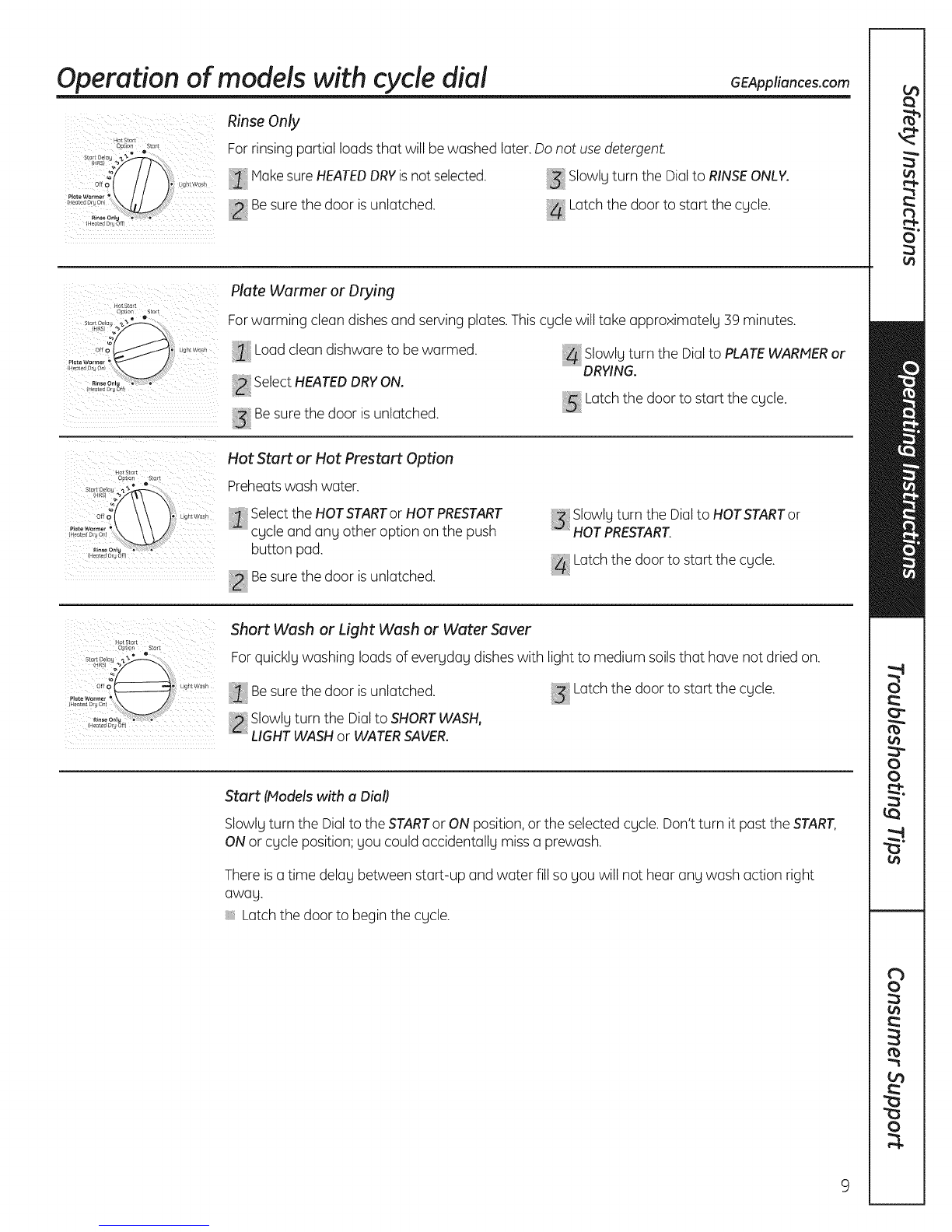

Dial Cgcles ..................................................9

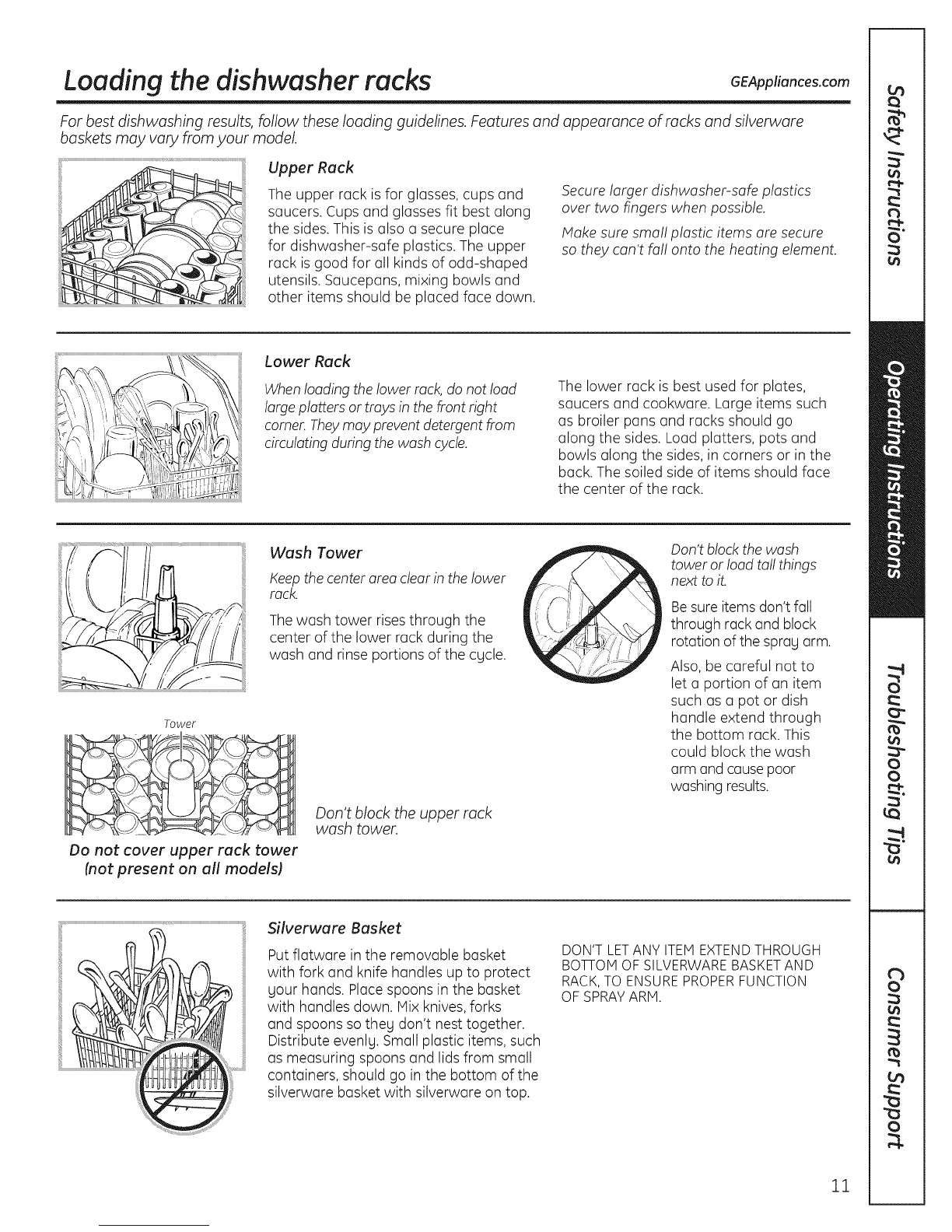

Loading the
Dishwasher Racks ................................11
Loading Place Settings ......................12

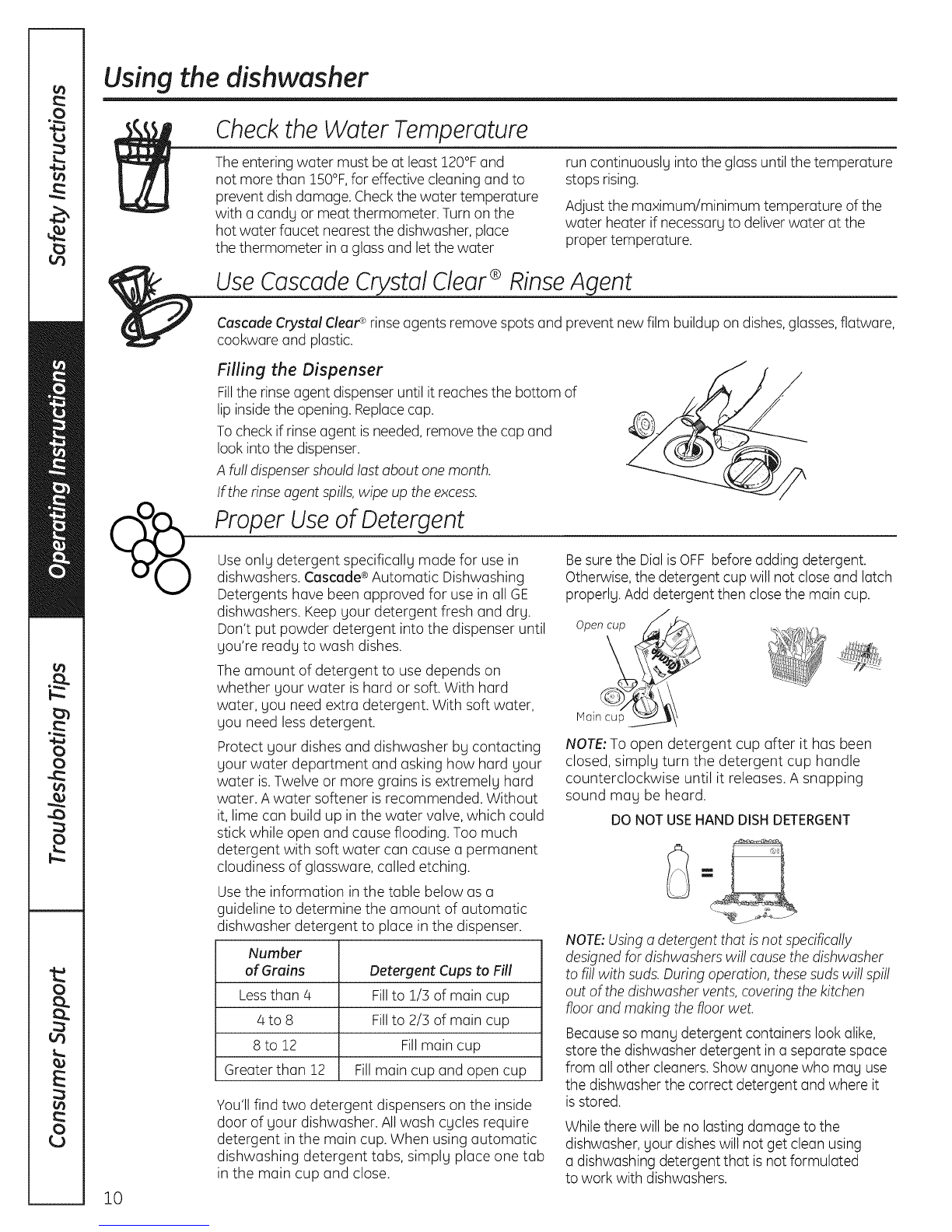

Using the Dishwasher ........................10
Troubleshooting Tips ....... 14, 15
Consumer Support
Consumer Support .............................. 17

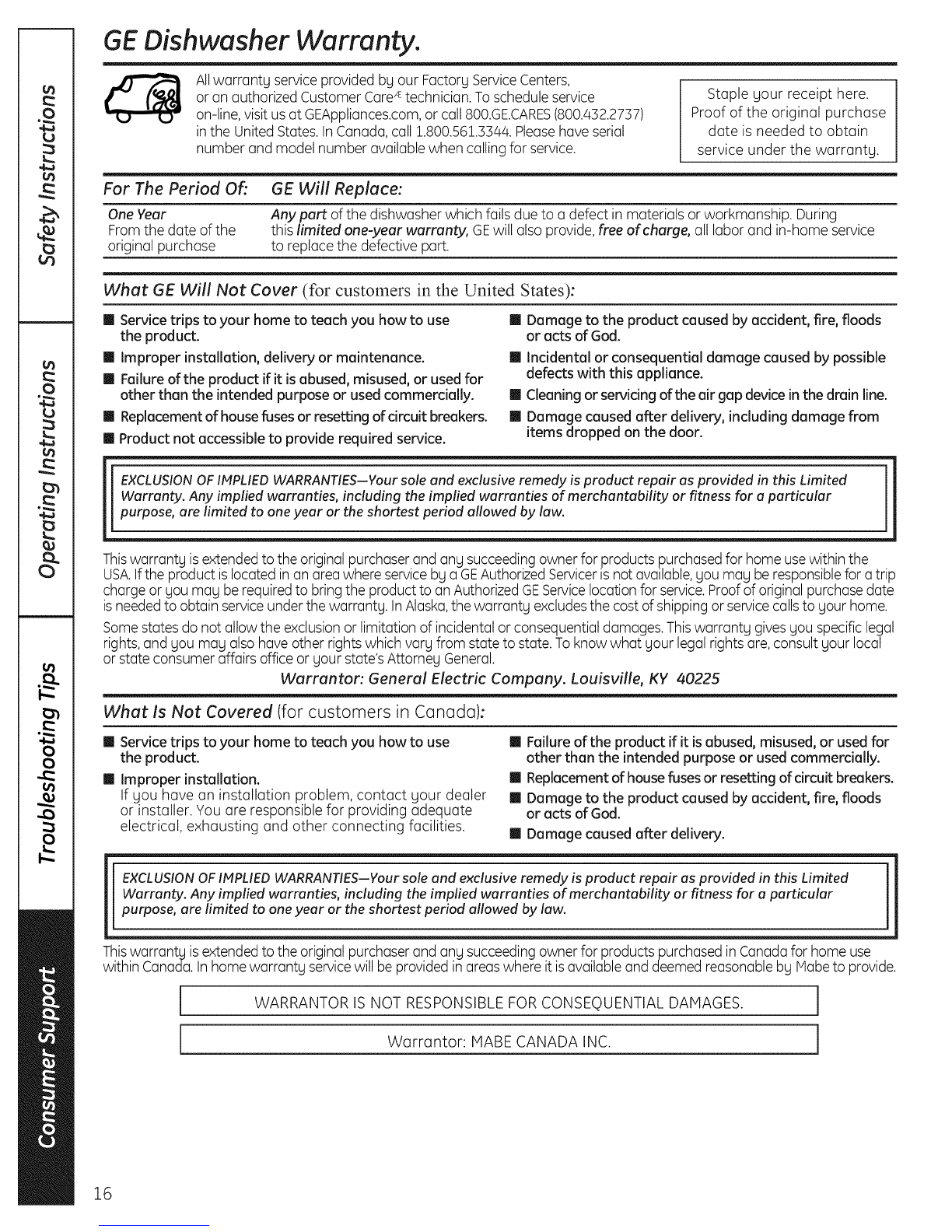

Warrantg .................................................16
Standard Tub
Portable
Dishwasher
Write the model and serial
numbers here:
Model #
Serial #
Youcan find them on a label on the
tub wall just insidethe door.
49-55076P-1 11/29/10 GE

IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING--
SAVE THESE INSTRUCTIONS
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire,
explosion, electric shock, and to prevent property damage, personal injury, or death.
%
WARNING! WATER HEATER SAFETY
Undercertain conditions, hydrogengas may beproduced in a water heaterthat has not been usedfor two
or more weeks.HYDROGENGASISEXPLOSIVE.
If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury
by turning on all hot water faucets and allow them to run for several minutes. Dothis before using
any electrical appliance connected to the hot water system. This simple procedure will allow any
built-up hydrogen gas to escape. Since the gas is flammable, do not smoke, use an open flame, or
use the appliance during this process.
PROPER INSTALLATION AND MAINTENANCE
This dishwasher must be properly installed and located in accordance with the Installation Instructions
before it is used. If you did not receive an Installation Instructions sheet with your dishwasher, you can
receive one by visiting our website at GEAppliances.com.
reconnect the dishwasher/appliance to a
grounded metal, permanent wiring system;
or run an equipment-grounding conductor
with the circuit conductors and connect to the
equipment-grounding terminal or lead of the
appliance.
mlmproper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified electrician
or service representative if you are in doubt
whether the appliance is properly grounded.
inDispose of discarded appliances and shipping
or packing material properly.
reDo not attempt to repair or replace any part
of your dishwasher unless it is specifically
recommended in this manual. All other
servicing should be referred to a qualified
technician.
inTo minimize the possibility of electric shock,
disconnect this appliance from the power
supply before attempting any maintenance.
NOTE:Turningthe dishwasheroff doesnot
disconnectthe appliancefrom the power supply.
Werecommend havinga qualifiedtechnician
serviceyour appliance.
CAUTION: To prevent minor injury and property damage
mContents washed in Anti-bacterial mode, if
available, may be hot to the touch. Usecare
before handling.
mUsing a detergent that is
not specifically designed for
dishwashers will cause the
dishwasher to fill with suds.
mlf your dishwasher is
connected to a wall switch, ensure
that the switch is on prior to use.
mOn dishwashers with electronic
controls, if you choose to turn the wall
switch off between wash cycles, allow
5-10 seconds after turning the switch on before
touching START/RESETto allow the control to
initialize.
mNon-Dishware Items: Do not wash items such
as electronic air cleaner filters, furnace filters
and paint brushes in your dishwasher. Damage
to the dishwasher and discoloration or staining
of the dishwasher may result.
inClose supervision is necessary if this appliance
is used by or near children.
reLoad light, plastic items so they do not become
dislodged and drop to the bottom of the
dishwasher-they might come into contact with
the heating element and be damaged.
2

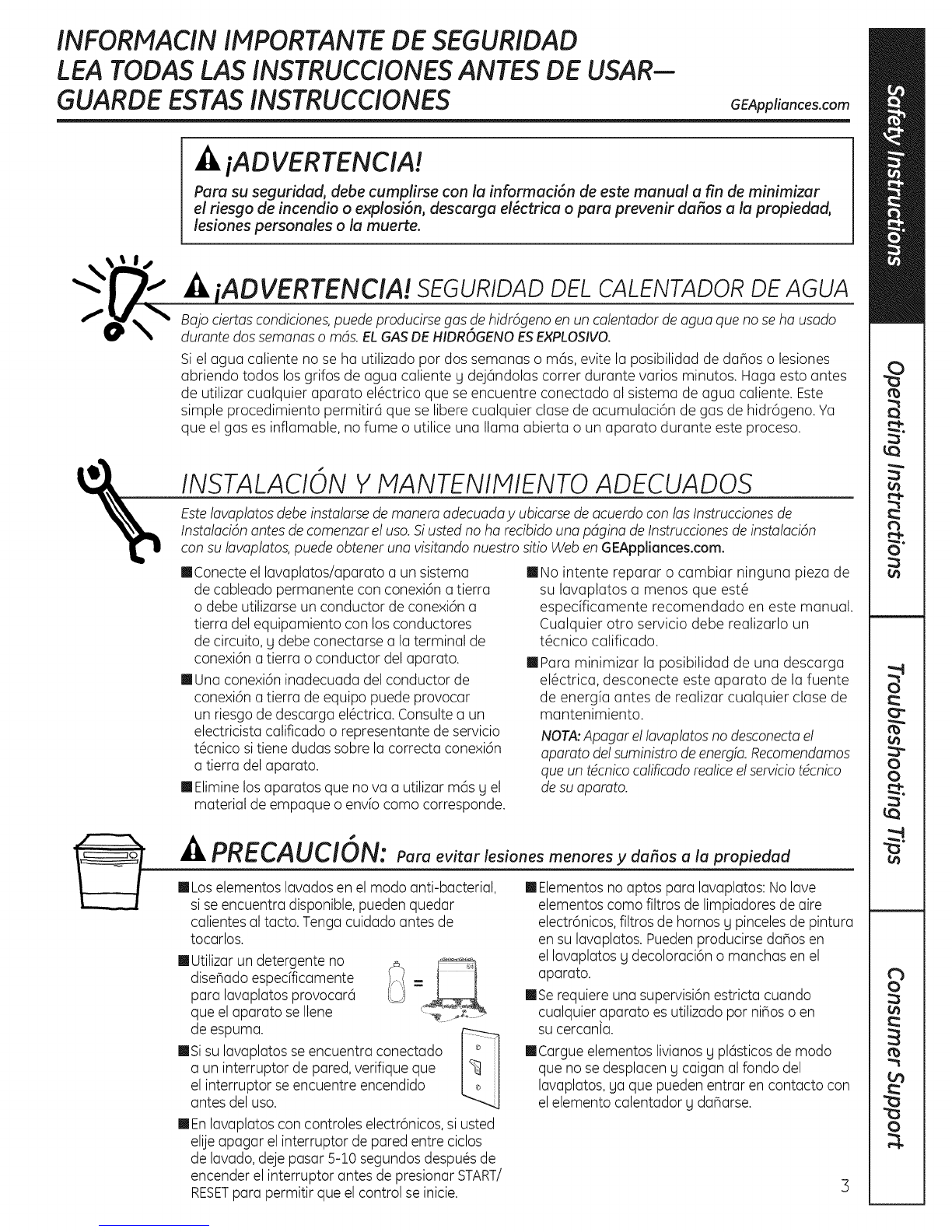

INFORMACIN IMPORTANTE DE SEGURIDAD
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR--
GUARDE ESTAS INSTRUCCIONES GEAppliances.com
AkiADVERTENCIA!
Puru su seguridud, debe cumplirse con la informaci6n de este manuul u fin de minirnizar
el riesgo de incendio o explosi6n, descurgu el_ctricu o puru prevenir dufios u lu propiedud,
lesiones personules o lu muerte.
%
ASEGURIDAD DEL CALENTADOR DE AGUA
Bajo ciertascondiciones,puede producirse gas de hidr6geno en un calentador de agua que no seha usado
dumnte dossemanaso mds. ELGASDEHIDROGENOESEXPLOSIVO.
Si el agua caliente no se ha utilizado por dos semanas o m6s, evite la posibilidad de danos o lesiones
abriendo todos losgrifos de agua caliente y dej6ndolas correr durante varios minutos. Haga esto antes
de utilizar cualquier aparato el6ctrico que seencuentre conectado al sistema de agua caliente. Este
simple procedimiento permitir6 que se libere cualquier clase de acumulaci6n de gas de hidr6geno. Ya
que el gas es inflamable, no fume o utilice una llama abierta o un aparato durante este proceso.
INSTALACION YP1ANTENIPllENTO ADECUADOS
Estelavaplatos debeinstalarsede manera adecuaday ubicarsede acuerdo con lasInstruccionesde
Instalaci6n antes de comenzar el uso.Si usted no ha recibidouna pdgina de Instruccionesde instalaci6n
con sulavaplatos, puede obtener una visitando nuestro sitio Weben GEAppliences.com.
mConecte el lavaplatos/aparato a un sistema mNo intente reparar o cambiar ninguna pieza de
de cableado permanente con conexi6n a tierra
o debe utilizarse un conductor de conexi6n a
tierra del equipamiento con losconductores
de circuito, y debe conectarse a la terminal de
conexi6n a tierra o conductor del aparato.
II Una conexi6n inadecuada del conductor de
conexi6n a tierra de equipo puede provocar
un riesgode descarga el6ctrica. Consultea un
electricista calificado o representante de servicio
t@cnicosi tiene dudas sobre la correcta conexi6n
a tierra del aparato.
II Eliminelosaparatos que no va a utilizar m6s y el
material de empaque o env[o como corresponde.
su lavaplatos a menos que est6
espec[ficamente recomendado en este manual.
Cualquier otro servicio debe realizarlo un
t6cnico calificado.
mPara minimizar la posibilidad de una descarga
el@ctrica,desconecte este aparato de la fuente
de energia antes de realizar cualquier clase de
mantenimiento.
NOTA:Apagar ellavaplatos no desconectael
aparato delsuministro de energia.Recomendamos
que un tdcnicocalificadorealiceelserviciotdcnico
de suaparato.
s
PRECAUCION: polo _ito_ lesiones menores y dafios ala propiedad
II Loselementos lavados en el modo anti-bacterial,
si seencuentra disponible,pueden quedar
calientes al tacto. Tenga cuidado antes de
tocarlos.
mUtilizarun detergente no
disehado espedficamente
para lavaplatos provocarci
que el aparato se Ilene
de espuma.
IISi sulavaplatos seencuentra conectado
a un interruptor de pared, verifique que
el interruptor seencuentre encendido
antes del uso.
II Enlavaplatos con controles electr6nicos,si usted
elije apagar elinterruptor de pared entre ciclos
de lavado, deje pasar 5-10 segundos despu@sde
encender el interruptor antes de presionar START/
RESETpara permitir que el control se inicie.
mElementosno aptos para lavaplatos: No lave
elementos como filtros de limpiadores de aire
electr6nicos,filtros de hornos Ypincelesde pintura
en su lavaplatos. Pueden producirse da_os en
el lavaplatos y decoloraci6n o manchas en el
aparato.
rose requiere una supervisi6nestricta cuando
cualquieraparato es utilizado por ni_os o en
sucercanla.
IICargue elementos livianos y pl6sticos de modo
que no sedesplacen y caigan al rondo del
lavaplatos, ya que pueden entrar en contacto con
elelemento calentador y daflarse.

IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING--
SAVE THESE INSTRUCTIONS
_k WARNING! RISK OF CHILD ENTRAPMENT
PROPER DISPOSAL OF THE DISHWASHER
Junked or abandoned dishwashers are
dangerous...even if they will sit for "just a
few days." If you are getting rid of your old
dishwasher, please follow the instructions below
to help prevent accidents.
Before You Throw Away Your Old
Dishwasher:
lITake off the door of the washing compartment
or remove the door latch keeper (as shown).
Door latch keeper
When using your dishwasher, follow basic precautions,
WARNING! including the following:
mUse this appliance only for its intended purpose
as described in this Owner's Manual.
mUse only powder, tabs, liquid detergents or rinse
agents recommended for use in a dishwasher
and keepthem out of the reach of children.
Cascade®, Cascade®Complete Automatic
Dishwashing Detergents, and Cascade Crystal
Clear®rinse agents have been approved for use
in all GEdishwashers.
reLocate sharp items sothat they are not likely
to damage the door seal.
reLoad sharp kniveswith the handles up to reduce
the risk of cut-type injuries.
reDo not wash plastic items unless marked
dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's
recommendations.
lIDo not touch the heating element during or
immediately after use.
IIDo not operate your dishwasher unless all
enclosure panels are properly in place.
II Donot tamper with controls.
IIDo not abuse, sit on or stand on the door or dish
rack of the dishwasher.
lIDo not allow children to play around the
dishwasher when opening or closing the door
due to the possibility of small fingers being
pinched in the door.
mDonot discard a dishwasher without first
removing the door of the washing compartment
or the latch keeper.
reDo not store or use combustible materials,
gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
reDo not allow children to play with, on or inside
this or any discarded appliance.
READAND FOLLOWTHISSAFETYINFORMATIONCAREFULLY'.
SAVE THESE INSTRUCTIONS
4

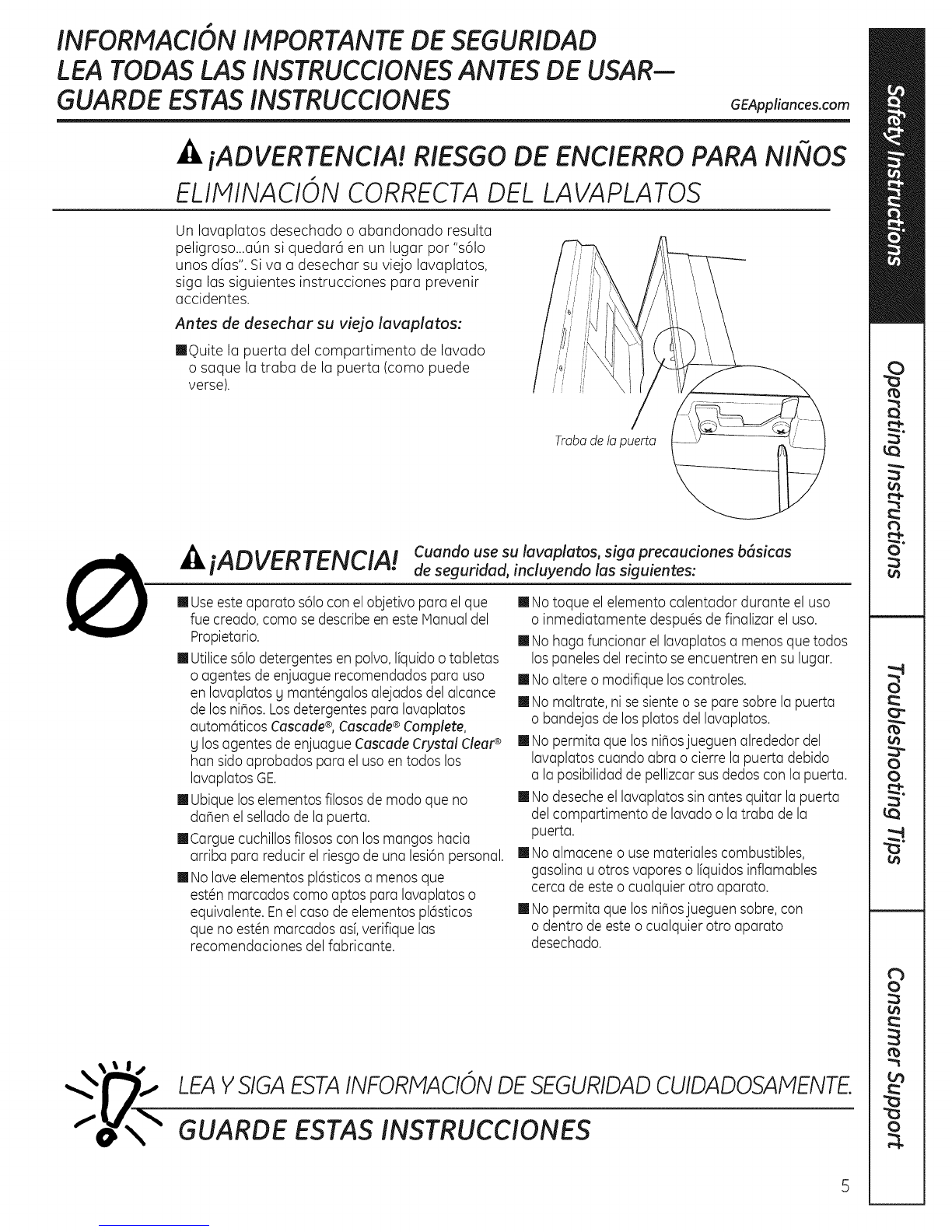

INFORMACION IMPORTANTEDESEGURIDAD
LEA TODASLASINSTRUCCIONESANTES DE USAR--
GUARDE ESTASINSTRUCCIONES GEAppliances.com
,_,iADVERTENCIA! RIESGODE ENCIERROPARA NI_IOS
ELIMINACION CORRECTADEL LAVAPLATOS
Un lavaplatos desechado o abandonado resulta
peligroso...aOn si quedarc_en un lugar por "s61o
unos dias". Siva a desechar su viejo lavaplatos,
siga las siguientes instrucciones para prevenir
accidentes.
Antes de desechar su viejo lavaplatos:
[]Quite la puerta del compartimento de lavado
o saque la traba de la puerta (como puede
verse).
Traba de lapuerta
.1.A iADVERTENCIA! Cuando use su /avap/atos, siga precauciones b_sicas
de seguridad, incluyendo las siguientes:
[] Useeste aparato s61ocon elobjetivo para el que
fue creado,como se describe en este Manualdel
Propietario.
[] Utilices61odetergentes en polvo,liquido o tabletas
o agentes de enjuague recomendadospara uso
en lavaplatos g mant@ngalosalejadosdel alcance
de los ninos.Losdetergentes para lavaplatos
automOticosCascade%Cascade®Complete,
g losagentes de enjuague CascadeCrystal Cleare
han sidoaprobados para el usoen todos los
lavaplatos GE.
[] Ubiqueloselementos filososde modo que no
da_en elselladode la puerta.
[]Cargue cuchillosfilososcon losmangos hacia
arriba para reducirel riesgode una lesi6n personal.
[] Nolaveelementos pl6sticosa menos que
est@nmarcados como aptos para lavaplatoso
equivalente.Enelcaso de elementospl6sticos
que no est@nmarcados asi,verifique las
recomendaciones del fabricante.
[] Notoque el elemento calentador durante el uso
o inmediatamente despu@sde finalizar el uso.
[] No haga funcionar el lavaplatosa menos que todos
lospanelesdel recinto se encuentren en su lugar.
[] Noaltereo modifique loscontroles.
[] Nomaltrate, ni sesienteo se pare sobrela puerta
o bandejasde losplatos del lavaplatos.
[] Nopermita que losninosjueguen alrededor del
lavaplatos cuando abra o cierrela puerta debido
a la posibilidadde pellizcarsus dedoscon la puerta.
[] Nodesecheel lavaplatossin antes quitar la puerta
del compartimento de lavadoo la traba de la
puerta.
[] Noalmacene o use materialescombustibles,
gasolina u otros vapores o liquidosinflamables
cerca de esteo cualquier otro aparato.
[] Nopermita que losninosjueguen sobre,con
o dentro de este o cualquierotro aparato
desechado.
LEA VSIGAESTAINFORMACION DE SEGURIDADCUIDADOSAHENTE.
GUARDE ESTAS INSTRUCCIONES

Connecting und disconnecting your dishwusher
Collar CONNECT THE UNICOUPLE TO THE FAUCET
. Run garbage disposer, if gou have one, *Turn on the hot water faucet and check
to clean out the disposer and thus allow
water to drain from the sink through the
disposer and down the drain.
*Run hot water faucet to purge cold
water from the hot water line.The hot
water must be between 120°F and
150% for best wash performance.
*Rollthe dishwasher to a position just in
front of the sink.
*Pull the unicouple and its hoses
completelg out from storage
compartment at rear of the dishwasher.
*Attach the unicouple to the faucet
adapter following the three steps below:
- Depress the locking collar at the top of
the unicouple.
- Place the unicouple completelg over
the faucet adapter.
- Release the locking collar. The
unicouple should now be locked onto
the faucet adapter.
for leaks. If u unicouple leak was observed,
take whatever actions ore necessarg to
repair the leak. This mog be as simple as
tightening the faucet adapter. Or,it mog
require the services of o plumber ifwater
is leaking from the interface between the
moveable faucet arm and the fixed port of
the faucet fastened to the sink.
Note: The unicouple's small hose curries
water from the faucet to the dishwasher.
The large hose curries water from the
dishwasher to the sink. Orient the faucet
with the unicouple attached sowater from
the unicouple will run into the sink drain.
Plug the dishwasher power cord into the
electrical outlet.
DISCONNECT AND STORE YOUR DISHWASHER
Remove Power
. Unplug the dishwasher.
. Feed power cord beck into its storage
locution.
Remove Unicouple from Faucet
. Turn off hot water.
. Relieve water pressure from
the unicouple ussemblg before
disconnecting it from the faucet bg
depressing the red pressure relief button
on the unicouple.
. Depress the locking collar end remove
the unicouple from the faucet.
. Drain excess water from the unicouple.
If the sink is34" or higher from the floor,
the excess water in unicouple hoses
cannot be drained directlg into the sink.
It will be necessarg to drain excess
water from hoses into a bowl or suitable
container that is held outside and lower
than the sink.
. Feed the unicouple and hoses back into
their storage pocket.
Store the Dishwasher
. Latch the dishwasher door closed.
. Rollthe dishwasher into its storage
location.

About the dishwasher control panel GEAppliances.com
Control Settings
OCycles
An indicator light above the selectedpad will be ON to indicate which CYCLEhas been selected,on some models.
POTS& PANS/ For heavily soiled dishes or cookware with dried-on or baked-on soils. Everyday dishes may be included.
HEAVYWASH This cycle will not remove burned-on foods.
(onsomemodels)
NORMAL/ For loads of evergday dishes, glasses and cookware with medium soils. NOTE: Many dishes have lighter
NORMAL WASH soil than normal. Choosing a cycle other than NORMAL WASH will save energy and water.
SHORT WASH For quickly washing loads of everyday dishes with medium soils that have not dried on, such as loads
(onsomemodels) consisting mostlUof glasses.
WATER SAVER For dishes with light soils.
LIGHTWASH
(on some models)
RINSE ONLY For rinsing partial loads that will be washed later. Do not use detergent.
DRYING For warming clean dishes and serving plates. This cgcle will take approximatelg 50 minutes.
PLATEWARMER
HOT PREWASH Prehe(]ts wash water to the correct temperature.
HOT START
CHINA CRYSTAL For lightly soiled china and crystal.
{onsomemodels)
OOptions
An indicator light above the selectedpad will beON to indicate which OPTIONhas been selected,on some models.
HI TEPIP Turns on the heater in all final rinse cgcles to help prevent spotting on dishware. This option mag be
RINSE turned ON or OFF during the wash cgde.
Ionsomemodels)
HI TEIP Energizes the heater to boost water temperature in prewash and main wash fill cgcles. Recommended
WASH for use with heavilg soiled dishes. Option mug be turned ON or OFFduring the wash cgde.
HEATED DRY Shuts off the drging heat option. Dishes air drg naturallg and energg is saved. Open the dishwasher door
OFF to speed drging.
HEATED DRY Turns the heater on for fast drging. This cgcle will extend the time to gour wash cgcle bg 50 minutes.
ON DO NOTuse with RINSE ONLY cgde.
LOCK
(electronic models
onlg)
When the LOCKpad istouched twice within 3 seconds,all pads become inoperative. Youcan lock the controls to
prevent any selectionsfrom beingmade. Or you can lock the controls afteryou have started acycleor selected
DELAYSTARTso thecycleor DELAYSTARTisnot interrupted.
Children cannot accidentally start dishwasher by touching pads with this option selected.
To unlock the dishwasher after it has been locked, touch the LOCKpad twice within 5 seconds.The light above
the LOCKpad will turn off.
DELAYHOURS Delags the start of a wash cgcle for up to 8 hours.
Ionsomemodels)
RESET Touch RESETto cancel options.
(timermodels)
START/RESET Touch START/RESETone time to start dishwasher cycle. Touch START/RESETa second time to pump
(electronicmodels) out and then turn off the dishwasher. Do not touch START/RESETmore than one time unless you intend
to end the cycle.
Cycle Chart
Models Cycle
Timer Models Hot St(]rt OptionI
Heovg Wash
Pots & Pans
Normal Wash*
Light Wash/Water Saver
RinseOnlg
Plate Wormer/Drging
Water Usage {gal.)
2.5
6.0 - 7.0
6.0 - 7.0
4.8 - 5.6
3.9-4.5
2.2
0.0
Cycle Time (min.)
10
120
118
110
114
58
45
1HotStart Option adds water amount and cgde time shown when selected.
*Normal Wash button should be pushed to run this cgde.
NOTE: Not all models have everg cgde listed.

About the dishwasher control panel
You can locate your model number on the left tub wall just inside the door. Throughout this manual,
features and appearance may vary from your model.
Please match the control panel for your unit to asimilar control panel below.
NormalWash
Heav UWash r- Light Wash or Water Saver
Hot Prewash or Hot Start Heated Dry
Option ®
Off 0 ® On
UOff
Plate WOrmer IHeated Dr,
Pots Normal
& Pans Wash
I II !
Cycle
Selector
HITemp Wash Heated Dry
On Off On Off
I ! I I I
EnergySaver
Option
START WATER SAVER
O •
HOT PREWASH OPTION ®
OFFo
PLATE V_/ARMER
(HEATEDDRYON) • • RINSEONLY
(HEATED DRY OFF)
Cycles Options Hot Start
Option 0
Off 0
Plate Warmer
(Heated Dry On)
Start
Q• Light Wash
Rinse Only
Dry Off)
8

Operation of models with cycle dial GEApUio,ces.com
Rinse Only
%t1_'t._ For rinsingpartial loadsthat will be washed later.Do not usedetergent.
Start Delay 1,%_
afro_, ,, ,_Lg_,,_.,o_,, MakesureHEATEDDRYisnot selected. _i ISlowly turn the Dialto RINSEONLY.
Plate Wr_rmer _
ii_ooiiiii:ii
I_........ _ Besurethedoorisunlatched. Latchthedoortostartthecycle.
Heo ed D_gOf/)
HotStart
Option S_e_t
• •
offo Lgh_Wo_
Plete Warmer _
/He_J_ Dry Of()
Plate Warmer or Drying
Forworming cleon dishes and serving plates.Thiscycle will take approximately 39 minutes,
_,iLood clean dishware to be wormed. _ Slowly turn the Dialto PLATEWARMERor
_:iSe,ectHEATEDDRY'ON. ......................DR_'ING.
@311Besurethedoorisun,atched. Latchthedoortostartthecyc,e.
Rot Start
O_tqn Sta_
s_o4__ .,_ ....,_
OffO_: Light Wash
{H_ted Or O!fJ
Hot Start or Hot Prestart Option
Preheatswash water.
Se,ecttheHOTSTARTorHOTPRESTART
cycle and any other option on the push
button pad.
_ilBesurethedoorisunlatched
Slowly turn the Dialto HOTSTARTor
......HOTPRESTART.
Latch the door to start the cycle.
_ot start
opt@n Start
start_e_og,1,
{Heated Drg Off)
Short Wash or Light Wash or Water Saver
Forquickly washing loads of everyday dishes with light to medium soilsthat have not dried on.
Besurethe door isunlatched. _ Latch the door to start the cycle.
Slowly turn the Dialto SHORTWASH,
LIGHT WASHor WATERSAVER.
Start (Hodels with a Dial)
Slowly turn the Dialto the STARTorON position,or the selectedcycle. Don'tturn it past the START,
ON or cycle position;you could accidentally missa prewash.
Thereisa time delay between start-up and water fill so you will not hear any wash action right
away.
Latchthe door to begin the cycle.

Using the dishwasher
Checkthe Water Temperature
Theentering water must be at least 120°Fand
not more than 150°F,for effective cleaning and to
prevent dish damage. Checkthe water temperature
with a candy or meat thermometer. Turnon the
hot water faucet nearest the dishwasher, place
the thermometer in a glass and letthe water
run continuously into the glass until the temperature
stops rising.
Adjust the maximum/minimum temperature of the
water heater if necessary to deliverwater at the
proper temperature.
Use Cascade Crystal Clear®Rinse Agent
10
Cascade Crystal Cleare rinseagents remove spots and prevent new film buildup on dishes,glasses,flatware,
cookware and plastic.
Filling the Dispenser
Fillthe rinseagent dispenser until it reachesthe bottom of
lip insidethe opening. Replacecap.
Tocheck if rinseagent is needed,remove the cap and
look into the dispenser.
A full dispensershould last about one month.
If the rinseagent spills,wipe up the excess.
Proper Use of Detergent
Useonly detergent specifically made for use in
dishwashers. Cascade®Automatic Dishwashing
Detergents have been approved for use in all GE
dishwashers. Keep your detergent fresh and dry.
Don't put powder detergent into the dispenser until
you're ready to wash dishes.
The amount of detergent to use depends on
whether your water is hard or soft. With hard
water, you need extra detergent. With soft water,
you need less detergent.
Protect your dishes and dishwasher by contacting
your water department and asking how hard your
water is.Twelve or more grains isextremely hard
water. A water softener isrecommended. Without
it, lime can build up in the water valve, which could
stick while open and cause flooding. Too much
detergent with soft water can cause a permanent
cloudiness of glassware, called etching.
Usethe information in the table below as a
guideline to determine the amount of automatic
dishwasher detergent to place in the dispenser.
Number
of Grains Detergent Cups to Fill
Lessthan 4 Fillto 1/5 of main cup
/4to 8 Fillto 2/5 of main cup
8 to 12 Fillmain cup
Greater than 12 Fillmain cup and open cup
You'll find two detergent dispensers on the inside
door of your dishwasher. All wash cycles require
detergent in the main cup. When using automatic
dishwashing detergent tabs, simply place one tab
in the main cup and close.
Besurethe Dialis OFF before adding detergent.
Otherwise, the detergent cup will not closeand latch
properly. Add detergent then close the main cup.
Open cup
Maincup
NOTE:To open detergent cup after it has been
closed, simply turn the detergent cup handle
counterclockwise until it releases. A snapping
sound may be heard.
DO NOT USE HAND DISH DETERGENT
NOTE:Usinga detergent that isnot specifically
designedfor dishwashers will cause the dishwasher
to fill with suds.During operation, thesesuds will spill
out of the dishwasher vents,covering the kitchen
floor and making the floor wet.
Becauseso many detergent containers look alike,
store the dishwasher detergent in a separate space
from all other cleaners.Show anyone who may use
the dishwasher the correct detergent and where it
is stored.
While there will be no lasting damage to the
dishwasher, your dishes will not get clean using
a dishwashing detergent that isnot formulated
to work with dishwashers.

Loading the dishwasher racks GEAppliances.com
For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware
baskets may vary from your model.
Upper Rack
The upper rack is for glasses, cups and
saucers. Cups and glasses fit best along
the sides. This isalso a secure place
for dishwasher-safe plastics. The upper
rack is good for all kinds of odd-shaped
utensils. Saucepans, mixing bowls and
other items should be placed face down.
Secure larger dishwasher-safe plastics
over two fingers when possible.
Make sure small plastic items are secure
so they can't fall onto the heating element.
Lower Rack
Whenloading thelower rack,do not load
largeplatters or trays in the front right
comer.Theymay prevent detergent from
circulating during the wash cycle.
The lower rack is best used for plates,
saucers and cookware. Large items such
as broiler pans and rocks should go
along the sides. Load platters, pots and
bowls along the sides, in corners or in the
back. The soiled side of items should face
the center of the rack.
Wash Tower
Keepthe center area clear in thelower
rack.
Thewash tower rises through the
center of the lower rack during the
wash and rinse portions of the cgcle.
Towel
Do not cover upper rack tower
(not present on all models)
Don't block the upper rack
wash tower.
Don't block the wash
tower or load tall things
next to it.
Be sureitems don't fall
through rack and block
rotation of the sprag arm.
Also, be careful not to
let a portion of an item
such as a pot or dish
handle extend through
the bottom rack. This
could block the wash
arm and causepoor
washing results.
Silverware Basket
Put flatware in the removable basket
with fork and knife handles up to protect
gour hands. Placespoons in the basket
with handles down. Mix knives,forks
and spoons so theg don't nest together.
Distribute evenlg. Small plastic items, such
as measuring spoons and lidsfrom small
containers, should go in the bottom of the
silverware basket with silverware on top.
DON'T LETANY ITEM EXTEND THROUGH
BOTTOM OF SILVERWARE BASKET AND
RACK, TO ENSURE PROPER FUNCTION
OF SPRAY ARM.
11

Loading place settings...
Follow these guidelines for loading 10 place settings. Features and appearance of racks and silverware baskets
may vary from your model.
Upper Rack--lO place settings Upper Rack--lO place settings Lower Rack--lO place settings
Upper Rack--12 place settings
v v
Upper Rack--12 place settings Lower Rack--12 place settings
_et to Add a Dish?
Aforgotten dish can be added ang time before the main wash.
_Push the door latch to the left.
_Once the water calms, open the door. Steam mag rise out of the dishwasher.
_Add forgotten dish.
Close the door and push the latch to the far right.
Tips for Loading and Good Wash Performance
Don't block the lower rack wash tower.
Don't let items fall through rack and
block spray arms.
12

Caring for the dishwasher GEAppliances.com
Toclean the control panel, usea lightly dampened cloth, then dry thoroughly. Toclean the exterior, use a good appliance
polish. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
If your dishwasher isleft in an unheated place
during the winter, ask a servicetechnician to:
Unplugthedishwasherfromthewalloutlet.
Removethe Unicouple from the faucet..
Disconnectthe hosefrom the water valve.
Sump cover screws
Drainwater from the inlet line and water
valve.(Usea pan to catch the water.)
Reconnectthe water inlet lineto the
.......................water valve.
_ii Removethe plasticsump cover in the tub
bottom and usea sponge to soak up water
in the rubber boot.
Stainless Steel Panels
Thestainlesssteel panels can be cleaned
with StainlessSteelMagic or a similar
product using a clean, soft cloth.
You can order StainlessSteelMagic
#WXJOXJ5through GEPartsbg calling
800.626.2002.
13

Beforeyou call for service...
Troubleshooting Tips Save time and money! Review the charts on the following
pages, or visit GEAppliances.com. You may not need to call for service.
Problem Possible Causes What To Do
Dishwasher wont run
Noise
Fuseis blown, or the . Replacefuse or reset circuit breaker. Removeang other appliances
circuit breaker tripped from the circuit.
•Trg pressingthe START/RESETpad(Electronicmodels)two times.
Power is turned off . Insome installations,power to the dishwasher isprovided through a wall
switch, often located next to the disposer switch. Hake sureit ison.
Someof the sounds . Soft food disposal shredding action.
you'll hear are normal . Drainvalve opening to pump water out.
. Timer control as cgcle progresses.
. Detergent cup opening.
. Themotor stopping during the drging period.
• Water drainingoutoftub immediatelgaftertouchingtheSTART/RESETpad.
Utensils are not secure • Hake sureevergthing issecured in dishwasher.
in rack or something small
has dropped into rack
Rattling dishes when • Hake suredishes are properlg loaded.Seethe Loading the
the spray arm rotates dishwasher racks section.
Motor hums . Dishwasher has not been usedon a regular basis.If gou do not use
gout dishwasher often, set itto fill and pump out once everg week.
Thiswill help keepthe sealmoist.
Water standing in This is normal . A small amount of clean water around the outlet on the tub bottom
the bottom of the tub at the back of the tub keepsthe water seal lubricated.
Water won't pump Drain is clogged . Checkto seeifgour kitchensink isdraining well. If not, gou mag need
out of the tub a plumber.
. Ifthe dishwasher drains into a disposer,run disposerclear.
Suds in the tub Wrong detergent . Useonlg automatic dishwasher detergents to avoid sudsing.
was used Cascade®and Cascade®Complete Automatic Dishwashing
Detergents have been approved for usein all GEdishwashers.
. Toremove sudsfrom the tub, open the dishwasher and let suds
dissipate.Add ! gallon of cold water to the tub. On Modelswith a Dial:
Closeand latch the dishwasher. Pumpout water bg slowlg turning the
Dialuntil a drain period isreached.Repeat ifnecessarg.On Modelswith
ElectronicControl:Pumpout water bg pressingthe START/RESETpad,
then 10 secondslater, pressSTART/RESETpad again. Repeatif necessarg.
. Alwags wipe up rinseagent spillsimmediatelg.
• Useof the RINSEONLYcgcle after adding the dish to the load
can decrease the levelof staining. GErecommends Cascade®
Plastic Booster to help remove these tgpes of stains.
. Removethe stain bg hand, using a solution of 1/2 cup bleach
and 3 cups warm water.
WARNING
Beforecleaning interior,wait at least 20 minutes after a cgcle for the
heating elementsto cooldown. Failureto do socan result in burns.
.ZkADVERTENCIA
Antesde limpiarel interior,espereporIomenos20minutosdespu_sdeun ciclo
paraqueloselementoscalentadoresseenfrien.Nohacerlopuedeprovocar
9uemaduras.
• A special filter in the water supplg line isthe onlg wag to correct
this problem. Contact a water softener compang.
Rinseagent was spilled
Stained tub interior Sometomato-based
foods can cause reddish
stains
Tea or coffee stains
14
An overall yellow or
brown film can be
caused by iron deposits
in water
White film on inside
surface--hard water
minerals
. GErecommends Cascade Crystal Clear_ to help prevent hard water
mineral depositsfrom forming.
. Rundishwasher with citric acid to remove mineral deposits. Citric
acid (Partnumber: WD35X!5!) can be ordered through GEParts.
See back cover for ordering information.

Before you call for service... GEAppliances.com
Problem Possible Causes What To Do
Dishes don't dry , Make sure inletwater temperature isat least !20°F.
, SelectHEATEDDRY.
, Use HOTSTARTand ADDEDHEAToptions.
, Selecta higher cgcle, such as POTS&PANSor HEAVYWASH.
Rinseagent dispenser , Checkthe rinse agent dispenser and fillas required.
is empty
Dishes and flatware Inlet water temperature, Raisethe water heater temperature to !20°F.
nat clean is below 120°F. , Use HOTSTART,POTS& PANSor HEAVYWASHand HI TEMPWASH.
Too little detergent , SeeUsingthe dishwasher section, referto Proper UseofDetergentfor
detergent recommendations.
Old or damp powdered , SeeUsingthe dishwasher section, referto Proper UseofDetergentfor
detergent detergent recommendations.
Water pressure is , Turnon a faucet. Iswater coming out more slowlg than usual?If so,
temporarily low wait until pressure isnormal before using gour dishwasher.
Improper rack loading , Make surelarge dishware doesnot block detergent dispenseror wash arm.
Spots and filming
an glasses and
flatware
Low inlet water
temperature
Extremely hard water
Low inlet water
ternperature
Overloading the
dishwasher
Improper loading
Old or damp powder
detergent
Rinseagent dispenser
empty
Too little detergent
, Use CascadeCrystal Clear@rinseagents to remove spots and prevent
new film buildup.
, Toremove stubborn spots and pre-existing film from glassware:
1 Removeall metal utensilsfrom the dishwasher.
2Donot add detergent.
3 Selectthe longest cgcle.
4 Start the dishwasher and allow to run for 18to 22 minutes.
Dishwasher will now be in the main wash.
5Open the door and pour 2 cups (500ml)of white vinegar into the
bottom of the dishwasher.
6Closethe door and allow to complete the cgcle. Ifvinegar rinse
doesn't work: Repeatas above,except use1/4 cup (60ml)of citric
acid crgstals instead of vinegar.
Cloudiness on Combination of soft , Thisiscalled etching and is permanent. To prevent this from
glassware water and too much happening, use lessdetergent if gou have soft water. Wash glassware in
detergent the shortest cgcle that will get it clean.
Water temperature • Lower the water heater temperature.
entering the dishwasher
exceeds 150°F.
Detergent cup lid Dial is not in the OFF , Turnthe Timer Dialto OFF.
won't latch position
Detergent left in Dishesare blocking the , Repositionthe dishes.
dispenser cups detergent cups
Steam This isnormal , Steam comes through the vent bg the door latch during drging and
when water is being pumped out.
Black orgray Aluminum utensils have , Removemarks with a mild,abrasive cleaner.
marks on dishes rubbed against dishes
Control panel lights Time too long between , Eachpad must be touched within 30 seconds ofthe others.To relight,
go offwhenyou are touching or selecting touch ang pad again or unlatch and relatch the door.
setting controls pads
Control panel Door latch may not , Callfor service.
responded to inputs be properly seated
but dishwasher never
filled with water
15

GEDishwasher Warranty.
Allwarranty serviceprovided by our Factory ServiceCenters,
or an authorized Customer Care_ technician. Toscheduleservice
on-line,visit usat GEAppliances.com,or call 800.GE.CARES1800.432.2737)
in the United States.InCanada,call 1.800.561.5544.Pleasehaveserial
number and model number availablewhen callingfor service.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain
service under the warranty.
For The Period Of: GE Will Replace:
One Year Any part of the dishwasher which fails due to a defect in materials or workmanship. During
Fromthe date of the this limited one-year warranty, GEwill alsoprovide, free of charge, all labor and in-home service
original purchase to replacethe defective part.
What GE Will Not Cover (for customers in the United States):
II Service trips to your home to teach you how to use
the product.
II Improper installation, delivery or maintenance.
nl Failureof the product if it isabused, misused, or used for
other than the intended purpose or usedcommercially.
II Replacementof housefusesor resetting of circuit breakers.
II Product not accessible to provide required service.
nl Damage to the product caused by accident, fire, floods
or acts of God.
II Incidental or consequential damage caused by possible
defects with this appliance.
II Cleaning or servicing of the air gap device in the drain line.
Ill Damage caused after delivery, including damage from
items dropped on the door.
EXCLUSION OF IMPLIED WARRANTIES--Your sole and exclusive remedy is product repoir us provided in this Limited
Worrunty. Any implied worronties, including the implied worronties of merchontobility or fitness for o porticulor
purpose, ore limited to one your or the shortest period ollowed by low.
Thiswarranty isextendedto the original purchaserand any succeedingowner for products purchasedfor home usewithin the
USA.If the product islocated in an area where servicebg a GEAuthorizedServiceris notavailable,you may be responsiblefor a trip
charge or you may berequiredto bring the product to an AuthorizedGEServicelocation for service.Proofof original purchasedate
isneededto obtain serviceunderthe warranty. InAlaska,the warranty excludesthe costof shippingor servicecallsto your home.
Somestates do not allow the exclusionor limitation of incidental or consequentialdamages.Thiswarranty givesyou specific legal
rights,and you may also haveother rights which vary from state to state.Toknow what your legal rights are,consult your local
or state consumer affairs officeor your state'sAttorney General.
Warrantor: General Electric Company. Louisville, KY 40225
What Is Not Covered (for customers in Canada):
m Service trips to your home to teach you how to use
the product.
m Improper installation.
If you have an installation problem, contact your dealer
or installer. You are responsible for providing adequate
electrical, exhausting and other connecting facilities.
imFailure of the product if it is abused, misused, or usedfor
other than the intended purpose or used commercially.
m Replacement of housefusesor resetting of circuit breakers.
imDamage to the product caused by accident, fire, floods
or acts of God.
Ill Domoge caused after delivery.
EXCLUSION OF IMPLIED WARRANTIES--Your sole ond exclusive remedy is product repoir us provided in this Limited
Worronty. Any implied worronties, including the implied worronties of merchontobility or fitness for o purticulor
purpose, ore limited to one your or the shortest period ollowed by low.
Thisworrantg isextendedto the original purchaserand ang succeedingowner for products purchasedin Canadafor home use
within Canada.In homewarrontg servicewill be providedin areaswhere it isavailableand deemedreasonablebg Niobeto provide.
j WARRANTOR IS NOT RESPONSIBLEFOR CONSEOUENTIAL DAMAGES.
Warrantor: MABE CANADA INC.
16

Consumer Support.
GEAppliances Website Inthe U.S.:GEAppliances.com
Have a question or needassistancewith gour appliance?Trgthe GEAppliances Website 24 hours a dog, ang dog
of the gear! Forgreater convenience and faster service,gou can now download Owner's Manuals,order parts or even
schedule serviceon-line. InCanada: www.GEAppliances.ca
Schedule Service IntheU.S.:GEAppliances.com
Expert GE repair service is onlg one step awag from your door. Get on-line and schedule your service at your
convenience any day ofthe year! Or call 800.GE.CARES(800./432.2737)during normal business hours.
In Canada, call 1.800.561.3344
RealLifeDesignStudio Inthe U.S.:GEAppliances.com
GEsupports the UniversalDesignconcept-products, servicesand environments that can be usedby people of
all ages,sizesand capabilities. We recognize the need to designfor a wide range of physical and mental abilities
and impairments. Fordetails of GE'sUniversal Designapplications, including kitchendesign ideasfor people with
disabilities,checkout our Website today. Forthe hearing impaired, pleasecall 800.TDD.GEAC(800.833.4322).
In Canada, contact: Manager, Consumer Relations,Mabe Canada Inc.
Suite3!0, ! Factory Lane
kloncton, N.B.E1C9M3
{
ExtendedWarranties Inthe U.S.:GEAppliances.com
Purchasea GEextended warranty and learn about special discounts that are availablewhile your warranty isstill
in effect.You can purchase it on-line anytime, or call800.626.2224 during normal businesshours.GEConsumer Home
Serviceswill still be there after your warranty expires.In Canada, please visit our Website or contact your local
extended warranty provider.
Partsand Accessories Inthe U.S.:GEAppliances.com
Individualsqualified to servicetheir own appliances can have parts or accessoriessent directly to their homes (VISA
and MasterCard cards are accepted).Order on-line today, 24 hours every day or by phone at 800.626.2002during
normal businesshours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation.
Customers in Canada should consult the yellow pages for the nearest klabe service center, or call 1.800.661.1616.
Contact Us Inthe U.S.:GEAppliances.com
If you are not satisfied with the service you receive from GE,contact us on our Website with all the details including your
phone number, or write to: General Manager, Customer Relations
GEAppliances, Appliance Park
Louisville, KY40225
In Canada: www.GEAppliances.ca, or write to: Director, Consumer Relations, ivlabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B.E1C9M3
RegisterYourAppliance Inthe U.S.:6EAppliances.com
Register your new appliance on-line--at your convenience! Timely product registration will allow for enhanced
communication and prompt serviceunder the terms of your warranty, should the need arise.You may also
mail in the pre-printed registration card included inthe packing material. In Canada: www.GEAppliances.ca
17

_J
€_
0
_J
C)
C)
C)
A
t_
0
E
C)
Notes.
18

Notes.
O"
e_e
O"
:3-
0
0
w
C3
0
0
19

_J
€_
0
_J
C)
C)
C)
A
t_
0
E
C)
Notes.
2O
