Dimensions and Installation Information (in inches)
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Specification Created 6/09 350207
Panel
Thickness
Kit A B C
GPF525 25-1/4" 23-1/2" N/A 1/4"
GPF575 25-1/2" 23-5/8" 1/4" 3/4"
Listed by
Underwriters
Laboratories
• The rough cabinet opening must be at least 24" deep,
24" wide and approximately 34-1/2" high from floor to
underside of the countertop.
4"
6"
5" 5"
4"
Figure A
Floor MUST be Even
With Room Floor
Cabinets
Square
and
Plumb
This Wall Area
must be Free
of Pipes or
wires
24"
Min.
24"
Min.
34-1/2"
Underside of
Countertop
to Floor
Plumbing and Electric Service
Must Enter Inside This Area
24
25
MAX.
20-1/2
4
4 (Adjustable)
33-3/4" MIN.
adj. to 35"
27-1/2
22
B
See Detail E for 3/4" Panel Detail E for 3/4 panel only
Door insert ABack ViewFront View
F
F
20
Section E-F
C
3/8
3/4
1-7/8 1-7/8
B
See Detail E for 3/4" Panel Detail E for 3/4 panel only
Door insert ABack ViewFront View
F
F
20
Section E-F
C
3/8
3/4
1-7/8 1-7/8
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 10
Calrod® heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Note: The rough cabinet opening must be at
least 24" deep, 24" wide and approximately
34-1/2" high from floor to underside of
the countertop. Dishwasher must not be
installed more than 10 feet from sink for
proper drainage. All plumbing and
electrical work must be in accordance
with local codes. The power cord and
connections must comply with the National
Electrical Code Section 422 and/or local
codes and ordinances. The cord must be no
longer than 6 ft. from the junction box to
the receptacle.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
GLD4404/4464R

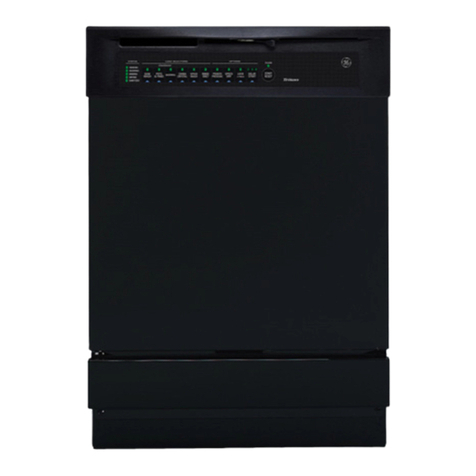

GE®Tall Tub Built-In Dishwasher

Specification Created 6/09 350207
GLD4660NSS
Features and Benefits
• 5-stagefiltration-Multiplefiltrationlevelsensurethatsoilsarenowherenear
clean dishware
• ENERGYSTAR®Qualified - Meets or exceeds federal guidelines for energy efficiency for
year-round energy and money savings
• SaniWashcycle-Specialcyclereduces99.999%ofharmfulgermsandbacteria
• Platinumsilvernylonrackswithfold-downtines-Flexibletinesmakeiteasytoload
the dishwasher
• Electroniccontrolswith3cycles/5options-Moderncontrolsmakeiteasytoprogram
the dishwasher
• QuietPower™57 sound package - 57 dBA - Advanced materials reduce the sound level
to just 57 dBA
• ModelGLD4404RWW-Whiteonwhite
• ModelGLD4404RCC-Bisqueonbisque
• ModelGLD4404RBB-Blackonblack
• ModelGLD4464RSS-Stainlesssteel
GLD4404/4464R
GE®Tall Tub Built-In Dishwasher
