GE DSXH47EG How to use

1
GEAppliances
GeneralElectricCompany
Louisville,Kentucky40225
31-9148
GE Consumer & Industrial
Technical Service Guide
December 2006
GE DRYER
DSXH47EG
DSXH47GG

2
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by
individuals possessing adequate backgrounds of electrical,
electronic, and mechanical experience. Any attempt to repair a
major appliance may result in personal injury and property
damage.Themanufacturerorsellercannotberesponsiblefortheinterpretation
of this information, nor can it assume any liability in connection with its use.
WARNING
If the information in this manual is not followed exactly, fire or explosion may
result causing property damage, personal injury or death. If you smell gas:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in the
building.
– Immediately call the gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions.
– If you cannot reach the gas supplier, call the fire department.
WARNING
To avoid personal injury, disconnect power before servicing this product. If
electricalpowerisrequiredfordiagnosisortestpurposes,disconnectthepower
immediately after performing the necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to complete a
path to ground are removed for service, they must be returned to their original
position and properly fastened.
GE Consumer & Industrial
Technical Service Guide
Copyright © 2006
All rights reserved. This service guide may not be reproduced in whole or in part in any
form without written permission from the General Electric Company.

3
SAFETY NOTICE....................................................................................................................................... 2
QUICK REFERENCE SHEET .................................................................................................................. 5
Serial nameplate location............................................................................................................. 5
Tech sheet location ...................................................................................................................... 5
Function test sequence................................................................................................................ 6
Specifications ................................................................................................................................. 7
Component resistance chart........................................................................................................ 8
Wiring diagram for electric models ............................................................................................ 9
Wiring diagram for gas models .................................................................................................. 10
OPERATING INSTRUCTIONS ................................................................................................................. 11
About the dryer control panel..................................................................................................... 11
About your dryer features ......................................................................................................... 12
HOW THE COMPONENTS WORK......................................................................................................... 13
The basic components ................................................................................................................. 13
Drum ............................................................................................................................................... 13
Heat source .................................................................................................................................... 13
Drive motor and blower ................................................................................................................ 13
Controlthermistor.......................................................................................................................... 14
Electronic control board................................................................................................................ 14
Airflow ............................................................................................................................................ 14
Airflow electric dryers ................................................................................................................... 14
Airflow gas dryers.......................................................................................................................... 15
Airflow problems ........................................................................................................................... 15
Restrictions..................................................................................................................................... 16
Air leaks.......................................................................................................................................... 16
Short unrestricted vents ................................................................................................................ 16
Electrical operation (Electric dryer models) ................................................................................ 16
Electronic control board circuits .................................................................................................. 16
Drive motor circuit ......................................................................................................................... 17
Temperature sensing circuit ......................................................................................................... 17
The heating circuit ........................................................................................................................ 17
Drying time..................................................................................................................................... 18
Electrical Operation (Gas dryer models)...................................................................................... 18
Electronic control board circuits .................................................................................................. 18
Drive motor circuit ......................................................................................................................... 18
Temperature sensing circuit ......................................................................................................... 19
The heating circuit ........................................................................................................................ 19
Drying time..................................................................................................................................... 20
TROUBLESHOOTING .................................................................................................................................. 21
Service Error codes ....................................................................................................................... 21
Error code chart ............................................................................................................................. 22
Troubleshooting flow charts ......................................................................................................... 23
Electric dryer completely inoperative ................................................................................... 23
Gas dryer completely inoperative ......................................................................................... 24
Electric and gas dryers; blower motor runs but drum does not turn .................................. 25
Electric and gas dryers; longer than normal drying times .................................................. 25
Electric dryer not heating properly........................................................................................ 26
Gas dryer not heating properly .............................................................................................. 27
Electric and gas dryers; dryer over heating.......................................................................... 27
Electric dryers; drive motor runs but dryer does not heat ................................................... 28
Gas dryers; drive motor runs but dryer does not heat ......................................................... 29
Electric and Gas dryers; clothes not dry in auto cycle ......................................................... 30
Error Code Chart and Dryer Settings Chart ........................................................................... 47

4
TEARDOWN ............................................................................................................................................... 31
Removing the top panel .............................................................................................................. 31
Removing the temp knob ............................................................................................................ 31
Removing the console ................................................................................................................. 31
Removing the control board ....................................................................................................... 32
Removing the programming buttons and springs ...................................................................... 32
Removing the temp knob shaft ....................................................................................................32
Removing the selector knob shaft ............................................................................................... 33
Removing the selector knob ........................................................................................................ 33
Removing the loading door ......................................................................................................... 33
Disassembling the loading door ..................................................................................................33
Removing the door handle........................................................................................................... 34
Removing the upper or lower door strike ................................................................................... 34
Removing the door seal................................................................................................................ 34
Removing the front access panel ................................................................................................ 35
Removing the door switch............................................................................................................ 34
Removing the front panel ............................................................................................................. 35
Replacing the sensor bars............................................................................................................ 36
Replacing the front panel air duct............................................................................................... 36
Replacing the upper door catch ..................................................................................................36
Replacing the lower door catch ..................................................................................................36
Replacing the drum light bulb ..................................................................................................... 37
Replacing the drum light housing ............................................................................................... 37
Replacing the drum light socket .................................................................................................. 37
Replacing the felt seals ................................................................................................................ 37
Replacing the foam seal............................................................................................................... 38
Removing the rear access panel ................................................................................................. 38
Releasing the dryer belt ............................................................................................................... 38
Removing the vane from the drum.............................................................................................. 38
Removing the drum....................................................................................................................... 38
Removing the belt ......................................................................................................................... 39
Removing the ball hitch from the drum ...................................................................................... 39
Removing the teflon glides .......................................................................................................... 39
Removing the drum heat shield (Electric dryers) ....................................................................... 40
Removing the hitch ....................................................................................................................... 40
Removing the high limit thermostat ............................................................................................ 40
Removing the thermal limiter (Electric dryers) .......................................................................... 40
Removing the heating element assembly (Electric dryers)....................................................... 41
Removing the control thermistor .................................................................................................41
Removing the blower housing and fan blade ............................................................................ 41
Removing the idler pulley............................................................................................................ 42
Removing the idler pulley assembly ........................................................................................... 42
Removing the drive motor............................................................................................................ 42
Removing the burner (Gas dryers)............................................................................................... 43
Removing the ignitor (Gas dryers) ...............................................................................................43
Removing the gas valve assembly (Gas dryers)......................................................................... 43
Removing the gas valve coils (Gas dryers)................................................................................. 44
Removingthesensor(Gasdryers) ............................................................................................... 44
Removing the combustion chamber (Gas dryers) ...................................................................... 44
Removing the duct and heat shield (Gas dryers) ....................................................................... 45
Removing the manifold pipe (Gas dryers) .................................................................................. 45
Removing the vent pipe (Gas dryers) .......................................................................................... 46
Removing the gasket between the vent pipe and blower housing.......................................... 46

5
QUICK REFERENCE SHEET

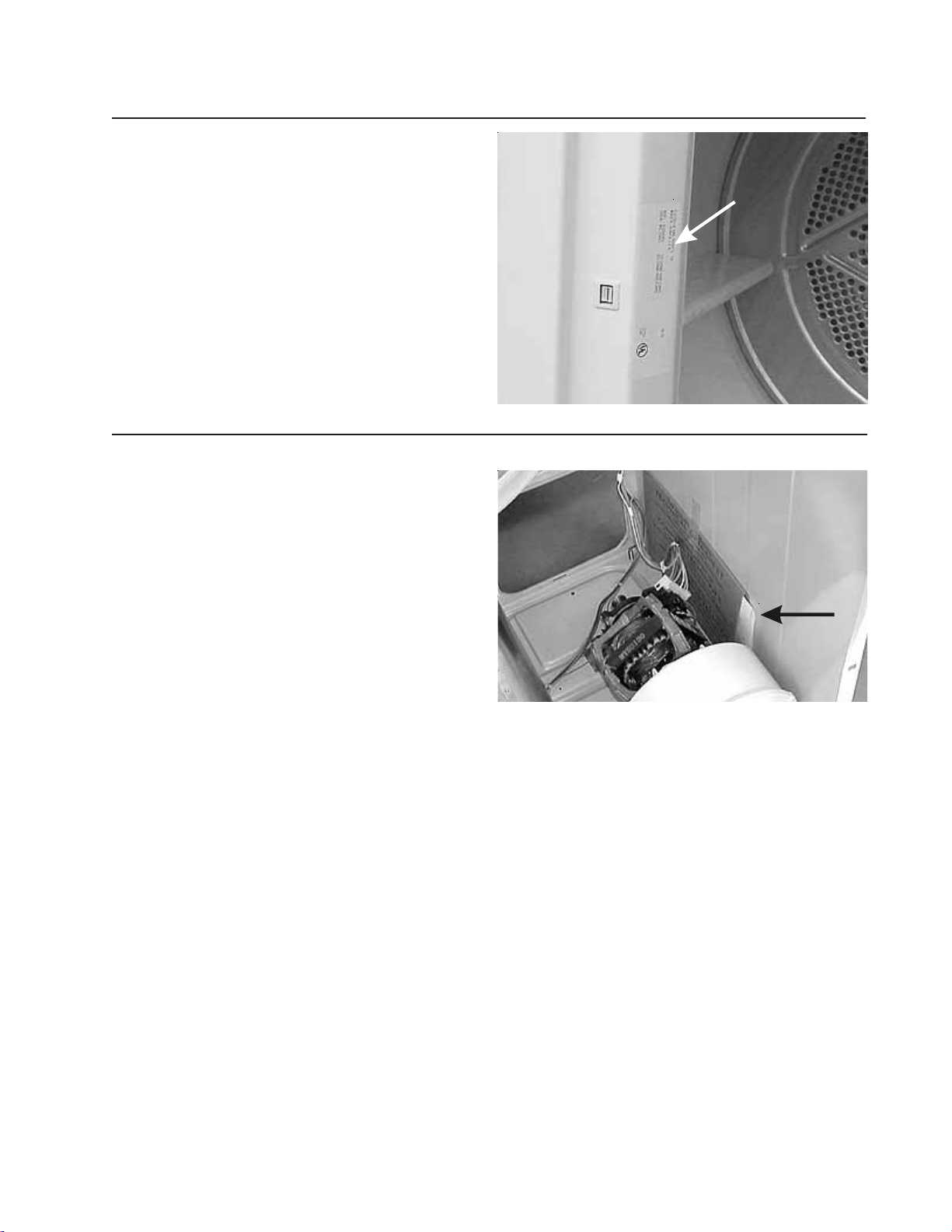

1. Serialnameplate location: Onthefront
panel at the left side of the dryer
door opening.
2. Techsheetlocation:Onthe right-hand
bodysidebehind thefrontpanel
and inside rear access panel.

6
Function test sequence
This is a functional test for the dryer. To activate this
mode, perform the following steps:
1. Turn the cycle selector knob to the 12 o’clock posi-
tion.
2. Press and hold the Select and Pause Cancel
buttons simultaneously for (6) seconds.
3. Immediately after, press andholdthe Pause Cancel
and START buttons for (4) seconds.
The control will enter the test mode, the buzzer will
sound 3 times and all LED’s will rapidly flash.
After entering the test mode, the selector can now be
rotated to select the following test.
Rotate program knob clockwise from the start position:
1 Turn Drive motor runs, heat source is on.
Drying LED is lit. Control thermistor
reading is displayed. **
2 Turns Drive motor runs; heat source is off.
Cool Down LED is lit.
3 Turns Drive motor runs; heat source is off.
Drying and Cool Down LED’s are lit.
The MORE DRY LED should be ON.
Opening the door (press in on door
switch plunger) and placing a finger
on both moisture sense bars at the
same time will make the DAMP LED
come on.
4 Turns Drive motor runs; heat source is off.
a. When the TEMPERATURE selec-
tor is rotated, there should be a
key beep with each setting.
QUICK REFERENCE SHEET
b. WhentheDRYNESS key is pressed,
all the dryness level LEDs should
light.
c. When the OPTIONS or Select key
is pressed, all the options LEDS
should light.
d. When the START key is pressed,
all the cycle status LEDs should
light.
e. When the Pause Cancel key is
pressed, all the cycle status LEDs
should light.
5 Turns Drive motor runs; heat source is off.
Cool Down LED is lit. Control ther-
mistor reading is displayed. **
6 Turns Drive motor runs; heat source is on.
Drying LED is lit. Control thermistor
reading is displayed. **
To EXIT test mode, press and hold the Select and
Pause Cancel buttons simultaneously for six seconds
or disconnect power from dryer. Dryer will be reset
for regular operation.
**The dryness LED’s are used to determine the
control thermistor reading. The number of flashes
of the bottom three LEDs will determine the value
of the temperature as follows.
NORMAL = HUNDRED’S
LESS DRY = TEN’S
DAMP = ONE’S
Example: Normal flashes 1 time
Less Dry flashes 2 times
Damp flashes 6 times
Temperature = 126 degrees.

7
QUICK REFERENCE SHEET
SPECIFICATION
Electrical
Volts 120/208 or 120/240
Amps (circuit)
Motor wattage
Heatinput (Watts@ 208/240VAC)
Heat input (BTU/Hr.)
Auto. Elec. Ignition
Drum
Size (Cu. Ft.)
Finish
R.P.M.
Airflow CFM
DRUM TEMPERATURES (Max.
opening on 1st cycle)
High
Medium
Medium/Low
Low
Dimension (Inches)
Height (Stack Models)
Width
Depth
Vent Capability**
Top Finish
Port Opening (Sq. In.)
ELECTRIC MODELS
120/208 or 120/240
30
160-350 Watts
3200/4500
---
---
5.7
Power Paint Epoxy
48 - 54
200
138° - 190°
134° - 180°
130° - 170°
120° - 165°
36”
27”
28.5”
4-Way
Power Paint Enamel
235
±
±
±
±±
GAS MODELS
120
15
160-350 Watts
---
20,000
Yes
5.7
Power Paint Epoxy
48 - 54
200
145° - 190°
140° - 180°
130° - 170°
120° - 165°
36”
27”
28.5”
3-Way
Power Paint Enamel
235
** Electric dryers can be vented four ways: through back, bottom, right or left side.
** Gas dryers can be vented three ways: through back, bottom, or right side.

8
QUICK REFERENCE SHEET
Component Resistances*
Drive motor (120 volt, 60 Hz, 1/4 h.p. 1725 rpm)
Motor Start Winding
Motor Run Winding
Heating Element
Control Thermistor
Burner Assembly
Ignitor
Secondary Coil
Booster Coil
Electric Models
4.5 Ohms
3.8 Ohms
12.8 Ohms
50,000 Ohms
---
---
---
Gas Models
4.5 Ohms
3.8 Ohms
50,000 Ohms
50 - 400 Ohms
1200 Ohms
1320 Ohms
* +/-10% @ 77°F

9

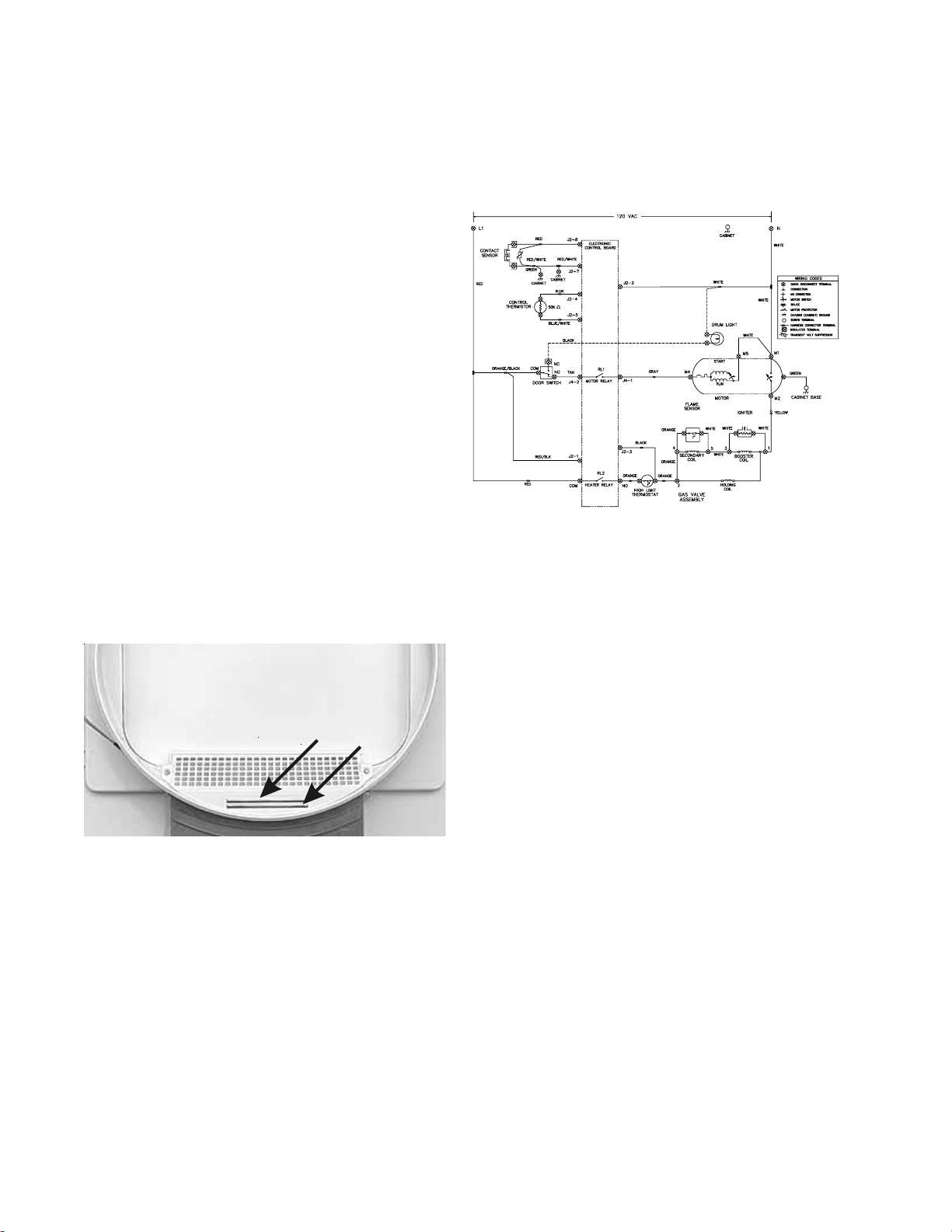

WIRING DIAGRAM FOR ELECTRIC MODELS

10
WIRING DIAGRAM FOR GAS MODELS
