GE DWSR405GB Manual

DWSR405GBWW/CC – GE Super 7.0 Cu. Ft. Capacity Dryer
Specification Revised 3/03
GE Appliances
Dryer Dimensions (in inches)
Exhaust Options:
When viewed from the front of the unit, exhaust 3-way via rear, left and bottom.
Dryer is shipped exhausted to the rear. Alternate exhausting knockouts are supplied.
Gas: An individual properly-grounded branch circuit, with a three-prong grounding-
type receptacle, protected by a 15 or 20 amp circuit breaker or a time-delay fuse
is required.
Gas Dryer Electric Rating: 120V, 60Hz, 6A
Gas (BTU/HR): 22,000. Factory-equipped for natural gas. Tested for LP gas. LP gas
supply requires a conversion kit. Check installation instructions for correct kit and
have a qualified gas technician install a conversion kit. See dryer ducting information
for proper installation.
Note: Dryer wall outlet must be located within 36" of service cord entry and
accessible when dryer is mounted in position.
Installation Information: For complete information, see installation instructions
packed with your dryer.
36 42
27
23-1/2
2-1/2
25-1/2*
Side View Rear View
8-1/2
28-1/4
23-1/2
11-1/2
*24-1/2" from the edge of the side panel to the front.
25-1/2" from front to edge of endcaps.
For answers to your Monogram,
®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories

GE Appliances
DWSR405GBWW/CC – GE Super 7.0 Cu. Ft. Capacity Dryer
For complete information, see installation instructions packed with your dryer.
Ducting Materials:
For best performance, this dryer should be vented with 4” diameter all rigid metal exhaust duct. If “all rigid metal”
duct cannot be used, then “flexible all metal” venting can be used, but it will reduce the maximum recommended
duct length.
Exhaust Length Calculation:
1. Determine the number of 90° turns needed for your installation. If you exhaust to the side or bottom of dryer,
add one turn.
2. The maximum length of 4" rigid (aluminum or galvanized) duct which can be tolerated is shown in the table.
The maximum length for flexible ducts are less than for rigid duct.
2. A turn of 45° or less may be ignored. Two 45° turns within the duct length should be treated as a 90° elbow.
A turn over 45° should be treated as a 90° elbow.
Exhausting the dryer to the outside is strongly recommended to prevent large amounts of moisture and lint
from being blown into the room. Gas dryers or any dryer located in a closet must be exhausted to the outside.
Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed house floor (crawl
space), or into an attic, since the accumulated lint could create a fire hazard or moisture could cause damage.
Never terminate the exhaust into a common duct or plenum with a kitchen exhaust, since the combination of lint
and grease could create a fire hazard.
Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird nesting, etc. The wall cap
must also be located at least 12" above the ground or any other obstruction with the opening pointed Down.
Other terminations, such as louvered wall boxes, are acceptable provided they are equivalent to a 4" opening
dampered wall cap.
For more information on venting kits and accessories, please call 1-800-GE CARES.
For answers to your Monogram,
®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Specification Revised 3/03

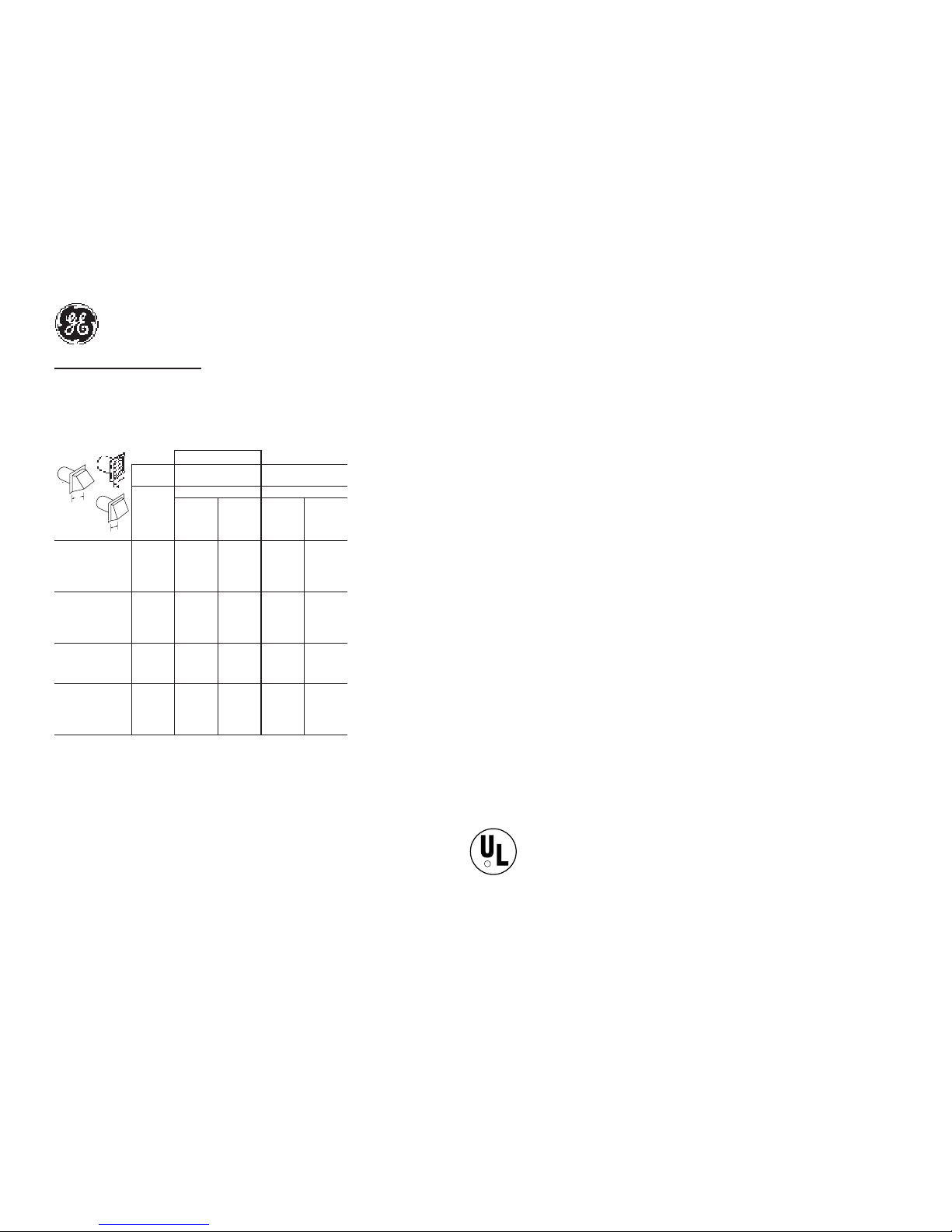

Dryer Exhausting Information – Use Metal Duct Only
Vertical and Horizontal Ducting
0150 ft. 127 ft. 75 ft. 52 ft.
1140 ft. 117 ft. 65 ft. 42 ft.
2130 ft. 107 ft. 55 ft. 32 ft.
7.3 Capacity Electric 3 120 ft. 97 ft. 45 ft. 22 ft.
and Gas Dryers 4 110 ft. 87 ft. 35 ft. 12 ft.
090 ft. 60 ft. 55 ft. 45 ft.
160 ft. 45 ft. 40 ft. 30 ft.
7.0 and 6.0 2 45 ft. 35 ft. 30 ft. 20 ft.
Capacity Models 3 35 ft. 25 ft. 20 ft. 15 ft.
all Electric Dryers 4 25 ft. 15 ft. 15 ft. 10 ft.
090 ft. 60 ft. 55 ft. 45 ft.
7.0 and 6.0 1 60 ft. 45 ft. 40 ft. 30 ft.
Capacity Models 2 45 ft. 35 ft. 30 ft. 20 ft.
all Gas Dryers 3 35 ft. 25 ft. 20 ft. 15 ft.
060 ft. 48 ft. 30 ft. 18 ft.
152 ft. 40 ft. 22 ft. 14 ft.
244 ft. 32 ft. 14 ft. 10 ft.
5.7 Capacity Electric 3 32 ft. 24 ft. — —
and Gas Dryers 4 28 ft. 16 ft. — —
Number
of
90°
Turns
Maximum Length of 4"
Dia. Rigid Metal Duct
Maximum Length of 4"
Dia. Flexible Metal Duct
Exhaust Hood Type Exhaust Hood Type
Domestic
Dryer Models
A
4" Opening
B
2-1/2"
Opening
A
4" Opening
B
2-1/2"
Opening
A
4
Best Performance
B
2-1/2
A
Special Installation Requirements
Alcove or Closet Installation:
• If your dryer is approved for installation in an alcove or closet, it will be stated on a label on the dryer back.
• The dryer MUST be exhausted to the outside.
• Minimum clearances between dryer cabinet and adjacent walls or other surfaces are:
0" either side
3" front and rear
• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52”.
• Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 sq. in. of
open area equally distributed. If this closet contains both a washer and a dryer, doors must contain
a minimum of 120 sq. in. of open area equally distributed.
• No other fuel-burning appliance shall be installed in the same closet with a gas dryer.
Bathroom or Bedroom Installation:
• The dryer MUST be exhausted to the outdoors.
• The installation must conform with the local codes, or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.
Minimum Clearances other than Alcove or Closet Installation:
• Minimum clearances to combustible surfaces
0" both sides
3" rear

GE Appliances
Specification Revised 3/03
DWSR405GBWW/CC – GE Super 7.0 Cu. Ft. Capacity Dryer
WRINKLECARE
ExtendedCoolAirTumble
SIGNAL
ElectronicTone
START
DeluxeQuiet
COTTONS
MOREDRY
MOREDRY
MOREDRY
LESSDRY
LESSDRY
COOLDOWN
LESSDRY
OPTIMUMDRY
WRINKLECARE
WRINKLECARE
WRINKLE
CARE
QUICKFLUFF
DEWRINKLE
DAMPDRY
MIN
10
20
30
4050607080
EASY CARE
DELICATES
TIMED DRY
START
OFFON
WRINKLEFREE
PERM.PRESS
KNITS
OFFON
FABRICCARE
SensorDry
COTTONS
REG.HEAT
FLUFF
NOHEAT
DELICATES
LOWHEAT
EASYCARE
MED.HEAT
1
0
C
l
o
t
h
e
s
C
a
r
e
C
y
c
l
e
s
•
S
u
p
e
r
C
a
p
a
c
i
t
y
Features and Benefits
• 7.0 cu. ft. Super Capacity Dryer
• Sensor Dry
• 4 Heat Selections
• 10 Cycles:
– Cottons with Auto Cottons and Optional Wrinkle Care
– Easy Care with Auto Easy Care and Optional Wrinkle Care
– Delicates with Auto Delicates and Optional Wrinkle Care
– Timed Dry (80 Min.) with Damp Dry, Dewrinkle and Quick Fluff (no heat)
• Deluxe End-of-Cycle Signal
• Deluxe Dryer Rack
• Dryer Interior Light
• Removable Upfront Lint Filter
• DuraDrum™Interior
•Deluxe Quiet Performance
• Reverse-A-Door
• 100% Front Serviceable
• Model DWSR405EBWW – White on white (Electric)
• Model DWSR405EBCC – Bisque on bisque (Electric)
• Model DWSR405GBWW – White on white (Gas)
• Model DWSR405GBCC – Bisque on bisque (Gas)
