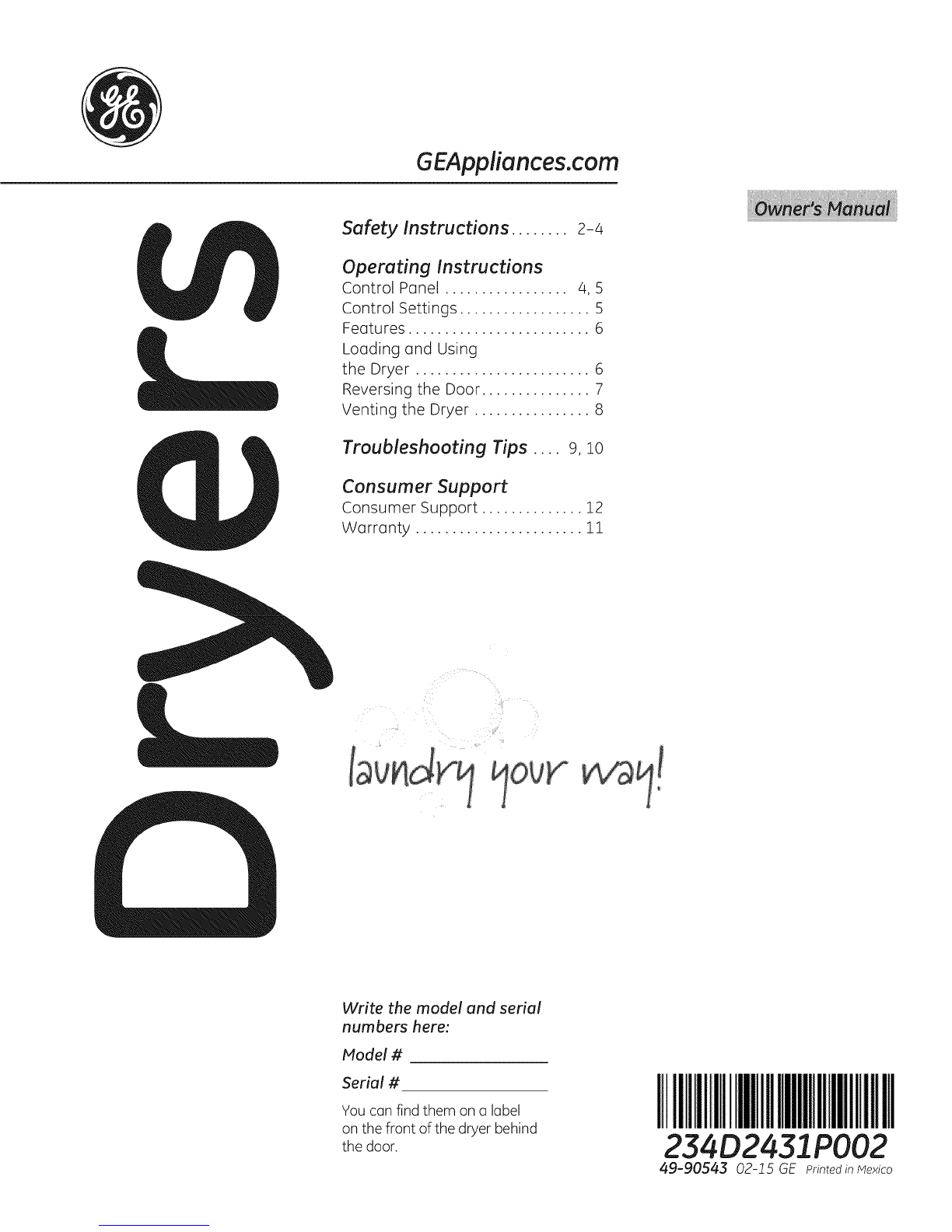

GE GTD42GASJ0W User manual

0GEAppliances.com
Safety Instructions ........ 2-4
Operating Instructions
Control Panel ................. 4, 5
Control Settings .................. 5
Features ......................... 6
Loading and Using
the Dryer ........................ 6
Reversing the Door ............... 7
Venting the Dryer ................ 8
Troubleshooting Tips .... 9, lo
Consumer Support
Consumer Support .............. 12
Warranty ....................... 11
Write the model ond serial
numbers here:
Model #
Seriol #
You canfindthem ona lobel
onthefrontofthedryerbehind
thedoor. III
234D243.I.PO02
49-90543 02-!5 GE PrintedinMexico

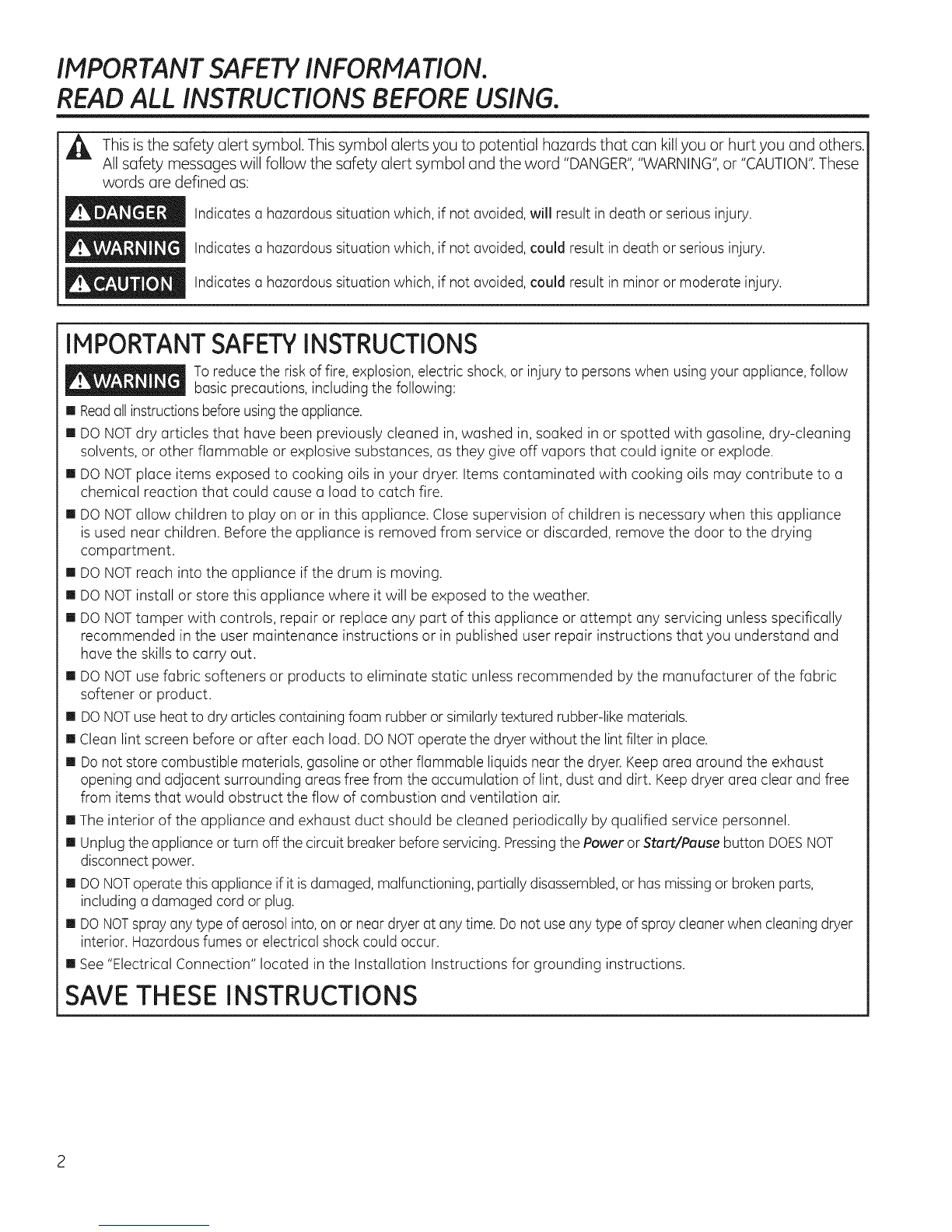

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
_j_ This is the safety alert symbol. This symbol alerts to potential hazards that can kill or hurt you and others.
you you
All safety messages will follow the safety alert symbol and the word "DANGER","WARNING",or "CAUTION".These
words are defined as:
_ Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates ohazardous situation which, if not avoided, could result in minor or moderate injury.
IMPORTANT SAFETYINSTRUCTIONS
To reduce the riskof fire, explosion,electric shock, or injury to persons when using your appliance, follow
basic precautions, including the following:
[] Readall instructionsbeforeusingtheappliance.
[] DONOTdry articles that have been previously cleaned in,washed in, soaked in or spotted with gasoline, dry-cleaning
solvents, or other flammable or explosive substances, us they give off vapors that could ignite or explode.
[] DONOTplace items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to u
chemical reaction that could cause u loud to catch fire.
[] DONOTallow children to play on or in this appliance. Close supervision of children is necessary when this appliance
is used near children. Before the appliance is removed from service or discarded, remove the door to the drying
compartment.
[] DONOTreach into the appliance if the drum is moving.
[] DONOTinstall or store this appliance where it will be exposed to the weather.
[] DONOTtamper with controls, repair or replace any part of this appliance or attempt any servicing unless specifically
recommended in the user maintenance instructions or in published user repair instructions that you understand and
have the skillsto carry out.
[] DONOTuse fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric
softener or product.
[] DONOTuseheat to dry articles containing foam rubber or similarlytextured rubber-like materials.
[] Clean lint screen before or after each load. DONOToperate the dryer without the lint filter in place.
[] Donot store combustible materials, gasoline or other flammable liquids near the dryer. Keep area around the exhaust
opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt. Keep dryer area clear and free
from items that would obstruct the flow of combustion and ventilation air.
[] The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.
[] Unplugthe appliance or turn offthe circuit breaker before servicing. Pressingthe Power or Stort/Pouse button DOESNOT
disconnect power.
[] DONOToperate this appliance if it isdamaged, malfunctioning, partially disassembled,or has missingor broken parts,
including a damaged cord or plug.
[] DONOTspray any type of aerosol into, on or near dryer at any time. Donot useany type of spray cleanerwhen cleaningdryer
interior. Hazardousfumes or electrical shock could occur.
[] See "Electrical Connection" located in the Installation Instructions for grounding instructions.
SAVETHESE INSTRUCTIONS

GEAppliances.com
ADDITIONAL GAS DRYERWARNINGS
Foryour safety,the information in this manual must befollowed to minimize the risk of fire or explosion 1
or to prevent damage, personal injury, or death. I
- DONOTstore or usegasolineor other flammable vapors and liquids in the vicinity ofthis or any other appliance.
- WHATTODOIFYOUSHELLGAS:
• DONOTtry to light any appliance.
• DONOTtouch any electrical switch; DONOTuseany phone inyour building.
• Clearthe room, building, or area of any occupants.
• Immediately call your gassupplier from a neighboCsphone.Followthe gassupplier's instructions.
• Ifyou cannot reachyour gassupplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency,or the gas supplier.
State of California Proposition 65 Warnings:
TheCaliforniaSafeDrinkingWater and ToxicEnforcementAct requiresthe governor of Californiato publisha list of substances
known to the state to cause cancer,birth defectsor other reproductiveharm and requires businessesto warn of potential
exposureto such substances.
Thisproduct contains one or morechemicals knownto the Stateof Californiato causecancer, birth defects
or other reproductive harm.
Gasappliances cancause low-level exposureto some ofthese substances,including benzene,carbon monoxide,formaldehyde
and soot,caused primarily by the incomplete combustion of natural gasor LPfuels. Exposureto these substancescan be
minimizedby properlyventing the dryerto the outdoors.
SAVE THESE INSTRUCTIONS

About the dryer control panel.
WARNING!
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANTSAFETYINSTRUCTIONSbefore
operating this appliance.
Explosion Hazard
Keepflammablematerialsand vapors,suchasgasoline,
away from dryer.
DONOTdry anything that haseverhad anything flammable
on it (evenafter washing).
Failureto do socan result in death, explosion,or fire.
Fire Hazard
Nowasher can completely remove oil.
Donot dry anything that has ever had any type of oil on it
(including cooking oils).
Items containing foam, rubber,or plastic must be dried on a
clotheslineor by usingan air dry cycle.
Failureto follow these instructions can result in death or fire.
Throughout this manual features and appearance may vary from your model.
Extended Tumble Temperature Cottons off More Dry Casuals
Less Dry
CoolDown
co,_o,_ oo,!_ofoo
MedJu_" Optimum Dry
Towels
Quick Fluff 10
Damp Dry 3
5O
Time Dry
Off
More Dry
.ess Dry
Delicates
80
Min.
Signal
Temperature
c_o,, oo,,2o,
mdJu,,"
Cottons
Optimum Dry
Towels
Off
Quick Fluff 10
Dewrinkle 2(
Damp Dry 3
5O
Time Dry
Off More Dry Casuals
Less Dry
CoolDown
Off
More Dry
.ess Dry
Delicates
80
Min.
Signal
®
Start
®
#

GEAppliances.com

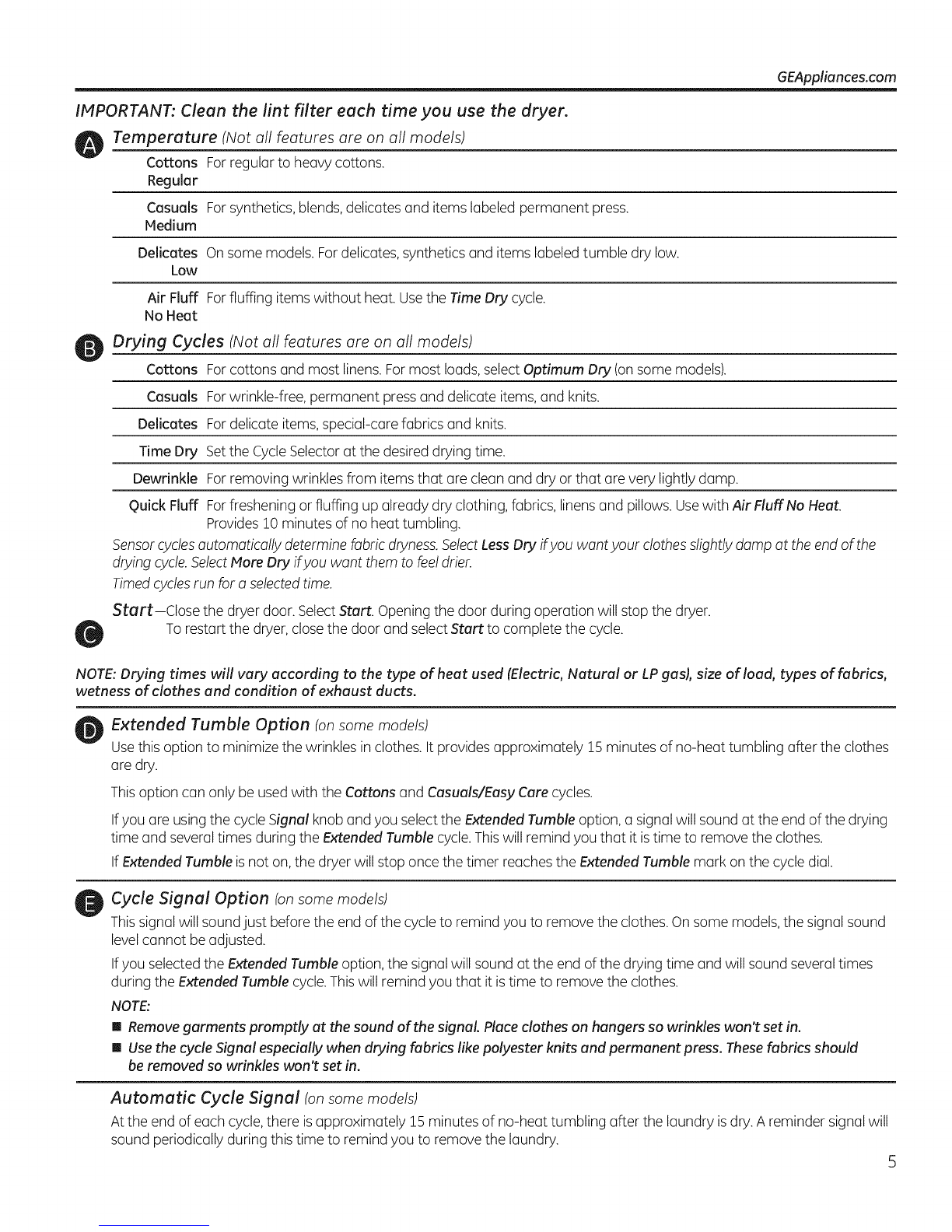

IMPORTANT: Clean the lint filter each time you use the dryer.
Temperature (Not all features are on all models)
Cottons Forregular to heavy cottons.
Regular
Casuals Forsynthetics, blends,delicates and items labeled permanent press.
Medium
Delicates On some models.Fordelicates,synthetics and items labeled tumble dry low.
Low
Air Fluff Forfluffing items without heat. Usethe Time Dry cycle.
No Heat
Drying Cycles (Not all features are on all models)
Cottons Forcottons and most linens. Formost loads, selectOptimum Dry (onsome models).
Casuals Forwrinkle-free, permanent press and delicate items, and knits.
Delicates Fordelicate items, special-care fabrics and knits.
Time Dry Setthe CycleSelectorat the desireddrying time.
Dewrinkle Forremoving wrinkles from items that are clean and dry or that are very lightly damp.
Quick Fluff Forfreshening or fluffing up already dry clothing, fabrics, linensand pillows.Usewith Air FluffNo Heat.
Provides10 minutes of no heat tumbling.
Sensorcyclesautomatically determine fabric dryness.SelectLessDry ifyou wont your clothesslightlydamp at the end of the
drying cycle.SelectMore Dry ifyou want them to feeldrier.
Timedcyclesrun for a selectedtime.
Start-Close the dryer door. SelectStart. Openingthe door during operation will stop the dryer.
To restart the dryer, close the door and selectStart to complete the cycle.
NOTE: Drying times will vary according to the type of heat used (Electric, Natural or LPgas), size of loud, types of fabrics,
wetness of clothes and condition of exhaust ducts.
Extended Tumble Option (on some models)
Use this option to minimize the wrinkles in clothes. Itprovides approximately 15 minutes of no-heat tumbling after the clothes
are dry.
This option can only be used with the Cottons and Casuals/Easy Cure cycles.
Ifyou are using the cycle Signal knob and you select the Extended Tumble option, a signal willsound at the end of the drying
time and several times during the Extended Tumble cycle. This willremind you that it is time to remove the clothes.
IfExtended Tumble is not on, the dryer willstop once the timer reaches the Extended Tumble mark on the cycle dial.
Cycle Signal Option Ion some models)
This signal will sound just before the end of the cycle to remind you to remove the clothes. On some models, the signal sound
level cannot be adjusted.
Ifyou selected the Extended Tumble option, the signal will sound at the end of the drying time and willsound several times
during the Extended Tumble cycle. This willremind you that itis time to remove the clothes.
NOTE:
[] Remove garments promptly at the sound of the signal Place clothes on hangers so wrinkles won't set in.
[] Use the cycle Signal especially when drying fabrics like polyester knits and permanent press. These fabrics should
be removed so wrinkles won't set in.
Automatic Cycle Signal (on some models)
Atthe end of each cycle, there is approximately 15 minutes of no-heat tumbling after the laundry is dry. A reminder signal will
sound periodically during this time to remind you to remove the laundry.
5

About the dryer features.
Drum Lump (on some models)
Beforereplacing the light bulb, be sureto unplug
the dryer power cord or disconnect the dryer at the
household distribution panel by removing the fuse or
switching off the circuit breaker.
Reachabove dryer opening from insidethe drum.
Removethe bulband replace with the same size bulb.
Drying Rack (on some models)
A handy drying rack may be usedfor drying delicate
items such as washable sweaters.
Hook the rack over the lint filter sothe rack extends
into the dryer drum.
NOTE:
[] The drying rack must be used with the Time Dry
cycle.
[] Do not use this drying rack when there
are other clothes in the dryer.
Stainless Steel Drum (on some models)
Thestainless steel usedto make the dryer drum
provides the highest reliability available in a GEdryer.
Loading and using the dryer.
Always follow the fabric manufacturer's care label when laundering.
Sorting and Loading Hints
As a general rule,if clothes are sorted properly for the
washer, they are sorted properlyfor the dryer.
Do not add fabric softener sheetsonce the loud has
become warm. They may cause fabric softener stains.
Bounce®FabricConditioner Dryer Sheetshave been
approved for usein all GEDryerswhen used in
accordance with the manufacturer's instructions.
Ifthe dryer drum should be scratched or dented
during normal use,the drum will not rust or corrode.
Thesesurface blemisheswill not affect the function or
durability of the drum.
Do not overload. Thiswastes energy and causes
wrinkling.
Do not dry the following items: fiberglass items,
woolens, rubber-coated items, plastics,items with
plastic trim and foam-filled items.
Careand Cleaningof the Dryer
The E_erion Wipe or dust any spillsor washing
compounds with a dump cloth. Dryercontrol
panel and finishes may be damaged by some laundry
pretreatment soiland stain remover products. Apply
these products away from the dryer.Thefabric may
then be washed and dried normally. Damage to your
dryer caused bythese products isnot covered by
your warranty.
TheLint Filter'.Cleanthe lint filter before each
use.Moistenyour fingers and reach into the filter
opening. Runyour fingers acrossthefilter.Havea
qualifiedtechnician vacuum the lint from the dryer
once a year.
Stainless Steel: To clean stainless steel surfaces,
use a damp cloth with a mild, non-abrasive cleaner
suitable for stainless steel surfaces. Removethe
cleaner residue, and then dry with a clean cloth.
Dryer Interior and Duct: The interior of the
appliance and exhaust duct should be cleaned once
ayear by qualified service personnel.
TheExhaust Duct: Inspect and clean the exhaust
ducting at least once a year to prevent clogging.
A partially clogged exhaust can lengthen the
drying time.
Follow these steps:
[_ Turn off electrical supply by disconnecting the
plug from the wall socket.
-2-]Disconnectthe duct from the dryer.
[_ Vacuum the duct with the hose attachment and
reconnect the duct.
JTheExhaust Hood: Checkfrom the outside that the
flaps of the hood move freelywhen operating. Make
surethat there isnotwildlife (birds,insects,etc.)nesting
insidethe duct or hood.

About reversing the door. GEApUio.ces.com
Reversing the Door
Toolsneeded.
[] Standard #2 [] Tape-tipped
Phillipsscrewdriver putty knife
r-_ open the door and remove the filler plugs opposite the
hinges.With the door completely open, remove the bottom
screw from each hinge on the dryer face. Insert these
screws about half way into the TOPholes,for each hinge,
on the opposite side (whereyou removed the filler plugs).
Applyfirm pressureto get the screw started in new holes.
[] Loosentop screw from each hinge on the dryerface half
way. With one hand holding the top of the door and the
other hand holding the bottom, remove the door from the
dryer by lifting it UPand OUT.
[] Removethe blind plate from the hinge side ofthe dryer by
removing itstwo screws. Removethe strike plate from the
opposite side of the dryer by removing its two screws.
Reinstallthe plates,on the opposite sides,usingtwo screws
in each plate.
[_ Rotatethe door 180°.Insert it on the oppositeside of the
opening by moving the door IN and DOWN until the top
hinge and the bottom hinge are resting on the top screws
inserted in step 1.
REMOVE 4 PLUGS AND KEEP
FOR INSERTION INTO
__THEOPPOSITE SIDE
REMOVE BOTTOM SCREW FROM EACH HINGE
AND INSTALL HALF WAY INTO EACH TOP OF
oPPOSiTEH NGEHOLES
LOOSEN EACH TOP HINGE __I__""A'_"-_ _
EWo Lu WAZ20 ;L'FTm- .....
STRIKE BLIND
PLATE PLATE
ROTATE DOOR 280 ° AND HANG
IT ON TOP HINGE SCREWS
[_ Removethe remaining screws from the sideof the opening
from which the door was removed. With these screws,
secureeach hinge at the bottom. Tightenthe two top screws
of each hinge. Reinsertthe plastic plugs on the side from
which the door was removed. INSTALL AND TIGHTEN BOTTOM
_N SCREWSANDTIGHTEN TOP
,/
INSERTPLUGS
INTOHOLESON

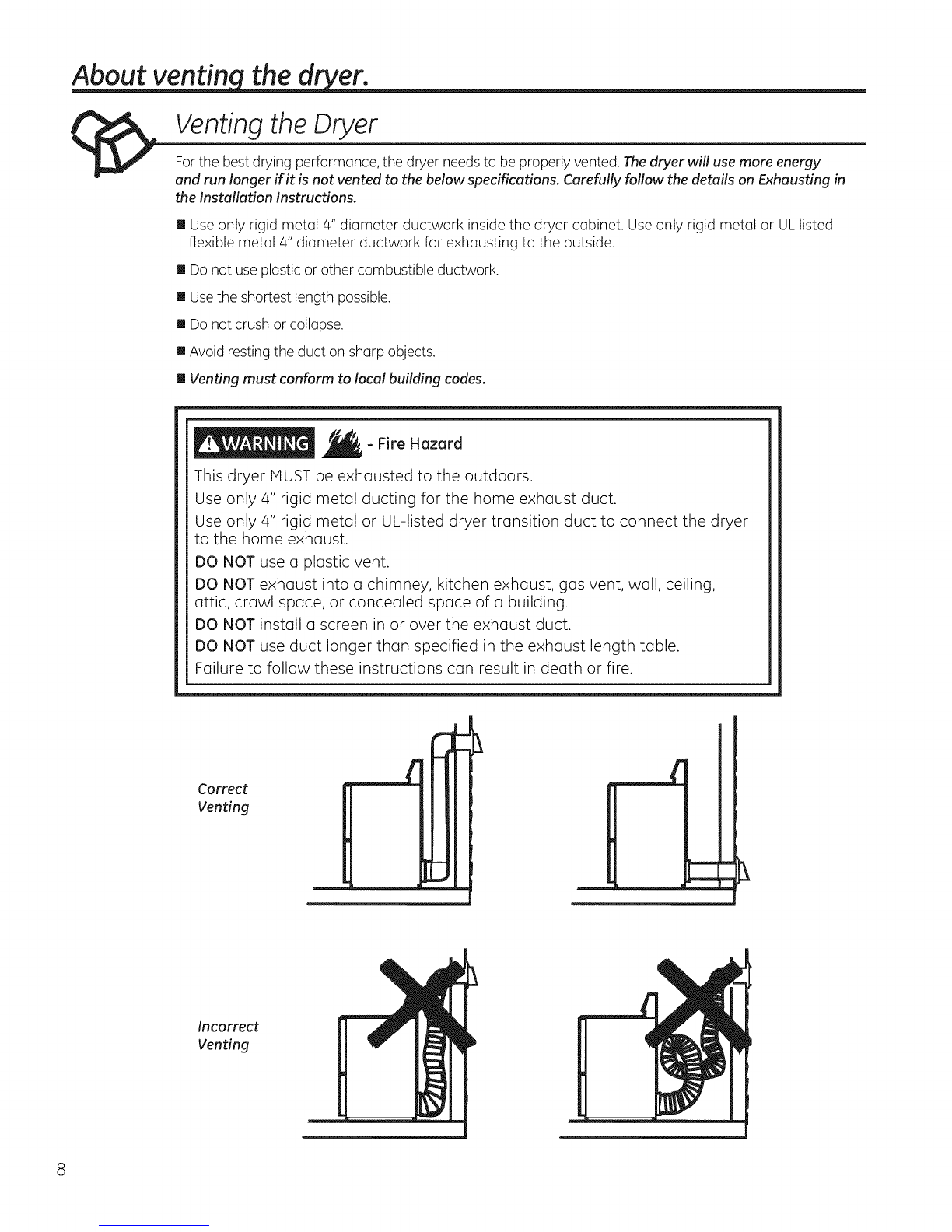

About ventin the d er.
Venting the Dryer
For the best drying performance, the dryer needs to be properly vented. The dryer will use more energy
and run longer if it is not vented to the below specifications. Carefully follow the details on Exhausting in
the Installation Instructions.
[] Use only rigid metal 4" diameter ductwork inside the dryer cabinet. Use only rigid metal or ULlisted
flexible metal 4" diameter ductwork for exhausting to the outside.
[] Do not use plastic or other combustible ductwork.
[] Use the shortest length possible.
[] Do not crush or collapse.
[] Avoid resting the duct on sharp objects,
[] Venting must conform to local building codes.
f_- Fire Hazard
This dryer MUST be exhausted to the outdoors.
Use only 4" rigid metal ducting for the home exhaust duct.
Use only 4" rigid metal or UL-listed dryer transition duct to connect the dryer
to the home exhaust.
DO NOT use a plastic vent.
DO NOT exhaust into a chimney, kitchen exhaust, gas vent, wall, ceiling,
attic, crawl space, or concealed space of a building.
DO NOT install a screen in or over the exhaust duct.
DO NOT use duct longer than specified in the exhaust length table.
Failure to follow these instructions can result in death or fire.
Correct
Venting
-1
Incorrect
Venting

Before you call for service... GEAppliances.com
Troubleshooting Tips
Save time and money! Review the charts on the following pages, or visit
GEAppliances.com. You may not need to call for service.
Problem Possible Causes What To Do
Dryer doesnt start Dryer is unplugged , Hake surethe dryer plug ispushed completely into
the outlet.
Fuseis blown/circuit breaker , Checkthe housefuse/circuit breaker box and replace
istripped fuse or reset breaker.NOTE:Host electricdryers use
2 fuses/breakers.
Dryer doesnt heat Fuseis blown/circuit breaker is , Checkthe housefuse/circuit breaker box and replace
tripped; the dryer may tumble both fuses or reset both breakers.Your dryer may tumble
but not heat if onlyone fuse is blown or one breaker tripped.
Gas service is off , Hake suregas shutoff at dryer and main shutoff are
fully open.
Dryer shakes or Some shaking/noise is normal. , Hove dryer to an evenfloor space,or adjust levelinglegs
makes noise Dryer may be sitting unevenly asnecessary until even.
Greasy spots on clothes Improper useof fabric softener • Follow directions on fabric softener package.
Drying dirty items with , Useyour dryer to dry only clean items. Dirty items can
clean ones stain clean itemsand the dryer.
Clothes were not , Sometimes stainswhich cannot be seenwhen the
completely clean clothes are wet appear after drying. Useproper washing
procedures before drying.
Lint on clothes Lint filter is full , Cleanlint screen before each loud.
Improper sorting , Sortlint producers (likechenille)from lint collectors
(likecorduroy).
Static electricity can attract lint • Seesuggestions in this section under Static occurs.
Overloading • Separatelarge loads into smaller ones.
Paper,tissue, etc. left in pockets , Empty all pockets before laundering clothes.
Static occurs No fabric softener was used , Try a fabric softener.
, Bounce ®Fabric Conditioner Dryer Sheets have been
approved for use in all GEDryers when used in
accordance with the manufacturer's instructions.
Try a fabric softener.
Adjust setting to Less Dry or Damp Dry.
Try a fabric softener.
Overdrying
e
Synthetics, permanent press
and blends can cause static
Type of heat
Inconsistent
drying times Automatic drying times will vary according to the type of heat used (electric,natural or LPgas),sizeof load,
types of fabrics,wetness of clothes and condition of
exhaust ducts.

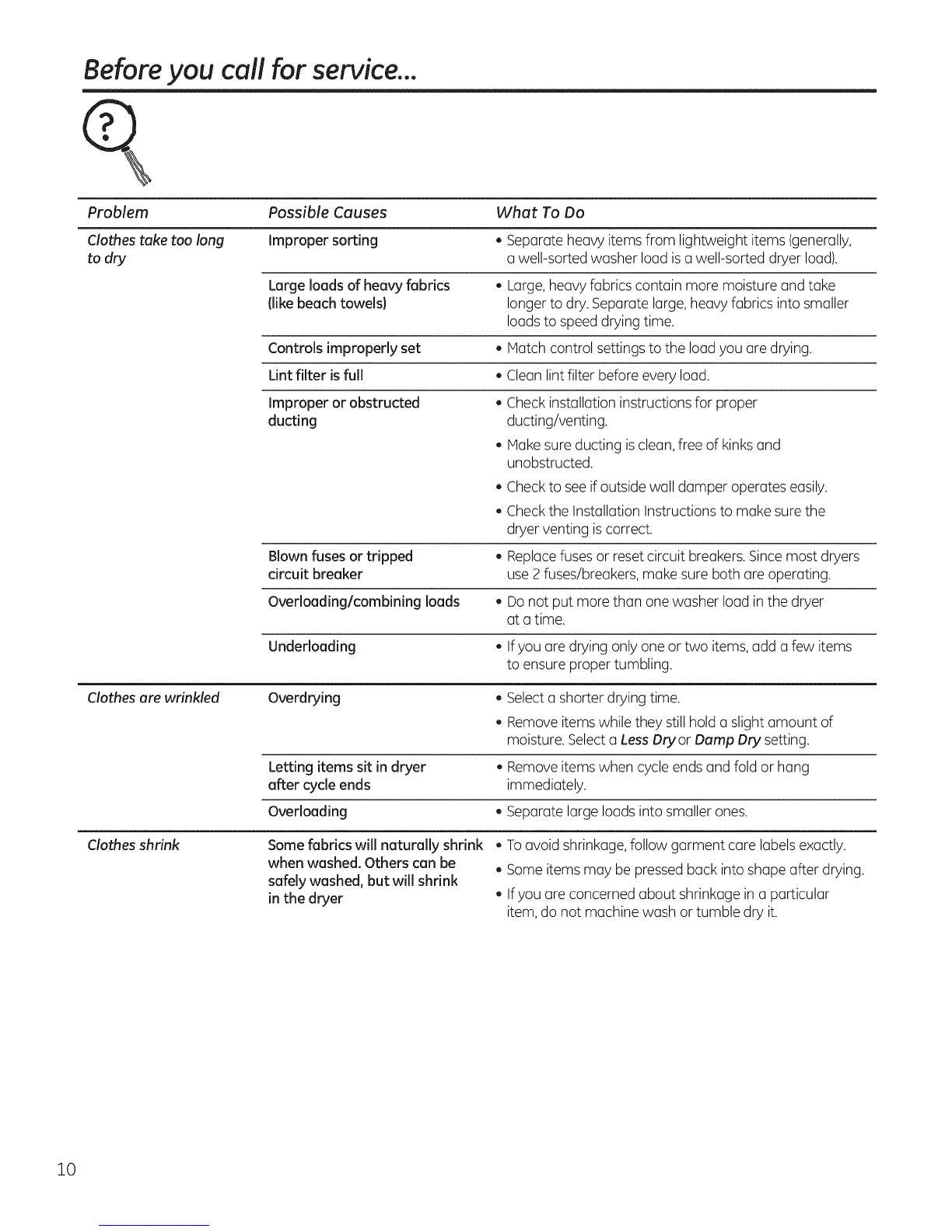

Beforeyou call for service...
Problem
Clothes take too long
to dry
Possible Causes
Improper sorting
Large loads of heavy fabrics
(like beach towels)
Controls improperly set
Lint filter isfull
Improper or obstructed
ducting
Blown fuses or tripped
circuit breaker
Overloading/com bining loads
Underloading
Clothes are wrinkled Overdrying
Letting items sit in dryer
offer cycle ends
Overload ing
Clothes shrink Some fabrics will naturally shrink
when washed. Others can be
safely washed, but will shrink
in the dryer
What To Do
. Separate heovy itemsfrom lightweight items (generolly,
o well-sorted wosher load iso well-sorted dryer load).
. Large,heavyfabrics contain more moisture and take
longer to dry. Seporote large,heavy fabrics into smaller
loadsto speeddrying time.
• Match control settings to the load you ore drying.
. Cleon lintfilter before every load.
. Check installation instructions for proper
ducting/venting.
.Moke sure ducting iscleon,free of kinksand
unobstructed.
. Checkto seeifoutside woll damper operates easily.
. Checkthe Installation Instructions to make sure the
dryer venting iscorrect.
. Replacefuses or resetcircuit breakers.Sincemost dryers
use2 fuses/breokers, make sure both (]reoperating.
. Donot put more thon one wosher Iood inthe dryer
(It (]time.
Ifyou ore drying only one ortwo items, odd o few items
to ensure proper tumbling.
. Select o shorter drying time.
. Removeitemswhile they still hold o slight amount of
moisture. Select o Less Dry or Damp Dry setting.
. Remove items when cycle ends and fold or hang
immediately.
Separate large loads into smaller ones.
. To ovoid shrinkage, follow garment cure labels exactly.
. Some items may be pressed buck into shape after drying.
Ifyou ore concerned about shrinkage in u particular
item, do not machine wash or tumble dry it.
10

GE Dryer Warranty. GEAppliances.com
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. Toschedule service,
on-line, 24 hours a day, visit us at GEAppliances.com, or call 800.
GE.CARES(800.432.2737). Please have serial number and model
number available when calling for service.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain
support under the warranty.
For The Period Of: GE Will Replace:
One Year
From the date of the
original purchase
Any part of the dryer which fails due to a defect in materials or workmanship. During this
limited one:veer warranty, GEwill also provide,free of charge, all labor and related servicecosts
to replace the defective part.
What GE Will Not Cover..
[] Service trips to your home to teach you how to []
use the product.
[] Improper installation, delivery or maintenance. []
[] Failure of the product if it isabused, misused, or
used for other than the intended purpose or used []
commercially.
[] Replacement of the light bulb. []
[] Products which are not defective or broken, or which
are working as described in the Owner's Manual.
Replacement of housefuses or resetting of circuit
breakers.
Damage to the product caused by accident, fire, floods
or acts of God.
Incidental or consequential damage caused by possible
defects with this appliance.
Defects or damage due to operation in freezing
temperatures.
[] Damage caused after delivery.
[] Product not accessible to provide required service.
EXCLUSION OF IMPLIED WARRANTIES--Your sole and exclusive remedy is product repair as provided in this Limited
Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular
purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased
for home use within the USA. Ifthe product is located in an area where service by a GEAuthorized Servicer is not
available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized
GE Service location. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know
what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
Warrantor'. General Electric Company. Louisville, KY 40225
11

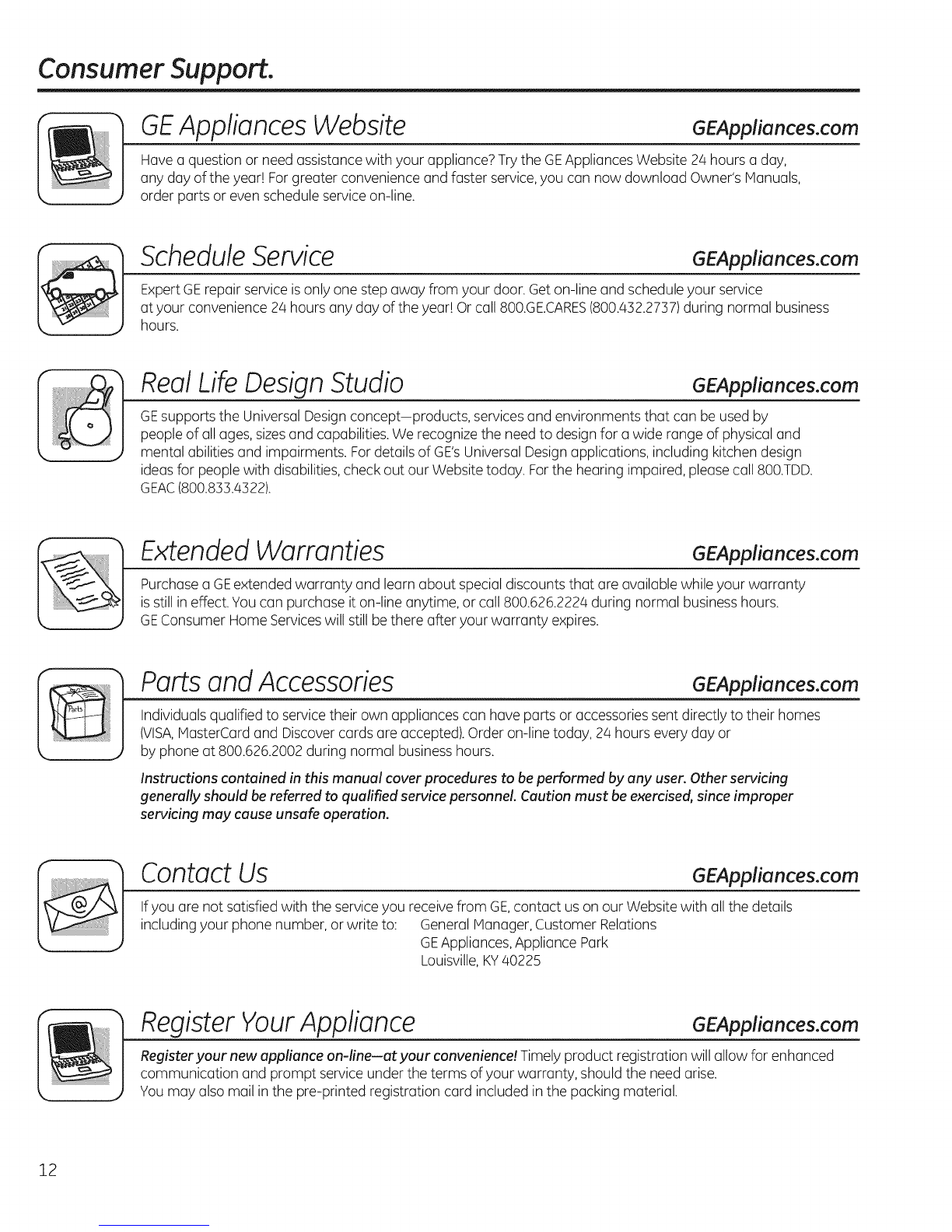

Consumer Support.
GEAppliances Website GEAppliances.com
Have a question or need assistancewith your appliance?Try the GEAppliancesWebsite 24 hours a day,
any day of the year! Forgreater convenience and faster service,you can now download Owner's Hanuals,
order parts or even schedule serviceon-line.
ScheduleService GEAppliances.com
Expert GErepair serviceisonly one step away from your door. Geton-line and schedule your service
at your convenience 24 hours any day ofthe year! Or call 800.GE.CARES(800.432.2737)during normal business
hours.
RealLifeDesignStudio GEAppliunces.com
GEsupports the Universal Design concept-products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design
ideas for people with disabilities, check out our Website today. Forthe hearing impaired, please call 800.TDD.
GEAC(800.833.4322).
ExtendedWarranties GEAppliunces.com
Purchase a GEextended warranty and learn about special discounts that are available while your warranty
isstill ineffect. You can purchase it on-line anytime, or call 800.626.2224 during normal businesshours.
GEConsumer Home Serviceswill still be there after your warranty expires.
Partsand Accessories GEAppliunces.com
Individuals qualified to servicetheir own appliances can have parts or accessoriessent directly to their homes
(VISA, MasterCard and Discovercards are accepted).Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal businesshours.
Instructions contained in this manuel cover procedures to be performed by onv user. Other servicing
generully should be referred to quulified service personnel. Cuution must be exercised, since improper
servicing may cause unsafe operudon.
Contact Us GEAppliunces.com
If you are not satisfied with the serviceyou receivefrom GE,contact uson our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GEAppliances,Appliance Park
Louisville,KY40225
Register Your Appliance GEAppliances.com
Register your new oppliunce on-line--or your convenience! Timely product registration willallow for enhanced
communication and prompt service under the terms of your warranty, should the need arise.
You may also mail inthe pre-printed registration card included in the packing material.
12
