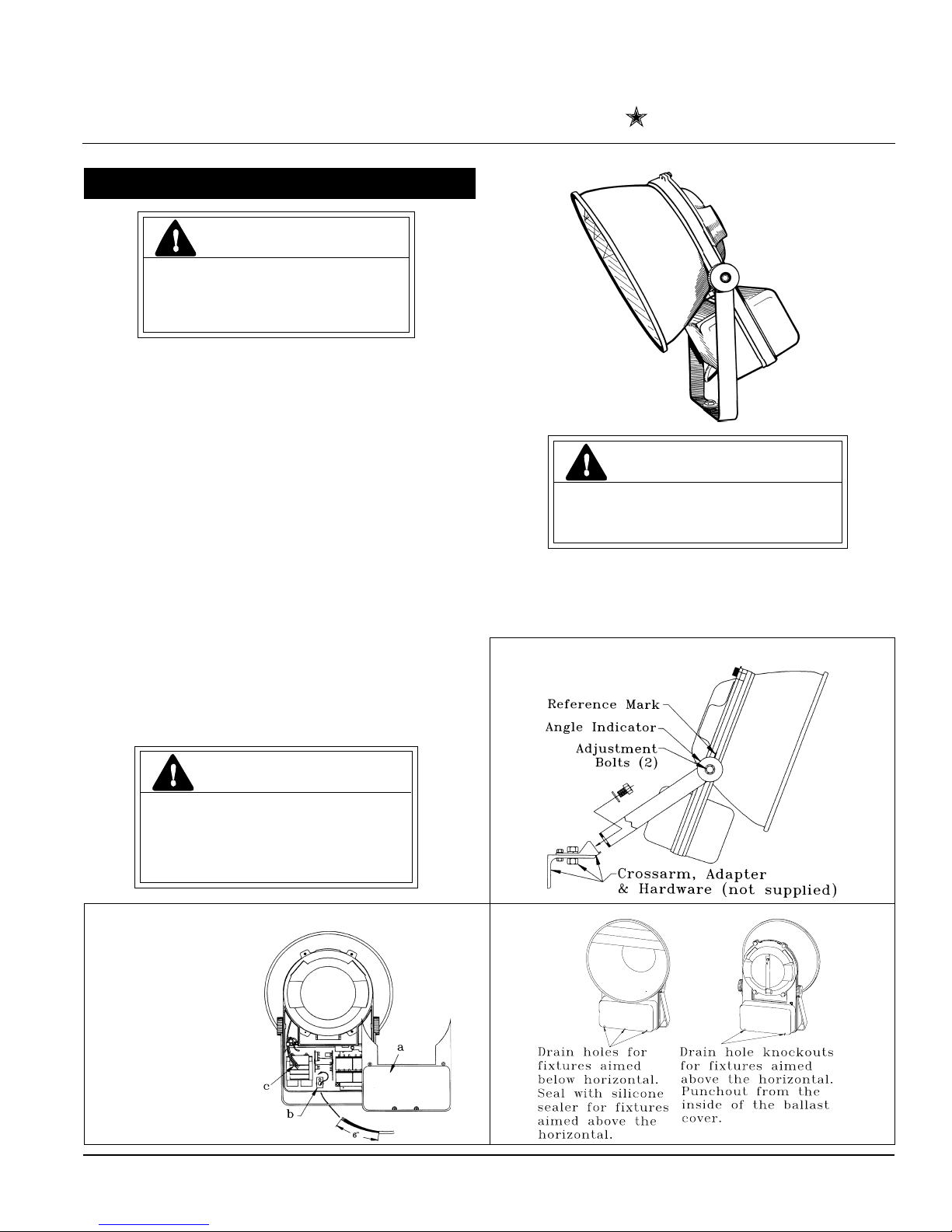

GEH-5736F

Ultra SportTM Floodlight

INSTRUCTIONS

WARNING

Risk of electric shock

•Turn power off before servicing

–see instructions

NOTE: Make all electrical connections in accor-

dance with the National Electrical Code and any

applicable local code requirements.

NOTE: This luminaire is equipped with a safety

circuit to prevent lamp operation if the reflector

lens is broken. Complete optical assembly must

be replaced if the reflector lens is broken.

This luminaire is shipped with the lamp installed.

This luminaire is designed for use in outdoor applica-

tions and should not be used in areas of limited ventila-

tion or high ambient temperature enclosures unless

otherwise stated on nameplate. Install and maintain it

according to the following recommendations.

NOTE: Connect ground lead to the green lead,

green ground screw on housing or terminal block

provided.

Replace power fuses only with fuses of the same

type and ratings.

CAUTION

Unit will fall if not installed properly

•Follow installation instructions

NOTE: Verify that supply voltage is correct by

comparing it to nameplate.

Do not place combustible materials within 7 feet

(2 meters) of the front of the reflector lens.

Step 1 — POWER CABLE INSTALLATION

A . Disconnect Power

B. Remove Cover (a)

C . Loosen clamp (b)

Insert cable thru

clamp and grommet

D . Splice leads (c)

to power cable

E . Tighten clamp (b)

F. Replace cover (a)

NOTE: Use 9/16 OD-

cable only.

3 conductor AWG #14

SEO 105C cable

is recommended.

Step 2 — LUMINAIRE MOUNTING

READ THOROUGHLY BEFORE INSTALLING

WARNING

Risk of fire

•Keep combustible materials away

from lens – see instructions

•Use lamps specified on nameplate

Step 3

gGE Lighting Solutions is a subsidiary of the General Electric Company. Evolve and other trademarks belong to GE Lighting Solutions. The GE brand and logo are trademarks of the General Electric Company.

GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com

16943533----888

gGE

Lighting Solutions

These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation

or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be

referred to GE Lighting Solutions.

35-201578-R2 (9/08)

Step 6

Connect power cable to suitable supply in accord-

ance with all applicable codes.

A . Insert the lamp terminal into the

socket terminal (a) at both ends of the

lamp and torque screws to 20 in. lbs.

B . Slide the lamp ends into the sockets.

LAMP REPLACEMENT

C . Latch the lamp retainers (c).

D . Close and rebolt the relamping door.

Tighten bolts to 50 in. lbs. torque.

Caution: Do not touch quartz tube lamp with bare

hands! If lamp is handled, finger prints, grease or oils

should be removed from the lamp with isopropyl alcohol.

This will remove material which cause whitish spotting

and premature lamp failure. Dry lamp carefully with

cotton or clean cloth.

PERIODIC CLEANING WHEN RELAMPING:

INTERNAL:

Should the internal reflector system require cleaning,

use only non-abrasive, neutral (pH 6-8) cleaner contain-

ing no chlorinated or aromatic hydrocarbons.

Rinse clean and wipe dry.

EXTERNAL:

Clean front glass with a mild soap and water solution,

rinse clean and wipe dry.

NOTICE: Drain holes are provided in the proper

locations for customary mounting positions. If

floodlight is to be aimed up above the horizontal,

it is necessary to punch out the two knockouts in

the rear ballast cover and plug the three front

housing drain holes with a suitable material such

as silicone RTV.

INSTALLATION CLEANING:

DO NOT CLEAN INTERNAL OPTICAL SYSTEM

The UltraMSport floodlight has been specially re-

cleaned at the factory. Field cleaning of the internal

optical system during installation is not recommended.

EXTERNALCLEANING

Initial cleaning of the outside of the glass lens may

be required to ensure optimum optical efficiency.

Clean front glass with a mild soap and water

solution rinse clean and wipe dry.

CLEANING INSTRUCTIONS AND CAUTIONS

After positioning luminaire, tighten all mounting

hardware.

Step 5

Optical Sight:

A . Rotate sight into vertical

position.

B . Align the reference

mark of top of reflector

flange with notch in

sight for proper aiming.

Base Sight

A. Rotate front and back

sight into vertical

position.

B. Align the two sighting

holes for proper aiming.

Step 4 — LUMINAIRE AIMING

Two sighting systems are provided for your convenience.

Use the sight system which is most easily accessed.

CAUTION

Risk of burn

•Allow lamp/fixture to cool before

handling

REMOTE BALLAST MOUNTING

See below illustration for bolt spacing and bracket

minimum spacing.

Step 6

Connect power cable to suitable supply in accord-

ance with all applicable codes.

A . Insert the lamp terminal into the

socket terminal (a) at both ends of the

lamp and torque screws to 20 in. lbs.

B . Slide the lamp ends into the sockets.

LAMP REPLACEMENT

C . Latch the lamp retainers (c).

D . Close and rebolt the relamping door.

Tighten bolts to 50 in. lbs. torque.

Caution: Do not touch quartz tube lamp with bare

hands! If lamp is handled, finger prints, grease or oils

should be removed from the lamp with isopropyl alcohol.

This will remove material which cause whitish spotting

and premature lamp failure. Dry lamp carefully with

cotton or clean cloth.

PERIODIC CLEANING WHEN RELAMPING:

INTERNAL:

Should the internal reflector system require cleaning,

use only non-abrasive, neutral (pH 6-8) cleaner contain-

ing no chlorinated or aromatic hydrocarbons.

Rinse clean and wipe dry.

EXTERNAL:

Clean front glass with a mild soap and water solution,

rinse clean and wipe dry.

NOTICE: Drain holes are provided in the proper

locations for customary mounting positions. If

floodlight is to be aimed up above the horizontal,

it is necessary to punch out the two knockouts in

the rear ballast cover and plug the three front

housing drain holes with a suitable material such

as silicone RTV.

INSTALLATION CLEANING:

DO NOT CLEAN INTERNAL OPTICAL SYSTEM

The UltraMSport floodlight has been specially re-

cleaned at the factory. Field cleaning of the internal

optical system during installation is not recommended.

EXTERNALCLEANING

Initial cleaning of the outside of the glass lens may

be required to ensure optimum optical efficiency.

Clean front glass with a mild soap and water

solution rinse clean and wipe dry.

CLEANING INSTRUCTIONS AND CAUTIONS

After positioning luminaire, tighten all mounting

hardware.

Step 5

Optical Sight:

A . Rotate sight into vertical

position.

B . Align the reference

mark of top of reflector

flange with notch in

sight for proper aiming.

Base Sight

A. Rotate front and back

sight into vertical

position.

B. Align the two sighting

holes for proper aiming.

Step 4 — LUMINAIRE AIMING

Two sighting systems are provided for your convenience.

Use the sight system which is most easily accessed.

CAUTION

Risk of burn

•Allow lamp/fixture to cool before

handling

REMOTE BALLAST MOUNTING

See below illustration for bolt spacing and bracket

minimum spacing.

GEH-5736F

Ultra SportTM Floodlight

INSTRUCTIONS

WARNING

Risk of electric shock

•Turn power off before servicing

–see instructions

NOTE: Make all electrical connections in accor-

dance with the National Electrical Code and any

applicable local code requirements.

NOTE: This luminaire is equipped with a safety

circuit to prevent lamp operation if the reflector

lens is broken. Complete optical assembly must

be replaced if the reflector lens is broken.

This luminaire is shipped with the lamp installed.

This luminaire is designed for use in outdoor applica-

tions and should not be used in areas of limited ventila-

tion or high ambient temperature enclosures unless

otherwise stated on nameplate. Install and maintain it

according to the following recommendations.

NOTE: Connect ground lead to the green lead,

green ground screw on housing or terminal block

provided.

Replace power fuses only with fuses of the same

type and ratings.

CAUTION

Unit will fall if not installed properly

•Follow installation instructions

NOTE: Verify that supply voltage is correct by

comparing it to nameplate.

Do not place combustible materials within 7 feet

(2 meters) of the front of the reflector lens.

Step 1 — POWER CABLE INSTALLATION

A . Disconnect Power

B. Remove Cover (a)

C . Loosen clamp (b)

Insert cable thru

clamp and grommet

D . Splice leads (c)

to power cable

E . Tighten clamp (b)

F. Replace cover (a)

NOTE: Use 9/16 OD-

cable only.

3 conductor AWG #14

SEO 105C cable

is recommended.

Step 2 — LUMINAIRE MOUNTING

READ THOROUGHLY BEFORE INSTALLING

WARNING

Risk of fire

•Keep combustible materials away

from lens – see instructions

•Use lamps specified on nameplate

Step 3

GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com

16943533----888

gGE

Lighting Solutions

These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation

or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be

referred to GE Lighting Solutions.

35-201578-R2 (9/08)
