†Note: Check local codes for required breaker size.
Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.
Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing
from adjacent walls below countertops. To reduce possibility
of scorching walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended, high-heat,
no-load heating element operation.
Installation information: Before installing, consult installation
instructions packed with product for current dimensional data.

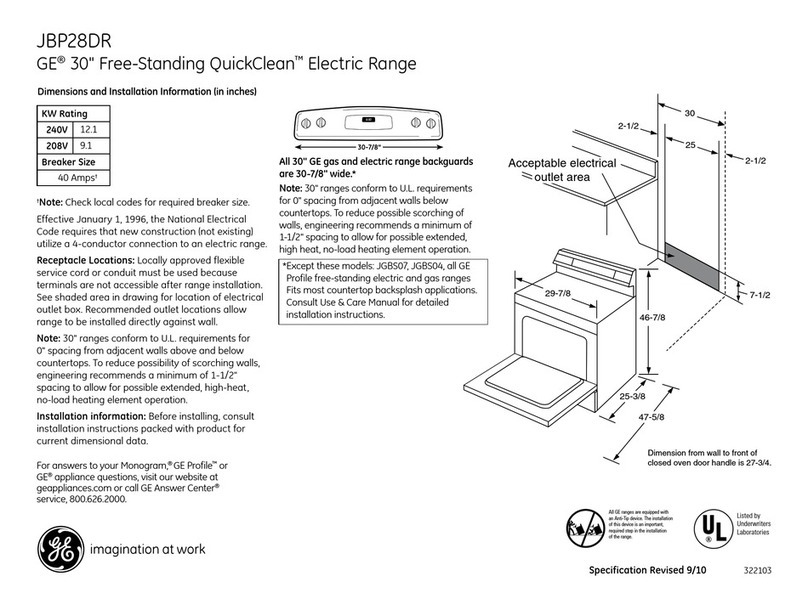

Dimensions and Installation Information (in inches)
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 6/07 321567
Dimension from wall to front of closed door handle is 27-3/4".
KW Rating
240V 11.9
208V 8.9
Breaker Size
40 Amps†
30
25
29-7/8
46-7/8
2-1/2
7-1/2
25-3/8
47-5/8
2-1/2
Acceptable electrical
outlet area
30_install_fse_ge.eps
Dimension from wall to front of
closed oven door handle is 27-3/4.
JBP72DM
GE®30" Free-Standing QuickClean™Electric Range

Features and Benefits
• Self-Clean Oven - Conveniently cleans the oven cavity without the need for scrubbing
• Super-Large 5.3 Cu. Ft. Oven Capacity - Provides an impressively large oven interior
to cook more dishes and large meals at once
• TrueTemp™System - Delivers even heat distribution and maximum oven control
• Dual Size Ribbon Element - Offers a convenient choice of using a 5" or 8" heating
element, depending on the size of the pan
• Warming Zone - Provides low heat capability for foods, making meal
coordination simple
• QuickSet IV Oven Controls - Feature an easy to use design which allows
you to set precise cooking temperatures
• Big Hearth Window - Features an enhanced shape to add an elegant appearance
and make viewing trouble-free
• Model JBP72DMBB – Black on black (black door and black patterned cooktop)
JBP72TM/DM
JBP74TM/DM
WARMINGZONE
CENTER
BURNERON
MED
FRONT
BURNER
BRIDGE
BURNER
SMALL
BURNER
LARGE
BURNER
BROILSELF
CLEAN
OVEN
LIGHT
CLOCK
OVENCONTROLSTrueTemp
ON
TEMP
NORMAL
HILOOFF
KITCHEN
TIMER
ONOFF
BAKESTART
ON
CLEAR
OFF
TIMECONTROLS
COOKING
TIME
ONOFF
AUTOMATICOVEN
START
TIME
ONOFF
Specification Revised 6/07 321567
JBP72DM
GE®30" Free-Standing QuickClean™Electric Range
