GE Profile JGS905 User manual

ge.com(U.S.)
vvwvv.GEApp/iances.ca(Canada)
o_
U3
©
Safety Instruc_ons ............ 2-7
Operating Instrudions
Baking or Roasting .............. 11

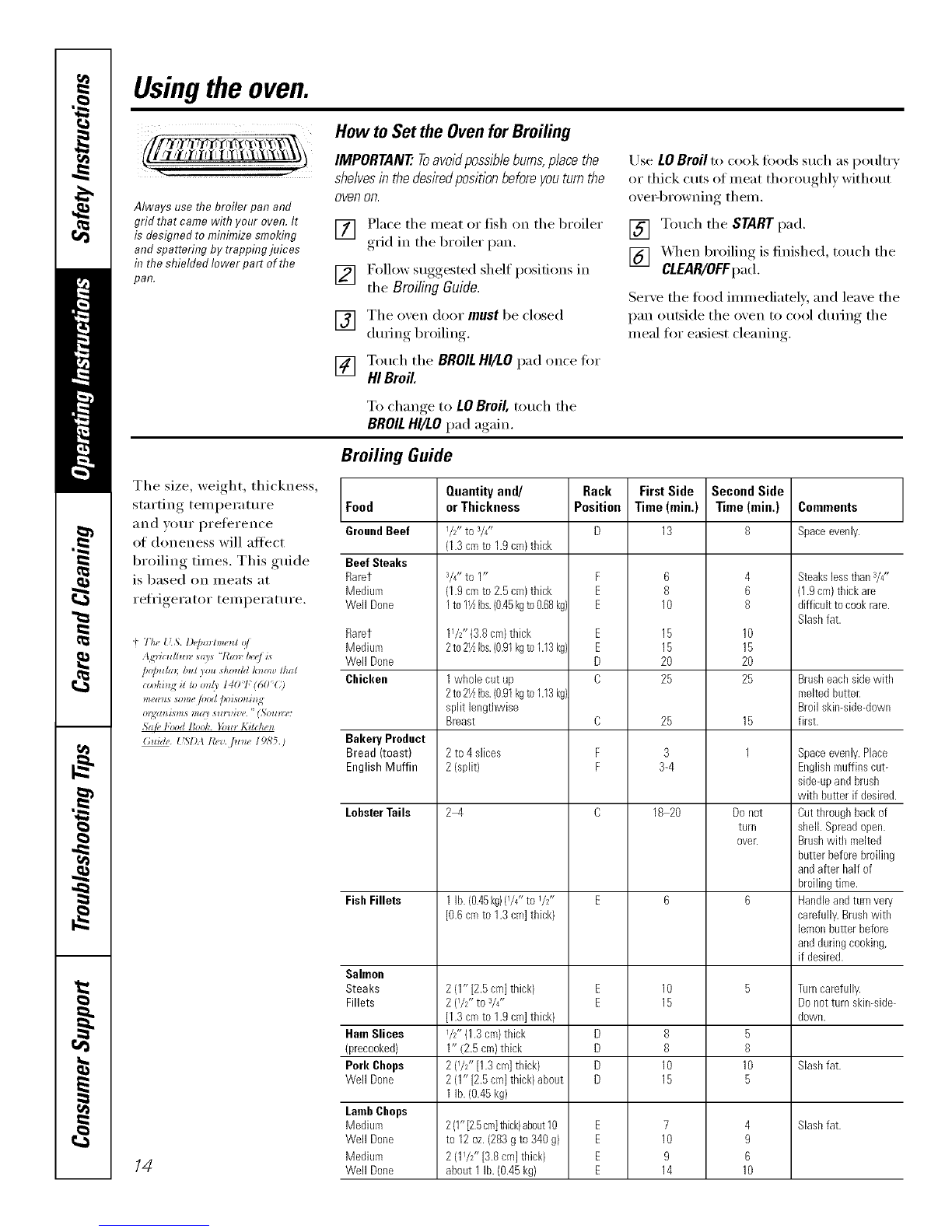

Broiling, Broiling Guide ......... 14
(',lock and Timer . .............. ]5
Con trol I,ockout ............... ]5
Cookware ...................... 9
Oven ...................... ] 0-22
Sabbath Feature ................ 22
Self:Cleaning ............... 18, 19
Special Features ............. 20-21
Surfi_ce Burnei's .............. 8, 9

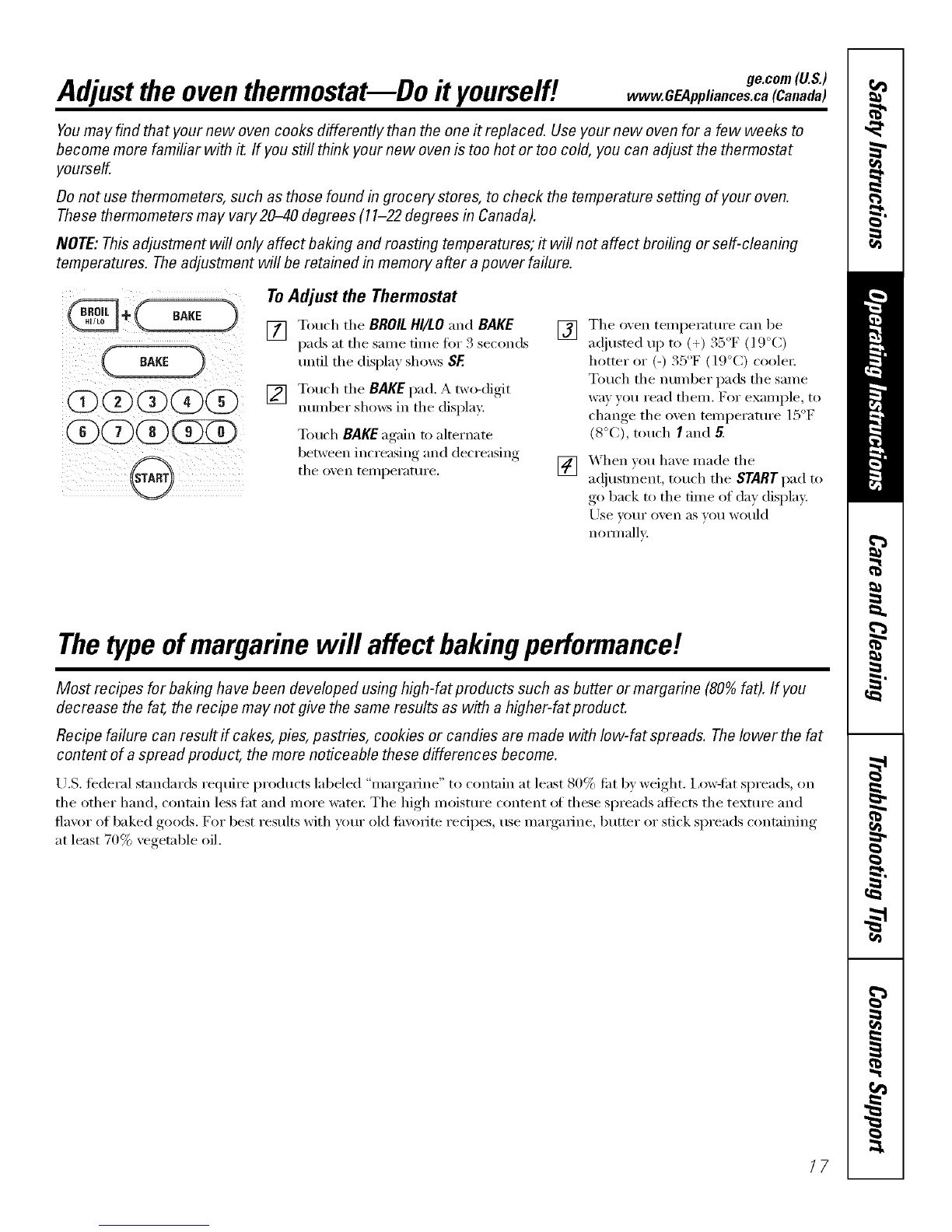

Thermostat .................... 17
Timed Baking & Roasting ........ 16
Care and Cleaning
Broiler Pan and Grid ........... 25
Burner Assembly ............... 23
Burner Grates and
Vent Grille .................... 24
Control Panel ................. 27
Door. ........................ 26
Floor ......................... 27
Glass Cooktop .............. 28, 29
Knobs ........................ 23
I Jft-Off Oven Door ............. 26
Light Bulbs .................... 24
Packagfng Tape ................ 23
Painted Surfhces ................ 27
Racks ........................ 25
Stainless Steel Surfi_ces .......... 27
Storage Drawer . ............... 25
Vent ...................... 24, 27
Troubleshooting Tips ........ %-34
o
Accessories .................... -,9
Cons_tmer Support
Consumer Support ..... Back Co_vr
Product RegSstrafion
(Canada) .................. 37, 38
Product Registration (U.S.A.) . 35, 36
_\arrantv for Customei's
in Canada .................... 43
_\arranty fbr Customers
in the U.S.A ................... 42
Write the model and serial
numbers here:
Model #
Serial #
You can find them on a label
behind the open oven door
on the lower left corner of the
range fl'ame. 49-80371 11-05Jfl

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
WARNING!
ANTI-TIPDEVICE
_!_ALLRANGESCAN TIP
_;i:INJURY TOPERSONS
COULDRESULT
@INSTALLANTI-TIP
DEVICESPACKEDWITH
RANGE
_SEEINSTALLATION
INSTRUCTIONS
AWARNING:If the information
in this manual is not followed exactly,
a fire or explosion may result causing
property damage, personal injury
or death.
2
IDo not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
-WHATTODOIF YOU
SMELLGAS
iJ_:illDo not try to light any appliance.
i_i:iDo not touch any electrical switch;
do not use any phone in your building.
Immediately call your gas supplier
from aneighbor's phone. Follow the
gas supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
-- Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
GAS-FIRED
LI_TED

ge.com(U.S.)
vvvvw.GEAppliances.ca(Canada)
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
ANTI-TIPDEVICE
All rangescan tip and injury could result.
Toprevent accidental tipping of the range, attach it to the wall or floor by installing the Anti--tip device
supplied.
If the Anti--tip device supplied with the range does not fit this application, use the universal Anti--17p
device WB2X7909.
Tocheck if the device is instafled and engaged properly, remove the storage drawer and inspect the
rear leveling leg. Make sure #fits securely into the slot.
If yOU pull tile range otlt flom tile wall for ally reason, mal_.e stlie the device is properly
engaged when you push tile rang_ back against file wall. If it is not, there is a possible risk of
the rang_ tipping oxer and causing iIlju]_y"if YOUor a child stand, sit or lean on an open door
Please refer m the And-Tip device infounafion in tiffs manual. Failure m rake fills precaution
could result in tipping of the rang_ and iIIjm>
IMPORTANTSAFETYNOTICE
The Californb Safe Drinking Water and ToxicEnforcement Act requires the Governor of Californb to
publish a list of substances known to the state to cause birth defects or other reproductive harm, and
requires businesses to warn customers of potential exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon
monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or
LP fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize
incomplete combustion. Exposure to these substances can be minimized by venting with an open
window or using a ventilation fan or hood.
The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during
the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation
fan or hood.
3

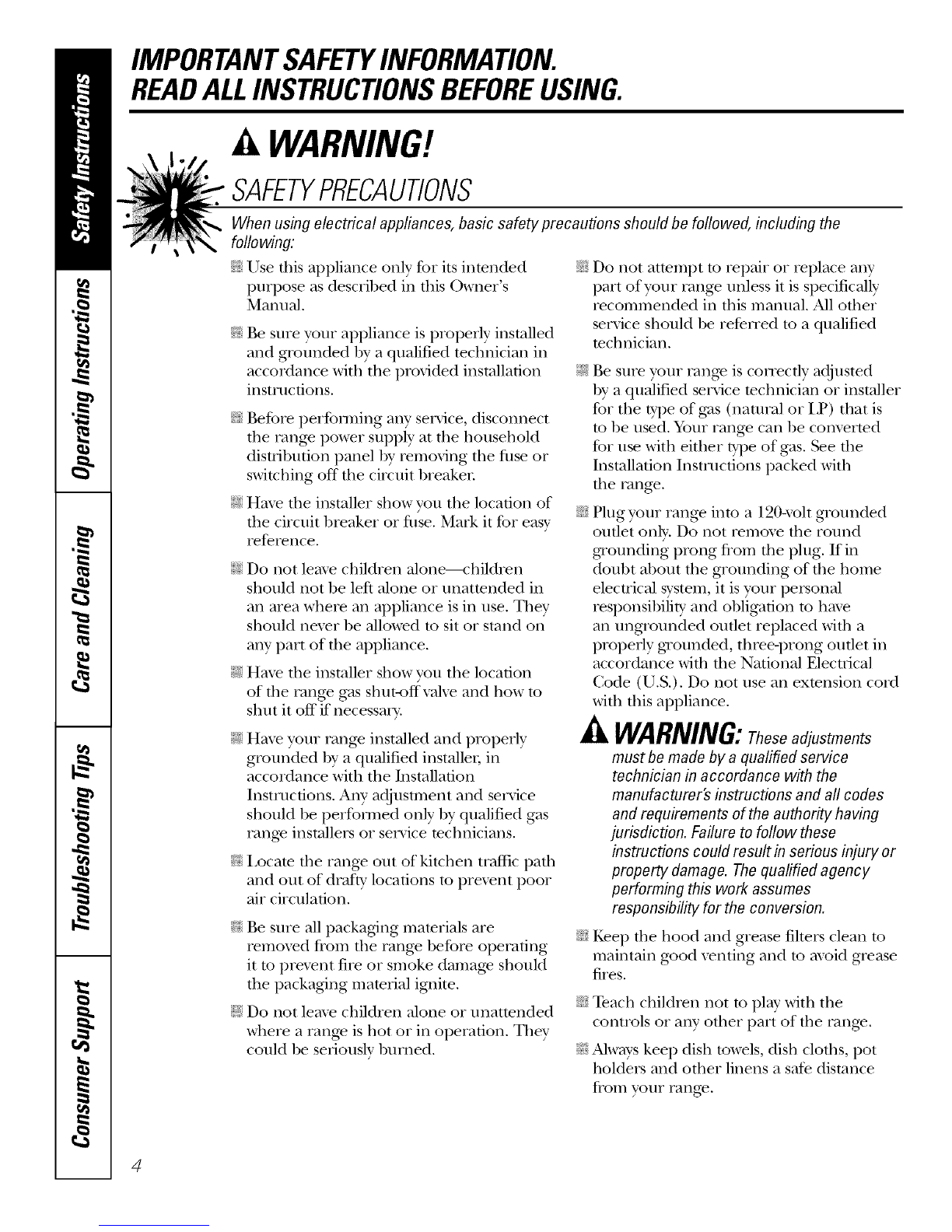

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
WARNING!
SAFETYPRECAUflONS
When using electrical appfiances, basic safety precautions should be foflowed, including the
following:
_7{_Use this appliance only %r its intended
purpose as described m tins )wner s
Mannal.
_::Be sure your appliance is properly installed
and grounded by a qualified technician in
accordance with the provided installation
instrnctions.
_{:_Before perfo_ning any service, disconnect
the range power supply at the household
disu-ibufion panel by removing the fl_se or
switching off the circuit breaken
;fi:,iHaxe the installer show you tile location of
tile circuit breaker or fl_se. Mark it for easy
reference.
J; Do not leme children alone----r'hildren
should not be left alone or unattended in
all area where all appliance is ill use. They
should nexer be allowed to sit or stand on
ally part of the appliance.
J; Haxe the installer show you the location
of the range gas shut-offxahe and how to
shut it off if necessa U.
J; Hax> your rang_ installed and properly
grounded by a qualified installei; in
accordance with tile Installation
Instructions. Ally' adjusunent and se_Mce
should be perfomled only 1)yqualified gas
range installers or service technicians.
_{:_Locate the range out of kitchen traffic pafll
and out of dr_fftv locations to prexent poor
air circulation.
_t_::Be sure all packaging materials are
removed from rite rang_ before operating
it to pre\ent fire or smoke damage should
the packaging mamrial ignite.
Do not attempt to repair or replace ally
part of your range unless it is specifically
recommended in this manual. All other
service should be refelTed to a qualified
technician.
Be sure your range is con-ecfly adjusted
by a qualified se_Mce mchnician or installer
for tile type of g_s (natural or LP) that is
to be used. Your rang_ call be comermd
for use with either type of gas. See the
Installation Instructions packed with
the rang_.
_::Plug your range into a 190=\_lt grounded
outlet only. Do not remo_e tile round
g_ounding prong from the plug. If in
doubt about the grounding of the home
elecuical system, it is your personal
_esponsibilitv and obligation to haw
all ungrounded outlet replaced with a
properly gTonnded, three-prong outlet ill
accordance with flae National Electrical
(',ode (U.S.). Do not use all exmnsion cord
with fl)is appliance.
WARNING:theseadjustments
must be mode by a qualified service
technician in accordance with the
manufacturer's instructions and aft codes
and requirements of the authority having
jurisdiction. Failure to follow these
instructions could result in serious injury or
property damage. The qualified agency
performing this work assumes
responsibility for the conversion.
_{::Kee I) the hood and grease filters clean to
maintain good xenting and to axoid grease
fires.
J; Do not leme children alone or nnattended
where a range is hot or in operation. They
could be seriously bm_led. _:;
Teach children not to play with tile
controls or ally other part of the range.
Always kee I) dish towels, dish cloths, pot
holders and other linens a satb distance
fronl vonr rangP.
4

ge.com(U.S.)
vvvvvv.GEAppliances.ca(Canada)
SAFETYPRECAUTIONS
;_?:,:Always kee I) wooden and plastic utensils
and canned tbod a safe distance fiom your
range.
_i:,iAlways kee I) combnsdble wall coxetings,
curtains or drapes a safe distance fiom
yonr range.
_{:;Do not clean tile rang_ with flammable or
xolatile cleaning fluids.
_i:,:After prolong>d use of a range, high floor
mmperautres may result and many floor
coxelJng3 will not withstand this kind of q?{::
use. Nexer insta]l tile range oxer vinyl tile
or linoleum that cannot wifllsmnd such
type of use. Nexer install it directly over _::
inmrior Mtchen caq)efing.
;f?:':Avoid scratching die glass cooktop widt
sharp instruments, or wifl3 tings and other
jeweh T.
;_i:,:Do not allow anyone to climb, stand or
hang on die oxen door; storage drawer or
cooktop. They could damag> the rang>
and even tip it oxel; causing sexere
personal ilIjm T.
CAUTION:Itemsinteresttochildren
shouldnotbe storedin cabinetsabovea rangeor
on thebacksplashof a range--children climbing
on therangeto reachitemscouldbeseriously
injured.
WARNIN&NEVERusethis
appliance as a space heater to heat or
warm the room. Doing so m W result
in carbon monoxide poisoning and
oxedteafing of the cookmp or oxen.
_i:,:For your safety, hexer use your appliance
for wanning or heating the room.
;_?:':Large scratches or impacts to glass doors
can lead to broken or shatmred glass.
mamfial could be ignimd if brought in
contact with flame or hot oxen surtZaces
and may cause sexere b/li-/ls.
;_?:':Do not clean fire rang_ when the appliance
is in use.
_i:,:Nexer wear loose-fitting or hanging
gammnts while using the appliance.
Be carefifl when reaching for imms stored
in cabinets oxer the range. Flammable
Do not store flammable materials in an
oxen, a range storag> drawer or near a
cooktop.
Do not store or use combnsuble mamrials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
Do not let cooking grease or other
flammable mamrials accumulam in or
near the rang>.
Do not use wamr on grease fires. Nexer
pick up a flaming pan. Turn dm conuols
off: Smother a flaming pan on a surfl_ce
burner 1)5' coxering tile pan complemly
with a well-fitting lid, cooMe sheet or fiat
trW. Use a multi-pml)ose d Uchemical or
foam-type rite extinguisher
Flaming grease outside a pan can be put
out by covering it with baking soda or;
if available, by using a multi-pm])ose dU
chemical or foam-type fire extinguisher
Flame it3 die oxen can be smodtered
completely by closing the oxen door and
turning tile control to off or 1)5' using a
nmlti-pm])ose d_T chemical or foam-type
fire extinguisher
Let tile burner g_ates and other surtZaces
cool before touching them or leaving
then3 where children can reach them.
_?_::Nexer block dte xents (air openings) of
the range. They provide die air inlet and
oudet fllat are necessa Ufor the range to
operam properly with cotwect combustion.
'Air openings ate located at rite teat of the
cooktop, at tile top and bottom of file
oxen door; and at tile 1)oUom of the rang>
under the storage drawer or kick panel.
_7_::Do not lift tile cooktop. Lifting the
cooktop can lead to damag> and improper
operation of the rang>.
5

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
WARNING!
SURFACEBURNERS
Useproperpan size--avoid pansthat are unstableor easilytipped.Selectcookwarehavingflat bottomslarge
enoughto coverburnergrates.Toavoidspillovers,makesurecookwareis largeenoughto containthefood
properly, Thiswillbothsave cleaningtimeandprevent hazardousaccumulationsoffood,sinceMaw spattering
or spilloversleft on rangecan ignite.Usepanswith handlesthat canbe easilygraspedand remaincooL
_i)!Ahvays use tim Life position when igniting
the top burners and make sure the burners
hme ig_fited.
!?'Never leme the stirface btunets unattended
at high flame settings. Boilovers cause _i_!
smoking and greasy spillovers that may
catch on fire. _i_!
!?'Adjust the top burner flame size so it does
not extend beyond the edge of the cookware.
Excessive flame is hazardous.
!_:Use only dry pot holders--moist or damp pot
holders on hot surPaces may resuh in burns
flom smam. Do not let pot holders come
near open flames when lifting cookware. Do
not use a towel or other bulky cloth in place
of a pot holder:
!?'X_\hen using glass cookware, make sure it
is desig_md for top-of-range cooking.
!?'To minimize the possibili b, of 1)urns, ignition
of flammal)le materials and spillage, mm
cookware handles toward the side or back of
the range without extending over adjacent
btlI'IleI's.
_i_!Careflflly watch foods 1)eing flied at a high
flame setting.
_i_!Ahvays heat fat slowly and watch as it heats.
!_:Do not lea\e any imms on the cooktop. The
hot air flom the \'ent may ig_im flammable
imms and will increase pressure in closed
containers, which may cm_se them m l)u_st.
_i)!If a coml)ination of oils or _lts will be used
in flying, stir together before heating or
as _lts meh slowh,
_i_!Use a deep flu thermometer whenever
possible to prevent oxerheating _t 1)eyond
the smoking point.
_i)!Do not operate the burner wifl_out all btuner
parts in place.
[_lse tim least possil)le amount of flu for
efl>ctive shallow or deep-_lt flying. Filling
the pan too fifll of_u can cause spilloxers
when food is added.
X&qmnpreparing flaming foods under the
hood, turn the f,m on.
Do not use a wok on tim cooking sur£1ce
if the wok has a round metal ring that is
placed o\er the burner giv_m m support the
wok. This ring acts as a heat m_p, which mW
damage the N_rner gram and N_rner head.
Also, it may cm_se the N_mer m work
improperly. This may cause a carl)on
monoxide le\_l abo\_ that allowed by current
standards, _esuldng in a heahh hazard.
Foods for fi)ing should be as dr) as possil)le.
Frost on fiozen foods or moisture on fiesh
foods can cause hot Pat to 1)ubble up and over
the sides of the pan.
Nexer uy to move a pan of hot Pat especiall;.'
a deep flit flyer. X'\hit until the flit is cool.
Do not lem_e plastic items on tim cooktop--
they may meh if left too close to the vent.
Kee I) all plastics mvay flom the surPace
1)tlI'Ile I'S.
To moid the possibili b, of a burn ahvavs be
certain that the conuols for all burners are
at the OFFposition and all grates are cool
before attemi)dng to remove them.
If _ange is located near a window, do not
hang long curtains that could 1)low over the
surface burners and create a fire hazard.
If you smell gas, turn off the g:_s to the range
and call a qualified service technician. Nexer
use an open flame to locate a leak.
Ahvays ttun the stuJ_ce 1)tunet conuols off
before removing cookware.

ge.com(U.S.)
_GEAppliances.ca (Canada)

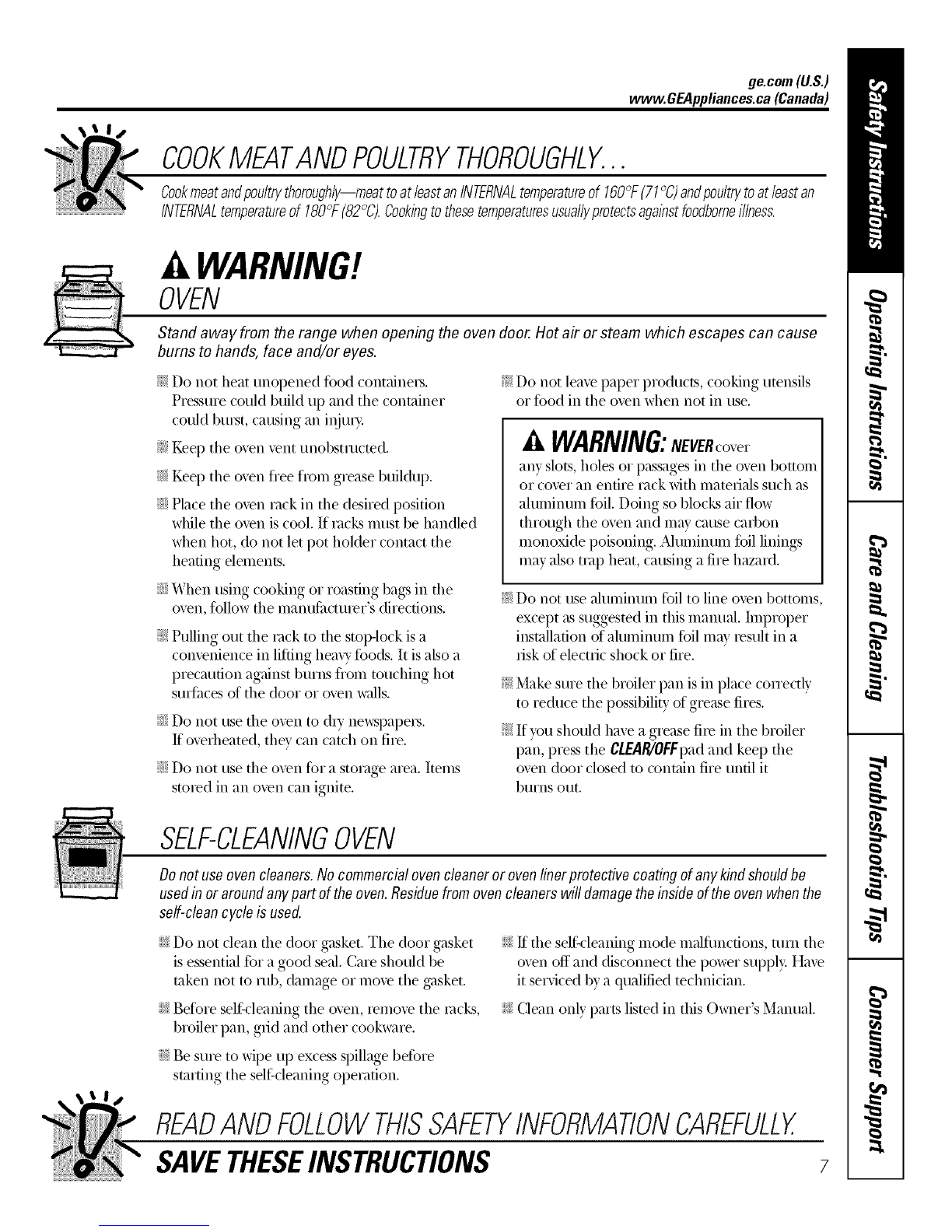

COOKMEATANDPOULTRYTHOROUGHLY...
Cookmeatandpoultrythoroughly--meattoatleastanINTERNALtemperatureof 160°F(71°C)andpoultrytoat leastan
INTERNALtemperatureof 180°F(82°C).Cookingtothesetemperaturesusuallyprotectsagainstfoodborneillness.
it WARNING!
OVEN
Stand awayfrom the range when opening the oven door. Hot air or steam which escapes can cause
bums to hands, face and/or eyes.
Do not heat unopened flood containers.
Pressurecould build up and the container
could bulst, causing an inju U.
Keep tile oven vent unobstructed.
KeeI) the oven flee from grease buildup.
Place tile oven rack in tile desired position
while the oven is cool. If rocks must be handled
when hot, do not let pot holder contact the
heating elements.
iJii:iWhen using cooking or roasting bags in tile
oven, follow tile manufi_ctu,er's directions.
Pulling out tile rock to tile stop-lock is a
convenience in lifting heavy fbods. It is also a
precaution against burns flom touching hot
surfilces of the door or oven walls.
Do not use tile oven to dUnewspape,s.
If overheated, the} can catch on fire.
Do not use the oven fur a storage area. Items
stored in an oven can ignite.
Do not leave paper products, cooking utensils
or food in the oven when not in use.
a, WARNING:NEVERcover
any slots, holes or passages in tile oven bottom
or cover an entire rack with materials such as
alunfinuln toil. Doing so blocks air flow
through the oven and may cause carbon
inonoxide poisoning. Alunlinuln %il linings
may also trap heat, causing a fire hazard.
Do not use aluminum fi0ilto line oven bottoms,
except as suggested in this inanual, hnproper
installation of alulninuln foil may result in a
risk of electric shock or fire.
Make sure tile broiler pan is in place conectl)
to reduce the possibilit) of grease fires.
If you should have a grease fire in tile broiler
pan, press tile Cl£AR/Offpad and keep tile
oven door closed to contain fire until it
buI'nS OUt,
SELF-CLEANINGOVEN
Donotuseovencleaners.No commercialovencleaneror ovenliner protective coatingof anykindshouldbe
usedin or aroundanypartof theoven.Residuefrom ovencleanerswill damagetheinsideoftheovenwhenthe
self-cleancycleis used,
iJii:iDo not clean tile door gasket. Tile door gasket
is essential fbr a good seal. Care should be
taken not to rub, damage or move tile gasket.
iJi;:iBe%re selfkleaning the oven, remove tile rocks,
broiler pan, grid and other cookware.
iJii:iBe sure to wipe up excess spillage before
starting the self cleaning operation.
iJii:iIf tile self cleaning mode malflmctions, turn the
oven off and disconnect tile power supply. Have
it serviced b} a qualified technician.
iJi;:iClean only parts listed in this Owner's Manual.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS 7

Usingthegas surfaceburners.
Throughout this manual, features and appearance may vary from your model.
Push the control knob in and turn it
to the LITEposifion.
How to Light a GasSurface Burner
Push the control knob in and turn it to
tile LITE position.
You will hear alittle clicking noise---
tile sound of the electric s,)ark ionifin,_
the burlwl;
Mtei" the flame lights, turn the knob to
ac!iust the flmne size, If the knob stays at
Ill'E, it will continue to click,
When one burxler is turxled to LITE, all
the burne_ spark. Do not attempt to
disassemble or clean around anv bm'ner
while another burner is on. An electric
shock may result, which could cause you
to knock over hot cookware.
Sealed Gas Burners
Tile slnaller burner (right rear posidon)
will give the best silnlner results flw
delicate fi_ods, such as sauces or fi)ods
which need to cook over low heat fiw a
hmg dine. It can be turned down to a vei_'
low setting.
The largest, burnels are hi_*her,_ l)°wered
than the othels and will 1)ring liquids to
a boil quickeI:
How to Select Flame Size
Forsafehandllegofcookware,neverlettheflames
extendupthesidesof thecookware.
_'atch the flalne, not the knob, as you
reduce heat. The flame size oil a gas
burner should inatch the cookware
VOII aI'e rising.
An} flame larger than the bottom of the
cookware is wasted and only ser\ es to heat
the handle.
In Case of Power Failure
In case _ff a power tililm'e, you can light
the gas surlilce burnei_ on your range
with a inatch. Hold a lit inatch to the
burner, then push ill and turn the control
knob to the UTEposidon. Use extrelne
caution when lighting burnels this way:
Surtilce burners in use when an electrical
power fililure occms will continue to
operate nommllv.,
Before Lighting a Gas Burner
!;_:Make sure ;111grates on the range are in
place before using any burner
After Lighting a Gas Burner
_: Do not operate the burner for an
extended period of tilne without
cookware on the grate. The finish on
the grate Inay chip without cookware
to absorb the heat.
;;Ji::Be sure the burners and grates are
cool betore you place your hand,
a pot holder; cleaning cloths or
other inatelials on theln.
8

ge.com (U.S.)
www.GEAppliances.ca (Canada)
Top-of-Range Cookware
Aluminum: Meclimn-weight cookware is
reconm_ended because it heats quickly
and evenly: Most fi)ods brown evenly in
an almninunl skillet. Lrse saucepans with
tight-fitting lids when cooking with
lIlinilIltlll/ aiilo/ints oil _;KeI:
Heatproof Glass Ceramic: Can be used
tor either sui_ilce or oven cooking. It
conducts heat vei_' slowly and cools vei_'
sh)wh'. Check cooi_ware manufi_cmrer's
directions to be sure it can be used (m gas
ranges.
Cast-Iron: If heated slowly, most skillets
will give satisti_ct(n T results.
Enamelware: Under scnne conditions,
tile enalllel of SOllle cookwaI'e l//_lY
nlelt. Follow cookware Ill_lnUtlilCttlI'eI"S
reconnnendations fin" cooking methods.
Glass: There are two t)l)es of glass
cookware--those fi)r ()\'ell /lSe only
and those fi)r toi>oFrange cooking
(saucepans, coffee and teapots).
Glass conducts heat vecv slowly.
Stainless Steel'. This met;fl alone has
poor heating properties and is usually
c(nnbined with coppeI; almninun/
or other metals fin" improved heat
distribution. (;ombinafion metal skillets
usually _)rk safisfi_ctofilv if they are used
with mediunl heat as tile manufi_cmrer
i'ecoi/lillends.
Stove TopGrills
Do not use stove top grills on your sealed
gas burnei_. If'you use tile st()ve titI) grill
on the sealed gas bumei; it will cause
inc(nnplete c()mbusfion and can result
ill exposure to carbon monoxide levels
above allowable current standards.
Thiscanbehazardoustoyourhealth.
Use afiat-bottomed wok.
Wok This Way
Werecommendthat you usea 14-/hch(35.6cm)
orsmaller flat-bottomed wok.Make sure thewok
bottom sits flat on thegrate. Theyareavailableat
yourlocalretailstore.
Onh a flat-bottonmd wok should be used.
Do not/lse a []at-bottoi//ed wok on a
support ring. Placing tile ring over tile
burner or grate may cause tile burner
to work improperly, resulting ill carbon
monoxide levels above allowable
standards. This could be dangerous to
your health.
9

Usingthe ovencontrols.
(Throughout this manual, features and appearance may vary from your model.)
OvenControl,Clockand TimerFeaturesandSettings
BAKEPad
Touch to select the b_&e function,
BROILHI/LOPad
Touch to select the broil function,
0VENLIGHTPad
Touch to ttlrn the oven light on or off.
SELFCLEANLO/STDPad
Touch to select seli:<leaning ftmction.
See the Using the self-cleaning oven secdon.
STARTPad
MHst be tOtlched to start all} cooking or
cleaning flmction.
Number Pads
Use to set anY,fimction re(luiring', numbers
such as the time of da) on the clock, the
timeI; the oven tempeIatm'e, the internal
filed tempelatm'e, the start time and
length of operation fi)r timed baking
and self:cleaning.
CONTROLLOCKOUT
Tile control lock()ut is 9and O.Touch and
hold the 9and 0pads at the same time tbr
3 seconds.
CLEAR/OFFPad
Touch to cancel ALL o_en operations except
tile clock, timer and control lockout.
KITCHENTIMERON/OFFPad
Touch to select the timer feature.
0
CLOCKPad
Touch before setting the clock.
DELAYSTARTPad
Use along with COOKINGTIME or SELFCLEAN
LO/STD pads to set the o_vn to start and stop
automaticall) at a time you set.
COOKINGTIMEPad
Touch and then touch the nun-)ber pads to set
the amount of time you want your filed to
cook. Tile ()veil will shut oft when tile
cooking time has i)ln O)lt.
Display
Sho_s the dine of day, ()veil temperature,
whether the o_vn is in the bake, broil or
self:cleaning mode and the times set ti)r
the timer or automatic o_vn opeiations.
ff "F-anda numberorletter"flashinthedisplay
andtheovencontrolsignals,thisindicatesa
functionerrorcode.TouchtheCLEAR/OFFpad
AllowtheoventocoolforonehourPuttheovenback
intooperation,ff thefunctionerrorcoderepeats,
disconnectthepowertotheovenandcaflre(service.
ff your ovenwas set fora timed ovenoperation
and a power outageoccurred, thedockandaft
programmedfunctionsmustbereset.
Thetime of daywill flashin the display when
therehasbeenapower outage.
10

ge.com (U.S.)
Using the oven. vvvvw.OEAppliances.ca(Canada)
Toavoid possible bums, place the racks in the desired position before you turn the oven on.
Theoven has 7rack positions.
Before you begin...
The racks have stops, so that when placed
correcflv on the supports, they will stop
before coming completely out, and will
not tilt.
_A]/en placing and removing cookware,
pull the rack out until it stops.
The bake burner is under the oven floo_:
Do not place toods on the oven bottom
fi)r cooking.
Toremove a rack, pull it toward you,
tilt the ti'ont end up and pull it out.
Toreplace, place the end of the rack
(stop-loci<s) on the support, tilt up the
fl'ont and push the rack in.
CAUTION:Whenyouareusingthe
rackin the lowest position(,4),youwffl needto
usecautionwhen pulling the rackout We
recommendthat youpuffthe rackout several
inchesand then,using two pot holders,puff the
rackout by ho/ding the sidesof it Therackis low
andyou couldbe burnedif youplace yourhand in
the middleof therackand pu// a// the way out Be
verycarefulnot to burnyourhandon the door
when using therack in the/owestposition (A).
How to Set the Oven for Baking or Roasting
[] Touch the BAKE pad.
[] Touch the number pads to set
the desired temperature.
[] Touch the STARTpad.
[] Check fi)od fin" doneness at
minimum time on recipe. Cook
longer if necessmT:
[] Touch the CLEAR/OFFpad when
cooking, is coml)lete.
NOTE:A coolingfanwillautomaticallyturnon
andoff tocoolinternalparts.Thisisnormal,and
thefanmaycontinuetorunevenaftertheoven
in turnedoff
TypeofFood Rack Position
Frozenpies(oncookiesheet) CorD
Angelfoodcake A
Bundtorpoundcakes BorC
Biscuits,muffins,brownies, CorD
cookies,cupcakes,
layercakes,pies
Casseroles CorD
Turkey A
If baking fi)ur cake layers at the same time,
place two la)'e_ on rock B and t_ layers on
rack D. Stagger pans on the rack so one is
not (tirect]} ab_)_e the othe_:
77

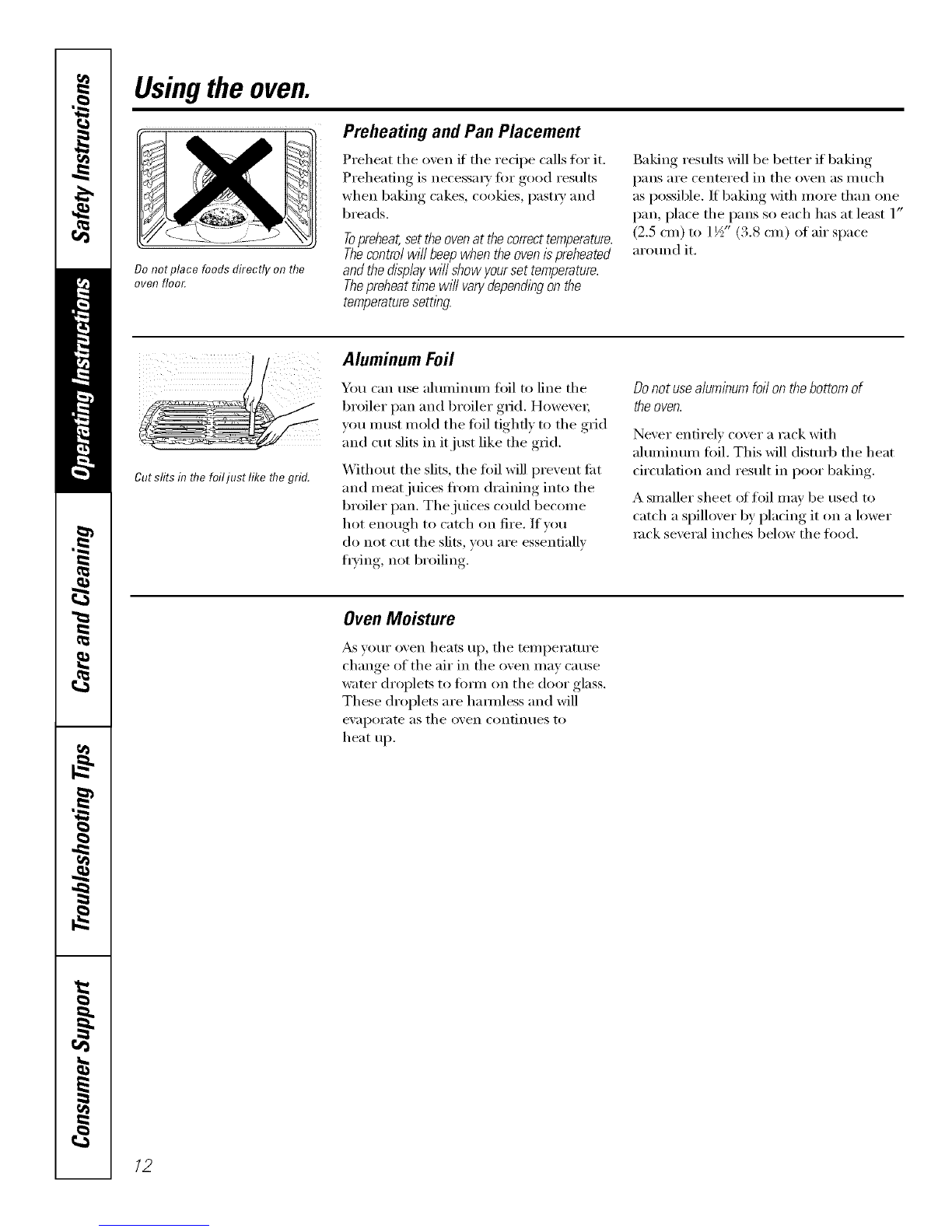

Usingthe oven.
Do not place foods directly on tlTe
oven floo_
Preheating and Pan Placement
Preheat the oven if the redpe calls fin" it.
Preheating is necessm T for good results
when baking cakes, cookies, past_ T and
breads.
Topreheat,set theovenat thecorrecttemperature.
Thecontrol will beep when the ovenis preheated
andthe display will show yourset temperature.
Thepreheat time will varydependingon the
temperaturesettl))g.
Baking results will be better if baking
pans are centered in the oven as much
as possible. If baking with more than one
pan, place the pans so each has at least 1"
(2.5 cm)to 1½" (3.8 cm) of air space
around it.
/Aluminum Foil
/1¢ You can use ahuninuin foil to line the
_/ broiler pan and broiler grid. Howexe_;
__S you must mold the fifil tighfl) to the grid
and cut slits in it just like the grid.
Without the slits, the toil will prevent ti_t
gut slits in the foiljust like the grid. and meat juices ti'om draining into the
broiler pan. The juices could become
hot enough to catch on fire. If w_u
do not cut tile slits, you are essentially
fiTing , not broiling.
Donotusealuminumfoilonthebottomof
theoven.
Never entirely cover a rack with
aluminum fifil. This Mll disturb tile heat
circulation and result in poor baking.
A smaller sheet of fl)il may be used to
catch a spillover by placing it on a lower
rock several inches below tile food.
Oven Moisture
_&svour oven heats up, tile temperature
change of tile air in tile oven may cause
water droplets to tOm_ on tile door glass.
These droplets are hamfless and will
eV}ll)OI'}lte }IStile oven contintles to
heat up.
/2

ge.com(U.S.)
www.GEAppliances.ca(Canada)

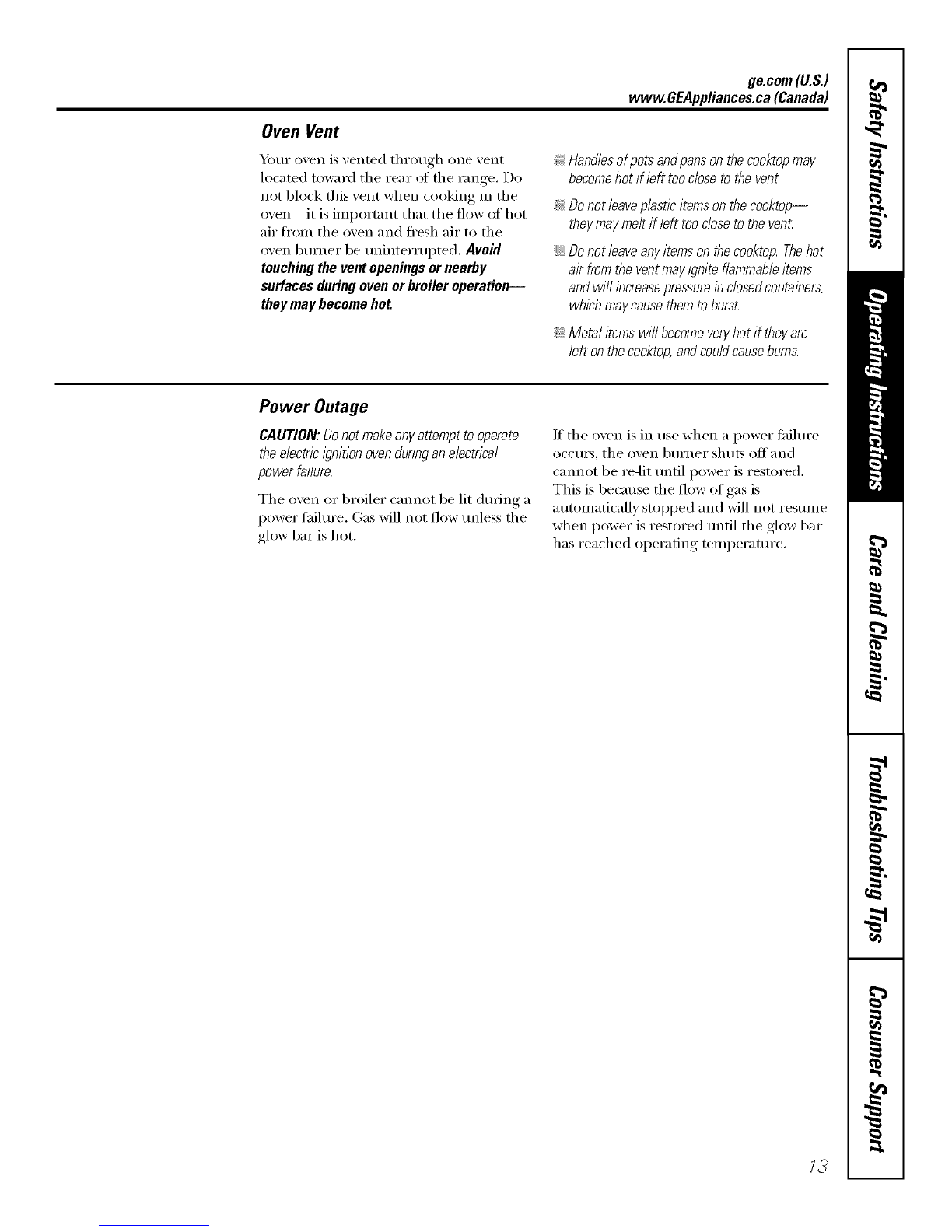

Oven Vent
Y_)ur oven is vented through one vent
located toward the rear ot the range, Do
not block this vent when cooking in the
oven--it is important that the flow oI hot
air fl'om the oven and fl'esh air to the
oven burner be uninterrupted, Avoid
touching the vent openings or nearby
surfaces duringoven or broiler operation--
they may become hot
_Handlesofpotsandpansonthecooktopmay
becomehotif left toodosetothevenL
_Donot leaveplastic items on the cooktop--
theymay melt if left too closeto the venL
;;Ji::Donot leaveany items on thecooktop. Thehot
air from the vent mayignite flammableitems
and will increasepressurein closedcontainers,
whichmay cause themto burst.
_Metal items will become veryhot if theyare
left on the cooktop,and couldcause burns.
Power Outage
CAUTION: Do not make any attempt to operate
the electric i_?nitionoven during an electrical
power failure.
The oven or broiler cmmot be lit dtwing a
power fifilm'e, Gas will not flow tmless the
glow bar is hot.
If the oven is in use when a power fifilm'e
occm_, the oven bm'ner shuts off and
cannot be re-lit tmfil power is restored.
This is bec;mse the flow of gas is
automatically stopped and will not resume
when power is restored tmtil the glow bar
has reached operating temperattu'e.
13

Usingthe oven.
Always use the broiler pan and
grid that came with your oven. It
is designed to mflTimizesmoking
and spattering by trappfl?gjuices
fl?the shielded lower part of the
pan.
How to Set the Ovenfor Broiling
IMPORTANT'.Toavoidpossib/eburns,placethe
shelvesinthedesiredpositionbeforeyouturnthe
oven on.
[] Place the meat or fish on the broiler
g_i(1 in the broiler pan.
[] Follow suggested shelf positions in
the Broiling Guide.
V_] The oxen door must be closed
during broiling.
[] Touch the BROILHI/LOpad once fi)r
HI Broil.
Use LO Broil to cook fi)ocls such as poultx T
or thick cuts of meat thorotlghly without
ove_q)rowning them.
[] Touch the STARTpad.
[] _&q_en broiling is finished, touch the
CLEARIOFFpad.
Serve the food immediately, and leave the
pan outside the oven to cool dtuJng the
meal fi)x" easiest cleaning.
To change to LOBroil, touch the
BROILHI/LOpad again.
Broiling Guide
The size, weight, thickness,
starting temperature Food
and VOtli" preference GroundBeef
of doneness will affect
broiling times. This guide Beef Steaks
is based on meats at Rarer
Medium
rell'igerator temperatm'e. Well Done
4 7,5,,[L.'_.l)(jJa_lm_l o/
Ag'Hc*Hmn,*_(/*'7{a*_,&('_Jis
pop,Hartb_*l)o_t _ho_ddknow lhal
c_x)ki_g il Wo)_13 140'l (60 ()
",fff("l"fx)dBool,'.}b_l_Kil_ke_
(_*tide. {'_l).t t'_,w, flz_ze 19N5.)
Rarer
Medium
Well Done
Chicken
Bakery Product
Bread (toast)
English Muffin
LobsterTails
FishFillets
Salmon
Steaks
Fillets
HamSlices
(precooked)
Pork Chops
Well Done
LambChops
Medium
Well Done
Medium
Well Done
/4
Quantityand/ Rack
or Thickness Position
l/Z' to a/4"
(1.3cmto 1.9cm}thick
3/4" to 1" F
(1.9 cm to 2.5 cm) thick E
1to 11_Ibs.(0.45kgtoO.B8kg) E
11/2''(3.8cm)thick
2to21_Ibs.(0.91kgto1.13kg)
1wholecut up
2to21_Ibs.(0.91kgto1.13kg)
split lengthwise
Breast
2 to 4slices
2 (split)
24
1lb. (0.45kg}(1/4*'to I/2*'
[0.6cmto 1.3 cm]thick)
E
E
D
D
D
F
F
2 (1"[2.5cm]thick) E
2 (1/2" tos/4" E
[1.3cmto 1.9 cm]thick)
1/2"(1.3c[n)thick D
1" (2.5cm}thick D
2 (_/2"[1.3cm]thick) D
2 (1"[2.5cln]thick)about D
1lb. (0.45kg)
FirstSide
Time(min.)
13
6
8
10
15
15
2O
25
25
3
3-4
18 20
8
8
10
15
2(1"[2.5cm}thick)about10 E 7
to 12oz.(283gto340g) E 10
2 {11/2" [3.8 cm] thick) E 9
about 1 lb.(0.45kg) E 14
SecondSide
Time(rain.)
4
6
8
10
15
2O
25
15
1
Donot
turn
OVer.
5
8
10
5
4
9
6
10
Comments
Spaceevenly.
Bteakslessthan3/4"
(1.9cm)thick are
difficultto cookrare.
Slashfat.
Brusheachsidewith
meltedbutter.
Broilskin-side-down
first.
Spaceevenly.Place
Englishmuffins cat-
side-upandbrush
with butter if desired.
Cutthroughbackof
shell. Spreadopen.
Brushwith melted
hatterbeforebroiling
andafter Mf of
broilingtime.
Handleandturnvery
carefully.Brushwith
lemonbutter before
anddaringcooking,
if desired.
Turncarefully.
Donotturn skin-side-
down.
Slashfat.
Slashfat.

ge.com (U.S.)
Using the clock, timerandcontrollockout, www.GEAppliances.ca(Oanada)
ii i i/i
Make sure the clock is set to the
correct time of da_
ToSet the Clock
The clock must be set to tile correct time
of da', fi_r tile atm)mafic oxen tinting
flmctions to work propefl). Tile time of
da) cannot be changed dtnJllg a timed
baking or self=cleaning cycle.
[] Touch tile CLOCK pad.
[] Touch tile number pads.
[] Touch the START pad.
[]
Thetimer is a minute timer onl_
Thetimer does not control oven
operations. The maximum setting on
the timer is 9hours and 59mhTutes.
ToSet the Timer
Touch tile KITCHENTIMER
ON/OFFpad.
Touch tile nmnber pads tmfil tile
_lIIlO//nt of time yot] want shows
in tile display: For example, to set
2 horns and 45 minutes, touch 2, 4
and 5in that order: If you make a
mistake touch tile KITCHEN TIMER
ON/OFFpad and begin again.
[] Touch tile STARTpad.
AftertouchingtheSTARTpad,SETdisappears,
thistellsyouthetl_neiscountingdown,although
thedisplaydoesnotchangeuntiloneminutehas
passedSecondswi//notbeshownb thedisplay
untilthe/astmbute iscountbgdown.
[] _'_ hen tile timer reaches :00, tile
control will beep 3 times fbllowed
by one beep eve_ T 6 seconds tmtil
tile KITCHENTIMERON/OFFpad
is touched.
The&secondtonecanbecance/edbyfo//owlbg
thestepsb theSpecialfeaturesofyouroven
controlsectionunderTonesat theEndofa
TimedCycle.
ToReset the Timer
If tile display is still shoMng tile time
remaining, you may change it by
touching tile KITCHEN TIMER ON/OFF pad,
then touch tile number pads tmtil tile
time w)u want appea_ in tile display.
If tile remaining time is not in tile display
(clock, delay start or cooking time are in
the display), recall the remaining time by
touching tile KITCHEN TIMER ON/OFFpad
and then touching tile number pads to
entei" tile new [lille VO/I want,
ToCancel the Timer
Touch tile KITCHENTIMERON/OFF
pad twice.
LOCK/UNLOCK HOLD 3SECONDS
Control Lockout
Yourcontrolwill allowyoutolockoutthetouch
padssotheycannotbeactivatedwhenpressed
To lock/tmlock tile controls:
[] Touch tile 9and Opads at tile same
time f'm 3 seconds, tmfil tile displa)
shmvs LOCON.
[] To unlock tile control, touch tile 9
and 0pads at tile same time for 3
seconds, tmfil tile display shows
LOC OFF.
When this teatm'e is on and tile touch
pads are touched, tile control will beep
and tile display will show LOCON.
_: Thecontrol lockoutmode affectsall touch
pads.No touchpads wi// work when this
featureis activated
iJi::Theadjustmentwillberetabedlnmemory
afterapowerfailure.
15

Usingthe timedbakingand mastingfeatures.(onsome models)
NOTE" Foods that spoil easily--such as milk, eggs, fish, stuffings, poultry and pork--should not be allowed to sit for
more than 1hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that
the oven light is off because heat from the bulb will speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
Theoven will turnon immediatelyandcook for
aselected lengthof tlYne.At the end of the
cookingt/methe oven wi// turnoff automatica//y
[] Touch the BAKEpad.
[] Using tile nuinber pads, enter tile
desired teinperature.
[] Touch the COOKINGTIMEpad.
NOTE:If yourreciperequkespreheating,you
mayneedtoaddadditionalfl?netothelengthof
thecookingt/?ne.
[] Using the numl)er pads, enter the
desired baking time. Tile oxen
temperature and tile cooking time
that you entered will be displa) ed.
[] Touch the STARTpad.
Tile display Mll show tile changing
temperature (stm'ting at 100°F [38°C])
and the cooking time. The display starts
changing once the temperature reaches
100oF(.%oc).
Tile oven will continue to cook tor tile
programmed amount of time, then shut
offatKomatically, tmless the Cook and
Hold feature was set. See the Special
features of your oven control section.
Touch the CLEAR/OFFpad to clear the
display:
How to Set a Delayed Start and Automatic Stop
Youcanset the oven control to delay-startthe
oven,cookfor a specifc length of time and then
turnoff automafical/_
Make sm'e the clock shows the correct
time of day:
If vou would like to check tile times you
have set, touch tile DELAYSTARTpad to
check the start time um have set or touch
tile COOKING TIMEpad to check tile
length of cooking time you have set.
[] Touch tile BAKEpad.
[] Using the number pads, enter the
desired temperature.
[] Touch the COOKING TIME pad.
NOTE:If yourreciperequkespreheating, you
mayneed to addadditional time tothe length of
thecookingtime.
[] Using tile numl)er pads, enter tile
desired baking time.
_hen the oven turns on at the time of
de) you haxe set, the displa)will show the
changing temperature (starting at 100°F
[. 8 C] ) and the cooking time. The
disl)la_, stm'ts changing, ,once tile
temperature reaches 100"F (38°C).
The oxen will continue to cook for the
programmed amount of time, then shut
offautomaticall', tmless the Cook and
Hold feature was set. See the Special
features of your oven control section.
[] Touch tile DELAYSTARTpad.
[] Using tile number pads, enter tile
time of da)}ou want tile oxen to
turn (in _lll(1 S[;lI'[ cooking.
Touch tile CLEAR/OFFpad to clear tile
display:
[] Touch tile STARTpad.
NOTE:An attention tonewi// soundif youare
using tl_nedbakingand do not touchthe START
pad after entering the bakingtemperature.
16

ge.com (U.S.)
Adjusttheoventhermostat--Do it yourself! vvww.GEAppliances.ca(Canada)
Youmay find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to
become more familiar with it If you still think your new oven is too hot or too cold, you can adjust the thermostat
yourself.
Donot use thermometers, such as those found in grocery stores, to check the temperature setting of your oven.
These thermometers may vary20-40 degrees (11-22 degrees in Canada).
NOTE: This adjustment will only affect baking and roasting temperatures; it will not affect broiling or self-cleaning
temperatures. The adjustment will be retained in memory after a power failure.
BAKE
%
[ BA,E ))
,_. .J
(g)CD(g)
To Adjust the Thermostat
[] T(>uch the BROILHI/LO and BAKE []
pads at the same time for 3 seconds
until the display shows SE
[] Touch the BAKE pad. _ two-dioit
number shox_s in the display:
Touch BAKE again to alternate
between increasing and decreasing
the oxen temperature. []
The oxen temperature can be
a(!iusted up to (+) 35°F (l 9°C)
hotter or (-) 35 F• (l 9°C) coole_:
Touch the number pads the same
wa} you read them. For example, to
5'
change, the oxen temperature 1 F
(8°C), touch Iand 5.
X'_hen y,')t:l haxe made the
a(!justment, touch the STARTpad to
go back to the time of day displa}:
Use VOIII" oxen as _()tl would
IlOlI//all_i
Thetype ofmargarine will affect bakingperformance!
Most recipes for bak&g have been developed uslog high-fat products such as butter or margarine (80% fat). If you
decrease the fat, the recipe may not give the same results as with a higher-fat product.
Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low-fat spreads. Thelower the fat
content of a spread product, the more noticeable these differences become.
U.S. federal standards reqtlire l)ro(hl('ts labeled "margarine" to contain at least 80% tilt by weight. I,ow-tilt spreads, on
the other hand, contain less fat and more water: The high moisture content of these spreads affects the texture and
flavor of baked goods. For best results with u)ur old tm'orite recipes, rise inalgarine, butter or stick spreads containing
at least 70% vegetable oil.
17

Usingtheself-cleaningoven.
The oven door must be closed and all controls set correctly for the cycle to work properly.
@Before a Clean Cycle
We recommend venting your
kitchen with all open window or using a
ventilation tim or hood (lurhlg tile first
seltZclean cycle.
Remove the racks, broiler pan, broiler
grid, all cookware and ally aluminum foil
fl'on/ tile o\en.
Do not clean the gasket. Tile fiberglass
material of tile o\en door gasket cannot
withstand abrasion. It is essential tkw tile
gasket to remain intact. If you notice it
becoming worn or fl'ayed, replace it.
Wipe up ally heavy spillo\vrs on tile oven
bottom.
Wipe up heavy soil on the oven
bottom. Tile oxen racks can be sell'cleaned, but
the* will darken, lose their luster and
become hard to slide.
Soil on tile fl'ont fl'ame of the rlmge
and outside the gasket on the door will
need to be cleaned by hand. Clean these
areas with hot water; soap-filled or plastic
scouting pads or cleansel_ such as Soft
Scrub! Rinse well with clean water
and d U.
Make sure tile oven light bulb cover is in
place and tile oven light is ofl_
IMPORTANT'.Tile health of some birds
is extremely sensitive to tile flmles gi\en
off during tile sell'cleaning cycle of a m,
range. Move birds to another well-
\vntilated room.
CO(3)(3)(3)
(3)(Z)qD(3)
How to Set the Oven for Cleaning
[] Touch tile SELFCLEANLO/STD pad
once tor a 4-hot/r clean tinle or
twice for a 3-hour clean tilne.
A 3-hour sel6clean filne is
recoilli//ended for use when
cleaniw*_ small, contained spills. A
sel6clean tilne of 4 houi_ or hmger
is recomlnelMed tor a dirtier oven.
V2] ]fa tilne other than 4 houi5 or
i1.-i 3 houI5 is needed, use the imlnber
[)ads and enter the desired clean
time.
_i_)/l can chanoe tile clean tilne to anv
tiIlle between 3 hotli_ and 5 hotli_,
del)ending, on how (lirl_, your oxen is.
[] Touch tile STARTpad.
Tile door locks autolnaticall\: Tile display
will show tile dean time remaining. It Mll
not be possible to open tile oven door
tmfil tile telnl)erature drops below tile
lock teml)erature aim tile LOCKEDlight
goes off.
\_]/en tile LOCKEDlight goes off; you will
be able to open tile door.
?_:Tile word LOCKEDwill flash aim tile
oven control will signal if you set the
clean cycle aim folget to close tile
oven door.
?_:To stop a clean cycle, touch tile
CLEAR/OFFpad. _,_]/en tile LOCKEDlight
goes off indicating the oven has cooled
below tile locking telnl)eramre ,you
will be able to open tile door.
18

ge.com(U.S.)
vvww.GEAppliances.ca(Canada)
The oven door must be closed and all controls must be set correctly for the cycle to work properly.
GC CC
II
How to Delay the Start of Cleaning
[] Touch the SELFCLEANLO/STD pad
on('e tk)I" a 4-hotli" clean tiille oi"
twice fin" a 3-hour clean time.
A 3-horn sell'clean time is
i'ecolilli/ended t()r/ise when
cleaning small, contained spills. A
self clean time of 4 hom_ or longer
is recommended fin" a dirtier oxen.
[_] Ira time other than 4 l/otu_ or
i¢-i 3 ho/u_ is needed, use tile number
pads and enter the desired clean
time.
Y(m can change tile clean time to any
tnne" between .3 houi_ and 5 houi_,
dei)ending, on how (li_t))our oxen is.
[] Touch tile DELAYSTART pad.
[] Using the number pads, enter the
time of (lax you want tile clean cycle
to start.
Tile door locl_s automatically: Tile display
will show tile start time. It will not be
possible to open tile oven door until
tile temperature drops below tile lock
temperature and tile LOCKEDlight
goes off.
When the LOCKEDlight goes off; you will
be able to open tile doo_:
[] Touch tile STARTpad.
After a Clean Cycle
You may notice some white ash in tile
oven. _&]pe it up with a damp cloth after
the oven cools,
/f white spotsrema/); removethem witha soap-
filled orplastic scounw padandnnse thoroughly
with awnegarand watermixture.
These deposits are usually a salt residue
that cannot be removed by tile clean
cycle.
If the oven is not clean after one clean
wcle, repeat the cycle.
iJi::You cannot set tile oven fin" cooking
tmtil tile oxen is cool enouoh for tile
door to tmlock.
_: While tile oven is sell:cleaning, you can
touch the CLOCKpad to display tile
time of day: To return to tile clean
countdown, touch tile SELFCLEAN
LO/STD pad.
_If tile rac]<sbecome hard to slide,
apply a small amount oI cooking oil to
a paper towel and wipe the edges of the
oven racl_s with the paper towel.
19

Special featuresofyour ovencontrol
Your new touch pad control has additional features that you may choose to use. The following are the features
and how you may activate them.
The special feature modes can only be activated while the display is showing the time of day. They remain
in the control's memory until the steps are repeated.
When the display shows your choice, touch the $TARTpad. Thespecial features will remain in memory after
a power failure, except for the Sabbath feature, which will have to be reset.
12-Hour Shutdown
Withthisfeature,shouldyouforgetandleavethe
ovenon,thecontrolwi//automaticallyturnoff the
ovenafter12hoursduringbakingfunctionsor
after3 hoursdunnga bro#function.
If )ou wish to mrn OFF this feature, fidlow
the steps belox_.
[] Touch the BROIL HI/LOand BAKE
pads at the sune time fox 3 seconds
m_til the displ; 0 shows SE
[] Touch the OELAYSTART pad tmfil
no shdn (no shut-off) appelu_ in the
displax.
[] Touch the START pad to _ctivate the
no shut-off and lea_e the control
set in this speci;d i0atures mode.
Fahrenheit or Celsius Temperature Selection
Yourovencontrol isset touse the Fahrenheit
temperatureselectionsbut youmay changethis
touse the Celsiusselections.
[] Touch the BROIL HIAOand BAKE
pads at the same time f'o_ 3 seconds
tmtil the displa) shows SF
[]
[]
Touch the COOKING TIMEand BROIL
HI/LO pads at the same time. The
displa) will show F(Fahrenheit).
Touch the COOKING TIMEand BROIL
HI/LO pads again at the same time.
The display will show C(Celsius).
[] Touch the STARTpad.
Tonesat the End of a Timed Cycle
At the endof a timedcycle, 3shortbeeps will []
soundfollowed by one beepevery6seconds
until the CLF_AR/OFFpafl ls touched This
continual 6-secondbeepmaybe cance/ecL
To cancel the 6-second beep:
[] Touch the BROILHI/LO and BAKE
pads at the sanle time f'o_ 3 seconds
tmti} the display shows SF []
Touch the KITCHEN TIMER ON/OFF
pad. The (}ispla} shows CON BEEP
(continuous beep). Touch the
KITCHEN TIMER ON/OFF pad
again. The display sho_:s BEEP.
(This cancels the one beep
every 6 seconds.)
Touch the STARTpad.
20
