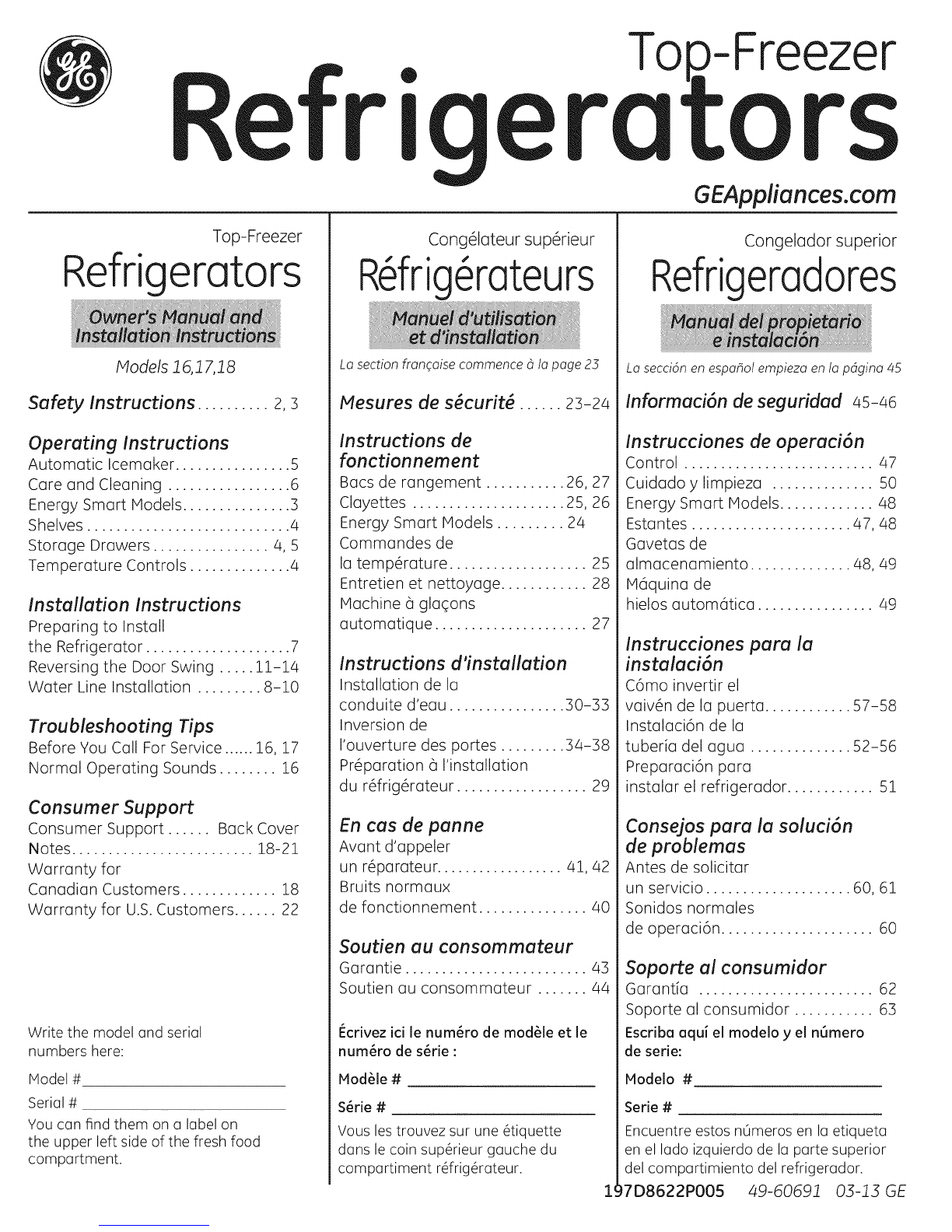

GE 197D8622P005 User manual

Top-Freezer
Refrigerators
Models 16,17,18
Safety Instructions .......... 2,S
Operating Instructions
Automatic Icemaker ................ 5
Care and Cleaning ................. 6
Energy Smart Models ............... 3
Shelves ............................ 4
Storage Drawers ................ 4, 5
Temperature Controls .............. 4
Installation Instructions

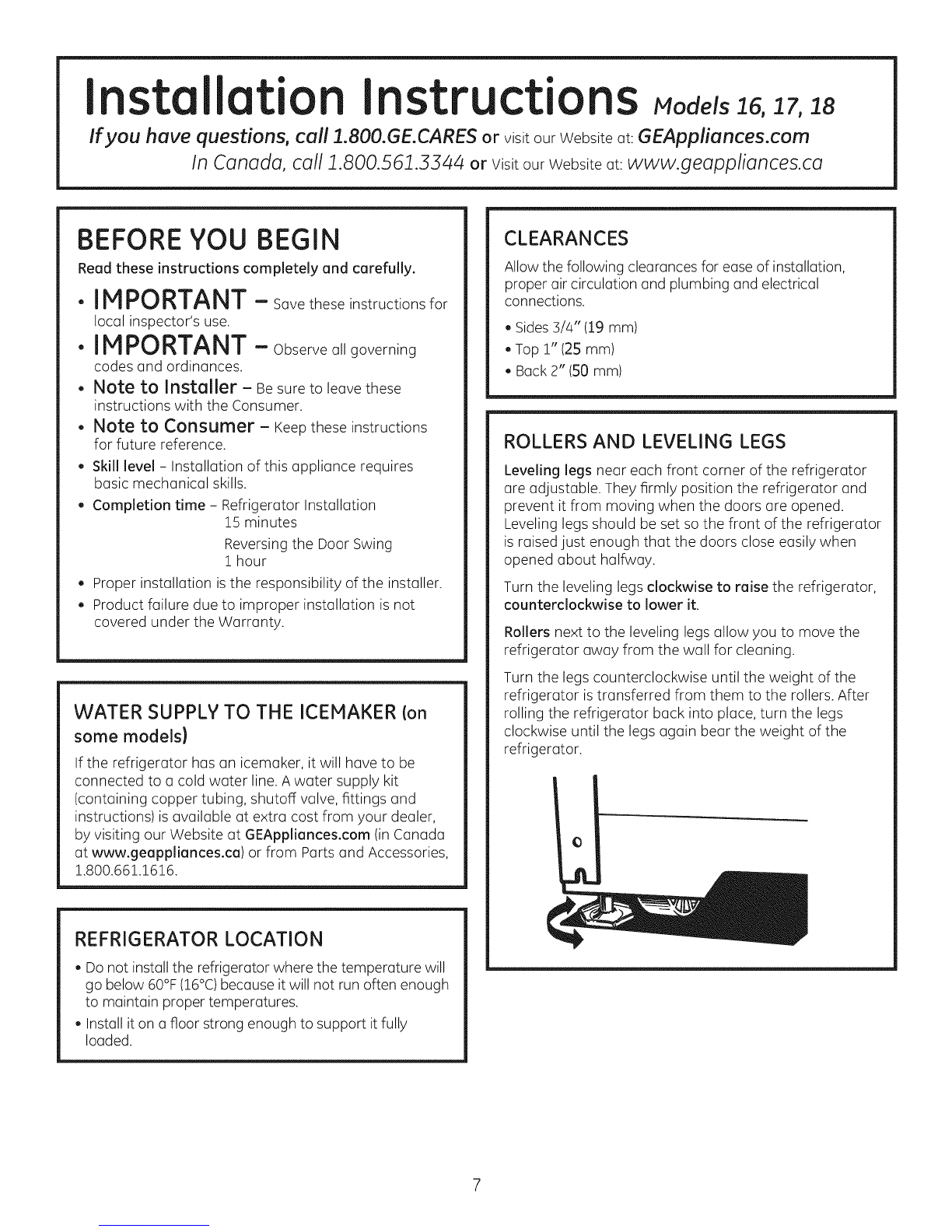

Preparing to Install
the Refrigerator .................... 7

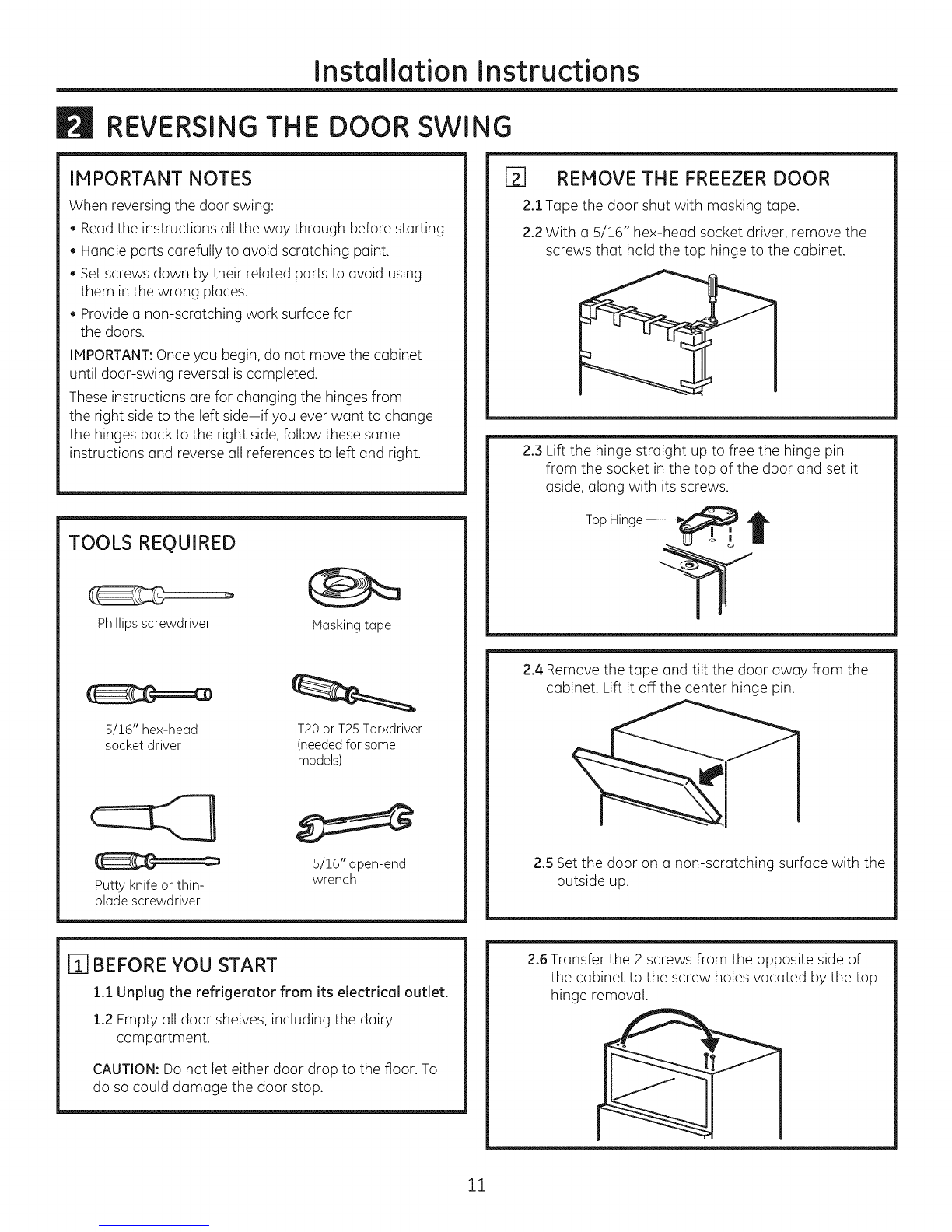

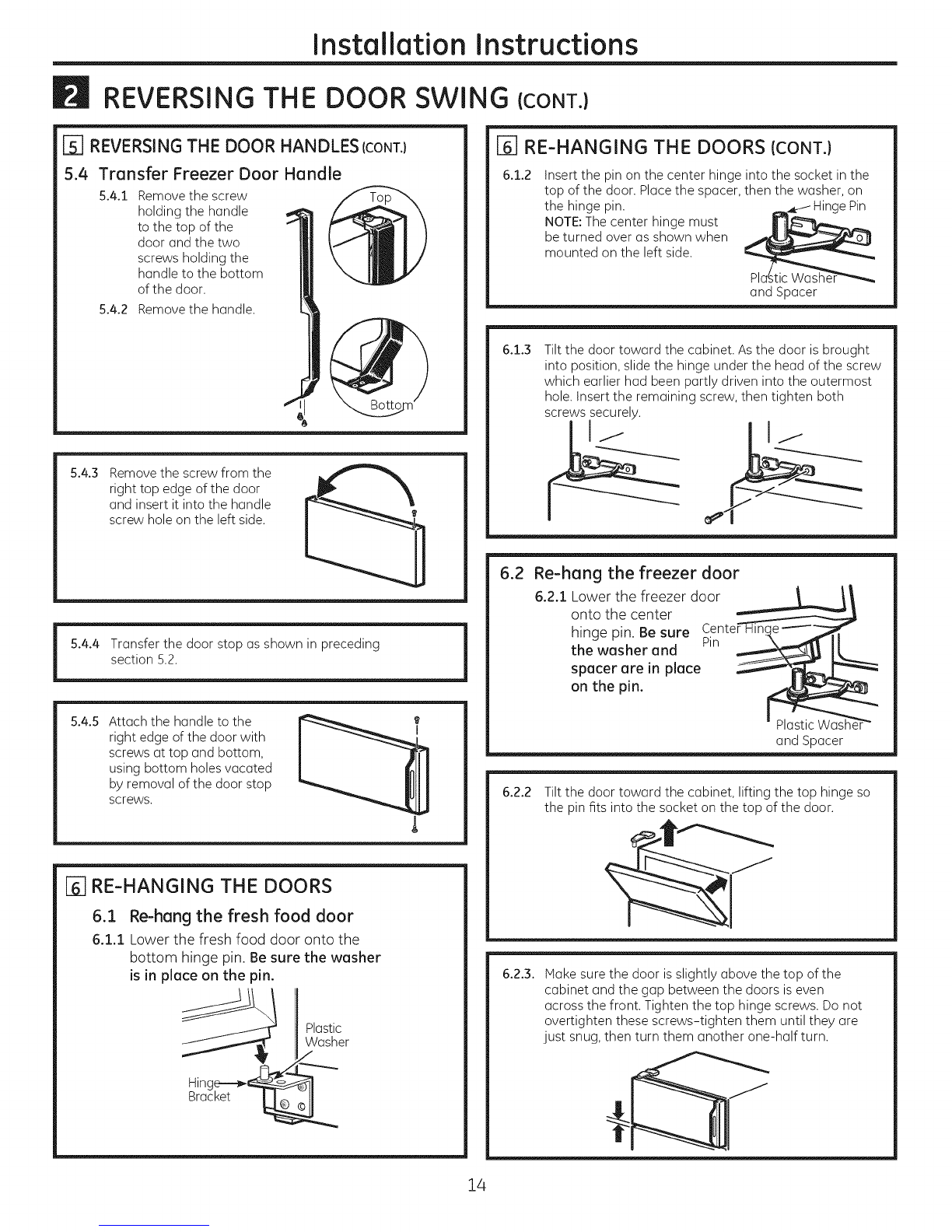

Reversing the Door Swing ..... 11-14

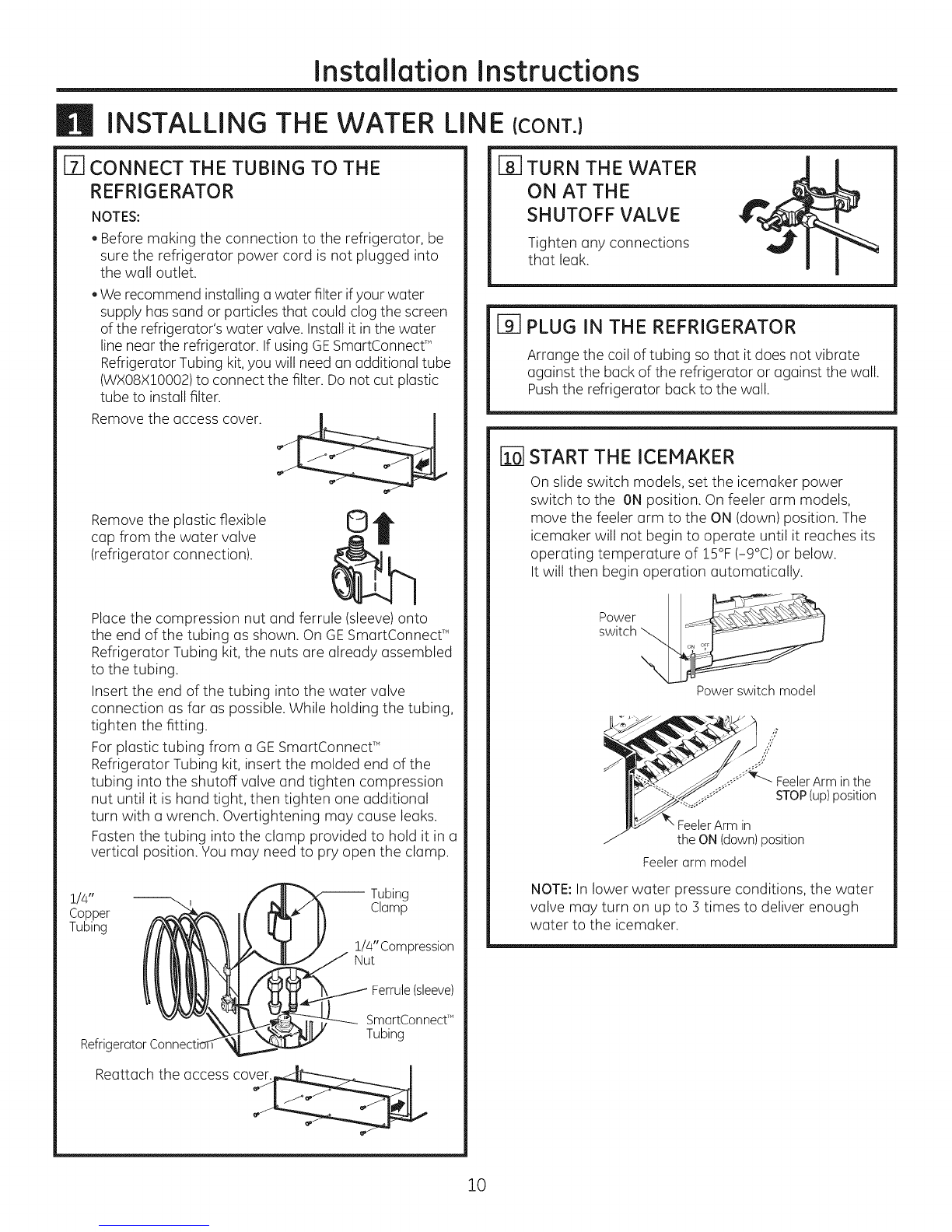

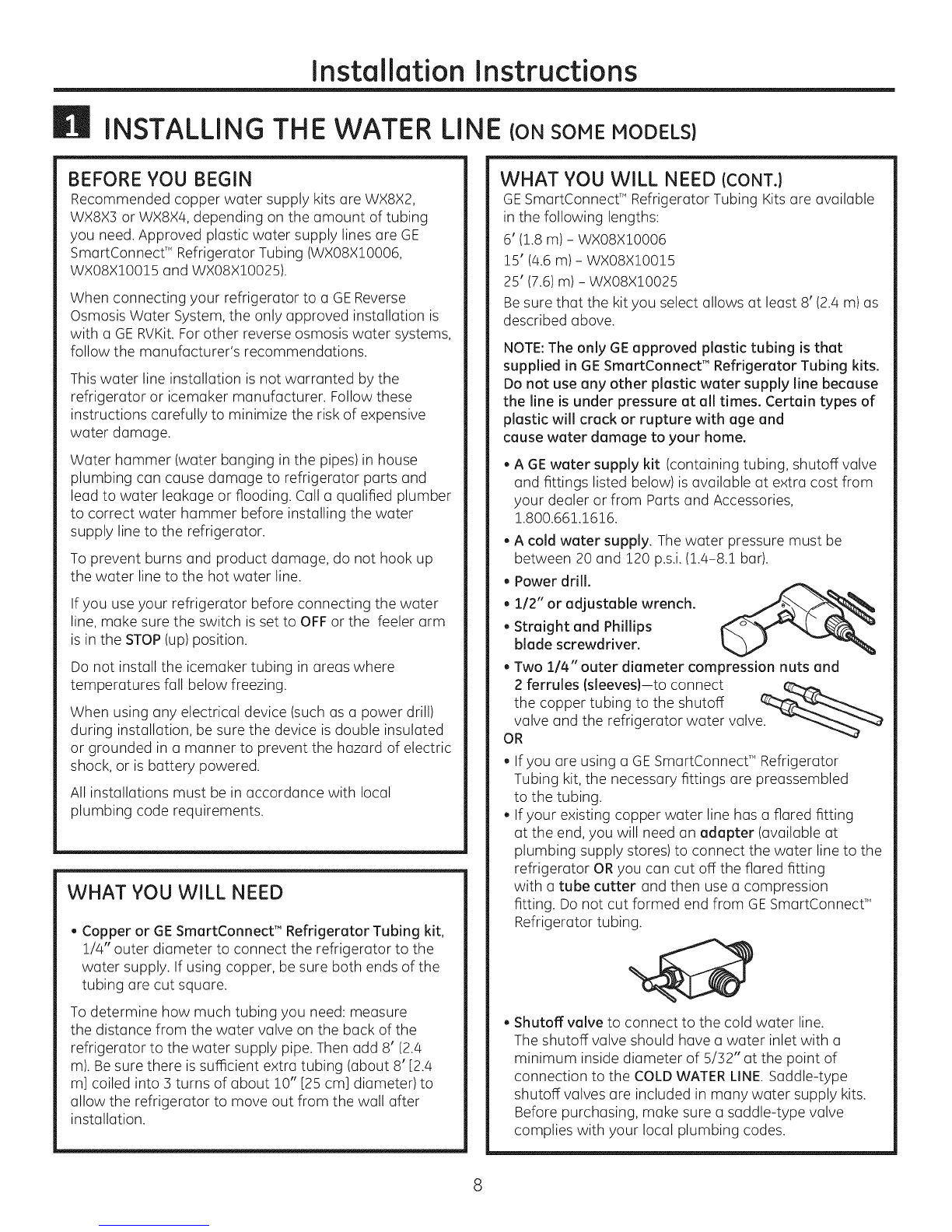

Water Line Installation ......... 8-10
Troubleshooting Tips

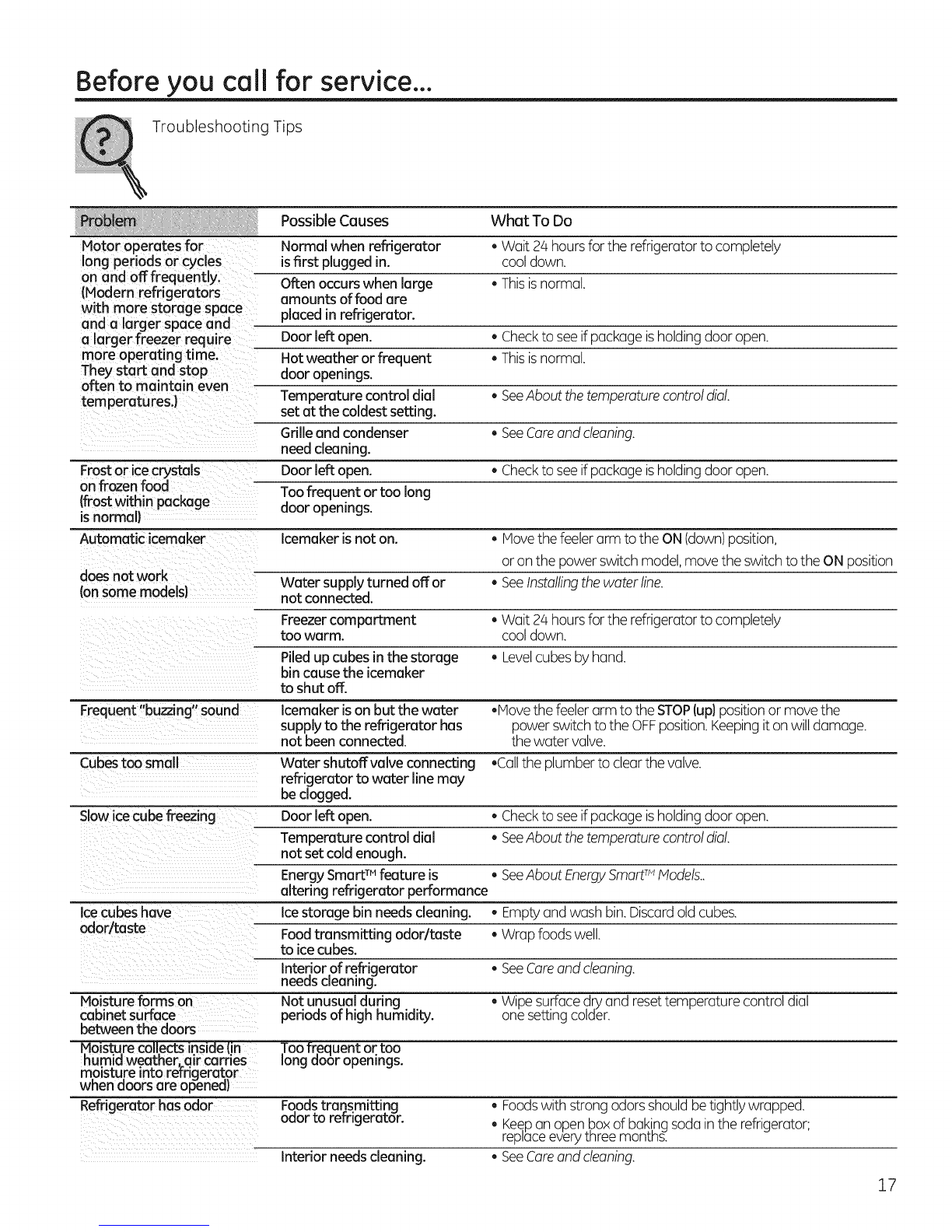

Before You Call For Service ...... 16, 17

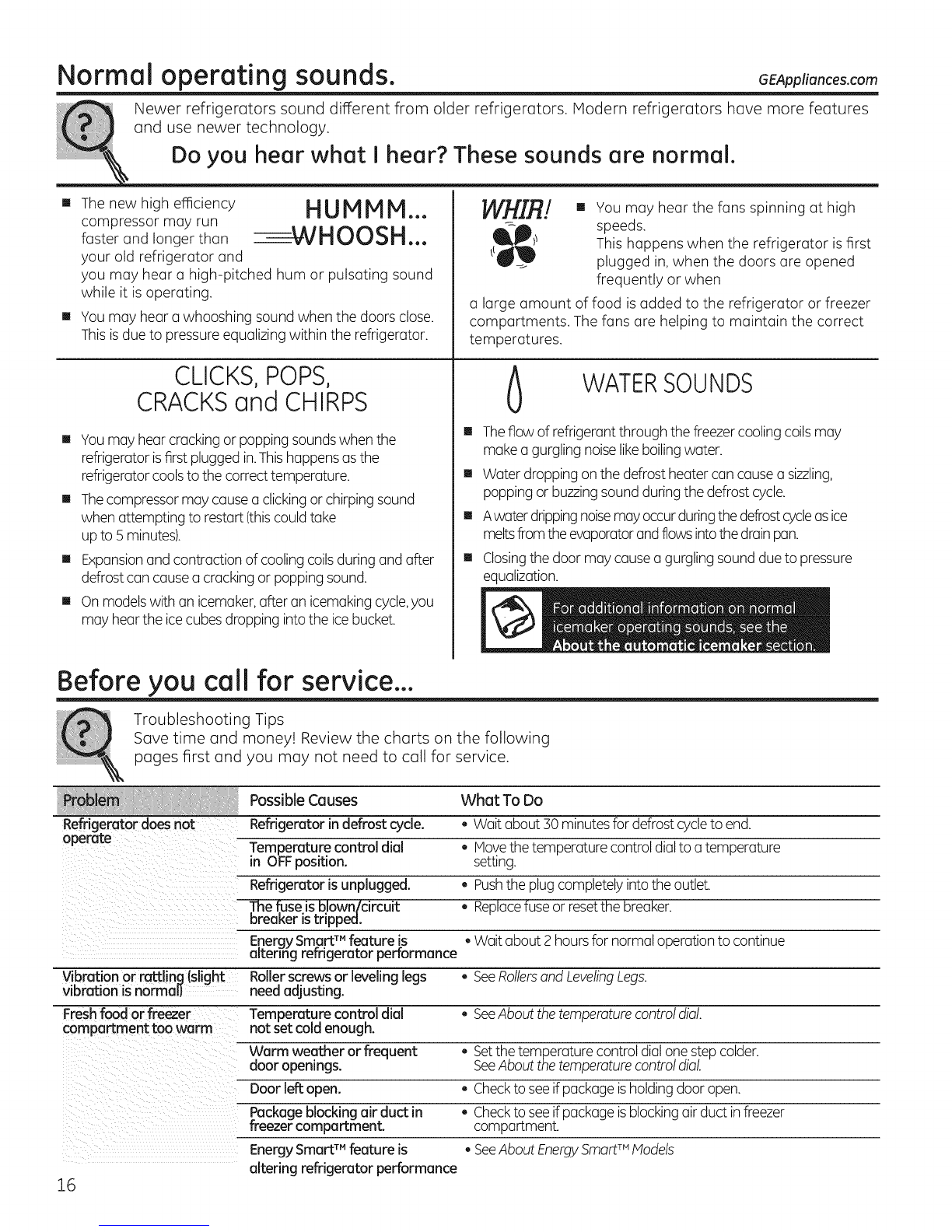

Normal Operating Sounds ........ 16
Consumer Support
Consumer Support ...... Back Cover

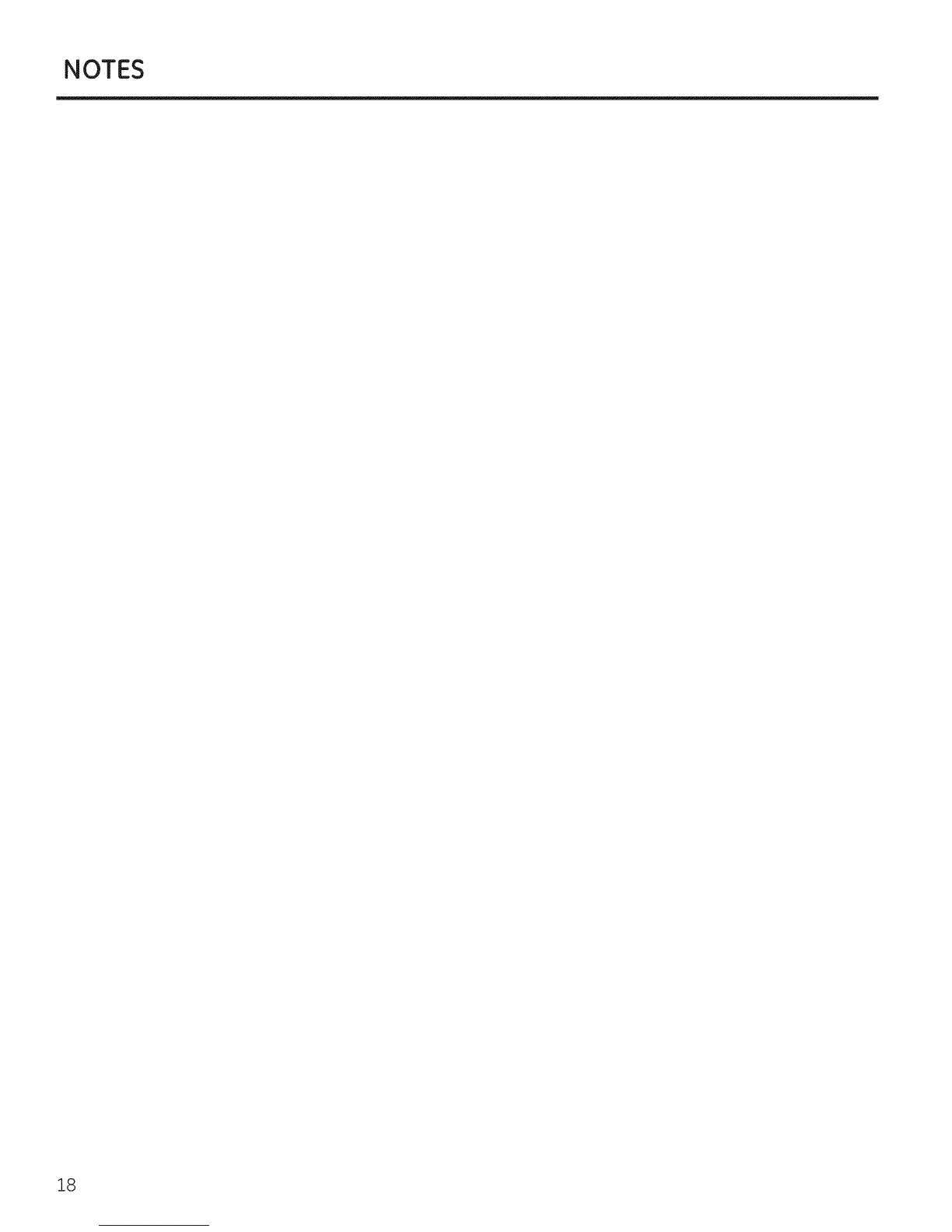

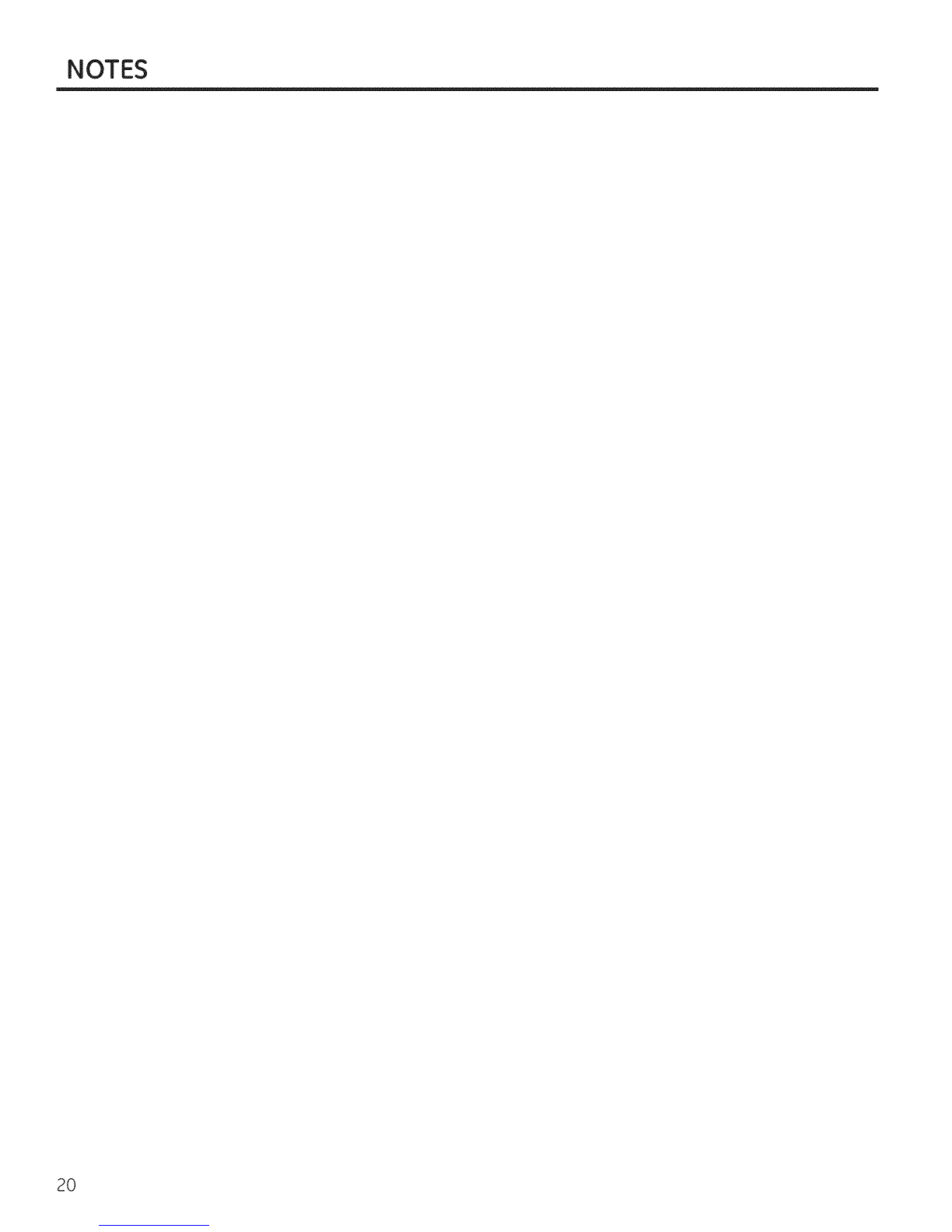

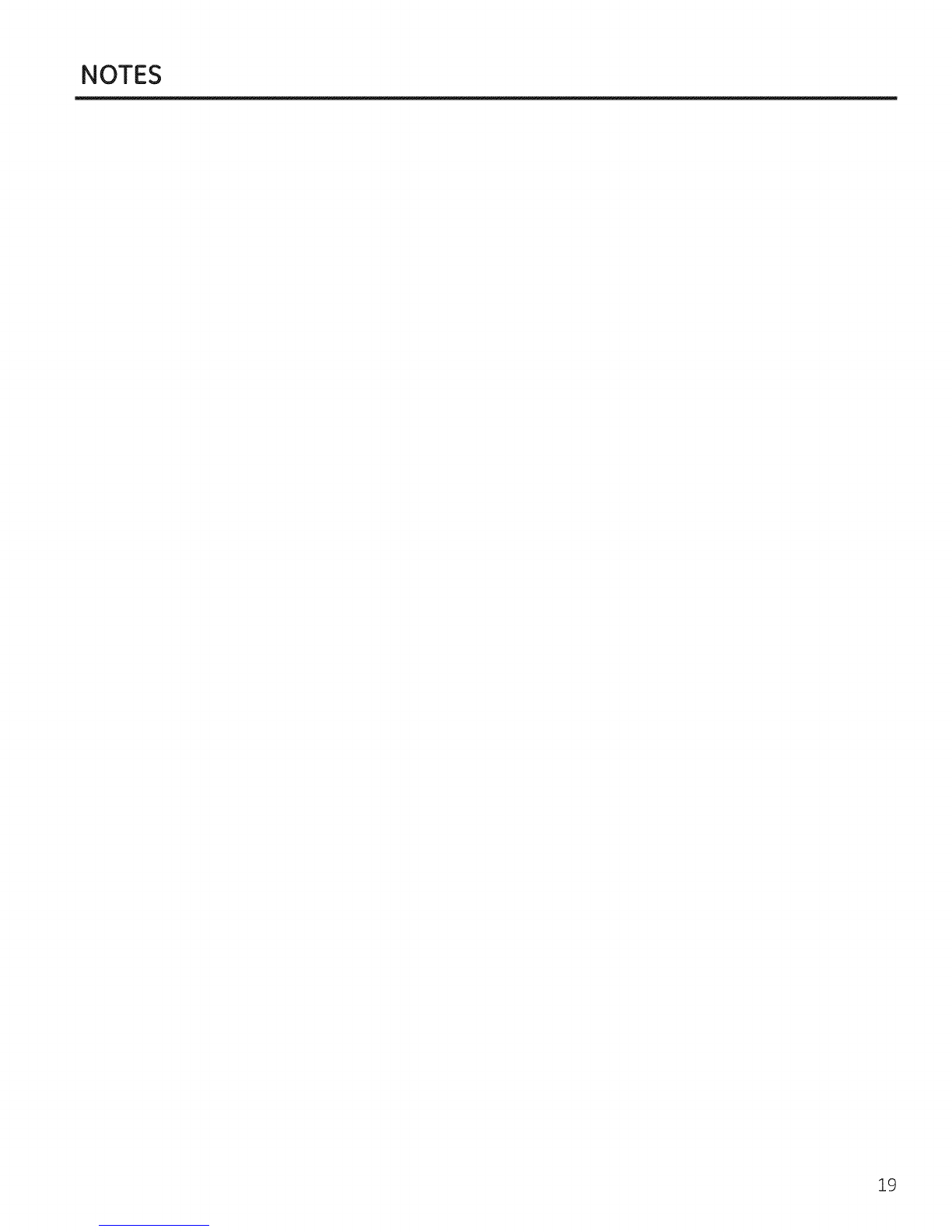

Notes ......................... 18-21
Warranty for
Canadian Customers ............. 18
Warranty for U.S.Customers ...... 22
Write the model and serial
numbers here:
Model #
Serial #
You can find them on a label on
the upper left side of the fresh food
compartment.
fr ig To Freezer
GEAppliances.com
Cong61ateur sup@ieur
R6frig6rateurs
Lo section franqaise commence _la page 2J
Mesures de s_curit_ ...... 25-24
Instructions de
fonctionnement
Bacs de rangement ........... 26, 27
Clayettes ..................... 25, 26
Energy Smart Models ......... 24
Commandes de
la temp@ature ................... 25
Entretien et nettoyage ............ 28
Machine 5 glaqons
automatique ..................... 27
Instructions d'installation
Installation de la
conduite d'eau ................ 30-33
Inversion de
l'ouverture des portes ......... 34-38
Pr#paration 6 l'installation
du r#frig#rateur .................. 29
En cas de panne
Avant d'appeler
un r6parateur.................. 41,42
Bruits normaux
de fonctionnement ............... 40
Soutien au consommateur
Garantie ......................... 43
Soutien au consommateur ....... 44
I]crivez ici le num6ro de mod@leet le
num6ro de s6rie :
ModUle #
S6rie #
Vous les trouvez sur une #tiquette
dans le coin sup@ieur gauche du
compartiment r6frig@ateur. 3.1
Congelador superior
Refrigeradores
Lasecci6nenespaholempiezaenla pdgina 45
Informaci6n de seguridad 45-46
Instrucciones de operaci6n
Control .......................... 47
Cuidado y limpieza .............. 50
Energy Smart Models ............. 48
Estantes ...................... 47, 48
Gavetas de
almacenamiento .............. 48, 49
M6quina de
hielos autom6tica ................ 49
Instrucciones para la
instalaci6n
C6mo invertir el
vaiv6n de la puerta ............ 57-58
Instalaci6n de la
tuberia del agua .............. 52-56
Preparaci6n para
instalar el refrigerador ............ 51
Consejos para la soluci6n
de problemas
Antes de solicitar
un servicio .................... 60, 61
Sonidos normales
de operaci6n ..................... 60
Soporte al consumidor
Garantia ........................ 62
Soporte al consumidor ........... 63
Escriba aqui el modelo y el nOmero
de serie:
Modelo #
Serie #
Encuentre estos nOmeros en la etiqueta
en el lado izquierdo de la parte superior
del compartimiento del refrigerador.
_7D8622PO05 49-60691 03-13 GE

IMPORTANT SAFETYINFORMATION.
READALL INSTRUCTIONSBEFOREUSING.
WARNING!
Use this appliance only for its intended purpose as described in this Owner's Manual.
JSAFETYPRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
Thisrefrigerator must be properly installed Keepfingers out of the "pinch point" areas;clearances
and located in accordance with the Installation
Instructions before it is used.
Donot attempt to or allow children to climb, stand
or hang on the shelvesin the refrigerator. They
could damage the refrigerator and seriouslyinjure
themselves.
iiiiiiiiiiii_i_
Donot touch the cold surfaces in the freezer
compartment when hands are dump or wet. Skin
may stick to these extremely cold surfaces.
Donot store or use gasolineor other flammable
vapors and liquidsin the vicinity of this or any other
appliance.
,In refrigerators with automatic icemakers,avoid
contact with the moving parts of the ejector
mechanism, or with the heating element located on
the bottom of the icemaker. Donot placefingers or
hands on the automatic icemaking mechanism while
the refrigerator
is plugged in.
between the doors and between the doors and
cabinet are necessarilysmall. Becareful closing doors
when children are inthe area.
Unplug the refrigerator before cleaning and making
repairs.
NOTE:We strongly recommend that any servicing be
performed by a qualified individual.
Turningthe control to the OFFposition does not
remove power to the light circuit.
Do not refreeze frozen foods which have
thawed completely.
Before replacing a burned-out light bulb, the
refrigerator should be unplugged in order to avoid
contact with a livewire filament. (Aburned-out light
bulb may break when being replaced.)
Donot allow children to playwith refrigerator or
tamper with controls.
A DANGER! RISK OF CHILD ENTRAPMENT
PROPERDISPOSALOF THE REFRIGERATOR
Child entrapment and suffocation are not problems of
the past.Junked or abandoned refrigerators are still
dangerous_even if they will sit for "justa few days."
Ifyou are getting rid of your old refrigerator, please
follow the instructions below to help prevent accidents.
Before You Throw Away Your Old
Refrigerator or Freezer:
Take off the doors.
Refrigerants
All refrigeration products contain refrigerants, which
under federal law must be removed prior to product
disposal.If you are getting rid of an old refrigeration
product, checkwith the company handling the disposal
about what to do.
Leavethe shelvesin place sothat children may not
easilyclimb inside.
Ifthe refrigerator has a lock make it unusable.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
AWARNING!
HOW TO CONNECTELECTRICITY
GEAppliances.com
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.
Thepower cord of this appliance isequipped with a
3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimizethe
possibility of electric shock hazardfrom this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Where a standard 2-prong wall outlet isencountered, it
isyour personal responsibilityand obligation to have it
replaced with a properly grounded 3-prong wall outlet.
Therefrigerator should always be plugged into itsown
individual electrical outlet which hasa voltage, wattage
and frequency that match the rating plate.
Thisprovides the best performance and also prevents
overloading housewiring circuits which could cause a
fire hazard from overheated wires.
Never unplug your refrigerator by pulling on the power
cord. Always grip plug firmly and pull straight out from
the outlet.
Repairor replace immediately all power cords that have
become frayed or otherwise damaged. Do not usea
cord that shows cracks or abrasion damage along its
length or at either end.
When moving the refrigerator away from the wall, be
careful not to roll over or damage the power cord.
USEOF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly recommend against the use of
an extension cord.
However,if you must usean extension cord, it isabsolutely necessarythat it be a UL-listed(inthe United States)or
a CSA-listed(inCanada),3-wire grounding type appliance extension cord having a grounding type plug and outlet
and that the electrical rating of the cord be 15 amperes (minimum)and 120 volts.
READ AND FOLLOW THIS SAFETYINFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
About Energy Smart T" Models
What Energy Smart TM Does
If the ACM (Appliance Communication
Module) is connected to your refrigerator
and is receiving utility rate information,
then the Energy SmartTM feature alters the
performance of the refrigerator. It minimizes
energy consumption when directed by the
Energy SmortTM Switch
Models with the EnergySmart TMfeature
have an additional button and LEDlight on
the controls as shown. The LEDwill be ON
during high rate periods and OFFduring low
Nucleus (soldseparately) or Smart Meter. This
feature can cause changes in the refrigerator
or freezer compartment temperatures
and can cause changes in rate of ice cube
production.
or normal rate periods. The button is used
to disable the EnergySmart TMfeature (see
"EnergySmart TMoverride" section).
Energy Smart TMOverride
Pressand hold the Energy SmartTM button
for 3 seconds to override the Energy SmartTM
feature. The adjacent LEDwill flash three
times to confirm a successful override of the
feature. This will prevent the feature from
altering the performance of your refrigerator
for 18 hours. During this 18 hour period, the
LEDwill remain OFF.Eighteen hours after
the feature has been disabled, the Energy
SmartTM feature will return to its normal
operating routine.

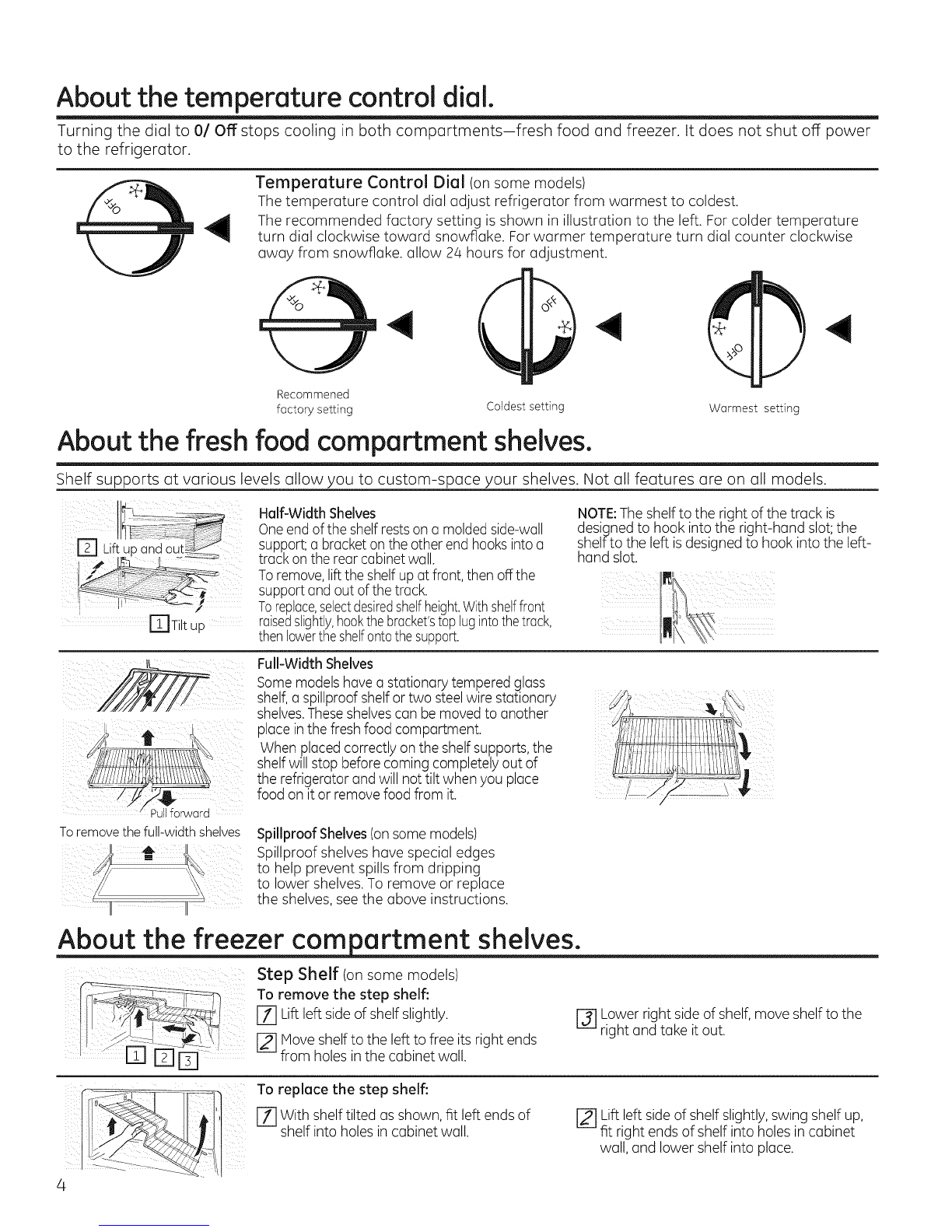

About the temperature controldial.
Turning the dial to O/Off stops cooling in both compartments-fresh food and freezer. It does not shut off power
to the refrigerator.
Temperature Control Dial (on some models)
The temperature control dial adjust refrigerator from warmest to coldest.
The recommended factory setting is shown in illustration to the left. For colder temperature
turn dial clockwise toward snowflake. Forwarmer temperature turn dial counter clockwise
away from snowflake, allow 24 hours for adjustment.
Recommened
factory setting Coldest setting Warmest setting
About the fresh food compartment shelves.
Shelf supports at various levels allow you to custom-space your shelves. Not oil features ore on all models.
r_Tilt up
Half-Width Shelves NOTE:Theshelf to the right of the track is
Oneendof the shelfrestson a moldedside-wGII designedto hook into the right-hand slot;the
support;a bracketonthe otherend hooksintoa shelfto the left isdesigned to hook into the left-
trGckon the reGrcabinetwall. hand slot.
Toremove,lift the shelfup atfront, thenoff the !_,_
support and outof thetrack.
ToreplaCe,slightly,selectdesiredshelfheight.toplugWithshelffronttrock, _\_
raised hookthebracket's intothe
thenlowertheshelfontothesupport.
Full-Width Shelves
Somemodelshavea stationary tempered glass ....
shelf,a spillproof shelfor two steelwire stationary J_ 4\
shelves.Theseshelvescan be moved to another
place inthe fresh food compartment.
When placedcorrectly on the shelfsupports,the
shelfwill stop beforecoming completelyout of
foodtherefrigeratoron it or removeand willfoodnotfromtilt whenit. you place
Spillproof Shelves(onsome models)
Spillproof shelves have special edges
to help prevent spills from dripping
to lower shelves. To remove or replace
the shelves, seethe above instructions.
About the freezer compartment shelves.
Step Shelf (on some models)
To remove the step shelf:
[7] Lift left sideof shelf slightly.
[_ Move shelf to the left to free its right ends
from holesin the cabinet wall.
[] Lower right sideof shelf,move shelf to the
right and take it out.
To replace the step shelf:
[71 With shelf tilted asshown, fit left endsof
shelf into holesin cabinet wall. r2] Lift left side of shelf slightly,swing shelf up,
fit right ends of shelf into holes in cabinet
wall, and lower shelf into place.

About the storage drawers. GEApU onc ,.com
Not all features (]re on all models.
Snacks Drawer Fruit and Vegetable Drawers
The snacks drawer can be Excesswater that may
moved to the most useful accumulate in the bottom of the
location for your family's drawers should be emptied and
needs, the drawers wiped dry.
About storage drawer and cover removal.
Not all features are on all models.
HumidityContro! Adjustable Humidity Drawer (on some models)
Slide the control all the way to the Slidethe control all the way to the LOW
._c. .... Low HIGHsetting to provide high humidity setting to provide lower humidity levels
recommended for most vegetables, recommended for most fruits.
i/J i
Drawer and Cover Removal
Drawers can be removed easily by grasping
the sides and lifting up slightly while pulling
drawers past the stop location.
To remove the cover, lift it off its supports,
pull it forward, tilt it and take it out.
A_
Twin Drawer Shelf
To remove:
r_ Removethe drawers.
r2] Reachin,push the front of glass cover up,
and at the same time, pull it forward asfar
as it will come.
Tiltit andtake it out.Avoidcleaningthecold
glasscoverwith hotwater becausetheextreme
temperaturedifferencemaycauseit to break.
r_ Removethe drawer frame. (Alwaysremove
the glasscover before you take out the
drawer frame.)
About the automatic icemaker
Liftthe frame off thesupportsateachsideand
back,pull itforward,tilt itand take itout.
To replace:
r_ Lowerthe frame until it restson the
supports at each sideand back.
r_ Replacethe glass cover,pushing its rear
edge firmly into the rear frame channel and
gently lowering the front into place.
r_ Replacethe drawers.
A newly-installed refrigerator may take 12-24 hours to begin making ice.
Icemaker Automatic Icemaker (onsome models).
Theicemakerwill produceapproximately
70-100cubes,ina 24-hour period,depending
onthe freezercompartmenttemperature,room
temperature,numberof dooropeningsand other
useconditions.
Power Switch
in the STOP
FeelerArm in the (up) position
ON (downt position
Ifthe refrigerator isoperatedbeforethewater
connectionismadeto the icemaker,setthe
switch OFFor movethe feelerarmto the STOP
(up)position.
Whenthe refrigerator hasbeen connectedto the
water supply,setthe switchONpositionor move
thefeelerarmto the ON(down)position.
Theicemakerwillfillwith water when itcoolsto
15°F.Anewly-installedrefrigeratormaytake 12to
24 hoursto beginmaking icecubes.
Oncetheicemakerstartsto makeice,itmaytake
upto 48 hoursto fillthebin,dependingonthe
temperaturesettingsand numberofdooropenings.
Youwill heara buzzingsoundeachtime the
icemakerfillswith water.
Throw away thefirst few batchesof iceto allow
thewater lineto clear.
Besurenothinginterfereswith the sweepofthe
feelerarm.
Whenthe binfillsto the levelofthe feelerarm,the
icemakerwillstop producingice.
It isnormalfor severalcubesto bejoined
together.
If iceisnot usedfrequently,old icecubeswill
becomecloudy,tastestale,shrinkorfusetogether.
Icemaker accessorykit:
Ifyour refrigeratordid not alreadycomeequipped
with an automatic icemaker,an icemaker
accessorykitisavailableat extra cost.
Checkthe backof the refrigeratorforthe specific
icemakerkit neededforyour model.

Care and cleaning of the refrigerator.
Cleaning the Outside
The door handles and trim (on some models). Clean with a
cloth dampened with soapy water. Dry with a soft cloth.
Keep the outside clean. Wipe with a clean cloth lightly
dampened with kitchen appliance wax or mild liquid dish
detergent. Dry and polish with a clean, soft cloth.
Do not wipe the refrigerator with a soiled dish cloth or wet
towel. These may leave a residue that can erode the paint.
Do not use scouring pads, powdered cleaners, bleach or
cleaners containing bleach because these products can
scratch and weaken the paint finish.
The stoinless steel doors and door handles (on some
models) can be cleaned with a commercially available
stainless steel cleaner. Cleaners with oxalic acid such as
Bar Keepers Friend Soft CleanserTM will remove rust, tarnish
and small blemishes. Use only a liquid cleanser free of grit
and rub in the direction of the brush lineswith a damp soft
sponge. Do not use appliance wax or polish on the stainless
steel.
Cleaning the Inside
To help prevent odors, leave an open box of baking soda in
the fresh food and freezer compartments.
Unplug the refrigerator before cleaning.
If this is not practical, wring excess moisture out of sponge
or cloth when cleaning around switches, lights or controls.
Use worm water and baking soda solution-about o
tablespoon (15 ml)of baking soda to a quart (1 liter)of water.
This both cleans and neutralizes odors. Rinseand wipe dry.
After cleaning the door gaskets, apply a thin layer of
petroleum jelly to the door gaskets at the hinge side. This
helps keep the gaskets from sticking and bending out of
shape.
Avoid cleaning cold glass shelves (on some models) with
hot water because the extreme temperature difference
may cause them to break. Handle glass shelves carefully.
Bumping tempered glass can cause it to shatter.
Do not wash any plastic refrigerator parts in the
dishwasher.
Condenser
There is no need for routine condenser cleaning in normal
home ooeratina environments. However in environments
B_
I that may be particularly dusty
I_/'__ or greasy, the condenser should
be cleaned periodically for
efficient refrigerator operation.
To clean the condenser turn
Cleaning the Condenser Coils. the temperature control dial to
OFF.Sweep away or vacuum up dust.
Forbest results, use a brush specially designed for this
purpose. It is available at most appliance parts stores.
Moving the Refrigerator
Becareful when moving the refrigerator away from
the wall. All types of floor coverings can be damaged,
particularly cushioned coverings and those with embossed
surfaces.
Turnthe leveling legsat each front corner of the refrigerator
counterclockwise until the rollers support
the refrigerator. Pullthe refrigerator straight out and return it
to position by pushing it straight in. Moving
the refrigerator in a side direction may result in damage to
the floor covering or refrigerator.
When pushing the refrigerator back, make sure you don't
roll over the power cord or icemaker supply line (on some
models).
After rolling the refrigerator back into place, turn the
legs clockwise until the legs again bear the weight of the
refrigerator.
Light Bulb Replacement
To replace a burned-out bulb, unplug the refrigerator from
its electrical outlet, unscrew the bulb when cool and replace
it with an appliance bulb of the same or lower wattage.
Turning the control to the OFFposition does not remove
power to
the light circuit.
Preparing for Vacation
Forlong vacations or absences, remove food and unplug
the refrigerator. Move the temperature control dial to the
OFF position, and clean the interior with a baking soda
solution of one tablespoon (iS ml) of baking soda to one
quart (! liter) of water. Leave the doors open.
Move the feeler arm to the STOP(up) position,or move the
switch to the OFFposition on the power switch model, and
shut off the water supply to the refrigerator.
If the temperature can drop below freezing, have a qualified
servicer drain the water supply system (on some models) to
prevent serious property damage
due to flooding.
Preparing to Move
Secure all loose items such as grille, shelves and drawers by
taping them securely in place to prevent damage. Be sure
the refrigerator stays in an upright position during moving.

Istallati Istructio SModels 16, 17, 18
If you have questions, cull 1.800.GE.CARES or visitour Website at:GEAppliances.com
In Canada, call 1.800.561.3344 or visitour Website at:www.geappliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
.IMPORTANT -Savetheseinstructionsfor
localinspector%use,
.IMPORTANT -Observeallgoverning
codesand ordinances
.Note to Installer -Be sure to leave these
instructions with the Consumer.
. Note to Consumer - Keepthese instructions
for future reference.
o
o
Skill level - Installation of this appliance requires
basic mechanical skills.
Completion time - Refrigerator Installation
15 minutes
Reversing the Door Swing
1 hour
Proper installation isthe responsibility of the installer.
Product failure due to improper installation is not
covered under the Warranty.
WATER SUPPLY TO THE ICEMAKER (on
some models}
If the refrigerator has an icemaker, it will have to be
connected to a cold water line.A water supply kit
(containing copper tubing, shutoff valve, fittings and
instructions) is available at extra cost from your dealer,
by visiting our Website at GEApplionces.com (in Canada
at www.geopplionces.co) or from Parts and Accessories,
1.800.661.1616.
REFRIGERATOR LOCATION
. Do not install the refrigerator where the temperature will
go below 60°F(!6°C) because it will not run often enough
to maintain proper temperatures.
. Install it on a floor strong enough to support it fully
loaded.
CLEARANCES
Allow the following clearances for ease of installation,
proper air circulation and plumbing and electrical
connections.
, Sides3/4" (19 ram)
, Top !" (25 ram)
, Back 2" (50 ram)
ROLLERS AND LEVELING LEGS
Leveling legs near each front corner of the refrigerator
are adjustable. They firmly position the refrigerator and
prevent it from moving when the doors are opened.
Leveling legs should be set so the front of the refrigerator
is raised just enough that the doors close easily when
opened about halfway.
Turn the leveling legs clockwise to raise the refrigerator,
counterclockwise to lower it.
Rollers next to the leveling legs allow you to move the
refrigerator away from the wall for cleaning.
Turn the legs counterclockwise until the weight of the
refrigerator istransferred from them to the rollers. After
rolling the refrigerator back into place, turn the legs
clockwise until the legs again bear the weight of the
refrigerator.

Installation Instructions
INSTALLING THE WATER LINE (ON SOME MODELS}
BEFORE YOU BEGIN
Recommended copper water supply kits are WX8X2,
WX8X3 or WX8X4, depending on the amount of tubing
you need. Approved plastic water supply lines are GE
SmartConnecf" Refrigerator Tubing (WX08X!0006,
WX08X!00!5 and WX08X!0025).
When connecting your refrigerator to u GEReverse
Osmosis Water System, the only approved installation is
with a GERVKit.For other reverse osmosis water systems,
follow the manufacturer's recommendations.
This water line installation is not warranted by the
refrigerator or icemuker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes)in house
plumbing can cause damage to refrigerator parts and
lead to water leakage or flooding. Call u qualified plumber
to correct water hammer before installing the water
supply line to the refrigerator.
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you useyour refrigerator before connecting the water
line, make sure the switch is set to OFFor the feeler arm
is in the STOP(up) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power drill)
during installation, be sure the device is double insulated
or grounded in a manner to prevent the hazard of electric
shock, or is battery powered.
All installations must be in accordance with local
plumbing code requirements.
WHAT YOU WILL NEED
. Copper or GESmartConnect T"Refrigerator Tubing kit,
1/4" outer diameter to connect the refrigerator to the
water supply. If using copper, be sure both ends of the
tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8' (2.4
m). Besure there is sufficient extra tubing (about 8' [2.4
m] coiled into 3 turns of about 10" [25 cm] diameter) to
allow the refrigerator to move out from the wall after
installation.
WHAT YOU WILL NEED (CONT.}
GESmartConnecf" Refrigerator Tubing Kits are available
in the following lengths:
6' (1.8 m) - WX08X10006
15' (4.6 m)- WX08X10015
25' (7.6)m) - WX08X10025
Besure that the kit you select allows at least 8' (2.4 m)as
described above.
NOTE:The only GEapproved plastic tubing is that
supplied in GE SmartConnect" Refrigerator Tubing kits.
Do not use any other plastic water supply line because
the line is under pressure at all times. Certain types of
plastic will crack or rupture with age and
cause water damage to your home.
. AGE water supply kit (containing tubing, shutoff valve
and fittings listed below) isavailable at extra cost from
your dealer or from Parts and Accessories,
1.800.661.1616.
. A cold water supply. The water pressure must be
between 20 and 120 p.s.i.(1.4-8.1 bar).
. Power drill.
.1/2" or adjustable wrench. __,_"_%'_
. Straight and Phillips
blade screwdriver.
. Two 1/4" outer diameter compression nuts and
2 ferrules (sleeves}-to connect
the copper tubing to the shutoff ___
valve and the refrigerator water valve. ""_"'-,_
OR
. If you are using a GESmartConnecf" Refrigerator
Tubing kit, the necessary fittings are preassembled
to the tubing.
, If your existing copper water line has a flared fitting
at the end, you will need an adapter (available at
plumbing supply stores) to connect the water line to the
refrigerator ORyou can cut off the flared fitting
with a tube cutter and then use a compression
fitting. Do not cut formed end from GESmartConnect _"
Refrigerator tubing.
. Shutoff valve to connect to the cold water line.
The shutoff valve should have a water inlet with a
minimum inside diameter of 5/32" at the point of
connection to the COLD WATER LINE. Saddle-type
shutoff valves are included in many water supply kits.
Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes.
8

Installation Instructions
INSTALLING THE WATER LINE ICONT.I
Install the shutoff valve on the nearest frequently used drinking water line.
[] SHUT OFF THE MAIN WATER SUPPLY
AND UNPLUG REFRIGERATOR
Turn on the nearest faucet (counterclockwise)long
enough to clear the line of water.
[_] DRILL THE HOLE FOR THE VALVE
Choose a location for the valve that is easily
accessible. It is best to connect into the side of a
vertical water pipe. When it is necessary to connect
into a horizontal water pipe, make the connection to
the top or side, rather than at the bottom, to avoid
drawing off any sediment from the water pipe.
Drill a 1/4" hole in the water pipe (even if using a self-
piercing valve), using a sharp bit. Remove any burrs
resulting from drilling the hole in the pipe. Take care
not to allow water to drain into the drill. Failure to
drill a 1/4" hole may result in reduced ice production
or smaller cubes. F
%FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
Tighten the clamp screws until the sealing washer
begins to swell.
Pipe Clam_
Clamp
Screw_
Saddle-Type-----_
Shutoff Valve
NOTE:Do not overtighten or you may crush the
tubing. !Washer
_-----Inlet End
Vertical Cold
Water Pipe
NOTE:Commonwealth of Massachusetts Plumbing
Codes 248CIVlRshall be adhered to. Saddle valves
are illegal and use isnot permitted in Massachusetts.
Consult with your licensed plumber.
[-_ ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base cabinet)
as close to the wall as possible.
NOTE: Besure there is sufficient extra tubing (about 8
feet [24/4cm] coiled into 3 turns of about 10" [25 cm]
diameter) to allow the refrigerator to move out from
the wall after installation.
% CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve)for
copper tubing onto the end of the tubing and connect
it to the shutoff valve.
Make sure the tubing is fully inserted into the valve.
Tighten the compression nut securely.
For plastic tubing from a GESmartConnecf _
Refrigerator Tubing kit, insert the molded end of the
tubing into the shutoff valve and tighten compression
nut until it is hand tight, then tighten one additional
turn with a wrench. Overtightening may cause leaks.
--Compression
Nut
Saddle-T'
Shutoff Valve
Packing Nut--
SmartConnectT"
Outlet Valve._ -- Ferrule (sleeve)
NOTE:Commonwealth of Massachusetts Plumbing
Codes 2z_8CMRshall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
[_] FLUSH OUT THE TUBING
Turn the main water supply on (counterclockwise) and
flush out the tubing until the water isclear.
Shut the water off at the water valve after about
one quart (1 liter) of water has been flushed through
the tubing. __

Installation Instructions
INSTALLING THE WATER LINE (CONT.)
I-_ CONNECT THE TUBING TO THE
REFRIGERATOR
NOTES:
. Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
, We recommend installing u water filter ifyour water
supply hassand or particles that could clog the screen
of the refrigerator's water valve. Install it inthe water
line near the refrigerator. If using GESmartConnect_"
Refrigerator Tubing kit,you will need an additional tube
(WXO8XIO002)to connect the filter. Do not cut plastic
tube to install filter.
Remove the access cover.
Remove the plastic flexible
cap from the water valve
(refrigerator connection).
©
Placethe compression nut end ferrule (sleeve)onto
the end of the tubing as shown. On GESmartConnect T"
Refrigerator Tubing kit, the nuts are already assembled
to the tubing.
Insert the end of the tubing into the water valve
connection as far as possible. While holding the tubing,
tighten the fitting.
For plastic tubing from a GESmartConnect T_
Refrigerator Tubing kit, insert the molded end of the
tubing into the shutoff valve and tighten compression
nut until it is hand tight, then tighten one additional
turn with a wrench. Overtightening may cause leaks.
Fasten the tubing into the clump provided to hold it in a
vertical position. You may need to pry open the clamp.
1/4" _ Tubing
Copper Clamp
Tubing 1/4" Compression
Nut
Ferrule(sleeve)
Refrigerator
SmartConnect"_
Tubing
Reattach the access cove___
[_ TURN THE WATER
ON AT THE
SHUTOFF VALVE
Tighten any connections
that leak.
I-_ PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the wall.
Pushthe refrigerator back to the wall.
[_ START THE ICEMAKER
On slide switch models, set the icemaker power
switch to the ONposition. On feeler arm models,
move the feeler arm to the ON (down) position. The
icemaker will not begin to operate until it reaches its
operating temperature of 15°F(-9°C)or below.
It will then begin operation automatically.
Power
switch
Powerswitch model
kFeelerArm in
the ON (down)position
Feeler arm model
NOTE:In lower water pressure conditions, the water
valve may turn on up to 3 times to deliver enough
water to the icemaker.
10

Installation Instructions
REVERSING THE DOOR SWING
IMPORTANT NOTES
When reversing the door swing:
. Readthe instructions all the way through before starting.
. Handle parts carefully to avoid scratching paint.
. Setscrews down by their related parts to avoid using
them in the wrong places.
. Provide a non-scratching work surface for
the doors.
IMPORTANT:Once you begin, do not move the cabinet
until door-swing reversal iscompleted.
These instructions are for changing the hinges from
the right side to the left side-if you ever want to change
the hinges back to the right side,follow these same
instructions and reverse all references to left and right.
TOOLS REQUIRED
Maskingtape
Phillips screwdriver
5/16" hex-head
socket driver T20 or T25 Torxdriver
(neededforsome
models)
5/16" open-end
wrench
Puttyknifeor thin-
bladescrewdriver
[-_ REMOVE THE FREEZER DOOR
2.1Tape the door shut with masking tape.
2.2With a 5/16" hex-head socket driver, remove the
screws that hold the top hinge to the cabinet.
2.3 Lift the hinge straight up to free the hinge pin
from the socket in the top of the door and set it
aside, along with its screws.
Top 11"
2.4 Remove the tape and tilt the door away from the
cabinet. Lift it off the center hinge pin.
2.5 Setthe door on a non-scratching surface with the
outside up.
[i] BEFORE YOU START
i.i Unplug the refrigerator from its electrical outlet.
1.2 Empty all door shelves, including the dairy
compartment.
CAUTION: Do not let either door drop to the floor. To
do so could damage the door stop.
2.6Transfer the 2 screws from the opposite side of
the cabinet to the screw holes vacated by the top
hinge removal.
11

Installation Instructions
REVERSING THE DOOR SWING (CONT.)
[] REMOVE THE FRESH FOOD DOOR
3.1Tape the door shut with masking tape.
[_ REMOVE THE FRESHFOOD DOOR (CONT.}
3.5Transfer the two screws from the opposite sideof the
cabinet to the screw holesvacated by the center hinge
removal.
3.6 Transferthe washer (ifyour model has one)to the
opposite side.
J
:3.2Using a 5/16" hex-head socket screwdriver and a
5/!6" open-end wrench, remove the two screws
holding the center hinge to the cabinet. Lift the
center hinge to free its pin from the socket in the
top of the door, and set hinge and screws aside.
Becareful not to losethe center hingespacer and
washer.
3.3 Removethe tape and tilt the door away from the
cabinet. Lift the door from the pin in the bottom
hinge bracket. (Ifthe plastic washer sticksto the door
bottom, put it back on the hinge.)
3.4 Setthe door outside-up on a non-scratching surface.
3.7 Takeone of the screws removed in step 2 and start
it in the outermost screw hole on the opposite side.
Do not drive it all the way down-leave enough space
under the screw head for thickness of the bracket.
J
Y-----
I-_ REVERSING THE HARDWARE
4.3.Movethe bottom hingebracketand plasticwasherfrom
the right sideto the left side. /I I Plastic
[ _/Washer
Switchthe hingepin to the ¢-!!¢--. I _J
oppositesideof the bracket. __:.-:i:_
Hingej_ _
Bracket
12

Installation Instructions
[] REVERSING THE HARDWARE (CONT.1
4.2 Interchange hinge and screws at top right with
screws at top left of cabinet. Do not tighten screws on
hinge side at this time.
Installing the hinge
on the left.
NOTES:
Installing the hinge
on the right.
, Some hinges have four holes. Which holes you use
for installing the hinge depends on which side you
install the hinge.
,The outer edge of the hinge should be parallel to
the edge of the case for correct installation.
[_]REVERSING THE DOOR HANDLES (CONT.)
5.1.3Removeplug button from the top hinge hole on the
left side of the door and insert it into the hole on the
opposite side that was vacated by removal of the top
hinge.
Plug_
5.1.4 Pull the plug button from the front of the door and
transfer it to the opposite side.
Plug
To reattach the
handle on the
opposite side.
i
_] REVERSING THE DOOR HANDLES
5.1 Transfer fresh food door handle
5.1.1 Remove the handle plug using a tape-tipped
putty knife under the edge, and remove the
screw underneath. Remove the two screws
holding the handle to the top of the door.
Plug,t
5.1.2 Remove the handle. i
13
5.2
Left
Transfer door stop
5.2.1 Move the plastic door stop and screws from
the right side to the left side.
DoorStop RightSide
5.2.2 Move the metal door stop from the right
side to the left side and transfer the screw
to the opposite side of the door.
I °_-.
LeftSide MetalDoorStop
5.3 Reinstall fresh food door handle
5.3.1 Attach the handle to the right side of the
door with screws at the top
and under the handle plug.
5.3.2 Reinstall the handle plug.

Installation Instructions
REVERSINGTHE DOOR SWING (CONT.)
_-l REVERSING THE DOOR HANDLES (CONT.)
5.4 Transfer Freezer Door Handle
5.4.1Remove the screw
holding the handle
to the top of the
door and the two
screws holding the
handle to the bottom
of the door.
5.4.2 Remove the handle.
5.4.3 Remove the screw from the
right top edge of the door
and insert it into the handle
screw hole on the left side.
5.4.5 Attach the handle to the
right edge of the door with
screws at top and bottom,
using bottom holes vacated
by removal of the door stop
screws.
[] RE-HANGING THE DOORS
6.1 Re-hang the fresh food door
6.2.1 Lower the fresh food door onto the
bottom hinge pin. Be sure the washer
is in place on the pin.
Plastic
Washer
Hinge--_
Bracket _ _
RE-HANGING THE DOORS (CONT.)
6.1.2 Insert the pin on the center hinge into the socket in the
top of the door. Place the spacer, then the washer, on
the hinge pin. Pin
NOTE:The center hinge must
be turned over as shown when
mounted on the left side.
6.1.3
and Spacer
Tilt the door toward the cabinet. Asthe door is brought
into position, slide the hinge under the head of the screw
which earlier had been partly driven into the outermost
hole. Insert the remaining screw, then tighten both
screws securely.
6.2 Re-hang the freezer door
6.2.1 Lower the freezer door _ /
onto the center Cente_
0e..re -'AtOlLthe washer and Pin J__ ._ ._
spacer are in place
on the pin. __i_ _
and Spacer
6.2.2 Tilt the door toward the cabinet, lifting the top hinge so
the pin fits into the socket on the top of the door.
6.2.3. Make sure the door is slightly above the top of the
cabinet and the gap between the doors is even
across the front. Tighten the top hinge screws. Do not
overtighten these screws-tighten them until they are
just snug, then turn them another one-half turn.
14

Installation Instructions
CONNECTING ENERGYSMART APPLIANCE
[_] REMOVE LABEL OVER INTERCONNECT CABLE CONNECTOR ON ACCESS COVER
LABEL
_] CONNECT APPLIANCE TO ACH
2.1 Locate interconnect cable.
This accessory is part of ACM
kit.
2.2 Plug interconnect cable into
connector on access cover as
shown.
2.3 Plug opposite end of
interconnect cable into ACM.
2.4 Refer to ACM kit instructions
to connect ACM to Nucleus TM
energy manager or Smart Meter
i-_ PLACE ACH
NOTE:The ACM cGn be pl(sced on top, bGck, or side of refrigerGtor. ACM cGn Glso be
installed without direct contact with refrigerator (for example in adjoining cabinets).
See ACM mGnuGI for further ACM instGIIGtion detGils.
15

Normal operating sounds. GEApp#ances.com
Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features
and use newer technology.
Do you hear what Ihear? These sounds are normal.
[] The new high efficiency HUM M M...
compressor may run
fasterand longerthan --WHOOSH...
your old refrigeratorand
you may hear a high-pitchedhum or pulsatingsound
whileitisoperating.
[] Vou may heara whooshing sound when thedoorsclose.
Thisisdue topressureequalizingwithinthe refrigerator.
CLICKS,POPS,
CRACKSand CHIRPS
[] Youmay hearcrackingor poppingsoundswhen the
refrigerator isfirst plugged in.Thishappensasthe
refrigerator coolsto thecorrect temperature.
[] Thecompressor may causea clickingor chirpingsound
when attempting to restart(thiscouldtake
up to 5 minutes).
[] Expansionand contraction of coolingcoilsduring and after
defrostcan causea crackingor popping sound.
[] On modelswith an icemaker,after an icemakingcycle,you
may hearthe icecubesdropping intothe icebucket.
WHIB! [] Vou may hear the fans spinning at high
speeds.
This happens when the refrigerator isfirst
plugged in, when the doors are opened
frequently or when
a large amount of food is added to the refrigerator or freezer
compartments. The fans are helping to maintain the correct
temperatures.
6WATERSOUNDS
[] Theflow of refrigerantthrough the freezercoolingcoilsmay
make a gurgling noiselikeboilingwater.
[] Water dropping on the defrostheater cancause a sizzling,
popping or buzzingsoundduring the defrostcycle.
[] Awater drippingnoisemay occurduringthedefrostcycleasice
meltsfromthe evaporatorand flowsintothedrain pan.
[] Closingthe door may cause a gurgling sounddue to pressure
equalization.
Before you call for service...
operate
Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Possible Causes What To Do
Refrigerator in defrost cycle.
Temperature control dial
in OFFposition.
Refrigeratoris unplugged.
Thefuse isblown/circuit
breaker istripped.
• Wait about 30 minutesfor defrostcycleto end.
• Movethetemperature controldial to a temperature
setting.
, Pushthe plugcompletelyintothe outlet.
• Replacefuse or resetthe breaker.
16
Energy SmprtTM feature i# , Wait about 2 hoursfor normaloperationto continue
altering refrigerator performance
Vibration or rattling (slight Rollerscrews or leveling legs , SeeRollersand LevelingLegs.
vibration is normal) need adjusting.
Freshfood or fre_er- Temperature control dial • SeeAbout thetemperaturecontroldial.
compartment too warm not set coldenough.
Warm weather or frequent • Setthetemperature control dialone stepcolder.
door openings. SeeAbout thetemperaturecontroldial.
Doorleft open. • Checktoseeifpackageisholdingdoor open.
" _Packageblocking air duct in , Checktoseeifpackageisblockingair duct infreezer
freezer comportment, compartment.
TM
EnergySmart TM feature is , SeeAboutEnergySmart Models
altering refrigerator performance

Before you call for service...
Troubleshooting Tips
Possible Causes What To Do
_perates for Normal when refrigerator , Wait 24 hoursfor the refrigeratorto completely
long periods or cycles isfirst plugged in. cooldown.
on and offfrequently, Often occurs when large • Thisisnormal.
(Modern refrigerators
with more StOragespace amounts of food are
anda larger space and placed in refrigerator.
a larger freezer require Door left open. • Checktoseeifpackageisholdingdoor open.
more operating time, THot weather or frequent • Thisisnormal.
They start and stop door openings.
often to maintain even
temperatures:} Temperature control dial • SeeAbout thetemperaturecontroldial.
set at the coldestsetting.
Grille and condenser , SeeCareandcleaning.
need cleaning.
Frostor icecrystals Door left open. • Checktoseeifpackageisholdingdoor open.
on frozen food
(frostwithin package Toofrequent or too long
is normal) door openings.
Icemaker isnot on. , iVlovethefeelerarm tothe ON(down)position,
or on the powerswitch model,movethe switchto theON position
(onSomemodels)Water supply turned oft or •SeeInstallingthewater line.
not connected.
Freezercompartment , Wait 24 hoursfor the refrigeratorto completely
too warm. cooldown.
Piledup cubes in the storage , Levelcubesbyhand.
bin cause the icemaker
to shut off.
Frequent ,bu_ng, sound Icemaker ison but the water ,Hove the feelerarm to theSTOP(up)positionor movethe
supply to the refrigerator has powerswitchto the OFFposition.Keepingiton willdamage.
not beenconnected, thewater valve.
Cubestoo small Water shutoff valve connecting ,Call the plumberto clearthevalve.
refrigerator to water line may
be clogged.
Slowicecubefreezing Door left open. • Checktoseeifpackageisholdingdoor open.
Temperature control dial • SeeAbout thetemperaturecontroldial.
not set coldenough.
EnergySmartT,feature is , SeeAbout EnergySmartTMModels..
altering refrigerator performance
Icecubes have Icestorage bin needscleaning. • Emptyand wash bin.Discardold cubes.
odor/taste : Foodtransmitting odor/taste • Wrapfoods well.
to icecubes.
Interior,of re.frigerator , SeeCareandcleaning.
neeascleaning.
Moisture forms on _ Not unusual during , Wipesurfaced[y and resettemperature control dial
cabinet surface periods of high humidity, one settingcolder.
between the doors
Moisturecollects inside(in Toofrequent or.too
humid weother, air carries long aoor opemngs.
moistu[e into refrigerator
wnen aoors are openeaj
Refrigerator hasodor Fqods.trans.mitting , Foodswith strongodorsshouldbetightlywrapped.
oaor [o reTngerator. , Keepan openbox ofbak(ngsodain therefrigerator;
replaceevery_nreemon_ns.
Interior needscleaning. , SeeCareandcleaning.
17

NOTES
18

NOTES
19

NOTES
20
