gGE Appliances Service Training
_____________________________
TECHNICIAN
SERVICE MANUAL
Refrigerator
MODELS:
PTV15SAMR PTU427SAMR PTQ440SAMR
PTV16SAMR PTU463SAMR PTQ470SAMR
PTV19SAMR PTU527SAMR PTQ530SAMR
PTV20SAMR PTU565SAMR PTQ570SAMR
PTG440SAMR
PTG470SAMR
PTG530SAMR
PTG570SAMR
PUB NO. : SPWR1027E
JULY 2001

Page 2
IMPORTANT SAFETY NOTICE
The information in this service guide is intended fo
r
use by individuals possessing adequate backgrounds
of electrical, electronic and mechanical experience.
Any attempt to repair a major appliance may result in
personal injury and property damage. The
manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume
any liability in connection with its use.
WARNING
To avoid personal injury, disconnect power before
servicing this product. If electrical power is required
for diagnosis or test purposes, disconnect the powe
r
immediately after performing the necessary checks.
RECONNECT ALL GROUNDING
DEVICES
If grounding wires, screws, straps, clips, nuts, o
r
washers used to complete a path to ground are
removed for service, they must be returned to thei
r
original position and properly fastened.

Page 3
THE MANUAL COVERS THE
FOLLOWING MODELS
MODEL # COUNTRY
PTU427SAMR
PTU463SAMR
PTU527SAMR
PTU565SAMR
AUSTRALIA /
NEW ZEALAND
N/A BANGLADESH
N/A CHINA
N/A HONG KONG
N/A INDIA
PTG440SAMR
PTG470SAMR
PTG530SAMR
PTG570SAMR
INDONESIA /
THAILAND /
VIETNAM
N/A JAPAN
N/A KOREA
N/A MALAYSIA

Page 4
THE MANUAL COVERS THE
FOLLOWING MODELS
MODEL # COUNTRY
N/A PAKISTAN
PTV15SAMR
PTV16SAMR
PTV19SAMR
PTV20SAMR
PHILIPPINES
PTQ440SAMR
PTQ470SAMR
PTQ530SAMR
PTQ570SAMR
SINGAPORE
N/A TAIHITI
N/A TAIWAN

Page 5
I. SPECIFICATION
Models
PTV20SAMR
PTU565SAMR
PTQ570SAMR
PTG570SAMR
PTV19SAMR
PTU527SAMR
PTQ530SAMR
PTG530SAMR
PTV16SAMR
PTU463SAMR
PTQ470SAMR
PTG470SAMR
PTV15SAMR
PTU427SAMR
PTQ440SAMR
PTG440SAMR
Type 2-door 2-door 2-door 2-door
Height 1803 1703 1774 1674
Width 754 754 674 674Net dimension (mm)
Depth 560 733 706 706
Rated storage volume (liter) F:139 / R:391 F:139 / R:346
System Heater system
Start AutomaticDefrosting
Finish Automatic
Temperature control Automatic (Adjustable)
No frost freezer ÖÖÖÖ
Interior lamp 1 1 1 1
Caster 2 2
Common
Evaporating pan 1 1 1 1
Ice storage box 1 1 1 1
Transparent plastic shelf 2 2 1 2
Twisted ice tray Twin ice cube maker
Freezer
Transparent door racks 2 2 2 2
Deodorizing device ÖÖÖÖ
Multi air flow ÖÖÖÖ
Chilled room ÖÖÖÖ
Transparent shelf with steel frame 3 2 3 2
Vegetable crisper with moisture
control ÖÖ
Traditional vegetable crisper 1 1 1 1
Transparent door racks 4 3 4 3
Large bottle/beer storage rack 1 1 1 1
Refrigerator
Egg storage bucket 2 2 2 2

Page 6
I. SPECIFICATION
Models
PTV20SAMR
PTU565SAMR
PTQ570SAMR
PTG570SAMR
PTV19SAMR
PTU527SAMR
PTQ530SAMR
PTG530SAMR
PTV16SAMR
PTU463SAMR
PTQ470SAMR
PTG470SAMR
PTV15SAMR
PTU427SAMR
PTQ440SAMR
PTG440SAMR
Silver ÖÖÖÖ
Color
Black ÖÖÖÖ
Rated voltage (V) / Frequency (Hz) 240 VAC / 50 Hz ; 220 VAC / 50 Hz ; 220 VAC / 60 Hz
Rated input (W) 180 180 170 170
Refrigerant (R-134a) charging
quantity 175g 165g 155g 155g
Nte weight (Kg) 83 78 74 63
Poor material SS SS SS SS
Source, Comp. & Net
weight
Recessed handle ÖÖÖÖ

Page 7
II. PARTS IDENTIFICATION

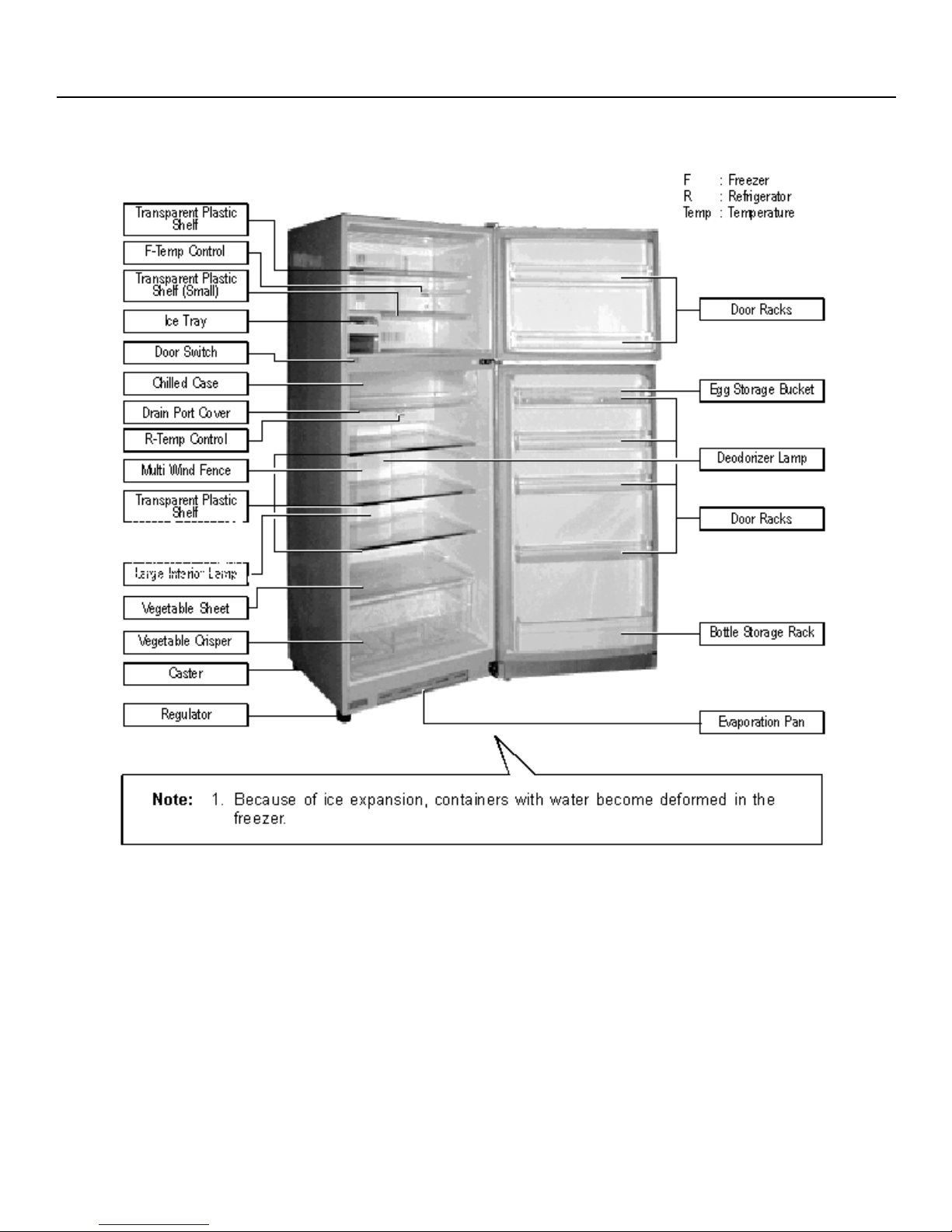

Features:
Ice tray : Can make and store 1kg of ice cubes.
Chilled Case : The fish and meats which will be cooked within 2 days can store
here, no thawing is required.
Evaporation Pan : Water discharged from the refrigerator is evaporated here.
Door Racks (F) : Short-term storage of frozen food.
Egg Storage Basket : Can store 16 eggs.
Door Racks (R) : Short-term storage of refrigerated food.
Bottle Storage Rack : Can store 5 bottles of beer or soda.
Regulator : For regulation of the refrigerator.
PTV15SAMR / PTU427SAMR / PTQ440SAMR / PTG440SAMR has 2 Transparent Plastic Shelves & 3 Door Racks
PTV16SAMR / PTU463SAMR / PTQ470SAMR / PTG470SAMR has 3 Transparent Plastic Shelves & 4 Door Racks
PTV15SAMR / PTU427SAMR / PTQ440SAMR / PTG440SAMR
PTV16SAMR / PTU463SAMR / PTQ470SAMR / PTG470SAMR

Page 8
II. PARTS IDENTIFICATION
Features:
Ice tray : Can make and store 1kg of ice cubes.
Chilled Case : The fish and meats which will be cooked within 2 days can store
here, no thawing is required.
Evaporation Pan : Water discharged from the refrigerator is evaporated here.
Door Racks (F) : Short-term storage of frozen food.
Egg Storage Basket : Can store 20 eggs.
Door Racks (R) : Short-term storage of refrigerated food.
Bottle Storage Rack : Can store 5 bottles of beer or soda.
Regulator : For regulation of the refrigerator.
PTV15SAMR / PTU427SAMR / PTQ440SAMR / PTG440SAMR has 2 Transparent Plastic Shelves & 3 Door Racks
PTV16SAMR / PTU463SAMR / PTQ470SAMR / PTG470SAMR has 3 Transparent Plastic Shelves & 4 Door Racks
PTV19SAMR / PTU527SAMR / PTQ530SAMR / PTG530SAMR
PTV20SAMR / PTU565SAMR / PTQ570SAMR / PTG570SAMR

Page 9
III. SERVICE GUIDE
3.1 REPLACEMENT OF DOOR
3.1.1 Remove the top hinge cover. Twist
and remove carefully not to hurt the
cover and cabinet with driver.
3.1.2 Remove the screw and top hinge
assy.
3.1.3 Remove the F door assy slightly and
remove it.
3.1.4 Remove the center hingr and remove
the R door assy.
3.1.5 Remove the door liner.
top hinge cover
top hinge
screw
center hinge
fix screw
door liner
remove screw with driverdoor packing

Page 10
III. SERVICE GUIDE
3.2 REPLACEMENT OF HEATER
3.2.1 Draw out the ice storage box.
3.2.2 Pull the case holder of ice silder.
3.2.3 Remove screw and F knob.
3.2.4 Remove F louver and pull the connector.
3.2.5 Remove EV cover screw and remove the
EV cover.
3.2.6 Remove the EV screw and up the EV
assy.
3.2.7 Remove the heater cover.
3.2.8 Remove the screws (2 pcs).
3.2.9 Rend the al. foil and remove heater
support.
3.2.10 Remove heater.
F knob
screw
F louver
F-THM
connector
EV cover assy
fanscrew
EV assy
screw
screw
foil
screw
heaterheater support
heater cover

Page 11
III. SERVICE GUIDE
3.3 REPLACEMENT OF F-THERMO
3.3.1 Remove F-THM screw.
3.3.2 Remove F-THM and replacement.
3.4 REPLACEMENT OF DEFROST
THERMO
3.4.1 Remove D-band.
3.4.2 Remove D-THM assy and replace it.
F-THM
screw
THM tube
defrost thermo
fuse
fan motor
D band

Page 12
III. SERVICE GUIDE
3.5 REPLACEMENT OF DAMPER THERMO
3.5.1 Remove the lamp cover.
3.5.2 Remove the multi air louver screw.
3.5.3 Remove the wiring cover.
3.5.4 Remove the multi air louver assy.
3.5.5 Remove the R control box scrwe.
3.5.6 Remove the R control box assy.
3.5.7 Remove the R air guide.
3.5.8 Remove the damper thermo and replace.
R control box assy
multi air louver
lamp cover
drain hole cover screw
F knob
lamp
wiring cover
lamp holder
screw
screw
R air guide bottom
damper thermo
R knob sealer
screw
R air guide top
B-THM support
R air guide sealer

Page 13
III. SERVICE GUIDE
3.6 REPLACEMENT OF DOOR SWITCH
3.6.1 Remove the door switch by using
screwdriver, remove the door switch from
cabinet, takinf care not to damage the
cabinet.
door switch
compressor
charge pipe
screw
electric box
fan fan motor (for compressor)
rating label
compressor cover
terminal
defrost timer
3.7 REPLACEMENT OF D-TIMER
3.7.1 Remove electric box screw.
3.7.2 Remove electric box.
3.7.3 Remove D-timer and replace.

Page 14
III. SERVICE GUIDE
3.8 REPLACEMENT OF PTC & OLP
OVERLOAD RELAY
3.8.1 Remove the compressor cover.
3.8.2 Remove electric box clamp.
3.8.3 Remove electric box.
3.8.4 Remove PTC & OLP and replace PTC &
OLP.
electric box
start relay
OLP overload relay
3.9 HOW TO CLEAN DRAIN PIPE
3.9.1 Remove drain hole cover.
3.9.2 Remove drain connector.
3.9.3 Clean connector & drain pipe.
drain connector
Dismounting and Cleaning of Drainage Pipe
Control box
Drainage hole cover Drainage pipe
Before opening the box After opening the box
3.9.4 Water Drainage
i. The water drainage adapter in the
drawer should be cleaned every 6
months to 1 year to keep it from being
obstructed. This avoids poor drainage
and refrigeration.
ii. The water drained from the refrigerator
is drained into the evaporation pan
from the drainage system.
iii. Water in the evaporation pan shall be
duly evaporated by the radiator. There
is no need to remove it.
iv. After some time, dust or impurity
builds up in the evaporation pan and
produces odor. This should be
cleaned once a month.

Page 15
IV. WIRING DIAGRAM
Be sure to replace the electrical parts with specified ones for maintaining the safety and performance of the set. Because
these are important for maintaining the safety of the set.
COMPRESSOR
TIMER
REDBLUE
BLUE
BLACK
BLACK
GRAY GRAY
BROWN
BROWN
YELLOW
LAMP FAN
MOTOR
GREEN
GREEN
LAMP
SWITCH
F-THM
OCR
WHITE
WHITE
ORANGE
D-THM
DEFROST
HEATER
MS
C
P
T
C
LFM
CONDENSER
FAN MOTOR FM
TM
21
34
56

Page 16
IV. WIRING DIAGRAM
RED
BLUE
BROWN
ORANGE
GRAY
WHITE
GREEN
YELLOW
YELLOW/GREEN
RD
BU
BW
OR
GY
WT
GR
YW
Y/G
Colour Code Table
PTV15SAMR / PTU427SAMR / PTQ440SAMR / PTG440SAMR
PTV16SAMR / PTU463SAMR / PTQ470SAMR / PTG470SAMR

Page 17
IV. WIRING DIAGRAM
RED
BLUE
BROWN
ORANGE
GRAY
WHITE
GREEN
YELLOW
YELLOW/GREEN
RD
BU
BW
OR
GY
WT
GR
YW
Y/G
Colour Code Table
PTV19SAMR / PTU527SAMR / PTQ530SAMR / PTG530SAMR
PTV20SAMR / PTU565SAMR / PTQ570SAMR / PTG570SAMR

Page 18
V. FUNCTIONS
5.1 DEFROSTING
5.1.1 No Defrosting Operation Is
Necessary
As this machine is so designed that a
built-in evaporator cools air and a fan
circulates cooled air, neither the
freezer nor the refrigerator is frosted,
though the evaporator is frosted.
The frosted evaporator is defrosted
automatically due to the function of
defrosting timer and heater, requiring
no defrosting operation.
5.1.2 Where is melted ice brought?
i. Melted ice is brought into the
evaporating pan at the bottom of
the set and is evaporated here by
the heat of sub condenser.
ii. Be sure to use the evaporating pan
as inserted so as to be level with
the outer case.

Page 19
V. FUNCTIONS
5.1.3 The following circuit diagrams in the table show automatic defrosting function of the refrigerator
with timer and defrost thermostat.
Operation Electric diagram Description
1. Cooling (Normal) ·Defrost thermostat ON
·Compressor running
·Timer motor running
Figure F-1
The integration timer
integrates running time of
the compressor. When it
reaches 8 hours 50 min. at
50Hz (10 hours 50 min at
60Hz), the timer contact is
changed to start
defrosting.
2. Defrosting
(Time 20 to 30 min)
·Defrost thermostat ON
·Compressor stops
·Timer motor stops
Figure F-2
·The timer contact is
changed to start
defrosting, the timer
motor stops, and power
is supplied to the defrost
heater.
·It takes about 20 to 30
min. to defrost. When
little frosted the
defrosting takes little
time. When much
frosted, the defrosting
takes much time.

Page 20
V. FUNCTIONS
Operation Electric diagram Description
3. Drain
(Time approx. 3 min)
·Defrost thermostat OFF
·Compressor stops
·Timer motor running
Figure F-3
When the defrost
thermostat becomes OFF,
the timer motor at rest
starts running. During the
operation time (2 min. 48
sec./50Hz; 2 min/ 60Hz)
defrosted water is drained
outside the refrigerator.
4. Cooling start
(Time approx. 5 min)
·Defrost thermostat OFF
·Compressor running
·Timer motor stops
Figure F-4
·Timer contact is
changed to cooling
operation and the
compressor starts
running and the timer
motor stops.
·Defrost thermostat
contact becomes ON
when its cooled. (Figure
F-1)
