GE Monogram ZV750 User manual

Installation
Instructions
36" Vent Hood
ZV750, ZV755
Hotte Aspirante 36 po
Instructions d'installation
Lo section fran_oise commence 6 Io page 19
Compano de ventiloci6n de
Instrucciones de instalaci6n
Lo secci6n en espofiol empieza en Io p6gino 37
36 tp
131-10724-1 I
GE 10/30/09

Safety Information
READ AND SAVE THESE INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT- Savetheseinstructionsfor
local inspector's use.
•IM PORTANT- Observeallgoverningcodes
and ordinances.
• Note to Installer - Be sure to leave these
instructions with the Consumer.
• Note to Consumer - Keep these instructions
with your Owner's Manual for future reference.
• Skill Level- Installation of this appliance requires
basic mechanical and electrical skills.
• Completion Time - i to 3 Hours.
• Proper installation isthe responsibility of the installer.
Product failure due to improper installation is not
covered under the warranty.
ForMonogram localservicein your area,call 1.800.444.1845.
For Monogram service in Canada, call 1.800.561.3344.
For Monogram Parts and Accessories, call 1.800.626.2002.
_CAUTION:
Due to the weight and size of these vent hoods and
to reduce the risk of personal injury or damage to the
product, TWO PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION.
-_WARNING:
To reduce the risk of fire or electrical shock, do not
use this range hood with any external solid-state speed
control device. Any such alteration from original factory
wiring could result in damage to the unit and/or create
an electrical safety hazard.
TOREDUCETHERISKOFFIRE,USEONLYMETALDUCTWORK.
-&WARNING:TOREDUCETHERISKOF
FIRE,ELECTRICALSHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended
by the manufacturer. If you have any questions,
contact the manufacturer.
8. Before servicing or cleaning the unit, switch
the power off at the service panel and lock the
service disconnecting means to prevent the power
from being switched on accidentally. When the
service disconnecting means cannot be locked,
securely fasten a prominent warning device,
such as a tag, to the service panel.
-&CAUTION: FOR GENERAL VENTILATING
USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS
MATERIALS,EXPLOSIVEMATERIALSOR VAPORS.
-&WARNING:TOREDUCETHERISKOF
FIRE,ELECTRICALSHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
• Installation work and electrical wiring must be done
by qualified person(s)in accordance with all applicable
codes and standards, including fire-rated construction.
• Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent back-drafting.
Follow the heating equipment manufacturer's
guidelines and safety standards, such as those
published by the National Fire Protection Association
(NFPA),the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE)and the local
code authorities.
• When cutting or drilling into walls or ceilings, do not
damage electrical wiring and other hidden utilities.
• Ducted systems must always be vented
to the outdoors.
Local codes vary. Installation of electrical connections
and grounding must comply with applicable codes.
In the absence of local codes, the vent should be
installed in accordance with National Electrical Code
ANSI/NFPA70-3_990or latest edition.
-&CAUTION: TOreduce riskoffireandto
properlyexhaustair,be suretoductairoutside-donot
vent exhaust air into spaces within walls or ceilings or
into attics, crawl spaces or garages.

Design Information
CONTENTS
Design Information
Models Available ................................................................................3
Product Dimensions ..........................................................................3
Advance Planning
Ductwork Planning ..........................................................................4
Wall Framing for Adequate Support ......................................4
Advance Planning ............................................................................4
Installation Preparation
Duct Fittings ..........................................................................................5
Power Supplg ......................................................................................6
Tools and Materials Required ......................................................6
Remove the Packaging ..................................................................7
Check Installation Hardware ......................................................7
Determine Installation Height ......................................................8
Installation Instructions
Installation - Vented to the Outside..................................9-13
Step 1, Install Framing for Hood Support ..............................9
Step 2, Install Mounting Brackets ............................................10
Step 3, Install the Hood ................................................................10
Step 4, Install Duct Bracket ........................................................11
Step 5, Connect Ductwork ..........................................................12
Step 6, Connect Electrical ............................................................12
Step 7, Install Duct Cover and Utensil Rods ......................13
Step 8, Install Filters ......................................................................13
Step 9, Finalize Installation ........................................................13
Installation Instructions
Installation - Redrculating ..................................................14-18
Step 1, Install Framing for Hood Support ............................14
Step 2,
Step 3,
Step 4,
Step 5,
Step 6,
Step 7,
Step 8,
Step
Step
Install Mounting Brackets ............................................15
Install the Hood ................................................................15
Assemble Deflector and Connector ........................16
Size Duct Piece..................................................................16
Install Air Deflector AssemblL ....................................16
Connect Electrical............................................................17
Install Duct Cover and Utensil Rods ......................17
9, Install Filters ......................................................................18
10, Finalize Installation ......................................................18
MODELS AVAILABLE
Model ZV750, 360 CFM
Model ZV755, 500 CFM
These hoods mug be installed to vent to the outdoors,
or theg mug be installed for recirculating operation.
All necessarg parts for recirculating operation are
supplied with the hood. No kits required.
• Thesevent hoods can be installed over ung :30" or 36"
Monogram electric or gas cooktop except Monogram
Professional cooktops or ranges larger than :30".
• Reversible duct covers accommodate recirculating
operation.
• The telescopic duct covers conceal the ductwork
running from the top of the hood to the ceiling.
• The supplied duct cover is sizedto reach ceiling heights
up to 9' or more, depending on the installation. See the
table on page 8.
PRODUCTDIMENSIONSAND CLEARANCES
The vent hood must be installed 24" minimum, and
30" maximum above the cooking surface.
NOTE: Installation height should be measured from
the cooking surface to the lowest part of the hood. *Height
to Ceiling
8-1/4"
36" Minimum
34-5/8" (excluding utensil rods) ...............
35-3/4" (including utensil rods) _ 21-5/8':
Z×7510SPSS Duct Cover Accessory
This accessorg is available for installations with ceiling
heights above 9' to 10' and higher. See the table on
page 8.
The duct cover accessorg must be on-site with the
hood at the time of installation.

Advance Planning
DUCTWORK PLANNING
•This hood is designed to be vented vertically
through the ceiling. Use locally supplied elbows
to vent horizontally through the rear wall.
• Determine the exact location of the vent hood.
• Plan the route for venting exhaust to the outdoors.
• Use the shortest and straightest duct route
possible. For satisfactory performance, duct run
should not exceed 100' equivalent length for any
duct configurations.
• Refer to "Duct Fittings" chart to compute the
maximum permissible length for duct runs to
the outdoors.
• Use rigid metal ductwork only.
•This vent hood must use a 6" round duct. The
6" round duct can transition to 3-1/4" x 10"
or 3-1/4" x 12".
• Install the house duct to run horizontally between
ceiling joists or straight up through the roof.
• Install u wall or roof cup with dumper at the
exterior opening. Order the wall or roof cup
and any transition and length of duct needed
in advance.
^,-,WARNING: TOREDUCET.ERIsKoFFIRE.
USE ONLY RIGID METAL DUCTWORK.
WALL FRAMING FOR ADEQUATE
SUPPORT
• This vent hood is heavy. Adequate structural
support must be provided. The hood must be
secured to vertical studs in the wall. See page 9
or 14.
We strongly recommend that the vent hood with
duct cover be on site before final framing and wall
finishing. This will also help to accurately locate
the ductwork and electrical service.
• Installation will be easier if the vent hood is
installed before the cooktop and countertop are
installed.
ADVANCE PLANNING
A duct cover accessory may be required for your
hood installation depending on ceiling height.
4

Installation Preparation
DUCT FITTINGS
Use this chart to compute
maximum permissible lengths
for duct runs to outdoors.
NOTE: Do not exceed maximum
permissible equivalent lengths!
Maximum duct length:
100 foot for range hoods.
Flexible ducting:
If flexible metal ducting is used,
all the equivalent feet values in
the table should be doubled.
The flexible metal duct should
be straight and smooth and
extended us much us possible.
DO NOT use flexible plastic
ducting.
NOTE: Any home ventilation
system, such as aventilation hood,
may interrupt the proper flow of
combustion air and exhaust
required by fireplaces, gas
furnaces, gas water heaters and
other naturally vented systems.
To minimize the chance of
interruption of such naturally
vented systems, follow the
heating equipment manufacturer's
guidelines and safety standards
such as those published by NFPA
and ASHRAE.
Duct Piece Dimensions
Round.
straight
3-1/4" x 10"
straight
90° elbow
Equivalent
Length*
1 ft. (per
foot length)
1 ft. (per
foot length)
12 ft.
Quantity
Used
45° elbow 7 ft.
3-1/4" x 10" 14 ft.
3-1/4" x 12" 10 ft.
90 ° elbow
3-1/4" x 10" 8 ft.
3-1/4" x 12" 6 ft.
45 ° elbow
---_ 3-1/4" x 10" 33 ft.
3-1/4" x 12" 24 ft.
90°flat elbow
6" round to 2 ft.
rectangular
_,, Rectangular to 8" 2 ft.
round
3-1/4" x 10" 4 ft.
3-1/4" x 12" 4 ft.
6" round to rectangular
transition 90° elbow
3-1/4" x 10" 4 ft.
3-1/4" x 12" 4 ft.
Rectangular to 6" round
transition 90° elbow
Round wall cap
with damper 24 ft.
3-1/4" x 10" 24 ft.
3-1/4" x &2" 18 ft.
Rectangular wall cap
with damper
<_ Round roof cap 33 ft.
*Actual length of straight duct plus duct fitting
equivalent. Equivalent length of duct pieces are
based on actual tests conducted by GEEvaluation
Engineering and reflect requirements for good
venting performance with any ventilation hood.
Total Duct Run,
Total
Equivalent
Length

Installation Preparation
POWER SUPPLY
IMPORTANT- (Please read carefully)
WARNING:
FOR PERSONAL SAFETY,THIS APPLIANCE MUST
BE PROPERLYGROUNDED.
Remove house fuse or open circuit breaker before
beginning installation.
Do not use an extension cord or adapter plug with
this appliance. Follow National Electrical Code or
prevailing local codes and ordinances.
Electrical supply
This vent hood must be supplied with 120V, 60Hz,
and connected to an individual, properlg grounded
branch circuit, and protected bg o 15- or 20-amp
circuit breaker or time-delog fuse.
• Wiring must be 2-wire with ground.
• If the electrical supplg does not meet the above
requirements, call o licensed electrician before
proceeding.
• Route house wiring as close to the installation
location as possible. Wiring can enter from the
ceiling or rear wall. Route additional length from
the ceiling or wall to reach the junction box.
• Connect the wiring to the house wiring in
accordance with local codes.
Grounding instructions
The grounding conductor must be connected to a
ground metal, permanent wiring sgstem, or an
equipment-grounding terminal or lead on the hood.
-&WARNING: The improper connection
of the equipment-grounding conductor can result
in u risk of electric shock. Check with a qualified
electrician or service representative if gou are in
doubt whether the appliance is properlg grounded.
TOOLS AND MATERIALS REQUIRED
(NOT SUPPLIED)
Pencilandtapemeasure
Safetyglasses
Spirit level
6loves
Hammer
Phillipsscrewdriver Flashlight
Utility Knife
Metal snips
Electricdrill with 1/8" bits,
#2 Phillipsandflat head Pliers
Stepladder
Masking Wirecutter/stripper
tape
Sabersawor KeyHolesaw
UL-listedwire nuts
Aluminized
ducttape ©
Strainrelieffor
junctionbox
6" roundmetal
duct,lengthto suit
installation
120V60Hz.15-or 20-Amp,
2-wirewith ground,properly
groundedbranchcircuit

Installation Preparation
REMOVE THE PACKAGING
-&CAUTION: Weor glovesto protect
ogoinstshorp edges.
The venthood isshippedsecured too shipping
boord with4 screws.
• Remove the duct cover, ports box ond styrofoom
pockoging.
• Lift the hood out of the box.
• Remove ond properly discord the plostic wropping.
• Remove merci greose filters ond side bor pockoging.
• To remove the shipping boord, Iocote ond remove
2 screws ot the top of the ossemblL ond 2 screws
inside the hood behind the filter guides on the left
ond right sides. Discord the shipping boord.
Junctionbox
Mounting Mountingscrew
/
/
i/
board
• Remove junction box cover.
• Remove knockout from junction box.
• Instoll stroin relief onto junction box.
CHECK INSTALLATION HARDWARE
Locote the hordwore occessory box pocked with
the hood ond check contents.
2Mountingbrackets
10 metalwall
fasteners
10wood 2 Large
screws flat washers
Ductcoverbracket(notrequired
for recirculatingoperation) 2 Phillips-head
ductcover
screws Decorative
ductcovers
NOTE: Additionol tools, moteriols ond hordwore ore
required to construct your woll froming support.
. i, _ _ 3 Stainless
steelgrease
filters
S
,/ ....:_i I "-,.
Wall-mounttemplate
2 Utensil rodswith 4 machine screws
Additional Parts for Recirculation Operation
Air deflectorwith upper
ductconnector
3 charcoalfilters

Installation Preparation
DETERMINE INSTALLATION HEIGHT
• Telescopic duct covers are provided to conceal
the ductwork running to the ceiling.
• This hood can be installed for vented or
recirculating operation. All necessarg parts are
shipped with the hood.
o
24" Min.
30" Max.
II II o
o
36" Min.
NOTE: Installation height should be measured from
the cooking surface to the bottom of the hood.
The vent hood must be installed 24" min. and
30" max. above the cooking surface. The hood
installation height, from the cooking surface to the
bottom of the hood, depends upon ceiling height
and duct cover limitations.
DUCT COVER DIMENSIONS
9-1/4"
Z×7510SPSS Duct Cover Accessory
This accessory is available for installation with
ceiling heights above 9 feet to 10 feet and higher.
This accessory consists of one 31-1/2" lower duct
cover.
ZV750/ZV755 Installation Heights
Upper (Inner} Duct Cover (B)
Lower (Outer} Duct Cover (A)
Accessory Lower (Outer} Duct Cover (A)
Actual
Ceiling
Height
7' 11"
8'0"
8'1"
8'2"
8'3"
8'4"
8'5"
8'6"
8'7"
8'8"
8'9"
8' 10"
8'11"
9'0"
9'1"
9'2"
9'3"
9'4"
9'5"
9'6"
*VENTED
Installation
Height
2/4" to 28"
2/4" to 29"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
25" to 30"
26" to 30"
27" to 30"
28" to 30"
29" to 30"
30" ....
*RECIRCULATING
Installation
Height
24" to 28"
24" to 29"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
25" to 30"
26" to 30"
27" to 30"
28" to 30"
29" to 30"
30"
9' 0"
9'1"
9'2"
9'3"
9'4"
9'5"
9'6"
9'7"
9'8"
9'9"
9' 10"
9'11"
10' O"
10' 1"
10' 2"
i0'3"
10' 4"
10' 5"
10' 6"
10' 7"
10' 8"
*Based on
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
25" to 30"
26" to 30"
27" to 30"
28" to 30"
29" to 30"
30"
36" countertop height.
24" to 28"
24" to 29"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
25" to 30"
26" to 30"
27" to 30"
28" to 30"
29" to 30"
30"
a
LM
-a
t_
t_
D
¢t)
iY
II

Installation Instructions
INSTALLATION -VENTED TO THE OUTSIDE
DUCTWORK, WIRING LOCATIONS
Determine the exact location of the vent hood.
• Locate the template packed with the literature.
- Measure 36" from the floor to the top of the
cooking surface. Add hood installation height
determined on page 8. Mark that location.
- Use a level to draw a straight pencil line on the wall.
- Tape the template in position along the penciled
line. CHECKTO BESURETHE TEMPLATEISLEVEL.
3-3/4"centerlineto wall_i_ _/FOR/ CEILINGVENT DUCTING
__ FORWALL
VENTDUCT
Centerline6" min.above
bracketlocation
i
J
Ceiling ducting:
If ductwork will vent straight up to the ceiling:
• Use a level to draw a line straight up, from
the centerline on the template to the ceiling.
• Measure 3-3/q" from the back wall to the centerline
of an 6-1/2" hole on the ceiling.
NOTE:If drywall is not present, add drywall thickness
to the 3-3/4" dimension.
Wall Ducting:
If ductwork will vent to the rear:
• Use a level to draw a line straight up from the
centerline on the template.
• Measure at least 6" above the bracket location shown
on the template to the centerline of a 6-1/2"-dia. duct
hole. (Hole may be elongated for duct elbow.)
HOUSEWIRING LOCATION:
• Thejunction box is located on the top left side
of the hood.
• Wiring can enter from the back wall or ceiling above
the top bracket location. Route additional wiring
length to reach the junction box.
INSTALL FRAMING FOR
HOOD SUPPORT
IMPORTANT- The vent hood must be
secured to rear support framing or a wall stud.
Framing must be capable of supporting 100 Ibs.
6-1/2" min. opening for ductwork
View from __
rear cleats
l"x 12" min.
mounting
support
k i Centerline of -
i installation ...... _, I b.
I ' space U II1\
J _ NOTE:2horizontalsupports
will beneededifthereisa
studlocatedbetweenthe
horizontalscrewlocations.
If drywall is present, mark the screw hole locations
for the top mounting brackets. Remove the template.
• Cut away enough drywall to expose 2 vertical studs
at the bracket location indicated on the template.
• Install a horizontal support at least 1" x 12"
between two wall studs at the mounting screw
location. The horizontal support must be flush with
the room side of the studs. Use cleats behind both
sides of the support to secure to wall studs.
IMPORTANT: Reinstall drywall for an even mounting
surface.

Installation Instructions
INSTALLATION -VENTED TO THE OUTSIDE
[_ INSTALL MOUNTING BRACKETS
The vent hood must be secured to rear support framing
or a wall stud.
• With the template taped in place, use a punch to mark all
mounting screw locations.
• Drill 1/8" pilot holes at the 6 punched locations.
• Remove the template.
• Enlarge holes that did not enter studs to 3/8" and tap
anchors for wall fasteners into the holes.
- Drive screws into the fasteners to allow anchors to
expand against the wall material. Remove the screws
for final installation.
• Secure the mounting brackets to the wall studs with
wood screws provided.
Screws"B"
f
f
Screws "A"
NOTE:Screws "A"and "B" are preassembled onto the
brackets. Do not remove these screws.
INSTALL THE HOOD
Place the hood on the brackets and slide left to right to align
with rectangular slots at the top.
• Adjust the installation height bg tightening or loosening
the screws "A"at the bottom of the brackets.
• Align the hood lower mounting holes with pilot holes in the
wall.
• Using two large washers (supplied), install wood screws or
wall-fastener screws, Iooselg, into lower mounting holes.
Do not tighten.
• Level the hood bg tightening or loosening the screws "A"
located on the bottom mounting brackets.
• Tighten the lower mounting screws.
• Tighten screws "B" located at the top of the mounting
bracket against the hood to adjust position. Do not
overtighten screws.
Screws"B" to adjust
hoodagainstwall
--Levelandheight
adjustment
screws"A"
Lowermounting
screws
10

Installation Instructions
INSTALLATION -VENTED TO THE OUTSIDE
INSTALL DUCT BRACKET
VENTING TO THE REAR (HORIZONTAL EXHAUST)
OR STRAIGHT UP TOP (VERTICAL EXHAUST)
• Temporarilg install the 2 small screws into the sides
of the duct bracket. Remove the screws. This will
ensure ease of final installation.
• Position the upper duct bracket against the wall and
ceiling, aligned with CLpencil mark and CL on the
bracket.
• Mark the 4 screw locations of the bracket.
• Remove the bracket.
• Drill 1/8" pilot holes in marked bracket location.
• If pilot holes do not enter studs, enlarge the holes 3/8"
and install wall-fastener anchors. Drive screws into the
fasteners to allow anchors to expand against the wall
material. Remove the screws.
• Secure the bracket to the ceiling and wall with wood
screws and/or wall-fastener screws.
Ductbracket
,_ .... ._....... Topor
.. '' .- ---- vertical
#::: --'_¢:J- exhaust
......._::_ ..__....
Rear or _.- I -.
horizontal /_
1
exhaust , _ ,
"- I /
......_Fr : i '
i I _z
11

Installation Instructions
INSTALLATION -VENTED TO THE OUTSIDE
CONNECT DUCTWORK
• Remove shipping tape from the damper.
• Install ductwork, making connections
in the direction of airflow as illustrated.
• Push duct over the exhaust outlet and damper.
Airflow
Duct tape over
seam and
screw
-- Screw
-ACAUTION: Do not use sheet metal
screws at the exhaust outlet connection. Doing
so will prevent proper dumper operation. Seal
connection with tape onlg.
• Secure joints in ductwork with sheet metal screws.
• Wrap all duct joints and the flange connections
with aluminized duct tape for an airtight seal.
_-1 CONNECT ELECTRICAL
Verify that power is turned off at the source.
-_WARNING:_fhousewiring isnot2-wire
with u ground wire, u ground must be provided
bg the installer. When house wiring is aluminum,
be sure to use U.L.-upproved untioxidant compound
and aluminum-to-copper connectors.
• Remove the junction box cover and the selected
knockout.
boxcover
• Secure the house wiring to the junction box with
a strain relief (not provided).
• Connect the white lead to the branch circuit white lead.
• Connect the black lead to the branch circuit black lead.
• Connect the green/gellow lead to the branch
circuit green lead or bare ground lead.
• Secure all the connections with wire nuts on each
electrical connector.
• Push the wires into the junction box and replace
the cover. Be sure the wires are not pinched.
• Secure the junction box cover with the 2 original
screws.
12

Instollotion Instructions
INSTALLATION -VENTED TO THE OUTSIDE
I-_ INSTALL DUCT COVER AND
UTENSIL RODS
Assemble the duct covers
asshown. Mounting Screws
Forthis vented installation,
place upper duct piece
inside the lower duct piece.
The inner duct cover venting
holes should be positioned
toward the bottom end and
should not be visible.
• Insert the assembled duct
covers into the impression
on the top of the hood.
• Extend the inner duct
cover upwards to meet
the ceiling and bracket.
(Thevent holes should not
be visible in this installation.)
• Secure the duct cover to the bracket with the 2 small
duct cover screws provided.
• Install the side utensil rods as shown with screws
provided.
Bottom Instoll optionol occessory Z×7510SPSS
(if needed to reach taller ceiling heights)
• Separatethe suppliedduct cover into pieces,Discordthe
lower (outer)section.
• Slidethe newZX7510SPSSduct cover onto the original upper
section.Besurethat the longer section isoutsidethe shorter
original section.Thenotcheswill be at the bottom and the
screw holesat thetop as illustrated,
• Securethe duct cover to the bracketwith the 2 small duct
cover screws provided.
_-1 INSTALL FILTERS
Lower chorco(]l
filter channel
• Remove protective film on filters.
• Tip the filter into the lower channel at the rear of the
opening, push back, lift and pull the knob forward until
the filter rests on the channel.
• Install all three metal grease filters.
• Turn power on. If the filter light on the control
panel glows, adjust the right-side filter in the
channel to engage the switch arm.
_-1 FINALIZE INSTALLATION
• Remove protective film covering the control panel
on the front face of the hood and ung remaining
packaging materials.
• Make sure the filters are seated properlg when
installed and the filter light is not on.
• Be sure fan and lights operate correctlg. Refer to
the Owner's Manual for operating instructions and
Problem Solver.
13

Installation Instructions
INSTALLATION - RECIRCULATING
DUCTWORK, WIRING LOCATIONS
• Determine the exact location of the vent hood.
• Locate the template packed with the literature.
• Measure 36" from the floor to the top of the cooking
surface. Add hood installation height determined on
page 8. IVlarkthat location.
• Tape the template in position along the penciled line.
CHECKTOBE SURETHE TEMPLATEISLEVEL.
• Use a level to draw a line straight up, from
the centerline on the template to the ceiling.
t-'¸ :
7¸
i
i
i
f
HOUSEWIRING LOCATION:
• Thejunction box is located on the top left side
of the hood.
• Wiring can enter from the back wall or ceiling above
the top bracket location. Route additional wiring
length to reach the junction box.
INSTALL FRAMING FOR
HOOD SUPPORT
IMPORTANT:The vent hood must be secured
to rear support framing or a wall stud. Framing
must be capable of supporting 100 Ibs.
__i Centerline of
i installation
I space
View from __
rear cleats
l"x 12" min.
mounting
support
__ NOTE:2horizontalsupports
will beneededifthereisa
studlocatedbetweenthe
horizontalscrewlocations.
If drgwull is present, murk the screw hole locutions
for the top mounting brackets. Remove the template.
• Cut awag enough drgwall to expose 2 vertical studs
at the bracket location indicated on the template.
• Install a horizontal support at least 1" x 12"
between two wall studs at the mounting screw
location. The horizontal support must be flush with
the room side of the studs. Use cleats behind both
sides of the support to secure to wall studs.
IMPORTANT: Reinstall drgwall for an even mounting
surface.
14

Installation Instructions
INSTALLATION - RECIRCULATING
INSTALL MOUNTING BRACKETS
The vent hood must be secured to rear support framing
or a wall stud.
• With the template taped in place, use a punch to mark all
mounting screw locations.
• Drill 1/8" pilot holes at the 6 punched locations.
• Remove the template.
• Enlarge holes that did not enter studs to 3/8" and tap
anchors for wall fasteners into the holes.
- Drive screws into the fasteners to allow anchors to
expand against the wall material. Remove the screws
for final installation.
• Secure the mounting brackets to the wall studs with
wood screws provided.
Screws"B"
Screws "A"
NOTE:Screws "A"and "B" are preassembled onto the
brackets. Do not remove these screws.
INSTALL THE HOOD
Place the hood on the brackets and slide left to right to align
with rectangular slots at the top.
• Adjust the installation height bg tightening or loosening
the screws "A"at the bottom of the brackets.
• Align the hood lower mounting holes with pilot holes in the
wall.
• Using two large washers (supplied), install wood screws or
wall-fastener screws, Iooselg, into lower mounting holes.
Do not tighten.
• Level the hood bg tightening or loosening the screws "A"
located on the bottom mounting brackets.
• Tighten the lower mounting screws.
• Tighten screws "B" located at the top of the mounting
bracket against the hood to adjust position. Do not
overtighten screws.
• I
Screws"B" to adjust
hoodagainstwall
oj-_:
/
and height
adjustment
screws "A"
, Lowermounting
screws
15

Installation Instructions
INSTALLATION - RECIRCULATING
ASSEMBLE DEFLECTOR
AND CONNECTOR
A The duct connector is shipped A
inside the deflector.
B Snap the plastic connector out
of the deflector and remove.
C Turn over the plastic
connector. From the bottom,
snap the connector over the
opening as shown.
Remove plastic connector Snap into place
SIZE DUCT PIECE
• Hold air deflector
with duct
connector against
the ceiling. Align
window on the
back of the
deflector with the
marked centerline.
jJ
i
Centerline I
_, length
i
iMeasure
length
• Measure from
the bottom of
the deflector to
the top of the
hood as shown.
Reduce this dimension bg
1" to facilitate installation.
The duct will cover/overlap
the duct connector and the
exhaust outlet.
• Cut the duct piece to size
and slip onto the bottom of
the duct connector.
Screws
• Use duct tape to secure the
duct piece to the connector.
• Temporarilg install the Air deflectorassembly
2 small duct cover screws
into the sides of the deflector. Remove the screws.
This will ensure ease of final installation.
_-1 INSTALL AIR DEFLECTOR ASSEMBLY
• Place the ussemblg
over the hood
outlet.
• Hold the assemblg
against the ceiling.
The penciled
centerline should
show through
the slot on the
deflector. Mark
the two screw
holes on the back
of the assemblg.
• Remove the
assemblg and drill
1/8" pilot holes into
the wall studs.
Enlarge holes that did not enter studs to 3/8" and
top plastic or metal anchors into the holes, flush
with the wall.
• Mount the ussemblg onto the hood outlet, push
up against the ceiling and install the screws
provided.
• Use duct tape to seal the connection.
CAUTION: Do not use sheet metal
screws at the hood duct flange connection. Doing
so will prevent proper damper operation. Seal
connections with tape onlg.
16

Installation Instructions
INSTALLATION - RECIRCULATING
CONNECT ELECTRICAL
Verify thet power is turned off et the source.
-4,WARNING: fhousewiring isnot2-wire
with a ground wire, a ground must be provided
by the installer. When house wiring is aluminum,
be sure to use U.L. approved antioxidant compound
and aluminum-to-copper connectors.
•Remove the junction box cover and the selected
knockout.
Knockout-.
Junction
boxcover
• Secure the house wiring to the junction box with
a strain relief.
• Connect the white lead to the branch circuit white lead.
• Connect the black lead to the branch circuit black lead.
• Connect the green/gellow lead to the branch
circuit green lead or bare ground lead.
• Secure all the connections with wire nuts on each
electrical connector.
• Push the wires into the junction box and replace
the cover. Be sure the wires (]re not pinched.
• Secure the junction box cover with the 2 original
screws.
INSTALL DUCT COVERS AND
UTENSIL RODS
• Assemble the duct covers (Is shown.
Mounting screw holes
For this recirculating installation, the vent holes must
be positioned at the top. The vent holes must be fully
exposed to ollow oirflow into the room.
• Insert the duct cover assemblg into the impressions
on the top of the hood.
• Extend the inner duct cover upwards to meet the
ceiling and support frame.
Instoll optionol occessory ZX7510SPSS
(if needed to reoch taller ceiling heights)
• Separate the supplied duct cover. Discard the lower
(outer) section.
• Slide the new ZX7510SPSSduct cover into the original
upper section. Be sure that the vent holes (]re
positioned toward the top.
• Insert the duct cover assemblg into the impressions
on the top of the hood.
• Secure the duct cover at the top to the air deflector
with 2 screws provided.
• Install the side utensil rods as shown with screws
provided.
17

Instollotion Instructions
INSTALLATION - RECIRCULATING
_-I INSTALL FILTERS
• There are two channels inside the back and front of the
hood. These channels will hold the charcoal filters and
stainless steel grease filters in place. Upper charcoal
filter channel
Lower charcoal
filter channel
Install charcoal filters
• Remove protective film on the chorcool filters.
• Tip charcoal filters into the upper (top) channels at the
rear of the opening. Grasp the filter tab, lift and pull
forward until it rests in the front upper channel.
• Install all 3 charcoal filters. Upper charcoal
filter channel _'--.
Grasp tab,
lift and pull forward
Install grease filters
•Remove protective film from grease filters.
• Tip the grease filter into the lower channel at the rear of
the opening. Push buck, lift and pull the knob forward until
the filter rests on the channel.
• Install all 3 grease filters.
• Turn power on. If the filter light on the control panel glows,
adjust the right-side filter in the channel to engage the
switch arm.
filter slots
FINALIZE INSTALLATION
• Remove protective film covering the control panel
on the front face of the hood and ang remaining
packaging materials.
• Make sure the filters are seated properlg when
installed and the filter light is not on.
• Be sure fan and lights operate correctlg. Refer to
the Owner's Manual for operating instructions and
Problem Solver.
18

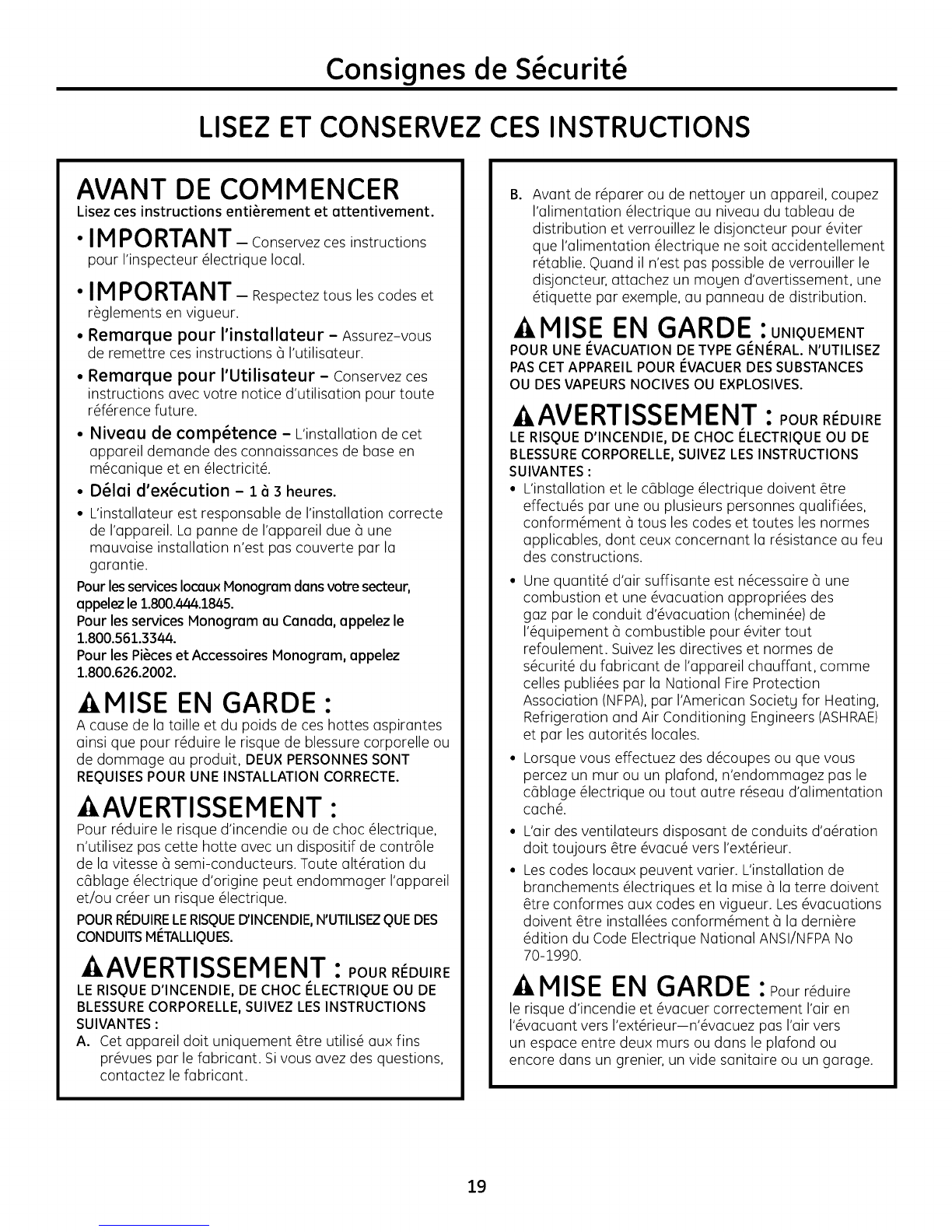

Consignes de S curit
LISEZ ET CONSERVEZ CES INSTRUCTIONS
AVANT DE COMMENCER
Lisezces instructions enti_rement et attentivement.
•IN PORTANT- Conservezces instructions
pour I'inspecteur 61ectrique local.
•IMPORTANT- Respecteztouslescodeset
r@glementsen vigueur.
• Remarque pour l'installateur- Assurez-vous
de remettre ces instructions (3I'utilisateur.
• Remarque pour l'Utilisateur - Conservez ces
instructions avec votre notice d'utilisation pour toute
r6f6rence future.
• Niveau de comp@tence - L'installation de cet
appareil demande des connaissances de base en
m6canique et en 61ectricit6.
• D_lai d'e×_cution - 1 a 3 heures.
• L'installateur est responsable de I'instollation correcte
de I'oppareil. La panne de I'appareil due (_une
mouvoise installation n'est pas couverte par la
gorontie.
Pour lesservicesIocuu×Monogram dans votre secteur,
appelezle 1.800.444.1845.
Pour lesservices Monogram au Canada, appelez le
1.800.561.3344.
Pour lesPi_ces et Accessoires Monogram, appelez
1.800.626.2002.
.4,MISE EN GARDE :
A cause de la taille et du poids de ces hottes aspirantes
ainsi que pour r6duire le risque de blessure corporelle ou
de dommage au produit, DEUX PERSONNESSONT
REQUISESPOUR UNE INSTALLATIONCORRECTE.
- AVERTISSEMENT :
Pour r6duire le risque d'incendie ou de choc 61ectrique,
n'utilisez pas cette hotte avec un dispositif de contr61e
de la vitesse (_semi-conducteurs. Toute alt6ration du
c6blage 61ectrique d'origine peut endommager I'appareil
et/ou cr6er un risque 61ectrique.
POURRI_DUIRELERISQUE171NCENDIE,N'UTILISEZQUEDES
CONDUITSMI_TALLIQUES.
-AAVERTISSEMENT : POURR_DUlRE
LE RISQUED'INCENDIE, DE CHOCI[ELECTRIQUEOU DE
BLESSURECORPORELLE,SUIVEZLESINSTRUCTIONS
SUIVANTES:
A. Cet appareil doit uniquement _tre utilis6 aux fins
pr6vues par le fabricant. Si vous avez des questions,
contactez le fabricant.
B. Avant de r6parer ou de nettoyer un appareil, coupez
I'olimentation 61ectrique au niveau du tableau de
distribution et verrouillez le disjoncteur pour 6viter
que I'olimentotion 61ectrique ne soit occidentellement
r6tablie. Ouand il n'est pas possible de verrouiller le
disjoncteur, attachez un mogen d'avertissement, une
6tiquette par exemple, ou ponneau de distribution.
MISE EN GARDE :UNIQUEMENT
POUR UNE I_VACUATIONDE TYPE GI_NI_RAL.N'UTIUSEZ
PASCETAPPAREILPOUR _VACUERDESSUBSTANCES
OU DES VAPEURS NOCIVES OU EXPLOSIVES.
AVERTISSEMENT : POURRI_DUIRE
LE RISQUED'INCENDIE, DECHOC I_LECTRIQUEOU DE
BLESSURECORPORELLE,SUIVEZLESINSTRUCTIONS
SUIVANTES:
• L'installation et le c6blage 61ectrique doivent _tre
effectu6s par une ou plusieurs personnes qualifi6es,
conform6ment (_tousles codes et toutes les normes
applicables, dont ceux concernant la r6sistance au feu
des constructions.
Une quantit6 d'air suffisante est n6cessaire 6 une
combustion et une 6vacuotion appropri6es des
gaz par le conduit d'6vacuation (chemin6e) de
1'6quipement (_combustible pour 6viter tout
refoulement. Suivez les directives et normes de
s6curit6 du fobricant de I'apporeil chouffont, comme
celles publi6es par la National Fire Protection
Association (NFPA),par I'American Societg for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE)
et par les autorit6s locales.
Lorsque vous effectuez des d6coupes ou que vous
percez un mur ou un plafond, n'endommagez pas le
c6blage 61ectrique ou tout autre r6seau d'alimentation
cach6.
L'air des ventilateurs disposant de conduits d'a6ration
doit toujours @tre6vacu6 vers I'ext6rieur.
Les codes Iocaux peuvent varier. L'installation de
branchements 61ectriques et la mise (_la terre doivent
@treconformes aux codes en vigueur. Les6vacuations
doivent @treinstall6es conform6ment (_la derni@re
6dition du Code Electrique National ANSI/NFPANo
70-1990.
MISE EN GARDE :Pourr6duire
le risque d'incendie et 6vacuer correctement I'air en
1'6vacuont vers I'ext6rieur-n'6vacuez pas I'air vers
un espace entre deux murs ou dons le plafond ou
encore dons un grenier, un vide sanitaire ou un garage.
19

Information de conception
TABLE DES MATII_RES
Information de conception
ModUlesdisponibles ....................................................................20
Dimensions de l'appareil ............................................................20
Planificetion
Planification des conduits ......................................................21
Supports muraux pour une fixation ad6quate ............21
Planification ....................................................................................21
Preparation pour l'installation
Raccords de conduits ....................................................................22
Alimentation 61ectrique ..............................................................23
Outils et mat@iels n6cessaires ................................................23
Retrait de I'emballage ................................................................2/4
V@ification du mat@iel d'installation ................................2/4
D@ermination de la hauteur d'installation ........................25
Instructions d'installation
Installation - Evacuation vers I'ext@ieur ....................26-30
Etape 1,Installation du cadre
pour le support de la hotte ......................................................26
Etape 2,Installation des supports de montage ..............27
Etape 3, Installation de la hotte ..............................................27
E'tape4, Installation du support de conduit ......................28
Etape 5, Raccordement des conduits ..................................29
Etape 6, Branchement 61ectrique ..........................................29
Etape 7, Installation du cache
de conduit et des barres 6 ustensiles ..................................30
E'tape8, Installation des filtres ..............................................30
Etape 9, Finalisation de I'installation ..................................30
Instructions d'installation
Installation - Recgclage ......................................................31-35
Etape 1, Installation du cadre
p.ourle support de la hotte ......................................................31
Etape 2, Installation des supports de montage ..............32
E.tape3, Installation de la hotte ..............................................32
Etape 4,Assemblagedu d6flecteur etdu connecteur ......33
Etape S,D6termination de la dimension des conduits ....33
E.tape6, Installation du d6flecteur d'air ..............................33
Etape 7, Branchement 61ectrique ..........................................34
Etape 8, Installation du cache
de conduit et des barres 6 ustensiles ..................................34
E'tape9, Installation des filtres ..............................................35
Etape 10, Finalisation de I'installation ................................35
MODI_LES DISPONIBLES
ModUle ZV750, 360 CFM
ModUle ZV755, 500 CFM
Ces hottes peuvent _tre install_es de mani_re 6 _vacuer
Fair6 I'ext@ieur ou _ le recgcler. Toutes les pi_ces
requises pour que la hotte puisse recgcler Fairsont
fournies. Aucun ensemble n'est n_cessaire.
• Ces hottes peuvent _tre install_es au-dessus de
n'importe quelle table ou surface de cuisson _lectrique
ou _ gaz Monogram de 76,2 cm (30 po) ou de 91,4 cm
(36 po),sauf les cuisini@resou lestables de cuisson
professionnelles Monogram dont la largeur est
sup@ieure 6 76,2 cm (30 po).
• Lescaches de conduits r@versiblespeuvent s'adapter
une installation en recgclage.
• Lescaches de conduits t@lescopiques dissimulent
le conduit entre le haut de la hotte et le plafond.
• Le cache de conduit fourni permet d'atteindre des
plafonds 6 une hauteur de 2,75 m (9 pieds) ou plus
suivant I'installation. Consultez le tableau en page 25.
DIMENSIONSETDI'--GAGEMENTSDE L'APPAREIL
La hotte aspirante doit @treinstall6e 6 une hauteur
minimale de 60 cm (24 po) et de 76 cm (30 po)
au-dessus de la surface de cuisson.
NOTE : La hauteur d'installation de la hotte doit _tre
mesur6e de la surface de cuisson 6 la partie la plus
basse de la hotte.
Mi_ljimUum23_Plc°O
Minimum36p0
*Hauteur
de plafond
8-1/4 po
34-5/8po(enexcluantlesbarresaustensiles)
35-3/4po(incluantlesbarresaustensiles)
Z×7510SPSS Accessoire cache de conduit
Cet accessoire est disponible pour les installations
sous des plafonds d'une hauteur de 2,75 m 6 3,05 m
(9 6 10 pieds) et plus. Consultez le tableau en page 25.
Le cache doit 6tre disponible sur le site au moment de
I'installation de la hotte.
20
