GE Monogram®
Installation
Instructions
36" Vent Hood
Model
ZV750SY

2
Before you begin—Read these instructions completely and carefully.
IMPORTANT: Save these instructions for local inspector’s use.
IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES.
NOTE TO INSTALLER: Be sure to leave these instructions with the Consumer.
NOTE TO CONSUMER: Keep these instructions with your Use and Care Book for
future reference.
This appliance must be properly grounded. See “Electrical Supply”, page 4.
CAUTION
WARNING
If you have questions concerning the installa-
tion of this product, call the GE Answer
Center® Consumer Information Service at
800.626.2000, 24 hours a day, 7 days a week.
If you received a damaged vent hood, you
should contact your dealer.
CAUTION!
Due to the weight and size of these vent hoods
and to reduce the risk of personal injury or
damage to the product, TWO PEOPLE ARE
REQUIRED FOR PROPER INSTALLATION.
WARNING!
To reduce the risk of fire or electric shock, do
not use this range hood with any external
solid-state speed control device. Any such
alteration from original factory wiring could
result in damage to the unit and/or create an
electrical safety hazard.
To reduce the risk of fire and to properly
exhaust air, be sure to duct air outdoors. Do
not vent exhaust air into spaces within walls or
ceilings or into attics, crawl spaces or garages.
WARNING: TO REDUCE THE RISK OF FIRE,
USE ONLY METAL DUCTWORK.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OB-
SERVE THE FOLLOWING:
A. Use this unit only in the manner intended
by the manufacturer. If you have any ques-
tions, contact the manufacturer.
B. Before servicing or cleaning unit, switch
power off at service panel and lock service
panel to prevent power from being switched
on accidentally. If the service panel cannot be
locked, fasten a tag or prominent warning
label to the panel.
For general ventilating use only. Do not use
to exhaust hazardous or explosive materials
and vapors.
Installation work and electrical wiring must be
done by qualified person(s). In accordance
with all applicable codes and standards
including fire-rated construction.
Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to
prevent back drafting. Follow the heating
equipment manufacturer’s guideline and
safety standards such as those published by the
National Fire Protection Association (NFPA),
and the American Society for Heating, Refrig-
eration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
Contents Design Information
Models available ..................................................................................................................................3
Optional Accessories ........................................................................................................................... 3
Product Dimensions & Clearances .................................................................................................... 3
Advance Planning ............................................................................................................................... 4
Electrical Supply .................................................................................................................................. 4
Installation Preparation
Duct Fittings ....................................................................................................................................... 5
Tools and Materials Required ............................................................................................................ 6
Step 1: Remove the packaging ........................................................................................................... 6
Installation
Step 2: Check Installation Hardware ................................................................................................. 7
Step 3: Mount Template ..................................................................................................................... 7
Step 4: Install Mounting Bracket ....................................................................................................... 8
Step 5: Install the Hood ...................................................................................................................... 8
Step 6: Install Duct Bracket................................................................................................................. 9
Step 7: Connect Ductwork ................................................................................................................ 10
Step 8: Connect Electrical .................................................................................................................10
Step 9: Install Decorative Duct Cover............................................................................................... 10
Step 10: Install Filters ........................................................................................................................11
Step 11: Finalize Installation............................................................................................................. 11

3
Design Information
36" Vent Hood
Model
ZV750SY
Model
Available
Optional
Accessories
This vent hood is designed to be used in
vented installations.
A decorative duct cover is provided to cover
the duct from the top of the hood to an 8 ft.
or 9 ft. ceiling.
The vent hood must be installed 24" min. and 30" max.
above the cooking surface. 25-1/2" is recommended to
insure that the duct cover meets the ceiling. The cooking
surface should be at least 36" above the floor. Installation
will be easier if the vent hood is installed before the
range or cooktop and countertop is installed.
Product
Dimensions
& Clearances *Height 
to Ceiling
8-1/4"
34-5/8" 21-5/8"
Model
ZX10SY
An optional stainless steel duct cover is
available for 9 ft. to 10 ft. ceiling installations.
(The supplied duct cover is sized to reach 8 ft.
to 9 ft. ceilings.) Order the optional duct
cover at the same time as the vent hood and
have on site before installation.
*26-1/4" for 8 ft. ceiling
38-1/4" for 9 ft. ceiling
38-1/4" to 50-1/4" for 9 ft. to
10 ft. ceiling using optional
accessory ZX10SY Duct Cover
*The distance between the cooking surface and the bottom of the
hood must be at least 24" and up to 30". The 25-1/2"
recommended installation height, above the standard 36"
countertop, will insure duct cover fit to the ceiling.
*25-1/2" Recommended
36" Min.

4
Design Information
36" Vent Hood
Advance
Planning
Ductwork
•Determine the exact location of the vent hood.
• Plan the route for venting exhaust to the
outdoors.
•Use the shortest and straightest duct route
possible. For satisfactory performance, duct
run should not exceed 100 feet equivalent
length for any duct configurations.
•Refer to “Duct Fittings” chart to compute the
maximum permissable length for duct runs to
the outdoors.
•Install a wall cap with damper or roof cap at
the exterior opening.
Electrical
Supply
CAUTION
Warning, for
Personal Safety:
Remove house
fuse or open
circuit breaker
WARNING
before beginning installa-
tion.
Do not use an extension
cord or adapter plug with
this appliance. Follow
National electrical codes
or prevailing local codes
and ordinances.
Electrical supply
This vent hood must be supplied with 120V,
60Hz., and connected to an individual, properly
grounded branch circuit, protected by a 15 or
20 ampere circuit breaker or time delay fuse.
•Wiring must be 2 wire with ground.
•If the electrical supply does not meet the
above requirements, call a licensed electrician
before proceeding.
•Route wiring as close to the installation
location as possible, in the ceiling or soffit.
•Connect the wiring to the house wiring in
accordance with local codes.
Grounding Instruction
The grounding conductor must be connected to
a ground metal, permanent wiring system, or an
equipment-grounding terminal or lead on the
hood.
CAUTION
Warning: The improper connec-
tion of the equipment-grounding
conductor can result in a risk of
electric shock. Check with a
qualified electrician or service
WARNING
representative if you are in doubt whether
the appliance is properly grounded.

5
Installation Preparation
36" Vent Hood
Duct
fittings
Total
Equivalent Quantity Equivalent
Duct Piece Dimensions Length* Used Length
Round, 1 ft.
straight (per foot
length)
3-1⁄4" x 10" 1 ft.
straight (per foot
length)
90°elbow 15 ft.
45°elbow 9 ft.
3-1⁄4" x 10"
90°elbow 15 ft.
3-1⁄4" x 10"
45°elbow 9 ft.
3-1⁄4" x 10"
90°flat elbow 20 ft.
6" round to
3-1⁄4" x 10" or
3-1/4" x 24" transition 1 ft.
3-1⁄4" x 10"
to 6" round transition 5 ft.
6" round to
3-1/4" x 10"
transition 90°elbow 5 ft.
3-1⁄4" x 10" to 6" round
transition 90°elbow 15 ft.
Round
wall cap
with damper 30 ft.
3-1⁄4" x 10" wall cap
with damper 30 ft.
Round
roof cap 26 ft.
Round
roof vent 24 ft.
Use this chart to
compute maximum
permissable lengths
for duct runs to
outdoors.
Note: Do not exceed maximum
permissable equivalent lengths!
Maximum duct length:
100 foot for range hoods.
Flexible ducting:
If flexible metal
ducting is used, all
the equivalent feet
values in the table
should be doubled.
The flexible metal
duct should be
straight and smooth
and extended as
much as possible.
Do NOT use flexible
plastic ducting.
Note: Any home ventilation
system, such as a ventilation
hood, may interrupt the proper
flow of combustion air and
exhaust required by fireplaces,
gas furnaces, gas water heaters
and other naturally vented
systems. To minimize the chance
of interruption of such naturally
vented systems, follow the heating
equipment manufacturer’s
guidelines and safety standards
such as those published by NFPA
and ASHRAE.
These Hoods Must
Use 6" Round Duct
*Actual length of straight duct plus duct fitting
equivalent. Equivalent length of duct pieces are based
on actual tests conducted by GE Evaluation Engineer-
ing and reflect requirements for good venting
performance with any ventilation hood.
Total Duct Run

6
Installation Preparation
36" Vent Hood
Tools &
Materials
Required
(not supplied)
Remove the
Packaging
1
Step
The vent hood is shipped secured to a shipping
board with 4 screws.
•Remove the duct cover, parts box and styro-
foam packaging.
•Lift the hood out of the box, using hand grips
on both sides of the shipping board.
•Remove and properly discard the plastic
wrapping.
•Locate and remove 2 screws at the top of the
assembly and 2 screws inside the hood behind
the filter guides on the left and right sides.
Discard the shipping board.
•Remove junction box cover.
•Remove knockout from junction box.
•Install strain relief onto junction box.
• Safety glasses
• Tape to mount template
• Gloves to protect against sharp edges
•120V 60Hz. 15 or 20 Amp, 2 wire with
ground. Properly grounded branch circuit.
•Strain relief for junction box.
•6" round metal duct work.
CAUTION: Do not lift hood
with side bars.
• Tape measure
• Knife
• Spirit level
• Wire cutter
• Wire stripper
• Wire nuts
• Electric drill and appropriate bits
• Phillips screwdriver
• Flat blade screwdriver
• Hammer
• Pliers
Mounting
Screw
Shipping Board
Mounting
Screw
Knockout
Junction 
Box
Mounting Screw
Shipping Board

7
Installation
36" Vent Hood
Locate the hardware accessory box packed
with range hood and check contents.
2
Check
Installation
Hardware
Step
Mount
Template
3
Step
Duct Cover Bracket
3 Filters
Wall Mount Template
2 Mounting
Brackets
•Drill 1/8" Pilot Holes For Mounting Brackets.

Alignedge 25-1/2" above Cooking Surface.
17-5/16"
3-15/16" 13-9/16" 2-5/32"
C
L
C
L
C
L
•Drill 1/8" Pilot Holes.
•Drill 1/8" Pilot Holes.
26-14"to 8 ft. Ceiling
38-1/4"to 9 ft. Ceiling

38-1/4"to 50-1/4" For
9ft.to 10 ft. Ceiling
UsingOptional Accessory
ZX10SYDuct Cover
5-7/8"
Decorative
Duct
Cover
10
Molly
Bolts
10
Wood
Screws
•The bottom edge of the template should
be 61-1/2" above the floor:
–Measure 36" from the floor to top of
cooking surface, add 25-1/2" to bottom
line indicated on template.
•Tape the template in the installation location.
BE SURE THE TEMPLATE IS LEVEL.
•Measure from the peak of the hood to the
ceiling as indicated on the template. That
dimension should be:
– 26-1/4" to 38-1/4" for 8 ft. to 9 ft. ceilings.
•9 ft. to 10 ft. ceilings require the use of the
ZX10SY duct cover. That dimension should
be:
– 38-1/4" to 50-1/4" for 9 ft. to 10 ft. ceilings.
• Drill 1/8" Pilot Holes For Mounting Brackets.

Align edge 25-1/2" above Cooking Surface.
17-5/16"
3-15/16" 13-9/16" 2-5/32"
C
L
C
L
C
L
• Drill 1/8" Pilot Holes.
• Drill 1/8" Pilot Holes.
26-14" to 8 ft. Ceiling
38-1/4" to 9 ft. Ceiling

38-1/4" to 50-1/4" For
9ft. to 10 ft. Ceiling
Using Optional Accessory
ZX10SY Duct Cover
5-7/8"
2 Phillips Head Screws

8
Installation
36" Vent Hood
4
Step
Install
Mounting
Brackets
Whenever possible, the vent hood should be
secured to the wall studs.
When screws enter wall studs:
•Drill 1/8" pilot holes at the 6 locations shown
on the template.
•Remove the template.
•Secure the mounting brackets to the wall
with wood screws provided.
When screws enter a hollow wall:
•Drill 3/8" pilot holes at the 6 locations shown
on the template.
•Remove the template.
•Tap the anchors for the molly bolts into all 6
pilot holes.
•Secure the mounting brackets to the wall
with screws.
•Tighten screws until molly bolts expand
behind the drywall.
Note: Some installations may use a combination of mounting the hood
to studs and to hollow wall. Drill 1/8" pilot holes in all locations.
Enlarge holes that did not enter studs to 3/8" and tap anchors for molly
bolts into the holes.
5
Step
Install
the Hood
Place the hood on the brackets and slide left
to right to align with rectangular slots at the
top.
•Adjust the installation height by tightening
or loosening the screws at the bottom of the
brackets.
•Align the hood to match lower mounting
holes with pilot holes.
•Install wood screws or molly bolts, loosely,
into lower mounting holes. Do not tighten.
•Level the hood by tightening or loosening
the screws located on the bottom mounting
brackets.
•Tighten the lower mounting screws.
•Tighten the screws located at the top of the
mounting bracket against the hood.
Mounting Screws
Tighten Screws
To Secure Hood
To Wall
Level and
Height
Adjustment
Screws

Installation
36" Vent Hood
Install Duct
Bracket
Step
6
9

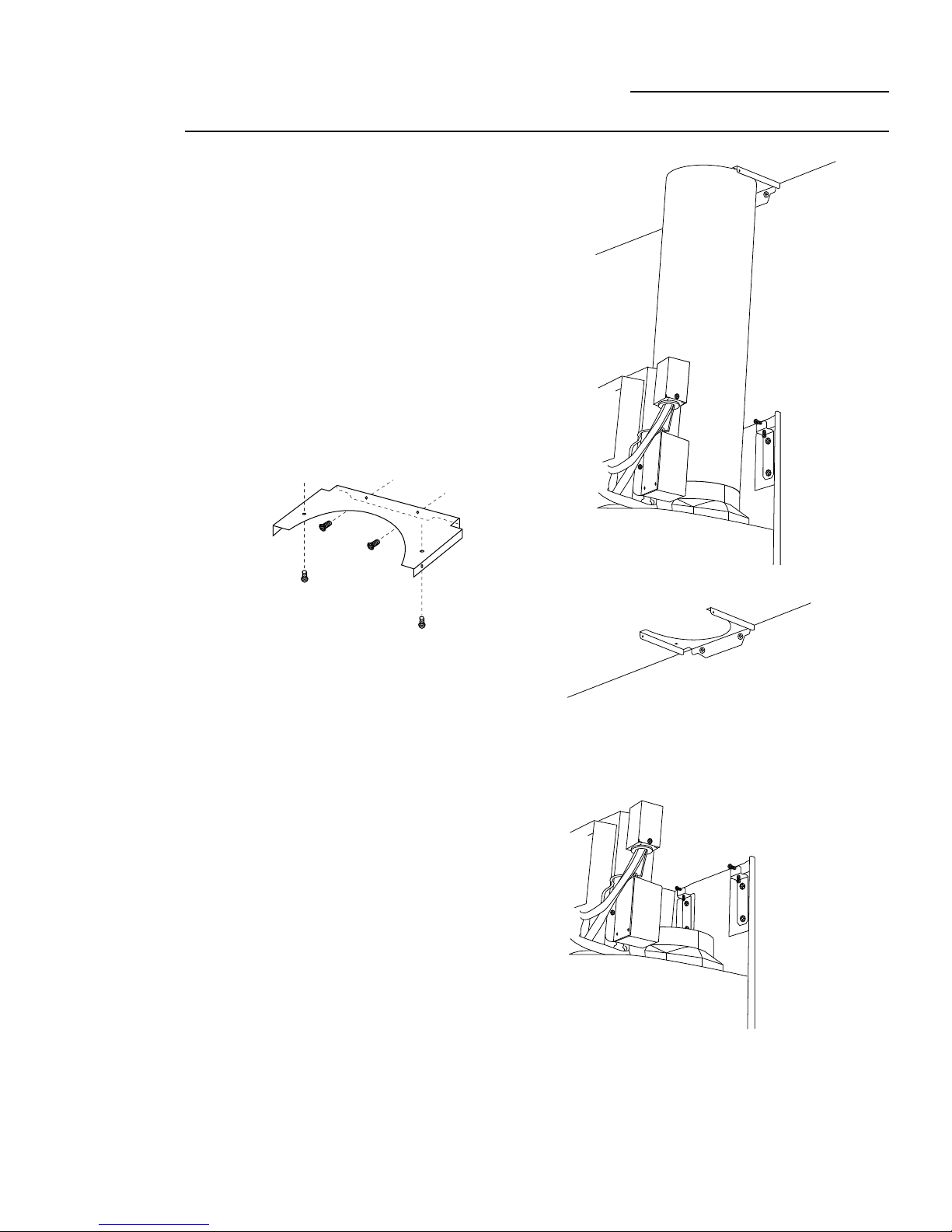

•Install the 2 small screws into the sides of the
duct bracket. Remove the screws. This will
insure ease of final installation.
•Temporarily install a length of 6" duct
between the hood outlet and the ductwork at
the ceiling.
•Position the upper duct bracket behind the
duct and against the wall and ceiling.
•Mark the 4 screw locations.
•Remove the bracket and temporary duct
section.
•Drill 1/8" pilot holes in marked locations.
•If pilot holes did not enter studs, enlarge the
holes to 3/8" and install molly bolt anchors.
•Secure the bracket to the ceiling and wall
with wood screws and/or molly bolts.

10
Installation
36" Vent Hood
Connect
Ductwork
7
Step
Duct Tape
Over Seam and Screw
Screw
Air
Flow
Cut a length of 6" duct to connect hood flange
to the ductwork.
•Install ductwork, making connections in
direction of airflow as illustrated.
•Secure joints in ductwork with sheetmetal
screws.
•Wrap joints with duct tape for airtight seal.
8
Step
Connect
Electrical
Verify that power is turned off at the source.
CAUTION
If house wiring is not 2-wire with a
ground wire, a ground must be
provided by the installer.
When house wiring is aluminum,
be sure to use U.L. approved anti-
oxidant compound and alumi-
num-to-copper connectors.
WARNING
•Insert house wiring through strain relief and
tighten.
•Connect white leads to branch circuit white
lead.
•Connect black leads to branch circuit black
lead.
•Connect green/yellow leads to branch
circuit green or bare ground lead.
•Secure all connections with wire nuts on
each electrical connector.
•Push wires into junction box and replace
cover. Be sure wires are not pinched.
Install Optional ZX10SY Duct Cover
•Separate the supplied duct cover into pieces.
Discard the upper (or inner) section.
•Insert the new ZX10SY duct cover into the
original lower section. Be sure that the new
longer section is inside the shorter original
section. The notches will be at the bottom
and the screw holes at the top as illustrated.
•Follow the same procedures shown above to
install the new duct cover.
Install the
Decorative
Duct Cover
Step9Mounting Screws
Bottom
Notches
Place the decorative duct cover on top of the
hood.
•Insert the lower portion of the duct cover
into the impression on the top of the hood.
•Extend the inner duct upwards to meet the
ceiling and bracket.
•Secure the duct cover to the bracket with the
2 small Phillips screws provided.

Installation
36" Vent Hood
•Remove protective film on filters.
•Tip the filter into the lower slots at the rear
of the opening, lift the filter and pull the
knob forward until the filter rests on the
slots.
•To remove the filters, grasp the knob and
push the filter towards the rear and tilt
downwards.
11
10
Step
Install Filters
Finalize
Installation
Step
11 •Remove protective film covering the control
panel on the front face of the hood.
•Refer to the Use and Care book for
operating instructions.

Pub. No. 49-8775
Dwg. No. 164D3333P029
 1996 GE Appliances
(N.D. 574A) 4/97
Printed in Italy
04306155
Monogram.
®
General Electric Company
Louisville, KY 40225
Note: While performing installations described in this book,
safety glasses or goggles should be worn.
To obtain specific information concerning any
Monogram product or service, call GE Answer Center®
consumer information service at 800.626.2000—any
time, day or night.
For Monogram local service in your area, call
1-800-444-1845.
NOTE: Product improvement is a continuing endeavor at General
Electric. Therefore, materials, appearance and specifications are subject
to change without notice.
