GE Profile PV977 Operating instructions

ge.com
O_
Safety Instructions ......... 2,3
Operating Instructions
Light Controls .................... 4
Vent Controls ..................... 4
Care and Cleaning
Grease Filters .................... 5
Hood Lights ...................... 6
Stainless Steel Surfaces ........... 6
Installation Instructions
Installation Preparation ........ 7-15
Vented to the Outside ........ 16-20
Recirculating ................. 21-26
Troubleshooting Tips ..... 27,28
Consumer Support
Consumer Support ............. 50
Warrantg ....................... 29
PV977
0_
U
Write the model and serial numbers here:
Model #
Serial #
Youcan find them on a label on the inside
of the hood.
49-80550 12-08JR

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
SAFETYPRECAUTIONS
_kWARNING - ToREnUCE
THE RISKOF FIRE, ELECTRICSHOCK OR INJURY
TO PERSONS,OBSERVETHE FOLLOWING:
A. Usethis unitonlg inthe mannerintended
bgthe manufacturer.Ifgouhavequestions,
contactthe manufacturer.
B,
C,
Beforeservicingor cleaningunit,switch
poweroff atservicepaneland locktheservice
disconnectingmeansto preventpowerfrom
beingswitchedon accidentallg.Whentheservice
disconnectingmeanscannot belocked,securelg
fastena prominentwarningdevice,suchasa tag,
totheservicepanel.
Donotusethis unitwith angsolid-statespeedcontrol
device.
D. Thisunitmustbegrounded.
_, CAUTION- Forgenera/ventilatinguse
onlg. Donot useto exhaust hazardous or explosive
materials and vapors.
CAUTION- Toreduceriskoffireand
to properly exhaust air,be sureto duct air outside.
Do not vent exhaust air into spaceswithin walls
or ceilingsor into attics, crawl spacesor garages.
_, WARNING - ToREDUCETHERISK
OF INJURYTOPERSONSIN THEEVENTOF
A RANGETOPGREASEFIRE,OBSERVE
THEFOLLOWING*:
A, SMOTHERFLAMESwith a close-fitting lid,cookie sheet
or metal trag, then turn off the burner. BECAREFUL
TO PREVENTBURNS.Ifthe flames do not go out
immediatelg, EVACUATEAND CALLTHEFIRE
DEPARTMENT.
& NEVERPICKUPAFLAMINGPAN-
Youmagbeburned.
C. DONOTUSEWATER,includingwet
dishclothsortowels-a violentsteam
explosionwill result.
D. Usean extinguisherONLYif:
1. Youknowgou havea ClassABC
extinguisher,and goualreadgknow
howto operateit.
2. Thefire issmallandcontained
inthe areawhereitstarted.
3. Thefiredepartmentisbeingcalled.
4. Youcanfightthefirewith gour back
to anexit.
* Basedon "KitchenFireSafetgTips"published
bg NFPA.
2

_e.com
SAFETYPRECAUTIONS
_, WARNING - ToREDUCETHERISK
OFA RANGE TOP GREASEFIRE:
A_
B_
C_
Neverleavesurfaceunitsunattendedat highsettings.
Boiloverscausesmokingand greasyspilloversthat
may ignite,Heatoilsslowlyon low
or mediumsettings.
Alwaysturn hoodONwhencookingon highheat
orwhenflamb6ingfood(i.e.CrepesSuzette,Cherries
Jubilee,PeppercornBeefFlamb6).
Cleanventilatingfansfrequently.Greaseshouldnot
beallowedto accumulateon fanor filter,
,&WARNING - ToREnUCETHERISK
OF FIRE, USEONLY METAL DUCTWORK.
Donot attemptto repairor replaceany
partof yourhoodunlessitisspecifically
recommendedinthismanual.Allotherservicing
shouldbereferredto a qualifiedtechnician.
D. Useproperpansize.Alwaysusecookware
aopropriatefor thesizeofthesurfaceelement.
,&WARNING - ToREDUCETHERISK
OF FIRE,ELECTRICSHOCK OR INJURY
TO PERSONS,OBSERVETHE FOLLOWING:
A_ Installationwork andelectricalwiringmust
bedone byqualifiedperson(s)inaccordance
with allapplicablecodesandstandards,includingfire-
ratedconstruction.
B_ Sufficientair isneededfor propercombustionand
exhaustingofgasesthroughtheflue(chimney)offuel
burningequipmentto preventbackdrafting.Follow
theheatingequipmentmanufacturer'sguidelinesand
safetystandards,suchasthosepublishedby the
NationalFireProtectionAssociation(NFPA),the
AmericanSocietyfor Heating,RefrigerationandAir
ConditioningEngineers(ASHRAE)andthelocalcode
authorities.
C. Whencuttingor drillingintowallor ceiling,do not
damageelectricalwiringand otherhiddenutilities.
D. Ducted fans must always be vented to the outdoors.
READAND FOLLOWTHISSAFETYINFORMATIONCAREFULLY.
READAND SAVETHESEINSTRUCTIONS
5

Using the hood controls.
0
0
@
O0 ©0 0
PTOj_/e - FAN + -- LIGHT + MEMORY/
OFF
@ 0 0
MEMORY/OFRTo set the memorg:
A. Pressthe MEMORY/OFFbutton.
B. Set gout desired fan and light settings.
C. Press the MEMORY/OFFbutton again to save
these settings.
With gout desired settings in memorg, press the
MEMORY/OFFbutton to restore the fan and light
levels to their saved settings. These settings will
remain in memorg until theg are changed or loss
of power occurs.
To turn offthe hood, press the MEMORY/OFF
button.
LIGHT. Press + or - to increase or decrease light
level to desired setting. There are 2 light levels
(LOW, HIGH)and OFF.If you continue to press
the + or - buttons, the light will cgcle back through
the settings.
NOTE:Please check the lamps to ensure onlg 20W
lamps (maximum) are installed.
FAN. Press+ or - to increase or decrease fan
level to gour desired setting. There are 4 fan levels
(LOW,MED, HIGH, BOOST)and OFF.If gou continue
to press the + or - buttons, the fan will cgcle back
through the settings.
NOTE:There is an audible "beep" each time
a button is pressed. This is normal.
NOTE:The collars around the buttons will illuminate
when pressed. This is normal. The collars will
automaticallg turn off if the hood is turned off.
HEATSENSOR:
This hood isequipped with a heat sensor that will turn
on the fan if excessive temperatures are detected
(over 70°C/158°F) above the cooking surface. The hood
will return to its normal operation once the heat sensor
detects temperatures below 60°C/140°F.
NOTE:If the hood is OFFor on LOW fan speed,
the temperatures above 70°C/158°F are detected;
then the fan will automatically adjust to MED speed.
You may adjust the fan speed to HIGHor BOOST,
but you will not be able to adjust the fan speed to LOW
or OFF until temperatures below 60°C/140°F are detected.
NOTE:The collars around the buttons mag not illuminate
if the heat sensor is activated. This is normal.
4

Care and cleaning of the vent hood. ge.com
Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the vent hood.
J
Metal Grease Filter
The metal filter traps grease
released bg foods from the
cooktop. The filter also helps
prevent flames (from food, grease)
from damaging the inside
of the hood.
For this reason, the filter
must ALWAYSbe in place when
the hood is in use.The grease filter
is dishwasher-safe and should be
cleaned every 6 months, or as
needed.
Toremove:
Pull downward on the filter lock
to release the filter.
Toreplace:
Fit the tabs at the end of the filter
into the slots in left side of the filter
opening. Lift up the right side of the
filter and push gently until the filter
locks into place. Make sure the filter
lock is in the closed position to
secure the filter.
Toclean, swish the filter in hot
soapy water and rinse in clean
water or wash it in the dishwasher.
Do not use abrasive cleansers.
NOTE:Some discoloration will occur
in the dishwasher.
Lockingtab handle
Lockingtabhandle
Charcoal Filter
For recirculating installation only
Ifthe model is not vented to the
outside, the air will be recirculated
through a disposable charcoal filter
that helps remove smoke and odors.
Thecharcoal filter should be
replaced when it isnoticeably dirty
or discolored (usuallg after 6 to 12
months, depending on hood usage).
NOTE:DONOTrinse, or put charcoal
filter in an automatic dishwasher.
The charcoal filter cannot be
cleaned. It must be replaced.
Order Charcoal Filter WBO2Xl1348.
Toinquire about purchasing
replacement charcoal filters or to find
the location of a dealer nearest you,
pleaseca!!our toil-flee number:
National Parts Center
800.626.2002
To remove:
1.Removethe metal filter-see Metal
greasefilter section.
2. Removethe charcoal filter bg
pushing in on both locking tab
handles to release.
To replace:
1.Insert the charcoal filter into the
opening. Pushthe locking tab
handles toward the center and
releaseto engage the locking tabs.
2. Replacethe metal filter-see Metal
greasefilter section.
5

Care and cleaning of the vent hood.
Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part
of the vent hood.
Stainless Steel Surfaces
Do not use a steel wool pad;
it will scratch the surface.
Toclean the stainless steel surface, use
warm sudsy water or a stainless steel
cleaner or polish. Always wipe the surface
in the direction of the grain. Follow
the cleaner instructions for cleaning
the stainless steel surface.
To inquire about purchasing stainless steel
appliance cleaner or polish, or to find the
location of a dealer nearest you, please
call our toll-free number:
National Parts Center
800.626.2002
ge.com
Light Bulbs
CAUTION:
Allow bulbsto coo! beforetouching.
Tochange the light bulbs:
.Remove the lamp lens cover by
inserting a small flat blade screwdriver
into each of the three slots and gently
prying it free.
NOTE:Do not remove the outer trim ring
(lamp assembly).
2.Wear gloves. Do not touch the bulb
with gour bare fingers. Skin oils can
cause earlg lamp failure.
3. Grasp the bulb and pull it straight out.
4. Replace with the same wattage. Early
bulb failure and damage to or failure of
the transformer may occur if wattage
is too high.
These 12-volt, 20-watt halogen bulbs
with a G4 base are available at
specialty lighting stores and home
building centers.
To order replacement bulb no.
WB01×10239, contact the GE National
Parts Center at 1.800.626.2002 or
purchase from your local retailer.
.5.Replace lamp lens cover by inserting
the three retaining tabs into the three
slots and pressing firmly in place.
to remove the lamp lens cover.
Removableinner
lamplenscover
NOTE:Makesure thetabs areinsertedintothe slots.
6

Installati
Instructio Island Chimneg Vent Hood
j F'_ Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com ]
BEFORE YOU BEGIN
Read these instructions completelg and carefullg.
•IMPORTANT -Savetheseinstructions
for Iocol inspector's use.
•IMPORTANT - Observeallgoverning
codes and ordinances.
• Note to Installer- Be sure to leave these
instructions with the Consumer.
Note to Consumer - Keep these instructions
for future reference.
• Skill level - Instollotion of this vent hood requires
bosic mechonicol and electricol skills.
Completion time - Approximotelg 4 to 6 hours
Proper instollotion is the responsibilitg
of the instoller.
Product foilure due to improper instGIIGtion
is not covered under the Warrantg.
*_CAUTION - Duetotheweight
ond sizeoftheseventhoods ond to reduce
the riskofpersonolinjuryor domoge
tothe product,TWO PEOPLE ARE REQUIRED
FOR PROPER INSTALLATION.
FOR YOUR SAFETY:
-AWARNING - Beforebeginningthe
instollotion,switchpower offotserviceponelond
lockthe servicedisconnectingmeons toprevent
power from being switchedon occidentollg.When
the servicedisconnectingmeons connot be locked,
securelyfosteno prominentworning device,such
os o tog,tothe serviceponel.
PRODUCT DIMENSIONS
27-5/8"
L13-I/8"
*Height to
ceiling
2-3/8"
...... __ i 3_1/8,,
......................35-7/8...........................I
* Forsupplied duct cover ceiling height for vented
installation and recirculating installation, refer to
the table on page 12.
INSTALLATION CLEARANCES
24" Min.*
30" Max.*
* Exactinstallation
height depends
on ceiling height.
NOTE:Instollotion height should be meosured from
the cooking surfoce to the bottom of the stroight
portion of the hood. This hood must be instolled
24" min. ond 30" mox. obove the cooking surfoce.
The cooking surfoce should be ot leost 36" above
the floor. This hood may be vented to the
outdoors, or it can be installed for recirculating
operation.

Installation Preparation
PREPARE TO INSTALL THE HOOD
ADVANCE PLANNING
Ductwork Planning
•These vent hoods are equipped for 8" round
ductwork.
• Determine the exact locution of the vent hood.
• Plan the route for venting exhaust to the outdoors.
• Use the shortest and straightest duct route
possible. For satisfactory performance, duct run
should not exceed 100 ft. equivalent length for any
duct configurations.
• Refer to "Duct Fittings" chart to compute
the maximum permissible length for duct runs
to the outdoors.
• Use rigid metal ductwork only.
• Install a roof cop with damper at the exterior
opening. Order the cap and any transitions
and length of duct needed in advance.
Ceiling Framing for Adequate Support
•These vent hoods are heavy. Adequate structural
support must be provided. The ceiling structure
must be capable of supporting the weight of the
hood and any inadvertent user contact loads
(approximately 200 pounds). The hood support
frame will be supported by 2 x 4 cross framing.
• Installation will be easier if the vent hood is
installed before the cooktop or countertop below
is installed.
Duct Covers
•All models (Ire shipped with duct covers. For
supplied duct cover ceiling heights for vented
installation and recirculating installation, refer
to table on page 12.
POWER SUPPLY
IMPORTANT -(Please read carefully)
WARNING:
FOR PERSONAL SAFETY,THIS APPLIANCE MUST BE
PROPERLYGROUNDED.
Remove house fuse or open circuit breaker before
beginning installation.
Do not use an extension cord or adapter plug with
this appliance. Follow National Electrical Codes
or prevailing local codes and ordinances.
Electrical Supplg
This vent hood must be supplied with Z20V, 60Hz,
and connected to an individual, properly grounded
branch circuit, and protected by a 15 or 20 amp
circuit breaker or time delay fuse.
• Wiring must be 2 wire with ground.
• If the electrical supply does not meet the above
requirements, call (_licensed electrician before
proceeding.
• Route house wiring in the ceiling, as close to the
installation locution as possible. Allow additional
length from ceiling joists to reach the junction
box on the bottom of the hood support frame.
• Connect the wiring to the house wiring
in accordance with local codes.
Grounding Instructions
The grounding conductor must be connected to
(_ground metal, permanent wiring system, or an
equipment-grounding terminal or lead on the hood.
-AWARNING:
The improper connection of equipment-grounding
conductor con result in a risk of electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether
the appliance is properly grounded.

Installation Preparation
DUCT FITTINGS
Use this chart to compute
maximum permissible lengths for
duct runs to outdoors.
NOTE: Do not exceed maximum
permissible equivalent lengths!
Maximum duct length:
i00 feet.
Flexible ducting:
If flexible metal ducting is used,
all the equivalent feet values
in the table should be doubled.
The flexible metal duct should
be straight and smooth and
extended as much as possible.
DO NOT use flexible plastic
ducting.
NOTE: Ang home ventilation
sgstem, such as a ventilation hood,
mag interrupt the proper flow of
combustion air and exhaust
required bg fireplaces, gas
furnaces, gas water heaters and
other naturallg vented sgstems.
To minimize the chance of
interruption of such naturallg
vented sgstems, follow the
heating equipment manufacturer's
guidelines and safetg standards
such as those published bg NFPA
and ASHRAE.
Duct Piece Dimensions
Round,
straight
Equivalent
Length*
1ft.
(per foot
length)
3-1/4" x 12" 1 ft.
straight (per foot
length)
Quantitg
Used
17 ft.
90° elbow
i0ft.
45° elbow
3-1/4" x 12"
90° elbow 43 ft.
3-1/4" x 12"
45° elbow 26 ft.
3-!/4" x 12"
90° flat elbow 102 ft.
_,_ 8" round to
3-1/4" x 12" transition 2 ft.
__ 3-!/4" x 12"to 8"
round transition 5 ft.
8" round
to 3-1/4" x 12"
transition 90° elbow 6 ft.
3-1/4" x 12"to 8"round
round transition 90° elbow 13 ft.
Round
wall cap
with damper 32 ft.
3-!/4" x 12"wall cap
with damper 75 ft.
<_ Roundroof cap 44 ft.
*Actual length of straight duct plus duct fitting
equivalent. Equivalent length of duct pieces are
based on actual tests conducted bg GE Evaluation
Engineering and reflect requirements for good
venting performance with ang ventilation hood.
Total Duct Run
Total
Equivalent
Length

Installation Preparation
TOOLS AND MATERIALS REQUIRED
(NOT SUPPLIED)
_....................................::::::::::::::::::::: )
Penciland tape measure
Spirit level
Safety glasses
Phillips screwdriver Flashlight
Metal snips
Electric drill with 3/16" bits,
#2 Phillips head Pliers
Ste ladder
_]_
Wire cutter/stripper
Sabersaw or KeyHolesaw
UL listed wire nuts
Aluminized
Duct tape
©
Strain relief for
junction box
8" Roundmetal
duct, length to
suit installation
120V60Hz.15 or 20 Amp,
2-wire with ground, properly
grounded branchcircuit
REMOVE THE PACKAGING
il CAUTION: Wearg,ovestoprotect
against sharp edges.
• Remove the duct covers.
• Remove the hardware bag, literature package
and other boxed parts.
• Remove and properlg discard the protective
plastic wrapping and other packaging materials.
10

Installation Preparation
CHECK INSTALLATION HARDWARE
Locate the hardware package packed with the hood and check contents.
HARDWAREPACKAGE
Locate and count screws
?
4 Duct cover clips
4 Wood
screws
73 Hoodattachment screws
(70 required, 3 extra)
.......................................... I............................................
I
I
+ ÷
FRONT ()F HOOD
....................................... _ ............................ !_;_;_:(,:,_,:,m...
Template
-A Uppervertical supports(4)
BY ............ J
......... j
V............ ii'_
?'" " ......... /d
Lowervertical supports(4)
Ductcover supports(2)
E
Stainless steel filter _____
Horizontal support
wer
Upper_ .j
Duct covers
RECIRCULATING KIT (Included)
Air deflector Charcoalfilter
11

Installation Preparation
DETERMINE INSTALLATION HEIGHT
• Decorative duct covers are provided to conceal
the ductwork running to the ceiling.
• This hood can be installed for recirculating
operation. Recirculating Kit included with hood.
30" Max.*
V .......
_* Exact installation
_vz:z:z_ height depeads
on ceiling height.
NOTE: Installation height should be measured from
the cooking surface to the flat portion of the bottom
of the hood.
For optimum performance, the hood must be
24" min. and :30" max. above the cooking surface.
The hood installation height depends upon ceiling
height.
PV977 - Island
Upper Duct Cover ][ 29.92
Lower Duct Cover J_ 25.98
Counter to Hood Heiq_ht
*Possible VENTED
Installation Heiqht
24"
24" to 25"
24" to 26"
24" to 27"
24" to 28"
24" to 29"
*Possible
RECIRCU LATING
Installation Heiqht
24"
24" to 25"
24" to 26"
24" to 27"
24" to 28"
24" to 29"
*Based on 36" countertop height
12

Installation Preparation
CONSTRUCT CEILING SUPPORT
Plan the Location of the Hood and Ductwork
• Use u plumb bob to check the location.
The countertop/cooktop below the hood
must be centered with the hood.
• The hood should extend beyond the front and rear
edge of the cooking appliance.
• The duct in the ceiling must be centered over
the cooktop.
Ceiling
3-1/8"
Align with
center of
cooktop
Ductcovers--_- I
,_-------- Hoodduc j
' centerlin_
I
I
I
I
I
I
_13-13/16" _I
I
27-5/8"
I
ICooktop
Countertop
Side view
Ceiling Support Structure
• At the hood location, install cross framing between
ceiling joists as shown. (2x4 wood supports
are required to support the weight of the hood.)
EXAMPLEA
T
16"Joist
spacing
Il
I
I
• Arrange cross framing in the ceiling to suit
the existing structure.
• Your ceiling joists will be like one of the following
examples.
Installcross-framingsymmetricallyover
duct/cool<topcenterline
-'- 10-5/16"----*
i
i
I
/ :tl_- 2x4 Cross
\1 i framing wood
;"X \ / supports
-_XCooktop
Align duct outline
to center
of cooktop
Top view -ceiling ioists parallel to front of hood
13

Installation Preparation
CONSTRUCT CEILING SUPPORT (Continued)

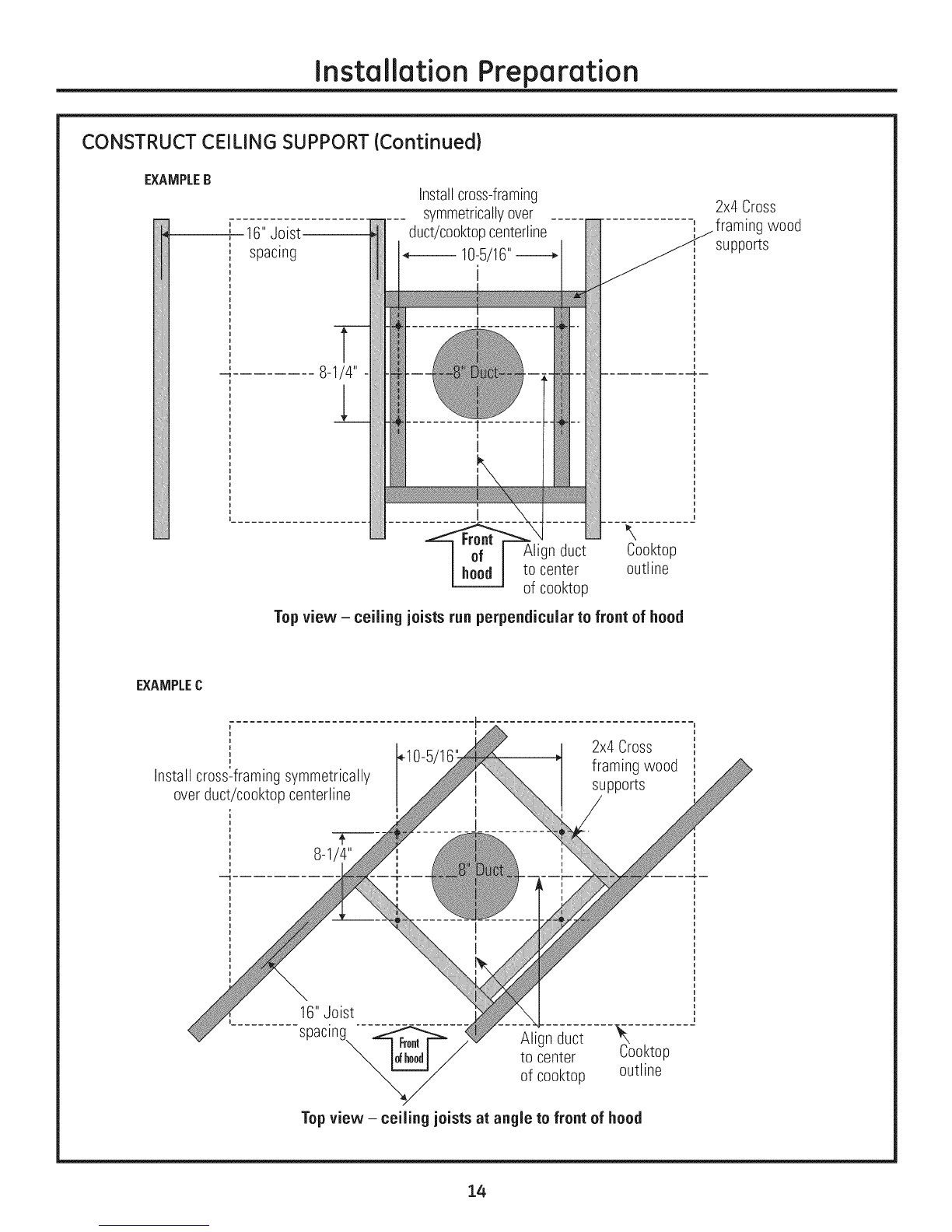

EXAMPLEBInstallcross-framing
symmetricallyover
16"Joist ducticooktopcenterline
spacing *----- 10-5/16"----------*
i
Align duct
to center
of cooktop
2x4 Cross
i framing wood
supports
\Cooktop
outline
Top view -ceiling joists run perpendicular to front of hood
EXAMPLEC
Install cross-framing symmetrically
over ducticooktop centerline
o
i
,--_J
o
,' 8-1/4"
I
i
--1
2x4 Cross
1 framing wood
supports
i
I
16"Joist
spacing Alicn duct
to center Cooktop
of cooktop outline
Topview -ceiling joists at angle to front of hood
14

Installation Preparation
CONSTRUCT CEILING SUPPORT (Continued)
• Secure each 2 x 4 block with at least four (4),#10
wood screws, 3" long (not supplied). Use 8 wood
screws total for the two supports.
• The cross framing must be accurately aligned
to assure correct positioning of the hood.
• The cross framing must be level in all directions.
Check with a spirit level and adjust if necessarg.
IMPORTANT: The ceiling structure must be capable
of supporting the weight of the hood (approximatelg
200 pounds) and ang inadvertent user contact loads.
The hood support frame will be supported bg the
2 x 4 cross framing.
Ductwork for Installations Vented to the Outdoors
• Use the shortest and straightest duct route possible.
For satisfactorg performance, duct run should not
exceed 100 feet equivalent length for ang duct
configuration.
Refer to "Duct Fittings" chart to compute
the maximum permissible length for duct runs
to the outdoors.
This vent hood must use 8" round rigid duct.
Install the house ductwork to run horizontallg
between ceiling joists or straight up through
the roof.
Finish the Ceiling
• Finish the ceiling surface. Be sure to mark location
of the ceiling joists and cross framing. Check to be
sure the ceiling is level; use shims if necessarg.
2 x 4 min.
Crossframing
Ceiling
joist
(f
Y
(
l/
>
..... Ceilingj0ist
/
1
8" /\,.qt
.......... --...x
2x4
Vent straight up
through the ceiling
15

Installation Instructions
INSTALLATION-VENTEDTOTHEOUTSIDE
ISTEP 11MOUNT TEMPLATE
• Align the template with the marks on the ceiling
and tape in place.
- Be sure the template is oriented correctlg
with the front of the hood.
• Use a plumb bob to be sure the mounting holes
will provide parallel alignment with the countertop
below.
• Determine wire access hole location.
• Center punch all screw and determined wire hole
locations.
• Drill pilot holes in the 4 screw locations. Use a 3/16"
bit and drill approximatelg 1-1/2" deep.
• Drill one 1/2" hole for wires.
• Cut the 8-1/2" duct opening through the ceiling.
.......................................... i ............................................
FRONT ()F HOOD
i
........................................ _ ............................ !:_%_.:-,_:,.,,.
ISTEP 21 INSTALL CEILING SUPPORT
• Using 4 wood screws provided, attach the ceiling
support to the ceiling over duct opening hole
using pilot holes drilled in step 1.
t Front I
_' Screws .............
ISTEP 31 INSTALL LOWER VERTICAL
AND HORIZONTAL SUPPORTS
TO HOOD ASSEMBLY
• Using screws provided, attach the 4 lower
vertical supports to the hood assemblg with/4
screws per support.
Using screws provided, install the horizontal
support in the top outer holes of the vertical
supports.
o
16

Installation Instructions
ISTEP 41 DETERMINE FRAME HEIGHT
•Measure exact
ceiling height.
• Find the exact
frame height
required
on the chart
on page 12.
• Use this formula
to determine
your frame
height:
A-(B+C+D) =
E FrameJ
hel_
24" Min.*
[I 2-3/8" C 30" Max.*
A Ceiling
height
*See Chart on page 12.
il
n _ r
Frame height E where
A is the ceiling height,
B is the countertop
height, C is the height
determined by the
chart on page 12, D
is the height of the
hood measured from
the straight bottom
portion to the top
at the center.
STEP 5 INSTALL UPPER VERTICAL
SUPPORTS TO HOOD ASSEMBLY
• Determine how much of the upper vertical
supports will need to be above the lower supports
to accomplish the frame height determined in
step 4 for this installation.
• Using screws provided, attach the 4 upper vertical
supports to the lower vertical supports at the
position determined for frame height. The upper
vertical supports are mounted to the outside
of the lower supports.
17

Installation Instructions
INSTALLATION-VENTEDTOTHEOUTSIDE
JSTEP6 CUT DUCT TO LENGTH
FOR VENTED INSTALLATION
• Pleasure from the hood exhaust opening to
the top of the supports as shown in the figure.
• Subtract any length of duct that is protruding
through the ceiling.
• Cut the 8" duct to the appropriate length. Attach
to ceiling duct using aluminized tape and screws.
--f
Lengthof duct
needed minus the
length protruding
through the ceiling.
_2
STEP 7 INSTALL HOOD ASSEMBLY
TO CEILING SUPPORT
WARNING: Twopeople are required
to lift and position the hood onto the support.
• Lift the hood assembly up to the ceiling support.
Carefully fit the newly assembled duct over
exhaust opening on the hood assembly. The clips
on the ceiling support will snap into the large
openings on the upper vertical supports.
Using the screws provided, attach the upper
vertical supports to the ceiling support, 4 screws
per side, for a total of 16 screws.
Seal duct with aluminized duct tape.
Clips Ceiling
support
Seal with
aluminized
duct tape
18

Installation Instructions
[STEP 8 CONNECT ELECTRICAL
Verifgthat power isturned offatthe source.
-AWARNING: if house wiring is not 2-wire
with u ground wire, a ground must be provided by
the installer. When house wiring is aluminum, be
sure to use U.L. approved anti-oxidant compound
and aluminum-to-copper connectors.
• Remove the 6 screws on the junction box cover
and the knockout on the top left side.
Knockout
Junction
box cover
Secure the house wiring to the junction box with
U strain relief (not provided).
i .... i X:'I:::::
•Connect the white lead to the branch circuit white lead.
• Connect the block lead to the branch circuit block lead.
• Connect the green/gellow lead to the branch
circuit green lead or bore ground lead.
• Secure all the connections with wire nuts on each
electrical connector.
• Push the wires into the junction box and replace
the cover. Be sure the wires are not pinched.
• Secure the junction box cover with the 6 original
screws.
[STEP 9] INSTALL DUCT COVER SUPPORTS
• Attach the duct cover supports to the sides
of the horizontal and ceiling supports using
4 screws per duct cover support.
Ceiling
support
Horizontal
support
Screws
Duct cover
support
19

Installation Instructions
INSTALLATION-VENTEDTOTHEOUTSIDE
STEP 10 INSTALL DUCT COVERS
Duct cover
support spring
IMPORTANT:Two people (]re required to install
the duct covers.
NOTE:If gou ore installing this hood for recirculating
operation, place the duct covers onto the hood with
the venting slots at the top. If the hood is vented
to the outside, the holes should be positioned
on the bottom.
• Remove the protective film from all duct covers.
Place one upper duct cover over the rear of
the support assemblg. The tobs on the edges
of the duct cover will slide into a notch on the duct
cover support. When all 6 tabs on the duct cover
(Ire in the notches on both of the duct cover
supports, slide the duct cover up so it sits on
the duct cover support spring clip.
Left duct cover-_ I_
0oo
0
• Place a duct cover clip onto the bottom of the rear
lower duct cover locking the clip into place. Repeat
on the other side.
Duct cover clip
Lower the duct cover into the recess on the hood,
being careful to hold the clip in place while lowering
the duct cover onto the hood assemblg.
Place the front lower duct cover into the recess
of the hood locking it onto the duct cover clip
on the rear cover.
Place a duct cover clip at the top on each side where
the front and rear duct covers meet. This will hold
the rear and front covers together.
STEP i0 INSTALL DUCT COVERS Icont.}
Using screws provided, secure the lower duct
covers to the hood assemblg from the underside
of the hood.
STEP 11 INSTALL METAL GREASE FILTER
• Remove protective film on the grease filter.
NOTE: The charcoal filter is not required for this
installation.
• Fit the tabs at the end of the filter into the slots
in left side of the filter opening. Lift up the right
side of the filter and push gentlg until the filter
locks into place. Make sure the filter lock is in
the closed position to secure the filter.
To remove the filter, pull downward on the filter
lock to release.
2O
