GE JVB37 Original instructions

Vent Systems
49-80437 11-06 JR
JVB37
JVB67
JVB94
JVB98
Owner’s Manual
& Installation
Instructions
ge.com
Downdraft
Write the model and serial
numbers here:
Model #______________________
Serial # ______________________
You can find them on a label on
the side of the blower housing.
Safety Instructions . . . . . . .2, 3, 7
Operating Instructions
Cooking Tips . . . . . . . . . . . . . . . .5
Raise/Lower Switch . . . . . . . . . . .4
Using the Cooktop . . . . . . . . . . .4
Using the Downdraft System . . .4
Care and Cleaning
Grease Filters . . . . . . . . . . . . . . . .5
Painted or Metal Surfaces . . . . . .5
Stainless Steel Surfaces . . . . . . . .5
Installation Instructions
Advance Planning . . . . . . . . . .8, 9
Before You Begin . . . . . . . . . . . . .6
30″ Cooktop/Downdraft
Units JVB37 and JVB94 . . . . . . .10
36″ Cooktop/Downdraft
Units JVB67 and JVB98 . . . . . . .11

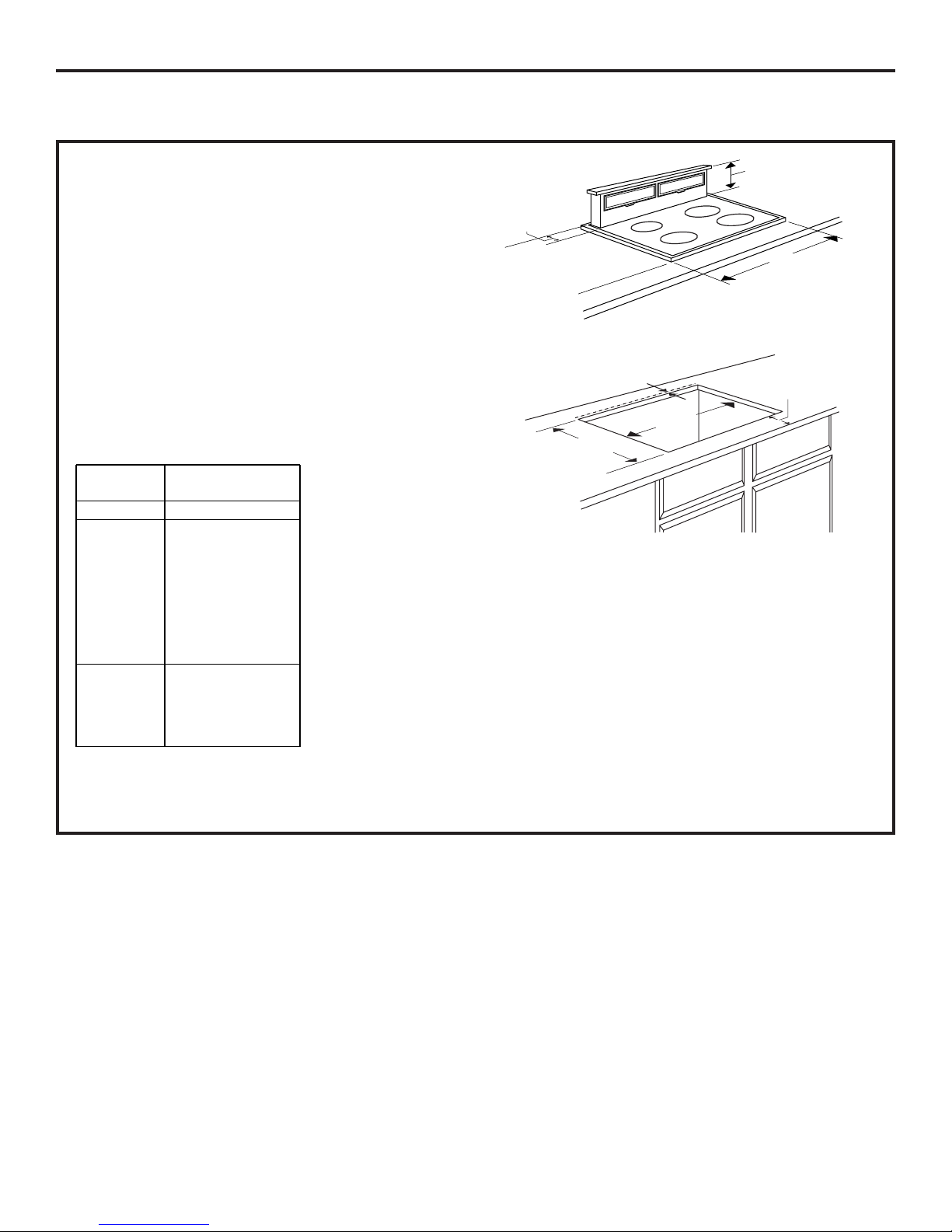

Dimensions and Clearances . .7, 8
Ductwork . . . . . . . . . . . . .8, 13, 15
Electrical and Gas Location . . . .8

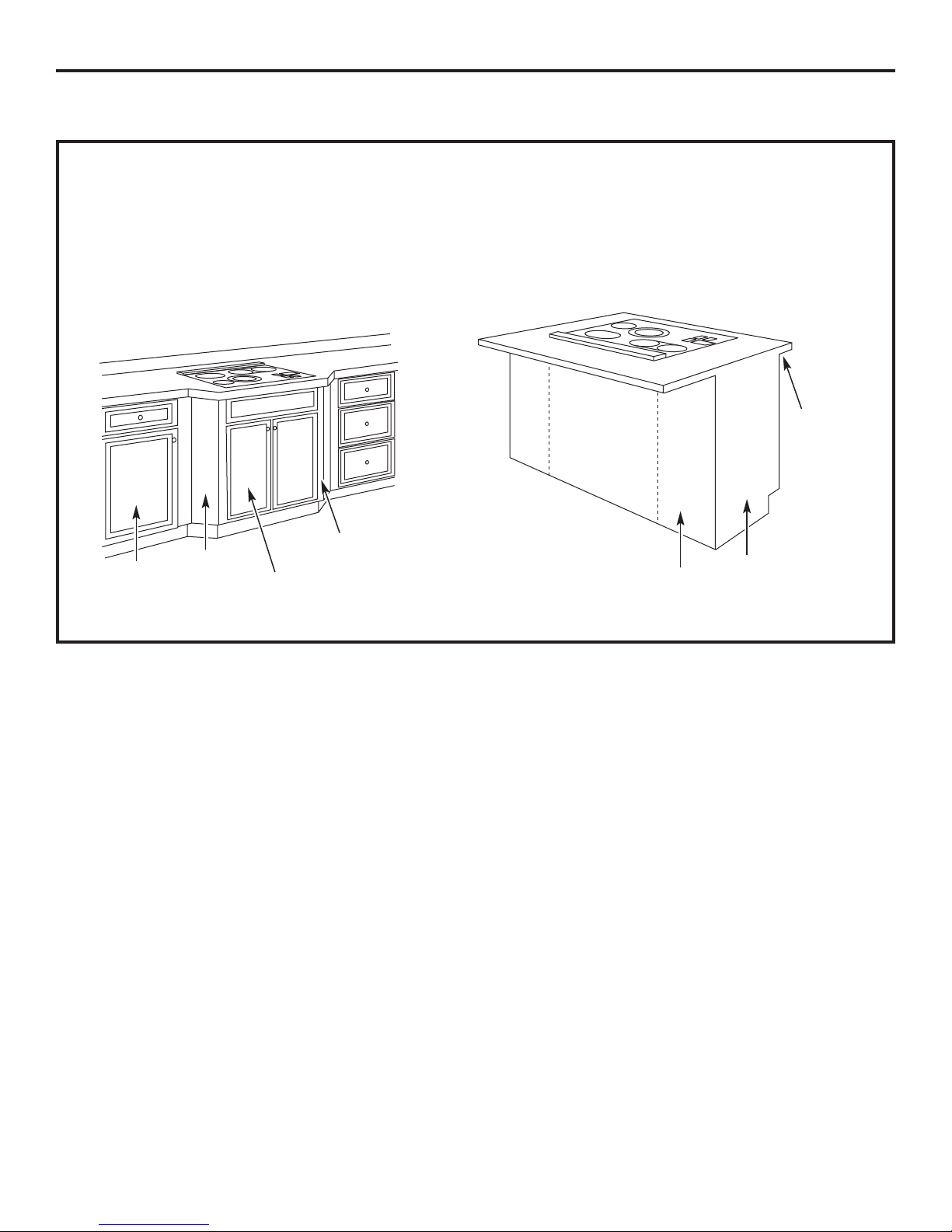

Installation Possibilities . . . . . . . .9
Installing the Downdraft
Vent System . . . . . . . . . . . . .10–17
Optional Kits . . . . . . . . . . . . . . .17
Power Supply . . . . . . . . . . . . . . .12
Raise/Lower Switch . . . . . . . . . .16

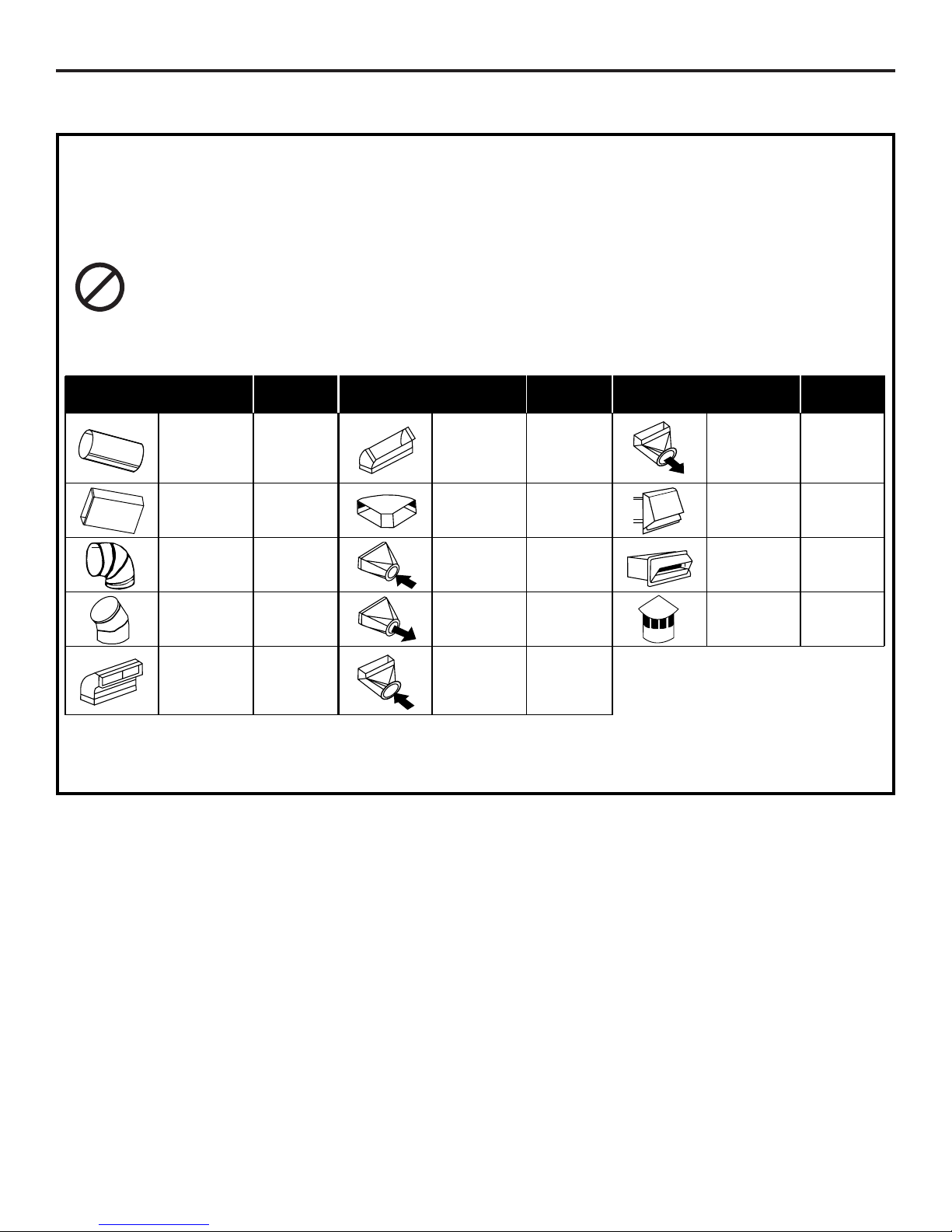

Venting Options . . . . . . . . . . . .14
Troubleshooting Tips . . . . . . .18
Consumer Support
Consumer Support . . . . . . . . . .20
Warranty . . . . . . . . . . . . . . . . . . .19

Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting TipsConsumer Support
2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
PLEASE NOTE: The downdraft vent system you have purchased was designed to be used
with GE, GE Profile and GE Profile Performance cooktops listed in this manual.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
SAFETY PRECAUTIONS
WARNING – TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended
by the manufacturer. If you have questions,
contact the manufacturer.
B. Before servicing or cleaning unit, switch
power off at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be locked,
securely fasten a prominent warning device,
such as a tag, to the service panel.
C. Do not use this unit with any solid-state speed
control device.
D. This unit must be grounded.
CAUTION – For general ventilating use only.
Do not use to exhaust hazardous or explosive
materials and vapors.
CAUTION – To reduce risk of fire and to
properly exhaust air, be sure to duct air outside.
Do not vent exhaust air into spaces within walls or
ceilings or into attics, crawl spaces or garages.
WARNING – TO REDUCE THE RISK OF
INJURY TO PERSONS IN THE EVENT OF A COOKTOP
GREASE FIRE, OBSERVE THE FOLLOWING*:
A. SMOTHER FLAMES with a close-fitting
lid, cookie sheet or metal tray, then turn off
the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out
immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN—
You may be burned.
C. DO NOT USE WATER, including wet
dishcloths or towels—a violent steam
explosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC
extinguisher, and you already know how
to operate it.
2. The fire is small and contained in the
area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to
an exit.
* Based on “Kitchen Fire Safety Tips” published
by NFPA.

Consumer SupportOperating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
ge.com
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Be sure electrical power is off before servicing the unit.
It may be necessary to remove the downdraft blower
system in order to service components such as the
blower motor or air vent mechanism.
Disconnect power to the cooktop and remove it
first. Reverse the steps in the Install the Downdraft
section to remove the blower.
Service parts are available from a GE Service and
Parts Center.
SERVICING
SAFETY PRECAUTIONS
WARNING – TO REDUCE THE RISK OF
A COOKTOP GREASE FIRE:
A. Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
B.
Always turn hood ON when cooking on high
heat or when flambéing food (i.e. Crepes Suzette,
Cherries Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware
appropriate for the size of the surface element.
WARNING – TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
A. Installation work and electrical wiring must be
done by qualified person(s) in accordance with
all applicable codes and standards, including
fire-rated construction.
B. Sufficient air is needed for proper
combustion and exhausting of gases through
the flue (chimney) of fuel burning equipment
to prevent back drafting. Follow the heating
equipment manufacturer’s guidelines and
safety standards such as those published by
the National Fire Protection Association
(NFPA), the American Society for Heating,
Refrigeration and Air Conditioning Engineers
(ASHRAE) and the local code authorities.
C. When cutting or drilling into wall or ceiling,
do not damage electrical wiring and other
hidden utilities.
D. Ducted fans must always be vented
to the outdoors.
WARNING – TO REDUCE THE RISK OF FIRE,
USE ONLY METAL DUCTWORK.
■Do not attempt to repair or replace any
part of your hood unless it is specifically
recommended in this manual. All other
servicing should be referred to a qualified
technician.
■PVC sewer pipe can be used as duct under
concrete slab if allowed by local code board.
■Make sure all fingers are away from the
downdraft top when it is lowered.
3

4
Using the Cooktop
CAUTION: Be careful when raising
or lowering the downdraft. Be sure pots, pot handles
and other objects are clear of the downdraft
and cannot be struck or tipped by the downdraft
being raised.
NOTE: There is a slight trim overhang at each end
of the vent.
■To avoid injury, be sure fingers are clear
of the downdraft cover when it is being
lowered.
■Keep hands and fingers away from all
downdraft parts.
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting TipsConsumer Support

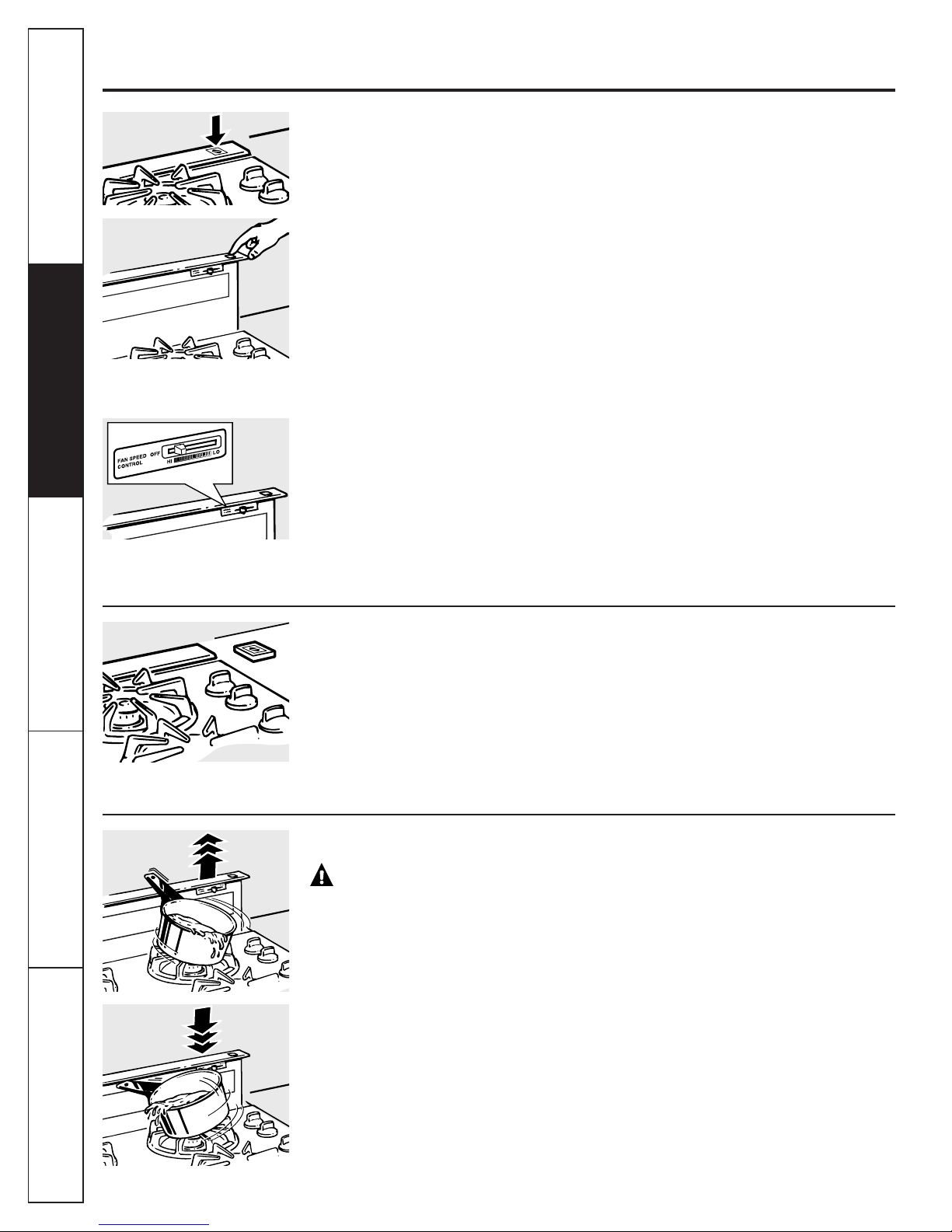

Using the downdraft system.
Raise/Lower Switch (30″models only)
Turn the downdraft blower ON by pressing
the raise/lower switch located at the top
right of the vent. Place your finger on the
“center” of the switch and hold until you
observe the vent moving, then release.
The air vent will rise. Use the selector switch
to turn the blower ON, OFF or to change
the blower speed.
The vent may be lowered by again pressing
the raise/lower switch at the top right side
of the vent. The blower, if left on, will
automatically go off when the vent is
lowered.
NOTE: For most convenient operation, set the
blower to the speed you use most often. The
blower will come on to this speed whenever
the unit is raised.
Remote Raise/Lower Switch (36″models only)
The 36″models have a remote raise/lower
switch. It operates in the same manner as
the switch located on the vent. This switch
may be located beside the cooktop or in a
convenient location.
Raise/Lower switch location
may vary.
On some models, the Raise/Lower
switch is located at the top right of
the vent.
Use the selector switch to turn the
blower ON, OFF or to change the
blower speed.

Do not use a steel wool pad; it will scratch
the surface.
To clean the stainless steel surface, use
warm sudsy water or a stainless steel cleaner
or polish. Always wipe the surface in the
direction of the grain. Follow the cleaner
instructions for cleaning the stainless steel
surface.
To inquire about purchasing stainless steel
appliance cleaner or polish, or to find the
location of a dealer nearest you, please call
our toll-free number:
National Parts Center 1.800.626.2002
ge.com
5
Consumer SupportOperating Instructions
Safety Instructions Installation Instructions Troubleshooting Tips
ge.com
Cooking Tips
The high air movement of this downdraft
system can increase the cooking times for
some foods. It may take longer to reach
high cooking temperatures if the downdraft
is turned to high right away. Adjust the fan
speed for best cooking results.
For best results when heating oil for deep
frying or when boiling water, use the front
surface units or wait until the water is
boiling or the oil is at frying temperatures
before turning on the downdraft.
The downdraft may not completely capture all the
steam from pans on the front burners.
Canning
When canning foods in a water-bath canner,
a gentle but steady boil must be maintained
continuously for the required time.
When canning foods in a pressure canner,
the pressure must be maintained
continuously for the required time.
Use of the blower at HIGH speed when
canning may reduce the temperature
enough to stop boiling. While canning,
we recommend using the downdraft at
LOW speed and using the front surface unit.
Painted or Metal Surfaces
Clean greasy surfaces frequently, using
a mild detergent.
Do not use abrasive cloth, steel wool pads or
scouring powder because they will mar the
surface.
Care and cleaning of the downdraft system.

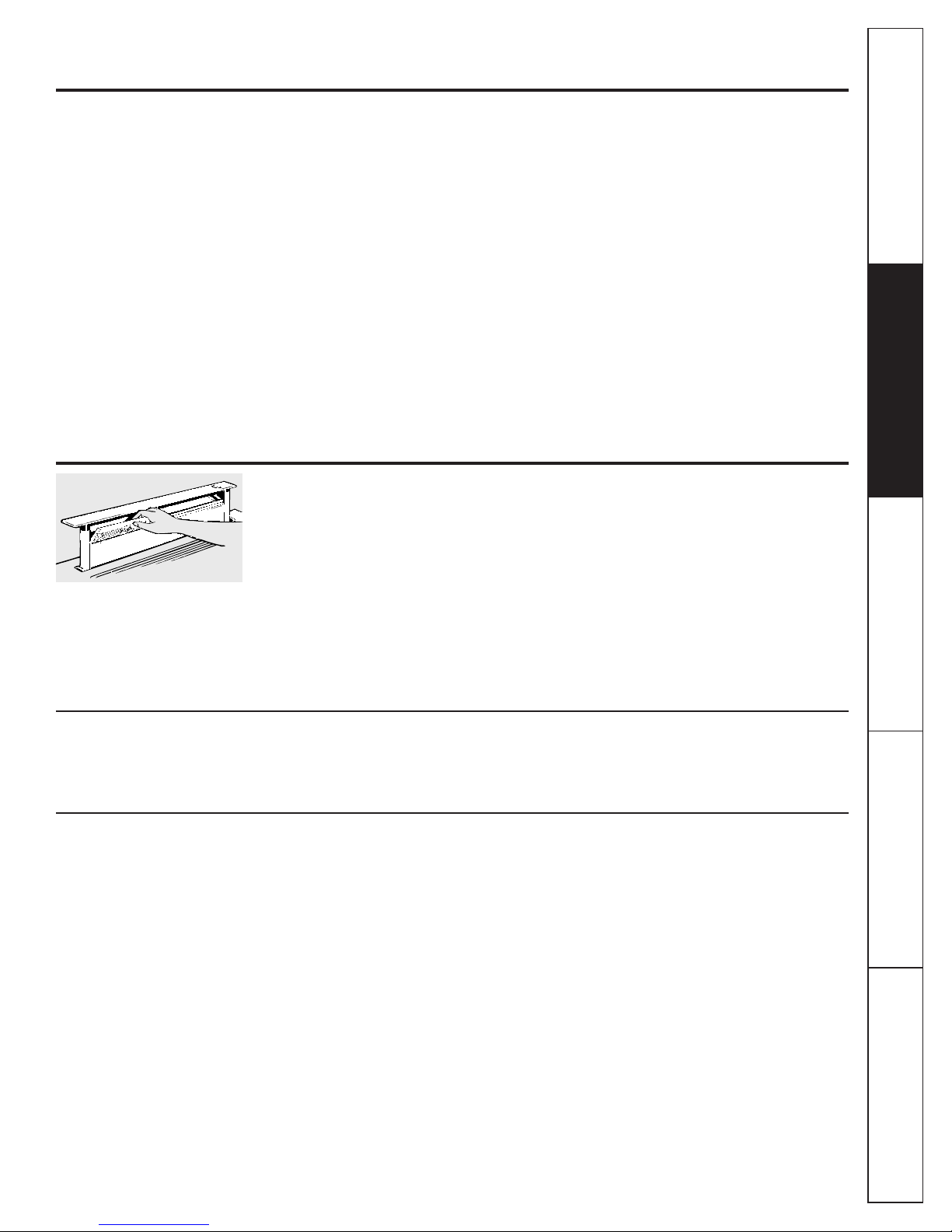

Grease Filters
The efficiency of your downdraft depends
on a clean filter. Frequency of cleaning
depends on the type of cooking you do.
Grease filters should be cleaned at least
once a month. Never operate the downdraft
without the filters in place.
To remove: Pull the filters out by grasping
them and pulling straight up.
To clean: Soak and then agitate in a hot
detergent solution. Light brushing may
be used to remove embedded soil. Rinse,
shake and remove moisture before
replacing.
Filters may also be cleaned in the
dishwasher.
With careful handling, the filter will last for
years. If replacement becomes necessary,
order the part from your dealer.
Stainless Steel Surfaces (on some models)

6
If you have questions, call 800.GE.CARES or visit our Website at: ge.com

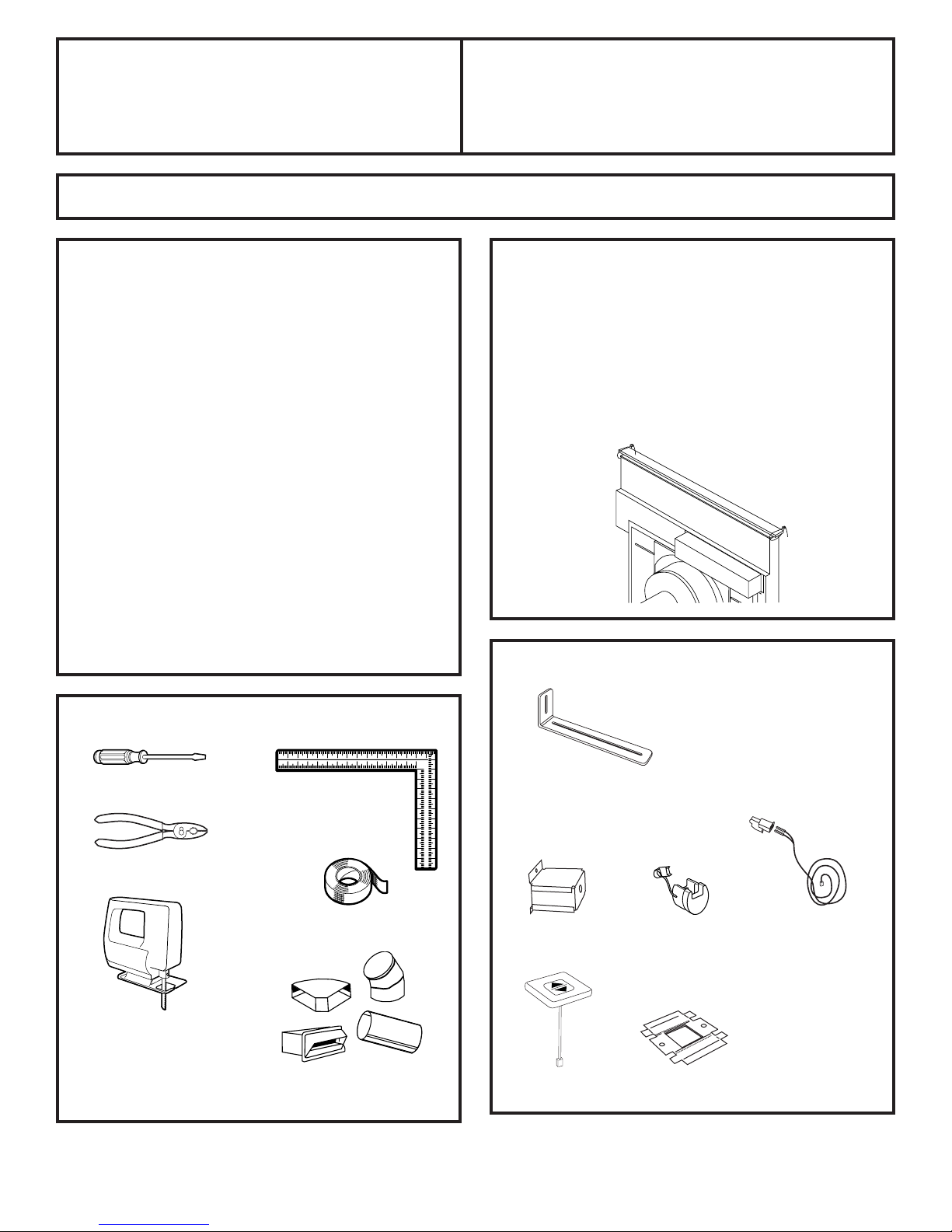

REMOVE PACKAGING
Open the carton and remove parts package.
Check contents to be sure all pieces are
present. (The parts package may be attached
to the power cord.)
Remove the shipping materials. Remove the
carton and set aside. The carton can be used
as a pad when changing or adjusting vent
direction.
Installation Downdraft Vent
Instructions System
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
•IMPORTANT —Save these
instructions for local inspector’s use.
•IMPORTANT —Observe all
governing codes and ordinances.
•Note to Installer – Be sure to leave these
instructions with the Consumer.
•Note to Consumer – Keep these
instructions for future reference.
•Note – This appliance must be properly
grounded.
•Proper installation is the responsibility of
the installer.
•Product failure due to improper installation
is not covered under the Warranty.
TOOLS YOU WILL NEED
Flat-blade screwdriver
Jig saw
Ductwork to suit
the installation
Carpenter square
PARTS INCLUDED
Remote raise/lower assembly (for 36″models only)
Stabilizing brackets
(all models) (4)
Wire box (2)
and screws (4)
Plastic strain
relief (2)
Wire and white
connector (1)
Switch cover
plate (1)
Attachment
bracket (1)
Pliers
Duct tape

7
Installation Instructions
DIMENSIONS AND CLEARANCES
CAUTION — Wall coverings, countertops and
cabinets should withstand 200°F. heat generated by
any cooktop.
AB
30″ Models 30″281⁄4″
36″ Models 36″333⁄4″
A
B
2″
81⁄2″
31⁄8″
33⁄8″
101⁄2″
71⁄8″
71⁄2″
33⁄4″
21⁄4″
61⁄4″
WARNING!
INSTALLATION SAFETY
INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
Installation work and electric wiring
must be done by qualified person(s)
in accordance with all applicable codes
and standards, including fire-rated
construction.
Ducted fans must always be vented to
the outdoors.
When cutting or drilling into wall or
ceiling, do not damage electrical wiring
and other hidden utilities.
WARNING — To reduce the risk of
fire, use only metal ductwork.
C
B
A
IMPORTANT: These vents are
recommended for island installations.
Against-the-wall installations are
limited due to countertop depth
requirements. The vent and cooktop
combined depth requires an extra
deep flat countertop surface.
The countertop must be at least 26″deep
with a flat surface area of 231⁄2″or more, front
to back. (NOTE: Curved front models require
235⁄8″minimum flat surface area.) In addition,
other clearances to the front edge of the
countertop must be considered.
•See specific cutout illustrations with your
cooktop model to determine requirements.
•A countertop with
a raised lip or rolled
front edge may not
allow enough flat
area for installation.
Flat surface
area
24″
27″

Installation Instructions
8
ADVANCE PLANNING
DUCTWORK
Prepare ductwork to vent to the outdoors.
•Use the shortest and straightest duct run
possible.
The maximum permissible length for duct
run is 150 feet.
Refer to Duct Fittings chart to calculate
equivalent length for various duct
configurations.
•The downdraft blower system is designed
to use 31⁄4″x 10″ductwork. It can be
transitioned to 6″round.
•Ductwork MUST be vented to the outside—
never into a crawl space, attic or other
enclosed space.
•Determine the need for a wall cap or roof
cap. Purchase the cap in advance from
your home building center or plumbing
supply.
CLEARANCES
•Installation must conform with local codes.
•The downdraft system with blower, motor
and duct work will occupy the cabinet
below the countertop and cooktop.
•The blower/motor assembly can be located
below the cabinet floor. The assembly will
fit between 16″floor joists.
In this installation a transition to 6 ″round
is required.
•The blower motor assembly can also be
installed outdoors. Order JXBC67 for
remote blower installations outdoors.
•Refer to Dimensions and Clearances for
information on appropriate placement
and necessary clearances when planning
installation.
•Refer to your specific cooktop installation
instruction for other appropriate clearances.
•Avoid placing cabinetry directly above the
cooking surface when possible.
•If cabinetry is used above the cooking
surface:
Installation must conform with local codes.
Use cabinets no more than 13″deep.
Maintain 30″minimum clearance between
cooktop and unprotected cabinets directly
above cooktop.
If clearance is less than 30″, protect cabinet
bottoms with flame-retardant millboard at
least 1/4″thick or gypsum board at least
3/16″thick covered with 28 gauge sheet
steel or .02″thick copper.
Clearance between cooktop and protected
cabinetry must not be less than 24″.
EXCEPTION: Installation of a listed
microwave oven or cooking appliance over
the cooktop shall conform to the installation
instructions packed with that appliance.
•Working areas adjacent to the cooktop
should maintain 18″minimum clearance
between countertop and cabinet bottom.
COOKTOP ELECTRICAL AND
GAS LOCATION
Plan the placement of the electrical outlet
and gas (if used) carefully. Gas or electrical
outlets cannot be placed on the back wall of
the cabinet because it may interfere with the
downdraft plenum.
Install a standard electrical outlet within
reach of the vents’ 2 foot long power cord.
•The vent and a gas cooktop combination
can operate from the same 120V standard
duplex outlet.
•Electric cooktops must operate from
a separate 240V junction box.
REMOTE SWITCH
(for 36″models only)
The downdraft vent has a separate
raise/lower switch. Plan to install the switch
in a convenient location outside of the
vent/cooktop cutout.

9
Installation Instructions
Base
cabinet
INSTALLATION POSSIBILITIES
When the kitchen design calls for an against
the wall installation, move 24″deep base
cabinet forward, 3″to 5″. Filler panels can
be angled or flat to fill the space between
adjacent cabinets.
Maintain cutout clearances to front edge as specified.
In an island or peninsula, the countertop can
be extra deep to provide seating opposite of
the cooktop. Adding base cabinets on each
side of the cooktop provides extra storage
and countertop work space.
Filler
panel
Filler
panel
Base sink
30″Min. for JVB37 and JVB94
36″Min. for JVB67 and JVB98
18″
Base to sink
30″to 42″
Cover
panel
Countertop
overhang
per cooktop
clearances
must be
maintained
End
panel
18″

30″COOKTOP/DOWNDRAFT
UNITS JVB37 AND JVB94
NOTE: Before you begin, measure and mark
depth to ensure that adequate flat countertop
surface is available.
Identify the cutout illustration for the cooktop
model you are installing with this downdraft
vent system.
•Draw lines on the countertop to follow
as a cutting guide.
•Make sure sides of the opening are
parallel and rear and front cuts are exactly
perpendicular (right angle) to sides.
Model Combined
Number Cutout Depth
JP340
JP346
JP355
JP356
JP910
JP930
JP940
JP950 22-1/4″
PP912
PP932
PP942
PP945
PP950
JGP337
JGP940
JP328
JGP328
JGP330 22-3/8″
JGP933
JGP945
**Includes 1/8″gap between
cooktop and vent trim
**Required to maintain UL
or CSA approvals
10
Installation Instructions
INSTALLING THE DOWNDRAFT VENT SYSTEM
21⁄8″*
81⁄2
″
30″
21⁄2″Minimum**
281⁄2″
See table
3/8″Minimum flat
countertop behind
cutout required

36″COOKTOP/DOWNDRAFT
UNITS JVB67 AND JVB98
NOTE: Before you begin, measure and mark
depth to ensure that adequate flat countertop
surface is available.
Identify the cutout illustration for the cooktop
model you are installing with this downdraft
vent system.
•Draw lines on the countertop to follow
as a cutting guide.
•Make sure sides of the opening are
parallel and rear and front cuts are
exactly perpendicular to sides.
11
Installation Instructions
21⁄8″*
81⁄2
″
36″
21⁄2″Minimum**
34″
See table
Model Combined
Number Cutout Depth
JP626 21-1/8″
JP655
JP960
JP970
JP980
PP962 21-3/4″
PP972
PP975
PP980
JGP970
JGP628
JGP630
JGP637 21-7/8″
JGP963
JGP975
**Includes 1/8″gap between
cooktop and vent trim
**Required to maintain UL
or CSA approvals
3/8″Minimum flat
countertop behind
cutout required

12
Installation Instructions
INSTALLING THE DOWNDRAFT VENT SYSTEM
POWER SUPPLY
This downdraft vent must be supplied with
120V, 60Hz., and connected to an individual,
properly grounded branch circuit, protected
by a 15 or 20 ampere circuit breaker or time
delay fuse.
Gas Cooktops
If this vent is installed in combination with a
gas cooktop, it may operate from the same
duplex outlet.
Electric Cooktops
If this vent is installed in combination with an
electric cooktop, the vent must operate from
a separate 120V outlet.
A properly grounded 3-prong receptacle
should be located within reach of the vent’s
2 foot power cord.
•Locate the receptacle inside the cabinet on
the right side wall. The receptacle cannot
be placed on the back of the cabinet wall
where it may interfere with the downdraft
plenum. See illustration.
NOTE: Do not use an extension cord or
adapter plug with this appliance. Follow
National electrical codes or prevailing local
codes and ordinances.
Electrical outlet
12″above
cabinet floor
34″for 36″models
281⁄2″for 30″models
Do not leave gas or electrical
connections within shaded area.
291⁄2″

Installation Instructions
13
DUCTWORK LENGTH AND DUCT FITTINGS
NOTE: Do not exceed 150 foot maximum permissible equivalent lengths!
Flexible ducting: If flexible metal ducting is used, all equivalent feet values in the table should be
doubled. The flexible metal duct should be straight and smooth and extended as much as possible.
DO NOT use flexible plastic ducting.
Add equivalent lengths for all duct pieces and transitions used to ensure that the duct run does not
exceed the maximum 150 feet.
Duct Equivalent Duct Equivalent Duct Equivalent
Pieces Length* Pieces Length* Pieces Length*
31⁄4″x 10″
to 6″Round
6″Round 1 ft. (per 31⁄4″x 10″Transition 4 ft.
Straight foot length) 45° Elbow 8 ft. 90° Elbow
6″Round
31⁄4 ″x 10″1 ft. (per 31⁄4 ″x 10″Wall Cap 24 ft.
Straight foot length) 90° Flat Elbow 33 ft. with Damper
6″Round 31⁄4″x 10″
6″12 ft. to 31⁄4″x 10″2 ft. Wall Cap 24 ft.
90° Elbow Transition with Damper
31⁄4 ″x 10″
6″to 6″Round 2 ft. 6″Round
45° Elbow 7 ft. Transition Roof Cap 33 ft.
6″Round
to 31⁄4″x 10″
31⁄4″x 10″Transition 4 ft.
90° Elbow 14 ft. 90° Elbow
SHOULD NOT EXCEED 150 EQUIVALENT FEET
*Equivalent lengths of duct pieces are based on actual tests conducted by GE Evaluation Engineering
and reflect requirements for good venting performance. See chart for CFM Duct Length.

14
Installation Instructions
INSTALLING THE DOWNDRAFT VENT SYSTEM
VENTING OPTIONS
Side-to-Side Adjustments
The entire blower mounting plate can be
adjusted 31⁄2″to the left or right. This will help
to align vent discharge to house ductwork.
Discharge Direction
The blower assembly may be removed and
turned 90° for a left or right side discharge.
•The downdraft vent is shipped with the
discharge outlet pointing straight down
and can be changed to the left or right side.
•A left or right 90° direction adjustment
should be performed before dropping into
the countertop opening.
•Flatten the shipping box to use as a pad.
•Lay the vent on its back onto the pad.
To Change to a Left or Right Discharge
Remove the 4 screws holding the blower
to the mounting plate assembly. Retain
screws.
Remove the blower assembly, turn it
over to access the 4 nuts holding the
blower to the mounting plate. Remove
the nuts.
IMPORTANT: Do not lift the motor
by the power cable.
Turn the blower to the left or right
discharge direction and reinstall the
4 nuts.
Reinstall the blower and mounting plate
with original screws.
To Locate the Ductwork Holes in the Cabinet
Floor or Side Walls
Temporarily, put vent into the countertop
opening.
Push the vent all the way to the back of
the opening.
If you are transitioning to 6″round,
place transition (obtained locally) over
the discharge outlet.
• Mark the location and remove the
assembly.
• Cut holes and install ductwork
connections.
Order JXRB67 for installation of the blower
and motor below the floor.
Order JXBC67 for installation of the blower
and motor outdoors.
3
2
1
4
3
2
1
Loosen screws to adjust
blower left to right
Discharge down
(as supplied)
Discharge right
Discharge left

15
Installation Instructions
INSTALL THE DUCTWORK
Use minimum 26″gauge galvanized or
24 gauge aluminum duct 31⁄4″x 10″or
6″round. PVC duct should be used if
installing under a poured concrete slab.
DO NOT USE flexible ducting.
• Always use appropriate roof or wall
cap with damper. Laundry type wall
caps should never be used. See the
Ductwork Length and Duct Fittings
chart.
• Use the straightest duct run possible.
• For satisfactory performance the duct
run should not exceed 150 feet or its
equivalent length when bends or
various fittings are used. Refer to the
table of equivalent lengths to calculate
your installation.
• Install ductwork so the piece of duct
nearest the downdraft unit slots INTO
the next piece of the duct. Secure the
joints with self-tapping screws and
apply duct tape around the joints to
ensure an airtight seal.
2
INSTALL THE DOWNDRAFT VENT
Place the downdraft vent into the
countertop cutout, against the back side.
Secure the downdraft to the countertop
supplied brackets. See illustration.
Fasten 2 brackets to vent side and secure
to cabinet back wall.
Install 2 brackets on the bottom of the
vent. Attach brackets to slide screws on
the vent and to the floor using wood
screws (not supplied).
When installing in a tile countertop
surface, it may be necessary to apply
a locally approved caulking to cover
any gaps.
C
B
A
1
Airflow
Screw
Duct tape over
seam and screw
Secure the lower brackets
to blower housing
Preferred
method
Secure
the upper
brackets
with screws
located on
the side
of case
and attach
to back of
cabinet

INSTALL THE RAISE/LOWER
SWITCH
NOTE: Step 3 is for 36″models only.
Skip this step if installing a 30″model.
NOTE: Determine the location for the
Raise/Lower switch. The wiring lead is
68″long.
Drill a 3/8″hole into the desired
location. Use the mounting bracket
as a template to locate the hole
accurately. Check for interference
between the switch cover, adjacent
objects and cooktop/vent overlaps.
If switch is mounted into a tile
surface, drill the hole between tiles.
Use locally approved caulking to
cover any gaps.
Center the mounting bracket over the
hole and mark pilot holes. Remove
and drill holes according to type of
countertop.
Mount the metal switch bracket
with screws (not provided). Choose
screws for your type of countertop
or use locally approved adhesive.
D
C
B
A
3
16
Installation Instructions
INSTALLING THE DOWNDRAFT VENT SYSTEM
WARNING —Disconnect electrical
power from the unit before beginning switch
installation. Failure to do so could result in
personal injury or damage to the electrical
controls.
Remove protective film from the top of
the switch trim.
Peel film from the adhesive strips on the
back of the switch trim. Thread the wire
lead through the mounting bracket and
countertop. Press trim over the mounting
bracket to set the adhesive.
Connect Raise/Lower Wire Lead to Wire Box
Thread wire end with the connector
through the hole on the end of a wire
box. Pull approximately 3″additional
wire length beyond the open end of
the box.
Connect the mating wire connectors.
Install the wire box onto the bottom of
the countertop or directly behind the
switch. Use screws or adhesive
appropriate for the type of countertop.
Place plastic strain relief over the wire,
just outside of the hole at the end of the
wire box. Do not pinch or twist the wire.
Snap the strain relief closed and press
into the hole.
Connect Wire Lead to Control Box
Thread the long 68″wire lead through
the end of the other wire box.
Push wire leads into the white connector
provided.
Push wire connector into the mating
connector on the control box. Install the
wire box onto the end of the control box
with screws provided.
Place plastic strain relief over the wire,
just outside of the hole at the end in the
wire box. Do not pinch or twist the wire.
Snap the strain relief closed and press
into the hole.
Coil the excess wire and position away
from moving parts and cabinet contents.
E
D
C
B
A
D
C
B
A
F
E
Trim
Mounting
bracket
3/8″Hole
Raise/Lower
switch
2 Pin
connector
Strain relief
Pull 3″
length
out of
box Control box

OPTIONAL KITS
JXRB67 optional accessory for indoor remote
location of the blower/motor assembly. Use
this kit when the blower and motor assembly
will be located below the cabinet floor.
JXBC67 optional outdoor cover accessory
for remote installation of blower and motor
assembly on an outside wall.
17
Installation Instructions
CONNECT THE POWER
Plug power cord into a properly grounded
receptacle.
4
INSTALL THE COOKTOP
•With the downdraft in the “down” position,
place the cooktop into the cutout.
•Push the cooktop back until the back edge
of the cooktop just barely touches the front
edge of the downdraft cover.
•Using a dime as a thickness gauge, align
the cooktop so that there is a minimum
uniform gap of 0.05″(the thickness of
a dime) between the cooktop and the
downdraft cover.
NOTE: Do not force the downdraft cover to
move rearward when aligning the cooktop.
This may cause the downdraft cover to
impact and damage the cooktop when the
vent is raised and lowered.
NOTES:
•Accurate alignment of cooktop and
downdraft is necessary to ensure that there
is no interference when air vent is raised
and lowered. There should be a gap of
0.05″(the thickness of a dime) between the
back edge of the cooktop and the front
edge of the downdraft cover.
•Radiant cooktop cannot be flush mounted
when using this downdraft vent.
Mounting
brackets

Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting TipsConsumer Support
18
Troubleshooting Tips
Save time and money! Review the chart below first
and you may not need to call for service.
Problem Possible Causes What To Do
Fan does not work The vent is not fully extended. •Press the Raise/Lower switch.
The blower control switch •Slide it to the right.
may be in the OFF position.
Vent does not rise Vent not plugged into an outlet. •Plug vent into a 120V power outlet.
Raise/Lower switch did not •Hold switch down for a couple of seconds to
engage lift motor. activate motor.
Circuit breaker may have •Check circuit breaker. Reset if necessary.
tripped.
Remote switch not plugged in. •Check all connections between the remote switch
and vent body.
Before you call for service…

19
Consumer SupportOperating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
■Service trips to your home to teach you how to use
the product.
■Improper installation, delivery or maintenance.
■Failure of the product if it is abused, misused,
or used for other than the intended purpose or
used commercially.
■Replacement of the replaceable filters.
■Replacement of house fuses or resetting of circuit
breakers.
■Damage to the product caused by accident, fire, floods
or acts of God.
■Incidental or consequential damage caused by possible
defects with this appliance.
■Damage caused after delivery.
■Product not accessible to provide required service.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available,
you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service
Location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate
electrical, gas, exhausting and other connecting facilities as described in the Installation Instructions provided
with the product.
Warrantor: General Electric Company. Louisville, KY 40225
For The Period Of: GE Will Replace:
One Year Any part of the downdraft system which fails due to a defect in materials or workmanship.
From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor and in-home
original purchase service to replace the defective part.
GE Downdraft System Warranty.
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. To schedule service,
on-line, 24 hours a day, visit us at ge.com, or call 800.GE.CARES
(800.432.2737). Please have serial number and model number
available when calling for service.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided
in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability
or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

Consumer Support.
Printed in the United States
GE Appliances Website ge.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts or even schedule service on-line.
Schedule Service ge.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at
your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal
business hours.
Real Life Design Studio ge.com
GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen
design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
Extended Warranties ge.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories ge.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone
at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation.
Contact Us ge.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
Register Your Appliance ge.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material.
20
