GE Appliances Profile PFWS4605 User manual

GEAppliances.com
49-90391-2 06-13 GE
Washers
Safety Instructions..............2,3
Operating Instructions ........4-16
ControlPanel ......................... 4
ControlSettings................... 5–10
Features..........................10,11
Loading and Using the Washer ....12–15
AvailableAccessories.................15
Smart Appliance .....................16
Installation Instructions......17–22
PreparingtoInstallYourWasher......17
Location of Your Washer .............18
Rough-In Dimensions.................18
Unpacking Your Washer..............19
ElectricalRequirements ..............19
Grounding Requirements .............19
DrainRequirements..................20
Water Supply Requirements ..........20
InstallingtheWasher..............20,21
ReplacementParts...................21
Adaptive Vibration Control............22
Troubleshooting Tips .........23–26
Consumer Support
Warranty (U.S.) .......................27
Warranty (Canada) ...................28
Consumer Support .......... Back Cover
Owner’s Manual &
Installation Instructions
Write the model and serial
numbers here:
Model # _________________
Serial # __________________
You can find them on a label on the
side of the washer.
As an ENERGY STAR®partner,
GE has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.
Laveuses
Profile
Lavadoras
Profile
Manuel d’utilisation
et d’installation
Manual del propietario
e instalación
La section française commence à la page 30
La sección en español empieza en la página 58
PFWS4605
PFWS4600
PFWH4405
PFWH4400
Profile
Printed in China

2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety
messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words are defined as:
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
DANGER
WARNING
CAUTION
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of death, fire, explosion, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
 Read all instructions before using the appliance.
 DO NOT wash or dry articles that have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry-
cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
 DO NOT add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These
substances give off vapors that could ignite or explode.
 Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks
or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a
washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is flammable, DO NOT smoke or use an open flame during this time.
 DO NOT allow children to play on or in this appliance. Close supervision of children is necessary when this appliance is
used near children. Before the washer is removed from service or discarded, remove the door or lid. Failure to follow
these instructions may result in death or injury to persons.
 DO NOT reach into the appliance if the tub or agitator is moving to prevent accidental entanglement.
 DO NOT install or store this appliance where it will be exposed to the weather.
 DO NOT tamper with controls, repair or replace any part of this appliance or attempt any servicing unless specifically
recommended in the user maintenance instructions or in published user repair instructions that you understand and
have the skills to carry out.
 Keep the area around your appliance clean and dry to reduce the possibility of slipping.
 DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts
including a damaged cord or plug.
 Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power button DOES NOT disconnect power.
 See “Electrical Requirements” located in the Installation Instructions for grounding instructions.
SAVE THESE INSTRUCTIONS
WARNING

3
GEAppliances.com
WHEN NOT IN USE
Turn off water faucets to minimize leakage if a break or
rupture should occur. Check the condition of the fill hoses;
GE recommends changing the hoses every 5 years.
Ensure that the hot water hose is connected to the “H”
(internal red screened) valve and the cold water hose is
connected to the “C” (internal blue screened) valve.
Install or store where it will not be exposed to
temperatures below freezing or exposed to the weather,
which could cause permanent damage and invalidate the
warranty.
Properly ground washer to conform with all
governing codes and ordinances. Follow details
in Installation Instructions.
GE strongly recommends the use of new water supply
hoses. Hoses degrade over time and need to be replaced
every 5 years to reduce the risk of hose failures and water
damage.
Parts and Accessories
Order on-line at GEApplianceparts.com today, 24 hours a
day or by phone at 800.626.2002 during normal business
hours.
Part Number Accessory
PM14X10002 4 ft Rubber Water Supply Hoses
Or
PM14X10005 4 ft Braided Metal Water Supply Hoses
WX10X10011 Tide®Washing Machine Cleaner*
WX7X1 Washer Floor Tray
PROPER INSTALLATION
This washer must be properly installed and located in accordance with the Installation Instructions before it is used.
If you did not receive an Installation Instructions, you can receive one by visiting GEAppliances.com or by calling
800.GE.CARES (800.432.2737).
SAVE THESE INSTRUCTIONS
* Tide®is a registered trademark of Procter & Gamble
- Electrical Shock Hazard
WARNING
Plug into a grounded 3 prong outlet.
DO NOT remove ground prong.
DO NOT use an adapter.
DO NOT use an extension cord.
Failure to do so can result in death, fire or electrical
shock.

4
About the washer control panel.
You can locate your model number on a label on the side of the washer.
Power
Press to “wake up” the display. If the display is active, press to put the washer into standby mode.
NOTE: Pressing POWER does not disconnect the appliance from the power supply.
1
WARNING! To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT
SAFETY INSTRUCTIONS before operating this appliance.
2
1
3
4
5
6
10
78
9
11 14
16 13
12
PFWS4600, PFWS4605 – Profile HA Steam Washer w/ SmartDispense™
PFWH4400, PFWH4405 – Profile HA Washer w/o Steam, w/ SmartDispense™
Quick Start
If the screen is dark, press the POWER button to “wake up”
the display.
1Press the
POWER button.
2Select a wash cycle
or Steam Refresh cycle.
(Defaults are set for each cycle.
These default settings can be
changed. See Control settings
for more information.)
3If you selected a cycle other
than the SPECIALTY CYCLE,
press the START/PAUSE button.
If you selected SPECIALTY CYCLE, choose between Rinse
and Spin, Garments, Bed and Bath, and Other Specialty
for your specific needs before pressing START/PAUSE. See
specialty cycles for more information."
2
1
3
4
5
6
10
87
13
11 14
16 17
9
12
15

5
Control settings. GEAppliances.com
2
While in the Specialty Cycle, use the Sand T
arrow keys to scroll between the different options.
Press ENTER to select the cycle. Press BACK to go
to the previous menu.
Specialty Cycles
RINSE & SPIN
Quickly rinse out any
items at any time.
GARMENTS
Coats
Dress Shirts
Hosiery/Bras
Jeans
Khakis
Sweaters
BED and BATH
Blankets (cotton)
Comforters
Sheets
Towels
SPECIALIZED CYCLES
Athletic Shoes
Energy Savings
Fabric Refresh
Fleece
Fragile Cottons
Performance Fabrics
Pet Bedding
Play Clothes
Single Item Wash
Sleeping Bag
Soak
Super Clean
Throw Rugs
WHITES/HEAVY DUTY For heavily to lightly soiled white laundry. Can use the STEAM ASSIST option
with this cycle.
COLORS/NORMAL For heavily to lightly soiled colorfast cottons, household linens, work and play
clothes. Can use the STEAM ASSIST option with this cycle.
WRINKLE FREE
(PERMA PRESS) For easy care and permanent press items.
STEAM REFRESH
(some models)
To de-wrinkle 1 to 5 cotton blend items. This is not a wash cycle, but a cycle
that applies only steam to the garments. Select the correct number of
garments using the arrow keys and press Enter.
The washer will beep upon completion of the cycle, and will continue to
tumble for 30 minutes to keep wrinkles from setting in. Press Start/Pause to
remove clothes.
If clothes are slightly damp after completion of the cycle, hang dry clothes for
10 minutes before wearing.
HANDWASH For items labeled hand-washable with light soils. Provides gentle rocking to
mimic the handwashing action.
DELICATES For lingerie and special-care fabrics with light to normal soil. Provides gentle
tumbling and soak during wash and rinse.
ACTIVE WEAR For active sports, exercise and some casual wear clothes. Fabrics include
modern technology finishes and fibers such as spandex, stretch and micro-
fibers.
WASHABLE WOOL
(some models)
For the washing of machine washable wool products, provided that they are
washed according to the instructions on the garment label. When selecting
this cycle, you must use a detergent suitable for washing wool.
SPEED WASH For lightly soiled items that are needed in a hurry. Cycle time is approximately
30 minutes, depending on selected options.
DRAIN & SPIN To quickly drain and spin out any items at any time.
BASKET CLEAN Use for cleaning the basket of residue and odor. Recommended use of once
per month.
SPECIALTY CYCLES For unique garments that may need special treatment.
Wash Cycles
The wash cycles are optimized for specific types of wash loads. The chart below will help you match
the wash setting with the loads. The GentleClean™lifters lightly tumble the clothes into the water and
detergent solution to clean the load.

6
Soil Level
Changing the SOIL LEVEL increases or decreases the wash time to remove different amounts of soil.
To change the SOIL LEVEL, press the SOIL LEVEL button until you have reached the desired setting. You can choose
between Extra Light, Light, Normal, Heavy or Extra Heavy soil.
Spin Speed
Changing the SPIN SPEED changes the final spin speed of the cycles. Always follow the garment manufacturer’s care
label when changing the SPIN SPEED.
To change the SPIN SPEED, press the SPIN SPEED button until you have reached the desired setting. You can choose
between No Spin, Low, Medium, High or Extra High Spin. Higher spin speeds are not available on certain cycles, such
as Delicates.
Higher spin speeds remove more water from the clothes and will help reduce dry time, but may also increase the
possibility of setting wrinkles on some fabrics.
Wash Temp
Adjust to select the proper water temperature for the wash cycle. The prewash and rinse water is always cold to help
reduce energy usage and reduce setting of stains and wrinkles.
Follow the fabric manufacturer’s care label when selecting the wash temperature.
To change the wash temperature, press the WASH TEMP button until you have reached the desired setting. You can
choose between Tap Cold, Cold, Warm, Hot or Sanitize. The Sanitized wash temperature is not available on certain
cycles, such as Delicates.
When selecting the Sanitize wash temperature, the washer increases the water temperature to sanitize and kill more
than 99% of many common bacteria found in home laundry. The sanitize wash temperature is only available on
the Whites/Heavy Duty wash cycle. For best results, select the heavy soil setting when using the Sanitize wash
temperature setting.
NOTE: The first 10 seconds of the wash fill is always cold. This feature assists in conditioning the fabric and
preventing stains from setting on garments.
START/PAUSE
Press to start a wash cycle. If the washer is running, pressing it once will pause the washer and unlock the door.
It will take a few seconds for the door to unlock after pressing PAUSE. Press again to restart the wash cycle.
NOTE: If the washer is paused and the cycle is not restarted within 15 minutes, the current wash cycle will be
cancelled.
NOTE: In some cycles the washer will drain first, then unlock the door when it is paused.
NOTE: The washer performs automatic system checks after pressing the START button. Water will flow in 45 seconds
or less. You may hear the door lock and unlock before water flows; this is normal.
7
3
4
5
6
Control settings.
Settings
Press & hold for 3 seconds for SETTINGS.
Use the SETTINGS button to adjust the
following features:
Dryer Link:
Press the SETTINGS button. When “DRYER
LINK” appears in the display, press ENTER.
Using the W/Xarrow keys, select ON
and press ENTER.
When the washer cycle is completed, the
washer will communicate with the dryer
when any button on the control panel is
touched or the door is opened.
The washer will display, “TRANSFERRING
CYCLE INFORMATION TO THE DRYER”
and the dryer will display, “RECEIVING
CYCLE INFORMATION TO THE DRYER”.
The dryer will only communicate with the
washer if the dryer is not running a cycle.
If the washer starts a new cycle before the
dryer has a chance to communicate with it,
the information will be lost.
End-of-Cycle Volume:
Press the SETTINGS button. When
“VOLUME” appears in the display, press
ENTER, then select “End of Cycle”. Using the
W/Xarrow keys, select High, Medium, Low
or Off.
Control Sounds:
Press the SETTINGS button, then select
“Volume”. When “CONTROL SOUNDS”
appears in the display, press ENTER. Using
theW/Xarrow keys, select High, Medium,
Low or Off.
Display Brightness:
Press the SETTINGS button. When “DISPLAY
BRIGHTNESS” appears in the display, press
ENTER. Using the W/Xarrow keys, select
High, Medium or Low.
Water Hardness
(Selectable only when SMART DISPENSER
Pedestal Accessory
is connected to washer):
This will adjust the amount of detergent
dispensed automatically for the SMART
DISPENSER. See the Owner’s Manual
supplied with the SMART DISPENSER for
instructions for use.

7
GEAppliances.com
Prewash
Prewash is an extra wash before
the main wash. Use it for heavily soiled
clothes or for clothes with a care label
that recommends prewashing before
washing. Be sure to add high-efficiency
detergent, or the proper wash additive
to the prewash dispenser.
The prewash feature will fill the washer
(adding the prewash detergent), tumble
the clothes, drain and spin. Then the
washer will run the selected wash
cycle.
NOTE: In some special cycles,
the prewash is selected automatically
as the default. You can modify this
selection at any time.
8
Extra Rinse
Use an extra rinse when additional
rinsing is desired to remove excess dirt
and detergent from soiled loads.
NOTE: In some special cycles, the extra
rinse is selected automatically as the
default. You can modify this selection at
any time. Some cycles have additional
rinses done automatically.
9
Delay Start
You can delay the start of a wash cycle
for up to 24 hours. Press the
DELAY START button to choose the
number of hours you want to delay
the start of the cycle. Use the Sand
T(up and down) arrows to find the
desired delay time; then press ENTER to
select the delay time. Finally, press the
START button after the desired cycle is
selected. The machine will count down
and start automatically at the correct
time.
NOTE: If you forget to fully close
the door, a reminder signal will beep
reminding you to do so.
NOTE: If you open the door when the
delay is counting down, the machine
will enter the pause state. You must
close the door and press START again
in order to restart the countdown.
10
Lock
You can lock the controls to prevent
any selections from being made. Or
you can lock or unlock the controls
after you have started a cycle.
Children cannot accidentally start the
washer by touching pads with this
option selected. To lock the washer,
press and hold the LOCK button for 3
seconds. To unlock the washer controls,
press and hold the LOCK button for
3 seconds. A sound is made to indicate
the lock/unlock status.
The control lock icon on the display will
light up when it is on.
NOTE: The POWER button can still be
used when the machine is locked.
11
BASKET LIGHT
The basket light will turn on and remain
on for 5 minutes when the door opens,
start/pause button is pressed, or by
pressing and holding the basket light
button for 3 seconds. The basket light
can be turned off by pressing and
holding the basket light button for 3
seconds. The basket light can not be
turned off while the unit is idle.
12

8
Control settings.
8. Press the ENTER button to select the stain.
9. Your selected stain will appear on the display.
10. Press the START button to start the cycle.
NOTE: To turn off STAIN INSPECTOR or to select a
different stain, press the STAIN INSPECTOR button
again.
NOTE: Prewash is selected automatically
as the default for some stains. When selected
automatically, the PREWASH button will light.
For optimum stain removal, it is recommended
to add high-efficiency detergent or proper wash
additive to the prewash dispenser. You can turn
off the prewash option if you do not want to add
the prewash to the cycle.
You have the following stains available to choose from:
OUTDOOR
Clay
Grass
Mud/Dirt
Rust Iron
Tree Sap
COSMETICS
Lipstick/Lip Balm
Deodorant
Lotions
Makeup (water-based)
Oil (hair/mineral)
BEVERAGES
Grape Juice
Coffee/Tea
Fruit Juice Other
Milk/Dairy
Wine (red/white)
FOOD/COOKING
Butter/Margarine
Cooking/Vegetable Oil
Chocolate
Tomato Based
Barbecue Sauce
PERSONAL
Blood
Perspiration
Urine/Feces
Mouthwash
Vomit
SCHOOL/OFFICE/HOME
Adhesive Tape
Ballpoint Ink
Glue (white common)
Pencil Mark
Correction Fluid
LAUNDRY
Dingy White Socks
Collar/Cuff Soil
Dye Transfer
Fabric Softener
Yellowing
OIL/GREASE/WAX
Motor Oil/Lube
Ointment/Salve
Candle Wax
Crayon
Chapstick™
Stain Inspector
PFWS4600, 4605 Press & hold for 3
seconds for STAIN INSPECTOR.
The STAIN INSPECTOR feature allows you
to indicate what stains are on the
garments in your load. This feature can be
used with any wash cycle.
To use STAIN INSPECTOR:
1. Select the wash cycle.
2. Press the STAIN INSPECTOR button
(the button will light up when it is on).
3. Check the wash instructions on your
garment.
13
5. Use the Sand Tarrows to find the
desired stain category.
6. Press the ENTER button to select the
stain category.
7. Use the Sand Tarrows to select the
desired stain.
4. Press the ENTER button to continue.

9
14
GEAppliances.com
SMART DISPENSE™– optional accessory (on
some models)
If you have purchased the PROFILE
SMART DISPENSE System, refer to the
Owner’s Manual that comes with the
SMART DISPENSE System.
If you have not purchased the PROFILE
SMART DISPENSE System, you will not
have bulk-dispensing capability. If you
select the SMART DISPENSE option,
a message will be displayed advising
that your unit does not have the
capability. You should then put
detergent and other selected additive
in the flow-through dispenser drawer
located at the top left of
the unit. To purchase the PROFILE
SMART DISPENSE System, go online to
GEAppliances.com or contact your local
retailer.
15 STEAM ASSIST
(on some models)
STEAM ASSIST adds steam into the
washer during WHITES/HEAVY DUTY,
COLORS/NORMAL, WRINKLE FREE or
ACTIVE WEAR cycles.
To use:
1. Turn power ON and select a wash
cycle.
The STEAM ASSIST option is only
available on WHITES/HEAVY DUTY,
COLORS/NORMAL, WRINKLE FREE or
ACTIVE WEAR cycles.
2. Select the STEAM ASSIST button to
activate Steam.
3. Press the START/PAUSE button.
16 ENERGY SAVINGS WASH
Use "e" WASH to save energy on
specified wash cycles. "e" WASH cannot
be used with STEAM REFRESH, ENERGY
SAVING, ATHLETIC SHOES, BASKET
CLEAN, and WASH CARE w/ SOAK.
17 OVERNIGHT READY
(on some models)
OVERNIGHT READY is intended for
smaller loads only. This feature is
intended for use when clothes need
to be washed and ready to hang or
finished the next morning. This feature
will tumble clothes and introduce a
constant stream of air into the machine
compartment upon completion of select
wash cycles. Clothes can be removed
at any time by pressing pause. To
use the feature, press the Overnight
Ready button and follow the prompts
on the screen. After use, check the lint
filter located at the top of the rubber
door gasket, cleaning as needed.
High wear or delicate articles are not
recommended for this cycle.
The table below describes example
loads that can be used with this
feature:
2-3 athletic uniforms
2 sets of scrubs
2 sets of baby's crib sheets
1 dress shirt, 1 pair of dress pants
3 dress shirts

10
About the washer features.
Control settings.
Overnight Ready
Lint Filter
CLEANING OVERNIGHT READY LINT FILTER
(on some models)
The filter is located in the top right portion of the the washer gasket. For
best performance, clean this filter after every Overnight Ready cycle by
running your fingers over the filter to remove lint.
For further cleaning, the filter can be removed by pulling forward on the
tab.. Replace the filter after cleaning.
The Prewash Compartment
Only use the Prewash Compartment if you
are selecting the Prewash cycle for heavily
soiled clothes. Add measured detergent or
prewash additive to the back left prewash
compartment of the dispenser drawer.
Detergent or prewash additive is flushed
from the dispenser in the prewash cycle (if
selected).
NOTE: Liquid detergent will drain
into the washer basket as it is added.
Detergent usage may need to be adjusted
for water temperature, water hardness, size
and soil level of the load. Avoid using too
much detergent in your washer as it can
lead to over sudsing and detergent residue
being left on the clothes.
The Dispenser Drawer
Slowly open the dispenser drawer by pulling
it out until it stops.
After adding laundry products, slowly close
the dispenser drawer. Closing the drawer
too quickly could result in early dispensing
of the bleach, fabric softener or detergent.
You may see water in the bleach and fabric
softener compartments at the end of the cycle.
This is a result of the flushing/siphoning action
and is part of the normal operation of the
washer.
Use only HE High-Efficiency
detergent.
Add pre-wash to
this location
Detergent
selection insert

11
About the washer features. GEAppliances.com
The Fabric Softener Compartment
If desired, pour the recommended amount
of liquid fabric softener into the compartment
labeled “FABRIC SOFTENER.”
Use only liquid fabric softener in the dispenser.
Dilute with water to the maximum fill line.
Do not exceed the maximum fill line. Overfilling
can cause early dispensing of the fabric
softener, which could stain clothes.
NOTE: Do not pour fabric softener directly
on the wash load.
The Liquid Bleach Compartment
If desired, measure out the recommended
amount of liquid bleach, not to exceed
1/3 cup (80 ml) and pour into the center
compartment labeled “LIQUID BLEACH”
marked with this symbol .
It is recommended to use High-Efficiency (HE)
bleach in this front-load washer.
Do not exceed the maximum fill line. Overfilling
can cause early dispensing of the bleach which
could result in damaged clothes.
NOTE: Do not use powdered bleach in the
dispenser.
The Detergent Compartment
Only use high-efficiency detergent
in this washer. DO NOT fill high-efficiency
detergent over the MAX line. Use
detergent manufacturer’s recommended
amount.
Powder Detergent – Remove the Detergent
selection insert and place it in a safe
location outside of the washer. Follow the
detergent manufacturer’s instructions
when measuring the amount of powder to
use.
Liquid Detergent – Locate the
concentration of your detergent on the
bottle. Place the Detergent selection insert
in the corresponding location depending on
the concentration.
Move the insert by pulling it up and replace
it by sliding it down between two detergent
compartment rails. Make sure to push the
insert to the bottom of the compartment
so that it is flush to the bottom of the
compartment. It is not an issue if the
detergent leaks past the insert to the back
of the compartment.
Detergent usage may need to be adjusted
for water temperature, water hardness,
size and soil level of the load. Avoid using
too much detergent in your washer as it
can lead to oversudsing, detergent residue
being left on the clothes, and could extend
wash times.
Do not put clumped detergent in the
dispenser. Clumped detergent can cause a
leak.
For HE powder detergent remove
the Detergent selection insert and
add powder here
For HE 3X liquiddetergent, place
the insert in the “3X” position
For HE liquid detergent that is non-
concentrated, place the insert in the “1X”
position For HE 2X liquiddetergent, place
the insert in the “2X” position
Adjustment
Rails

12
Loading and using the washer.
Always follow fabric manufacturer’s care label when laundering.
Sorting Wash Loads
Loading the Washer
The wash drum may be fully loaded with loosely
added items. Do not wash garments containing
flammable materials (waxes, cleaning fluids, etc.).
To add items after the washer has started, press
START/PAUSE and wait until the door is unlatched.
The washer may take up to 30 seconds to unlock
the door after pressing START/PAUSE, depending on
the machine conditions. Do not try to force the door
open when it is locked. After the door unlocks, open
gently. Add items, close the door and press START/
PAUSE to restart.
Colors
Whites
Lights
Darks
Soil
Heavy
Normal
Light
Fabric
Delicates
Easy Care
Sturdy Cottons
Lint
Lint Producers
Lint Collectors
Combine large and small items in a load. Load large items first. Large items should not be more than half
the total wash load.
Washing single items is not recommended. This may cause an out-of-balance load. Add one or two similar
items.
Pillows and comforters should not be mixed with other items. This may cause an out-of-balance load.
Sort dark-colored clothes from light-colored clothes to prevent dye transfer. This is a high-efficiency
washer, so it uses less water, making dye transfer more common.
WORKWEAR
4 Jeans
5 Work Wear Shirts
5 Work Wear
Pants
LINENS
2 Bath Sheets
10 Bath Towels/
12 Washcloths
7 Hand Towels/
2 Terrycloth Bath
Mats
OR
2 Flat Queen-Sized
Sheets
2 Fitted
Queen-Sized
Sheets
4 Pillowcases
MIXED LOAD
4 Pillowcases
2 Hand Towels
2 Flat Sheets/
2 Fitted Sheets
2 Bath Towels/
4 Washcloths
OR
6 Shirts (Men’s
or Women’s)
4 Pair Pants
(Khakis
or Twills)
5 T-shirts
7 Pairs of Boxers
4 Pairs of Shorts
OR
6 T-shirts
4 Pairs of
Sweatpants
4 Sweatshirts
2 Hoodies
7 Pairs of Socks
DELICATES*
7 Bras
7 Panties
3 Slips
2 Camisoles
4 Nightgowns
*Using a nylon
mesh bag for
small items is
recommended.
SPEED WASH
(2–4 GARMENTS)
2 Casual Wear
Work Shirts
1 Pair Casual Wear
Work Pants
OR
3 Soccer Uniforms
Loading Examples*
*Using a nylon mesh bag for small items is recommended.
- Fire Hazard
WARNING
Never place items in the washer that are dampened with gasoline or other flammable liquids.
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on it (including cooking oils).
Doing so so can result in death, explosion, or fire.

13
Care and Cleaning/General Maintenance
Always follow fabric manufacturer’s care label when laundering. GEAppliances.com

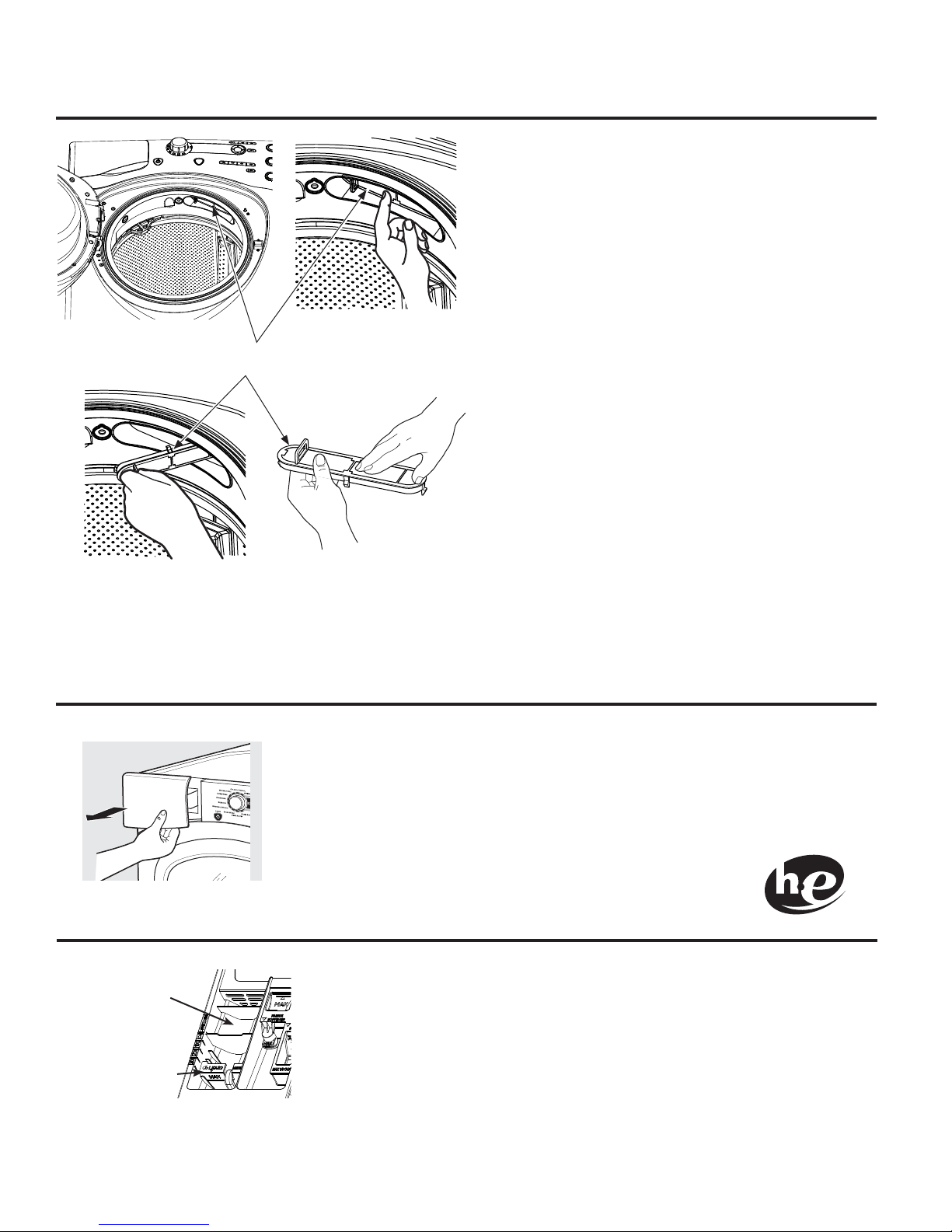

Cleaning the Door Gasket
Open the washer door. Using both hands, press down the door gasket. Remove any
foreign objects if found trapped inside the gasket. Make sure there is nothing blocking the
holes behind the gasket.
While holding down the door gasket, inspect the interior gasket by pulling it down with
your fingers. Remove any foreign objects if found trapped inside this gasket. Make sure
there is nothing blocking the holes behind the gasket.
When you are finished cleaning the door gasket, remove your hands and the gaskets will
return to the operating position.

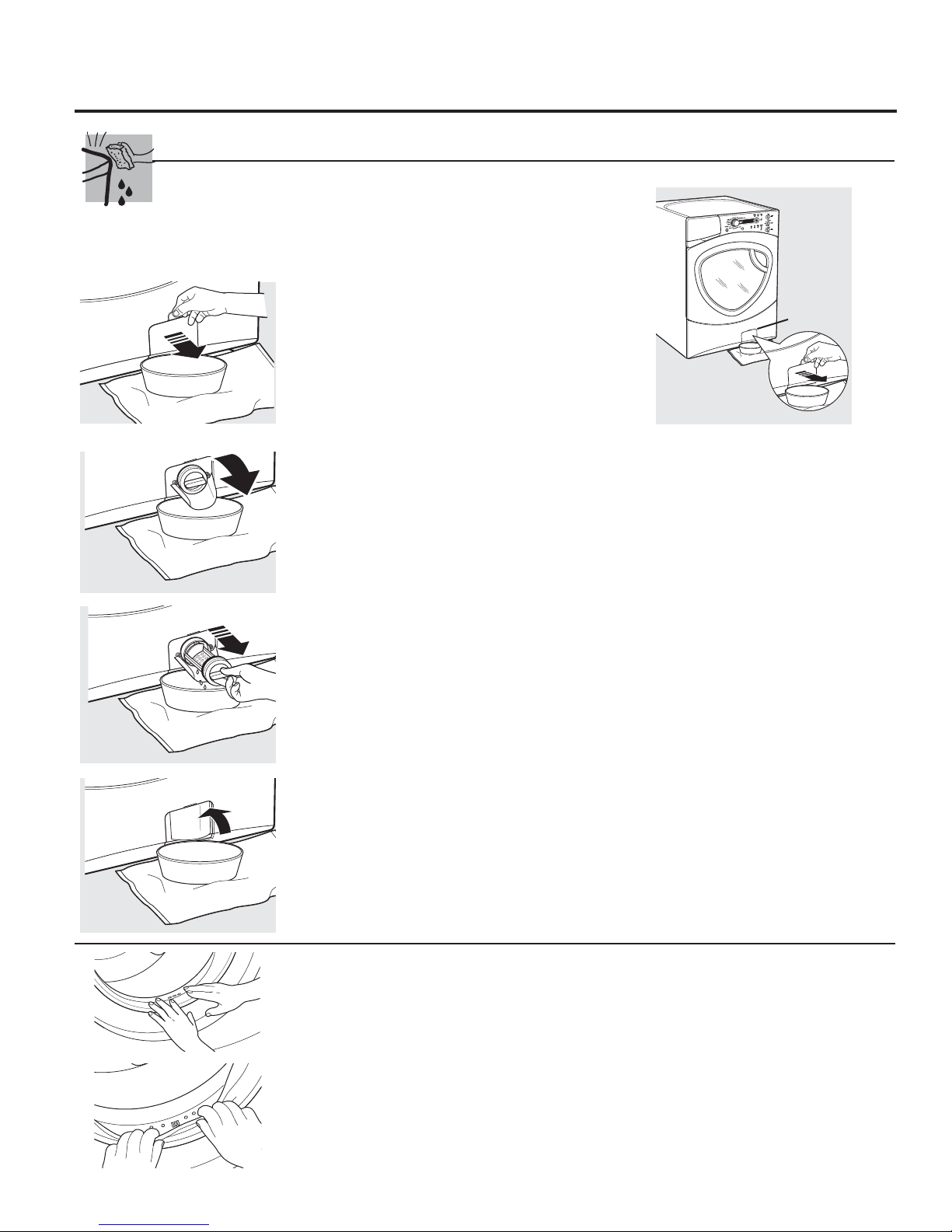

Cleaning the Pump Filter
Due to the nature of the front-load washer,
it is sometimes possible for small articles
to pass to the pump. The washer has a
filter to capture lost items so they are not
dumped to the drain. To retrieve lost items,
clean out the pump filter.
1. Using a small flathead screwdriver,
open the access door.
2. Place a shallow pan or dish under
the pump access door and towels
on the floor in front of the washer to
protect the floor. It is normal to catch
about a cup of water when the filter
is removed.
3. Pull down the pour spout.
4. Turn the pump filter counterclockwise
and remove the filter slowly, controlling
the flow of the draining water.
5. Remove the filter and clean the debris
from the filter.
6. Replace the filter and turn clockwise.
Tighten securely.
7. Flip up the pour spout.
8. Close the access door by hooking the
bottom tabs first, then rotating the
access door shut.
Pump
filter

14
Dispenser Drawer Area: Detergent and fabric softener may build up in the dispenser
drawer. Residue should be removed once or twice a month.
Remove the drawer by first pulling it out until it stops. Then reach back into the
right rear corner of the drawer cavity and press down firmly on the lock tab,
pulling out the drawer.
Remove the insert from the bleach and fabric softener compartments and the
detergent insert. Rinse the inserts and the drawer with hot water to remove
traces of accumulated laundry products.
To clean the drawer opening, use a small brush to clean the recess.
Remove all residue from the upper and lower parts of the recess.
Return inserts to the proper compartments. Replace the dispenser drawer.
To reduce buildup in the Dispenser Drawer area:
Use only HE
High-Efficiency
detergent.
Lock tab is visible only after
drawer has been pulled out
Loading and using the washer.
Always follow fabric manufacturer’s care label when laundering.

15
Always follow fabric manufacturer’s care label when laundering. GEAppliances.com
Fabric Care Labels
Machine
wash
cycle Normal Permanent Press/
wrinkle resistant Gentle/
delicate Hand wash Do not wash Do not wring
Water
temperature Hot
(50°C/120°F)
Warm
(40°C/105°F)
Cold/cool
(30°C/85°F)
WASH LABELS
Bleach
symbols
Any bleach
(when needed) Only non-chlorine bleach
(when needed)
Do not bleach
BLEACH LABELS
Below are fabric care label “symbols” that affect the clothing you will be laundering.
DETERGENT LABELS
Use only HE High-Efficiency detergent.
Profile Smart Dispense System
The Profile SMART DISPENSE System lets
you store laundry detergent and fabric
softener to be dispensed automatically
during the wash and rinse cycles of this
washer. NO BLEACH may be used in
this dispense system. See the Owner‘s
Manual that is included with the Profile
SMART DISPENSE System for installation
instructions.
Pedestal
There is a pedestal available for your
washer. This pedestal gives the washer
more height and gives storage for your
washing necessities. Included with the
pedestal is a divider that allows you
to store liquid laundry detergent out
of sight. See the pedestal installation
instructions.
Available accessories.

16
Smart Appliance GEAppliances.com
Models PFWS4600/5 AND 4400/5 are compatible with
the GE Smart Appliance Module (SAM) which can be
purchased separately. Contact your local utility or visit www.
GEAppliances.com/smart-appliances to see if your area is
using Demand Response (SAM) technology.
INSTALLATION
The preferred location for the module installation is on top of
the clothes dryer.
Details on how to connect the cables to the module are in the
instructions that come with the module.
Wait 5 minutes; then press the Settings button. Scroll and
look for the energy management screen as seen below.
This screen means the module is attached correctly and
you can begin to use your Smart appliance following the
instructions below.
If the Energy Management Screen is not available, refer to
the SAM module troubleshooting guide.
QUICK GUIDE
There are 4 power levels available: Critical, High, Normal and
Low. On the Normal and Low levels, the unit runs as normal.
The following steps show how the unit reacts during startup
at Critical and High power levels.
Option 1 (Delay EP)
During startups at Critical and High levels, the unit will delay
starting until the level becomes Medium or Low. Press the
START/PAUSE button.
Option 2 (Override Delay EP)
When Delay EP is shown, the delay function can be
overridden by pressing the DELAY START button. Pressing the
START/PAUSE key will begin the selected cycle with “e”WASH
enabled. The “e”WASH indicator will be illuminated.
During a Critical Rate period, the Critical Response Mode**
will also be activated to maximize energy savings. EP will be
displayed.
Option 3 (Override "e" WASH)
After overriding the delay function, pressing the “e”WASH
button will disable the “e”WASH setting. Pressing the START/
PAUSE key will begin the selected cycle.
During a Critical Rate period, the Critical Response Mode** will
be activated to maximize energy savings. EP will be displayed.
**Note: The Critical Response Mode can be disabled at any
time by pressing and holding the “e”WASH Button for 3 sec-
onds. EP will be removed from the display
SETTINGS MENU
Press SETTINGS; then select Energy Management.
Delay EP Override
This option allows your smart washer to automatically engage
the “e”WASH setting when overriding a Delay EP and starting
a cycle during a Critical or High Rate period. The default
setting is YES.
Auto-Extend Delays
If a timed delay is selected, this option allows for the
scheduled start to extend if the utility rate is Critical or
High at the scheduled start. The default setting will
automatically extend these cycles.
Critical Rate Option
This option allows your smart appliance to respond to Critical
Rate information by automatically engaging the Critical
Response Mode. The Critical Response Mode is designed to
maximize energy savings when a cycle is run during a Critical
Rate period. The default setting is YES. Setting this option to
NO will disable the Critical Response Mode.
In order for the demand response features on the appliance
to work, additional equipment is required to be installed to
interface with the local utility. Such equipment may be sold
separately and/or is available through your utility as part of
the pilot test program. Check with your utility company to
see if a pilot test program is available in your area and for full
details.
PLEASE NOTE: If you move to an area where the program
is not available, the demand response features cannot be
activated and utilized on the appliance. The appliance will
function as normal after the demand response equipment has
been deactivated or disconnected.

17
Installation Washer
Instructions
If you have any questions, call 800.GE.CARES (800.432.2737)
or visit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT – Save these instructions
for local inspector’s use.
•IMPORTANT – Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions
for future reference.
• Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
• Completion time – 1-3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
WARNING
• This appliance must be properly grounded and
installed as described in these Installation Instructions.
• Do not install or store appliance in an area where
it will be exposed to water/weather. See Location
of Your Washer section.
• NOTE: This appliance must be properly
grounded, and electrical service to the washer
must conform with local codes and ordinances
and the latest edition of the National Electrical
Code, ANSI/NFPA 70.
FOR YOUR SAFETY:
TOOLS REQUIRED FOR
WASHER INSTALLATION
1/4snut driver
3/8ssocket with ratchet
3/8sopen-end wrench
Adjustable wrench or 7/16ssocket with ratchet
Adjustable wrench or 9/16sopen-end wrench
Channel-lock adjustable pliers
Carpenter’s level
 Water Hoses (2)
PARTS SUPPLIED
 Cable Tie
PFWS4605, PFWS4600
PFWH4405, PFWH4400

18
27” (68.6cm)
39” (99cm)
34.4” (87.3cm)
39” (99cm)
Installation Instructions
LOCATION OF YOUR WASHER
Do Not Install the Washer:
1.In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60°F (15.6°C) for proper
washer operation.
2.In an area where it will come in contact with curtains or
drapes.
3.On carpet. The floor MUST be a hard surface with
a maximum slope of 1/2sper foot (1.27 cm per
30 cm). To make sure the washer does not vibrate
or move, you may have to reinforce the floor.
NOTE: If floor is in poor condition, use 3/4simpregnated
plywood sheet solidly attached to existing floor covering.
IMPORTANT:
Minimum Installation Clearances
• When installed in alcove: Sides, Rear,
Top = 0s(0 cm)
• When installed in closet: Sides, Rear,
Top = 0s(0 cm), Front = 1s(2.54 cm)
• Closet door ventilation openings required:
2 louvers each 60 square in. (387 cm), located 3s
(7.6 cm) from top and bottom of door
ROUGH-IN DIMENSIONS
SIDE
FRONT
*NOTE:
With Washer Legs: 40.5” (102.5 cm)
(0.75” adjustability)
With Pedestal: 53.75” (136.6 cm)
(0.75” adjustability)
Stacked: 82.75” (209.8 cm)

19
UNPACKING THE WASHER
WARNING: Recycle or destroy the carton
and plastic bags after the washer is unpacked. Make
materials inaccessible to children. Children might use
them for play. Cartons covered with rugs, bedspreads
or plastic sheets can become airtight chambers causing
suffocation.
1. Cut and remove the top and bottom packaging straps.
2. While it is in the carton, carefully lay the washer on its side.
DO NOT lay the washer on its front or back.
3. 7XUQGRZQWKHERWWRPIODSV³UHPRYHDOOEDVHSDFNDJLQJ
including the cardboard, styrofoam base and styrofoam
tub support (inserted in center of base). Save the stacking
brackets located on the styrofoam pad that covered
the top of the washer.
NOTE: If you are installing a pedestal, proceed to
the installation instructions that come with the pedestal.
4. Carefully return the washer to an upright position and
remove the carton.
5. Carefully move the washer to within 4 feet (122 cm)
of the final location.
6. Remove the following from the back side of the washer:
4 bolts
4 plastic spacers (including rubber grommets)
4 power cord retainers
7. Remove the shipping bolt. Insert plug into shipping
bolt hole.
NOTE: Failure to remove the shipping braces can cause
the washer to become severely unbalanced.
Save all bolts for future use.
NOTE: If you must transport the washer at a later date,
you must reinstall the shipping support hardware to prevent
shipping damage. Keep the hardware in the plastic bag
provided.
Installation Instructions
ELECTRICAL REQUIREMENTS
CIRCUIT – Individual, properly polarized and grounded
15-amp branch circuit fused with 15-amp time-delay fuse
or circuit breaker.
POWER SUPPLY – 2-wire, with ground, 120-volt,
single-phase, 60-Hz, Alternating Current.
OUTLET RECEPTACLE – Properly
grounded 3-prong receptacle to be
located so the power supply cord is
accessible when the washer is
in an installed position.
WARNING: Improper connection of the
equipment grounding conductor can result in a risk
of electrical shock. Check with a licensed electrician
if you are in doubt as to whether the appliance is
properly grounded.
1. The washer MUST be grounded. In the event of
malfunction or breakdown, grounding will reduce
the risk of electrical shock by providing a path of least
resistance for electrical current.
2. Since your washer is equipped with a power supply
cord having an equipment-grounding conductor and
a grounding plug, the plug MUST be plugged into an
appropriate, copper-wired receptacle that is properly
installed and grounded in accordance with all local codes
and ordinances or in the absence of local codes, with the
National Electrical Codes, ANSI/NFPA 70 (latest edition).
If in doubt, call a licensed electrician. DO NOT cut off or
alter the grounding prong on the power supply cord. In
situations where a two-slot receptacle is present, it is the
owner’s responsibility to have a licensed electrician replace
it with a properly grounded three-prong grounding-type
receptacle.
Read these instructions completely
and carefully.
GROUNDING REQUIREMENTS
:$51,1*³TO REDUCE THE RISK OF
FIRE, ELECTRICAL SHOCK AND PERSONAL INJURY:
• DO NOT USE AN EXTENSION CORD OR AN ADAPTER
PLUG WITH THIS APPLIANCE.
Washer must be electrically grounded in accordance
local codes and ordinances, or in the absence of local
codes, in accordance with the NATIONAL ELECTRICAL
CODE, ANSI/NFPA NO. 70.

20
Installation Instructions
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUST be installed within
42 inches (107 cm) of your washer’s water inlet. The faucets
MUST be 3/4s(1.9 cm) garden hose-type so inlet hoses can
be connected. Water pressure MUST be between 10 and 120
pounds per square inch. Your water department can advise
you of your water pressure. The hot water temperature
should be set to deliver water at 120° to 140°F (48°–60°C)
to provide proper Automatic Temperature Control (ATC)
performance.
NOTE: A water softener is recommended to reduce buildup of
scale inside the steam generator if the home water supply is
very hard.
DRAIN REQUIREMENTS
1. Drain capable of eliminating 17 gals (64.3 L)
per minute.
2. A standpipe diameter of 1 1/4s(3.18 cm) minimum.
3. The standpipe height above the floor should be:
Minimum height: 24s(61 cm)
Maximum height: 96s(244 cm)
NOTE: The drain hose attached to the washer can reach
a 58s(147 cm) high standpipe. For a higher standpipe,
contact an authorized parts distributor.
INSTALLING THE WASHER
1. Run some water from the hot and cold faucets to flush the
water lines and remove particles that might clog the inlet
hose and water valve screens.
2. Remove the inlet hoses from the plastic bag.
3. (90° elbow end) Ensure there is a rubber washer in the
90° elbow end of the HOT
and COLD hoses. Reinstall
the rubber washer into the
hose fitting if it has fallen out
during shipment. Carefully
connect the inlet hose
marked HOT to the outside
“H” outlet of the water valve.
Tighten by hand, then tighten
another 2/3 turn with pliers.
Carefully connect the other inlet hose to the inside “C” outlet
of the water valve. Tighten by hand; then tighten another
2/3 turn with pliers. Do not crossthread or over-tighten
these connections.
4. If the inlet hose screen washers (if supplied with your
model) have fallen out during shipment, reinstall the screen
washers by inserting them into the free ends of the HOT
and COLD inlet hoses with protruded side facing the faucet.
5. Connect the inlet hose ends to the HOT and COLD
water faucets tightly by hand, then tighten another
2/3 turn with pliers. Turn the water on and check
for leaks.
6. Carefully move the washer to its final location. Gently rock
the washer into position. It is important not to damage the
rubber leveling legs when moving your washer to its final
location. Damaged legs can increase washer vibration. It
may be helpful to spray window cleaner on the floor to help
move your washer into its final position.
NOTE: To reduce vibration, ensure that all four rubber
leveling legs are firmly touching the floor. Push and pull
on the back right and then back left of your washer.
NOTE: Do not use the dispenser drawer or door to lift
the washer.
NOTE: If you are installing into a drain pan, you can use
a 24-inch long 2x4 to lever the washer into place.
C
H
Inlet Hose
Screen
Washers
BACK
96”
(244 cm)
Max.
24”
(61 cm)
Min.
