GE GE Energy Star WCRE6270K How to use

GE Appliances
General Electric Company
Louisville, Kentucky 40225
31-9188
Profile Washers With
Infusor Wash System
Technical Service Guide
AUGUST 2009
GE Consumer & Industrial
WCRE6270K
WHRE5550K
WJRE5500K
WJRE5550K
WKRE5550K
WPRE6150K
WPRE8150K
LOADSIZE
Profile
TEMPERATURE
OPTIONS
START /P
AUSE
COTTONS
CASUALS
PREWASH
HANDWASH
DELICATES
EASYCARE
SPEEDWASH

– 2 –
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by
individuals possessing adequate backgrounds of electrical,
electronic, and mechanical experience. Any attempt to repair a
major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
WARNING
To avoid personal injury, disconnect power before servicing
this product. If electrical power is required for diagnosis or test
purposes, disconnect the power immediately after performing the
necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to
complete a path to ground are removed for service, they must be
returned to their original position and properly fastened.
GE Consumer & Industrial
Technical Service Guide
Copyright © 2009
All rights reserved. This service guide may not be reproduced in whole or in part
in any form without written permission from the General Electric Company.

– 3 –
Table of Contents
AC Line Filter........................................................................................................................................................................20
Automatic Temperature Control (ATC).....................................................................................................................19
Belt...........................................................................................................................................................................................25
Brake Test.............................................................................................................................................................................41

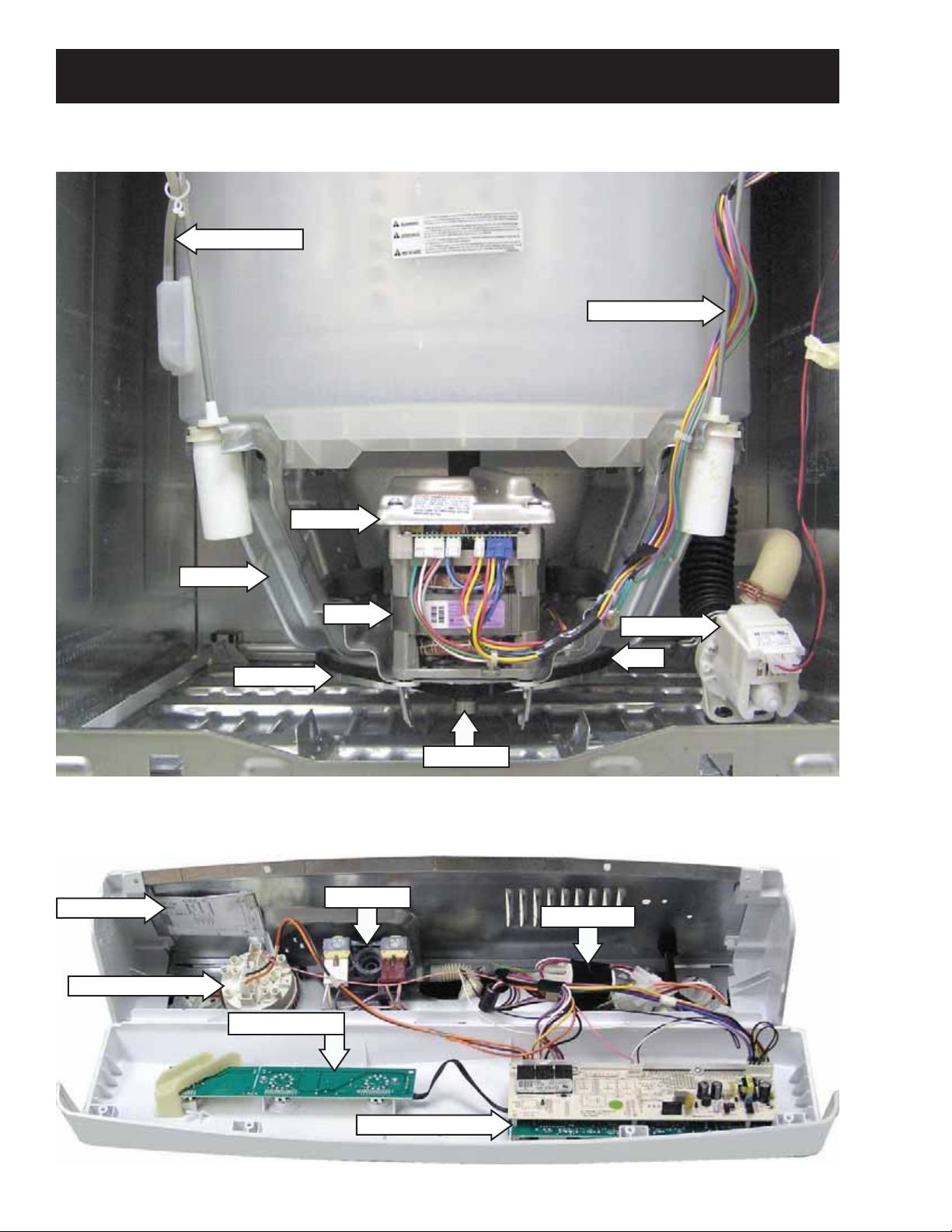

Component Locator Views...........................................................................................................................................14

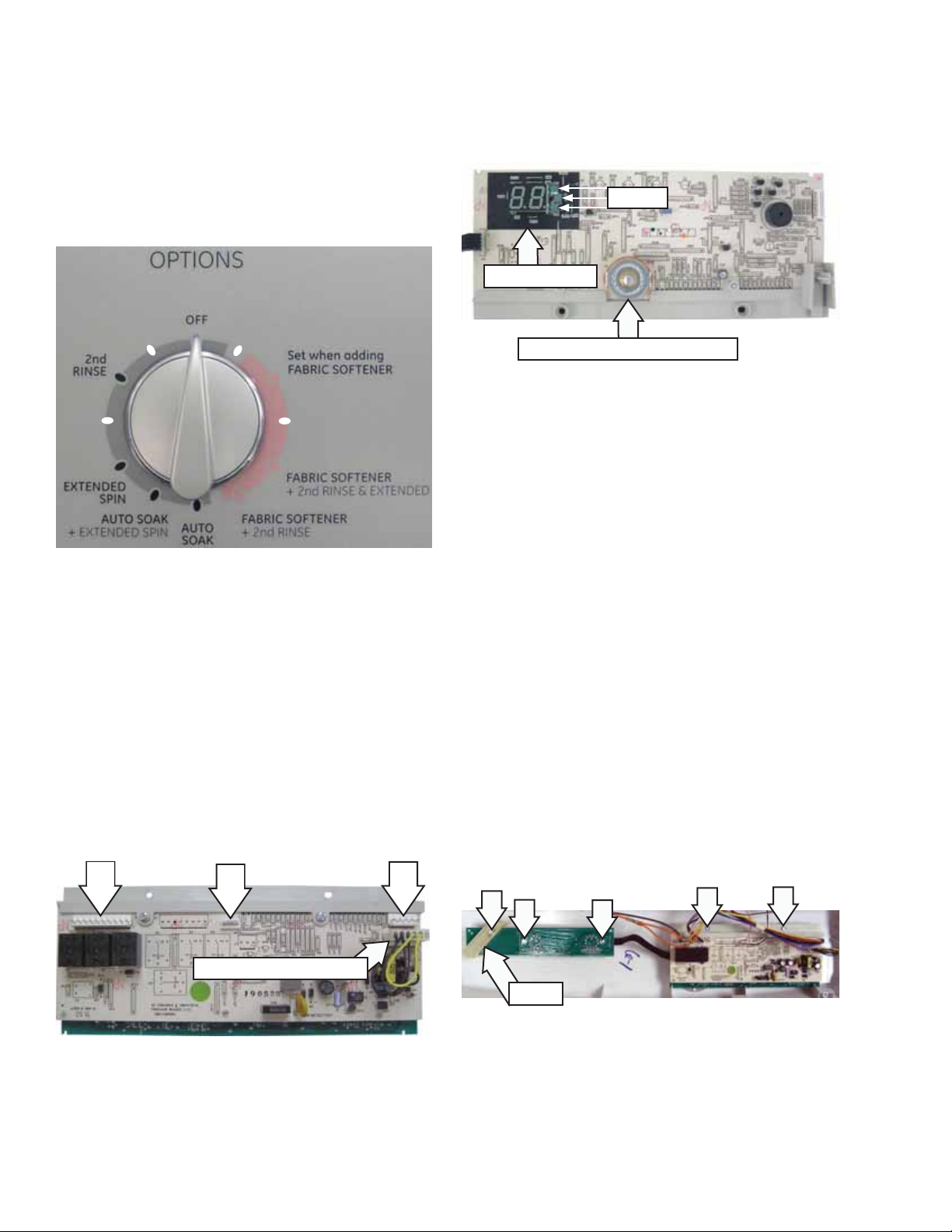

Control Board Assembly................................................................................................................................................17
Control Features...............................................................................................................................................................12

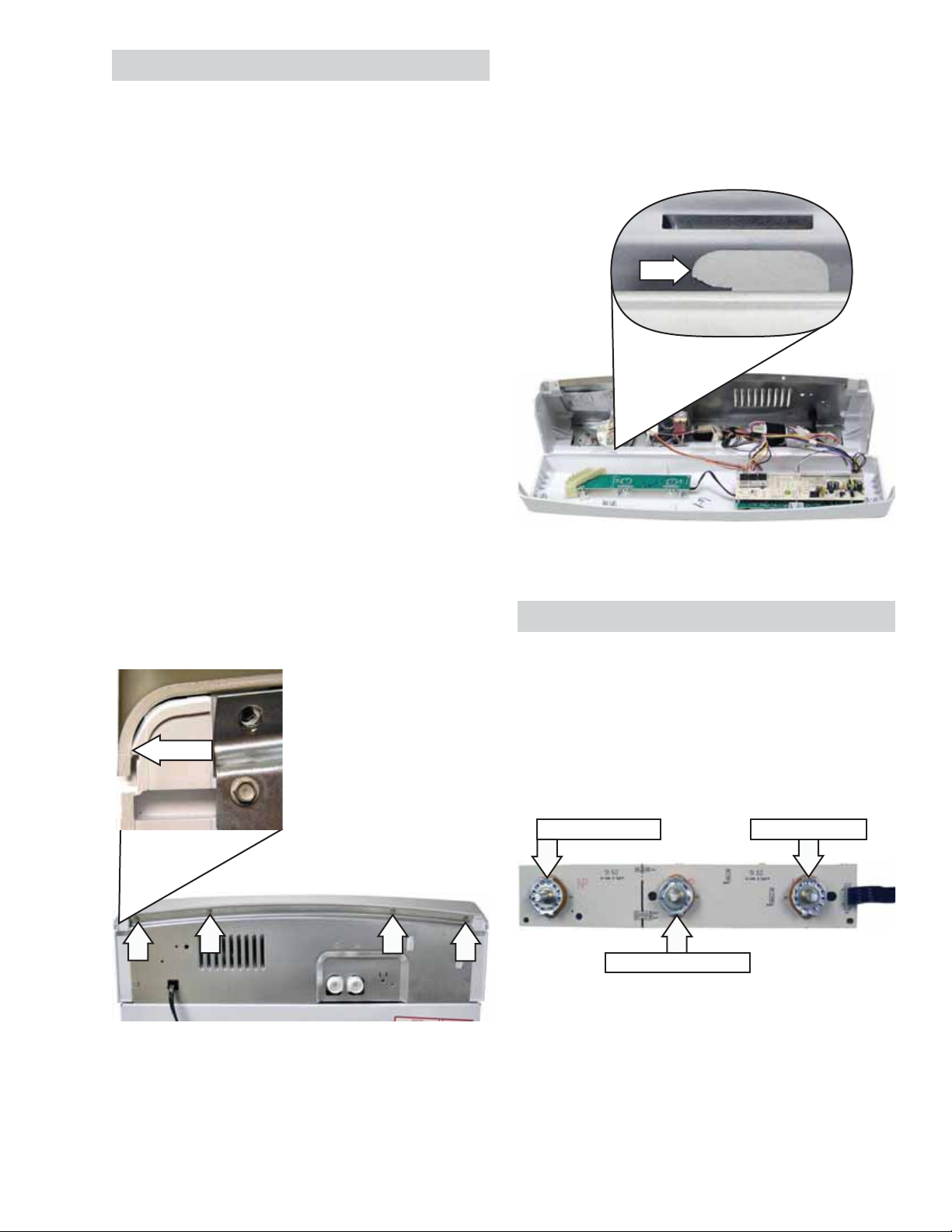

Control Panel.......................................................................................................................................................................17
Cover/Lid Assembly.........................................................................................................................................................21
Diagnostics and Service Information......................................................................................................................35
Drain Pump..........................................................................................................................................................................24
Field Service Mode ...........................................................................................................................................................35
Front Panel...........................................................................................................................................................................24
Harness Fuse ......................................................................................................................................................................28
Infusor....................................................................................................................................................................................15
Introduction......................................................................................................................................................................... 5
Inverter/Motor....................................................................................................................................................................27
Inverter/Motor Error Codes..........................................................................................................................................38
Inverter/Motor Test..........................................................................................................................................................40
Leveling Legs ......................................................................................................................................................................15
Lid Switch Assembly........................................................................................................................................................23
Mode Shifter Coil Test .....................................................................................................................................................41
Motor and Drive System................................................................................................................................................ 6
Nomenclature .................................................................................................................................................................... 4
Precise Fill Pressure Switch ..........................................................................................................................................21
Schematic.............................................................................................................................................................................42
Shaft and Mode Shifter Assembly.............................................................................................................................31
Shaft and Mode Shifter Overview ............................................................................................................................. 7

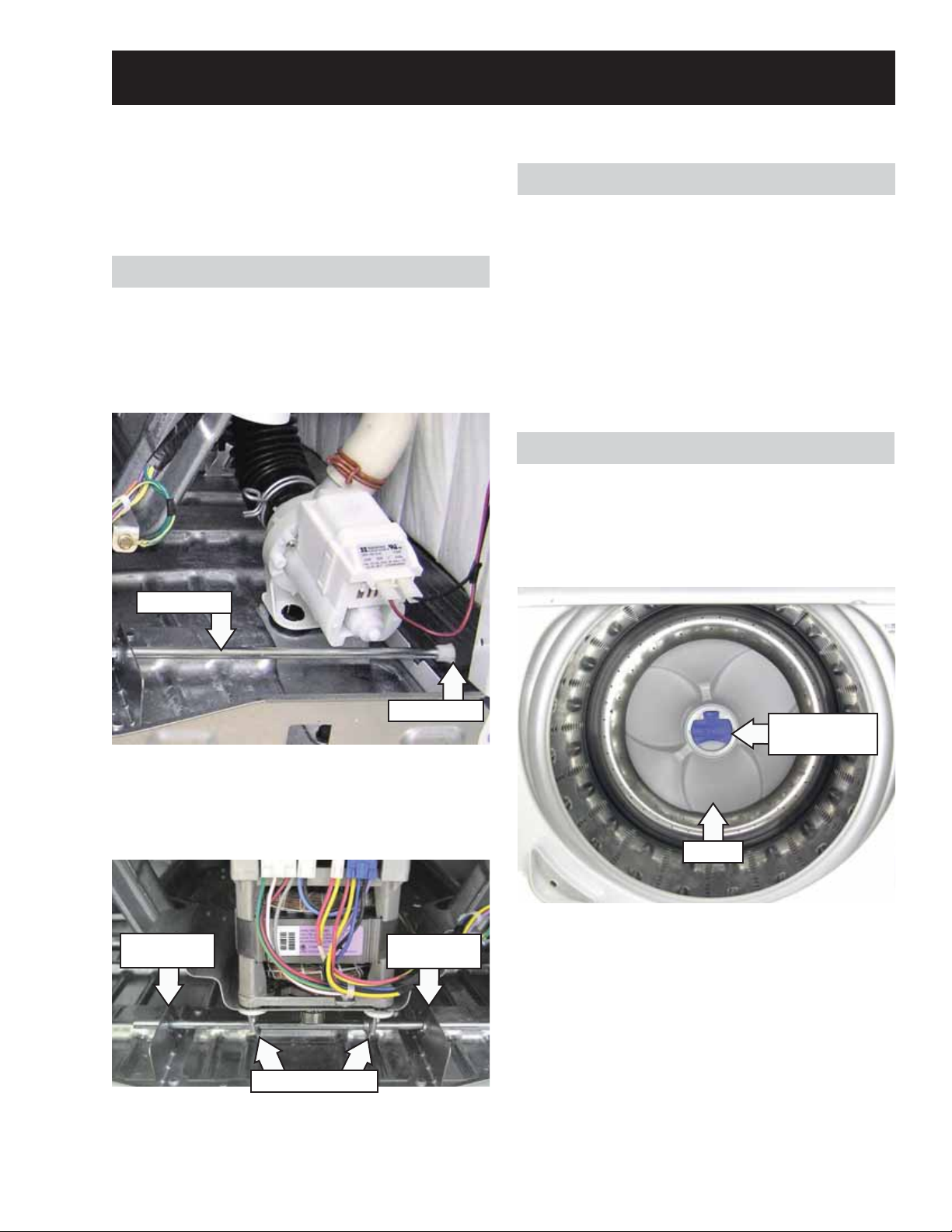

Shipping Rod.......................................................................................................................................................................15
Suspension...........................................................................................................................................................................28
Tub Assembly .....................................................................................................................................................................29
Tub Cover..............................................................................................................................................................................29
Warranty ..............................................................................................................................................................................43
Washer Components......................................................................................................................................................15
Water Valve.........................................................................................................................................................................19

– 4 –
Control Platform
E = Electronics
W P R E 8 1 5 0 K 2 W T
Brand
GE Washer
Feature Pack
P = Profile
Body/Backsplash Color
WT = White/Titanium
Model Year Designator
The nomenclature tag is located under
the lid in the right rear corner.
The mini-manual is located inside the
control panel.
Nomenclature
Capacity/Configuration
R = King Size Stainless Steel Tub
Number of Cycles
Number of Cycles
Nomenclature
The letter designating
the year repeats every
12 years.
Example:
T - 1974
T - 1986
T - 1998
Serial Number
The first two numbers of the serial number
identify the month and year of manufacture.
Example: AS123456S = January, 2009
A- JAN 2009 - S
D - FEB 2008 - R
F - MAR 2007 - M
G - APR 2006 - L
H - MAY 2005 - H
L - JUN 2004 - G
M - JUL 2003 - F
R - AUG 2002 - D
S - SEP 2001 - A
T - OCT 2000 - Z
V - NOV 1999 - V
Z - DEC 1998 - T
Number Of Speed Combinations
Variable Speed Motor
Voltage
0=U.S. Voltage
Engineering Revision

– 5 –
The new Profile washers have the following features:
HydroWave™ with Infusor™ wash system gently pulls fabric through the water using up to a 630-degree•
reversing arc motion for a gentle, yet thorough, clean.
4.1 cu. ft. colossal capacity handles king-size items and family-size loads, which results in fewer loads•
and less time.
ENERGY STAR® qualified meets or exceeds 2009 federal guidelines for year-round energy efficiency and•
money savings.
Auto fill system - Automatically measures the load and fills the appropriate amount of water.•
Enhanced load size control - Load size position to enable auto fill feature.•
Variable speed inverter/motor assembly - Provides multiple speeds for delicate to heavy clothes.•
Multiple wash/spin speed combinations - Speeds are matched to fabric type for better clothes care.•
Field Service Mode for electronic diagnostic testing.•

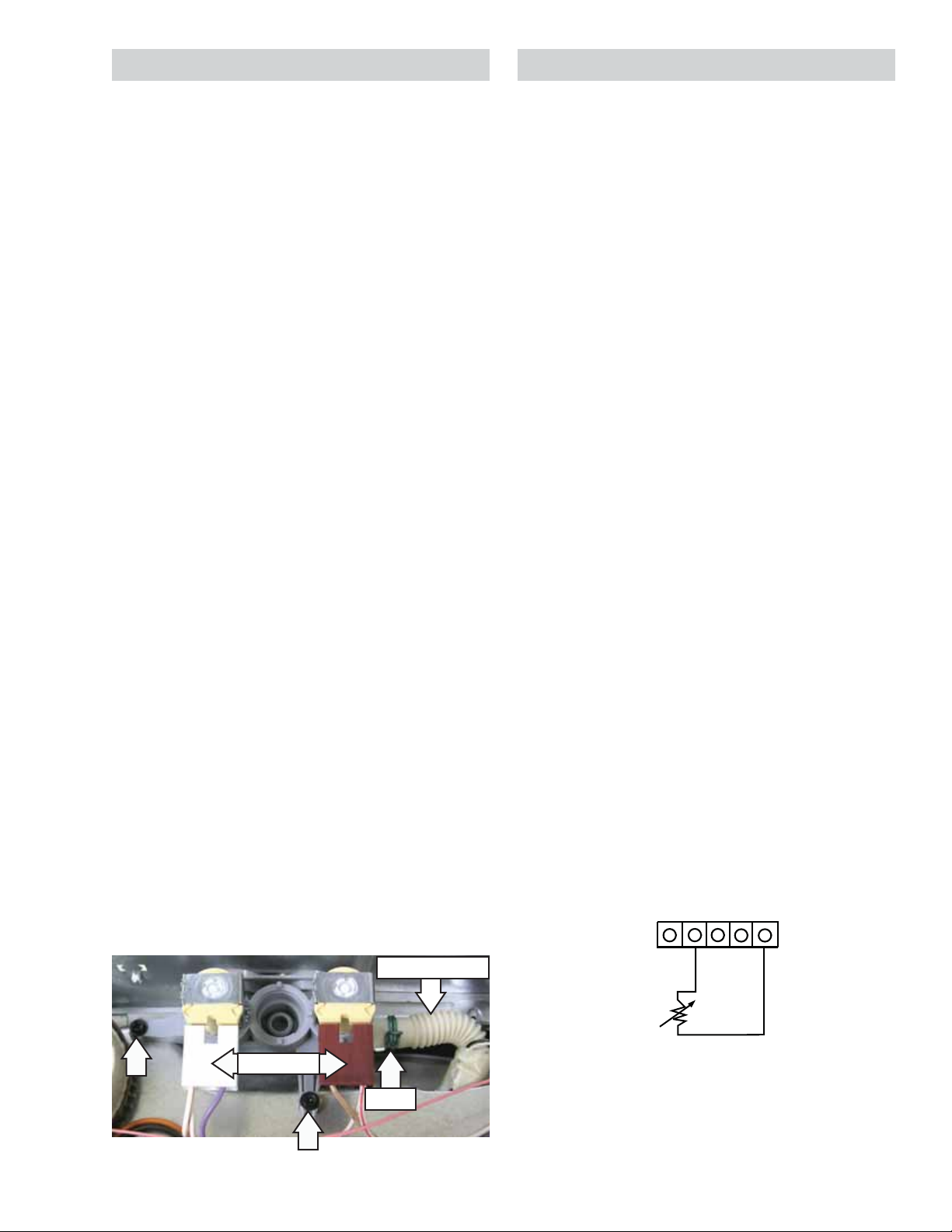

New flow controlled water valve provides•
constant flow rate of water for the auto fill
feature.
Counterweight (5 lbs.) has been added•
for better balance control (available as a
replacement part).

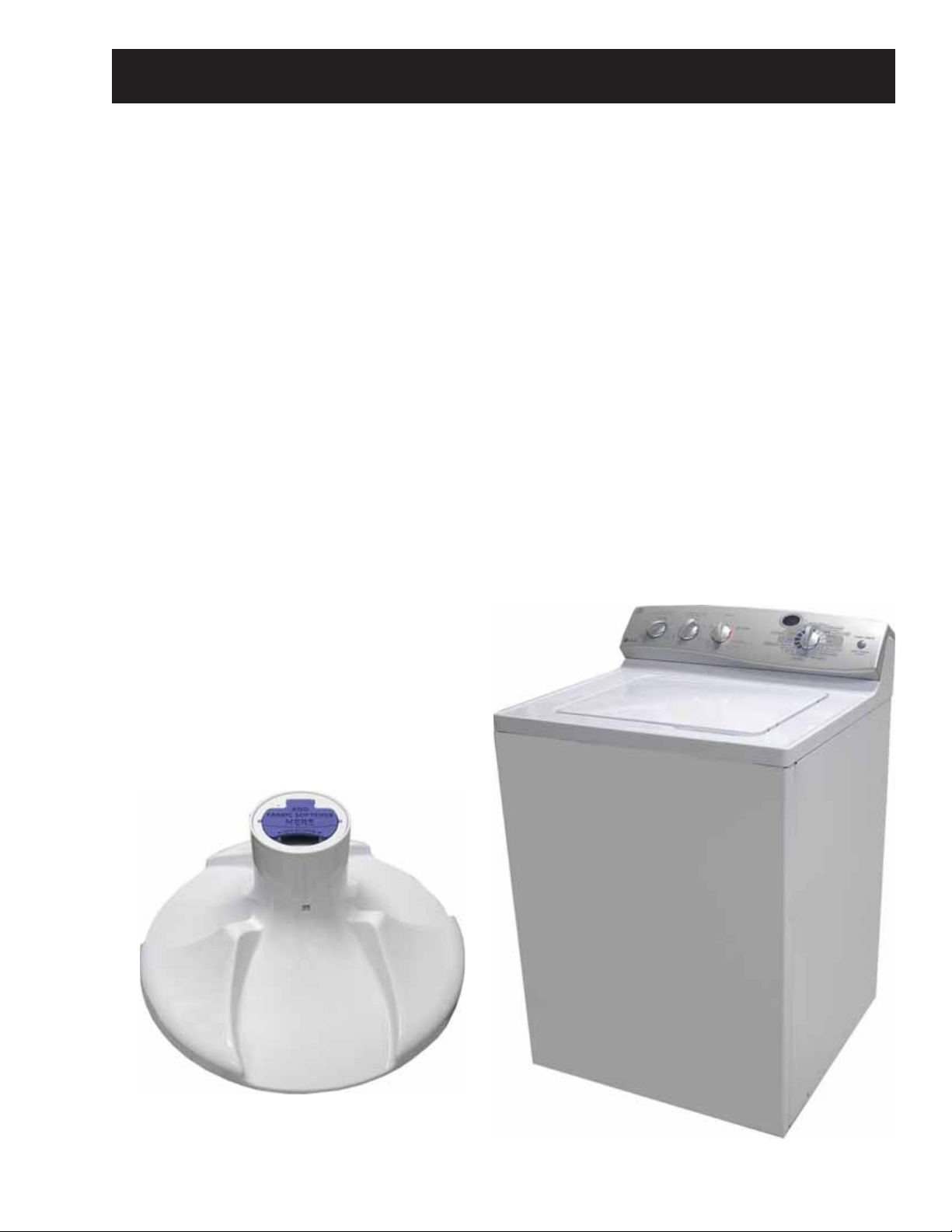

Introduction

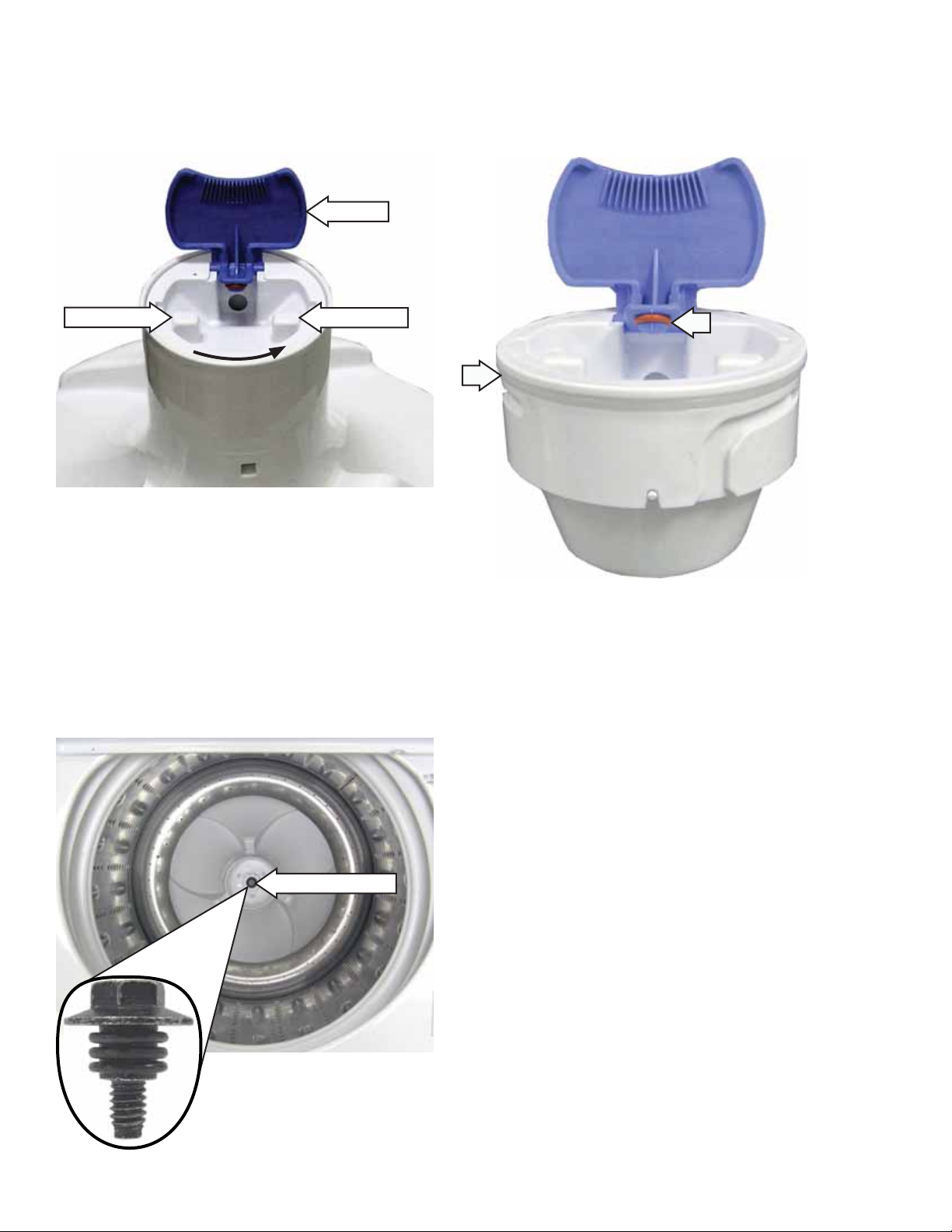

Infusor with Fabric Softener Dispenser

– 6 –
Motor and Drive System
The new Profile washer incorporates a new motor and drive system. The 120-VAC input powers a 3-phase
induction inverter/motor assembly. The inverter produces approximately 340 VDC, which is pulse width
modulated (PWM) to control motor speed. There is no location to check inverter output voltage to the motor.
Voltage given is for information only. The motor is bidirectional, constantly reversing it’s direction to provide
agitation. The motor is connected by a belt to the shaft and mode shifter assembly. By energizing or de-
energizing a coil, the mode shifter assembly engages or disengages the shaft and tube. This allows for
agitation and spin cycle modes.

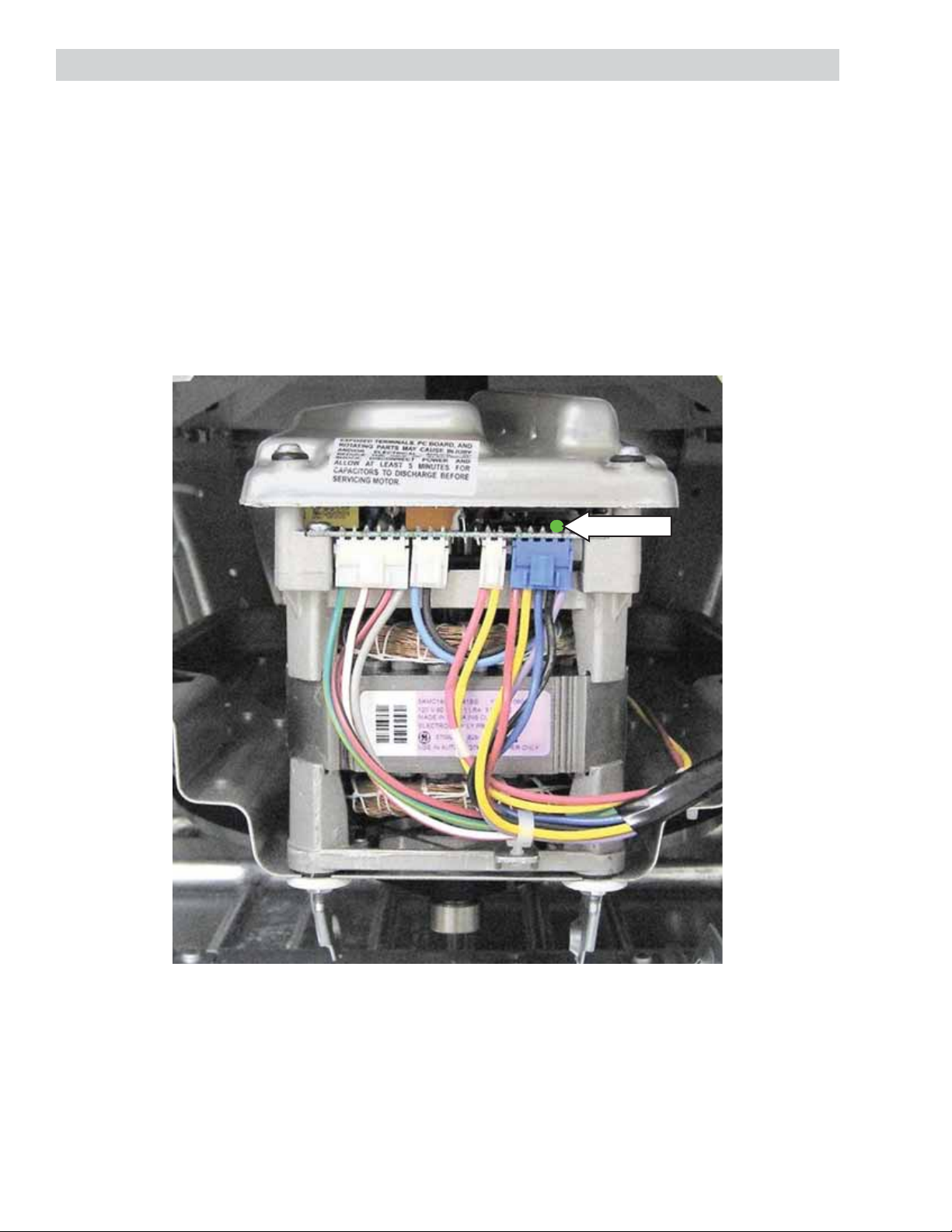

Motor status is displayed through a series of flash codes from a green LED located on the front side of the
inverter just above the motor. These codes are stored in memory until cleared. (See Inverter Motor Error
Codes.)
Inverter/Motor
Green LED

– 7 –
Shaft and Mode Shifter Overview
The shaft and mode shifter assembly consists of the shaft and tube, mode shifter cam, and mode shifter coil.
It operates in 2 distinct modes, spin and agitation.
The shaft and tube transfers power to the wash system. Motor power is transmitted to the shaft and tube
from the drive belt to the drive pulley. The drive pulley is attached to one end of the infusor shaft and the
infusor is attached to the other. The tube is fixed to the washer basket at all times.
The mode shifter changes the shaft and tube from spin to agitation. In agitation mode, the tube is fixed to
the platform and the infusor shaft rotates freely. In spin mode, the infusor shaft is fixed to the tube and both
rotate together.
(Continued next page)
View from Right Side
Motor
Motor Pulley
Mode Shifter
Drive Belt Drive Pulley
Tub
Platform
Inverter
Agitator Shaft
Tube

– 8 –
Agitate Position
Spin/Idle Position
Mode Shifter Coil
Drive Pulley
Mode
Shifter
Cam
Mode Shifter Coil
Drive Pulley
Mode
Shifter
Cam
(Continued next page)
Mode Shifter Cam
Mode Shifter Coil
Drive Shaft
Note: Mode shifter coil energized for agitate mode; cam teeth disengaged from drive pulley.
Shaft and Mode Shifter Assembly
Note: Mode shifter coil de-energized for spin/idle mode; cam teeth engaged in drive pulley.

– 9 – (Continued next page)
MODE SHIFTER
AGITATE
PROGRAM
RUNS
(18 SEC)
Mode Shifter Operation - Agitation
The mode shifter is controlled by the motor inverter circuit. When the washer starts the agitation cycle,
the inverter energizes the mode shifter coil. The magnetic field of the coil lifts the mode shifter cam,
disengaging it from the drive pulley. Without the cam engaged, the drive pulley rotates only the
agitator shaft.
At the beginning of the agitation cycle, the inverter energizes the mode shifter coil with
135 VDC (PWM) for approximately 18 seconds. This high voltage pulls the mode shifter
cam up from the drive pulley. During this time, the motor also rotates clockwise and
counterclockwise in short strokes to ensure the mode shifter cam has been released from
the drive pulley. This operation is called the Mode Shifter Agitate Program. It is normal to
hear metal-to-metal "clunking" sounds during this time as the cam and drive pulley
disengage. The washer runs this program when the agitation cycle first starts, when
power is restored if lost during agitation or when the user restarts the washer if paused
during agitation.
Once the Mode Shifter Agitate Program has completed (18 seconds), agitation begins. During agitation,
the inverter continues to supply 30 VDC (PWM) to the mode shifter coil. This voltage is sufficient to hold
the mode shifter cam away from the drive pulley throughout the remainder of the agitation cycle.
The inverter motor controls the speed of agitation. The agitator stroke rate is approximately 30 strokes
per minute. This rate is the same for all cycles. The speed of the motor controls the arc. At fast speed,
the arc is approximately 630 degrees. At slower speeds, the arc is substantially less. It is the distance of
the arc that determines normal or gentle wash cycles.
Mode Shifter Operation - Spin
At the beginning of the spin cycle, the inverter runs a short sequence (approximately 30
seconds) to make certain the mode shifter cam is engaged with the drive pulley. The
inverter does not supply voltage to the mode shifter coil during this sequence. Since the
coil is not energized, the spring loaded cam drops down into the teeth of the drive pulley.
During this time, the motor also rotates clockwise and counterclockwise in short strokes to
ensure the cam has engaged with the drive pulley. This 30 second operation is called the
Mode Shifter Spin Program. It is normal to hear metal-to-metal "clunking" sounds during
this time as the cam and drive pulley engage.
MODE SHIFTER
SPIN
PROGRAM RUNS
(30 SEC
Notes:
If the washer is paused while in agitation, it is NORMAL to hear sounds for an additional 30 seconds as
the inverter control runs the Mode Shifter Spin Program to de-energize the coil and enter a pause state.
If the washer is in agitation and power is lost, the inverter control will run the Mode Shifter Agitate
Program when power is restored.
If the washer is in spin and power is lost, the inverter control will run the Mode Shifter Spin Program
when power is restored.
To help prevent out-of-balance conditions, the last 10 seconds of agitation on certain cycles will be
short, fast strokes to help redistribute the clothes load prior to entering the spin cycle.

– 10 –

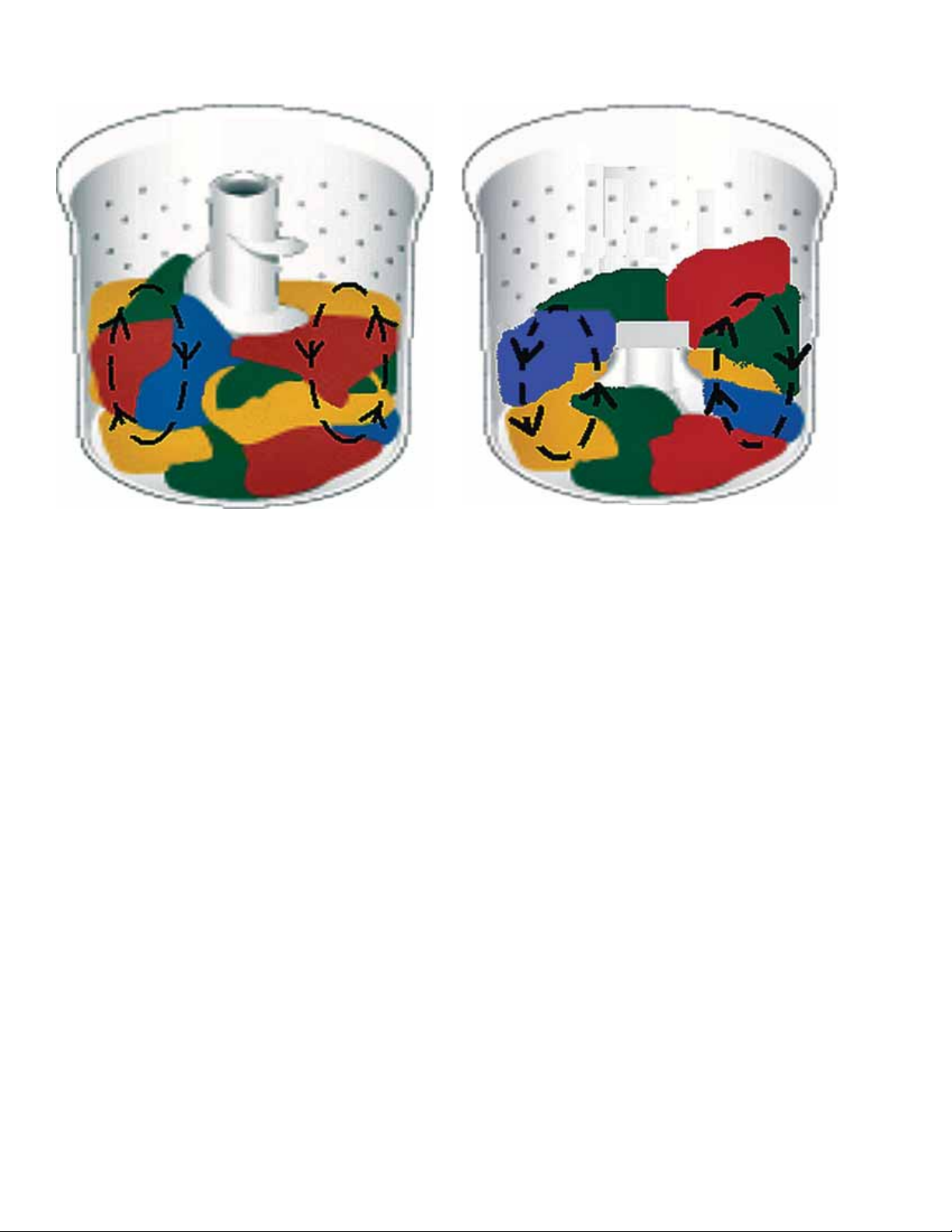

Clothes Movement – Infusor vs Agitator
Agitator
Clothes move down the center and up the sides.•
Clothes movement requires sufficient water to•
“float” the clothes.
Agitator moves the water and the water•
movement moves the clothes.
Water Level Range: 11 – 24 gallons per fill.•
Stroke Profile – Cottons Cycle•
Speed = 80 rpm
Arc Length = ~1.0 revolutions
Infusor
Clothes move up the center and down the sides.•
Clothes movement requires less water than is•
required to “float” the clothes.
Infusor moves the clothes directly. Clothes•
contact with the Infusor moves the clothes
through the water without them having to
float, in turn requiring less water.
Water Level Range: 10-15.5 gallons per fill.•
Stroke Profile – Cottons Cycle•
Speed = 135 rpm
Arc Length = ~ 1.8 revolutions

– 11 –

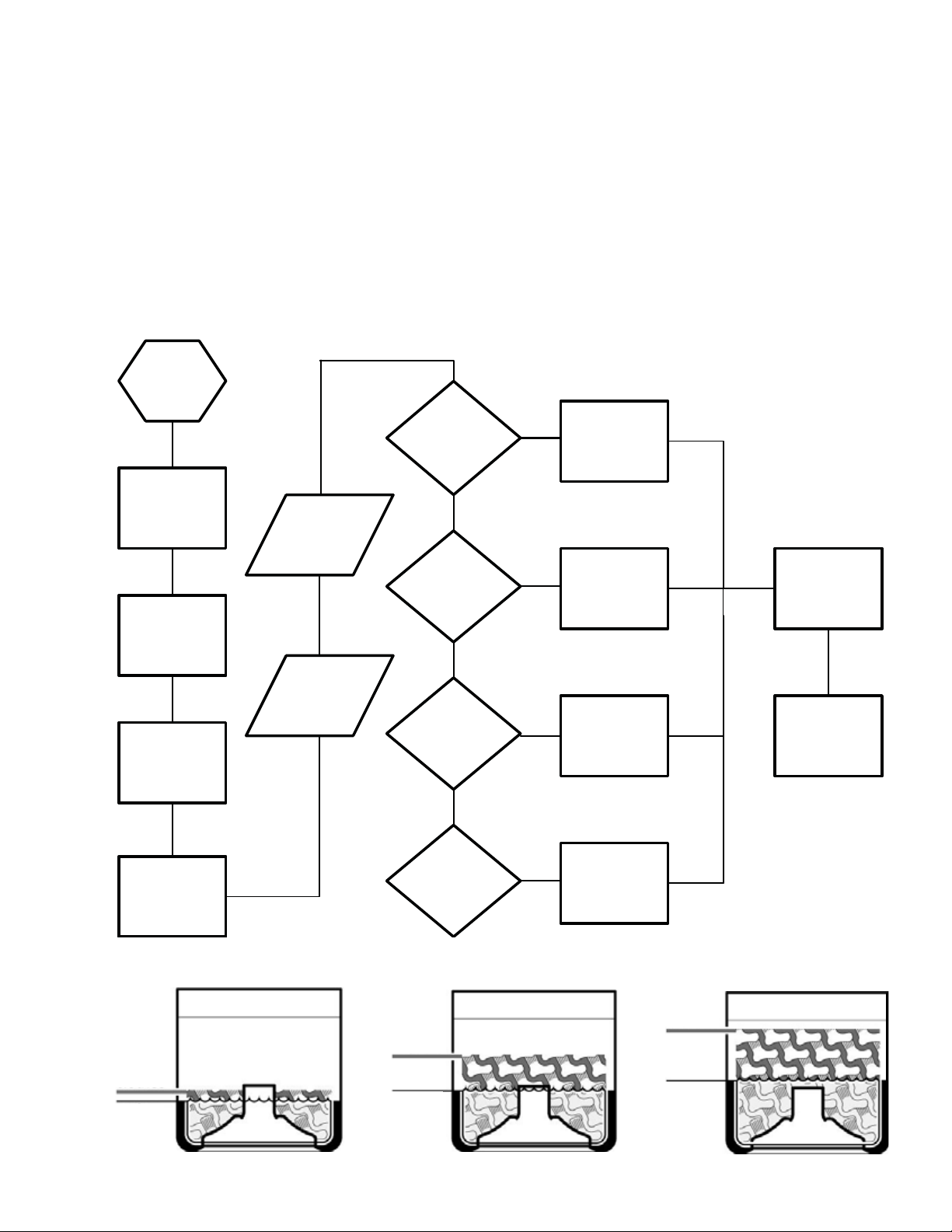

Precise Fill
The manual load size settings selected by the consumer are fixed time fills, the pressure switch does not
control fill timing.
When Automatic Load sensing is selected the machine determines how long the fill timing will be by
monitoring the lower level pressure switch, the control receives the input from the lower switch and then
determines the load size and fill timing for that load.
The washer will not fill with water when automatic load sensing is selected if the lid is opened.
When the lid is closed the machine is able to begin filling with water in order to sense the load size.
Start
Customer selects
automatic fill and
presses start
Set internal
control fill timer
to zero
Initiate water
valves and start
15 rpm CCW spin
Monitor lower
level pressure
switch for trip to
open
Does control fill
timer = small
load?
Does control fill
timer = Medium
load?
Does control fill
timer = large
load?
Does control fill
timer = super
load?
Disengage
mode
shifter and
set for
agitate
Set fill time to
equal a small
load size
Set fill time to
equal a medium
load size
Set fill time to
equal a large load
size
Set fill time to
equal a super
load size
Turn off water
valves
Begin wash
agitate
Begin 15
rpm agitate
to end of
full fill
Precise Fill - how it works
Small Load
clothes
water
level
Large Load
clothes
water
level
Super Load
clothes
water
level

– 12 –
Features and appearance may vary between models.

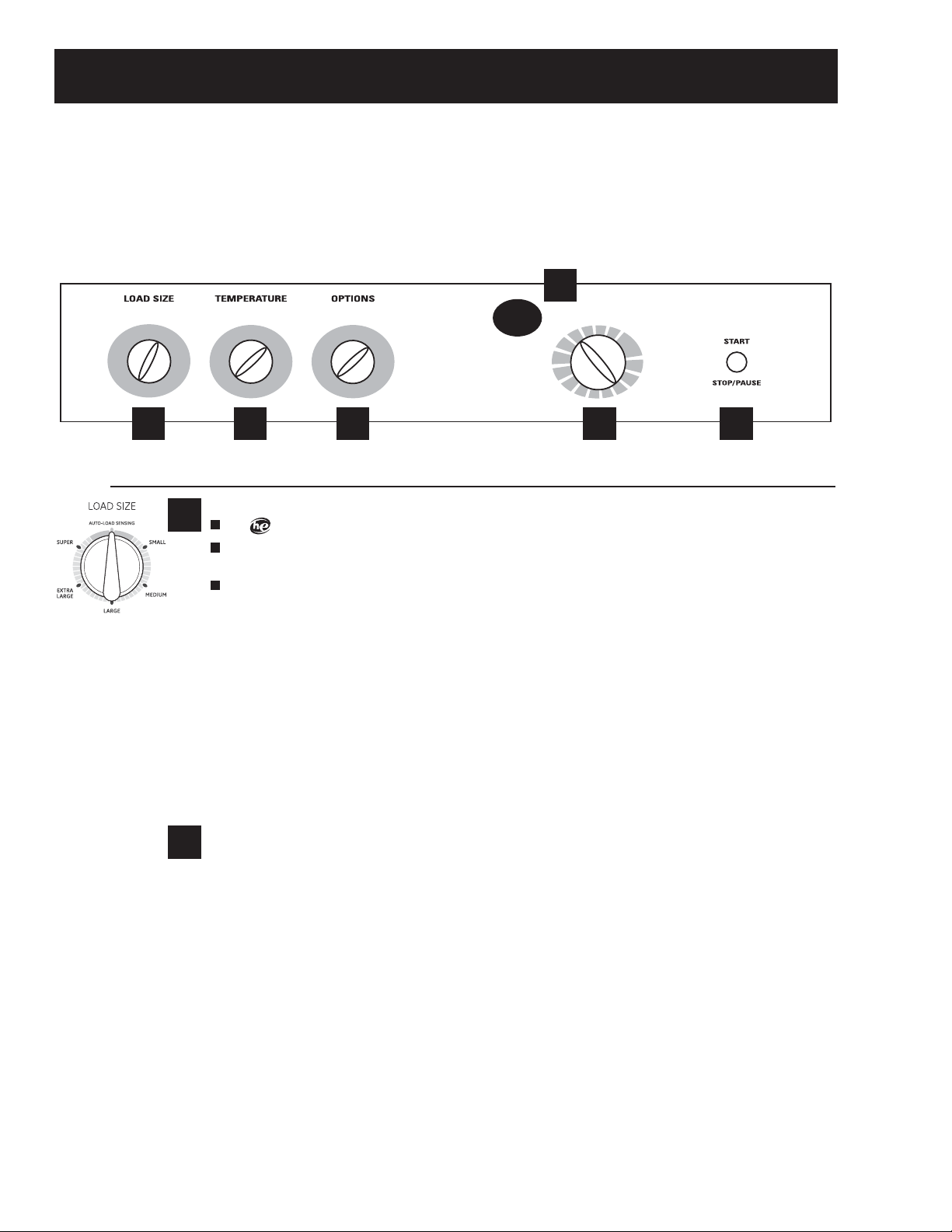

Control Features
Profile Models
(Continued next page)
A B C
D
EF
Load Size
Add detergent to the bottom of the basket and fabric softener to the dispenser prior to loading clothes.
Loosely load clothes no higher than the top row of holes in the basket. For optimal performance, load items
around the outside of the basket.
Make the load selection from SMALL, MEDIUM, LARGE, EXTRA LARGE, SUPER and AUTOMATIC LOAD SENSING:
– For convenience, best performance and optimal efficiency, select AUTOMATIC LOAD SENSING. This selection
automatically provides the correct amount of water suited to the size and type of load placed in the unit.
– If you prefer to manually select the water level, select SMALL through SUPER. While AUTOMATIC LOAD
SENSING is best for most loads and general washing, you may want to manually select the load size for
specialty items such as bulky, lightweight comforters or pillows, where you want to ensure a larger water
level is applied. Manual load size selections should be made for wet items placed in the washer, such as
soaked towels or garments.
– The washer will not fill with water when automatic load sensing is selected if the lid is opened.
When the lid is closed the machine is able to begin filling with water in order to sense the load size.
NOTE: This is a high-efficiency washing machine with Infusor™ wash action. This system requires less water
while providing effective cleaning action. You may notice that the water level is lower than on your previous
washer. This is normal for an Infusor™-equipped washer. The water level will be just above the top of the
Infusor™ when the SUPER WASH size is selected.
Temperature
Select the water temperature for the wash and rinse cycles. Always follow fabric manufacturer’s care label or
instructions when laundering.
PerfecTemp senses the incoming water temperature and adjusts the fill water to obtain a more precise
temperature range for all wash temperatures. For example, in a COLD wash selection, some warm water may be
added to reach a temperature needed to better dissolve detergents. Often, detergents are not completely
dissolved in very cold water, especially in cooler climates.
A
B
Controls

– 13 –
During winter months, when the water entering your home is colder, or for locations with very cold water year round,
use the PerfecTemp plus COLD to help dissolve powdered detergents and to improve the cleaning of your clothes.
The TAP COLD feature turns the PerfecTemp feature on your washer off and uses your household tap water
temperature for a COLD wash. This can provide energy savings by reducing the amount of hot water used in your
wash.
Options
Autosoak Option (on some models)
This option begins with a brief agitation, soaks for a specified period of time, then moves through the rest of the cycle
automatically. On some models, this option is located on the Cycle Selector knob.
2nd Rinse Option (on some models)
When you use extra detergent or bleach to clean heavily soiled clothes, you may want to use the 2nd Rinse option.
It provides a second deep cold rinse.
Extended Spin Option (on some models)
Use this option to extract more water from your clothes. Clothes will be drier when this option is selected and will dry
more quickly in your dryer.
Fabric Softener
Set this option when adding fabric softener to the washer.
NOTE: Do not use fabric softener dispensing balls with this washer. They do not work correctly in high-efficiency
washers.
Estimated Time Remaining Display
Displays the approximate time remaining until the end of the cycle.
If the estimated time remaining is more than 60 minutes, “1H” will flash in the display followed by the additional
remaining minutes. When the time remaining is less than 60 minutes, the timer will count down.
Cycle time is affected by how long it takes the washer to fill. This depends on the water pressure in your home.
The “smart” timer “learns” the amount of time it takes to fill your washer and adjusts the total time accordingly.
Wash Cycle―Cycle Selector Knob
The wash cycle controls the length of the washing process. The knob can be turned in either direction. Turning the Cycle
Selector knob after starting a cycle will stop the washer and reset the cycle to the new selection. Press START
to begin the new cycle selection.
The chart below will help you match the wash cycle setting with your clothing.
COTTONS For heavy to lightly soiled cottons, household linens, work and play clothes. This cycle provides the
best overall cleaning and should be used for most everyday items. Provides a high speed spin.
PREWASH For removing surface dirt from heavily soiled clothes. Make sure to follow with
a regular wash cycle.
CASUALS For wrinkle-free and permanent press items and knits. Provides a low speed spin.
EASY CARE For wrinkle-free and permanent press items and knits. Provides a high speed spin.
DELICATES For lingerie and special-care fabrics with light to normal soil. Provides a low speed spin.
HAND WASH For items labeled handwashable with light soils. Provides an extra low speed spin.
SPEED WASH For small loads of lightly-soiled items that are needed in a hurry. Provides a high speed spin.
DRAIN & SPIN For draining the tub and spinning water out of clothes. Provides a high speed spin.
TOWELS & This cycle provides periods of agitation and soak tailored for washing towels and sheets.
SHEETS Provides a high speed spin.
JEANS For washing medium to lightly soiled jeans. For heavily soiled work jeans, use COTTONS HEAVY
cycle. Provides a high speed spin.
QUICK RINSE Rinses and spins non-soiled items where a rinse only is desired. Provides a high speed spin.
START
Press START to begin the cycle. NOTE: The lid must be closed for the washer to fill and the cycle to start. Pressing START
again will PAUSE the cycle and the cycle indicator light will blink.
To continue the cycle, press START again. If machine is paused more than 24 hours, the cycle will be cancelled. To stop
the cycle, hold the button for 3 seconds. If water remains in the machine, select the DRAIN & SPIN cycle to drain tub
and spin water out of the washer tub.
D
E
F
C

– 14 –
Component Locator Views
Motor Drain Pump
Suspension Rod
Pressure Hose
Drive Pulley Belt
Platform
Motor Pulley
Inverter
Front View
Control Panel (in service position)
Water Valve AC Line Filter
Main Control Board
Secondary Board
Water Level Switch
Mini-Manual

– 15 –
Washer Components
WARNING: Sharp edges may be exposed when
servicing. Use caution to avoid injury. Wear Kevlar
gloves or equivalent protection.
Shipping Rod
There is a new location for the shipping rod. The rod
is inserted and removed through a hole located on
the lower right side of the cabinet and now passes
in front of the drain pump.
The shipping rod passes through the chassis rod
brackets and the platform brackets.
Leveling Legs
The front legs are screw type and are adjusted
by turning the legs counterclockwise to increase
height. The rear leveling legs are contained in an
assembly and will level the rear of the washer left to
right.
To level the washer, tilt the washer forward to lift the
rear legs off the floor, then gently set it back down.
Adjust the front leveling legs to level the washer
front to back and left to right across the front.
Infusor
The infusor is attached to the top of the infusor
drive coupling with a 7/16-in. hex-head bolt. It is
necessary to remove the fabric softener dispenser
to access the hex-head bolt.
Rod Inlet Hole
Shipping Rod
(Continued next page)
Infusor
Fabric Softener
Dispenser
Chassis Rod
Bracket Chassis Rod
Bracket
Platform Brackets

– 16 –
4. Lift the infusor out of the washer.
2. Lift the dispenser out of the infusor.
Note: In the following step, there are 3 O-rings on
the hex-head bolt. They are needed for proper
operation of the fabric softener dispenser. Make
certain the O-rings are in place on the hex-head
bolt when reassembling.
3. Remove the 7/16-in. hex-head bolt that attaches
the infusor to the drive coupling.
To remove the infusor:
Lift the dispenser top tab. Using the 2 turning1.
tabs, turn the top approximately 1¼inches
counterclockwise.
Top Tab
Turning Tab Turning Tab
7/16-in. Hex Bolt
Note: There are 2 O-rings on the softener dispenser.
These must be intact and not damaged. If either O-
ring is leaking, softener will be dispensed during the
wash cycle.

– 17 –
Rotate the top of the control panel forward4.
approximately 1 inch and slide to the right to
unlock the 3 bottom locking tabs.
Lift the panel up and off the cover panel and rotate5.
down.
Service Position
Control Board Assembly
The control board assembly is mounted on the
inside of the control panel. It is inserted in 3 panel
slots and held in place by 5 screws. It consists of
a secondary board permanently connected to the
main board with a ribbon. The secondary board
contains the water temperature control and the
options selector.
Options Selector
Load Size Switch
Temperature Selector
Unsnap
(Continued next page)
Tab
Control Panel
It is necessary to remove the control panel from the
backguard and place it in the service position to
access:
Control circuit board•
Water level switch•
Water valve•
AC line filter•
ATC Thermistor•
To place the control panel in the service position:
Caution: To prevent damage to the control panel,
place a protective pad on the cover/lid assembly.
Note: The control panel is attached to the washer
with four 1/4-in hex-head screws at the top and 3
tabs that engage 3 slots in the cover/lid assembly.
Disconnect power.1.
Remove the four 1/4-in. hex-head screws from2.
the rear of the control panel.
Gently pull out each top rear corner to unsnap3.
the control panel from the sides of the unit.

– 18 –
The main control board has harness connections at
locations J1, J5, and JP7, and a model selector plug
located at J14. When the control receives power, it
checks for the presence of the model selector plug.
If no plug is detected, all LEDs will flash. Pressing the
start button has no effect on control operation. All
LEDs will stop flashing once a plug is installed.
Note: The model selector plug must be transferred
when control board is replaced.
Main Control Board - Rear View
Note: The options selector has detents between
some of the settings. The washer will function if the
knob is inadvertently set at one of the unmarked
detents. Following a clockwise direction, all
unmarked detents have the same value as the
marked detent before it. The highlighted areas
below show an example of what settings would be
selected.
J5 JP7
J14 - Model Selector Plug
J1
To remove the control board assembly:
Disconnect power.1.
Place the control panel in the service position.2.
(See Control Panel.)
Note: The knobs are NOT mounted to the controls
or switches. Each knob rests and rotates on a collar
imbedded in the control panel. The collar protects
the component from damage if something hits the
knob. A lockring on the back of the knob secures the
knob to the collar.
Remove the control, temperature, and options3.
knobs by gently pulling each outward.
Disconnect wire harnesses J1, J5, and JP7 from4.
the main control board.
Remove the two 1/4-in. hex-head screws from5.
the main control board and the three 1/4-
in. hex-head screws and the brace from the
secondary board.
Main Control Board - Front View
Main Selector Rotary Switch
3 LEDS
2 Digit Display
Note: The LEDs in the 2 digit display can be as
much as 1/8-in. lower than the description on the
backsplash.
Brace

– 19 –
Water Valve
The water valve is a 120 VAC, dual solenoid type,
and is accessed by placing the control panel in
the service position. It is inserted and retained in
a cutout in the rear of the backguard and held in
place by 2 hex-head screws. It is only available as a
complete assembly.
The water valve has a flow rate of 2.8 gallons•
per minute on the cold side and 1.8 gallons hot
side.
If the pressure switch is not satisfied within 20•
minutes, a fill error code will be recorded. If the
pressure switch has not opened in 45 minutes,
the main control will de-energize the water valve
and place the washer in pause mode.
Each solenoid coil has an approximate•
resistance value of 1.1K Ω.
To remove the water valve:
Disconnect power.1.
Place the control panel in the service position.2.
(See Control Panel.)
Remove the fill hoses from the water valve.3.
Disconnect the white wire harness from the hot4.
water (H) solenoid valve.
Disconnect the red wire harnesses from the cold5.
water (C) solenoid valve.
Note: The fill funnel hose is difficult to remove.
Remove the fill funnel hose. Squeeze the clamp6.
and slide it back. Carefully break the hose loose
by inserting a small flat-blade screwdriver under
the hose to break the seal.
Remove the two 1/4-in. hex-head screws that7.
hold the valve to the cabinet.
Disconnect
Fill Funnel Hose
Clamp
Automatic Temperature Control (ATC)
The automatic temperature control (ATC) is a feature•
that utilizes a thermistor to regulate the water fill
temperature.
The thermistor has a negative temperature•
coefficient (as temperature increases, resistance
decreases).
The thermistor is located in the outlet of the fill•
funnel and will measure 50K Ωat room temperature
(77°F / 25°C).
If the thermistor reads outside the expected range•
(10K - 120K Ω), the main control will default to the
following pre-programmed fill temperature settings:
Tap Cold = cold water valve only
Cold = cold water valve only
Cool = hot and cold water valves
Colors = hot and cold water valves
Warm = hot and cold water valves
Hot = hot water valve only
When both valves are energized, the internal orifices•
in the valves meter the flow to a 60% cold and 40%
hot ratio.
With the lid open, ATC will remain activated. The•
temperature of the water entering the washer
with the lid open may vary greatly from customer
expectations due to the cycling of the fill valve
solenoids.
Extreme water temperatures at low pressure can•
cause the ATC to use it’s maximum number of
activations and revert to a preset fill routine. The
main control will not allow the water valve to cycle
more than 25 times per fill.
Resistance can be measured at the wire harness
located on the control board location J5. Make sure to
unplug the connector to isolate the thermistor before
taking resistance readings.
To determine the temperature of the incoming
water, the main control measures the difference
between the voltage sent and the voltage returned
from the thermistor. The main control then makes
temperature adjustments accordingly.
J5
J5
12345
BX
WX
(Continued next page)

– 20 –
To remove the ATC thermistor:
Remove the control panel. (See1. Control Panel.)
Disconnect the thermistor wire harness from2.
the water level switch. (See Precise Fill Pressure
Switch.)
Remove the funnel hose from the water valve.3.
From inside the tub, remove the two 1/4-in.4.
hex-head screws that attach the fill funnel to the
washer.
Pull the fill funnel and wires down through the5.
opening.
Remove the tape, pull and unsnap the6.
thermistor from the top of the fill funnel.
Note: Make certain the gray rubber gasket is in
place on the thermistor when reassembling.
The main control should fill the tub with water within
+/- 10 to 15°F of set temperature by opening or
closing the hot and cold water valves.
ATC Temperature Chart
ATC Temperature Chart
Temperature Setting Water Temperature
Tap Cold Cold Tap Water
Cold 62°F ( +/- 10°F )
Cool 70°F ( +/- 10°F )
Colors 80°F ( +/- 10°F )
Warm 90°F ( +/- 10°F )
Hot 110°F ( +/- 15°F )
ATC Thermistor
Funnel
Hose
Fill Funnel
AC Line Filter
The potential exists for the washer to cause
electronic devices in the vicinity to experience
disruption. In addition, electrical devices in the
area could cause erratic behavior in the washer
electronic control. To eliminate the likelihood of
disruption, the washer is equipped with a conductive
noise filter. Should interference with electronic
devices or erratic control behavior be reported,
suspect a problem with the filter. The ground wire
attached to the filter must have a good connection
for the filter to operate properly. Check to make
certain that the ground wire is connected properly
before replacing the filter.
The filter is accessed by placing the control panel in
the service position. (See Control Panel.)
Note: When untaping and disconnecting the wires
from the AC line filter, note wire locations.
AC Line Filter
