GE GFWR4805 Original instructions

GEAppliances.com
Printed in the United States
Safety Instructions .............. 2,s
Operating Instructions
Controls ............................ 4-9
Features .......................... 10-11
Quick Start .......................... 12
Loading and Using the Washer .... 12-13
Available Accessory .................. 17
Care and Cleaning ............ 14-17
Installation Instructions
Preparing to install Your Washer ...... 18
Location of Your Washer ............. 19
Rough-in Dimensions ................. 19
Unpacking Your Washer .............. 20
Electrical Requirements .............. 21
Grounding Requirements ............. 21
Drain Requirements .................. 22
Water Supply Requirements .......... 22
Installing the Washer .............. 22-25
Replacement Parts ................... 23
Troubleshooting Tips ......... 25-29
Consumer Support
Warranty (U.S.)....................... 30
Warranty (Canada) ................... 31
Consumer Support .......... Back Cover
I
ENERGYSTAR
As an ENERGY STAR @partner,
GEhas determined that this
product meets the ENERGYSTAR@
guidelines for energy efficiency.
Write the model and serial
numbers here:
Model #
Serial #
Youcan find them on a label on the
side of the washer.
GFWR4805
GFWR4800
GFWS3705
GFWS3700
GHWS3605
GHWS3600
GFWR2705
GFWR2700
GFWS2605
GFWS2600
GFWS2505
GFWS2500
Laveuses
La section fran_ais commence 6la page 33
Lavadoras
La secci6n en espafiol empieza en la p6gina 65
49-90518-I12-14GE

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
m
Thisisthe safety alert symbol. Thissymbol alerts to potential hazards that can kill or hurt and others. Allsafety
you you you
messageswill follow the safety alert symbol and the word "DANGER","WARNING",or "CAUTION".Thesewords are defined as:
Indicates a hazardous situation which, if not avoided, will result in death or serious inJury.
Indicates a hazardous situation which, if not avoided, could result in death or serious inJury.
_ Indicates hazardous situation which, if not avoided, could result in minor moderate
aor inJury.
IMPORTANT SAFETYINSTRUCTIONS
To reduce the risk of death, fire, explosion,electric shock,or injury to persons when using your appliance,
follow basic precautions, including the following:
[] Readall instructionsbeforeusingtheappliance.
[] DONOTwash or dry articles that have been previously cleaned in,washed in,soaked in or spotted with gasoline, dry-
cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
[] DONOTadd gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These
substances give off vapors that could ignite or explode.
[] Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks
or more. HYDROGENGAS ISEXPLOSIVE.If the hot water system has not been used for such a period, before using a
washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is flammable, DO NOTsmoke or use an open flame during this time.
[] DONOTallow children to play on or inthis appliance. Close supervision of children is necessary when this appliance is
used near children. Before the washer is removed from service or discarded, remove the door or lid. Failure to follow
these instructions may result in death or injury to persons.
[] DONOTreach into the appliance if the tub or agitator is moving to prevent accidental entanglement.
[] DONOTinstall or store this appliance where it will be exposed to the weather.
[] DONOTtamper with controls, repair or replace any part of this appliance or attempt any servicing unless specifically
recommended in the user maintenance instructions or in published user repair instructions that you understand and
have the skills to carry out.
[] Keepthe area around your appliance clean and dry to reducethe possibility of slipping.
[] DONOToperate this appliance if it isdamaged, malfunctioning, partially disassembled, or has missingor broken parts
including a damaged cord or plug.
[] Unplug the appliance or turn off the circuit breaker before servicing. Pressingthe Power button DOESNOTdisconnect power.
[] See "Electrical Requirements" located in the Installation Instructions for grounding instructions.
SAVETHESE INSTRUCTIONS

GEAppliances.com
PROPERINSTALLATION
_._ This washer must be properly installed and located in accordance with the Installation Instructions before it is used.
If you did not receive an Installation Instructions, you can receive one by visiting GEAppliences.com or by calling
800.GE.CARES(800.452.2757).
[] Ensurethat the hot water hose isconnected to the "H"
(internalred screened)valve and the cold water hose is
connected to the "C"(internal blue screened)valve.
[]
[]
Installor store where it will not be exposed to
temperatures below freezing or exposed to the weather,
which could cause permanent damage and invalidate the
warranty.
Properlyground washer to conform with all
governing codes and ordinances. Follow details
in Installation Instructions.
[] Thiswasher doesnot include water supply hoses.
GEstrongly recommends the use offactory specified
parts.A list of factory hoses availablefor purchase are
listed below.These hosesare manufactured and tested to
meet GEspecifications.
Partsand Accessories
Order on-line at GEApplianceparts.com today, 24 hoursa
day or by phone at 800.626.2002during normal business
hours.
Part Number
PH!4X!O002
Or
PMl4Xl0005
WX10X10011
PH7X1
PH7X3
Accessory
4 ft RubberWater Supply Hoses
4 ft Braided Hetal Water Supply Hoses
Tide®Washing Machine Cleaner*
Washer FloorTray
Low ProfileUniversalWasher FloorTray
(forusewith pedestal models)
GEstrongly recommends the useof new water supply
hoses.Hosesdegrade over time and need to be replaced
every 5 years to reducethe risk of hosefailures and water
damage.
WHEN NOT IN USE
[] Turn off water faucets to minimize leakage ifa break or
rupture should occur.Checkthe condition of the fill hoses;
GErecommends changing the hoses every 5 years.
SAVE THESE INSTRUCTIONS
* Tide® is a registered trademark of Procter & Gamble 3

About the washer control panel.
Throughout this manual, features and appearance may vary from your model.
Youcan locateyour model number on a label on the sideof thewasher or insidethe washer door.
Models:GFWR4805,GFWR4800 -GE RightHeight T" Design Steam Washer with Built-In PedestalTM
ee
Power Norlmai iViy Cycle Overnight Dry _,_
Mixed Loads Towels/
Whites Sheets
Bulky
Bedding • Delicates
Hand Wash
Active
Wear q
• Basket
Clean
Hodels: GFWS$705, GFWS3700, GHWS$605, GHWS3600 -Steam Washer
O
Power
@Whites
Bulky
Bedding
Active
Wear q
Add
Steam
N_I I StortiPause _
My Cycle 1 My Cycle 2 I I
....dLood0Towels,_ _ ___
Sheets od__ o_ o Stor_Cyc_
• HandWosh Estmated r_meRema_nlng/ Extra Heow ExtraHot Extra High Hox
oSpe YCmlplete _ _ Hig-_ I
Extra Extra ....
_Sir Fill, Wash, Drain, Rinse, Spin_ .
Light Cold Low Light
! _ Ite Steam _ _
_o_d3 seconds to CANC_L_ Extra Light TOp Cold NOSpin Normal _I
_Bim I1_ __ .... _
v Spit /Guide_-_m Volume
Basket _ Stain Re ISoIt I Temo I Slgin I Rinsel (_--
Clean _11 IIOmssuWine BIoodiTomatoI__O_rtIll k I - t "IJ
Models:GFWR2705,GFWR2700- GE RightHeight TMDesign Steam Washer with Built-In Pedestalm
(_ Mixed Loads ToweIs/
Whites Sheets
Bulky Delicates
Hand Wash
Loc_ Active
Wear
Allergen
Add Steam
Models:GFWS2605, GFWS2600 -Steam Washer
.O
Power
@
Lock Control
LockJ_,ock
Add
Steam
Whites
Bulky
Bedding
Active
Wear I
Allergen
Nor_mel
Hixed Loads Towels/
SheetsDelicates
• Hand Wash
--0
-0
--0
Add Garment
Volume
®--0
t° EsUmat e oning Extro Heavy Ex'_roHot Extra High
I • I I Cycle
I I CI CI Complet ....
_I P_lmlI_ _ _I Heavy _ H_gh AddoG ......
Extra Extra Norma_
Wash_ Drain, Rinse, Spin, Light
Volume
Extra Light TOp Cold No Spin
-@
4

Control settings. GEAppliances.com
Hodels: GFWS2505, GFWS2500 - Steam Washer
Power IMy Cycle _ _
Whites • Sheets uouss_co,,d_ost__
Bulky Delieates
• Hand Wash
Lock_ontrol Active • Speed Add a Garment
(_)_ Wear Wash ___
t_odSs,_sto
Lo_k/Unoc
Add _-_
Steam Allergen
Drain+
Spin
Basket
Clean
_£t]moted Time Remaining £xtra Heavy Extra Hot Extra High
I-J'l-_l ncyc,e
Complete Heavy Hot High
O-O O .............. d,om
Extra Extra
Fill, Wash, Drain, Rinse, Spin,
Steam Ught Cold Low
Extra Light Tap Cold No Spin
Volume
®--
-@
-@
Power
Press to "wake up" the display. If the display is active, press to put the washer into standby mode.
NOTE:Pressing Power does not disconnect the appliance from the power supply.
Wash Cycles
The wash cycles are optimized for specific types of wash loads. The chart below will help you match the wash setting
with the loads. The GentleCleaff" lifters lightly tumble the clothes into the water and detergent solution to clean the load.
Normal/Mixed Loads* Forheavily to lightly soiled colorfast cottons, household linens, work and play clothes.
Whites* Forheavily to lightly soiled white laundry, work and play clothes.
Bulky Bedding*
Active Wear*
Power Clean*
Sanitize*
Allergen*
Forlarge items such as comforters, blankets, small rugs and similar bulky items.
Foractive sports, exercise and some casual wear clothes. Fabrics include modern
technology finishes and fibers such as spandex, stretch and micro-fibers.
Forheavily soiled items which require extra cleaning power.
Forincreased water temperature which will sanitizeand killmore than 99.9%of many common
bacteria found in home laundry. Forbest results,selectthe extra heavy soilsetting when using
the Sanitize cycle. 1
Sanitization Performance of Residential and
Commercial, Family-Sized Clothes Washers
Forremoving common allergens such as dust mites and pet dander.
_S_ ' ] [ aAldrgce'_lnRledrcui!:;_a!ieil_y!:i''_ia_l!fthRees_en'iael's I
Towels/Sheets* Foritems such as towels, sheets, pillowcases and dish rags.
Foritems labeled hand-washable with light soils. Provides gentle tumbling and soak during
DelJcates/Hand Wash wash and rinse.
Speed Wash or Forlightly soiled items that are needed in a hurry. Cycletime isapproximately 30 minutes,
Quick Wash depending on selected options.
Forwashing one heavily or lightly soiled item. The washer uses this setting to optimize the
Single Item wash and spin cycle for a single small or medium sized garment.
Rinse + Spin Toquickly rinse and spin out any items at any time.
Drain + Spin
Basket Clean
Toquickly drain and spin out any items atany time.
Usefor cleaning the basket of residue and odor. Recommended use of at least once per
month.
NOTE:Never load laundry while using Basket Clean. The laundry may become damaged.
See the Care and Cleaning section.
* The Add Steam option can be used with these cycles. 5

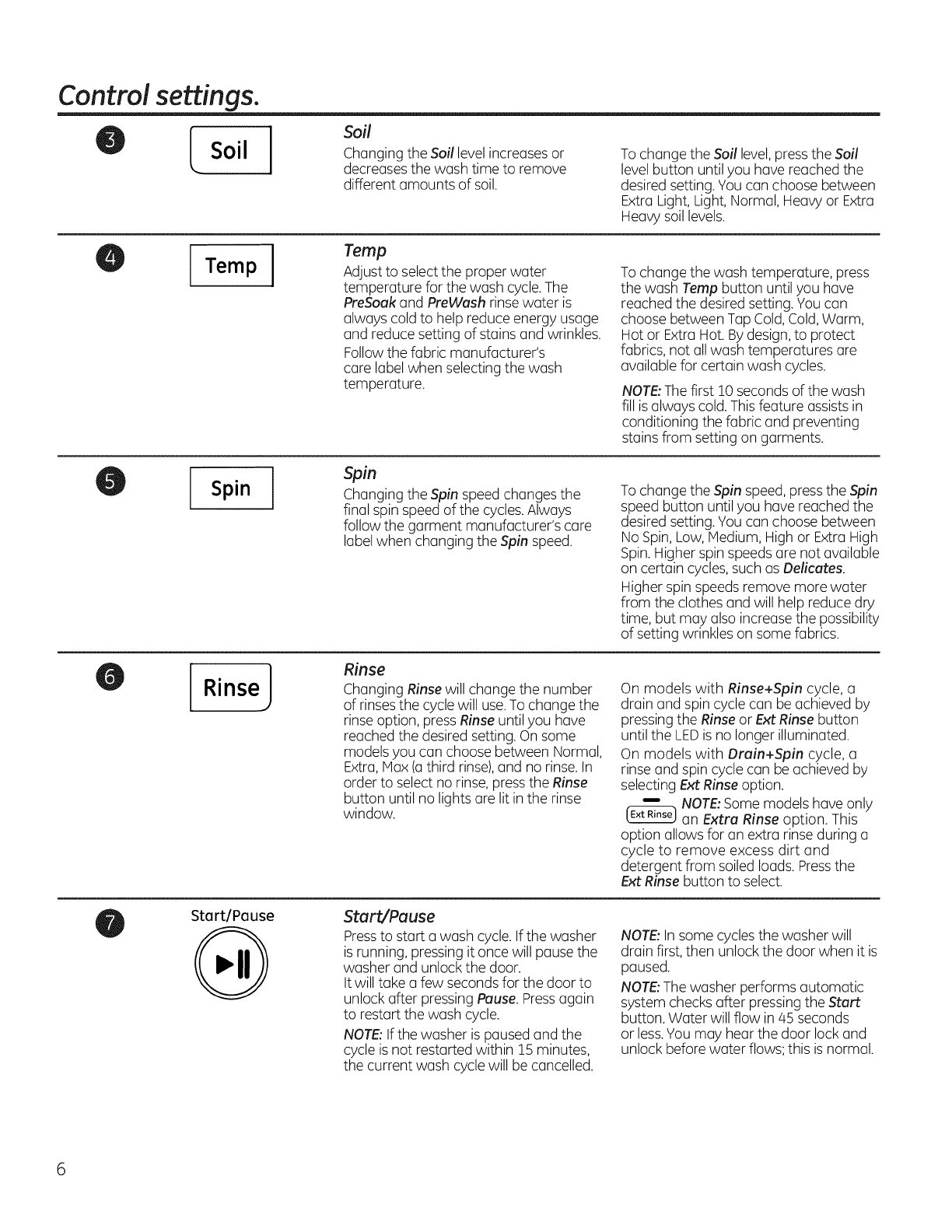

Control settings.
Soil Soil
Changingthe Soil levelincreasesor
decreasesthe wash time to remove
different amounts of soil.
To change the Soft level,pressthe Soil
levelbutton until you have reached the
desiredsetting. You can choose between
Extra Light, Light,Normal, Heavyor Extra
Heavysoil levels.
Temp ITemp
Adjust to selectthe proper water
temperature for the wash cycle.The
PreSoakand PreWash rinsewater is
always cold to help reduce energy usage
and reduce setting of stains and wrinkles.
Followthe fabric manufacturer's
care label when selecting the wash
temperature.
To change the wash temperature, press
the wash Temp button until you have
reached the desired setting. Youcan
choose between TapCold,Cold,Warm,
Hot or Extra Hot. By design,to protect
fabrics, not all wash temperatures are
available for certain wash cycles.
NOTE:Thefirst !0 seconds ofthe wash
fill is always cold. Thisfeature assistsin
conditioning the fabric and preventing
stains from setting on garments.
Spin Spin
Changingthe Spin speedchanges the
final spinspeed of the cycles.Always
follow the garment manufacturer's care
labelwhen changing the Spin speed.
To change the Spin speed,pressthe Spin
speed button until you have reachedthe
desiredsetting. You can choose between
No Spin,Low, Hedium, Highor Extra High
Spin.Higher spinspeeds are not available
on certain cycles,such as Delicates.
Higher spin speeds remove more water
from the clothes and will help reduce dry
time, but may also increase the possibility
of setting wrinkles on some fabrics.
RinseJ Rinse
ChangingRinse will change the number
of rinsesthe cycle will use.Tochange the
rinseoption, pressRinse untilyou have
reached the desired setting. On some
models you can choose between Normal,
Extra,Hax (a third rinse),and no rinse. In
order to selectno rinse,pressthe Rinse
button until no lights are lit in the rinse
window.
On models with Rinse+Spin cycle, a
drain and spin cycle can be achieved by
pressingthe Rinseor Ext Rinse button
until the LEDis no longer illuminated.
On models with Drain+Spin cycle, a
rinseand spin cycle can be achieved by
selectingExt Rinse option.
"-" NOTE:Somemodels have only
an Extra Rinse option. This
option allows for an extra rinseduring a
cycle to remove excess dirt and
detergent from soiledloads. Pressthe
Ext Rinse button to select.
Start/Pause Start/Pause
Pressto start a wash cycle. If the washer
isrunning, pressing it once will pausethe
washer and unlock the door.
It will take a few secondsfor the door to
unlock after pressing Pause. Pressagain
to restart the wash cycle.
NOTE:If the washer is pausedand the
cycleis not restarted within 15 minutes,
the current wash cyclewill be cancelled.
NOTE:In some cycles the washer will
drain first, then unlockthe door when it is
paused.
NOTE:Thewasher performs automatic
system checks after pressingthe Start
button. Water will flow in 45 seconds
or less.You may hear the door lock and
unlock beforewater flows; this isnormal.

GEAppliances.com
(PreWash)
PreWash
Prewush isan extra wash before the
main wash. Use it for heavily soiled
clothes or for clothes with u care
label that recommends prewushing
before washing. Be sure to add liquid
or powder high-efficiency detergent,
or the proper wash additive to the
prewush dispenser.
PreWash must be selected prior to
pressing Start.
The PreWash feature will fill the washer
(adding the prewush detergent), tumble
the clothes, drain and spin. Then the
washer will run the selected wash cycle.
NOTE:In some special cycles, the
prewush is selected automatically
as the default. You can modify this
selection at any time.
PreSoak (on some models)
For soaking your garments prior to
the PreWash (if selected) and/or wash
cycle. This option begins with a brief
tumble and then proceeds to soak the
clothes for a specified period of time.
Once complete, the cycle will begin
automatically.
PreSoak must be selected prior to
pressing Start.
The PreSoak time is set in 1/2hour
increments, with the maximum
presoak set option of 8 hours.
If desired, add high-efficiency detergent
or the proper wash additive to the
prewush dispenser.
/
( eWash ) eWash (Energy Savings Washj
(onsomemodels)
Use aWash to save energy on specified
wash cycles.
eWash cannot be used with Allergen,
Sanitize, Power Clean and Basket
Clean.
Overnight Dry
[-- ] Overnight Dry TM
(onsomemodels)
Overnight Dry is available on the
following cycles: Active Wear, Whites,
Normal and Single Item.
Overnight Dry is intended for smaller
loads only. This feature is intended for
use when clothes need to be washed,
dried and ready to wear or finished the
next morning. This feature will tumble
clothes and introduce a constant
stream of air into the machine
compartment upon completion of
select wash cycles. Clothes can be
removed at any time by pressing
Pause.
To usethe feature, press the Overnight
DrV button any time before the end of
the wash cycle.The display will change
to add the default 8 hours max dry time.
High wear or delicate articles are not
recommended for this cycle.
The table below describes example
loads that can be used with this feature:
2-3 athletic uniforms
2 sets of scrubs
2 sets of baby's crib sheets
1 dress shirt, 1 pair of dress pants
3 dress shirts
My Cycle
[-- )
Hold 3 Seconds to Store
On some models, there is a
My Cycle :i and a My Cycle2
button which allows you to
save two favorite cycles,
My Cycle 1 My Cycle 2
Li Hold3 Seconds to Store Cyce -iJ
My Cycle
To save a favorite cycle,set the desired
settings for wash cycle,soil level,spin speed
and wash temp settings and hold down the
My Cycle button for 3 seconds. Abeep will
sound to indicate the cycle has been saved.
To useyour custom cycle,pressthe
Ply Cyclebutton before washing a load.
Tochange the saved cycle, set the
desired settings and hold down the
My Cyclebutton for 3 seconds.
NOTE:When using Ply Cycle, wash
options cannot be modified after the
cycle has been started.
NOTE: Ifyou change wash options with
Ply Cycle before starting the cycle, the
MyCycle light will turn off and you will
be returned to the base cycle.

Control settings.
[_ Stein Removal GuideGross Wine Blood Tomoto Dirt)l
Select Cycle and Push Button for Stain Options
Stain Removal Guide
(on some models)
The Stain Removal Guide is pre-
programmed with the ideal wash and
rinse settings to tackle five common
stains: grass, wine, blood, tomato and
dirt. To use this feature, select the
desired wash cycle and then press
the Stain Removal Guide button
until the stain you want to remove is
highlighted. Once selected, press the
Start button to start the cycle.
For some stains, a prewash will be
selected automatically. Be sure to
add liquid or powder high-efficiency
detergent, or the proper wash additive
to the prewash dispenser.
Add a Garment
(-- ) Add A Garment (on some models) Ifyou needto adda garment after the
cyclehasstarted,presstheAdd aGarment
buttonand the unitwillunlockthe door,
allowingadditionalgarments.TheAdd a
Garment feature isonlyavailablewhen the
LEDislitonthe button.Aftera certainpoint
inthecycle,the LEDwill notbe litany longer
and adding a garment isnot allowed.
Light
@Basket Light (on some models)
The basket light will turn on and remain
on for 5 minutes when the door opens,
Start/Pause button ispressed, or by
pressing the Light button.
The basket light can be turned off by
pressing and holding the Light button.
Volume Volume
Toadjust the volume of the unit, press
the Volume button to select the desired
level.
Thereare four sound levelsincluding OFF.
NOTE:The volume selected isfor both
the buttons and the end of cycle sounds.
B
Lock Control
®
Hold3Secsto
Lock/Unlock
Lock Control
You can lock the controls to prevent
any selections from being made. Or
you can lock or unlock the controls
after you have started a cycle.
Children cannot accidentally start the
washer by touching buttons with this
option selected.
To lock the washer, press and hold the
Lock Control button for 3 seconds.
To unlock the washer controls, press
and hold the Lock Control button for 3
seconds.
A sound is made to indicate the lock/
unlock status.
The indicator light above the button
will illuminate when the controls are
locked.
NOTE:The Power button can still be
used when the machine is locked.

GEAppliances.com
Add
Steam
Add Steam
Add Steam adds steam into the washer
early in the cycle to assist with loosening
stains on the Towels/Sheets, Normal,
Whites, Bulky, Active Wear, Power
Clean, Sanitize or Allergen cycles.
To use:
1. Turn power ON and select a wash
cycle. TheAdd Steam option is only
available on Towels/Sheets, Normal,
Whites, Bulky, Active Wear, Power
Clean, Sanitize or Allergen cycles.
2. Select the Add Steam button to
activate steam.
3. Press the Start/Pause button.
Hold 3 seconds to CANCEL
(Delay Wash)
Delay Wash
You can delay the start of a wash cycle
for up to 2/4hours. Press the Delay
Wash button to choose the amount
of time you want to delay the start of
the wash cycle. Once the desired time
is reached, press the Start button. The
machine will count down and start
automatically at the correct time.
NOTE:If you forget to fully close the
door, a reminder signal will beep
reminding you to do so.
NOTE: If you open the door when the
delay is counting down, the machine will
enter the pause state. You must close
the door and press Start again in order
to restart the countdown.
iliSetter
I
Good
eMonitor
feHonitor (on some models)
TheeNonitor lights display the relative
energy useof your selected cycle and
options.They are provided as an energy
guide and range from Good (1 light)to
Better (5 lights).Somespecial cycleswill
not providea display.
N-I-I I-I cyo,o
Complete
Ci.Ci CiExtra Extra
Fil{_ Wosh_ Droin_ Rinse_ Spin_
Display
Displays the approximate time
remaining until the end of the cycle.
NOTE:Thecycletime isaffected by how
long it takesthe washer to fill.Thisdepends
on the water pressurein your home. The
"smart" timer "learns" the amount of time .
it takes to fillyour washer and adjuststhe
total time accordingly.
Cyclestatus isalso displayed and certain
features such asDelay Wash or Steam are
shown indicating they have been selected.
In addition, the display will, "scroll" the
washer status:
o
o
dOOr The washer door is open,
causing the machine to be in PAUSE
mode until the door is properly closed.
LOAd SenSE Sensing load size prior to
fill (normal operation). Cycles that do
not perform LOAD SENSEare Active
Wear, Delicates, Speed Wash, Single
Item, Rinse &Spin and Basket Clean.
PAUSE Cycle paused because the
Start/Pause or Add aGarment button
was pressed and the washer was set
to Pause. PressStart button again to
restart the cycle.
End End of current cycle.
OFF Washer is shutting down. The
washer may need to drain the water
prior to unlocking the door and shutting
down. 9

About the washer features.
The Dispenser Drawer
Slowlyopen the dispenser drawer by pulling
it out until it stops.
After adding laundryproducts,slowlyclose
the dispenserdrawer.Closingthe drawer
too quicklycouldresult in earlydispensing
of the bleach,fabric softeneror detergent.
Youmay seewater inthe bleachand fabric
softenercompartmentsat the end ofthe cycle.
Thisisaresultof theflushing/siphoningaction
and ispart of the normaloperationof the
washer.
Useonly HEHigh-Efficiency
detergent.
NOTE:Use only liquid or powder HE
detergents and additives in the dispenser
drawer. Laundry detergent packets
should only be added directly to the
wash tub following the manufacturer's
directions.
DO NOT put detergent packets in the
dispenser drawer.
Addpre-washto
thislocation
Detergent __
selectioninsert ,4"_'_ /_:a_"_,J_
\ .
The Prewash Compartment
Onlyusethe prewashcompartment ifyou
are selectingthe PreWash or PreSoak
cyclefor heavilysoiledclothes.Add
measureddetergent or prewashadditiveto
the back left prewashcompartment of the
dispenserdrawer.
Detergentor prewashadditive isflushed
from the dispenserinthe PreWash or
PreSoak cycle(ifselected).
NOTE: Liquid detergent will drain
into the washer basket as it is added.
mDetergentusagemay needto beadjusted
for water temperature,water hardness,size
and soillevelofthe load.Avoidusingtoo
much detergent inyour washeras it can
leadto oversudsingand detergent residue
being left on the clothes.
10

GEAppliances.com
The Detergent Compartment
[]
For HEpowder
detergent
remove the /_
Detergent cup
andaddpowder
here \
NOTE:The Detergent cup
has an easy grip handle to
allow removal for convenient
measuring and filling of the
unit.
Only use high-efficiency detergent
in this washer. DO NOT fill high-
efficiency detergent over the lAX
line. Use detergent manufacturer's
recommended amount.
Powder Detergent - Remove the
Liquid Detergent cup and place it in a
safe location outside of the washer.
Follow the detergent manufacturer's
instructions when measuring the
amount of powder to use.
Liquid Detergent - Locate the
concentration of your detergent on the
bottle. Do not fill above the Max Fillline
in the Detergent cup for your detergent
concentration type.
MaxFillline /_
depending,,_ /N =//_ H
onyourliquid "%,,./__l/_/d
detergent "_%_,)_/_/_ ____/
concentration /_"_ _--_//__H
type "_
Detergent usage may need to be
adjusted for water temperature, water
hardness, size and soil level of the
load. Avoid using too much detergent
in your washer as it can lead to
oversudsing, detergent residue being
left on the clothes, and could extend
wash times.
Do not put clumped detergent in the
dispenser. Clumped detergent can
cause a leak.
The Liquid Bleach Compartment
tf desired,measureout the recommended
amount of liquid bleach,notto exceed
1/3cup (80ml)and pour intothe center
compartment labeled"LIq)_tDBLEACH"
markedwith this symbol___.
tt isrecommendedto useHigh-Efficiency(HE)
bleachin this front-load washer.
Donot exceedthe maximumfill line.Overfilling
cancauseearlydispensingof the bleachwhich
couldresult in damagedclothes.
NOTE:Donot usepowderedbleachor laundry
detergent/additivepacketsin the dispenser.
The Fabric Softener Compartment
tf desired,pour the recommendedamount
of liquidfabric softenerinto thecompartment
labeled"FABRICSOFTENER."
Useonly liquidfabric softenerin the dispenser.
Dilutewith water to the maximumfill line.
Donot exceedthe maximumfill line.Overfilling
cancauseearlydispensingof thefabric
softener,which could stainclothes.
NOTE:Donotpour fabricsoftenerdirectly
on thewash load.
12

Loadingand usingthewasher.
Always follow fabric manufacturer's care label when laundering.
Quick Start
r_ Press the Power button. Power r31 Press the Start/Pause button.
If the screen is dark, a press
of the Power button will
"wake up" the display.
[] Select a wash cycle.(Defaults are
set for each cycle.Thesedefault
settings can be changed. See
Control settings for more
information.)
Delicotes
• Speed
WQsh
Single
• Item
Rinse+
• Spin
• 8asker
Clean
Start/Pause
FabricCare Labels
Below are fabric care label "symbols" that affect the clothing you will be laundering.
WASH LABELS
Cycle Normal Permanent Press/ Gentl_"_/ Do notwash Do not wring
wrinkle resistant delicate Hand wash
Water • • • 00 •
temperature Hot Warm Cold/cool
(50°C/120°F) (40°C/105°F) (30°C/85°F)
BLEACH LABELS
Bleach_,. ,A A
symu01S Any bleach Only non-chlorine bleach
(when needed) (when needed) Do not bleach
DETERGENT LABELS
Useonly HEHigh-Efficiency detergent.
12

GEAppliances.com
Wash Loads
Sorting
Colors
Whites
Lights
Barks
[]
[]
[]
Soil Fabric Lint
Heavy Delicates LintProducers
Normal EasyCare LintCollectors
Light SturdyCottons
Combine large and small items in a load. Load large items first. Large items should not be more than half the
total wash load.
Pillows and comforters should not bemixed with other items. Thismay cause an out-of-balance load.
Sort dark-colored clothes from light-colored clothes to prevent dye transfer. Thisis a high-efficiency washer,
so it usesless water, making dye transfer more common.
- Fire Hazard
Never place items in the washer that are dampened with gasoline or other flammable liquids.
Nowasher can completely remove oil.
Do not dry anything that hasever had any type of oil on it (including cooking oils).
Doing socan result in death, explosion,or fire.
Loading the Washer
The wash drum may be fully loaded with loosely
added items. Do not wash garments containing
flammable materials (waxes, cleaning fluids, etc.).
Lauding Examples
To add items after the washer has started, press Start/
Pause and wait until the door is unlatched. The washer
may take up to 30 seconds to unlock the door after
pressing Start/Pause, depending on the machine
conditions. Do not try to force the door open when it is
locked. After the door unlocks, open gently. Add items,
close the door and press Start/Pause to restart.
WORKWEAR
4 Jeans
5 Work Wear Shirts
5 Work Wear Pants
LINENS
2 Bath Sheets
10 Bath Towels/
12 Washcloths
7 Hand Towels/
2 Terrycloth Bath
Mats
OR
2 Flat Queen-Sized
Sheets
2 Fitted
Queen-Sized
Sheets
4Pillowcases
MIXED LOAD
4 Pillowcases
2Hand Towels
2 Flat Sheets/
DELICATES*
7 Bras
7 Panties
3 Slips
2 Fitted Sheets
2 Bath Towels/
4 Washcloths
OR
6 Shirts (Men's
or Women's)
4 Pair Pants
(Khakis
or Twills)
5 T-shirts
7 Pairs of Boxers
/4Pairs of Shorts
OR
6 T-shirts
4 Pairsof
Sweatpants
/4Sweatshirts
2 Hoodies
7 Pairs of Socks
2 Camisoles
4 Nightgowns
*Using a nylon
mesh bag for
small items is
recommended.
SPEEDWASH
12-4 GARMENTS}
2 Casual Wear
Work Shirts
i Pair Casual Wear
Work Pants
OR
3 Soccer Uniforms
13

Care and Cleaning.
Cleaning the Interior
of the Washer
Toclean the interior of the washer, select
the Basket Clean feature on the control
panel. This Basket Clean cycle should be
performed, at a minimum, once per month.
This cycle will use more water, in addition to
bleach, to control the rate at which soils and
detergents may accumulate in your washer.
NOTE:Read the instructions below
completely before starting the Basket Clean
cycle.
1. Remove any garments or objects from
the washer and ensure the washer
basket is empty.
2. Open the washer door and pour
one cup or 250 ml of liquid bleach
or other washing machine cleaner
into the basket.
3. Close the door and select the Basket
Clean cycle. Pushthe Start pad.
4. When the Basket Clean cycle is working,
the display will show the estimated cycle
time remaining. The cycle will complete
in about 90 minutes. Do not interrupt the
cycle.
5. After the cycle is complete, leave
the door open slightly for better
ventilation.
If for any reason the cycle needs to
be interrupted, the door will not open
immediately. Forcing open the door at
this stage may cause water to flood.
The door will open after the water is
drained to u level where it would not
flood the floor.
Basket Clean may be interrupted
by pressing the Start pad in between cycles.
A power outage in the house might also
interrupt the cycle. When the power supply
is buck, the Basket Clean cycle resumes
where it had stopped. When interrupted, be
sure to run u complete Basket Clean cycle
before using the washer. If the Power pad is
pressed during BasketClean, the cycle will
be lost.
IMPORTANT:
[] Run Basket Clean with 1 Cup (250 ml) of
bleach once a month.
[] After the completion of u Basket Clean
cycle, the interior of your washer may
have u bleach smell.
[] It is recommended to run a light color
load after the Basket Clean cycle.
14

Cleaning the Pump Filter
Due to the nature of the front-lo(]d w(]sher,
it is sometimes possible for small articles
to pass to the pump. The washer has a
filter to capture lost items so they (]re not
dumped to the dr(]in. To retrieve lost items,
cle(]n out the pump filter.
1. Using a small flathead screwdriver or
coin, open the access door.
2. Pl(]ce (] shallow p(]n or dish under
the pump (]ccess door and towels
on the floor in front of the washer to
protect the floor. It is normal to catch
(]bout (] cup of w(]ter when the filter
is removed.
3. Pull down the pour spout.
GEAppliances.com
Pump
f filter
Scan this code
to watch a video
o
5o
6.
Turn the pump filter counterclockwise
(]nd remove the filter slowly, controlling
the flow of the dr(]ining w(]ter.
Remove the filter (]nd cle(]n the debris
from the filter.
Repl(]ce the filter (]nd turn clockwise.
Tighten securely.
o
8. Flip up the pour spout.
Close the (]ccess door by hooking the
bottom t(]bs first, then rot(]ting the
(]ccess door shut.
_ on this topic. )
15

Care and Cleaning.
Dispenser Drawer Area: Detergent and fabric softener may build up in the dispenser
drawer. Residue should be removed once or twice a month.
[] Remove the drawer by first pulling it out until it stops. Then reach back into the left
rear corner of the drawer cavity and press down firmly on the lock tab,
pulling out the drawer.
Lock tab is visible only after
drawer has been pulled out
[] Remove the insert from the bleach and fabric softener compartments and the
detergent cup. Rinsethe inserts and the drawer with hot water to remove
traces of accumulated laundry products.
[] To clean the drawer opening, use a small brush to clean the recess.
Remove all residue from the upper and lower parts of the recess.
[] Return inserts to the proper compartments. Replacethe dispenser drawer.
[] To reduce buildup in the Dispenser Drawer area:
Useonly HE
High-Efficiency
detergent.
16

GEAppliances.com
Cleaning the Door Gasket
Open the washer door. Using both hands, press down the door gasket. Remove any
foreign objects if found trapped inside the gasket. Make sure there is nothing blocking the
holes behind the gasket.
While holding down the door gasket, inspect the interior gasket by pulling it down with
your fingers. Remove any foreign objects if found trapped inside this gasket. Make sure
there is nothing blocking the holes behind the gasket.
When you are finished cleaning the door gasket, remove your hands and the gaskets will
return to the operating position.
Available accessory.
Pedestal
NOTE:TheGERightHeight TM Design
frontload washer equipped with a Built-In
PedestalTM cannot be mounted on a pedestal.
There is a pedestal available for
your washer if it isnot one of the GE
RightHeight TM Design models. This pedestal
gives the washer more height and gives
storage for your washing necessities.
Included with the pedestal is a divider that
allows you to store liquid laundry detergent
out of sight. See the pedestal Installation
Instructions.
Order GE Pedestal KitGFXPI$08 on-line at
GEApplianceParts.com, 24 hours a day or
by phone at 800.626.2002 during normal
business hours.
17

Instoiloti
Istr cti s Washer
If you have any questions, call 800.GE.CARES(800.432.2737)
or visit our Website at: GEAppliances.com
In Canada, coil 1.800.561.3344 or visitwww.GEAppliances.ca
A Thisisthe safety alert symbol.Thissymbol alertsyou to potential hazardsthat can killyou or hurt you and others.
Allsafety messageswill follow the safety alert symbol and the word "DANGER","WARNING",or"CAUTION".These
words are defined as:
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
_ Indicates a hazardous situation which, if not avoided, could result in minor or moderate inJury.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
. IMPORTANT- Savetheseinstructions
for local inspector's use.
, IMPORTANT - Observeallgoverning
codes and ordinances.
, Note to Installer - Be sure to leave these
instructions with the Consumer.
, Note to Consumer - Keepthese instructions
for future reference.
. Skill level - Installation of this appliance requires
basic mechanical and electrical skills.
. Completion time - 1-3 hours
. Proper installation is the responsibility of the installer.
. Product failure due to improper installation is not
covered under the Warranty.
PARTS SUPPLIED
[] Cable Tie [] Hose Guide
TOOLS REQUIRED FOR
WASH ER INSTALLATION
[] 1/2" socket with ratchet
[] Adjustable wrench or 14mm and 16mm open-end
wrenches
[] Channel-lock adjustable pliers
[] Carpenter's level
PARTS REQUIRED (Sold separately)
[] Water Hoses (2) [] Rubber Washers (2)
and Strainer Screens (2)
GE Parts and Accessories
Order on-line at GEApplianceparts.com today, 24 hours a
day or by phone at 800.626.2002 during normal business
hours.
Part Number
PM14X10002
Or
PH14X10005
WHIX2267
Accessory
4 & Rubber Water Supply Hoses
4 ft Braided Metal Water Supply Hoses
Rubber Washer (1)and Screen (1)
18

Installation Instructions
LOCATION OF YOUR WASHER
Do Not Install the Washer:
1.In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60°F (15.6°C)for proper
washer operation.
2.In an area where it will come in contact with curtains or
drapes.
3.On carpet. The floor MUSTbe a hard surface with
a maximum slope of 1/2" per foot (1.27cm per
30 cm).To make sure the washer does not vibrate
or move, you may have to reinforce the floor.
NOTE:If floor is in poor condition, use 3/4" impregnated
plywood sheet solidly attached to existing floor covering.
IMPORTANT:
Minimum Installation Clearances
. When installed in alcove: Sides, Rear,
Top = 0" (0 cm)
. When installed in closet: Sides, Rear,
Top = 0" (0 cm), Front = 1" (2.54 cm)
. Closet door ventilation openings required:
2 louvers each 60 square in.(387 cm), located 3"
(7.6cm) from top and bottom of door
ROUGH-IN DIMENSIONS
FRONT
28"
(7!.!2cm)
39"* 46"*
(99cm) (ll7cm)
SIDE
54 3/8"
(!38.2cm)
39"* 46"*
(99cm) (117cm)
Built-In
PedestalTM
models
only
l::t
35"
(88.9cm)
*NOTE:
With Legs: 40 1/2" (102.S cm) - 13/4" 11.9cm) edjustebility)
With Built-In PedestaF": 46" 1117 cm) - 13/4"11.9cm) edjustebility)
With Optional Pedestal IGF×P1308}: 52" 1132.1cm) - 13/4"11.9cm) odjustebility)
Stacked: 78 1/4" 1198.8cm)
19

Installation Instructions
UNPACKING THE WASHER
1. After removing the washer from itscarton, remove all base
pGckaging,including the cardboard, styrofoam baseGnd
styrofoam tub support (insertedin center of bGse).
NOTE:If you are installing a pedestal, proceed to
the installation instructions that come with the pedestal.
2. Carefullymove the washer to within 4 feet (122cm)
ofthe final location.
.
.
Removethe following from the bGcksideof the wGsher:
/4bolts
4 plastic spacers (includingrubber grommets)
/4power cord retainers
Removethe shipping bolt. Insert plug into shipping
bolt hole.
NOTE:Failure to remove the shipping bolts can cause
the washer to become severely unbalanced.
Save all bolts for future use.
NOTE:Ifyou must trGnsport the washer Gta IGterdate,
you must reinstall the shipping support hardware to prevent
shipping dGmGge.Keepthe hGrdwGrein the plGsticbGg
provided. Scan this code
to watch a video
on Step 3.
20
