GE Profile Harmony WPGT9360 How to use

GE Appliances
General Electric Company
Louisville, Kentucky 40225
31-9133
Harmony Washer
WPGT9360
Technical Service Guide
September 2005
GE Consumer & Industrial

– 2 –
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by
individuals possessing adequate backgrounds of electrical,
electronic, and mechanical experience. Any attempt to repair a
major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
WARNING
To avoid personal injury, disconnect power before servicing
this product. If electrical power is required for diagnosis or test
purposes, disconnect the power immediately after performing the
necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to
complete a path to ground are removed for service, they must be
returned to their original position and properly fastened.
GE Consumer & Industrial
Technical Service Guide
Copyright © 2005
All rights reserved. This service guide may not be reproduced in whole or in part
in any form without written permission from the General Electric Company.

– 3 –
Table of Contents
Backsplash...........................................................................................................................................................................23
Basic Wash Cycle.............................................................................................................................................................17
Bearing Housing Assembly..........................................................................................................................................41
Brake Resistor.....................................................................................................................................................................26
Clutch Shifter Assembly.................................................................................................................................................39
Component Locator Views...........................................................................................................................................20
Control Features................................................................................................................................................................7
Control Quick Reference Chart...................................................................................................................................46
Control System..................................................................................................................................................................23
Drain Pump..........................................................................................................................................................................31
Factory Test Mode............................................................................................................................................................44
Field Service Mode...........................................................................................................................................................42
General..................................................................................................................................................................................6
Hall Sensor...........................................................................................................................................................................38
Heating Element................................................................................................................................................................34
Illustrated Parts.................................................................................................................................................................53
Inverter..................................................................................................................................................................................24
Inverter and Main Board Pin Connectors..............................................................................................................22
Main Control Board and Touch Screen LCD ........................................................................................................23
Membrane Keypanel .....................................................................................................................................................24
Motor Assembly................................................................................................................................................................37
Nomenclature....................................................................................................................................................................4
Operation Overview.........................................................................................................................................................17
Outer Tub and Suspension Assembly.....................................................................................................................33
Overview...............................................................................................................................................................................6
Overview...............................................................................................................................................................................42
Overview...............................................................................................................................................................................58
Pressure Sensor (Water Level Switch).....................................................................................................................27
Protective Cover................................................................................................................................................................26
Sales Demo Mode.............................................................................................................................................................6
Schematic............................................................................................................................................................................52
Switching the Washer and Dryer Backsplashes................................................................................................58
Thermistor/ATC Control (Auto Temp)........................................................................................................................32
Top Cover..............................................................................................................................................................................29
Troubleshooting................................................................................................................................................................47
Warranty..............................................................................................................................................................................5
Washer Components......................................................................................................................................................23
Wash Basket.......................................................................................................................................................................30
Wash Cycle Chart Example.........................................................................................................................................19
Water Valve Assembly...................................................................................................................................................28

– 4 –
Capacity/Configuration
L = Large S = Super Capacity Plus
X = Extra-Large K = Compact
G = Giant
Back Splash
Color
The first two characters of the serial number
identify the month and year of manufacture.
Example: AH123456S = JAN, 2005
A- JAN 2005 - H
D - FEB 2004 - G
F - MAR 2003 - F
G - APR 2002 - D
H - MAY 2001 - A
L - JUN 2000 - Z
M - JUL 1999 - V
R - AUG 1998 - T
S - SEP 1997 - S
T - OCT 1996 - R
V - NOV 1995 - M
Z - DEC 1994 - L
Note: Model number and serial number are
located on rear of the backsplash.
• The technical sheet is located inside the
control panel.
Serial Number
W P G T 9 3 6 0 B 0 W W
Model Number
GE
Washer
Feature Pack
Common Brand Features
Exceptions:
H = Energy Star
P = Profile™
N = Special
Control Platform
B = Buttons (Touch Pad)
T = Touch Screen
Number of Speed
Combinations
Body Color
Engr. Revision
Model Year
Designator
Voltage
0 = US Voltage
Number of Cycles
00 = Infinite Electronic
Nomenclature
Nomenclature
The letter designat-
ing the year repeats
every 12 years.
Example:
T - 1974
T - 1986
T - 1998

– 5 –
Warranty
For The Period Of: We Will Replace:
One Year Any part of the washer which fails due to a defect in materials or workmanship. During this
From the date of the full one-year warranty, GE will also provide, free of charge, all labor and related service costs to
original purchase replace the defective part.
Second Year Any part of the washer which fails due to a defect in materials or workmanship. During this
From the date of the additional one-year limited warranty, you will be responsible for any labor or related service costs.
original purchase
Third through Fifth Year The suspension rod and spring assembly, and main electronic control board if any of these parts should
From the date of the fail due to a defect in materials or workmanship. GE will also replace the washer lid or cover if they
original purchase should rust under operating conditions. During this additional three-year limited warranty, you will be
responsible for any labor or related service costs.
Third through Tenth The direct drive motor and outer washer tub if any of these parts should fail due to a defect in materials
Year From the date of the or workmanship. During this additional eight-year limited warranty, you will be responsible for any
original purchase labor or related service costs.
Lifetime of Product The washer basket if it should fail due to a defect in materials or workmanship. During this product
From the date of the lifetime limited warranty, you will be responsible for any labor or related service costs.
original purchase
A ll warranty service provided by our Factory Service Centers or
an authorized Customer Care®technician. To schedule service,
on-line, 24 hours a day, visit us at www.GEAppliances.com or
call 800.GE.CARES (800.432.2737).
■ Service trips to your home to teach you how to use the
product.
■Improper installation, delivery or maintenance.
■Failure of the product if it is abused, misused, or
used for other than the intended purpose or used
commercially.
■ Replacement of house fuses or resetting of circuit
breakers.
■ Damage to the product caused by accident, fire, floods
or acts of God.
■ Incidental or consequential damage caused by possible
defects with this appliance.
■ Damage caused after delivery.
What Is Not Covered:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the
USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Proof of the original purchase date is
needed to obtain service under the warranty.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult
your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
Note: The LCD screen is part of the main electronic board and under the 5 year part warranty. The inverter
board is covered by a 2 year part warranty.

– 6 –
General
The GE Profile Harmony Washer is part of the GE
Profile Harmony Clothes Care system utilizing the
latest developments in washing technology.
The Harmony Washer
does not use the typical
agitator found on
conventional washers.
Instead, the direct
drive motor, capable of
spinning at 1010 rpm,
and the 304 stainless
steel wash basket create
a centrifugal force that
pulls wash water through fabrics for a thorough
cleaning action. (See Operation Overview.)
Harmony Washers also utilize an automatic load
sensing system to determine load size and water
levels. The washer automatically fills the wash
basket with the appropriate amount of water
needed for optimal wash performance.
Other features include:
Communication Link to the Dryer - The washer
uses a serial cable to automatically inform the
dryer about the nature of the wash load, essentially
presetting the dryer controls so the user doesn’t
have to.
Auto-Balance Suspension - The washer is
programmed to correct out of balance situations.
(See Operation Overview.)
Flow-ThruTM Dispensers - Each of the four dispensers
is timed to release at the right time during the wash
cycle. Each reservoir is flushed with water to pre-
dilute the product before adding it to the washer.
This flushing action removes all product to help keep
the compartment clean and free flowing.
Note: The bleach dispenser fills during the main
wash to dispense the bleach and refills during the
rinse cycle to flush any remaining bleach from the
reservoir.
Overview
Direct Drive Motor - The washer does not use a
transmission or mechanical brake. Direct drive
technology results in fewer moving parts for
smooth, quiet operation. (See Motor Assembly.)
InfusorTM Wash - The washer has specific cycles
that aid in mixing the detergent/water solution, and
dispersing the load evenly in the wash water. (See
Operation Overview).
LCD Touch Screen Display - All washer control
functions, cycles, troubleshooting, and field service
diagnostics are accessed through a touch screen
display. The washer can also be powered up by
touching anywhere on the touch screen or any key
on the keypanel.
Centrifugal Wash - The washer uses a centrifugal
washing action to clean clothes instead of an
agitator. The basket spins, creating a strong flow of
water under the centrifugal force. As water passes
through the fabric, its natural cleansing action
washes away dirt without damaging or tangling the
fabric.
Plastic Top & Backsplash - The washer top and
backsplash have UV stabilizers to prevent yellowing
when exposed to sunlight.
Sales Demo Mode
Press HOME and MY CYCLES simultaneously for
three seconds to enter into the sales demonstration
mode.
This mode allows the user to view a wash cycle. The
Demo Mode will last approximately 11/2minutes. To
exit the Demo Mode, press HOME and MY CYCLES
simultaneously for three seconds or disconnect the
power to the machine.
Harmony Clothes
Care System
START
DEMO LEARN
MORE TRYTHE 
CONTROLS
TheWasher Talks, The Dryer Listens
The Result is Better Clothes Care

– 7 –
Throughout this manual, features and appearances may vary from your model.
Control Features
P
O
W
E
R
M
Y
C
Y
C
L
E
S
B
A
C
K
H
E
L
P
START
STOP
H
O
M
E
Features of
the washer
control panel
1 POWER.Press to “wake up” the display.
If the display is active, press to put the washer
into standby mode.If there is no screen
activity for 5 minutes the display will turn off.
You may also press the Touch Screen or any
button to “wake up” the display.
NOTE:Pressing POWER doesnot
disconnect the appliance from the
power supply.
2 MY CYCLES.Press to use, create, rename,
modify or delete custom wash cycles.
3 BACK.Press to return to the previous screen.
4 TOUCH SCREEN.Press the graphics on the
interactive display to use the washer features.
Do not use sharp objects to press the
Touch Screen.
NOTE:If the washer is inactive for
5 minutes, the Touch Screen will go into
standby mode, and the display will be dark.
Press the Touch Screen or any button to
“wake up” the display.
5 HOME.Press to return to the “TOUCH
TO SELECT WASH CYCLE” screen
(Home Screen).
6 START/STOP.Press to start a wash cycle.
If the washer is running, pressing once will
pause the washer.Press again to restart the
wash cycle.
NOTE:If the washer is paused and the
cycle is not restarted within one hour, the
washer will enter standby mode and the
current wash cycle will be canceled.
7 HELP.Press to set machine preferences,
to find help using the Touch Screen or
to find troubleshooting tips for common
washer problems.

– 8 –
Quick Start
BY COLOR BY GARMENT
TOUCH TO SELECT WASH CYCLE
BY
FABRIC SPECIAL
CYCLES STAIN INSPECTOR
SUMMARY SCREEN
0:50
TIMEOPTIONS
SOIL
NORMAL
WASH ACTION
CYCLE
COTTONS
TEMP
START
STOP
Home Screen
Getting
Started
If the Touch
Screen is dark,
press POWER
or the Touch
Screen to access
the wash cycles
menu.
Loosely load clothes no higher than the top
row of holes in the washer tub.Overloading
may reduce washer efficiency and possibly
increase wrinkling.
Add a low-sudsing, high-efficiency detergent.
Add diluted fabric softener, bleach or
pretreat additives as desired.
Select one of the five wash methods from
the Home Screen:
• Press BY COLOR to wash according to
fabric color.
• Press BY GARMENT to wash according
to clothing type.
• Press BY FABRICto wash according to
fabric type.
• Press SPECIAL CYCLES to wash non-
garment items, or to select a rinse and
spinor spin-only cycle.
• Press STAIN INSPECTOR to wash items
with specific types of stains.
After selecting a wash method, use the
Touch Screen to select a specific wash cycle
to match your load.
Change any of the automatic settings,
if desired, by pressing the Touch Screen
and following the on-screen instructions.
By changing the settings you can:
• Remove heavier soil.
• Change the water temperature.
• Change the wash action to Vigorous,
Normal, Delicate or Hand Wash.
• Set a Delay Start, Extended Spin, Presoak
or Extra Rinse, or change the End-of-Cycle
Signal volume.
• Adjust time settings.
Close the lid and press START.
The washer will not fill unless the lid is
closed.
After you press START, a Cycle Status screen
will appear to indicate what stage of the cycle
the washer is in and the time remaining in
the cycle.

– 9 –

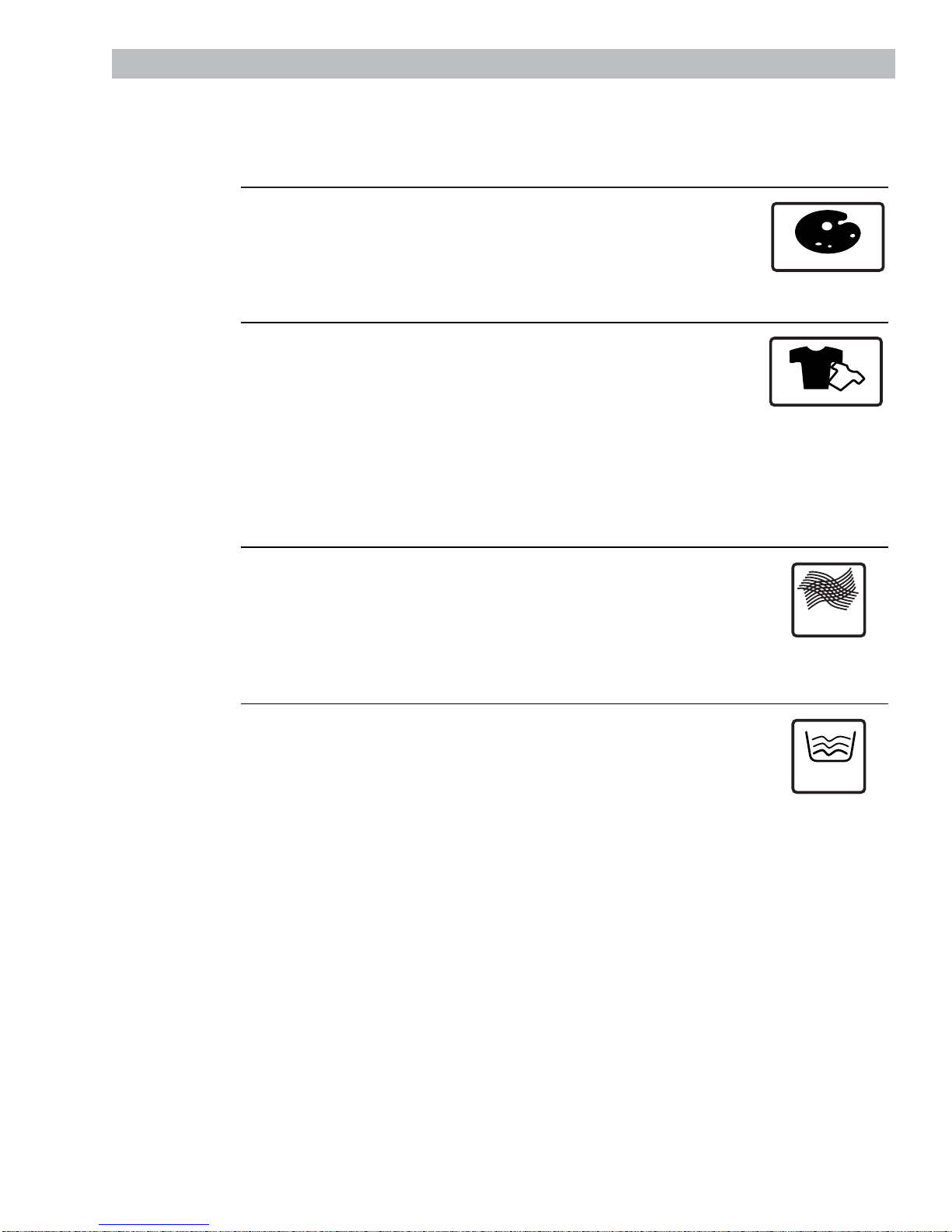

Wash Cycles
Washingby
Color
If the Touch Screen is dark, press POWER or the Touch Screen to access the wash cyclesmenu.
The default cycle settingsare based on standard load types. Alwaysfollow the fabric manufacturer’s
care label when laundering.
• Bright/Dark
Colors
• Light Colors
• Mixed Colors
• New Colors
• Whites
BY COLOR
Washingby
Garment
Type
• Athletic Wear
• Blouses
• Delicates
• Dress Shirts
• Easy Care
• Everyday
Wear/Casual
• Jackets/Coats
• Jeans
• Khakis
• Knits
• Lingerie
• Mixed Garments
• Play Clothes
• Sweaters
• Swimwear
• Underwear
• Silks (Washable)
BY GARMENT
Select By Color to wash loadssorted by color.*
COLOR CYCLES include:
Select By Garment to wash loadssorted by garment type.*
GARMENT CYCLES include:
Washingby
Fabric Type
• Blends
(on some models)
• Cottons
• Delicates
• Easy Care
(on some models)
• Knits
• Polyester
• Silks (Washable)
BY
FABRIC
Select By Fabric to wash loadssorted by fabric type.
FABRIC CYCLES include:
Washing
Usingthe
Special Cycles
• Blankets (Cotton)
• Blankets (Other)
• Comforter
• Energy-Plus
• Handwash
Woolite®HE
• Hosiery/Bras
(use mesh bag)
• Pet Bedding
(Washable)
• Quick Wash
• Rinse and Spin
• Sheets
• Sneakers
• Spin Only
• Super Clean
• Throw Rugs
(Washable)
• Towels
• Washable Wools
SPECIAL
CYCLES
Select SPECIAL CYCLES to wash loadsof nongarment itemsor to
select a rinse and spin or spin-only cycle.
SPECIAL CYCLES include:
* After communication occurs from the washer to the dryer, the dryer may ask for additional
“FABRIC TYPE” information.

– 10 –
Stain Inspector
Washing
Usingthe
Stain
Inspector
The Stain Inspector provides pretreatment
tips and optimum washing for specific types
of stains.
You select the specific stain, fabric type and color,
and the washer creates the wash cycle for treating
the stain.
1Press STAIN INSPECTOR.
2Read and follow the instructions on the
Touch Screen before treating the fabric.
3Select FOOD/DAIRY/COOKINGfrom
the list of stain categories and select
CHOCOLATE from the list of stains.
You can find additional stain categories and
stains by pressing MORE in the lower right
corner of the Touch Screen.
4Press the HELP button to find pretreatment
information for the specific type of stain.
5Select COTTONS from the list of fabric
types, and select WHITES from the list
of colors.
6Fill the detergent tray with a low-sudsing,
high-efficiency liquid detergent such as
Tide®HE.Fill the Pretreat tray with
the proper pretreatment additive.
7Place the stained garment(s) in the washer
first; then add the rest of the load.For best
stain removal, only wash items with stains
matching your selection.
8Press START.
The washer will run a Pretreat presoak cycle
prior to the main wash cycle.
NOTE:For some stain cycles, the water
temperature for the presoak cycle may not be
the same as the water temperature for the main
wash cycle.
IMPORTANT:Check to make sure the stain
is completely removed before placing the
garment in the dryer.
STAIN
INSPECTOR
Example:Washinga chocolate-stained, white cotton shirt
OK
1) REFER TO FABRIC CARE LABEL FOR
INSTRUCTIONS. USE HELP FUNCTION
FOR ADDITIONAL STAIN TIPS
2) TEST STAIN REMOVAL TIPS ON HIDDEN
AREA OF FABRIC
3) DO NOT PUT STAINED ITEM INTO DRYER
(STAIN MAY BE SET INTO FABRIC)
BEFORE
TREATING
FABRIC
CHOCOLATE
- ADD AN ENZYME CONTAINING LAUNDRY
DETERGENT, LIKE LIQUID TIDE HE(R)
TO THE PRE-TREAT DISPENSER AND A
HIGH EFFICIENCY DETERGENT TO THE
DETERGENT DISPENSER.
MORE
CHOCOLATE
BABY FORMULA
COOKING OIL
BUTTER/
MARGARINE
ANIMAL FAT
FOOD/DAIRY/COOKING
Detergent Tray
PRETREAT
Tray
MORE
CHOCOLATE
BUTTER
MARGARINE
MAYONNAISE
SALAD
DRESSING
TOMATO-BASED
FOOD/DAIRY/COOKING
Appearance may vary.
or

– 11 –
Stain
Selections
Below is a listing of the stain selections available
on the washer Touch Screen.For additional
information on handling these types of stains,
visit the Tide®Stain Detective at
www.tide.com/staindetective.
Beverages
• Alcoholic beverages
• Coffee
• Fruit juice, Other
• Grape juice
• Hot chocolate
• Kool-Aid®
• Milk
• Soda, colored
• Tea
• Water
• Wine, white
• Wine, red
School/Office/Home
• Adhesive tape
• Ballpoint ink
• Crayon
• Fabric softener
• Glue (synthetic)
• Glue
(white/common)
• Mildew
• Paint (water-based)
• Paint (oil-based)
• Pencil mark
• Rubber cement
• Shoe polish
• Wite-Out®
Food/Dairy/Cooking
• Animal fat
• Baby formula
• Barbecue sauce
• Blueberry
• Butter/margarine
• Chocolate
• Cooking oil
• Cream/cheese sauce
• Egg
• Frozen
Popsicle®/JELL-O®
• Gravy
• Grease
• Maple syrup
• Mayonnaise
• Milk
• Mustard
• Pudding
• Salad dressing
• Soy sauce
• Tomato-based
• Vegetable oil
Heavy Oils/Grease
• Gasoline
• Motor oil/Lube
• Ointment/Salve
Outdoor
• Carbon
• Clay
• Dingy white socks
• Grass
• Mud/dirt
• Rust/iron
• Tree sap
Personal
• Baby stains
• Blood
• Medication, general
• Mouthwash
• Perspiration
• Urine/Feces
• Vomit
Cosmetics
• Chap Stick®
• Deodorant/
antiperspirant
• Lipstick
• Lotions
• Makeup (oil-based)
• Makeup (water-
based)
• Nail polish
Specialty Stains
• Adhesive tape
• Asphalt/tar
• Ballpoint ink
• Glue (synthetic)
• Pine sap (on some
models)
• Rubber cement
• Silly Putty®
• Tree sap (on some
models)
Waxes
• Candle wax
• Chap Stick®
• Crayon
Stain Selections (not all selections are available on all models)

– 12 –

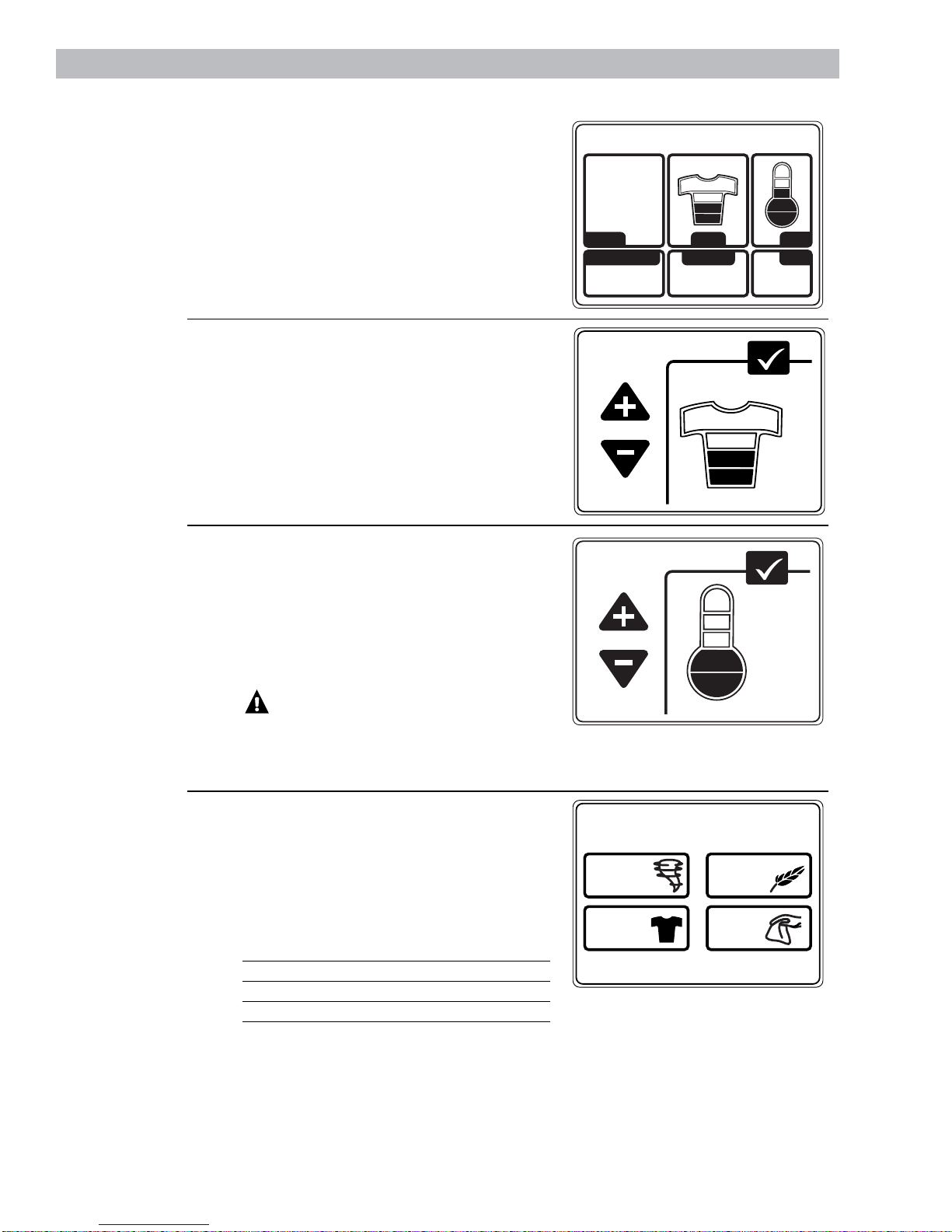

Summary Screen
SUMMARY SCREEN
0:50
TIMEOPTIONS
SOIL
NORMAL
WASH ACTION
CYCLE
COTTONS
TEMP
About the
Summary
Screen
After selecting a wash cycle, the Summary Screen
displays the automatic settings for the cycle you have
chosen.You can adjust these by touching the screen
location for any of the settings shown.
If you change any of the automatic settings, you can save
the new settings as a custom “My Cycle” by pressing the
MY CYCLES button and choosing SAVE CURRENT
SETTINGS.
SOIL LEVEL
MORE SOIL
LESS SOIL
HEAVY
LIGHT
OK
Changingthe
Soil Level
Changing the soil level increasesor decreasesthe wash
time to remove different amountsof soil.
To change the soil level, touch SOIL on the Touch
Screen; then use the arrows to select more or less soil.
Press OK when you have reached the desired setting.
TEMPERATURE
HIGHER
LOWER
COLD
OK
Changing
the Wash
Temperature
Changing the temperature changesthe wash and
presoak temperaturesonly.The final rinse will always
be a cold rinse.
Follow the fabric manufacturer’s care label when
selecting the wash temperature.
To change the wash temperature, touch the TEMP pad
on the Touch Screen; then use the arrows to select a
higher or lower temperature.Press OK when you have
reached the desired setting.
CAUTION: On some cycles the
temperature can be set at VERY HOT.This setting
utilizes the washer’s internal heater which will extend the
wash time.When using the VERY HOT temperature
setting, do not put hands in the water.
WASH ACTION
NORMAL
VIGOROUS DELICATE
HAND
WASH
Changingthe
Wash Action
Changing the wash action changesthe wash and spin
speedsof the cycle.
Always follow the fabric manufacturer’s care label when
changing the wash action.
To change the wash action, touch WASH ACTION
on the Touch Screen; then select the desired setting.
Typically, slower spin speeds result in less water removed
from clothes.
Wash Action Wash Speed Spin Speed*
Normal Medium Fast
Vigorous Fast Fast
Delicate Slow Slow
Hand Wash** Extra Slow Extra Slow
* The slower the spin speed the less likely wrinkles
will be set in the clothes.
**Use a low-sudsing, high-efficiency, gentle liquid
detergent such as Woolite®HE.

– 13 –
OPTIONS
ADDITIVES
MIN 15
PRE
SOAK
DELAY
START HR
1
EXTENDED
SPIN
SIGNAL
EXTRA
RINSE
OK
About the
Wash Options
The Wash Optionsallow youto set optionsfor the
current wash cycle only.After youhave made all
desired changes, press OK.
Delay Start – Use to delay the start of your washer.
Press DELAY START to change the delay time.
Presoak – Soaks the clothes before beginning the
wash cycle.Press PRESOAK to change the soaking
time.
Additives– Appears ONLY AFTER a presoak has
been selected.Uses the contents of the Pretreat
dispenser tray for a presoak.When selected, the
washer will drain after the presoak and fill again for
the wash cycle.Press ADDITIVES to specify if you
will NOT be using a Pretreat additive or if you do
not want the washer to drain after presoak.
Extra Rinse – Adds an additional cold rinse to the
end of the wash cycle.
Signal – Alerts you that the cycle is complete.The
clothes should be removed when the beeper goes
off so wrinkles won’t set in.Touch SIGNAL to
select the volume or to turn the beeper off.The
new volume will be saved as the default setting.
Extended Spin – Increases the length of the spin
time to extract more water from your clothes.
NOTE:The water level will vary depending on the
load size and type.The washer uses adaptive filling
and load sensing to provide the appropriate water
level for effective and efficient wash performance
and energy usage.
NOTE:Water may not cover the top level of the
clothes.This is normal for high efficiency washers.
The water fill is optimized by the system for better
wash performance.
ADJUST TIME SETTINGS
EXTENDED SPIN
CYCLE TIME DELAY TIME
Adjustingthe
Time Settings
Youcan adjust the length of the wash cycle by
changing the cycle time, adding a Delay Start
or adding an Extending Spin.
Cycle Time – Press CYCLE TIME; then use
the arrows to select more or less time.
Delay Time – Use to add a Delay Start to the
beginning of the wash cycle.Press DELAY
TIME; then set the DELAY START time in the
OPTIONS menu.
Extended Spin – Increases the length of the spin
time to extract more water from your clothes.Press
EXTENDEDSPIN; then select EXTENDEDSPIN
from the OPTIONS menu.
NOTE:After the wash cycle begins, you will not
be able to change the Cycle Time or Delay Time.
The washer will beep twice if you try to change
the times after the cycle begins.
YES NO
ARE YOU USING
PRESOAK ADDITIVES ?
Summary Screen
*Note: The Pre-Soak cycle can be set for 15
minutes, 30 minutes, 45 minutes, and 1 to 8
hours. To advance the pre-soak time, press
the PRE-SOAK key until the desired time is
reached. After the washer fills, it agitates
for 5 minutes. After 5 minutes it stops and
soaks for the set pre-soak time. After the pre-
soak times out, the washer drains and spins,
then refills for the remaining wash cycle.
*

– 14 –
My Cycles
About the
“My Cycles”
Feature
The “My Cycles” feature allowsyouto create,
store and reuse up to 6 custom cycles. Create
your own cycles from scratch, or adjust the
settings of a predefined wash cycle, then save
for one-touch recall.
Creating
andUsinga
“My Cycle”
Youcan create “My Cycles” two ways, by either
modifying a predefined wash cycle or creating
a cycle from your own combination of settings
and options.
To build your own “My Cycle” from the
Home Screen:
1Press the MY CYCLES button.
2Select CREATE from the Touch Screen
menu.
3Choose whether you want to modify a
predefined cycle or create a new cycle.
4If you are modifying a predefined cycle,
select the wash cycle you wish to modify.
5Change any of the automatic settings and
select any options.
6Press SAVE on the Touch Screen.
7Using the keypad on the Touch Screen, type
the name of your “My Cycle” and press OK.
To begin using your new “My Cycle” right
away, select it from the Touch Screen menu
and press START.
To save a current cycle asa “My Cycle” from
the Summary Screen:
1After setting a wash cycle, or after a wash cycle
has just completed, press the MY CYCLES
button.
2Select SAVE CURRENT SETTINGSfrom
the Touch Screen menu.
3Using the keypad on the Touch Screen, type
the name of your “My Cycle” and press OK.
To begin using your new “My Cycle” right
away, select it from the Touch Screen menu
and press START.
To use a “My Cycle” from the Home Screen:
1Press the MY CYCLES button.
2Select USE from the Touch Screen menu.
3Select the cycle name from the Touch Screen
menu.
4Change any of the automatic settings and
select any options.
5Press START.
MY CYCLES
CREATE RENAME
USE MODIFY
DELETE SAVE CURRENT
SETTINGS
M
Y
C
Y
C
L
E
S
MY CYCLES
CREATE RENAME
USE MODIFY
DELETE
Modifying,
Renamingor
Deletinga
“My Cycle”
To modify the settingsof a “My Cycle” from
the Home Screen:
1Press the MY CYCLES button.
2Select MODIFY from the Touch Screen
menu.
3Select the cycle name from the Touch Screen
menu.
4Change any of the automatic settings and
select any options.
5Press SAVE on the Touch Screen.
To delete a “My Cycle” from the Home Screen:
1Press the MY CYCLES button.
2Select DELETE from the Touch Screen
menu.
3Select the cycle name from the Touch Screen
menu.
4Choose YES to delete the cycle or CANCEL
to return to the list of “My Cycles.”

– 15 –
My Cycles
Consumer Help Screens
To rename a “My Cycle” from the
Home Screen:
1Press the MY CYCLES button.
2Select RENAME from the Touch Screen
menu.
3Select the cycle name from the Touch Screen
menu.
4Using the keypad on the Touch Screen, type
the name of your “My Cycle” and press OK.
TROUBLE SHOOTER
MACHINE
PREFERENCES HOME SCREEN
HELP
About the
Help Feature
Pressing the HELP button from the Home Screen
allowsyouto locate troubleshooting tipsfor
common washer problems, to find help with using
the Home Screen or to set machine preferences.
Pressing the HELP button while on any other
screen allows you to find additional information
on features found on that screen.Press HELP;
then touch any pad on the Touch Screen for an
explanation of that feature.To exit the feature,
press HELP once to return to the previous screen
or twice to exit Help.
TROUBLE SHOOTER
PRESS DESCRIPTION FOR POSSIBLE CAUSES
NO INFUSOR OR BASKET MOTION
MACHINE MOVES BEFORE WATER FILL
FILLING AND DRAINING AT THE SAME
TIME
SPORADIC FILL
NO FILL OR SLOW FILL
Usingthe
Troubleshooter
To locate Troubleshooting Tipsfor common
washer problems:
1Press the HELP button.
2On the Touch Screen, select TROUBLE
SHOOTER.
3On the Touch Screen, select the problem
description from the list.You can use the arrows
at the right of the screen to scroll up and down
through the list of additional problems.
4On the Touch Screen, select a possible cause
for the problem and follow the on-screen
instructions to find a solution.
FindingHelp
Usingthe
Home Screen
Pressing the HELP button, then selecting HOME
SCREEN HELP allowsyouto find additional
information on featuresfound on the Home
Screen.Touch any pad on the Touch Screen for
an explanation of that feature.To exit the feature,
press the BACKbutton.

– 16 –
Consumer Help Screens
The machine settings on the Help feature
allow you to control the volume of the button beep
and end-of-cycle signal, and turn the washer/dryer
communication feature on or off.
Button Beep
The button beep controls the volume of the beep that
is made when you press any of the buttons or the
Touch Screen.
To change the volume of the button beep:
1From the Home Screen, press the HELP button.
2Select MACHINE PREFERENCES from
the Touch Screen.
3Select BUTTON BEEP from the Touch Screen.
4Use the arrows to make the volume louder
or softer, or to turn the beep off.
5Select OK from the Touch Screen.
The new volume is now saved as the default setting.
Washer/Dryer Communication
Washer/Dryer communication allows your washer to
send cycle information to your dryer to create a dry
cycle that matches your wash load.
After the wash cycle is complete, communication
begins once either the washer or dryer Touch Screen
is activated or washer lid is up.
Once the information is sent, your dryer will create
the optimal dry cycle for your load.
If you have sorted your wash load by color or garment
and therefore selected color or garment on the
washer Touch Screen, upon transferring the
information to the dryer, the dryer will ask you to
select the fabric type.This is normal, and is done to
properly optimize drying time for the just-washed
load.After selecting the fabric type, the dryer display
screen will be shown.After reviewing, press START.
If the dryer display screen is off and you want to
use the “Washer Recommended Cycle” to dry your
clothes, touch the display screen on the dryer to
activate.You will have a “Washer Recommended
Cycle” button appear on your dryer Home Screen.
Push it for retrieving the recommended dryer cycle
for the just-washed load.
To turn the Washer/Dryer Communication feature on
or off:
1From the Home Screen, press the HELP button.
2Select MACHINE PREFERENCES from
the Touch Screen.
3Select WASHER/DRYER COMMUNICATION
from the Touch Screen.
4Touch the pad at the bottom of the Touch Screen
to select ON or OFF.
5Select OK from the Touch Screen.
End-of-Cycle Signal
The End-of-Cycle signal alerts you when the cycle is
complete.
To change the volume of the end-of-cycle signal:
1From the Home Screen, press the HELP button.
2Select MACHINE PREFERENCES from the
Touch Screen.
3Select ENDOF CYCLE SIGNAL from the Touch
Screen.
4Use the arrows to make the volume louder
or softer, or to turn the signal off.
5Select OK from the Touch Screen.
The new volume is now saved as the default setting.
Language
The language button allows the user to switch
between English and Spanish.
To change the language:
1From the Home Screen, press the HELP button.
2Select MACHINE
PREFERENCES/PREFERENCIAS DE LA
MÁQUINA from the Touch Screen.
3Select LANGUAGE/IDIOMA from the Touch
Screen.
4Select either ENGLISH or ESPANOL from the
Touch Screen.
5Select OK from the Touch Screen.
MACHINE PREFERENCES
LANGUAGE BUTTON BEEP
END OF CYCLE
SIGNAL WASHER/DRYER
COMMUNICATION
Settingthe
Machine
Preferences

– 17 –
Operation Overview
Basic Wash Cycle
Note: See Component Locator Views for identification
and location of washer components.
After a load is placed in the basket, the user selects
the appropriate wash cycle on the LCD touch screen
and presses START.
Cycle time and wash patterns will vary depending
on user time adjustments, soil level adjustments,
fabric type, and wash-load weight.
Dry Load Sensing
Before an initial fill, the infusor rotates the dry
clothes load. This rotation is controlled by the
inverter which measures the amount of time it
takes for the motor to coast to a stop. The larger
the clothes load, the less momentum the motor is
capable of generating, so the faster it will stop. The
infusor will rotate back and forth up to four times.
This information is used to determine the initial
water fill level.
Water Fill
The washer automatically fills to the proper
level based on the load sensing measurements.
Depending on the cycle chosen and the quantity
of clothes, there are 27 possible water levels. This
information is stored in memory for the final rinse at
the end of the wash cycle. Water levels are matched
to load size using approximately one-third less
water than typical top load washers.
Note: The washer can use as little as 17.5 gallons of
water for small loads and has an average water use
of 27 gallons per load.
Wet Load Sensing
After the first fill, the infusor and basket lock
together and rotate to measure the clothes load.
During this time, the motor momentum is measured
again. The washer compares this information to
the previous dry load sensing measurements and
determines if additional water is required.
Note: Dry load and wet load sensing are used on all
cycles except the following:
SNEAKERS
COMFORTERS
BLANKETS (OTHERS)
BLANKETS (COTTONS)
THROW RUGS (WASHABLE)
The SNEAKERS cycle defaults to the minimum water
level. BLANKETS, THROW RUGS and COMFORTERS
cycle default to the maximum water level.
Wash Water Temperature
During the fill, the washer monitors and regulates
wash water temperatures within 5°F (-15°C) of
the target temperature. This accuracy is achieved
using a thermistor, located in the outer tub, which
monitors the tub water temperature during the fill
cycle.
Based on information received from the thermistor,
the inverter controls the hot and cold inlet valves
to achieve the desired wash temperature. (See
Thermistor/ATC Control Auto Temp.)
Target Water Temperatures:
Very Hot - 140°F (60°C)
Hot - 112°F (44.5°C)
Warm - 80°F (26.5°C)
Cold - 63°F (17°C)
Tap Cold - Consumer’s incoming water
temperature.
During the fill, the basket slowly rotates in a
clockwise direction. This action mixes the detergent
and water to assure proper distribution and assure
the thermistor is reading an accurate basket water
temperature.
Basket Wash
The infusor and wash basket lock together and
rotate clockwise and then counterclockwise.
This action mixes the detergent and water while
distributing the clothes evenly in the wash water.
The basket wash speed is based on fabric type and
load size. Delicate fabrics are gently rotated while
heavier fabrics are rotated more vigorously.

– 18 –
As water passes through the fabric, its natural
cleansing action washes away dirt without
damaging or tangling the fabric.
Water
Current
Fabric Soil
Infusor Wash
Following the centrifusion wash cycle, the basket
and infusor unlock. The infusor rotates to evenly
distribute the wash load while continuing to clean.
The redistribution of fabrics helps ensure that the
lint and dirt do not become trapped.
Spin
The infusor and wash basket lock together. The
basket spins very slowly at first. This allows dirty
wash water and lint to drain through the holes in the
bottom of the basket before a higher spin begins.
When the washer senses that the excess water has
drained, the wash basket accelerates to a higher
speed.
Spin speeds are adaptive to fabric type that is
selected by the user on the LCD touch screen. They
can be as slow as 350 rpm for hand-wash items
and up to 1010 rpm for heavier items. The spin is
designed to extract as much water and detergent as
possible without harming fabrics.
Note: During the spin cycle, excessive suds can
cause excessive torque on the motor. If the washer
detects this condition, it will run through the rinse,
drain, and spin cycle (up to three times) in an
attempt to eliminate the suds.
Note: The washer is programmed to correct out of
balance situations during spins. If the washer senses
an out of balance load, the spin is stopped. The
washer then refills to allow the infusor wash cycle to
redistribute the load before starting the spin again.
The washer attempts to rebalance the load three
times before optimizing the spin to a lower speed
where balance is sustainable.
Spray Rinse
The infusor and wash basket turn at a slow speed
while fresh, clean water is added to the wash load.
The spin cycle then drains this rinse water and
prepares the wash load for a final rinse.
Final Rinse
The washer retrieves the information it gathered
for adaptive fill cycle and uses that information to
refill the washer for the final rinse. Cold water enters
the basket through the fabric softener dispenser
to dilute the softener into the basket and rinse the
dispenser clean. The wash basket fills to the optimal
level and goes into a basket wash cycle where the
clothes and fabric softener are mixed thoroughly. A
final spin finishes the cycle.
Note: All rinse cycles use cold water and the
Automatic Temperature Control (ATC) is not used.
The cold rinse is the same temperature as the
incoming cold water supply.
After several seconds of clockwise spinning, the
basket slows down and stops. The wash water pools
back into the wash basket. The wash basket starts
spinning in the counterclockwise direction creating
the same cleaning action. The washer will change
direction (up to four times) before going to the next
cycle.
Centrifusion Wash
The locked infusor and wash basket begin a
clockwise spin (figure 1). The speed of the spin is
customized to the load type and fabric type. As the
basket spins faster, it creates a strong flow of water
under the centrifugal force (figure 2).

– 19 –
Wash Cycle Chart Example
User Selection of Cycle
Dry Load Sensing
Water Fill
Wet Load Sensing
Wash Process
Spin and Drain*
Spray Rinse
Final Rinse
Centrifusion Wash
Infusor Wash
Spin and Drain
Spin and Drain
Basket Wash
Adjust Water Fill (only if needed)
Adjust Water Temp
*Spin Information
Maximum spin speeds will vary depending on the cycle:
Hand-wash 350 rpm
Delicate 500 rpm
Normal 1010 rpm
Vigorous 1010 rpm
• The Delicate cycle ramps up to maximum speed by first
spinning at 400 rpm, pausing, then increasing speed to
500 rpm.
• Normal and Vigorous cycles ramp up to maximum
speed by first spinning at 400 rpm, pausing, increasing
rpm to 750, pausing, then increasing speed to 1010
rpm.

– 20 –
Component Locator Views
Note: To operate the
washer with the lid
open, place a magnet
on the left front corner
of the top cover (in
front of the bleach
dispenser).
Bleach Water Reservoir
Infusor
Magnet
Tub Cover
304 Stainless Wash Basket
Additive Dispenser
Lid Switch
Balance Ring
Top Cover
Pressure Sensor
