Model No.: G6
User Manual
ROBOT VACUUM CLEANER
IMPORTANT：Read the instructions
carefully before operating the appliance
and keep them for future reference.

01
03
08
13
20
Table Of Contents
Safety Instructions
Product Components
How To Use
Cleaning And Maintenance
Troubleshooting
Scan the QR code for more
assistance and support
GeekSmart bids you welcome to a world of smart home devices, the
robot vacuum ceaner. GeekSmart strives to explore and develop the smart
home industry for the good of all by combining cutting-edge technologies to
develop products fit and ready for the market. Please visit our website
www.geektechnology.com.
Before use, please scan the QR codes to watch our easy step-by-step
installation video. If you have questions regarding the installation process,
please contact us by mail [email protected] or by
phone [phone].
welcome

Safety Instructions
01
Products cannot be used by children under 8 years of age or people with
mental disabilities. If these kinds of people need to use it, please do so under
the supervision of the guardian. Please do not let children ride on the product or
play with the product as a toy. Do not use the product in a room where infants
sleep.
Issues that may arise in cleaning products should be eliminated as early as
possible. Clean the power cords and small items on the floor to prevent the
product from being blocked during the cleaning process. Fold the edge of the
carpet to the underside of the carpet, and keep the hanging curtains, table-
cloths, etc from touching the ground.
If there is a suspended environment such as a staircase, test the product first to
see if it can detect the edge of the suspended area without falling. Protective
barriers should be installed at the edge of the suspended area to prevent falling
products. Make sure that the protective equipment does not cause personal
injury.
Please follow the manual in the instructions to use the product. Use only acces-
sories recommended or sold by the manufacturer.
Ensure that the power supply voltage meets the voltage indicated on the cradle.
Used only in indoor home environments. Do not use in outdoor, commercial or
industrial locations.
Use only original rechargeable batteries and charging docks that are unique to
the manufacturer. Do not use non-rechargeable batteries.
Ensure that dust boxes and filter materials are installed before using products.
Using the product in an environment with open flames or fragile items is prohibit-
ed.
It is forbidden to get human's hair、clothes、fingers or other body parts close to
the opening and operating parts of the product.
Do not use the product on wet or watery ground.
It is forbidden to absorb any items such as follows:
- stones, waste paper.
- flammable materials such as toner for printers or copies.
-cigarettes, matches, ash, or other items that may cause a fire.
Please read the manual carefully before using the product and keep this instruc-
tion for reference.
lmportant Safety lnstructions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.

Safety Instructions
02
Do not place any product that is burning at the suction outlet. Do not use
products when suction is blocked. Please clean the dust, cotton wool, hair, etc.
at the suction port to ensure smooth air circulation at the suction port. Use the
power cord carefully to avoid damage. Do not use the power cord to drag or
pull the product. Do not use the power cord as a handle. Do not clamp the
power cord into the door seam. Do not pull the power cord at sharp corners and
corners.
Do not use the product if the power cord, power outlet or charging stand are
damaged. Do not use the product when it is not working properly due to
dropping, damage, outdoor use or water ingress. To avoid injury, the product
should be repaired by the manufacturer or its after-sales service.
Turn o the product switch before cleaning and maintaining the product.
Before discarding the product, remove the product from the charge stand, turn
o the product power switch, and remove the battery. Even if the product has
been severely damaged, it is forbidden to incinerate the product, or the product
battery may cause an explosion. Please dispose of used batteries in accordance
with local laws and regulations.
If you do not use the product for a long time, please turn o the product.
Immediately dispose of packaging as it can pose choking
or other hazards to small children and pets.Please carefully
confirm the consistency between the picture and the real
components that correspond to the model you purchased.
CAUTION
14.
13.
15.
16.
17.

Product Components
03
Product Components
What’s in the Box
Robot Vacuum
Charging Base
Clean Brush
Power Adapter
Side Brushes X6
HEPAX 2
Remote Control (Optional)
Instruction Manual
IMPORTANT ：Read the instructions
carefully before operating the appliance
and keep them for future reference.
ModelNo.: G6
User Manual
ROBOT VACUUM CLEANER

PRODUCT COMPONENTS
04
Robot
Wifi Indicator Light
Bottom View
Unversial Wheel
Right Brush
Drive Wheels
Dust Box
Roller Brush
Assembly
Charging
Pole Piece
Lower
Vision Sensor
Left Brush
Key (Start or Pause)
Top View

PRODUCT COMPONENTS
05
Dust Box
Dust Box
Switch
Primary Filter
Dust Box
Upper Cover
Filter Sponge
Dustbin Key
Dust Box
Lower Cover
High Eciency
Filter (HEPA)
Infrared Sensors

PRODUCT COMPONENTS
06
Charging Base
Cleaning Tools
lndicator Light
Power Adapter
Power Adapter Slots
Power
Left
Stop/Start
Turbo
Spot cleaning
wall following
Return home
Forward
Right
Backward
Charging Pole
Piece
PRODUCT COMPONENTS

Install 2AAA batteries before using the remote control for the first time. Make sure the
positive and negative ends are facing the correct polarity direction as marked in the
battery compartment.
PRODUCT COMPONENTS
07
parameter
Product Model G6
100-240V/50-60Hz
30W
Li-ion 2500mAh
0.6L
Max.100 mins
Round 300 mins
DC 3V(AAA)
lnfrared
≤5M
100-240V/50-60Hz
19V/0.6A
lnput
Power Consumptiom
Battery Capacity
Dust Collector Capacity
Cleaning Time
Charging Time
Battery
Remote control method
Emitting and receiving distance
lnput
Output

How To Use
08
How To Use
Install The Side Brushes
Please install the right brush into
the right bottom mounting port
of the machine, the left brush
into the left botom mounting
port of the machine, andensure
that the two side brushes are in
place.
Connect the adapter to the charging stand.
Place the charging stand fiat against the wall.
Do not place objects in the lef and right 'M
and the front 2Mand do not have objects
with strongreflection surfaces such as
mirrors.
Charging Operation
Turn On The robot
Turn on the side power switch, “I”
is the turn-o.After the robot
finishes working, it is recommended
not to shut down; keep the robot in
a state of charge so that it can
perform its next job better.
1.
2.

Master Charge
Place the master in the charging stand and pay attention to the charging pole
piece.Turn on the power switch, the robot will enter standby mode.“ ” Red light
flashes indicates that the battery need to be charged.“ ” Blue light breathing light
flashes indicate charging.When the “ ” blue light is o means charging is complet-
ed.For the first use, please charge continuously for more than 6 hours.Note: Please
match the charging pole piece.
How To Use
09
3.
Please match the
charging pole piece

Please install the right brush into the right bottom mounting port of the machine, the
left brush into the left bottom mounting port of the machine, and ensure that the two
side brushes are in place.
Q : What should I do if the strength of vacuuming is weak?
A : First of all, check whether the dust bin is full and the robot is fully charged. For
litter that is dicult to collect, try to clean it with Spot Cleaning Mode.
Q:What if my charger has diculties charging the robot?
A : Please make sure you turn on the charging stand before charging and check if
the electrical sheet is connected to the charging stand( Put it backmanually or press
the Power button when the robot is 39.37 inch in front of the charging stand.)
Q : What if the robot can not find the charging stand?
A : The charging stand should be placed against the wall with at least 39.37 inch
clearance each side and 78.74 inch in front .Sometimes you can just put it back
manually.
Q: What should I do if the remote control is out of order?
A: 1. The remote control has an eective control distance of 196.85 inch.
Please make sure that the remote point to the robot .
2. Replace the battery with a new one if the battery has run out of capacity.
3. Please make sure the robot power switch is turned on and has sucient
power to complete the operation.
4. Please wipe the infrared emitter of the remote control and the infrared
receiver of the robot with clean towel.
Q: How long can the vacuum work when full charged?
A: The working time of the robot varies depending on the complexity of the
room, the amount of garbage and the cleaning mode.
How To Use
10
FAQ

How To Use
11

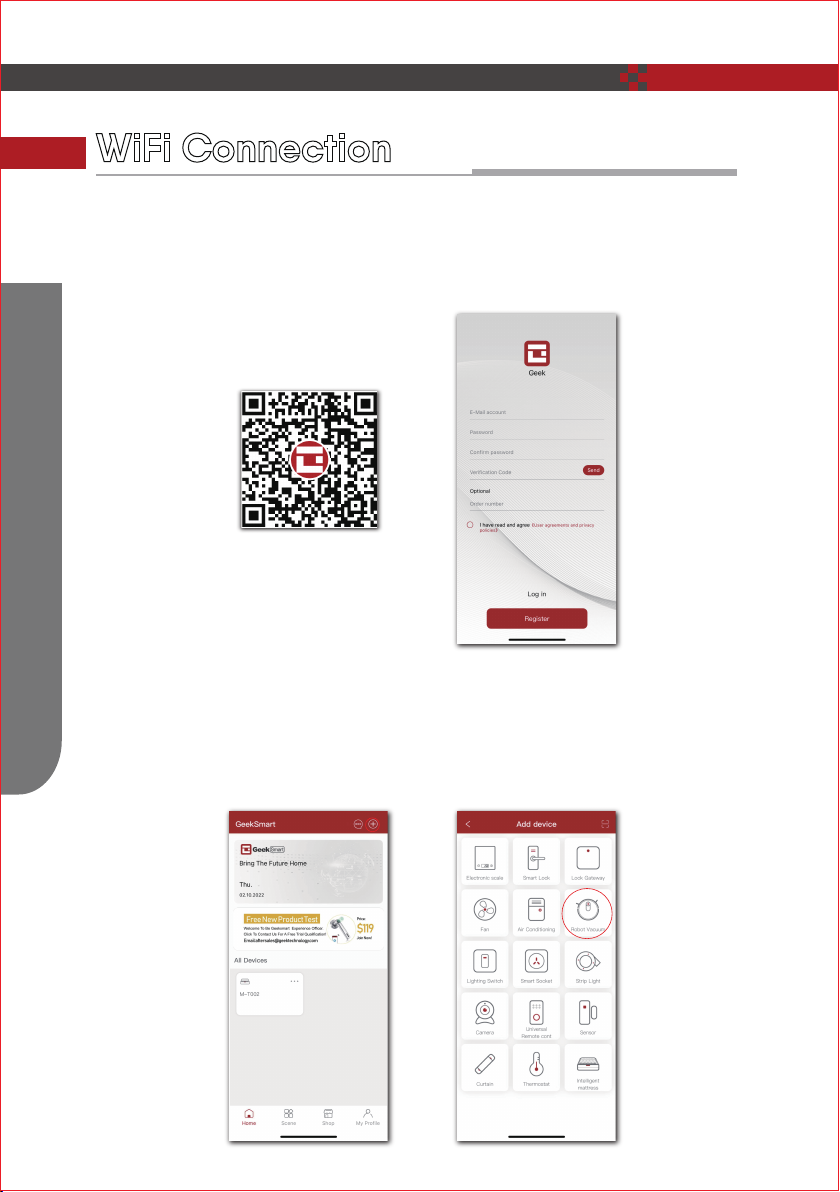

WiFi Connection
Please scan the QR code or search “GeekSmart” and download APP. After the
APP is installed . Please follow the APP instruction to register the account and
login.
Open the APP, click 【add device】or click the button 【+】and select the
“Robot Vacuum”，then click the model you bought.
1.
2.

3. Please make sure that the product is on (like the picture shows)
12
How To Use
4. Long press “ ” for 3 seconds, and then“ ” flashes, input the wi-fi account
and password.(only support 2.4Ghz wifi,5Ghz can not be connected.) A few
seconds later ,the product will be connected to your phone.

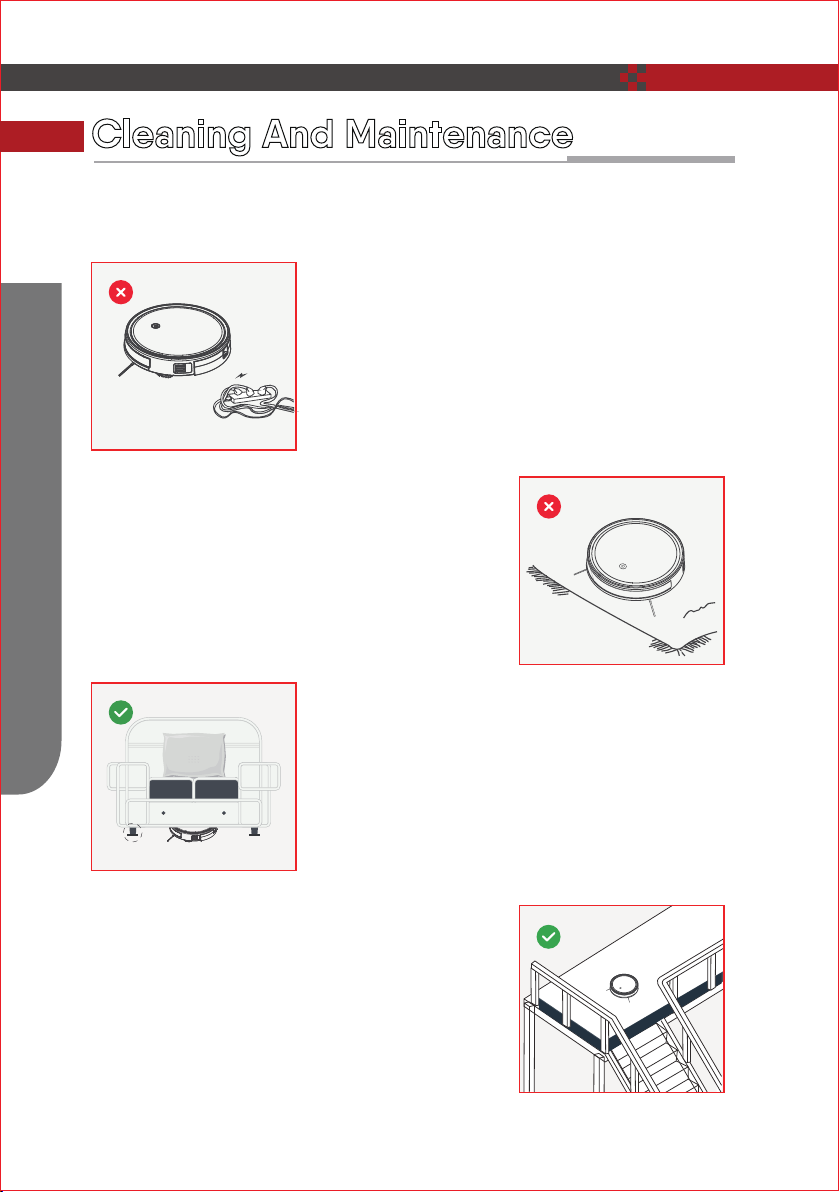

Cleaning And Maintenance
13
1. Power lines and other debris scattered on
theground may trip up the product, they
must be removed.
Please refer to the following guidelines to check the cleaning area before the
cleaner works.
2. Please roll the carpet tassels or let the
product work on short-hair rugs.
3. A gap of less than 3.2inch on the bottom
of the furniture may catch the product. If
you need to clean it, please remove the
furniture.
4. A guardrail should be placed at the
edge of the duplex toensure safe
operation of the product.
Cleaning And Maintenance

In order to adapt to diferent ground conditions and achieve deep cleaning.this
product has a variety of cleaning modes,which can be selected byremote control as
needed.
The remote control can switch any mode directly.
Before starting the mode, make sure that the“ ” outer ring of the
key is blue and the master“ ” is in the state of being awakened. lf the master does-
not wake up, short press the master to wake it up.
1. Start or stop by pressing the master’s “ ” key or the remote control's“ ” / “ ”
key.
lf you need to select another mode, please refer to the (Mode Selection) section.
Cleaning And Maintenance
14

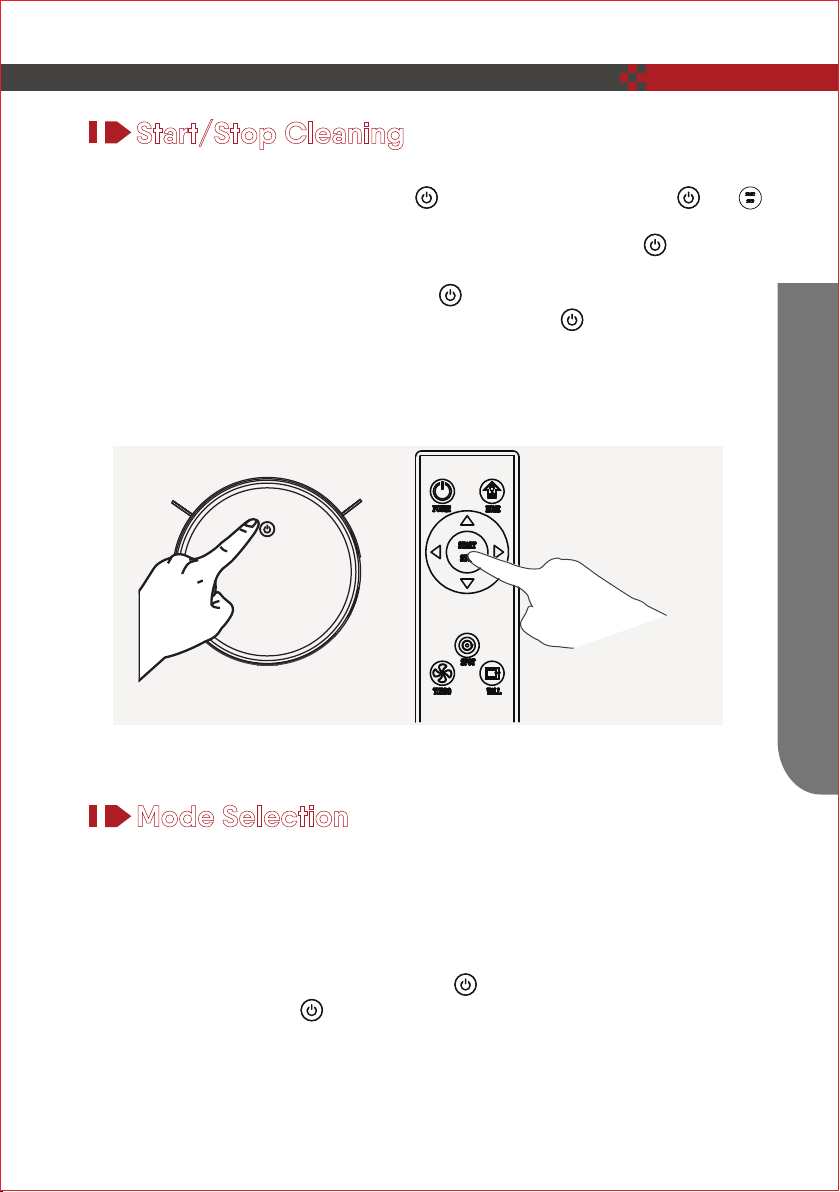

Start/Stop Cleaning
Mode Selection
Before starting the mode, make sure that the outer ring of the“ ” key is
blue and the master is in the state of being awakened.lf the master does
not wake up, short press the master“ ” to wake it up.The master enters
the sleep state after 10 minutes of standby, and the“ ” key light is o.
NOTE:
2.

Cleaning And Maintenance
15

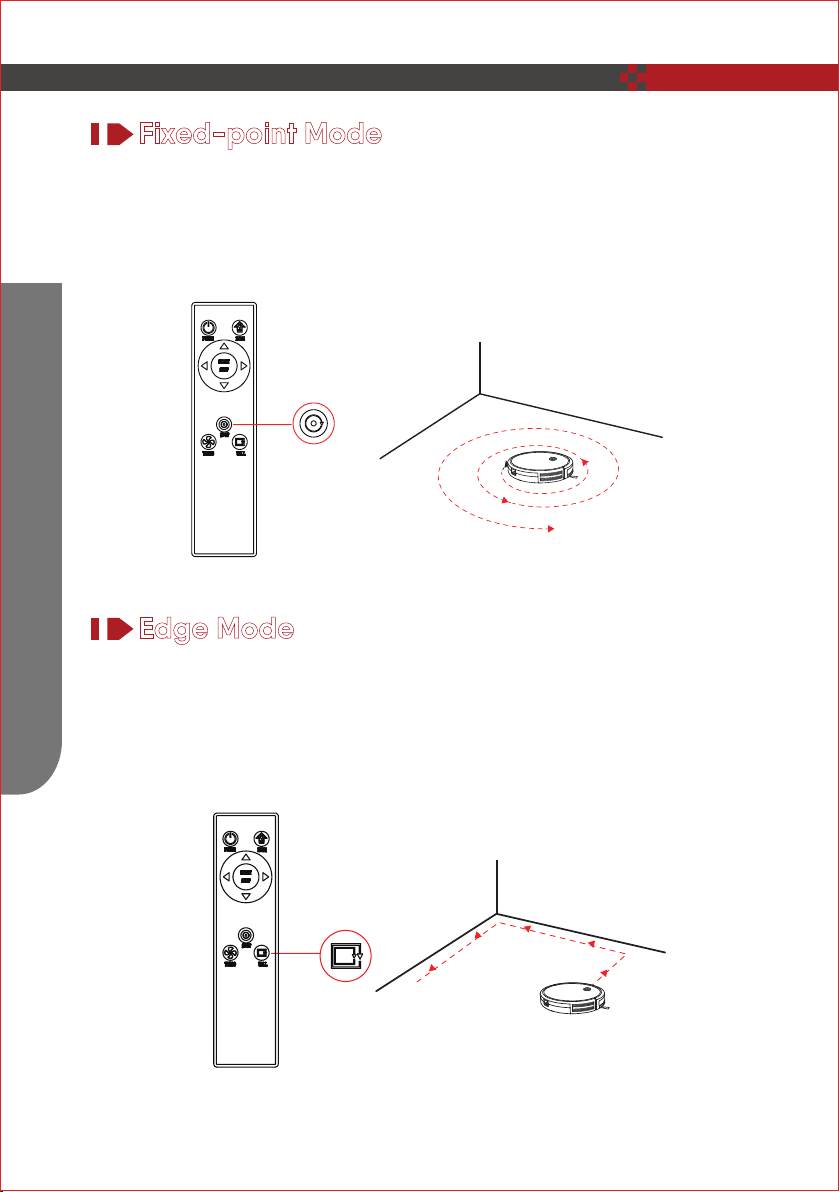

Fixed-point Mode
lt is suitable for the ground environment wherethe garbage is concentrated. The
mastercentralized cleaning in the designated area, and master centralized cleaning
with the “spiral” route.
Edge Mode
lt is suitable for cleaning at the corners of the room.The master is cleaned around
the periphery of a fixed object (such as a wall) andcleaned back to the charging
stand.

Cleaning And Maintenance
16

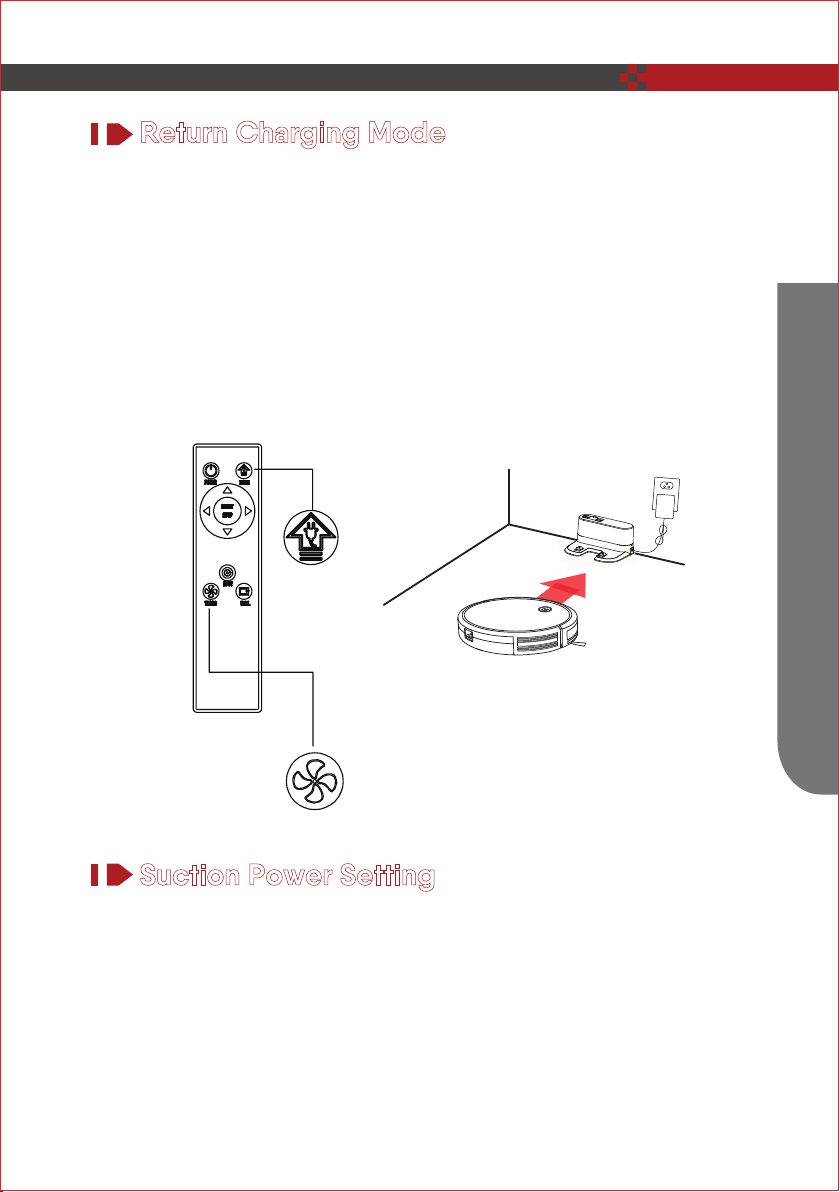

Return Charging Mode
During the cleaning process, the master can sense that its power isinsucient,and
automatically find the charging stand for charging.
You can press the “home” button or press the “power” button twice to makethe master
return to the charging stand for charging.
NOTE:
Suction Power Setting
Press the "Turbo” button on the remote control.
With three modes of suction power(Max/Standard/Low).Standard mode can be used
for dailycleaning while the Max mode would increase the suction and Low mode would
lower the noise.Low suction mode can be used for cleaning wood floor and tile floor,
standard mode for commonhousehold cleaning while the max mode can be used for
cleaning rugs.
In the regular cleaning mode, the maximum run time of the mastercould be
100 minutes while it would automatically return charging for nexttask if it has
completed present one.

Cleaning And Maintenance
17
Roller Brush Assembly and Cleaning
Remove the roller brush brush cover plate, remove the roller brush, cut of the hair
wound on it and then use the cleaning brush to clean it.
Set roller brush assembly: take out sucking assembly first, set the roller brush, cover
the board and press it to lock.
When cleaning and maintaining the master and its accessories, turn o the master
and unplug the charging stand.
1. Remove the dust box, open the dust box cover, and clean the garbage.
2. Remove dust filter.HEPA is not recommended for washing.Please pat and remove
ash.
3. Flush the dust box and the primary filter.
4. Dry the dust box and the dust filter assembly and keep it dry to ensure its service
life.
Dust Box and Filter
