INTRODUCTION
Thank you for purchasing the Home Theater Scaler.
The Home Theater Scaler supports two component sources with analog audio and two
HDMI sources with digital audio. The analog audio from the component input is digitized
and outputted to the HDMI connection as well as the digital audio outs. The HDMI inputs
also have separate digital audio inputs, so you can use DVI sources and separate digital
audio. The Home Theater Scaler will embed the digital audio into the HDMI output as well
as the digital audio outs.
The Gefen Home Theater Scaler allows you to upscale and switch your standard denition
or high denition component sources to resolutions up to 1080p. Anything from set-top
boxes, DVD players to the next generation of gaming consoles including the Xbox 360
and PS3 can be plugged into the Home Theater Scaler.
Note: The switching is done by using the RMT-SR-IR remote control. Any HDTV with DVI
inputs can be connected to the HDMI output of the Home Theater Scaler by using a HDMI
to DVI adapter, if the cable being used is DVI.
1
OPERATION NOTES
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE HOME THEATER SCALER
• The Home Theater Scaler works with all DVI and HDMI displays.
• The Home Theater Scaler is fully HDCP compliant.
• The Home Theater Scaler has a 15-foot limit on how far it can transmit the HDCP
(copyright protection) codes out of the HDMI output jack to the display. Connections to
displays at distances longer than 15 feet should use a true HDCP-boosting (repeating)
solution such as our CAT5-based HDMI signal extender devices (Gefen part number
EXT-HDMI-CAT5X). A simple add-on booster attached to the HDMI output cable will not
prevent signal loss.

2
FEATURES
Features
• Both digital and analog inputs are format converted and pixel re-scaled through the
Home Scaler. It outputs a large range of formats and resolutions that will easily match
the native resolution/ format of your display to ensure highest picture quality.
• DVI/HDCP/HDMI compliant input: Operates up to 165Mhz (Up to UXGA @60Hz)
• Supports digital HD output up to 1080p.
• Integrated 8-bit triple-ADC/PLL.
• Integrated DVI/HDCP/HDMI compliant receiver.
• Dual high quality scaling engines.
• Dual 3-D motion video adaptive de-interlacers with smooth low-angle edge.
• Automatic 3:2 pull-down & 2:2 pull-down detection and recovery.
• Operates through on-screen OSD menu control and remote control.
Includes:
(1) Home Theater Scaler
(1) 6 ft HDMI cable (M-M)
(1) 5V Power Supply
(1) IR Remote control
(1) User’s Manual

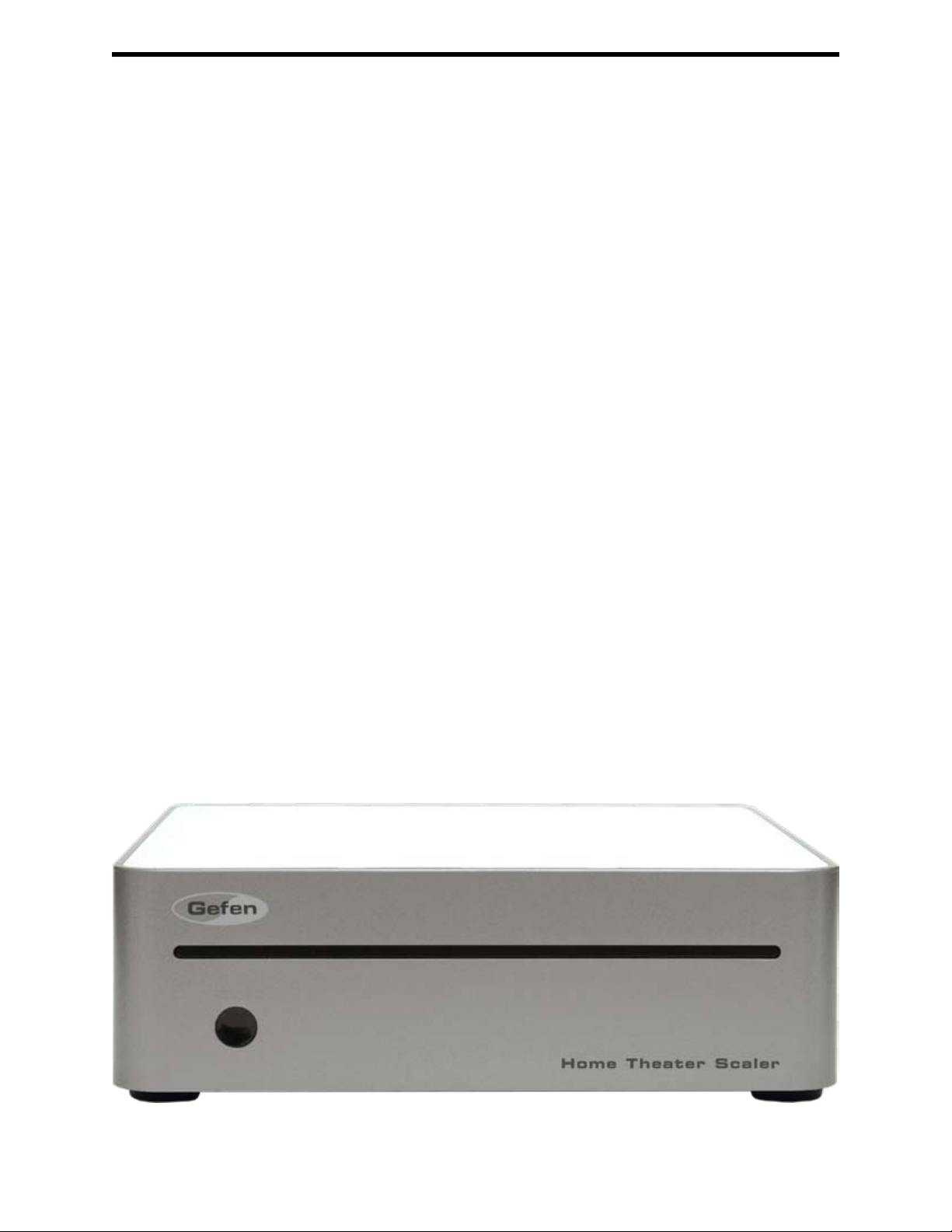

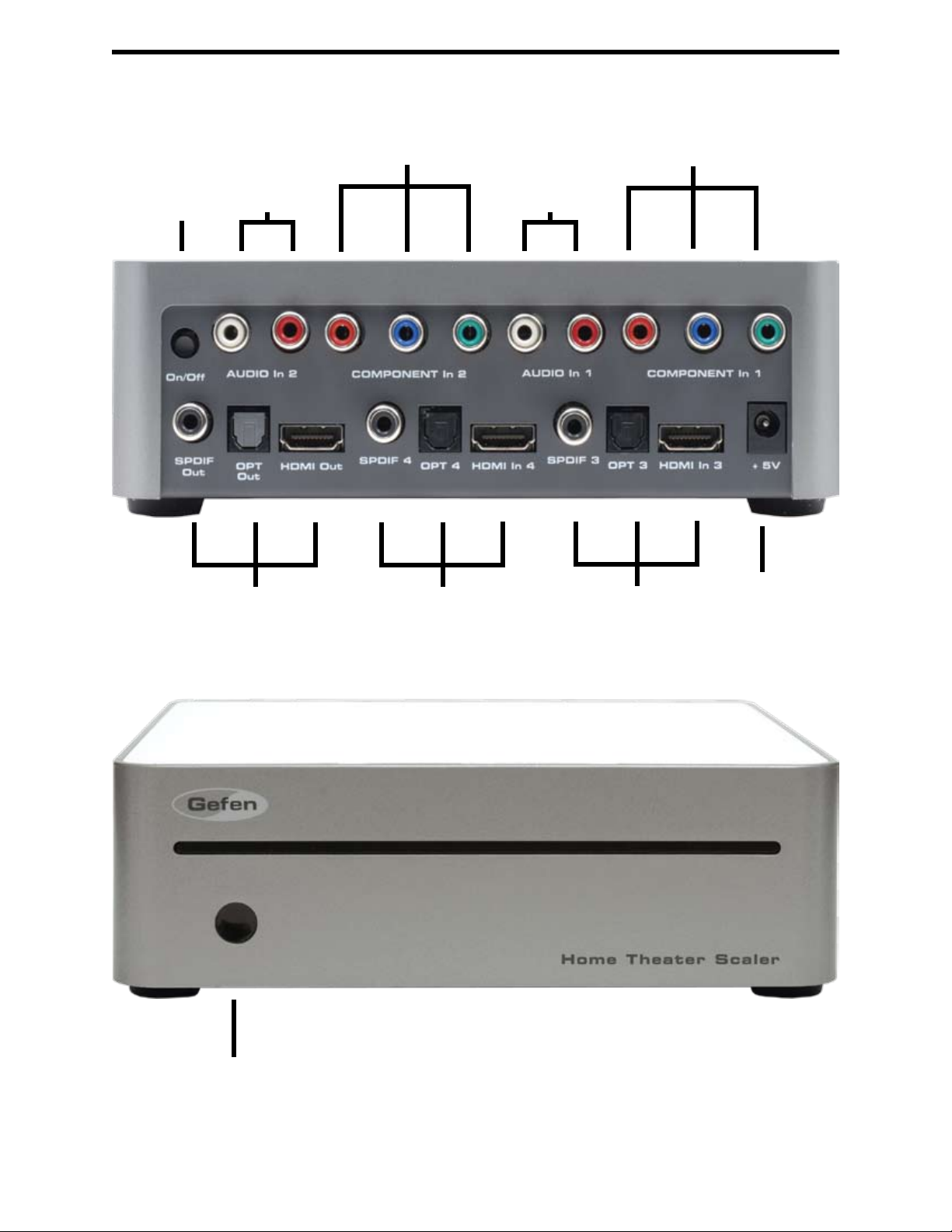

PANEL LAYOUT
3
Component Input 1
Component Input 2
Analog Audio
Input 1
Power
On/Off
Connects 5V
Power Supply
IR Eye
Analog Audio
Input 2
Digital Audio and
HDMI Output
Digital Audio and
HDMI Input 4
Digital Audio and
HDMI Input 3

OPERATION CONTROLS AND FUNCTIONS
HDMI INPUT: Digital VGA @ (60/72/75/85)/SVGA @ (56/60/72/75/85)
XGA @ (60/70/75/85) / SXGA @ (60/75/85) /
UXGA @ 60/WXGA @ (1280x800)
WSXGA @ 60(1680x1050)
WUXGA @ 60(1920x1200)/1360x768
480i/p @ 50/60Hz
576i/p @ 50Hz
720p @ 50/60Hz
1080i @ 50/60Hz
1080p @ 50//60Hz
COMPONENT YPbPr 480p @ 50/60Hz
576p @ 50Hz
720p @ 50/60Hz
1080i @ 50/60Hz
1080p @ 50//60Hz
YCbCr 480i @ 60Hz
576i @ 50Hz
When connecting to a component source (either SD or HD resolution) use a 3RCA to
3RCA cable to connect the YPbPr or YCbCr output of a DVD or Set Top Box to the
Y-Cb/Pb-Cr/Pr input connector of the Home Theater Scaler.
When connecting to a DVI source, use an DVI to HDMI cable (or adaptor) to connect
the DVI output of a STB or DVD to the HDMI input connector of the Home Theater
Scaler.
When connecting to a HDMI source, use an HDMl cable to connect the HDMl output of
a STB or DVD to the HDMI input connector of the Home Theater Scaler.
The Home Theater Scaler can automatically detect the input resolution of all four
inputs.
The Home Theater Scaler accepts component and HDMI inputs with audio on each.
The formats supported by these inputs are as follows:
4

After you power on the unit, press the menu button and it will bring up the main menu
as follows:
OPERATION CONTROLS AND FUNCTIONS
Video (or PC): When Video is selected, a sub menu as shown below, will come up.
5

OPERATION CONTROLS AND FUNCTIONS
Picture mode: There are 4 picture modes for the user to choose from.
User: Select to adjust to your favorite setting and store it.
Standard: Standard factory default setting for optimal display in a normal
environment.
Vivid: High saturation picture for optimal display in a bright room.
Movie: Picture for comfortable low brightness display in a dark room.
Scale: Select overscan when input source is SD or HD video to ensure no black
band around screen border. Select underscan when input source is PC
signal to ensure full picture content will fall within screen border.
Noise Reduction: This function only works when input is component, It will not work
for HDMI input. There are four settings that will Noise Reduction-Off, Low, Middle, and
High. The Noise Reduction will remove the noise that results from the analog to digital
conversion and digital scaling process.
H & V position: To adjust for the best horizontal and vertical position of the picture
in the screen.
User: Select to adjust to your favorite color temperature setting.
Normal: Normal color tone setting where white is pure white.
Warm: Warm color tone makes white a little reddish.
Cool: Cool color tone makes white a little bluish.
COLOR SETTINGS
6
Value of normal setting

OUTPUT SETTINGS
DVI/HDMI (up to 165 mhz) Resolution i/p* Format
480i 720x480 i RGBHV
480p 720x480 p RGBHV
576i 720x576 i RGBHV
576p 720x576 p RGBHV
720p @ (50/60) 1280x720 p RGBHV
1080i @ (25/30) 1920x1080 i RGBHV
1080p @ (50/60) 1920x1080 p RGBHV
VGA @ 60 640x480 p RGBHV
SVGA @ 60 800x600 p RGBHV
XGA @ 60 1024x768 p RGBHV
SXGA @ 60 1280x1024 p RGBHV
UXGA 1600x1200 p RGBHV
WXGA @ 60 1280x800 p RGBHV
WSXGA @ 60 1680x1050 p RGBHV
WUXGA @ 60 1920x1200 p RGBHV
* i: interlaced p; progressive
Native: When it is selected, the Home Theater Scaler will automatically adjust its
output timing to match the native timing of the display.
Output: The Home Theater Scaler can output a wide variety of PC and HD resolutions
as follows.
H. Position: Adjust the horizontal position of the OSD graphic.
V. Position: Adjust the vertical position of the OSD graphic.
Time out: Set a predetemined Time to turn off OSD menu on the screen.
Background: To select transparent or solid background of OSD graphic.
OSD ADJUSTMENT
Project: Show product model number.
Input: Show input resolution i.e. XGA.
Output: Show output resolution i.e. 720p.
Date: Show date of rmware version.
INFORMATION
7

USING THE HOME THEATER SCALER
1.
2.
3.
4.
8
Connect all the sources to the HDMI and/or Component Inputs to the Home
Theater Scaler.
Connect the HDMI/DVI displays to the DVI output, with the proper cable and/or
adapter, on the Home Theater Scaler.
Connect the 5VDC power supply to the Home Theater Scaler.

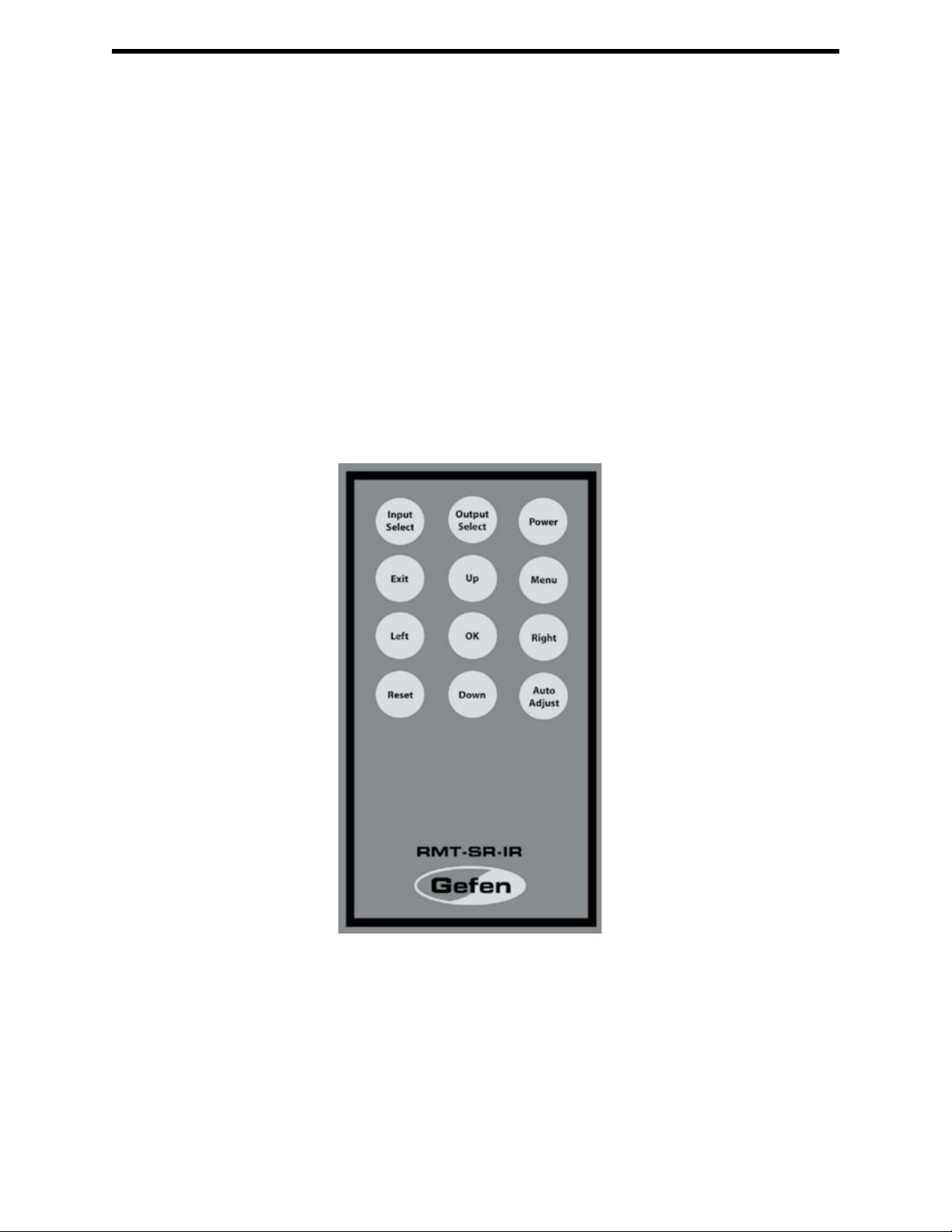

Controlling the Home Theater Scaler using the RMT-SR-IR:
By Pressing... Does...
input select changes between sources
output select changes between display outputs
power power the scaler on/off
menu bring up the on screen menu
exit allows user to exit the on screen menu
up,down,left,right allow user to navigate through menu
ok (enter) allows user to conrm their selection
rest press the button to reset the unit’s
rmware setting to the factory default value.
auto adjust press the button to optimize the
position of the picture (picture centering) on the screen.
*Note for computers connected to the Home Theater Scaler - When your com-
puter boots up, it looks for an EDID (extended display identication data) from the
display to tell it what monitor is connected and what resolution to output. During
boot up of the computer you should have the DVI input selected so that the com-
puter gets the EDID of the display that is selected.
This step can also be eliminated by using a DVI Detective.

9
RMT-SR-IR INSTALLATION
1. Remove battery cover from the back of the RMT-SR-IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up. The
side that is not marked must be facing down.
4. Test the RMT-SR-IR remote by pressing ONLY one button at a time. The indicator
light on the remote will ash once each time you press a button. WARNING: Do not
press multiple buttons simultaneously and do NOT press buttons rapidly. These actions
will cause the remote to reset and steps 1-4 will have to be repeated.
Note* The RMT-SR-IR ships with two batteries. One battery is required for operation,
the second battery is complimentary.

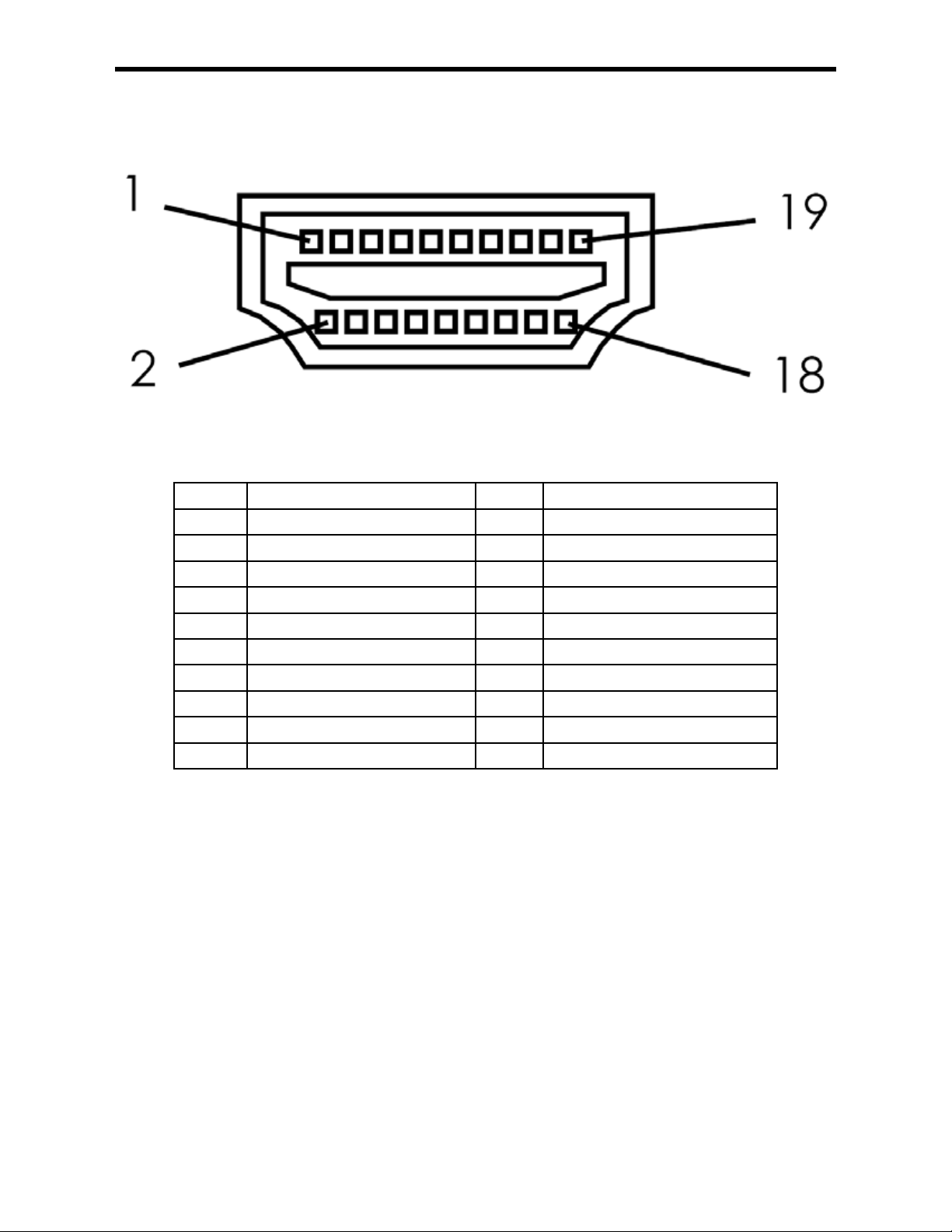

HDMI Output Pin Assignment
PIN CONFIGURATION
10
Pin # Function Assignment Pin # Function Assignment
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock-
13 CEC 14 Reserved (N.C. on device)
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect

Digital Video Amplier Bandwidth.......................................................................1.65 Gbps
Component Video Bandwidth................................................................................350 Mhz
Input DDC Signal......................................................................................5 volts p-p (TTL)
Input Video Signal...........................................................................................1.2 volts p-p
Single Link Range................................................................................1080p/1920 x 1200
Input/Output HDMI Connector............................................................type A 19 pin female
Component Video Connector...................................................................................3 RCA
Digital Audio Connector......................................................Optical TOSlink + Coax SPDIF
Analog Audio Connector...........................................................................................2 RCA
Power Supply...........................................................................................................5V DC
Power Consumption....................................................................................20 watts (max)
Dimensions..........................................................................6.875”W x 2.125”H x 6.875”D
Shipping Weight.........................................................................................................6 lbs.
SPECIFICATIONS
11

DDC
Short form for Display Data Channel. It is a VESA standard for communication between
a monitor and a video adapter. Using DDC, a monitor can inform the video card about its
properties, such as maximum resolution and color depth. The video card can then use
this information to ensure that the user is presented with valid options for conguring the
display.
DDWG
Digital Display Working Group DDWG are the creators of the DVI specication.
DVI
Digital Visual Interface. Connection standard developed by Intel for connecting computers
to digital monitors such as at panels and DLP projectors. A consumer electronics version,
not necessarily compatible with the PC version, is used as a connection standard for HDTV
tuners and displays. Transmits an uncompressed digital signal to the display. The latter
version uses HDCP copy protection to prevent unauthorized copying.
HDCP
High-Bandwidth Digital Content Protection. Created by Intel, HDCP is used with HDTV
signals over DVI and HDMI connections and on D-Theater D-VHS recordings to prevent
unauthorized duplication of copy written material.
HDMI
The High-Denition Multi-media Interface (HDMI) is an industry-supported, uncompressed,
all-digital audio/video interface. HDMI provides an interface between any compatible digital
audio/video source, such as a set-top box, DVD player, and A/V receiver and a compatible
digital audio and/or video monitor, such as a digital television (DTV).
HDTV
High-Denition Television. The high-resolution subset of our DTV system. The ATSC denes
HDTV as a 16:9 image with twice the horizontal and vertical resolution of our existing system,
accompanied by 5.1 channels of Dolby Digital audio. The CEA denes HDTV as an image
with 720 progressive or 1080 interlaced active (top to bottom) scan lines. 1280:720p and
1920:1080i are typically accepted as high-denition scan rates.
RS-232
Recommended Standard 232. This is the de facto standard for communication through PC
serial ports. It can refer to cables and ports that support the RS232 standard.
VESA
Video Electronic Standards Association, a consortium of manufacturers formed to establish
and maintain industry wide standards for video cards and monitors. VESA was instrumental
in the introduction of the Super VGA and Extended VGA video graphics standards with
a refresh rate of 70 Hz, minimizing icker and helping to reduce user eyestrain and
fatigue.
TERMINOLOGY
12
